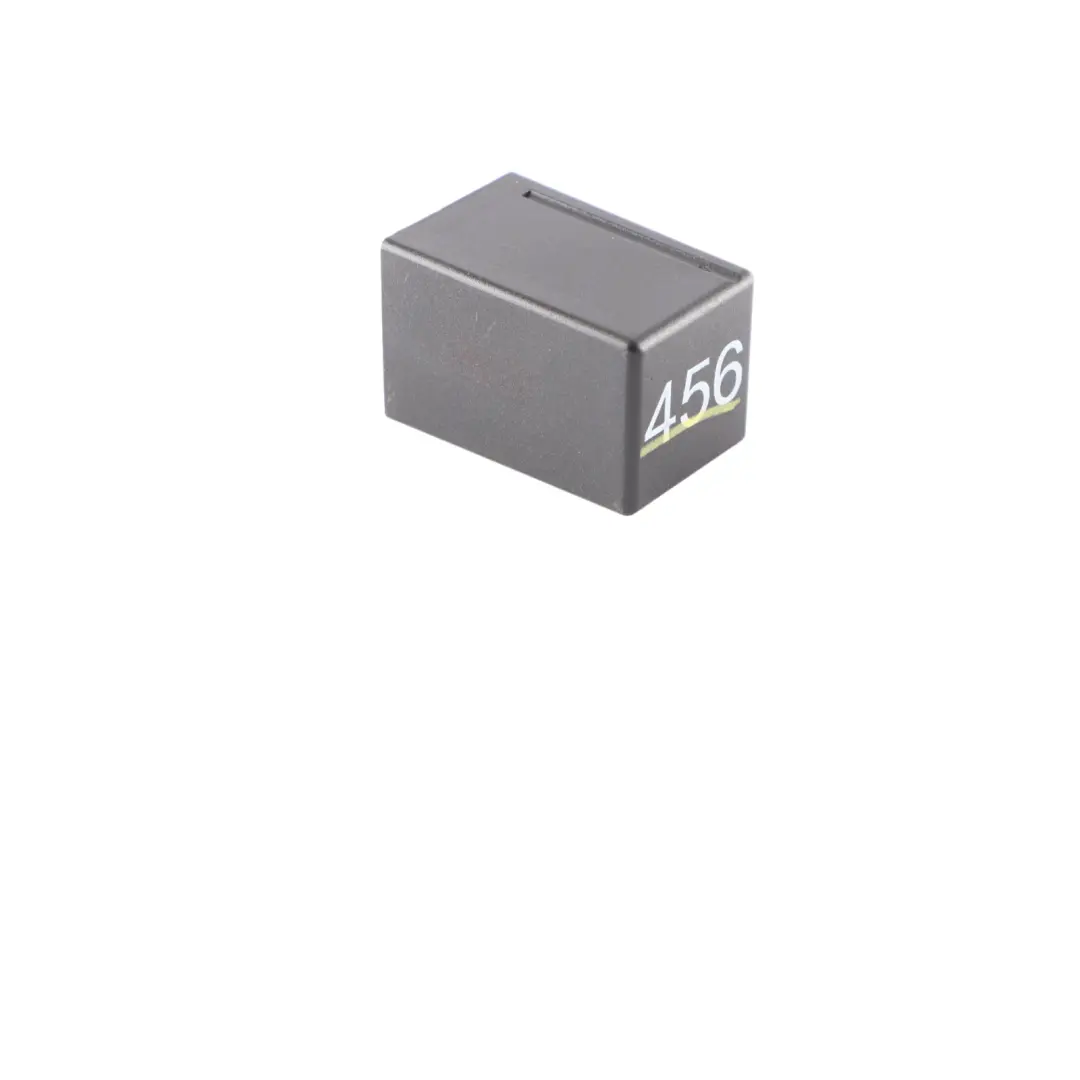

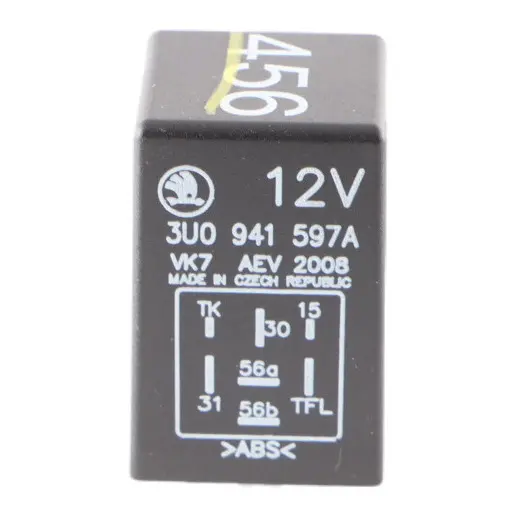

Seat Ibiza 6J Relay Black Control Unit 7 Pin 12V 3U0941597A

Seat Ibiza 6J Relay Black Control Unit 7 Pin 12V is a specialized component from the Relays category, designed to control the lighting circuit in a vehicle's electrical system. It enables stable operation of lights with a 12V power supply, ensuring proper load relief for the system and correct integration with the factory electrical setup. This solution is dedicated to users looking for a proven component with a design that meets the manufacturer's requirements.

Specifications and technical data

• SKU: 3U0941597A
• Mark: Seat
• Condition: Used
• OEM Part Number: 3U0941597A
• Substitutable numbers: 3U0941597A, 3U0 941 597 A
• Color: Black
• Rim width: 6
• Category: Relays

Purpose and function of the lighting relay

The described lighting relay is designed for operation in a 12V system, typical for passenger cars. The use of a 7-pin configuration allows for precise control of lighting circuits, while maintaining proper separation of control signals from power circuits. As a result, the vehicle's electrical system is less burdened, and switches and control modules operate under more favorable conditions.

In practice, such a relay is responsible for:

• switching lighting circuits using a low-current control signal,
• stable power supply to lights under varying system operating conditions,
• reducing mechanical wear of switches in the cabin.

Construction, connector, and performance parameters

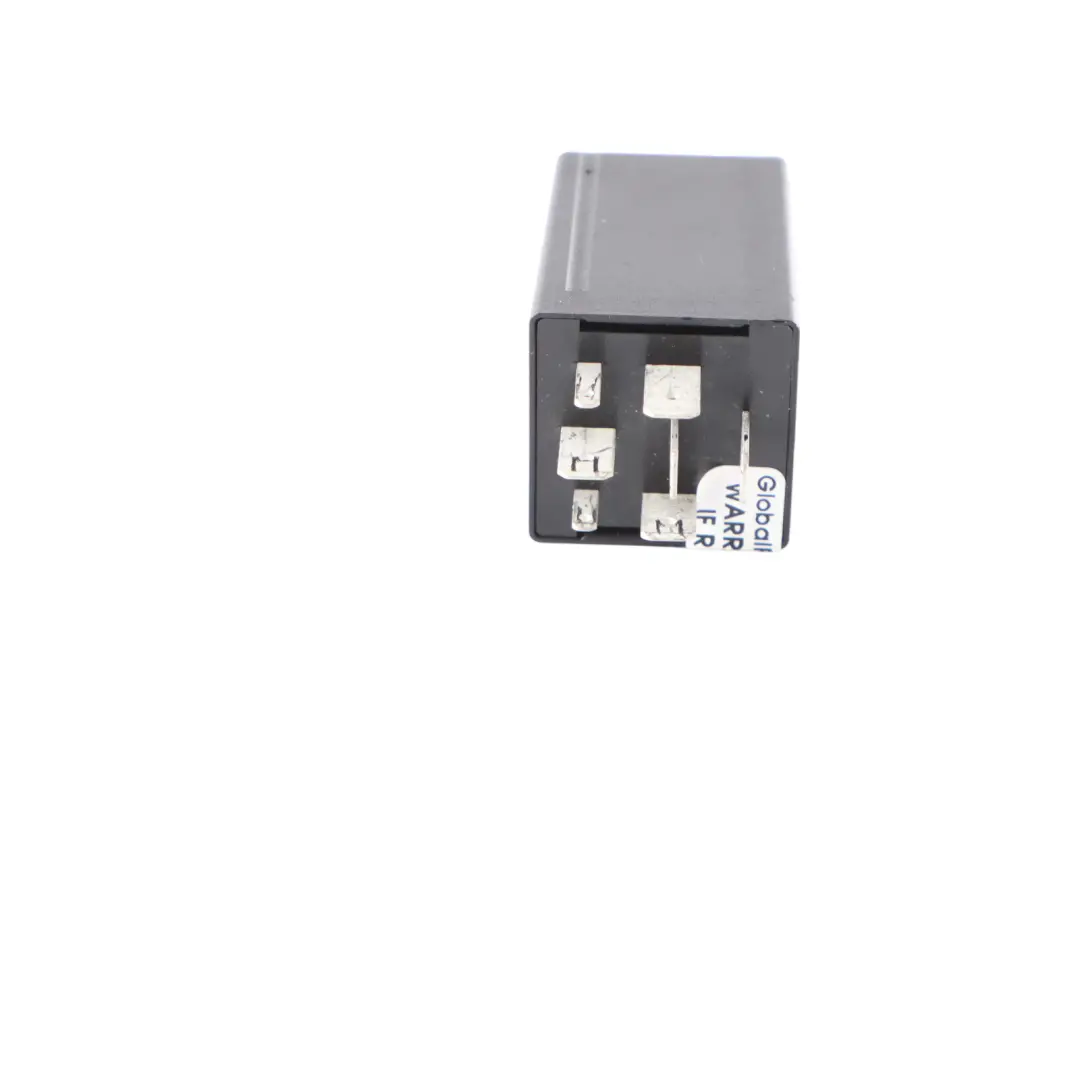

The relay uses a 7-pin connector, which facilitates clear assignment of individual pins in the vehicle's wiring harness. This configuration allows for the implementation of several functions in one compact module, which is typical for modern solutions used in city segment cars.

The black housing facilitates easy identification in the relay and fuse box, while also blending well with other installation components. The use of a standard 12V operating voltage enables direct compatibility with the factory electrical system without the need for additional modifications.

Condition, fitment, and service application

The item is offered as a used relay, which allows for an economical replacement of a damaged module while maintaining compliance with the manufacturer's factory solutions. This type of part is suitable both for typical lighting system repairs and for diagnosing power supply issues when it is necessary to substitute a functional component in place of one suspected of being faulty.

In a service context, the lighting relay is particularly useful when symptoms such as unstable lighting operation, lack of response to the light switch, or intermittent power loss to selected lamps occur. Replacing the module with a functional unit allows for quick verification of whether the relay system is the source of the problem.

Benefits of using an original Seat relay

Using a component from the Seat brand range helps maintain the consistency of electrical parameters with the rest of the vehicle's system. Properly selected current and voltage values, as well as contact operating characteristics, translate into predictable light performance and a lower risk of undesirable phenomena, such as excessive heating or arcing.

For the user, this means:

• more predictable operation of the lighting system,
• easier diagnostics in case of potential faults,
• compliance with factory service documentation.

System expansion and selection of other relays

If you are planning a comprehensive repair or upgrade of the electrical zone in your Seat and need other elements from the same group, such as lighting relays, fan relays, or pump relays, check the available parts in the Seat Relays category.
