Pistons and rings

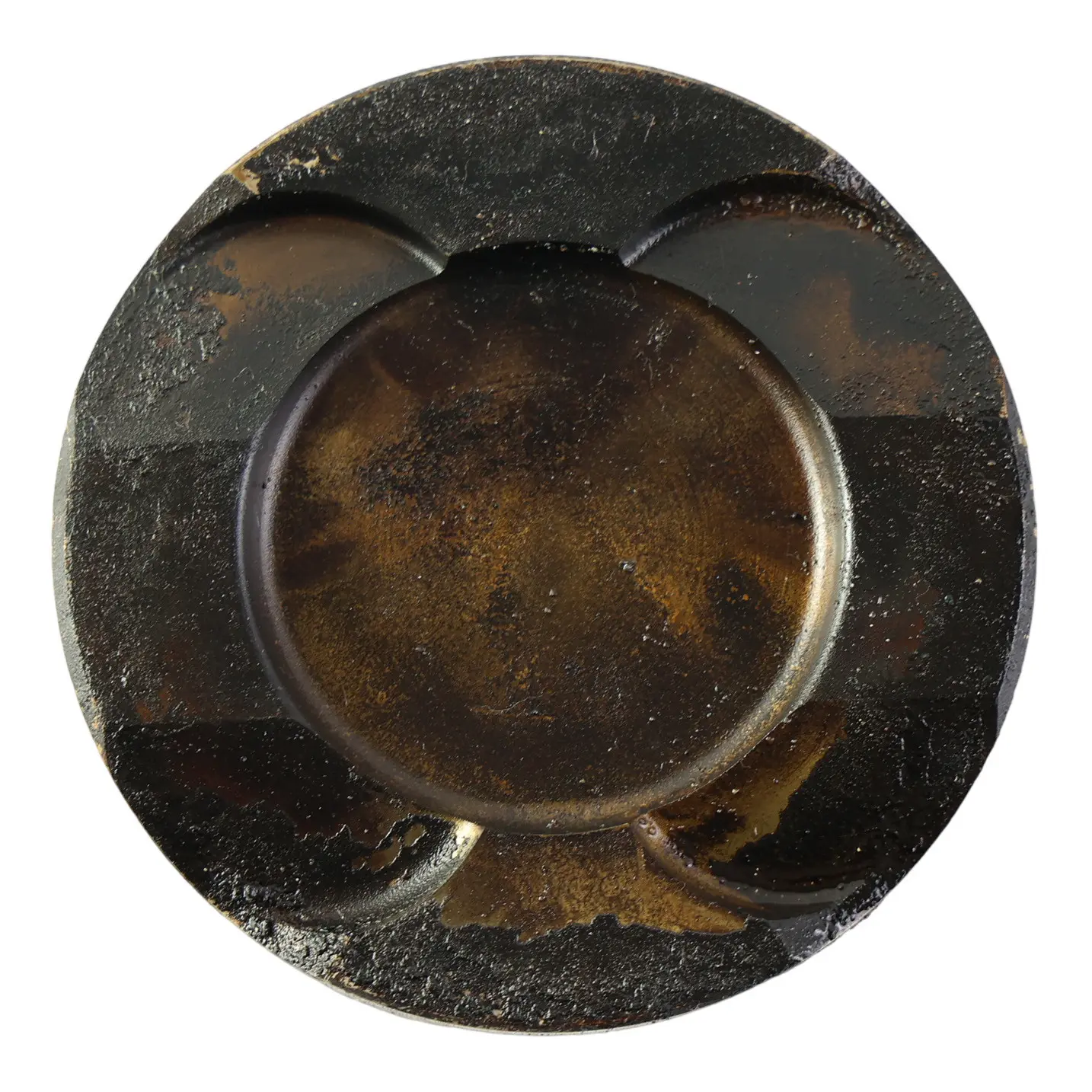

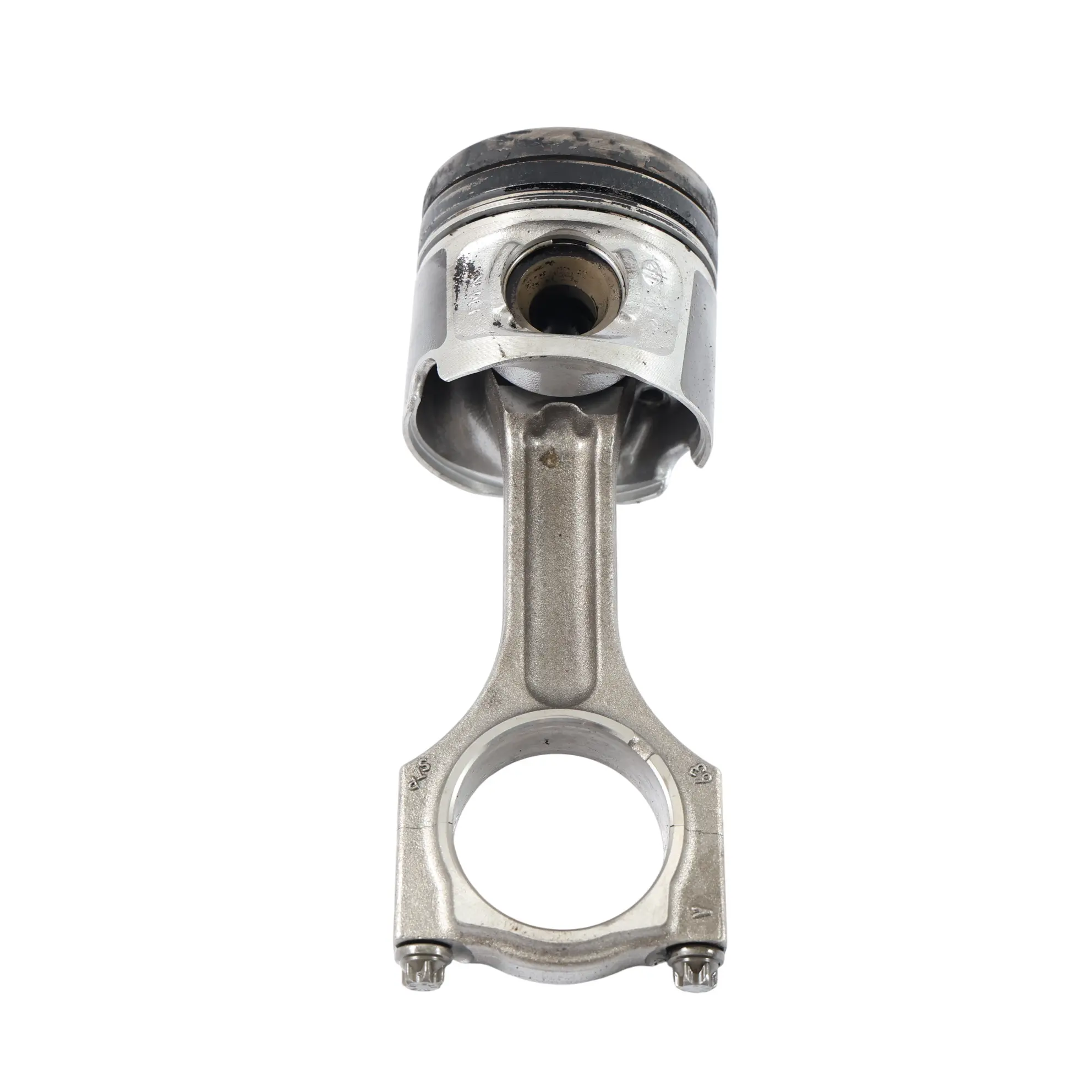

Pistons and piston rings are key components of any combustion engine, responsible for converting combustion energy into mechanical motion. They operate in extreme conditions where high temperatures and pressures require precision design and durability. At Global Parts, you'll find a wide selection of used car parts. , including pistons and piston rings, fitted to BMW , Audi , Mercedes , Volkswagen , Mini and others. An automotive piston is a cylindrical component, most often made of aluminum or aluminum-silicon alloys, that moves up and down within the cylinder. Its diameter (nominal diameter, e.g., 79–86 mm in popular 1.6–2.0 engines) and weight directly impact the smooth operation and balance of the crankshaft and crankshaft assembly. Piston rings work in tandem with the piston, creating a precise seal that ensures compression and proper lubrication. The entire piston-ring assembly is designed for compatibility with the cylinder and crankshaft, ensuring optimal friction, temperature, and force distribution.

What are the functions of pistons and piston rings?

Pistons and piston rings play key roles in the engine operation process:

• Pistons – Move within the cylinders, converting the energy created by the combustion of the fuel-air mixture into linear motion that drives the crankshaft.
• Piston rings – They provide a seal between the piston and the cylinder walls, preventing exhaust gas and oil leakage. They come in three types:
• Sealing ring – Prevents gases from leaking from the combustion chamber.
• Oil Scraper Ring – Removes excess oil from the cylinders.
• Support ring – Distributes the pressure of the piston across the cylinder, minimizing wear. The joint action of the pistons and rings ensures high engine efficiency, durability and minimal fuel and oil consumption. In a typical four-cylinder petrol engine, the pistons cycle between 3,000 and 5,000 times per minute, meaning each ring travels several hundred metres per second in the cylinder. Precise ring fit (usually with a clearance of 0.20–0.40 mm) is crucial for maintaining high compression, which is typically 10–14 bar in petrol engines and 18–22 bar in diesel engines .

Why is it worth taking care of pistons and piston rings?

Neglecting the condition of pistons and piston rings can lead to serious engine problems, such as:

• Loss of compression – Leads to loss of power and increased fuel consumption.
• Oil consumption – Oil entering the combustion chamber can cause smoke and exhaust system contamination.
• Cylinder Damage – Wear on cylinder walls can result in expensive repairs. At Global Parts we offer original used pistons and piston rings , which have undergone detailed quality tests, ensuring their durability and performance. Additionally, we use pistons and rings compatible with popular engines like the A4 B8 engine and the Passat B5 engine, allowing for easy installation and full fitment without the need for additional modifications. Compatibility includes both dimensions (diameter 75–90 mm for most models) and compression ratios (9.5–12.5:1). The table below shows typical relationships between the operation of pistons and rings and engine behavior: | Symptom | Possible cause in the piston-ring system | Characteristic | |---|---|---| | Compression drop | Wear of sealing rings | Lower dynamics, more difficult to start | | Increased oil consumption | Scraper ring failure | Blue smoke, increased oil consumption | | Knocking under load | Excessive piston clearance in the cylinder | Audible "piston slap" | | Delayed reaction to gas | Insufficient tightness of the piston assembly | Uneven work, poorer flexibility |

How to choose the right pistons and piston rings?

When selecting pistons and piston rings, there are several key aspects to consider:

• Vehicle-specific fit – Every engine has its own unique requirements. At Global Parts, you'll find pistons and piston rings tailored to BMW , Audi , Mercedes , Volkswagen , Mini, and more.
• Technical Condition – Check that the pistons are free from cracks, pitting or other damage and that the rings are fully functional.
• Dimensions and Specifications – Make sure the pistons and rings are the correct diameter and height for your engine. For example, the BMW E90 uses 84 mm diameter pistons with 1.2 mm thick oil control rings, while the BMW E60 uses 86 mm diameter pistons with 1.5 mm rings. This ensures precise assembly and optimal cylinder sealing.

Why choose used pistons and piston rings?

Used car parts, such as pistons and rings, is a solution that allows you to save money while maintaining high quality. Choosing used pistons and piston rings, you gain:

• Lower costs – Used components are much cheaper than new ones, but offer equally high quality.
• Ecology – Recycling car parts reduces waste and supports environmental protection.
• A wide range – In our store you will find pistons and rings for the most popular car brands. Used pistons and rings are often compatible with different engine versions within one series, e.g. with the dw10c engine, which allows parts to be replaced without additional adaptation costs.

How to take care of pistons and piston rings?

To ensure that pistons and piston rings function reliably for a long time, it is worth following a few rules:

• Change your engine oil and filters regularly to prevent deposits and dirt build-up.
• Monitor engine operation – symptoms such as smoking or loss of power may indicate problems with the pistons or rings.
• When remanufacturing or replacing pistons and rings, use high-quality parts to ensure engine durability and performance. If you need a replacement, you'll find the right used car parts at Global Parts that will restore your engine to full efficiency. When assembling pistons and rings, it's important to maintain the order and orientation of the rings relative to the piston – the compression ring is always at the top, the scraper ring in the middle, and the support ring at the bottom. This ensures optimal sealing and even pressure distribution in the cylinder.

FAQ - Frequently asked questions about car pistons and rings

Question	Answer
What is a car piston?	An automotive piston is a component of the crankshaft system that transfers combustion energy from the cylinder to the crankshaft. It is typically made of an aluminum alloy and operates at high temperatures and pressures.
What are piston rings for?	Piston rings are responsible for the tightness of the combustion chamber, oil consumption control and even distribution of forces between the piston and the cylinder.
What does compression mean in an engine?	Compression is the pressure generated in a cylinder when an engine is running. In properly functioning engines, it is 10–14 bar (gasoline) or 18–22 bar (diesel).
How to recognize incorrect operation of pistons or rings?	The most common symptoms are loss of power, increased oil consumption, smoking or knocking under load.
Are the pistons and rings different depending on the engine version?	Yes, even within one engine series, pistons with different diameters, compression ratios and ring types are used.
Does replacing pistons always mean replacing rings?	In most cases, a piston + rings set is used to maintain perfect fit and compression.
Are pistons and rings compatible between different car models?	Yes, some engines share piston designs (e.g. different variants of TDI and TFSI engines), but the selection should always be based on the engine specifications.

Summary: Pistons and Rings at the Global Parts Automotive Store

Pistons and piston rings are key engine components that impact performance, durability, and economy. By maintaining their technical condition, you ensure your vehicle's reliability for years to come. The Global Parts automotive store invites you to browse our wide selection of genuine used car parts . Whether you're looking for car parts for BMW , Audi , Volkswagen , Mercedes, Mini , and more, you'll find them at competitive prices. We strive to ensure every customer finds the right parts for their car, and if you have any questions or concerns about selecting the right components, we're happy to help! Please contact us – we're here to help! For more information and interesting facts, visit our automotive blog .
