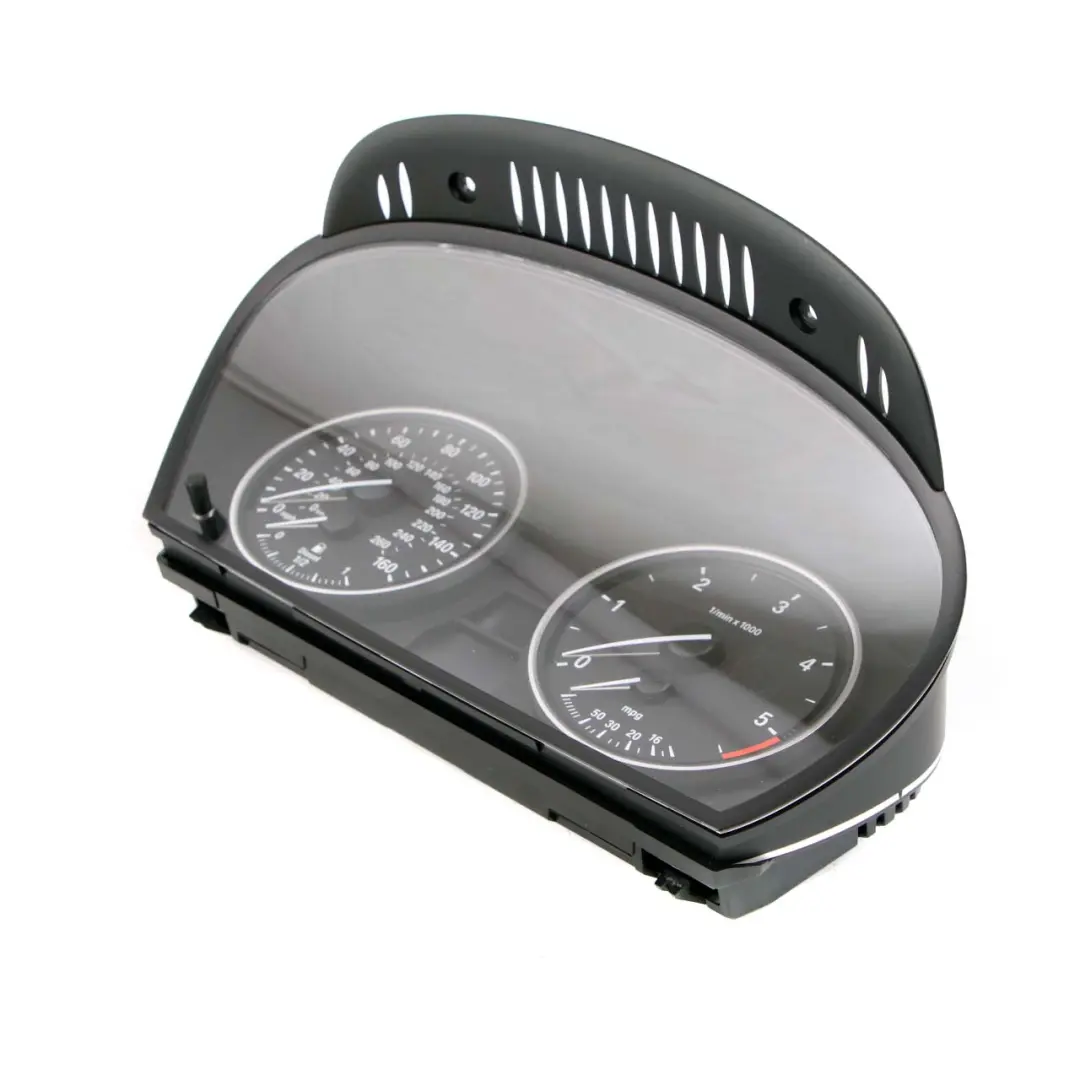

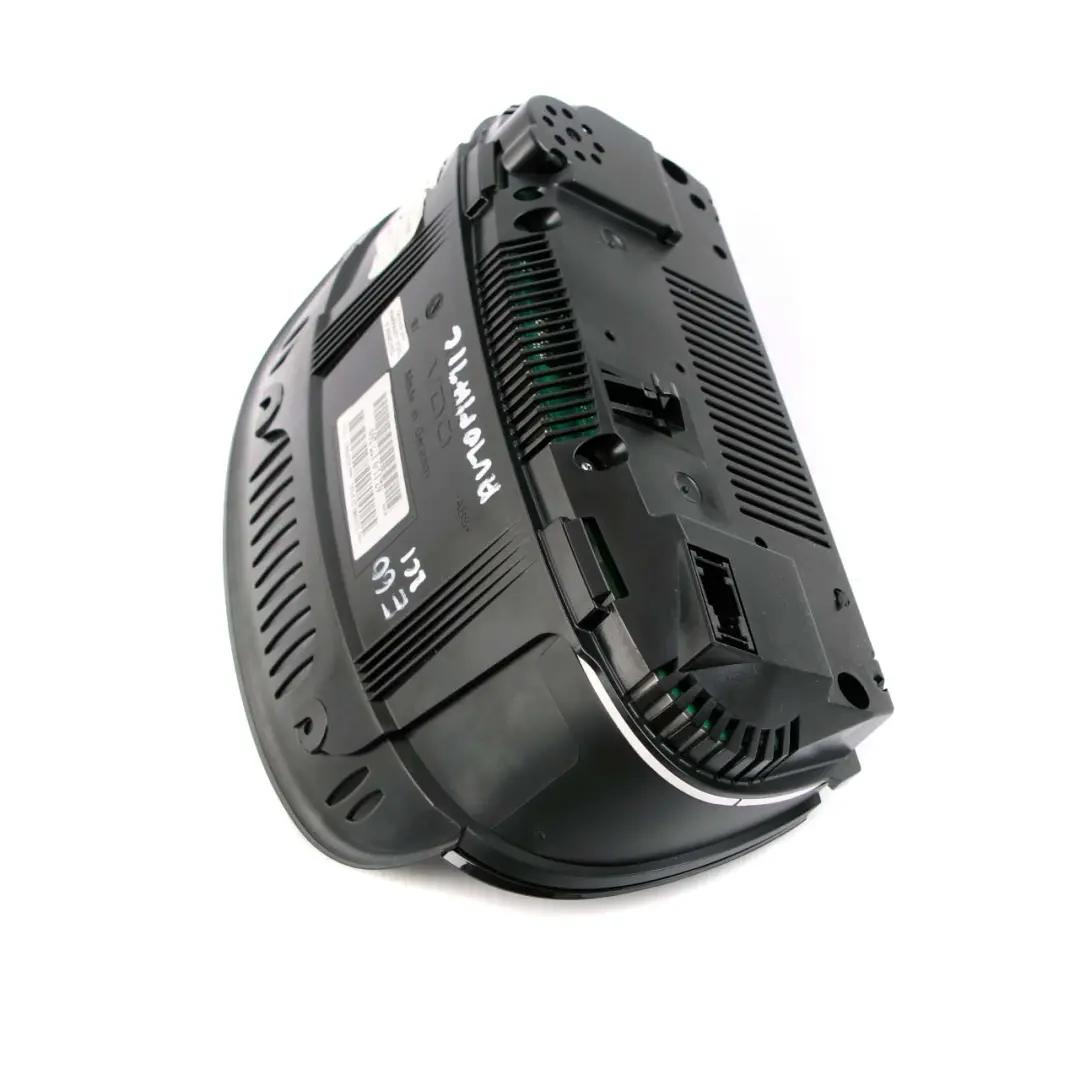

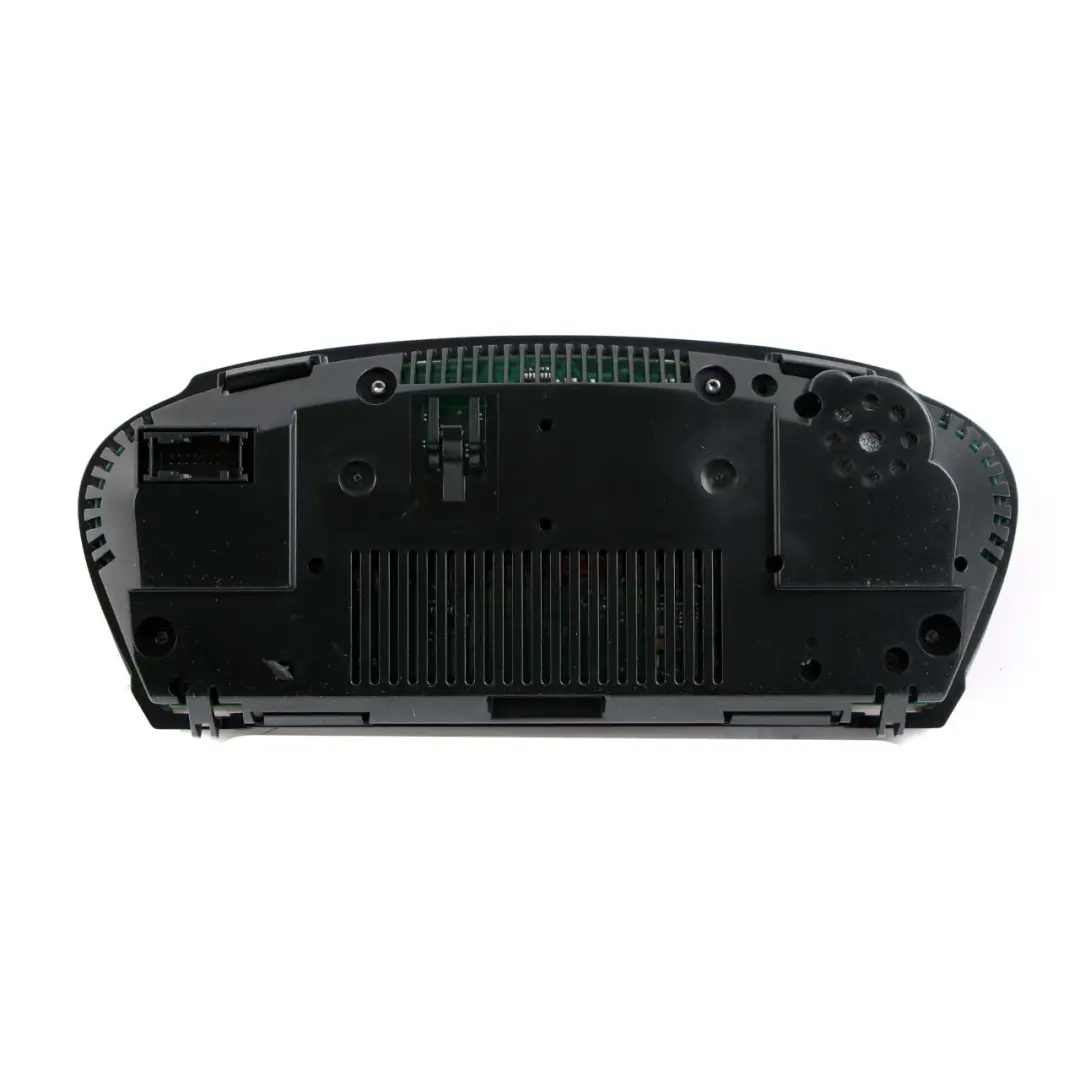

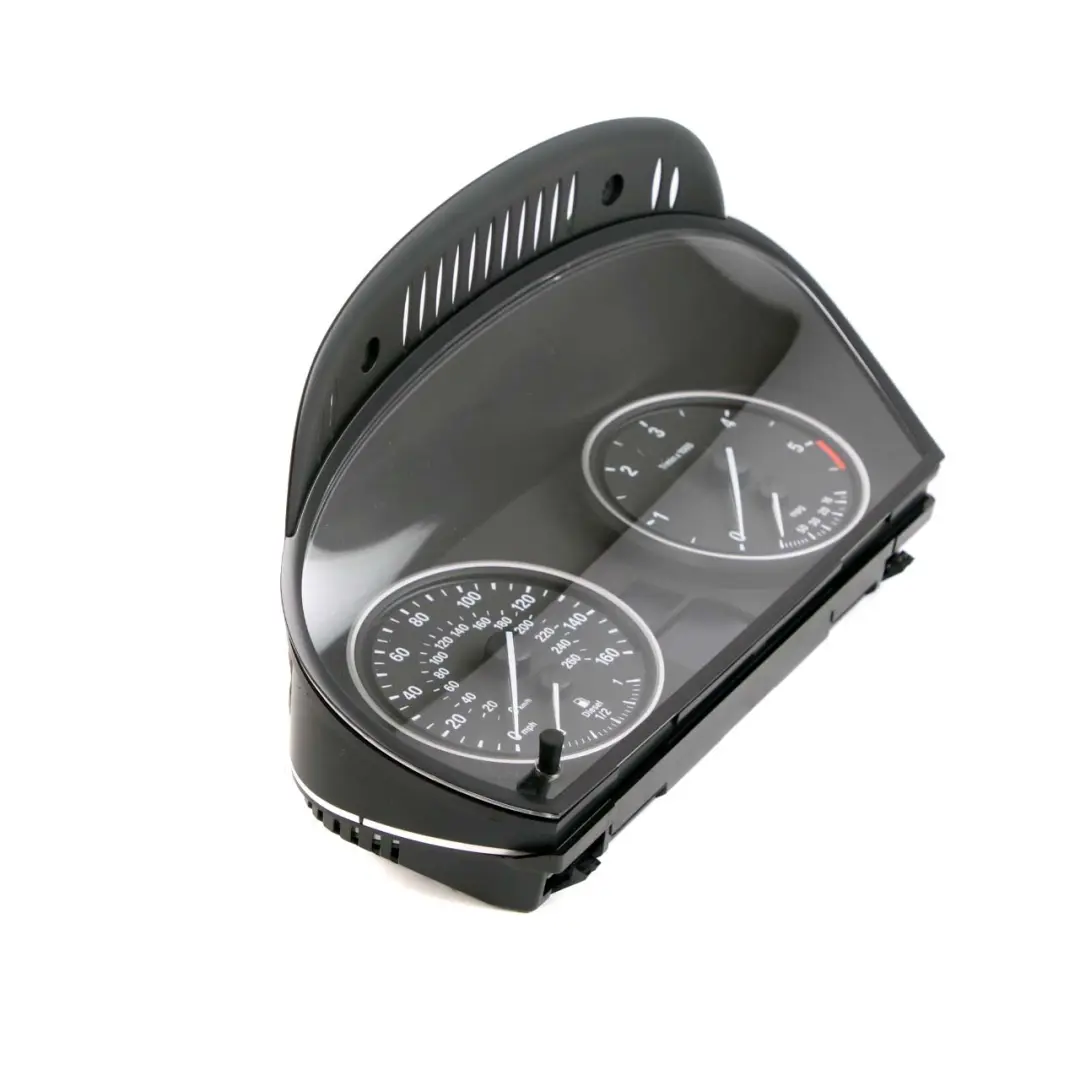

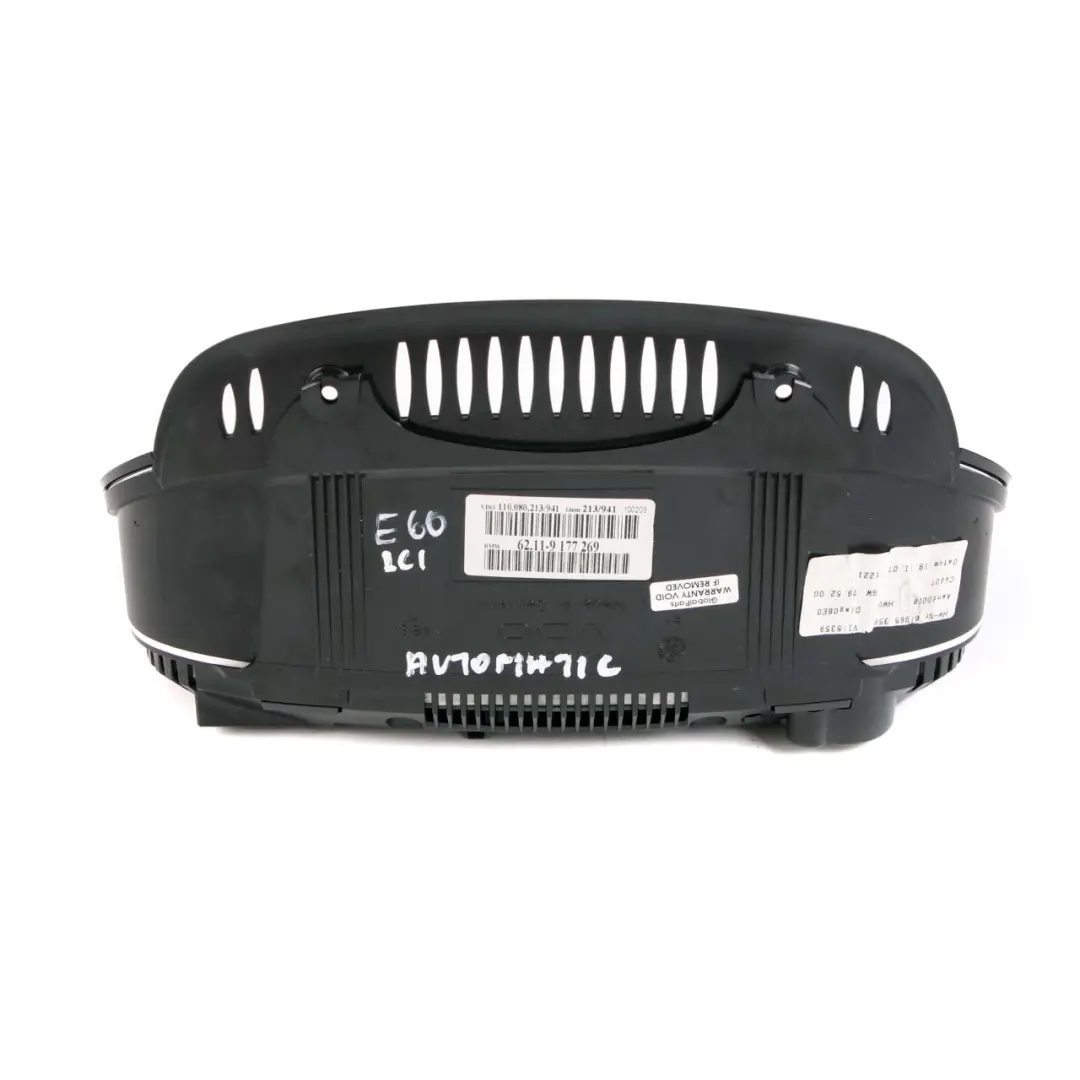

BMW E60 E61 LCI 535d M57N2 Instrument Cluster Speedo Clocks Automatic 9177269

The BMW E60 E61 LCI 535d Instrument Cluster Set is an original instrument panel designed for the facelifted version with the M57N2 engine and an automatic transmission. Designed by BMW, it ensures seamless operation with the vehicle's factory electronics and provides clear display of the engine's operating parameters. This is a solution for users who need a proven, compatible component for professional repair or replacement.

Specifications and technical data

• SKU: rhd-9177269
• Mark: BMW (Genuine OE)
• Condition: Used

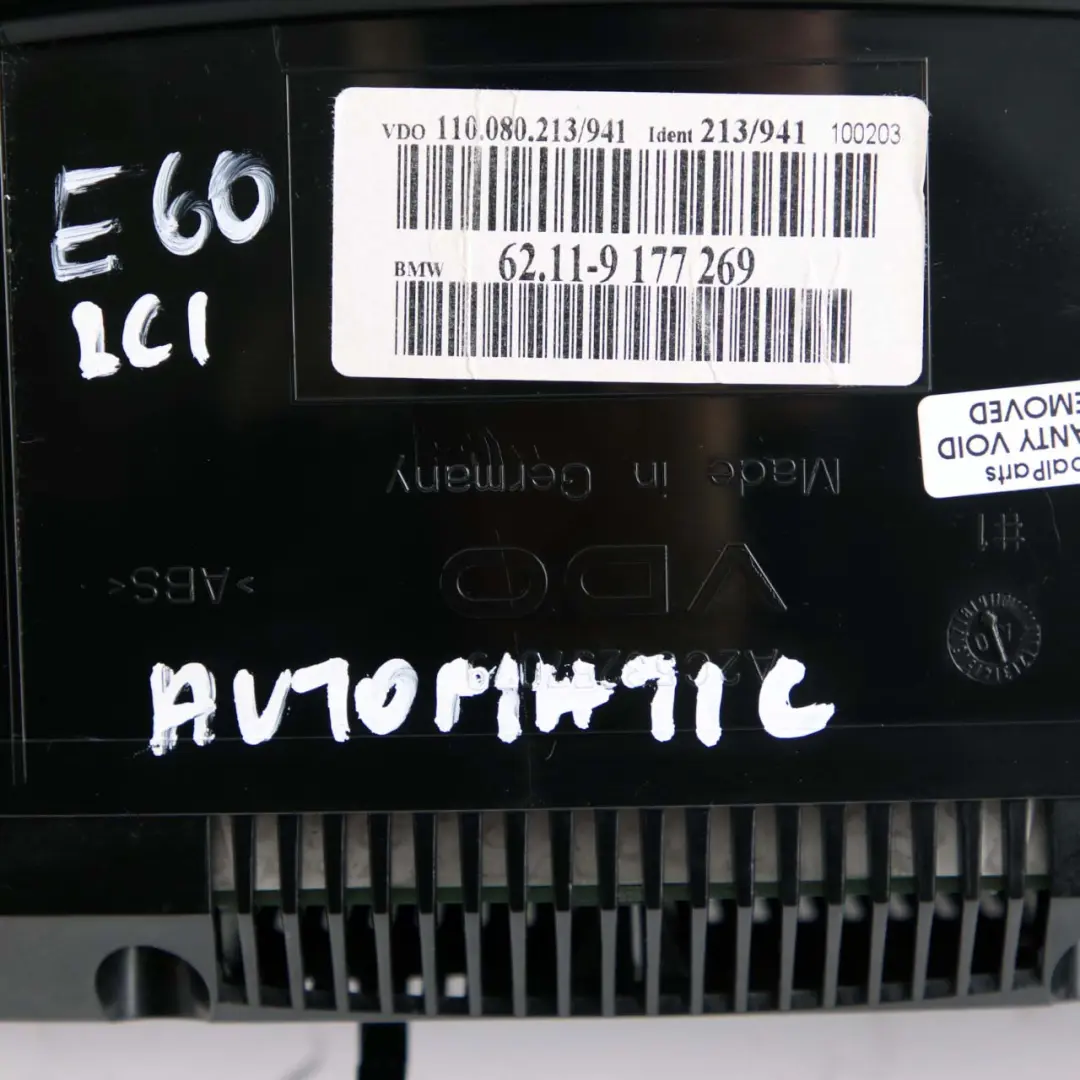

• OEM Part Number: 9177269
• Substitutable numbers: 62109194892, 9194892, 62109168867, 9168867, 62119153758, 9153758, 62109177269, 9177269, 62119149966, 9149966
• Gearbox type: Automatic
• Category: Instrument Clusters

Intended Use and Compatibility

This instrument cluster set is dedicated to the facelifted (LCI) BMW 5 Series E60 and E61 models, specifically the 535d version with the M57N2 engine, equipped with an automatic transmission. The panel's design is adapted to the electrical architecture of these versions, facilitating integration with the vehicle's wiring and onboard systems.

The original origin of the component promotes the preservation of full functionality of diagnostic systems, communication with control modules, and proper cooperation with the onboard computer. Therefore, this instrument cluster set can be used for standard replacement of a damaged panel as well as for professional interior restoration.

Functionality and Performance Parameters

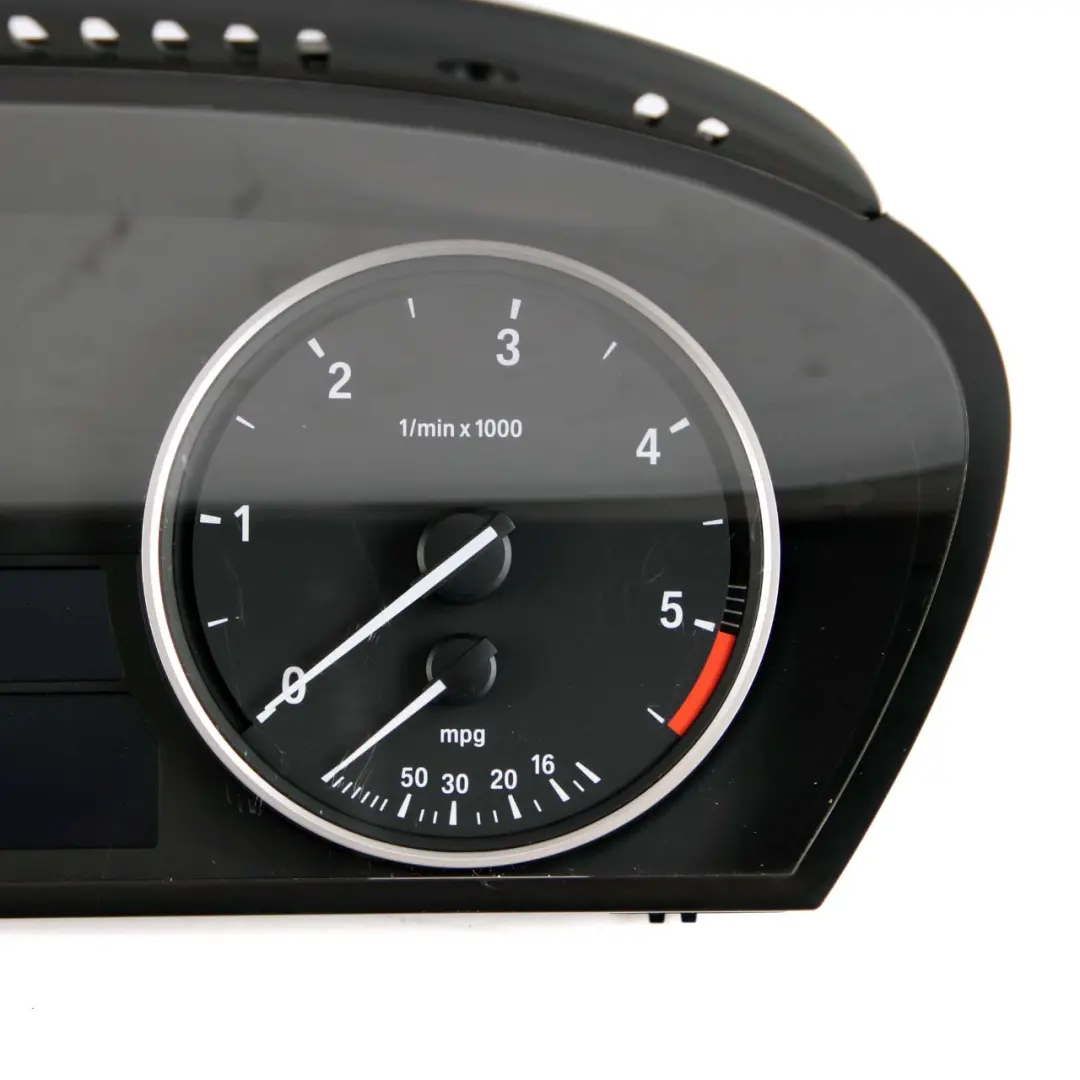

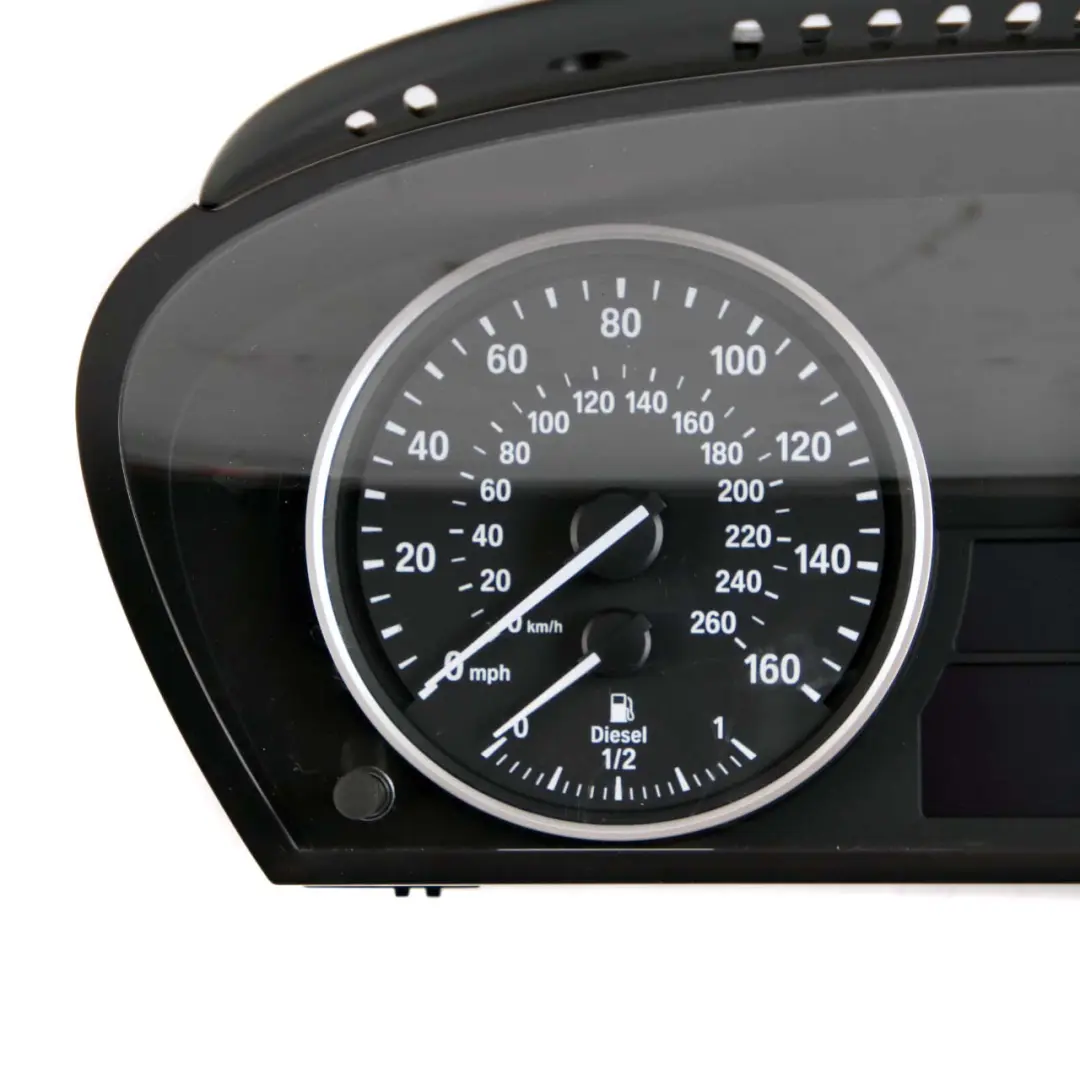

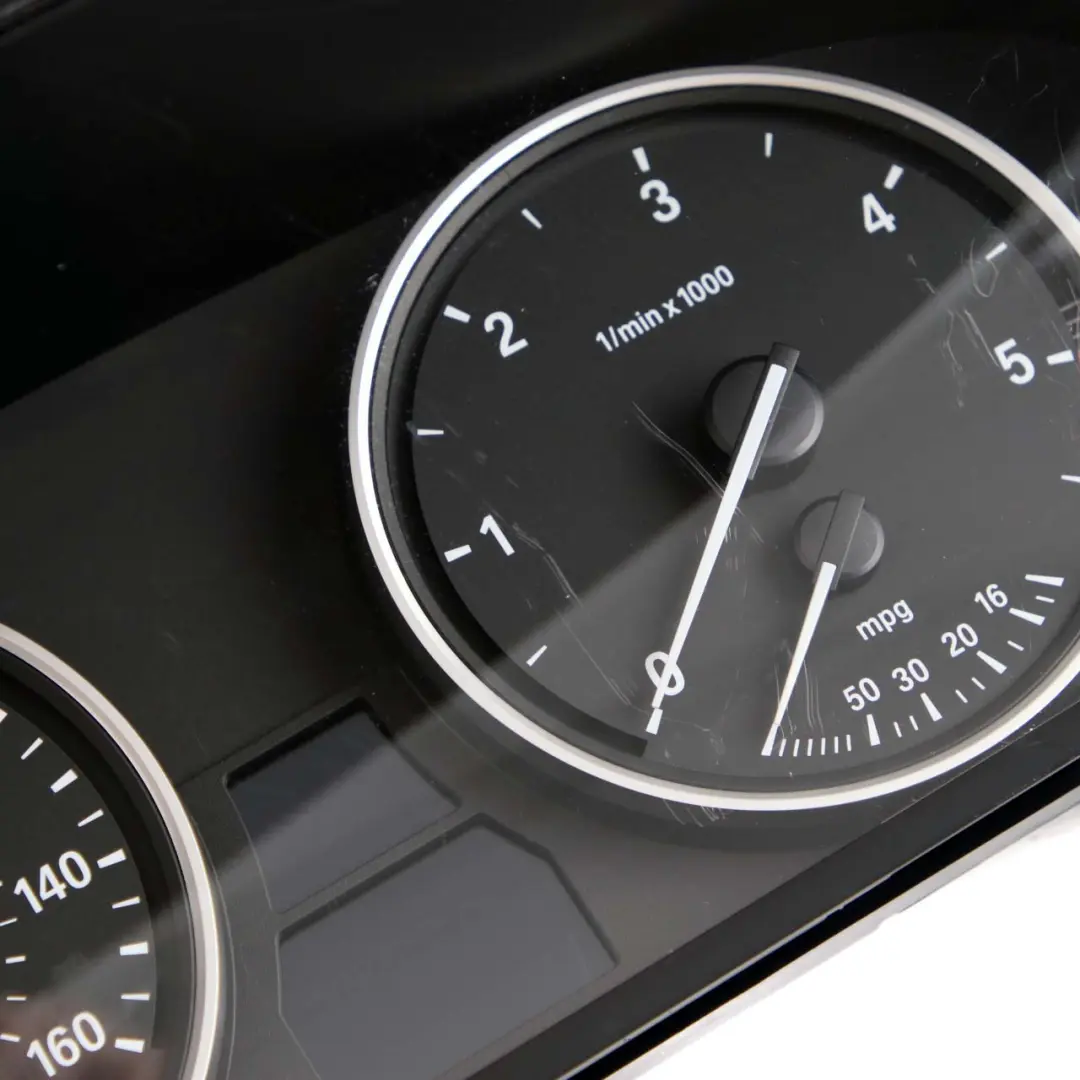

The instrument cluster set is responsible for presenting key information to the driver, such as driving speed, engine RPM, fuel level, and basic system messages. The version designed for automatic transmissions is prepared to work with the gear shifting logic and relevant signals from the drivetrain.

The main advantages of this panel include:

• seamless cooperation with the electronics of the BMW E60/E61 LCI 535d with automatic transmission,
• a clear instrument layout adapted to the characteristics of the M57N2 unit,
• factory integration with the vehicle's warning and information systems.

By maintaining the original architecture, the instrument cluster set allows the vehicle's interior to be kept in a configuration consistent with factory specifications, which is important for both usability and servicing.

Condition, Installation, and Service Application

The offered component is from the secondary market, allowing for economical repair while maintaining original manufacturing quality. The panel is suitable for service applications such as replacing a damaged instrument cluster, restoring a vehicle after a collision, or bringing the driving parameter display system back to full functionality.

Installation requires standard procedures involving the removal of dashboard covers and connecting the electrical wiring harnesses. Due to its integration with BMW's electronic systems, it is recommended that the work be carried out by a workshop experienced in servicing E60/E61 models, with the capability to perform any necessary adaptation or coding procedures.

Benefits of Using an Original Instrument Cluster Set

Choosing an original instrument cluster set for the BMW E60/E61 LCI 535d offers several significant benefits:

• Full compatibility with the vehicle's electrical system – no need for wiring modifications or interference with the electronics.
• Consistent interior aesthetics – the panel's appearance matches the factory finish of the facelifted 5 Series cockpit.
• Stable operation of onboard systems – maintained communication with control modules and the onboard computer.

For users who prioritize technical correctness in repairs and wish to keep their vehicle in a factory-like configuration, using such an instrument cluster set is a solution consistent with the manufacturer's intentions.

If you are planning a comprehensive repair or modernization of the cockpit area in your BMW and need other elements from the same group, such as instrument panels, display modules, or additional gauges, check the available parts in the BMW Instrument Clusters category.

Technical Support and Parts Selection

When selecting components for the BMW 5 Series, it is worth considering the differences between standard versions and more performance-oriented variants. Additional information on the specifics of this brand's components, including the differences between the M line and standard versions, is provided in the article BMW M Performance: How do BMW M Components Differ from Standard Ones?, which may be helpful when planning broader modifications or repairs.
