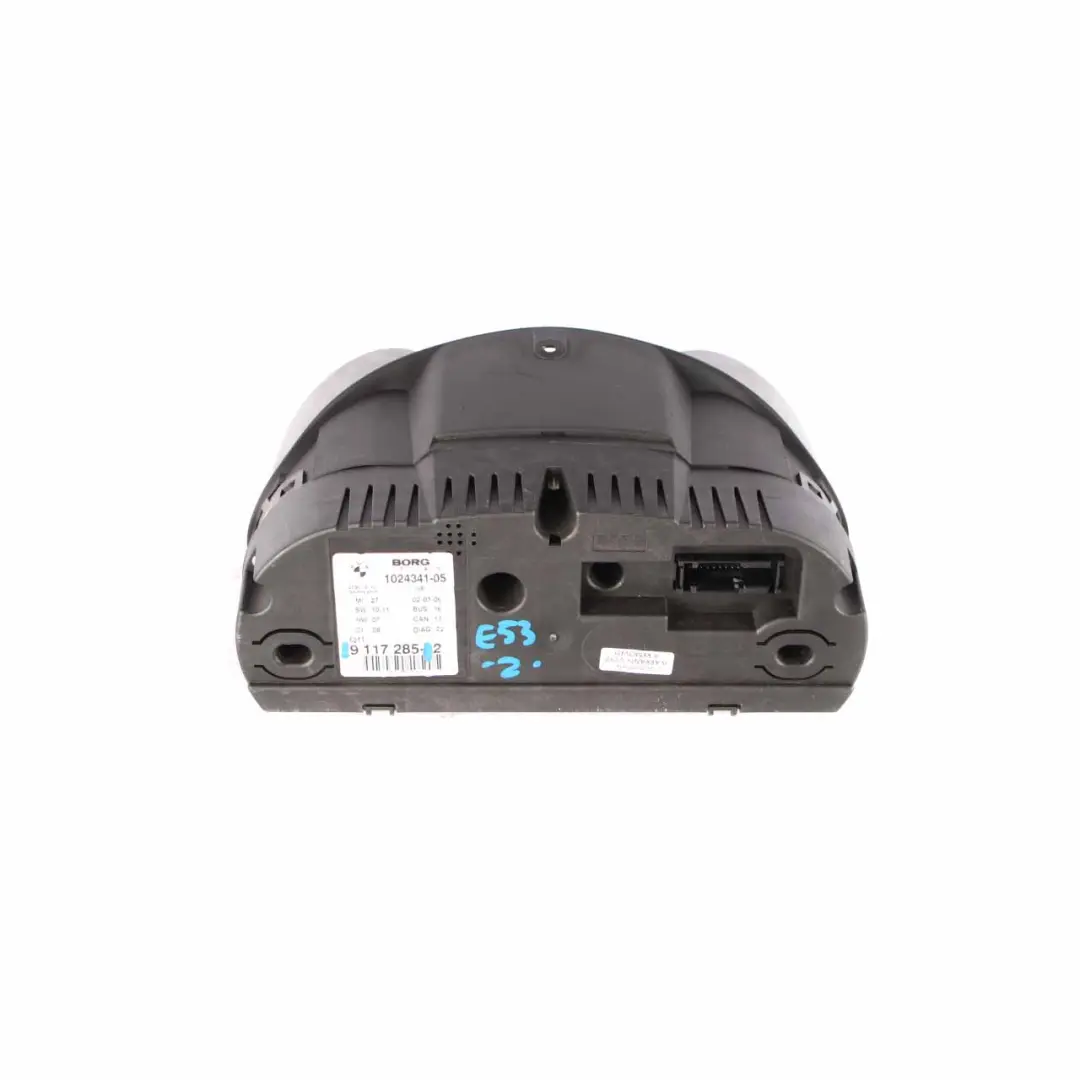

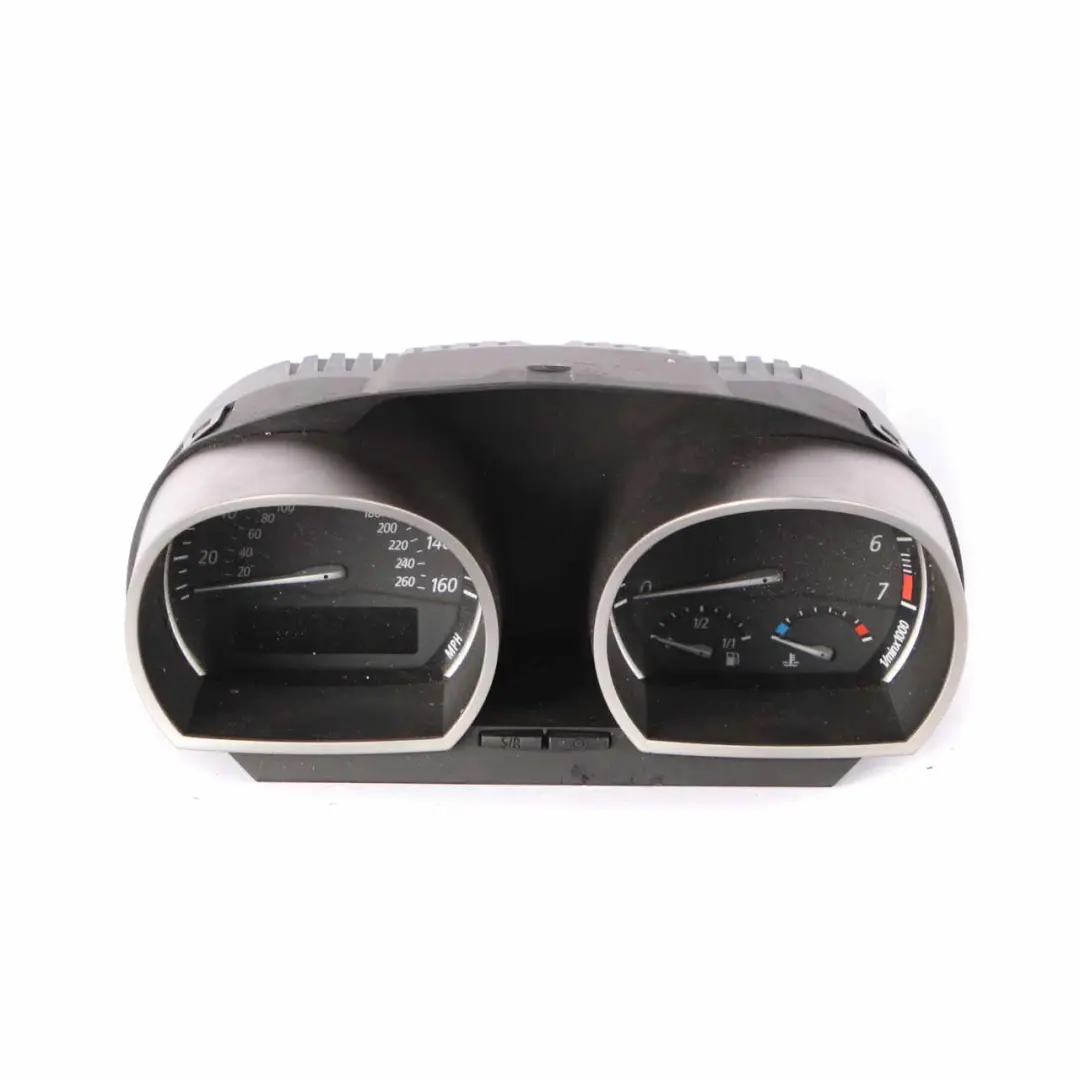

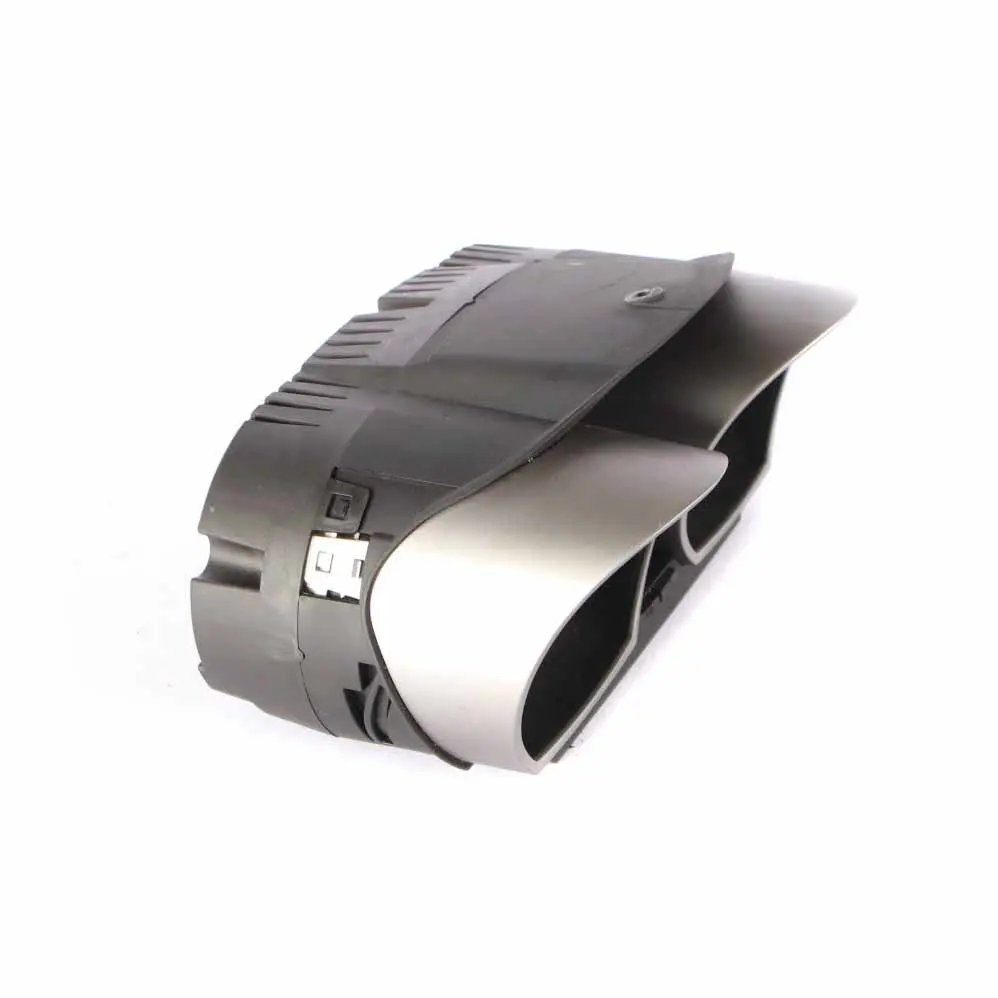

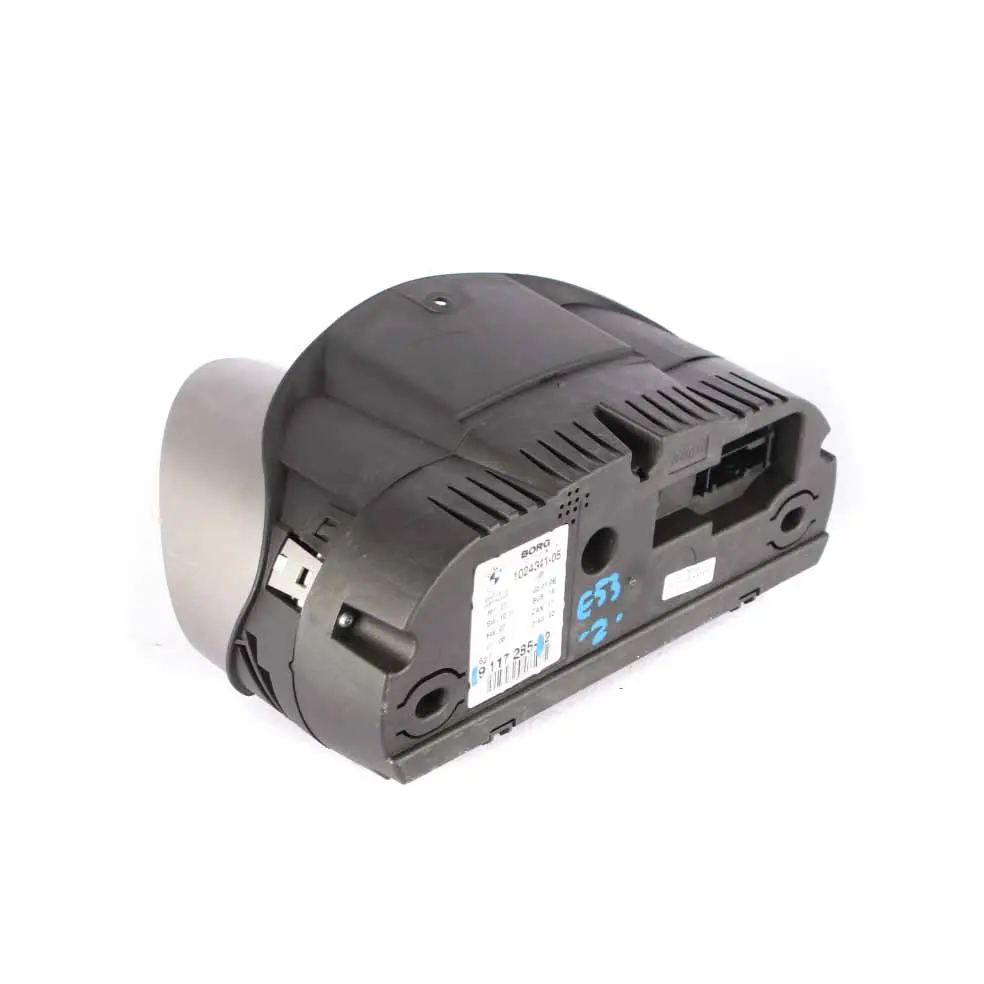

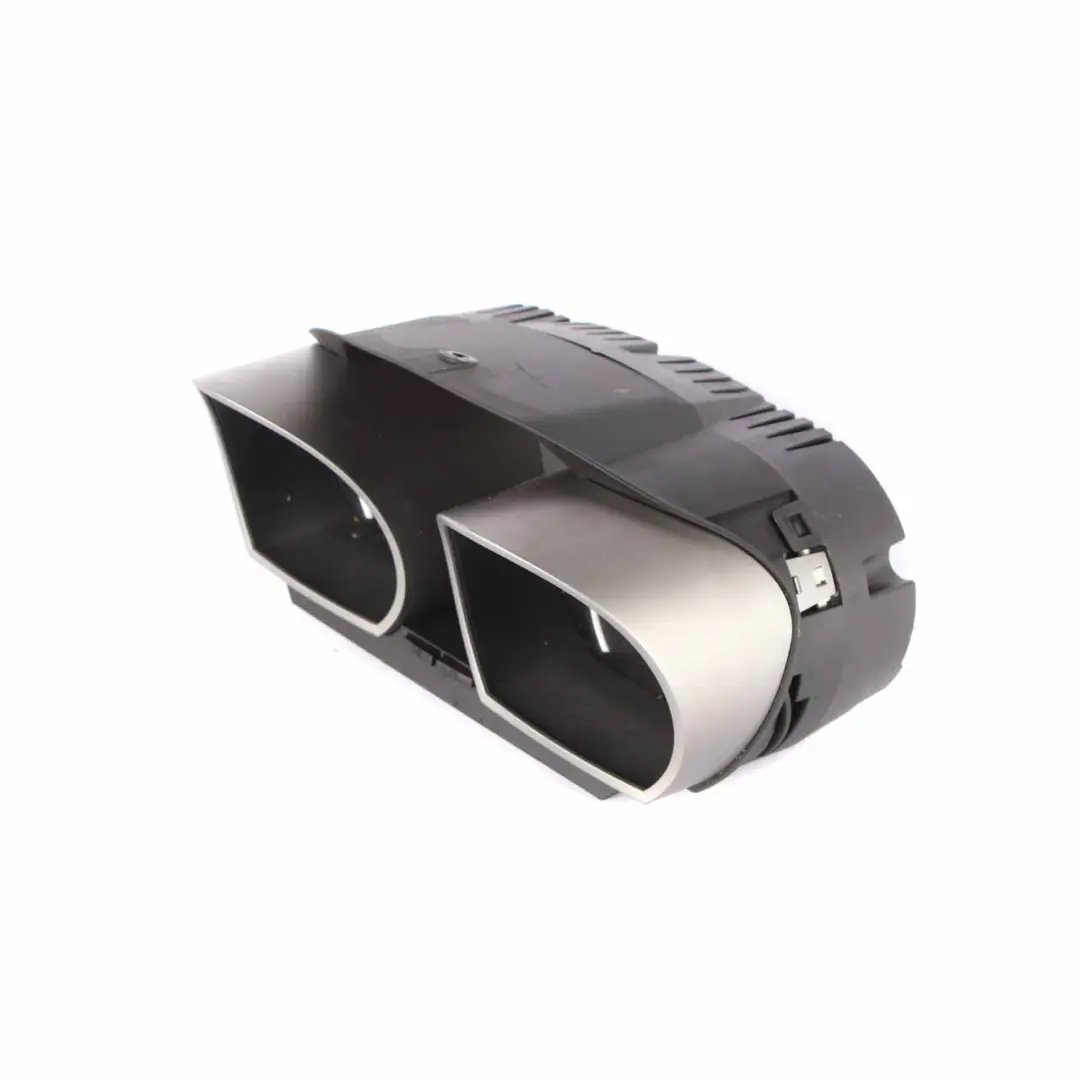

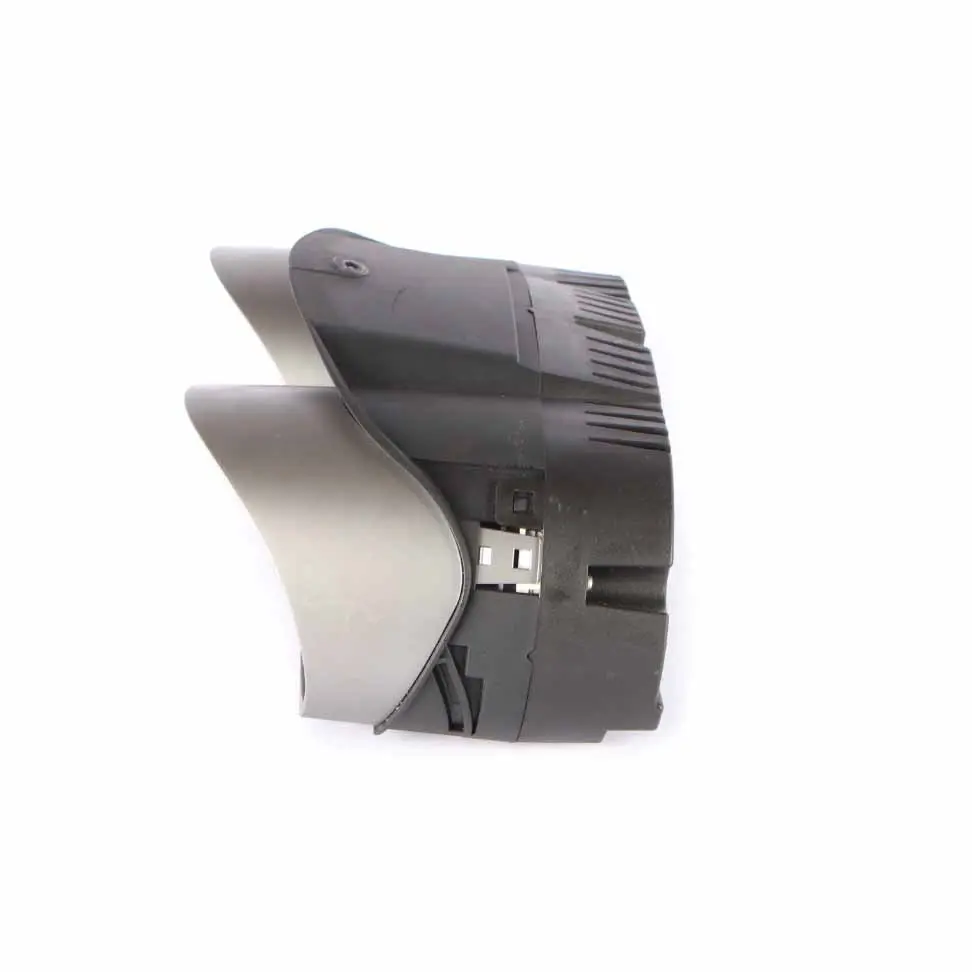

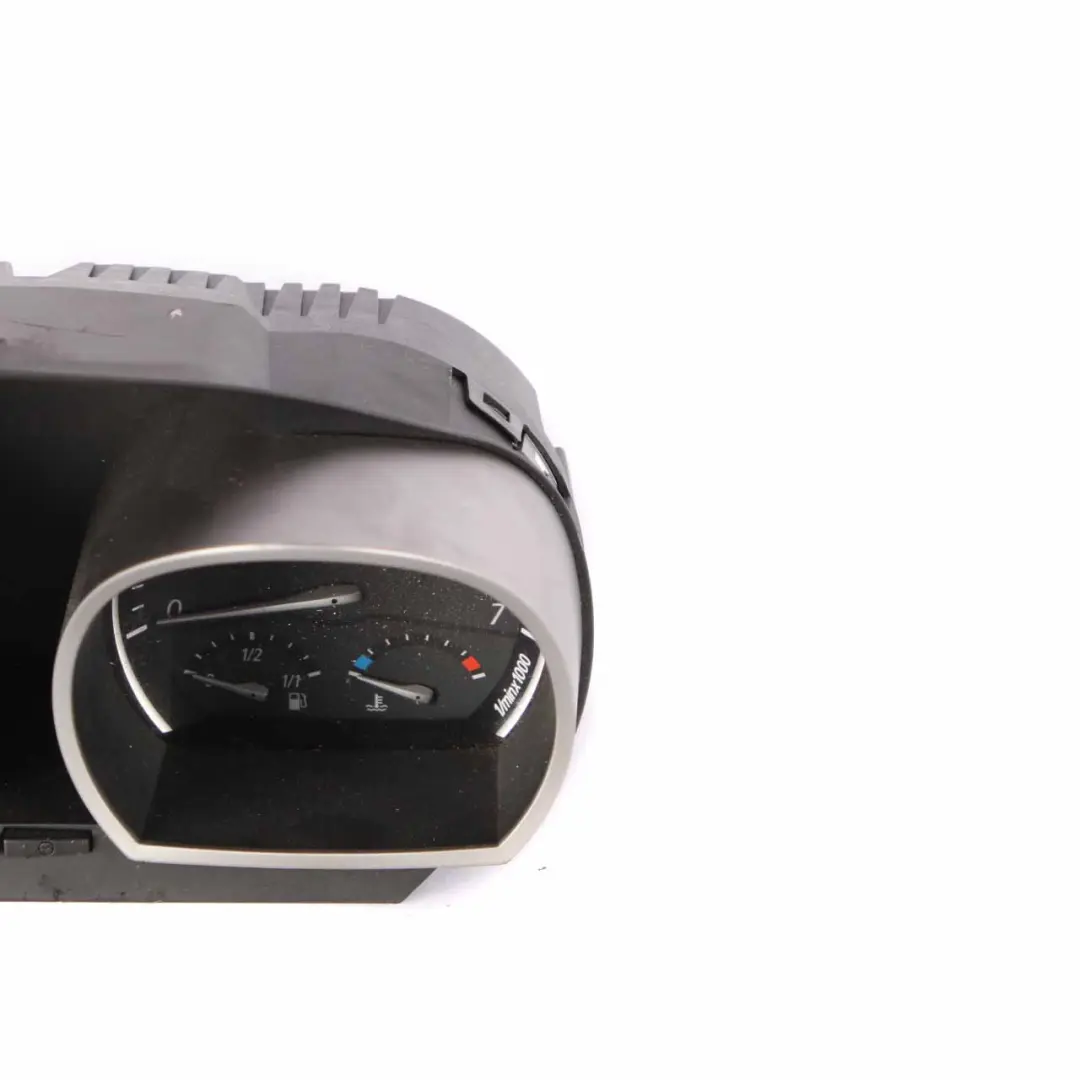

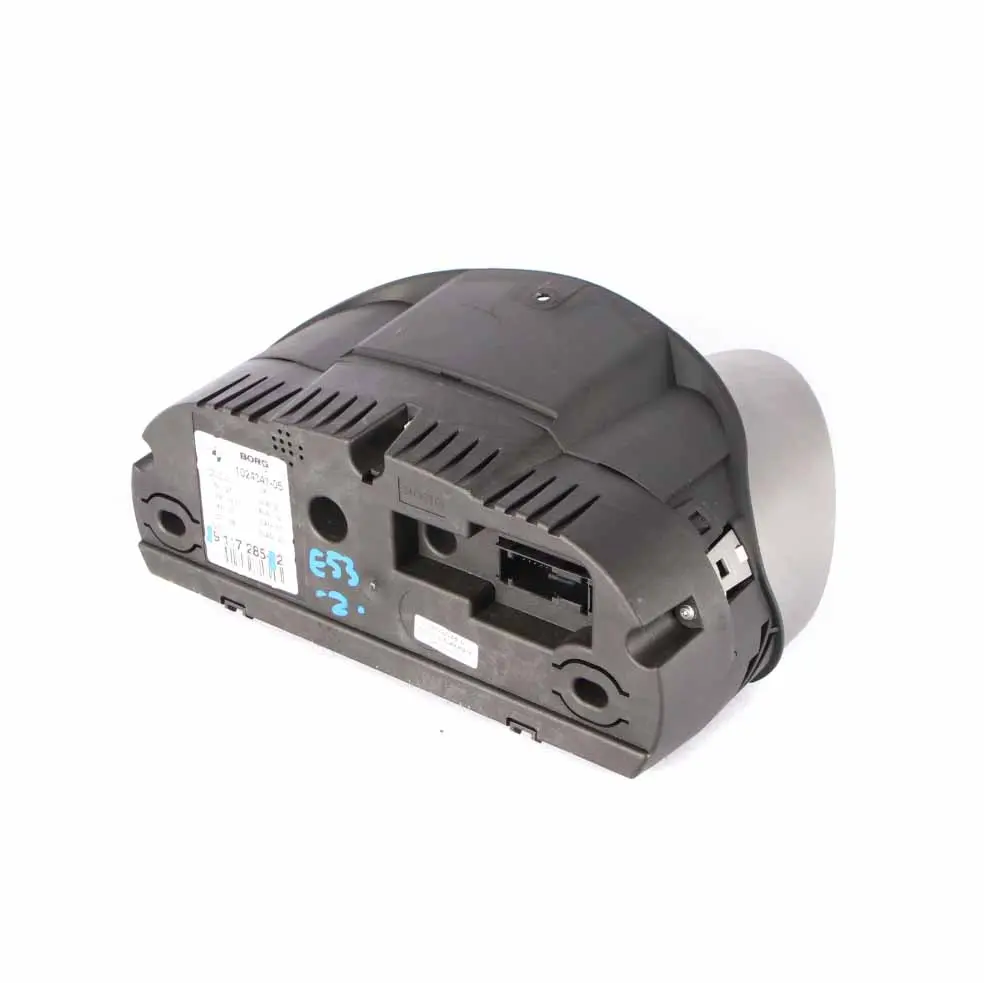

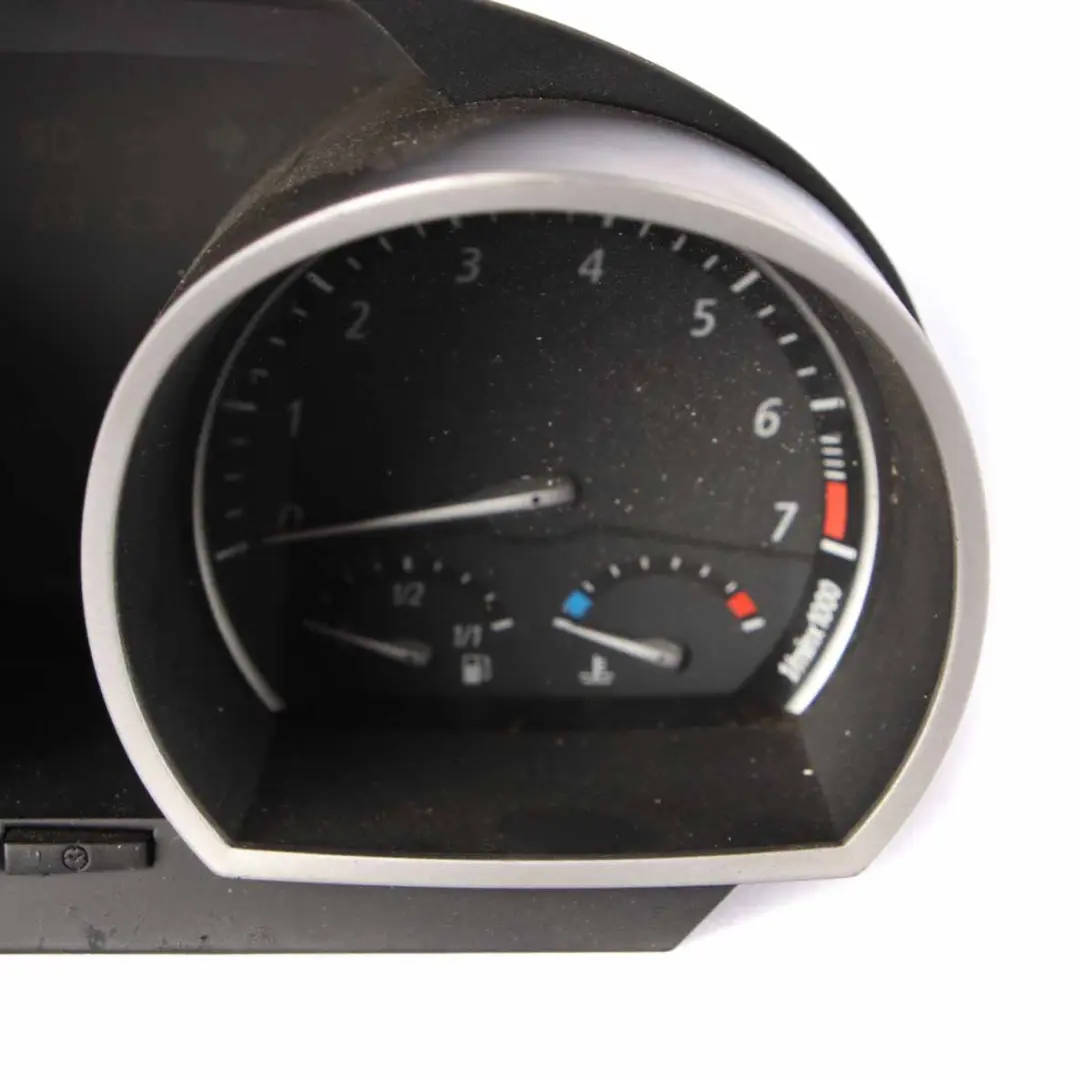

BMW Z4 E85 Instrument Cluster Speedo Clocks 2.5i N52 Automatic 9117285 143k Miles

BMW Z4 E85 2.5i Automatic Transmission Instrument Cluster is an original part from the Individual Dashboard Instruments category, designed to work with the N52 unit. The used odometer and speedometer ensure factory integration with the electrical system, maintaining proper communication with comfort and drive modules. This is a solution for users who need a tested instrument cluster that complies with factory specifications.

Specifications and technical data

• SKU: rhd-9168184
• Mark: BMW (Genuine OE)
• Condition: Used

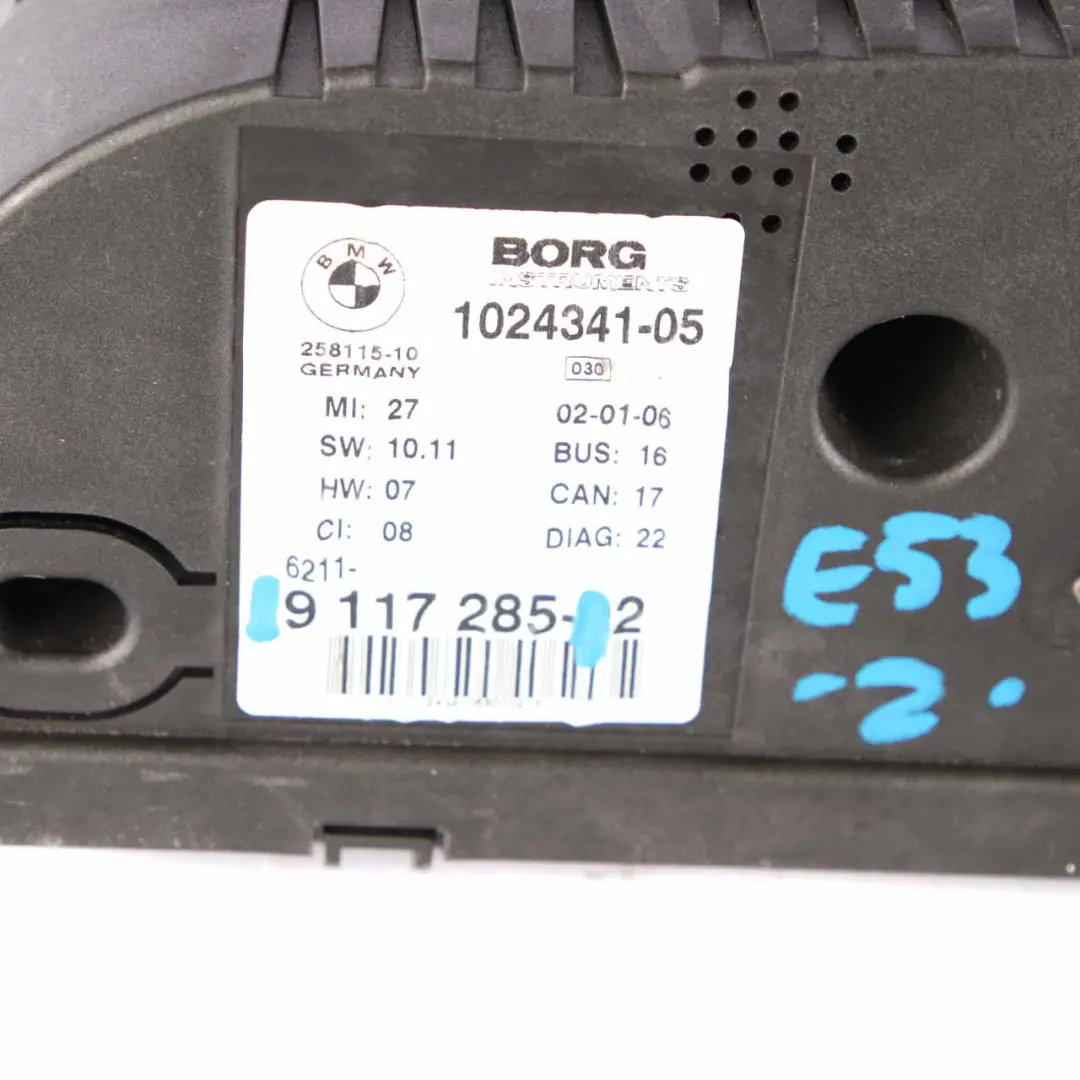

• OEM Part Number: 9168184
• Substitutable numbers: 62109168184, 9168184, 62109115056, 9115056, 62119129384, 9129384, 62116961380, 6961380, 62119117285, 9117285, BG
• Gearbox type: Automatic
• Category: Individual Gauges

Purpose and Compatibility

This instrument cluster is dedicated to the BMW Z4 E85 2.5i with N52 engine equipped with an automatic transmission. The design of the cluster is adapted to work with the appropriate engine and transmission control units, which allows for correct display of speed, RPM, mileage, and other operational parameters.

The original origin of the part means that the correct mounting geometry, connectors, and communication logic with the vehicle's bus are maintained. Therefore, the cluster is suitable as a replacement for the factory instrument cluster in cars with a similar drive configuration.

Construction and Function of the Instrument Cluster

The instrument cluster plays a key role in providing the driver with information about the vehicle's status. This cluster model integrates, among other things:

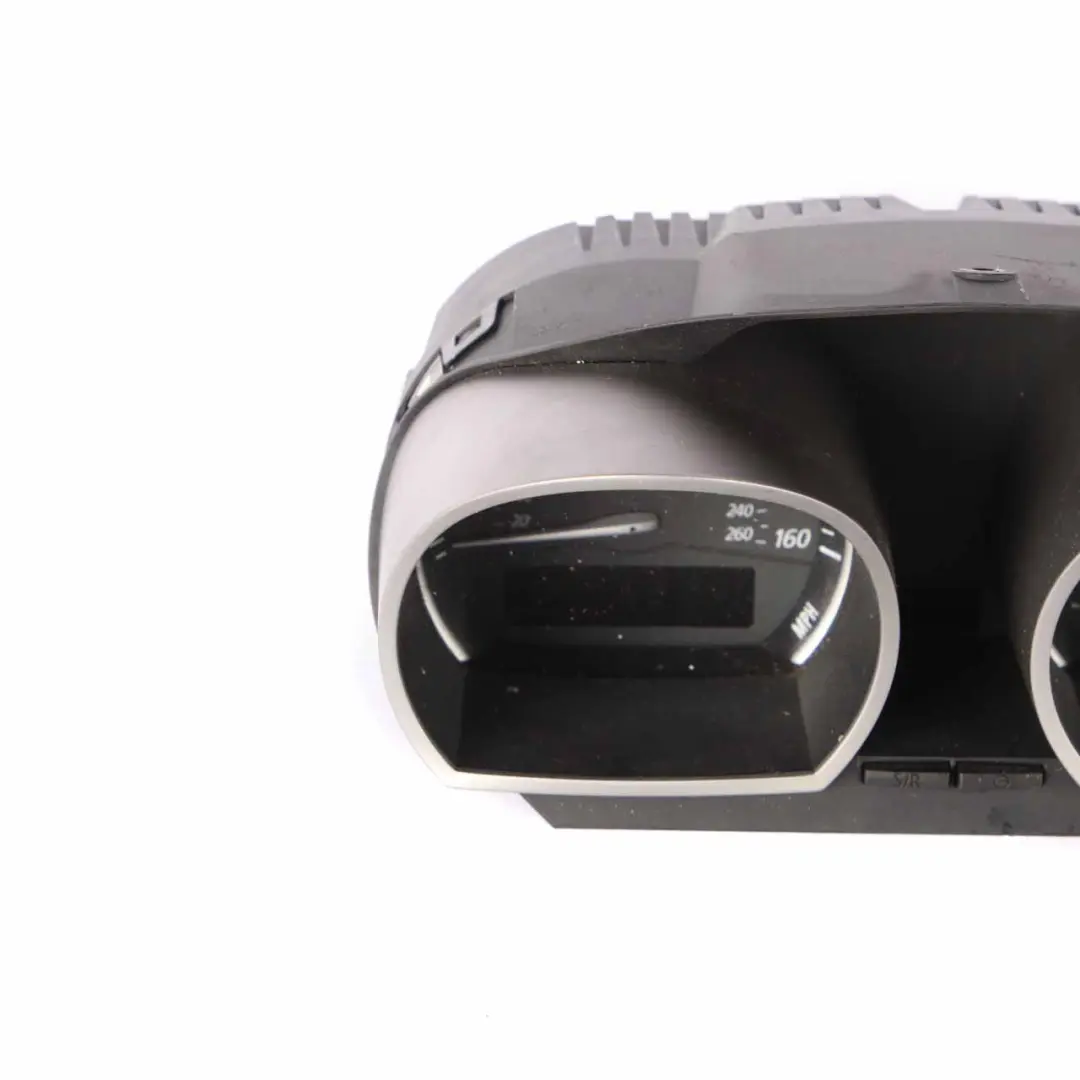

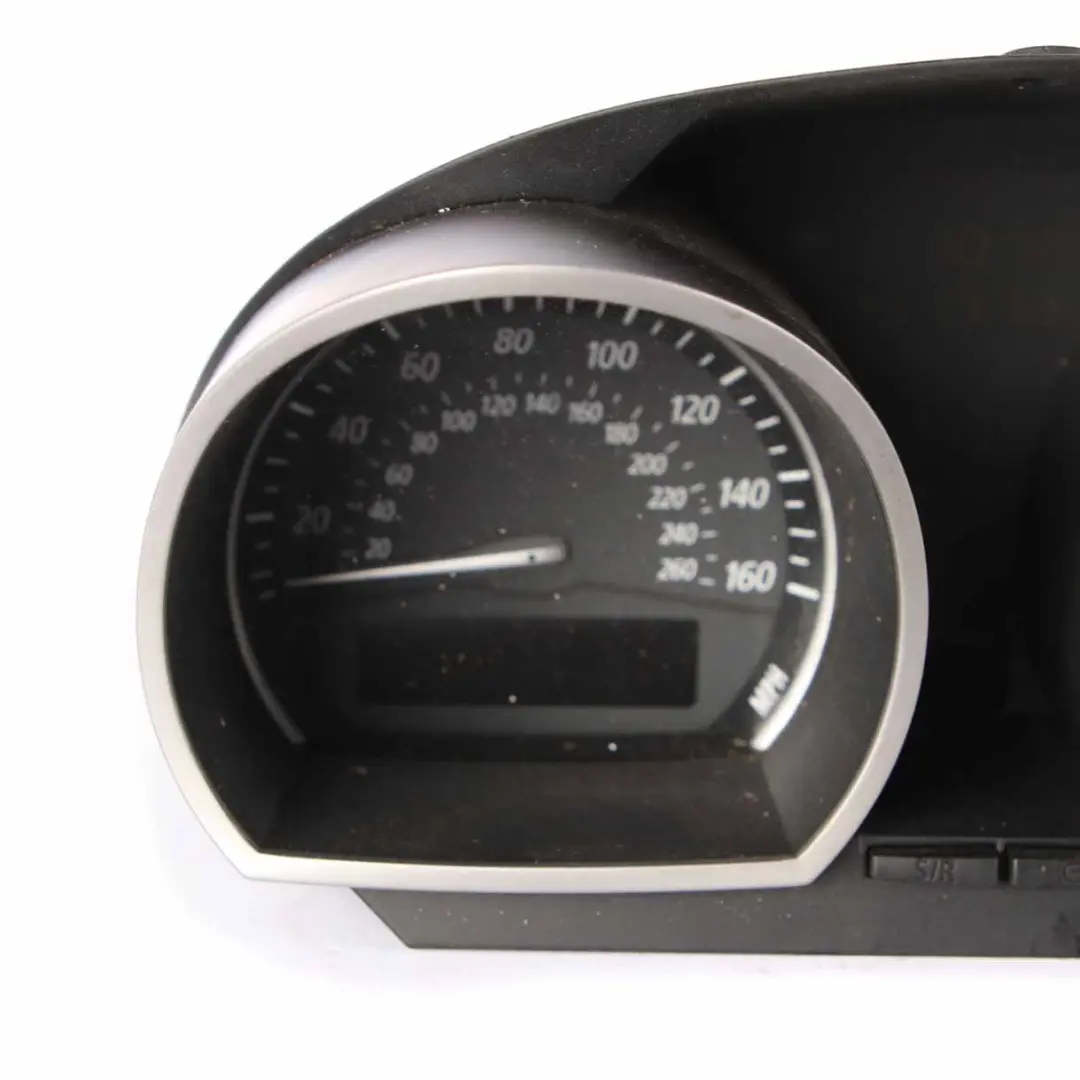

• vehicle speed and engine RPM readings,
• warning and indicator lights related to onboard systems,
• an area for displaying operational data, such as total mileage and current vehicle operating indicators.

Thanks to its factory design, the consistent aesthetics of the BMW Z4 E85 interior and the readability of the displays are maintained, which translates into comfort during daily use.

Integration with Automatic Transmission

The presented cluster is adapted to work with an automatic transmission. This means appropriate scaling of readings and communication with the transmission control module, which is important for the correct display of operating modes and maintaining data consistency within the vehicle's systems.

Choosing an instrument cluster compatible with the type of transmission reduces the risk of communication errors, incorrect indicator lights, or discrepancies in readings, which is important both from the user's perspective and for service diagnostics.

Application of a Used Part

The offered part is a used item, allowing for economical repair or replacement of a damaged cluster while maintaining the original manufacturer's specifications. For BMWs, matching the electronics to the specific vehicle configuration is particularly important, which is why choosing an original instrument cluster is often preferred over universal solutions.

Before installation, it is recommended to verify compatibility with the vehicle and perform appropriate adaptation procedures at a specialized service center to ensure correct cooperation with other electronic modules.
