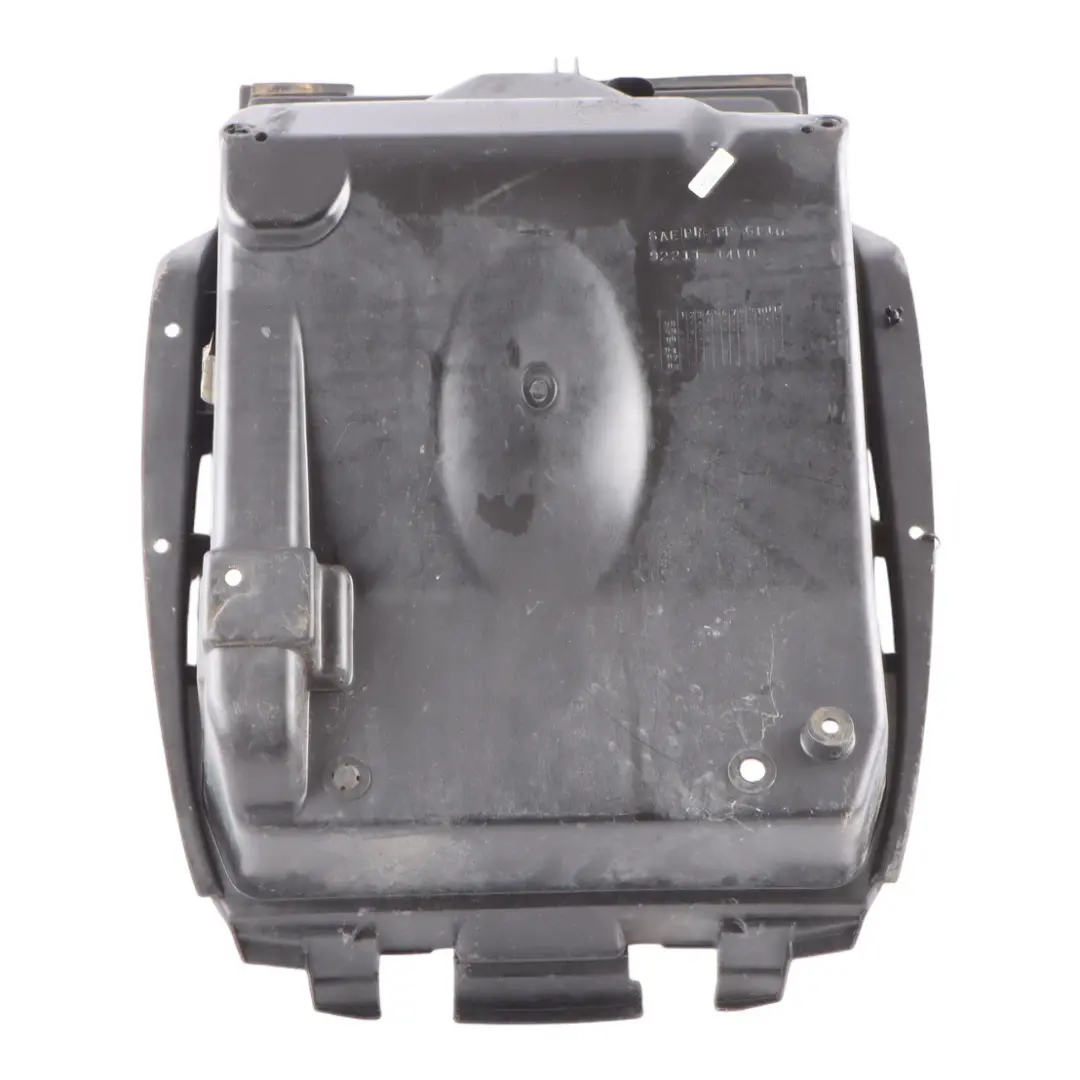

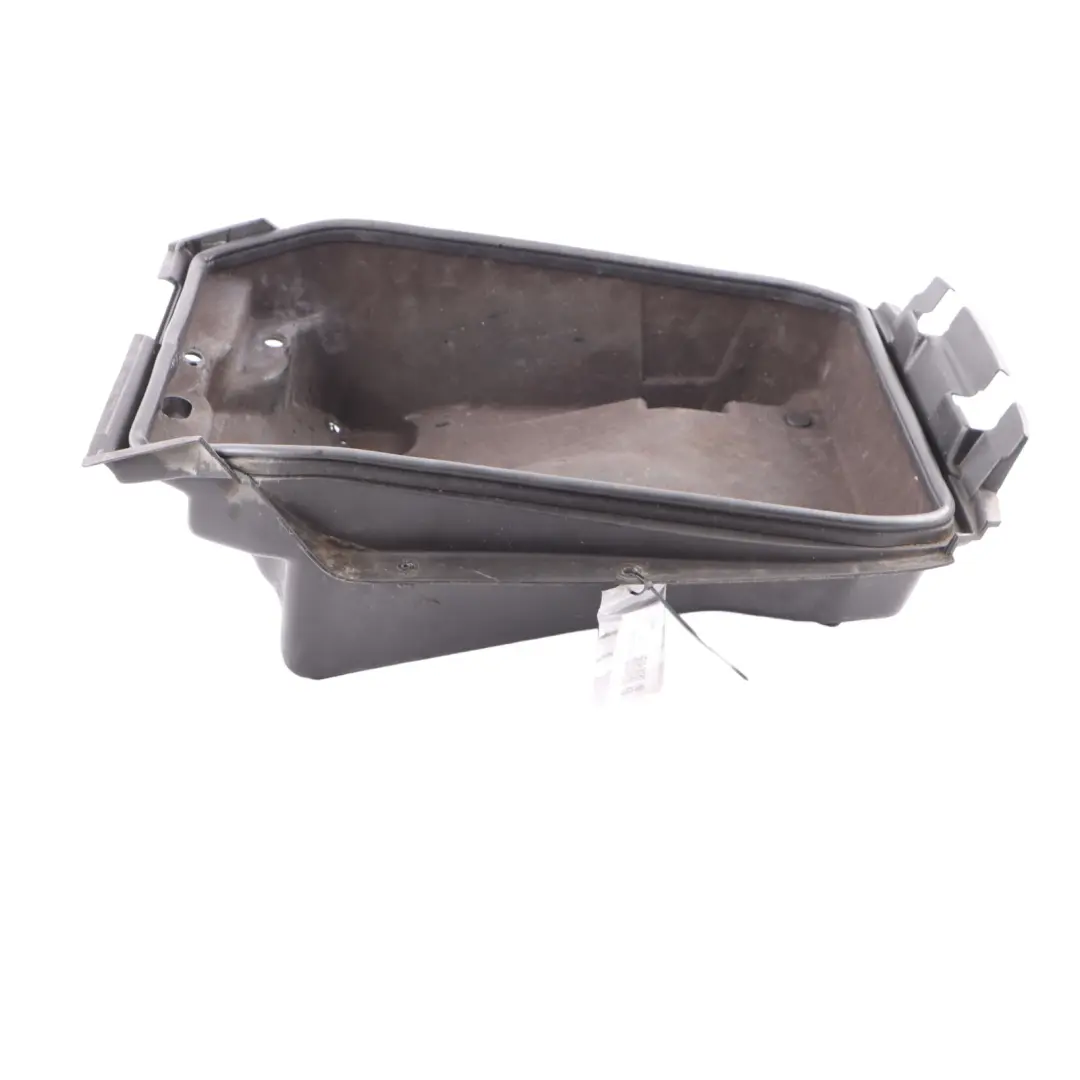

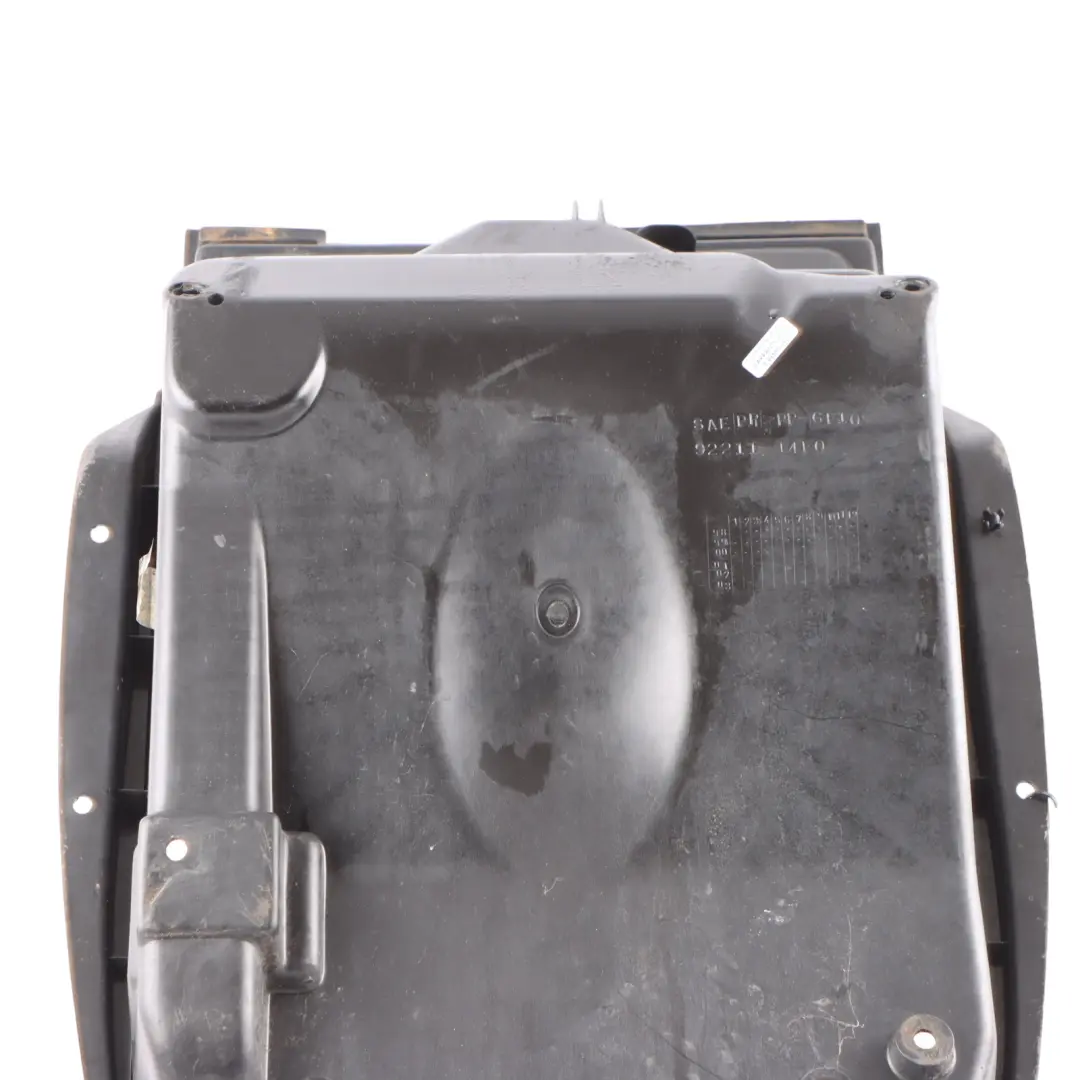

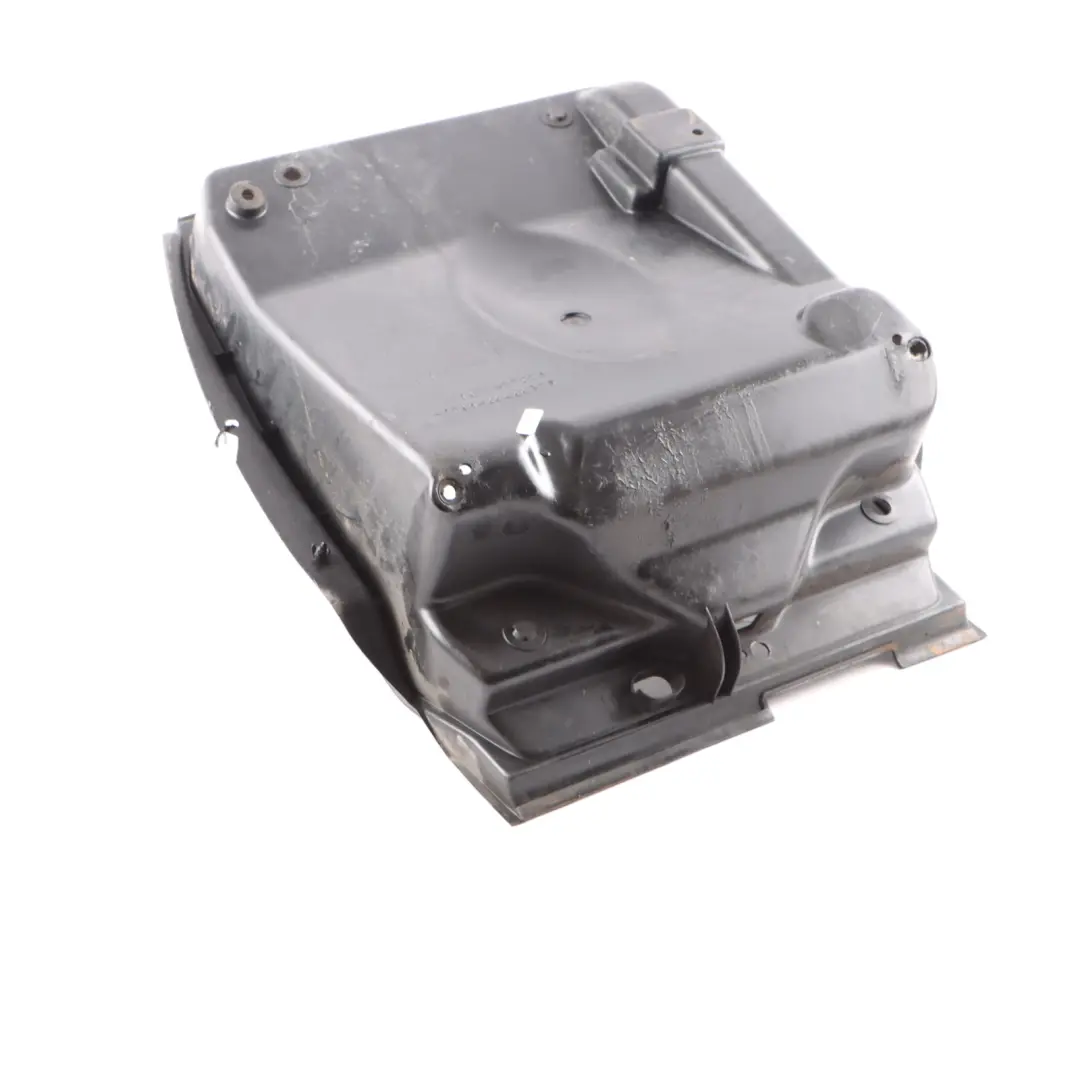

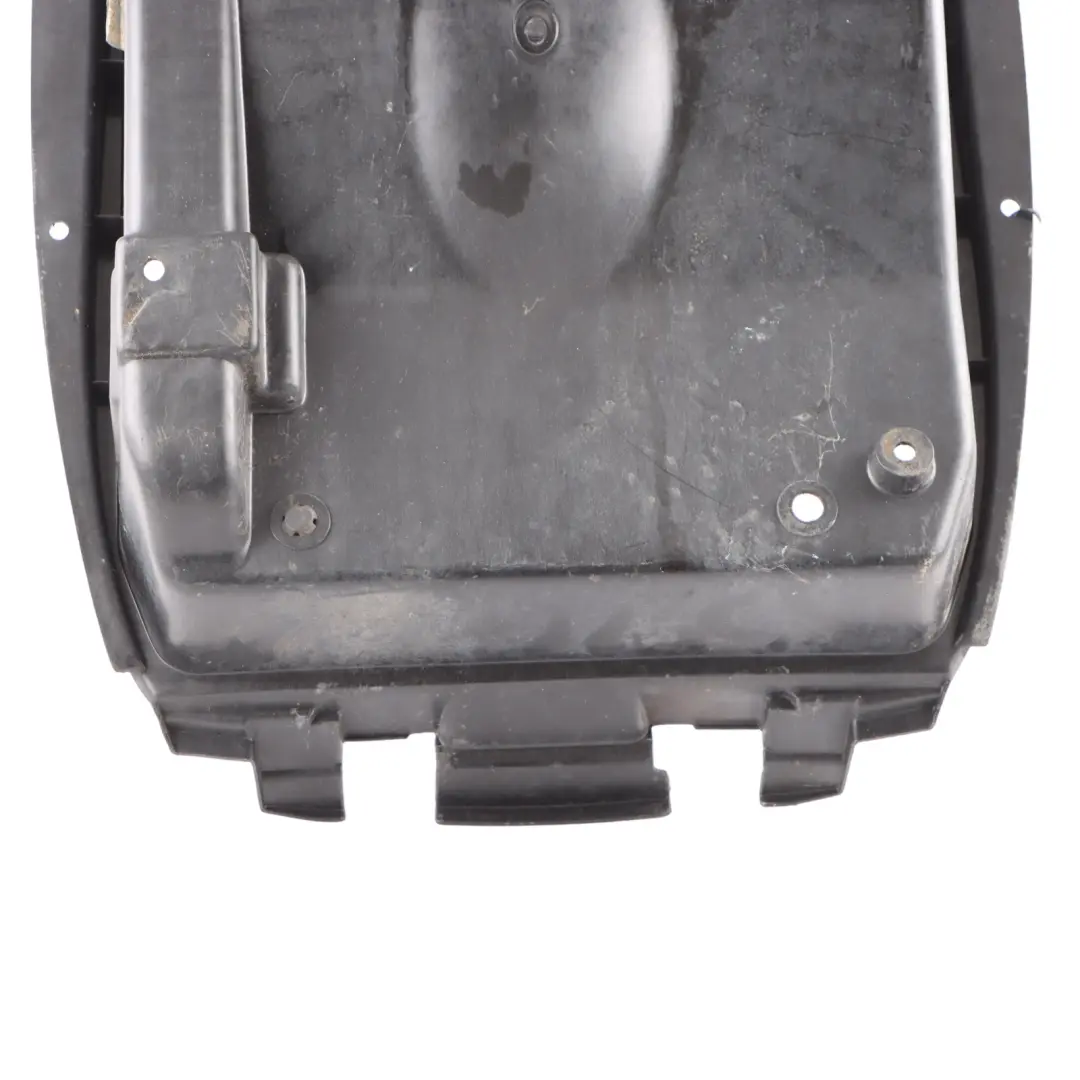

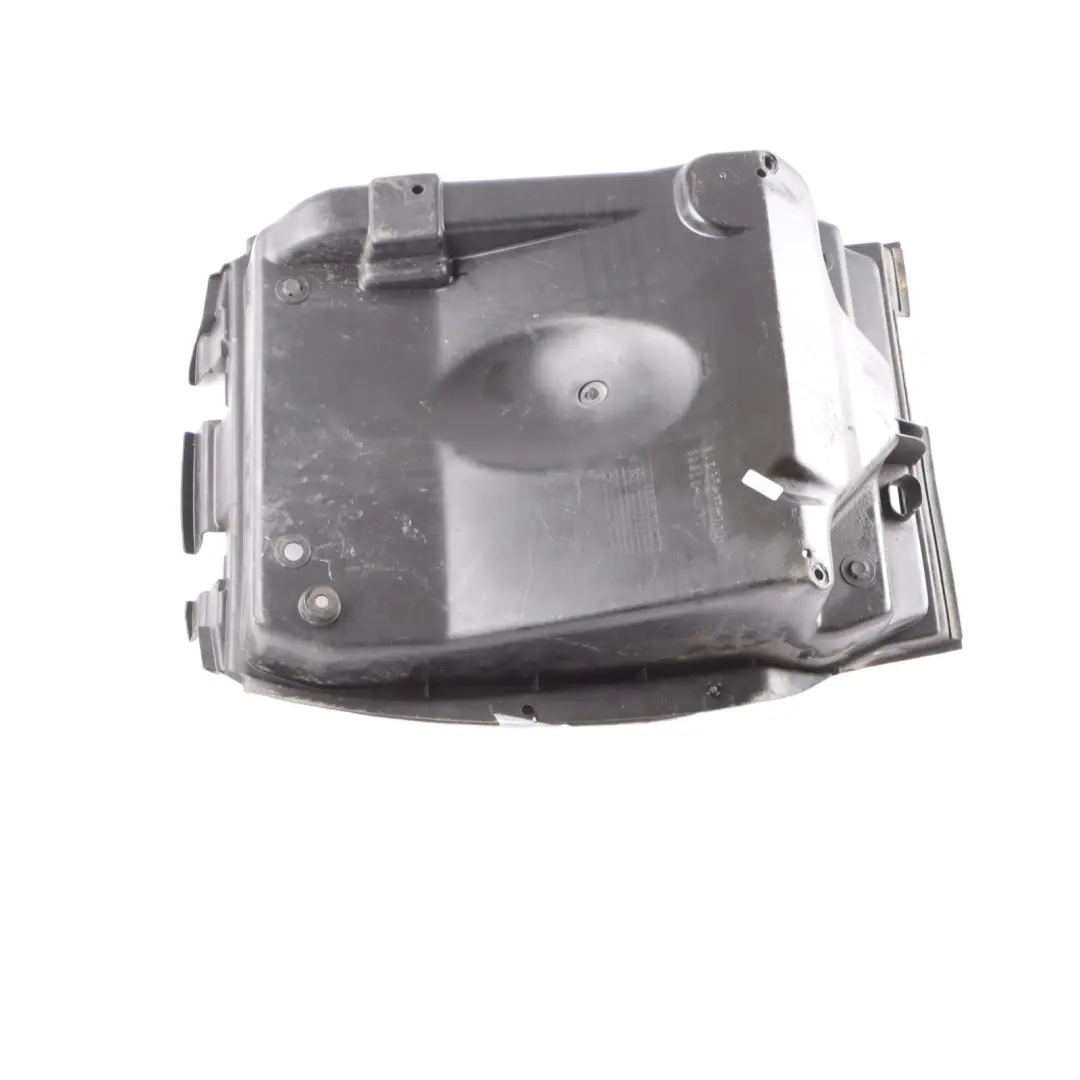

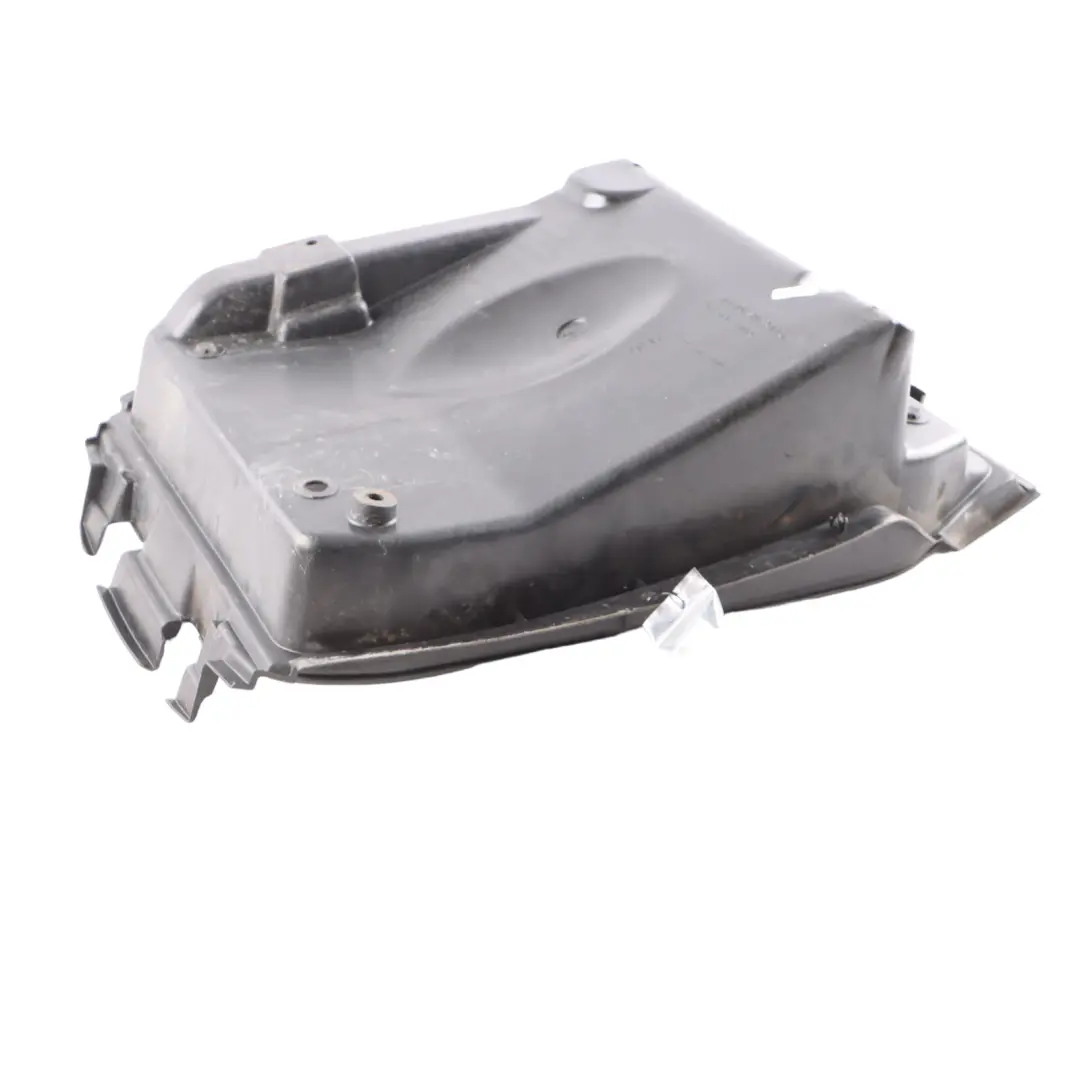

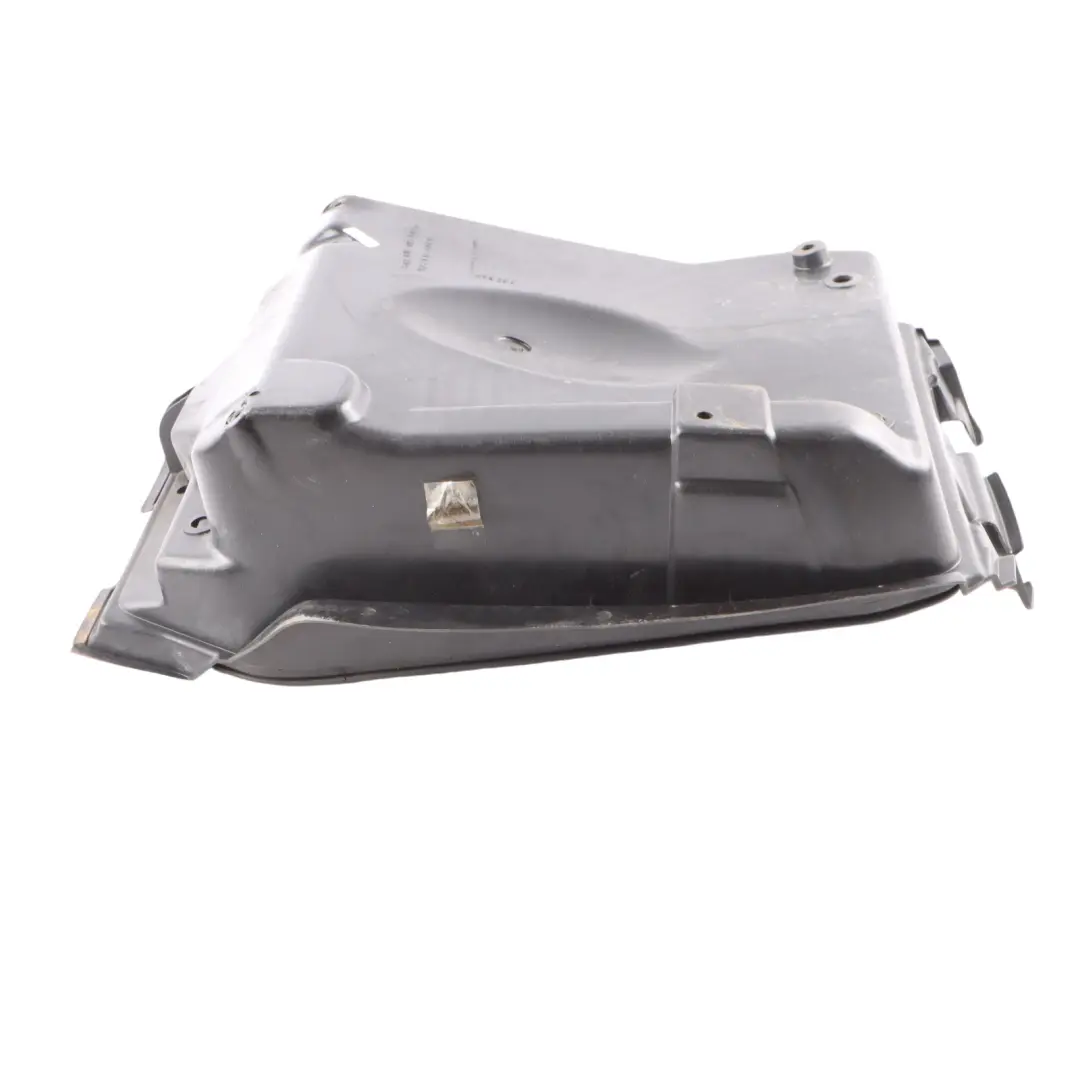

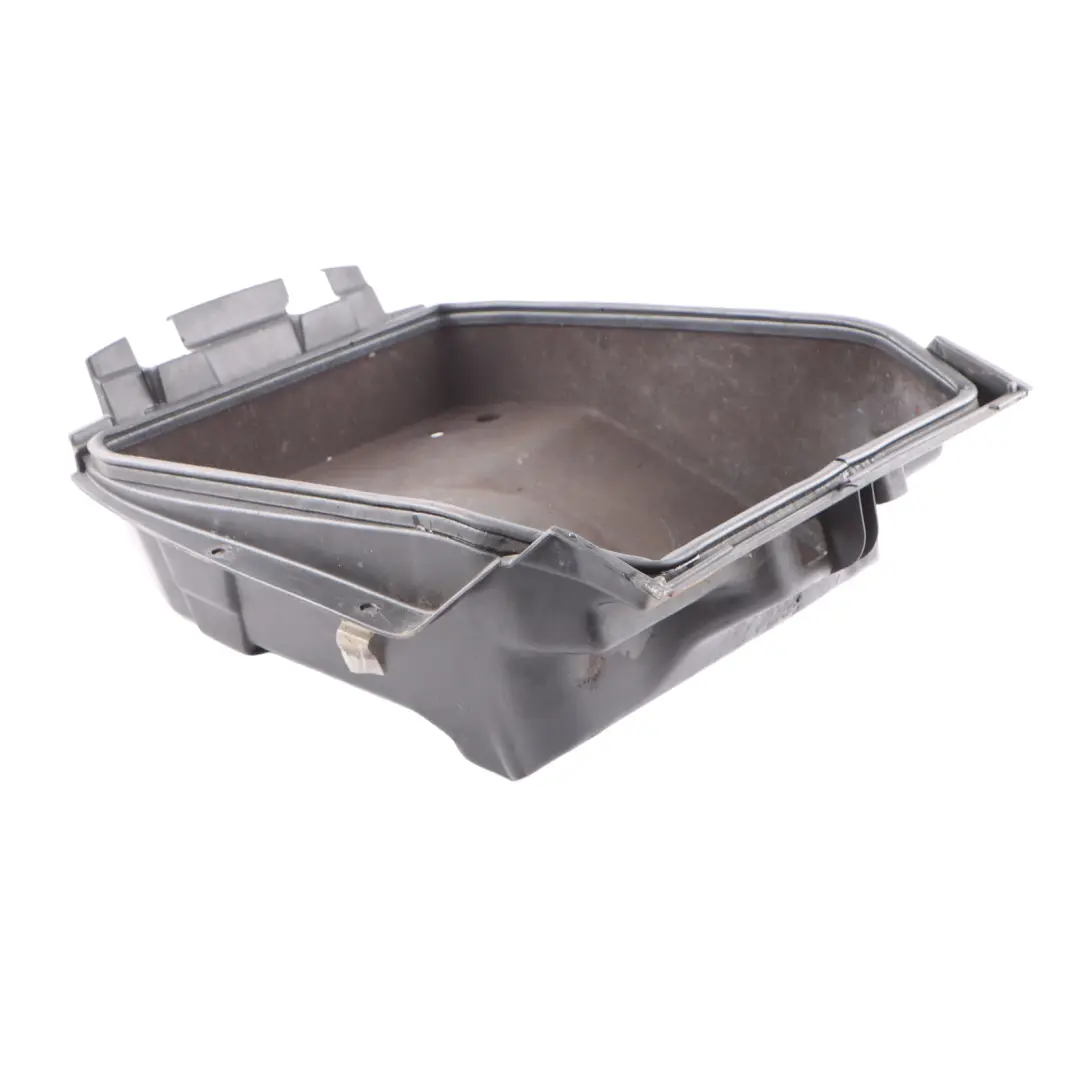

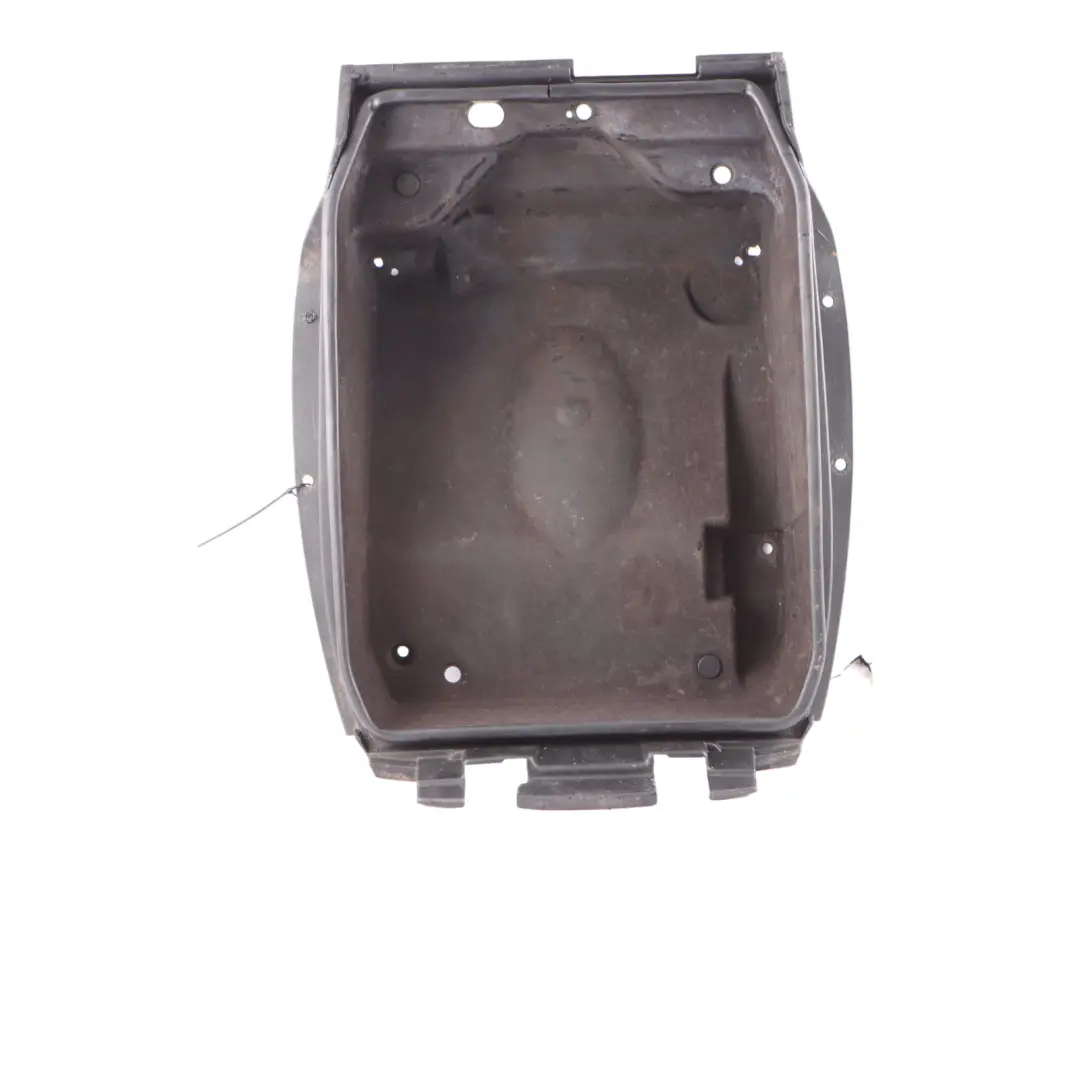

Seat Tray Box Suzuki Burgman 400 AN400Y Seat Mounting Bracket 9221114F01000

Visual condition of the part

The product shows signs of use visible in the photos.

Seat Tray Box Suzuki Burgman 400 AN400Y is a front seat mounting bracket designed as a structural component of the scooter's seating system. This original part from the Frames and parts group ensures stable support for the seat, which translates into predictable vehicle handling and user comfort. This solution is intended for users who want to maintain the factory body geometry and secure seat mounting in their Burgman 400 AN400Y.

Specifications and technical data

• SKU: 9221114F01000
• Mark: Suzuki
• Condition: Used

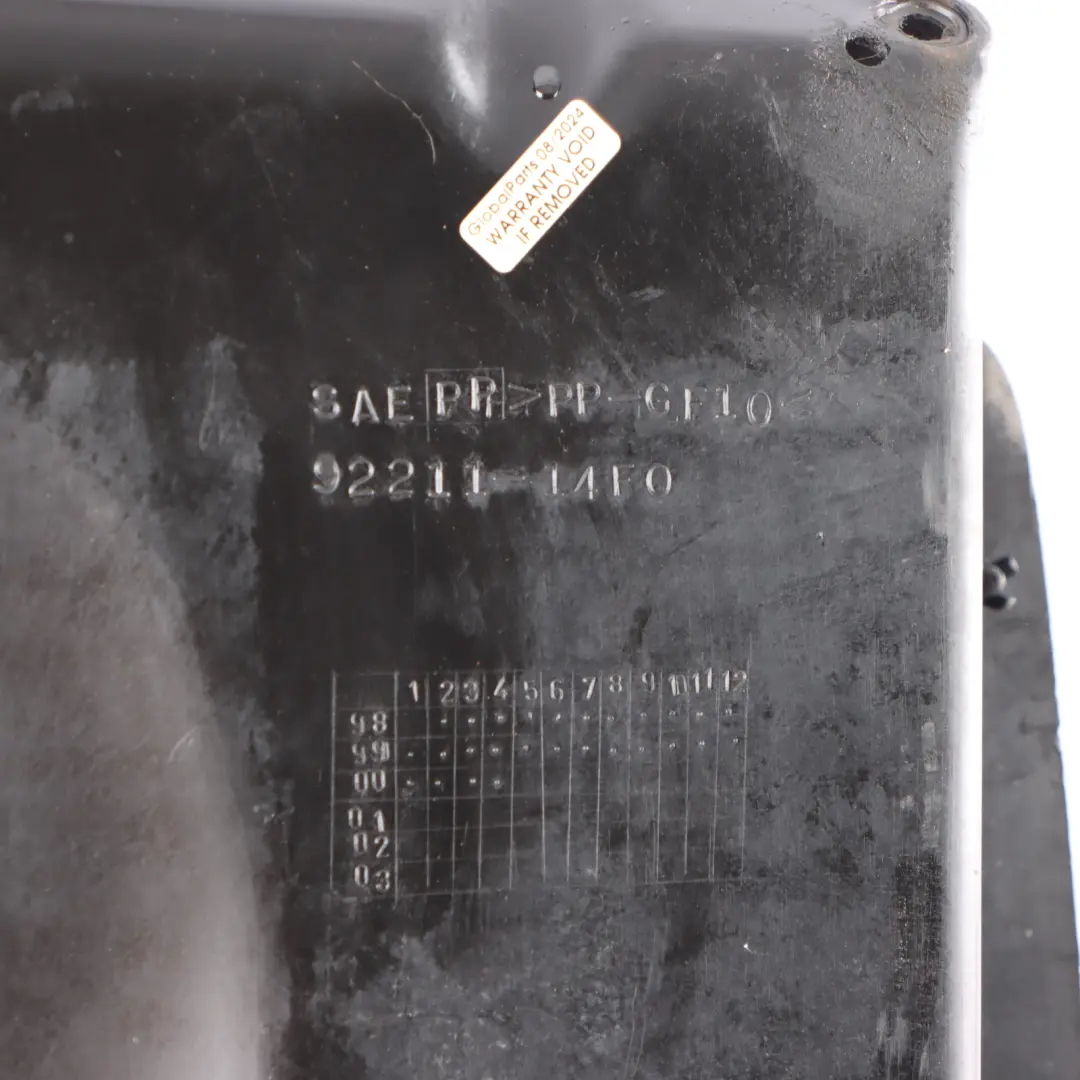

• OEM Part Number: 9221114F01000
• Substitutable numbers: 9221114F01000, 92211-14F01-000
• Location on the vehicle: Front
• Category: Frames

Purpose and function of the component

The described seat bracket operates in the front part of the scooter, where it is responsible for a rigid connection between the seat and the supporting structure. As a load-bearing element, it transfers loads resulting from the weight of the rider and passenger, as well as forces acting during acceleration, braking, and traversing uneven surfaces. As a result, the seating system maintains the correct position, and forces are distributed to the frame in a predictable and safe manner.

In practice, a properly selected and functional seat mounting bracket reduces unwanted play, squeaks, or seat movement, which is important for both riding comfort and the durability of other body components. Stable seat mounting is particularly important in Burgman 400 class scooters, which often operate in urban and suburban conditions with frequent load changes.

Construction and fitment for Suzuki Burgman 400 AN400Y

The bracket has been designed specifically for the Burgman 400 AN400Y model, taking into account the frame geometry, mounting points, and seat opening kinematics. This means that the mounting holes, shape, and profile of the component are matched to the factory seating system, which facilitates installation and allows for maintaining the original body line. Precise fitment to the frame minimizes the risk of installation stress and accelerated wear of adjacent components.

Its placement in the front part of the vehicle allows the component to work with other structural parts, creating a cohesive load-bearing system. Replacing a worn or damaged bracket with an original equivalent allows for restoring the factory seat performance parameters without the need for frame modifications or interference with other subassemblies.

Characteristics of the used component

The presented seat mounting bracket is a used part, which in practice means it comes from disassembly and was previously used in a vehicle. For many users, this is a reasonable compromise between repair costs and maintaining the original structural specification. A used OEM element usually fits better into the existing system than replacements of uncertain origin, while simultaneously allowing for cost savings while maintaining an appropriate level of safety.

In the case of structural elements such as seat brackets, it is important to maintain compliance with the factory design. Choosing an original component from the same construction group reduces the risk of installation problems, incorrect load distribution, or accelerated corrosion at mounting points.

Benefits of using an original bracket

Using an original seat mounting bracket in the Suzuki Burgman 400 AN400Y brings a number of practical benefits:

• preservation of the factory geometry of the seating system and frame,
• secure, repeatable mounting points, facilitating seat installation and removal,
• reduction of play and unwanted noises during riding,
• material consistency with other structural elements,
• possibility of restoring original performance characteristics after a collision or mechanical damage.

For users who want to better understand the importance of original components in the context of durability and safety, the guide on the quality and safety of used OEM parts, which discusses, among other things, the differences between original parts and replacements, may be helpful.

Integration with other subassemblies and part selection

The seat mounting bracket works with hinges, the seat lock, frame elements, and body covers. When planning a repair, it is worth verifying the condition of the entire seating system to avoid a situation where a newly installed element works with excessively worn accompanying components. Consistent part selection allows for reducing the number of disassemblies and ensures longer, trouble-free operation.

Although the discussed element is not part of the drivetrain, during major service work, many users simultaneously analyze the condition of other key subassemblies. In this context, a guide on diagnostics and selection of drivetrain elements may be useful, available in the article on the clutch, dual-mass flywheel, and selection of parts for the drivetrain, which shows how to plan comprehensive service work on the vehicle.

If you are planning a comprehensive repair or upgrade of the structural zone related to the seat in your Suzuki scooter and need other elements from the same group, such as brackets, mounts, or additional reinforcement profiles, check the available parts in the Suzuki Frames and parts category.
