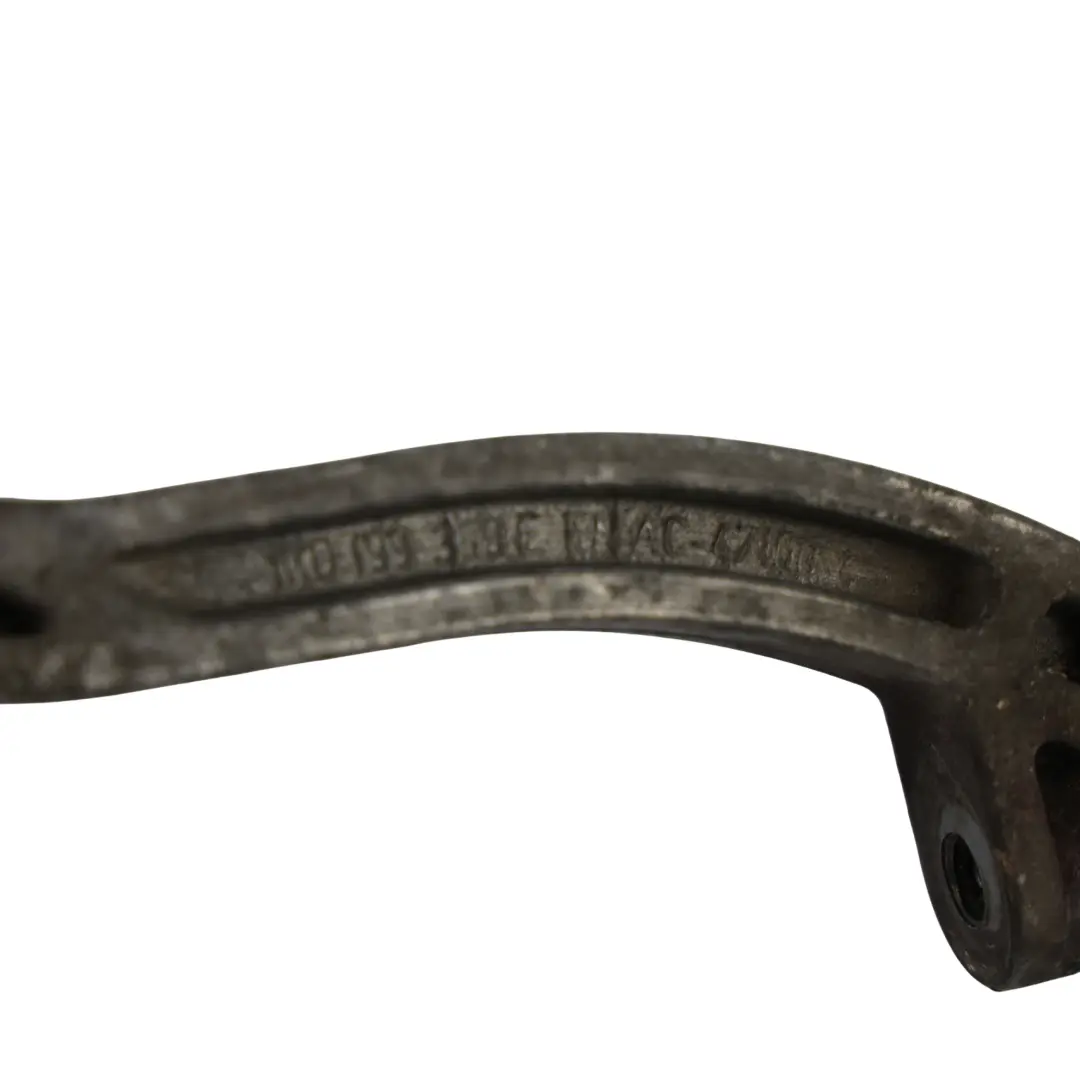

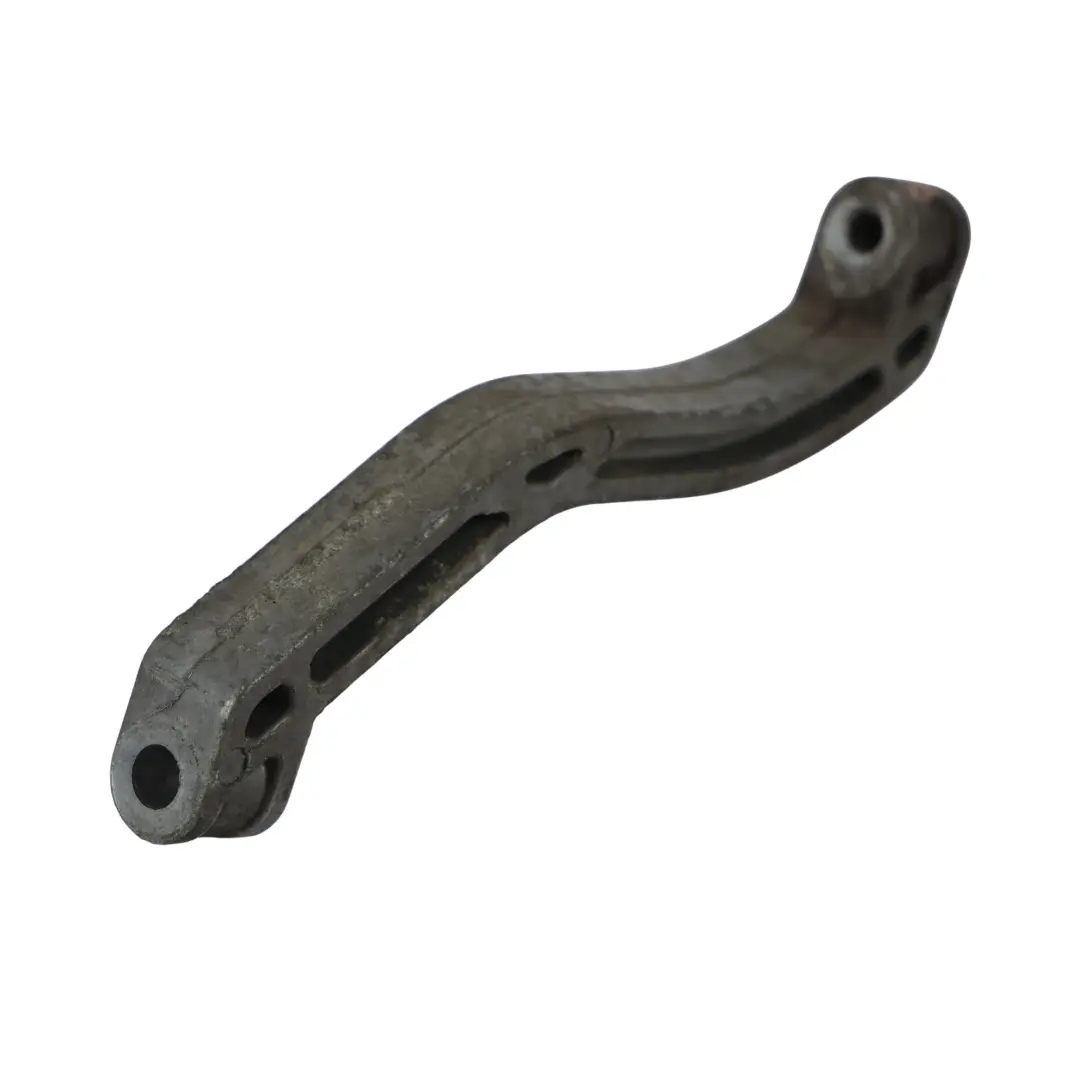

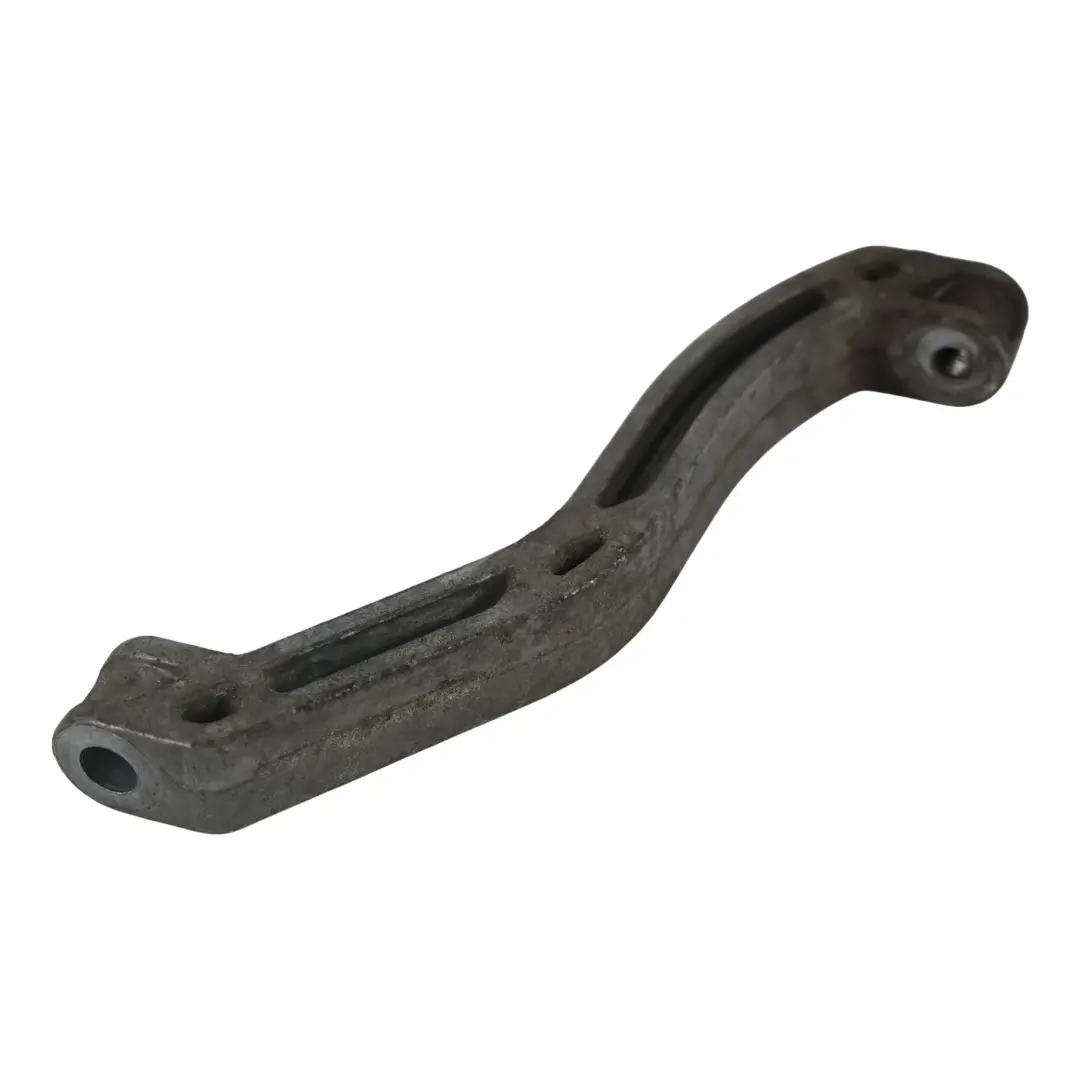

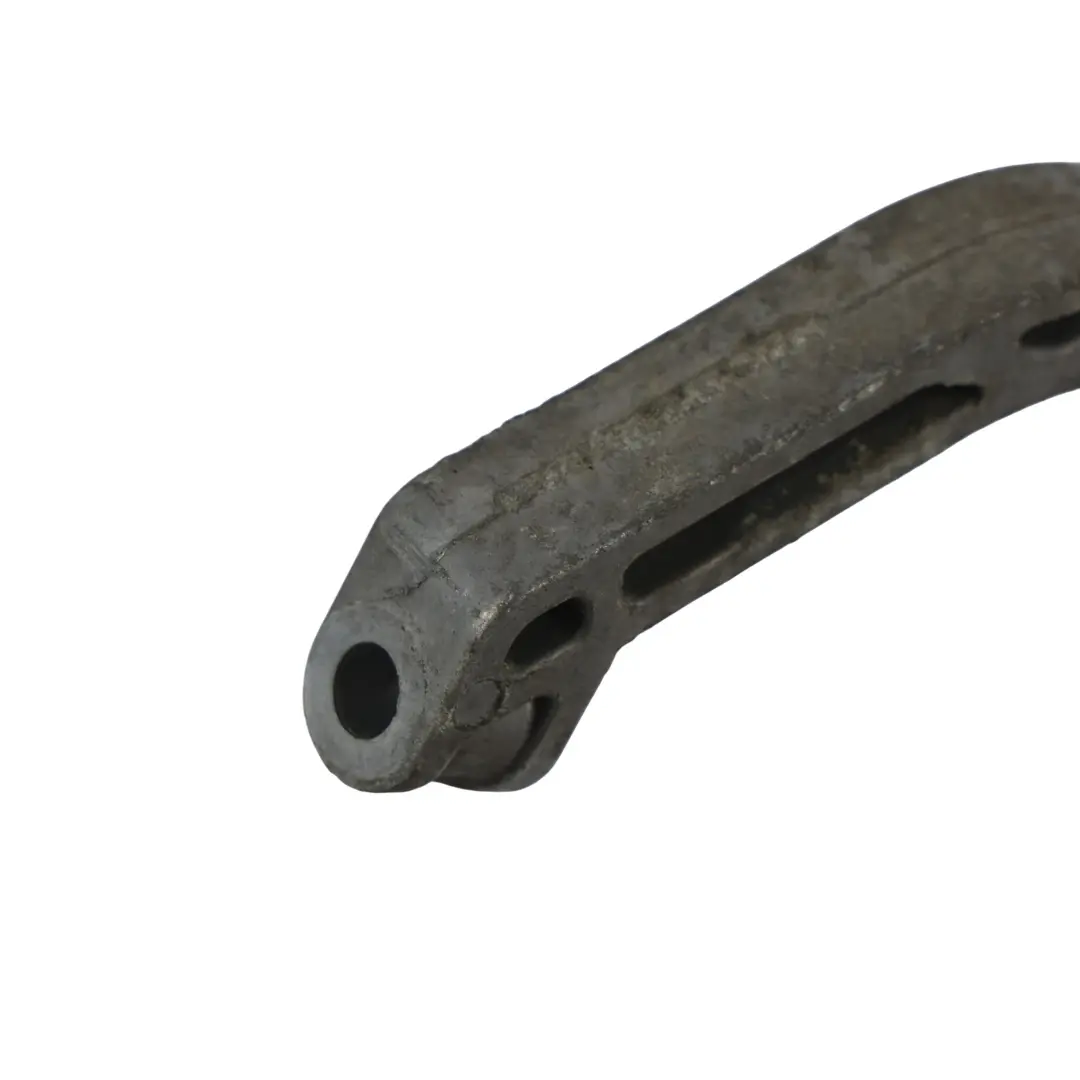

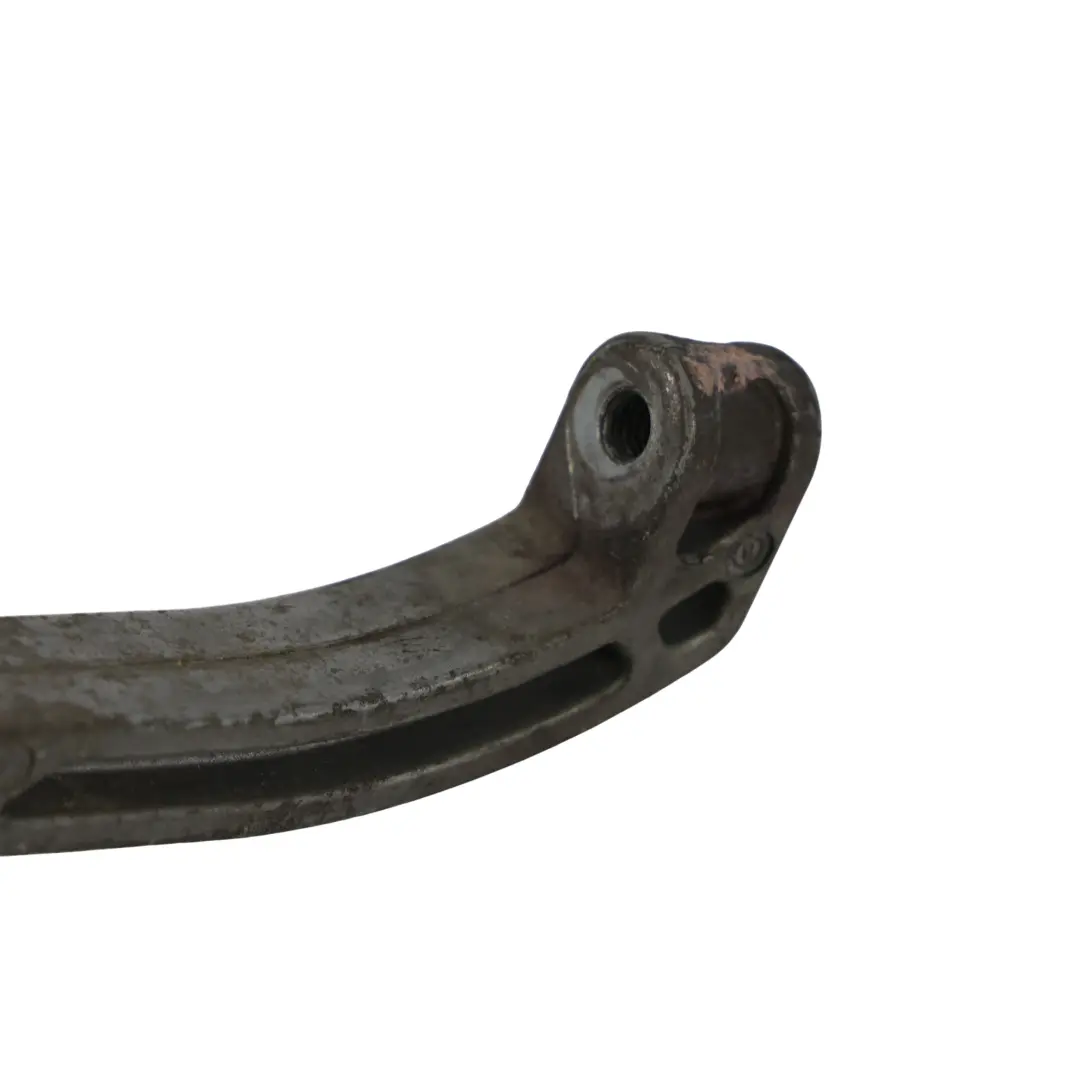

Audi A3 8P VW Golf Mk5 Gearbox Support Engine Mount Bracket 1K0199359F

Audi A3 8P VW Golf Mk5 Gearbox Support Engine Mount Bracket is a component from the Gearbox and drivetrain mounts category, responsible for providing stable support for the manual or automatic transmission relative to the vehicle body. A properly selected bracket limits unwanted movement of the powertrain, improves the operating culture of the drivetrain, and reduces the transmission of vibrations to the chassis.

Specifications and technical data

• SKU: 1K0199359F
• Mark: Audi
• Condition: Used
• OEM Part Number: 1K0199359F
• Substitutable numbers: 1K0199359F, 1K0 199 359 F
• Part type: Transmission Mount
• Category: Transmission & Drivetrain Mounts

Function and role of the gearbox support bracket

The gearbox support bracket in the Audi A3 8P and VW Golf Mk5 acts as a rigid, metal structural element connecting the gearbox to the body or subframe. Its tasks include:

• maintaining the correct geometry of the gearbox position relative to the engine and drive shafts,
• limiting gearbox displacement during acceleration, engine braking, and gear changes,
• relieving the load on other gearbox and drivetrain mounts,
• ensuring stable operation of the drivetrain over a long service life.

A well-chosen support bracket translates into more precise operation of the gear shifting mechanism and lower loads on other mounting components.

Why it is worth using an original Audi mount

The original mount from the Gearbox and drivetrain mounts category is designed for a specific vehicle platform, taking into account the weight of the gearbox, the operating characteristics of the drivetrain, and durability requirements. In practice, this means:

• secure fitment to the mounting points in the Audi A3 8P and VW Golf Mk5,
• preservation of the factory rigidity of the drivetrain,
• compatibility with other mounting elements and the subframe.

Using original solutions reduces the risk of installation stress, leaks, or premature wear of joints and drive shafts resulting from incorrect gearbox alignment.

Characteristics of the used component

The presented gearbox support bracket is a used item, sourced from vehicle dismantling. This type of part, provided it maintains correct geometry and has no structural damage, retains its load-bearing properties for a long period of use. In the case of structural elements such as mounting brackets, a used OEM component often represents a reasonable compromise between cost and durability.

Before installation, a standard visual inspection for cracks, excessive corrosion in mounting zones, and checking the threads is recommended. A properly verified support bracket can be used without issues as a replacement for a factory component in the vehicle.

The importance of a proper gearbox mount

An improper condition or deformation of the gearbox support bracket can lead to a range of operational symptoms, such as:

• excessive vibrations felt in the cabin during starting and acceleration,
• knocking sounds when abruptly applying or releasing the throttle,
• deterioration in gear shifting precision,
• accelerated wear of other drivetrain mounts.

Replacing a worn or damaged bracket with a functional component allows for restoring stable gearbox operation and reducing the risk of secondary damage within the drivetrain.

Expanding knowledge and selecting the right parts

To better understand the impact of mount condition on transmission operation and the cost-effectiveness of using original parts from dismantling, it is worth reading the article: Manual gearbox failures in cars – why is an original used part a more sensible choice than regeneration?. There, you will find a discussion of typical symptoms of manual gearbox damage and an analysis of repair costs.

If you are planning a comprehensive repair or upgrade of the drivetrain area in your Audi and need other elements from the same group, such as additional brackets, supports, or other gearbox mounts, check the available parts in the Audi gearbox and drivetrain mounts category.
