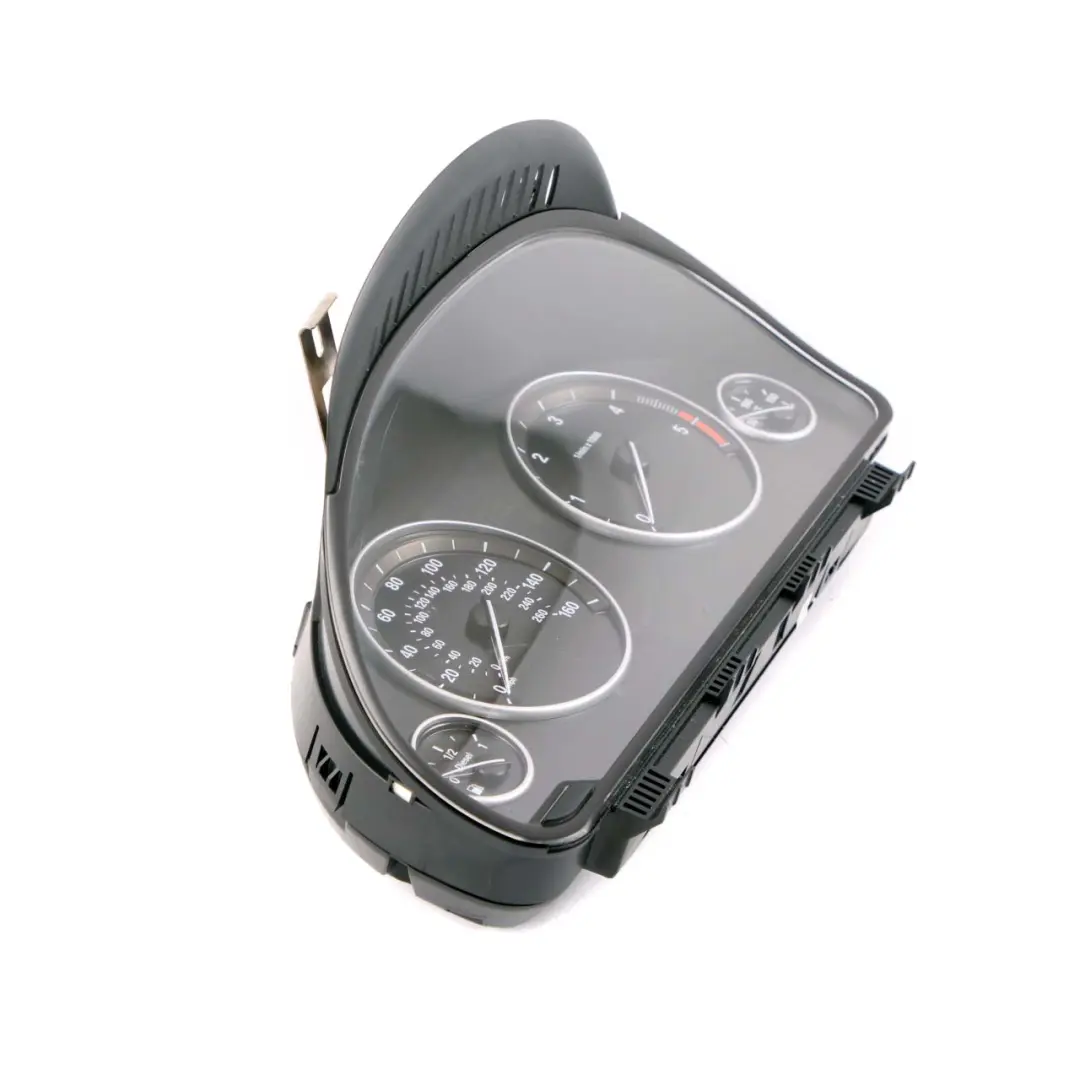

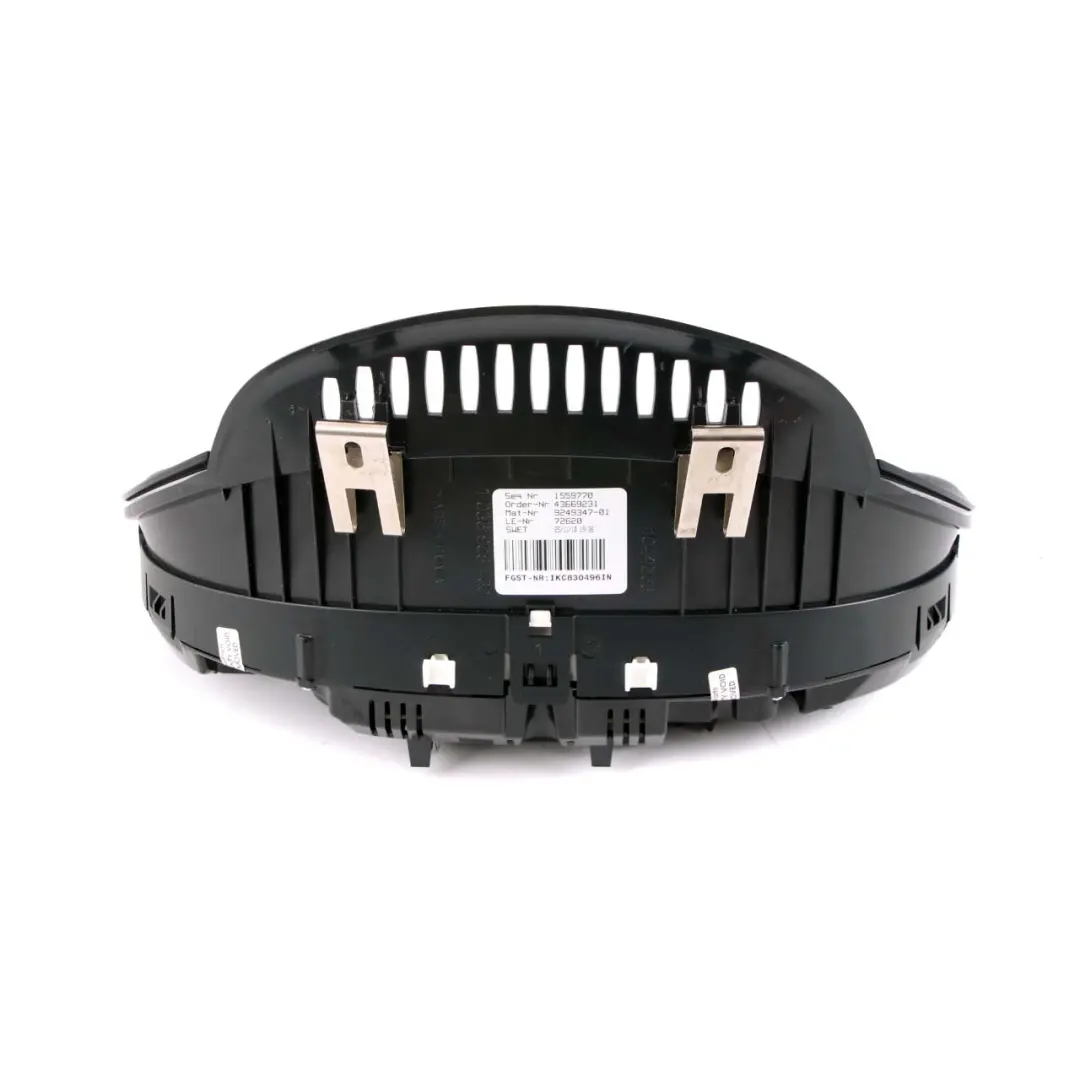

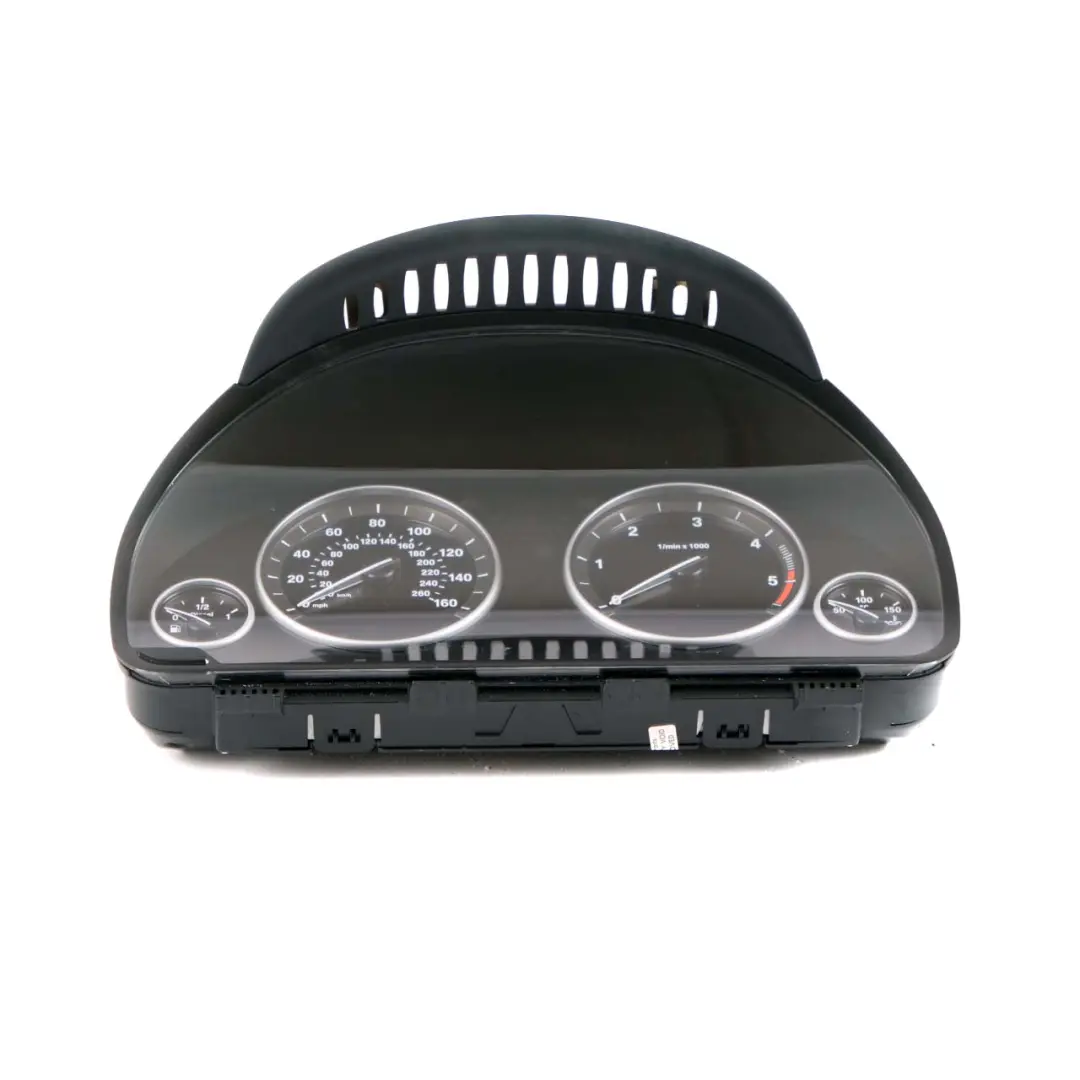

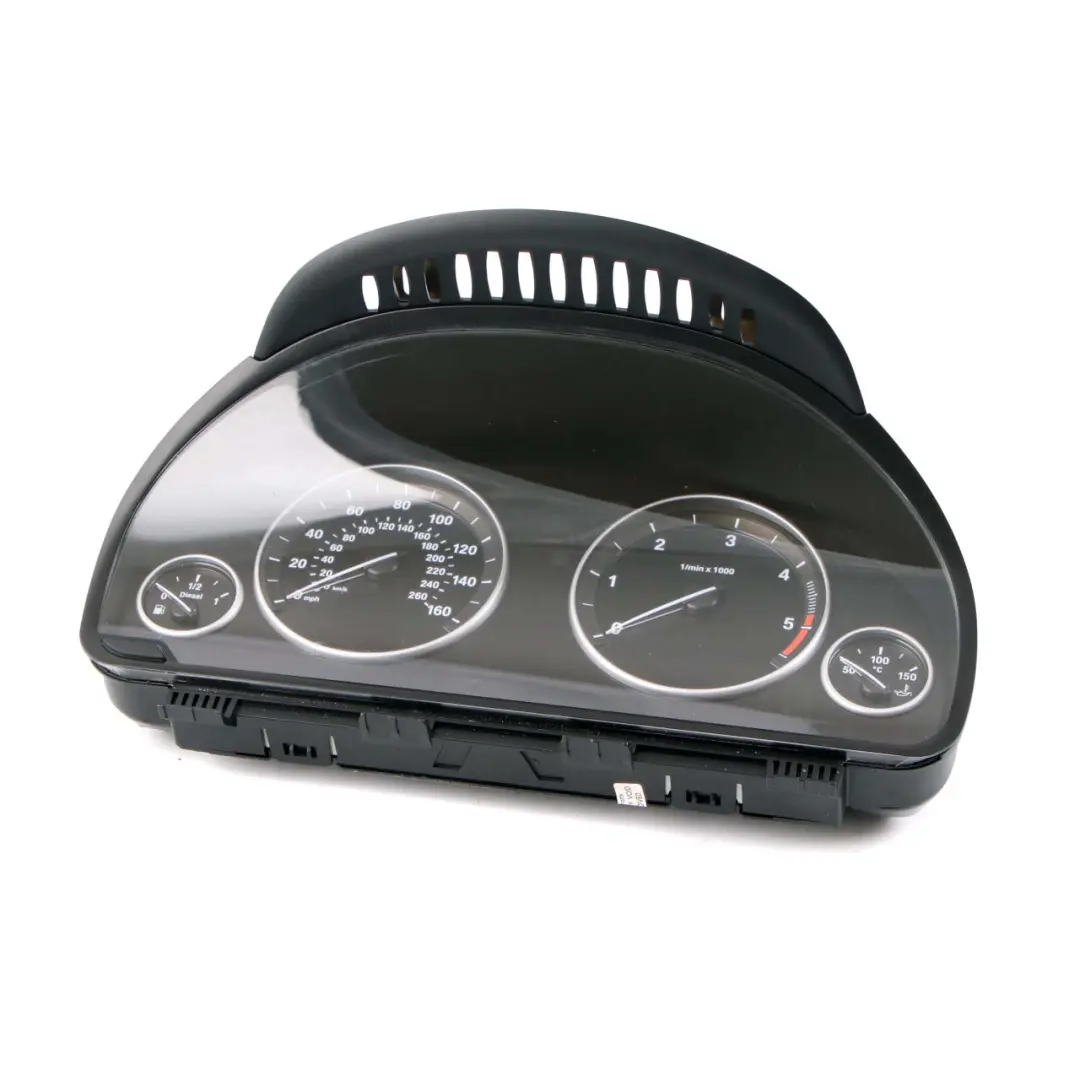

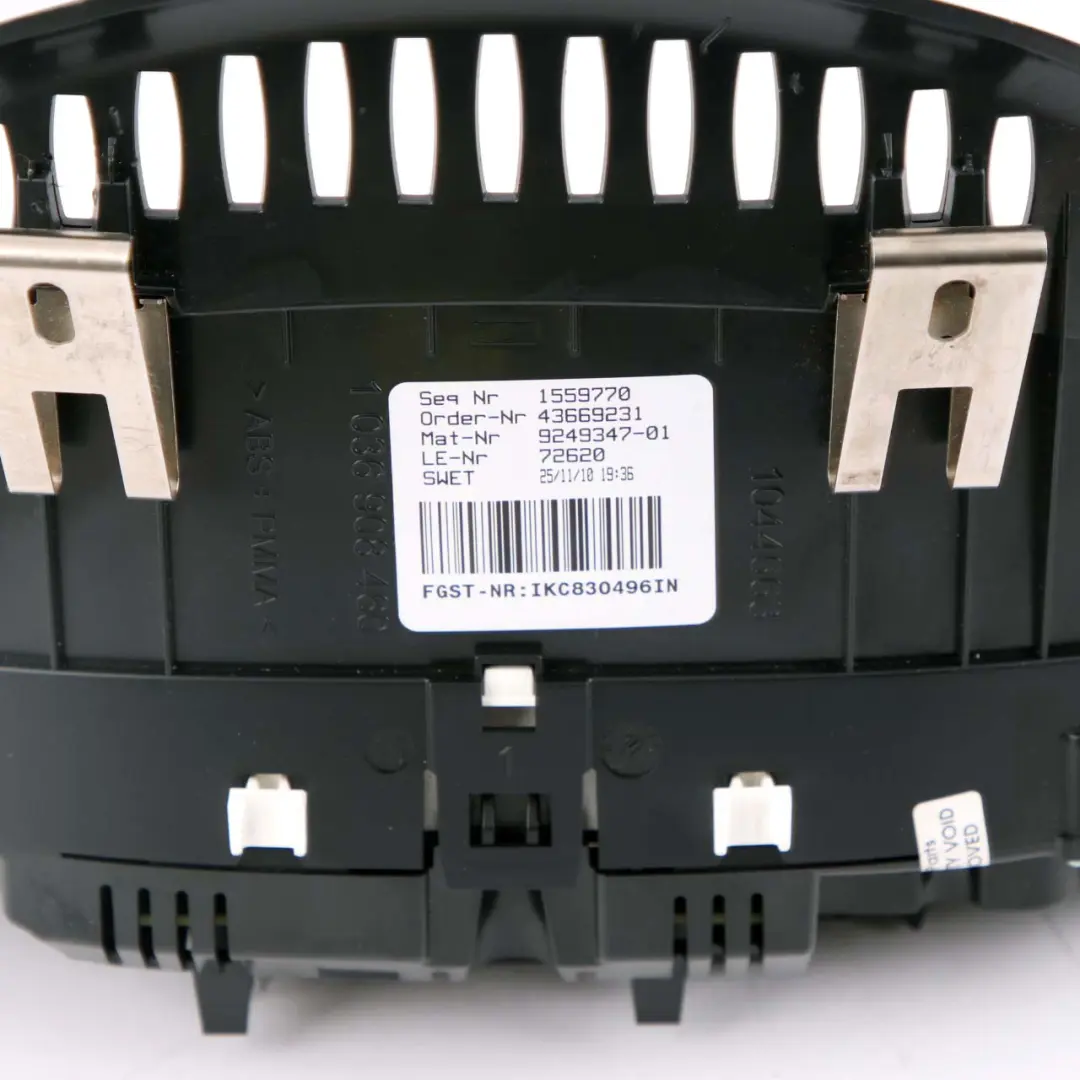

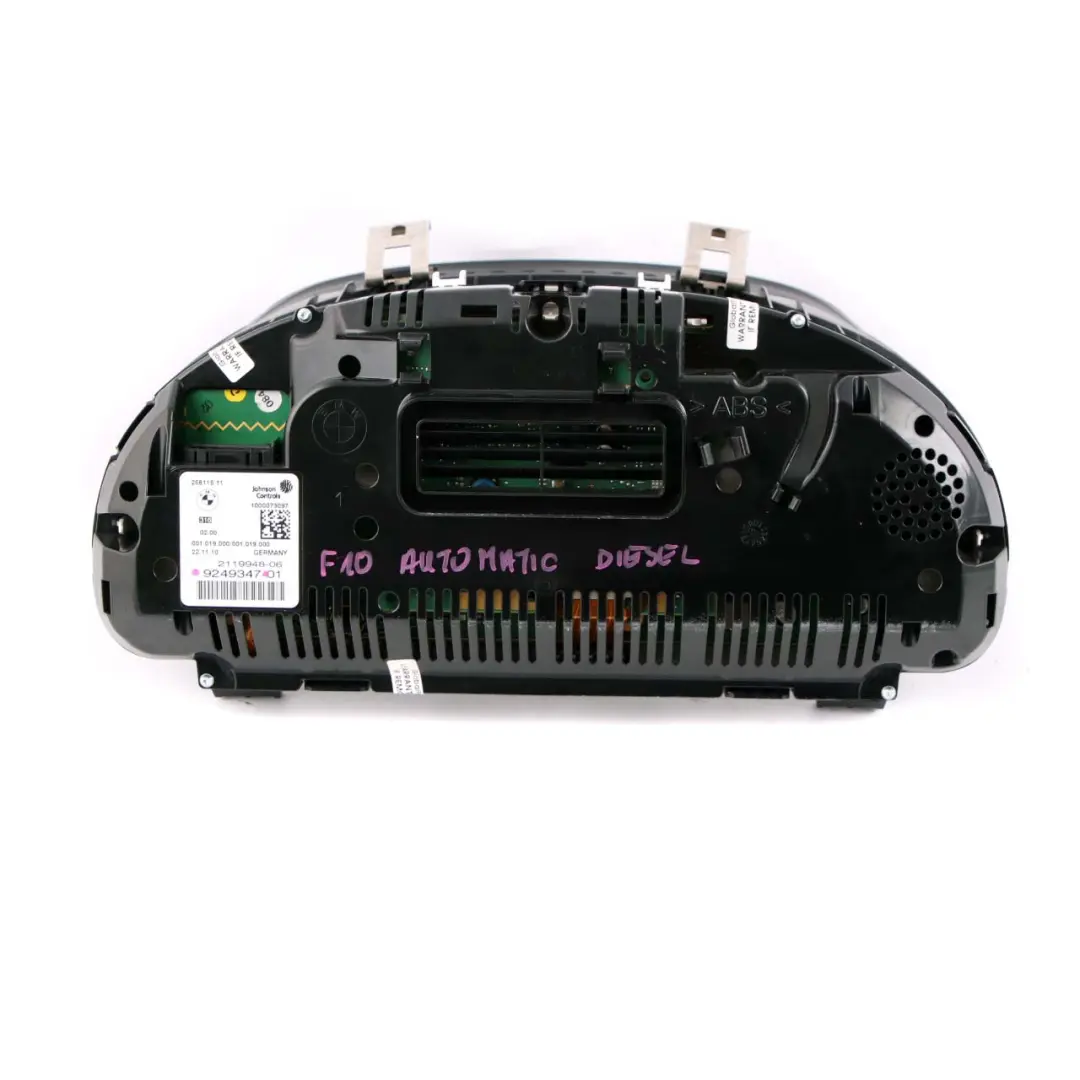

BMW F10 F11 Diesel Instrument Cluster Speedo Clocks Automatic 9249347

The BMW F10/F11 Diesel Automatic Transmission Instrument Cluster is an original instrument panel designed for installation in the front of the cockpit. This used, fully functional speedometer and tachometer is matched to diesel engine versions with an automatic transmission, ensuring consistency with the vehicle's factory electronics. By maintaining OEM specifications, it provides a safe service solution for replacing a damaged instrument cluster.

Specifications and technical data

• SKU: rhd-9249347
• Mark: BMW (Genuine OE)
• Condition: Used

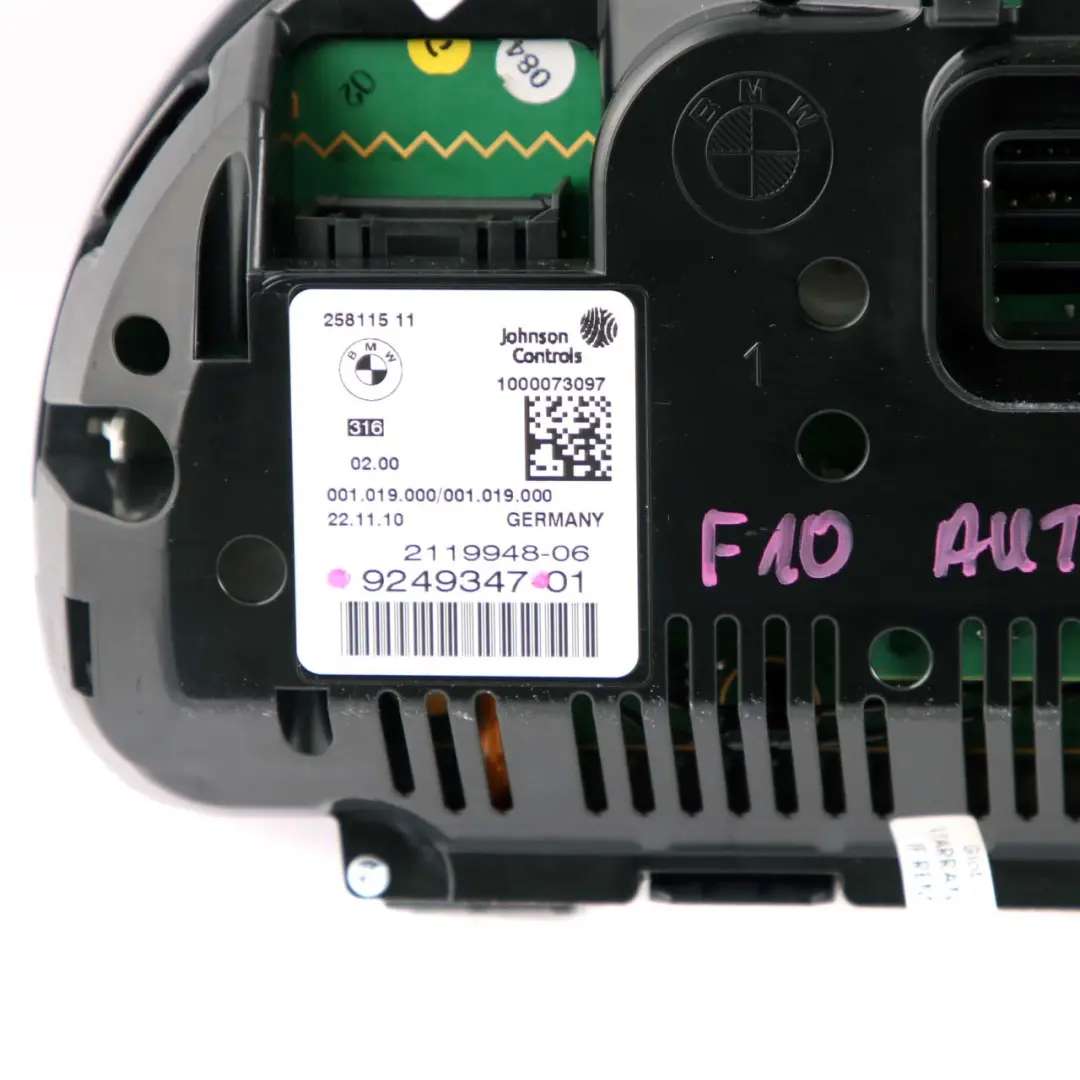

• OEM Part Number: 9249347
• Substitutable numbers: 9249347
• Location on the vehicle: Front
• Fuel type: Diesel
• Gearbox type: Automatic
• Category: Instrument Clusters

Purpose and Compatibility

The presented BMW instrument cluster for F10 and F11 models is designed for vehicles with diesel engines and automatic transmissions. Its placement in the front of the dashboard ensures clear reading of driving parameters and full integration with the vehicle's factory control system.

Due to its compatibility with the electrical architecture of the F10/F11 series, the cluster works with comfort modules, safety systems, and the powertrain, allowing the vehicle's original functionality to be maintained after replacement.

Construction and Function of the Instrument Cluster

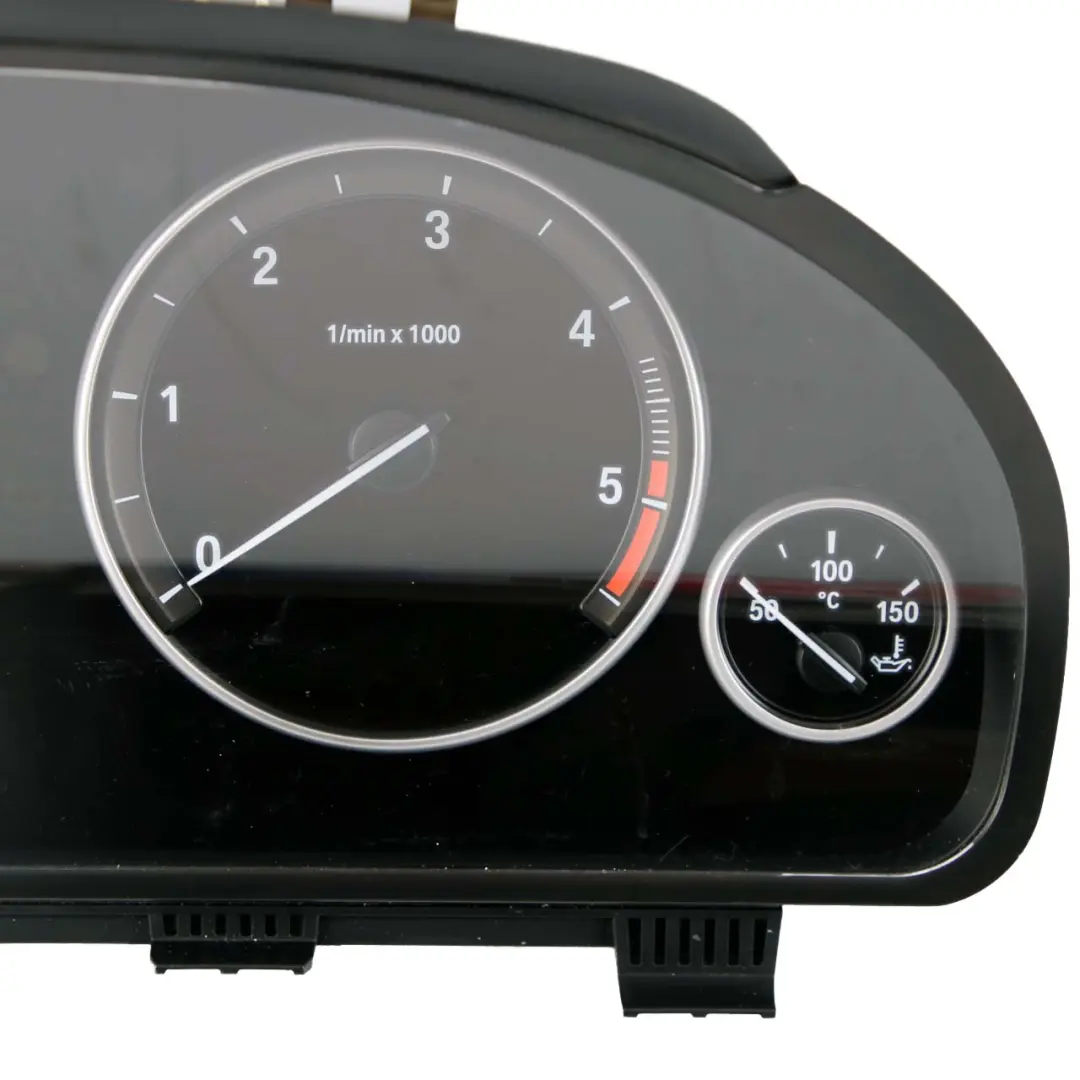

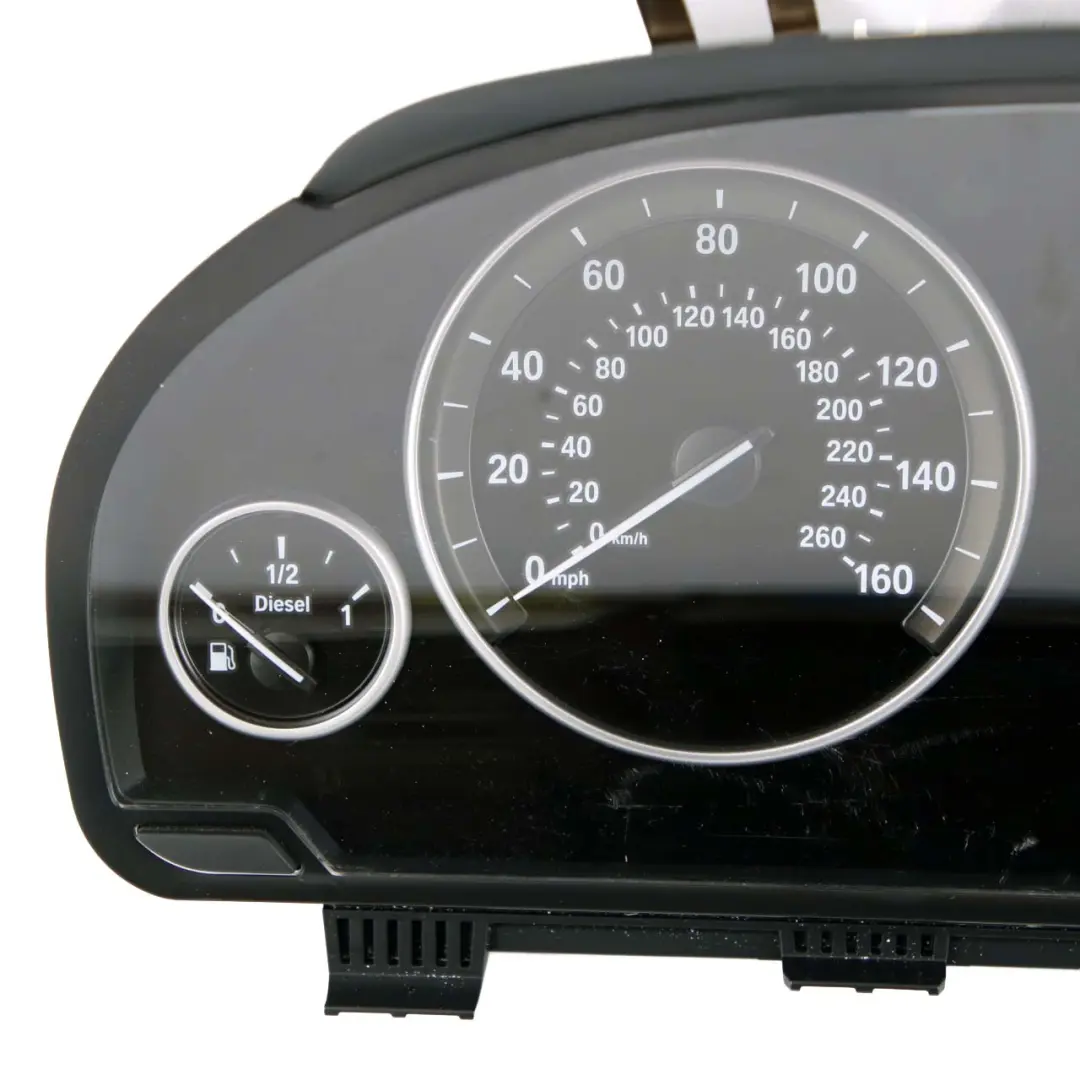

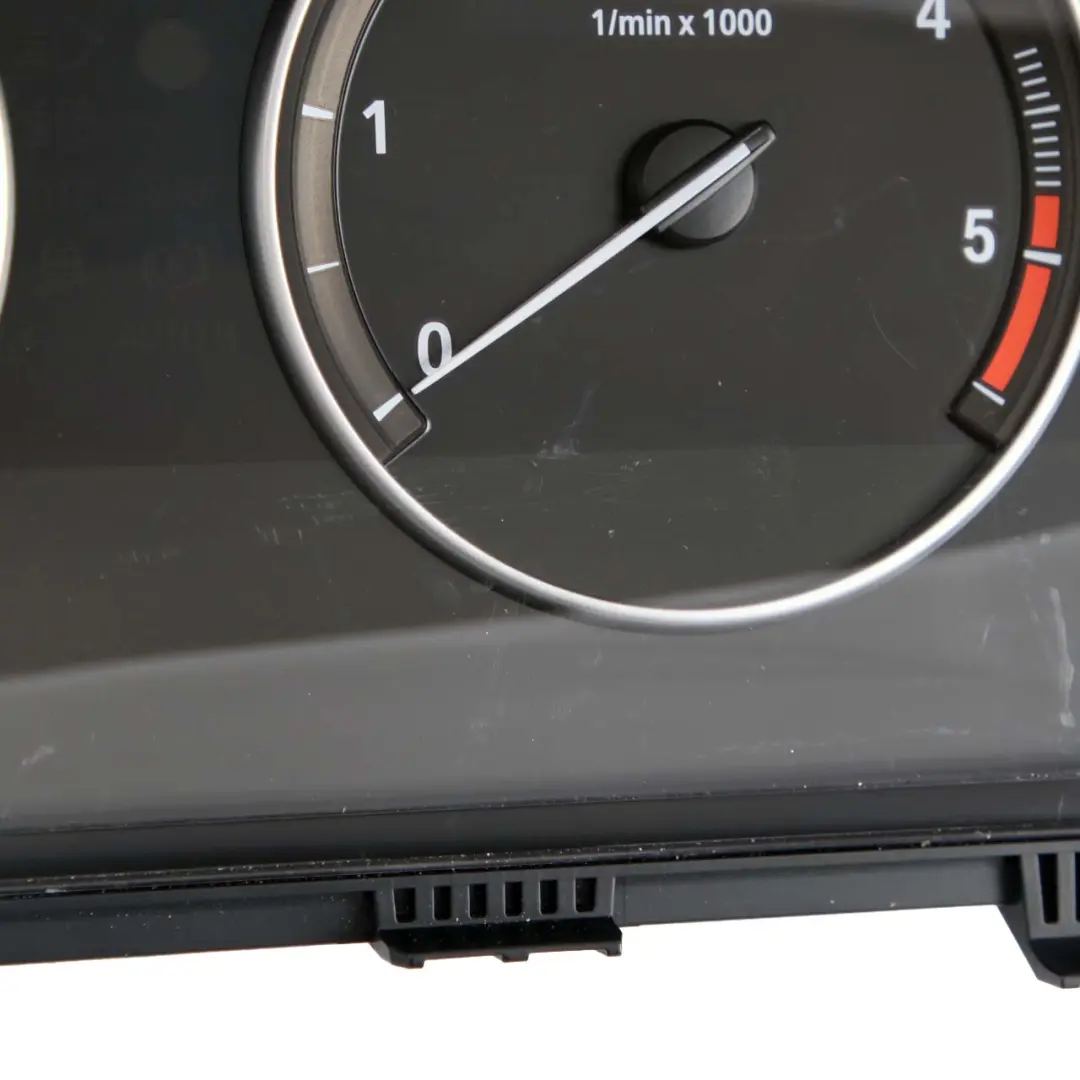

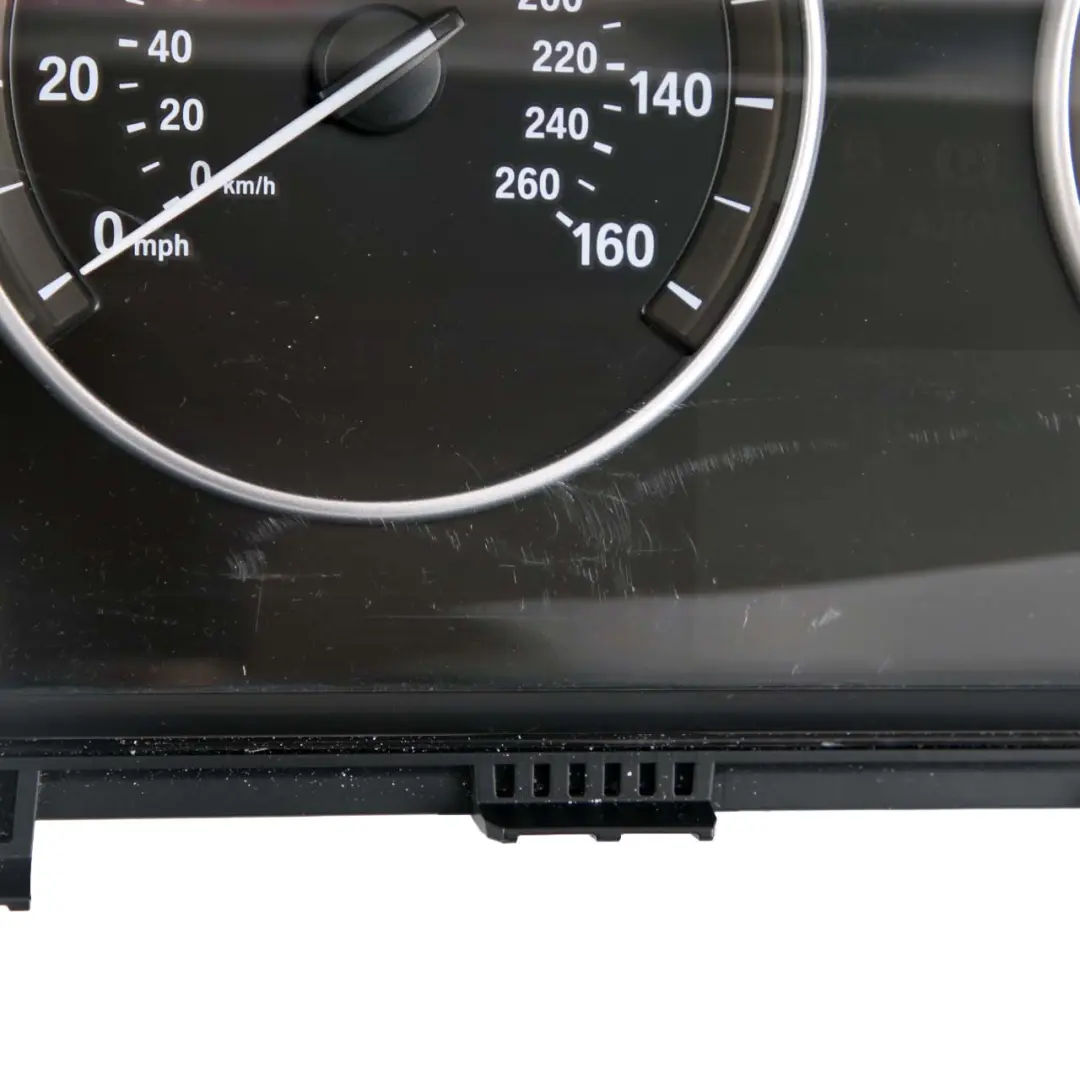

The instrument cluster serves as the driver's central information hub, combining speedometer, engine RPM, and other system indicator lights within a single housing. The OEM construction ensures:

• consistent design with the BMW F10/F11 interior,
• a clear scale layout adapted to the characteristics of a diesel engine,
• integration with the operating logic of the automatic transmission,
• communication with onboard systems via factory data buses.

This solution allows for the preservation of the cockpit's original character and correct cooperation with other electronic modules.

Benefits of Using an Original Instrument Cluster

Choosing a used original BMW instrument cluster offers a sensible compromise between cost and quality. An OEM part ensures:

• factory fit for the electrical installation and dashboard mounts,
• preservation of manufacturer-intended functions and messages,
• reduced risk of compatibility issues compared to aftermarket alternatives,
• the possibility of professional adaptation and coding at a specialized service center.

Therefore, replacing a damaged cluster with an original used part allows for the restoration of the vehicle's full functionality at a controlled repair cost.

Condition, Verification, and Installation

The offered instrument cluster is a used part, sourced from dismantling, which allows for the preservation of original BMW specifications. Before being offered for sale, it undergoes checks for basic functionality and the visual condition of the housing and dials. It is recommended to install this type of cluster at a specialized workshop equipped with the appropriate software for configuration and potential coding for a specific vehicle.

Professional installation minimizes the risk of communication errors with other modules and ensures accurate representation of driving parameters on the displays and gauges.
