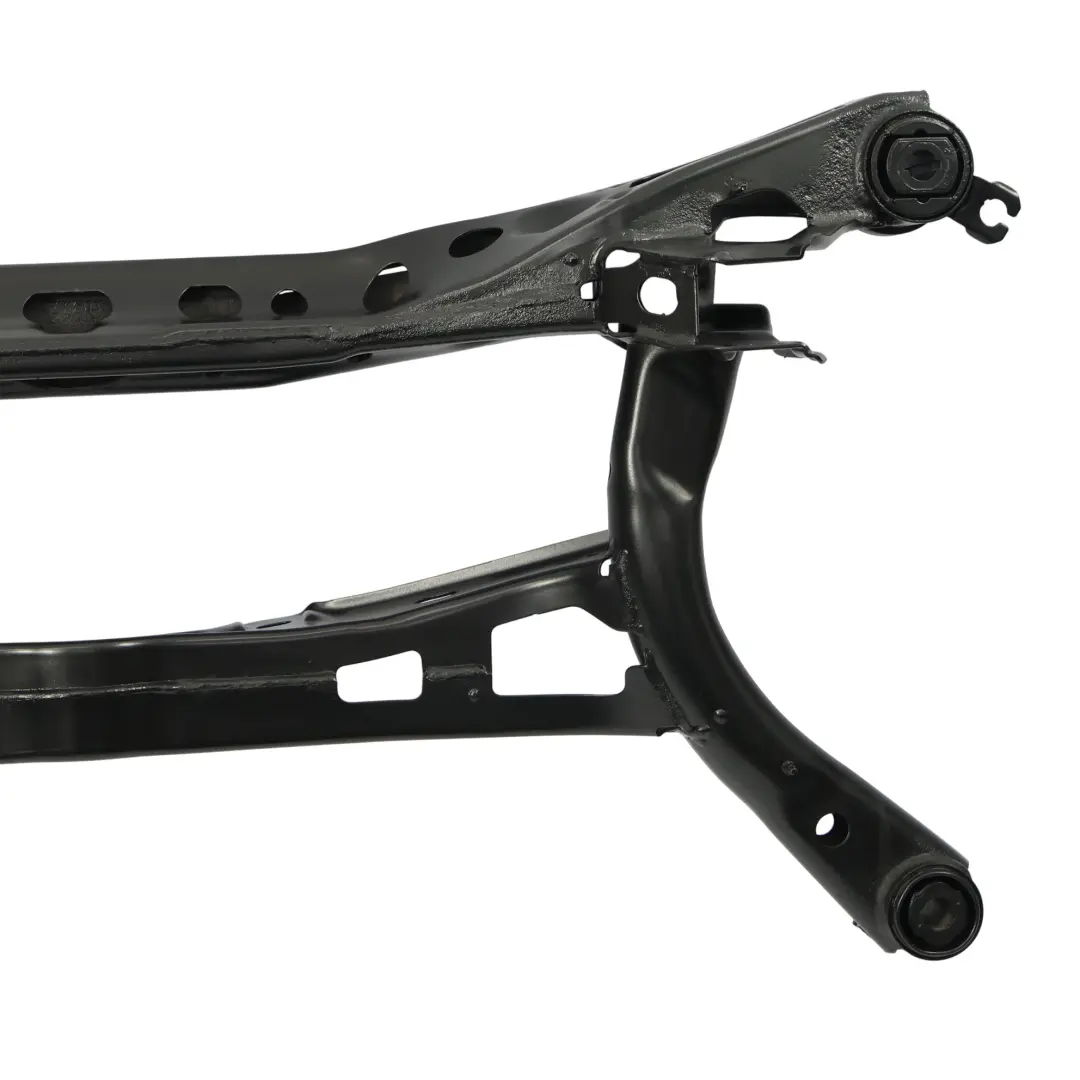

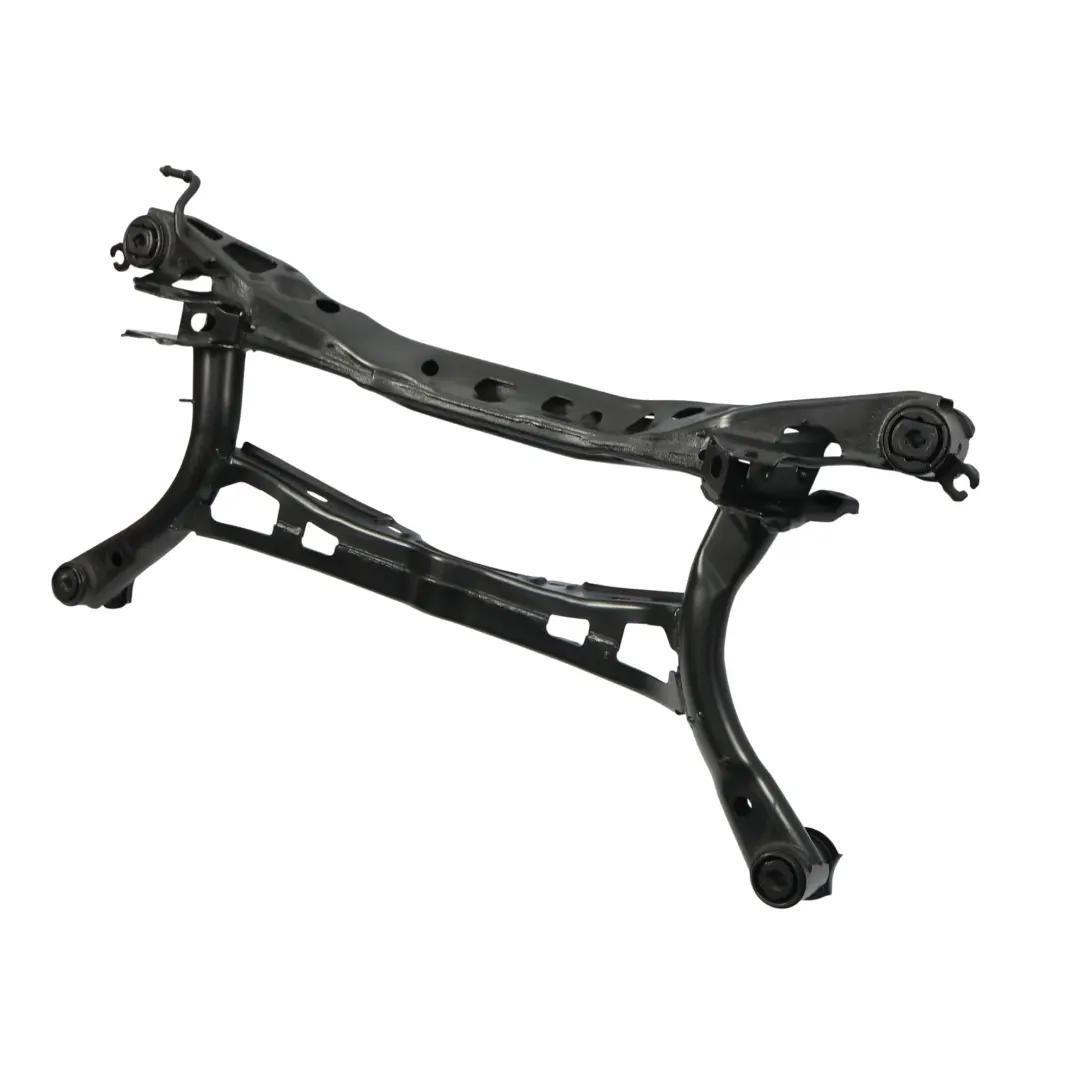

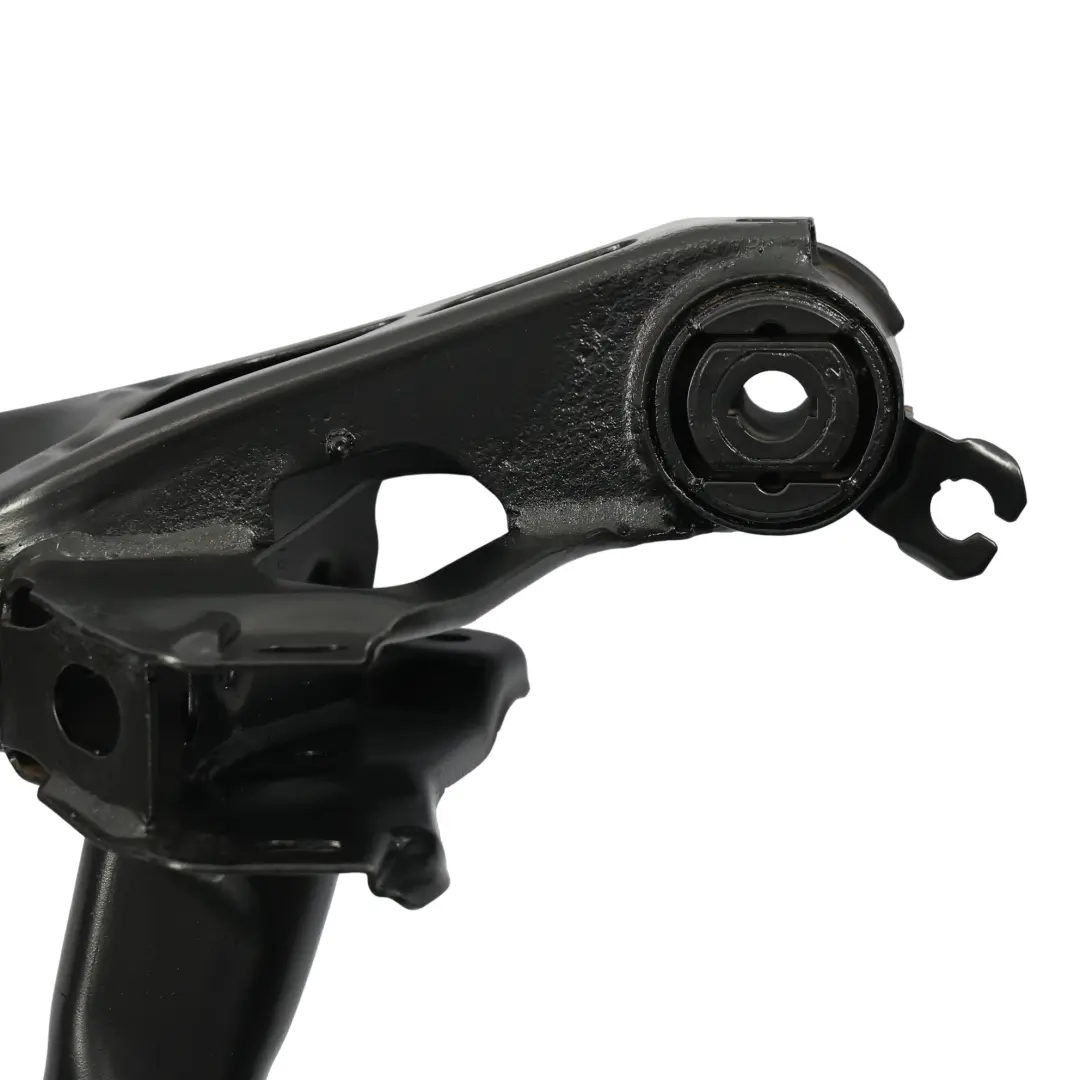

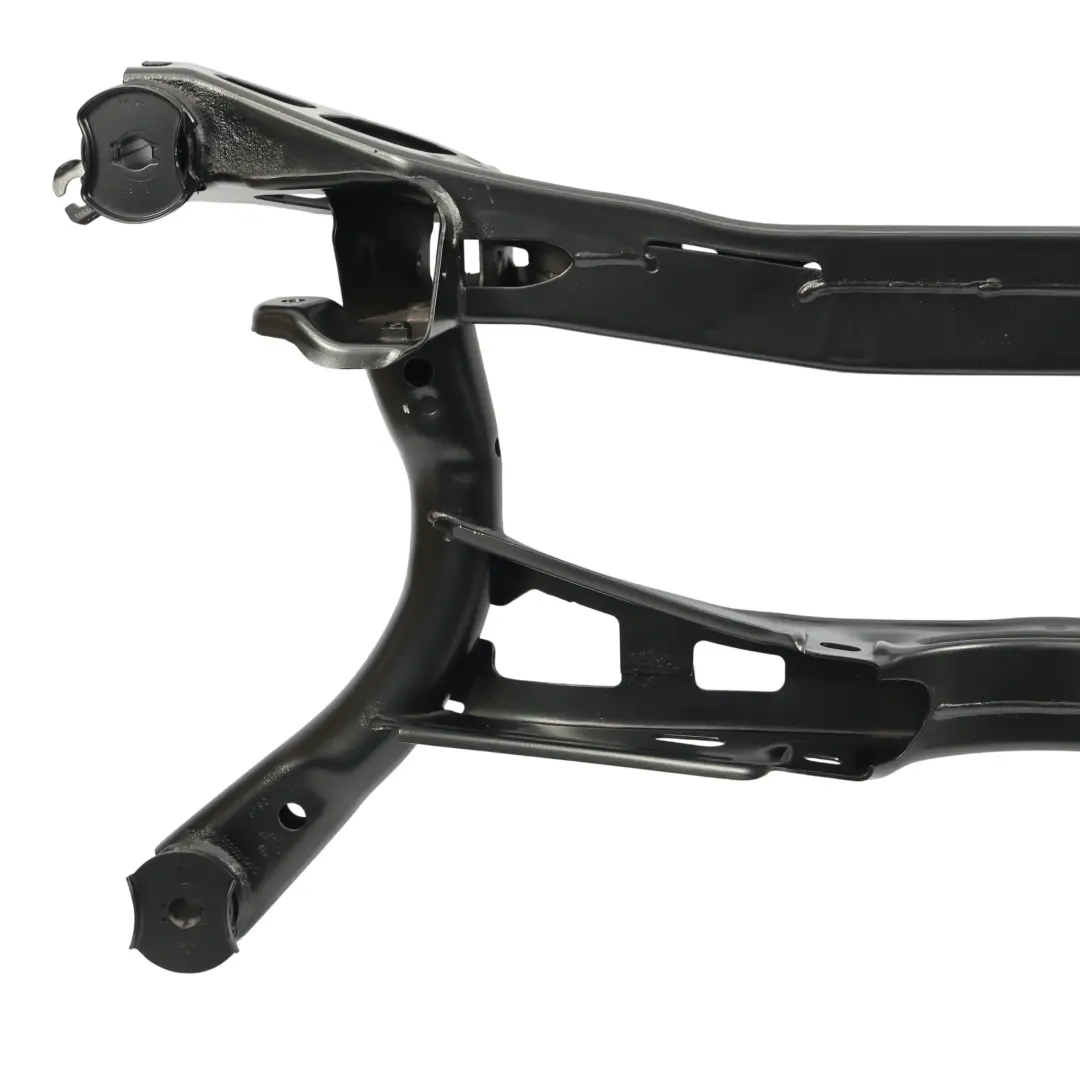

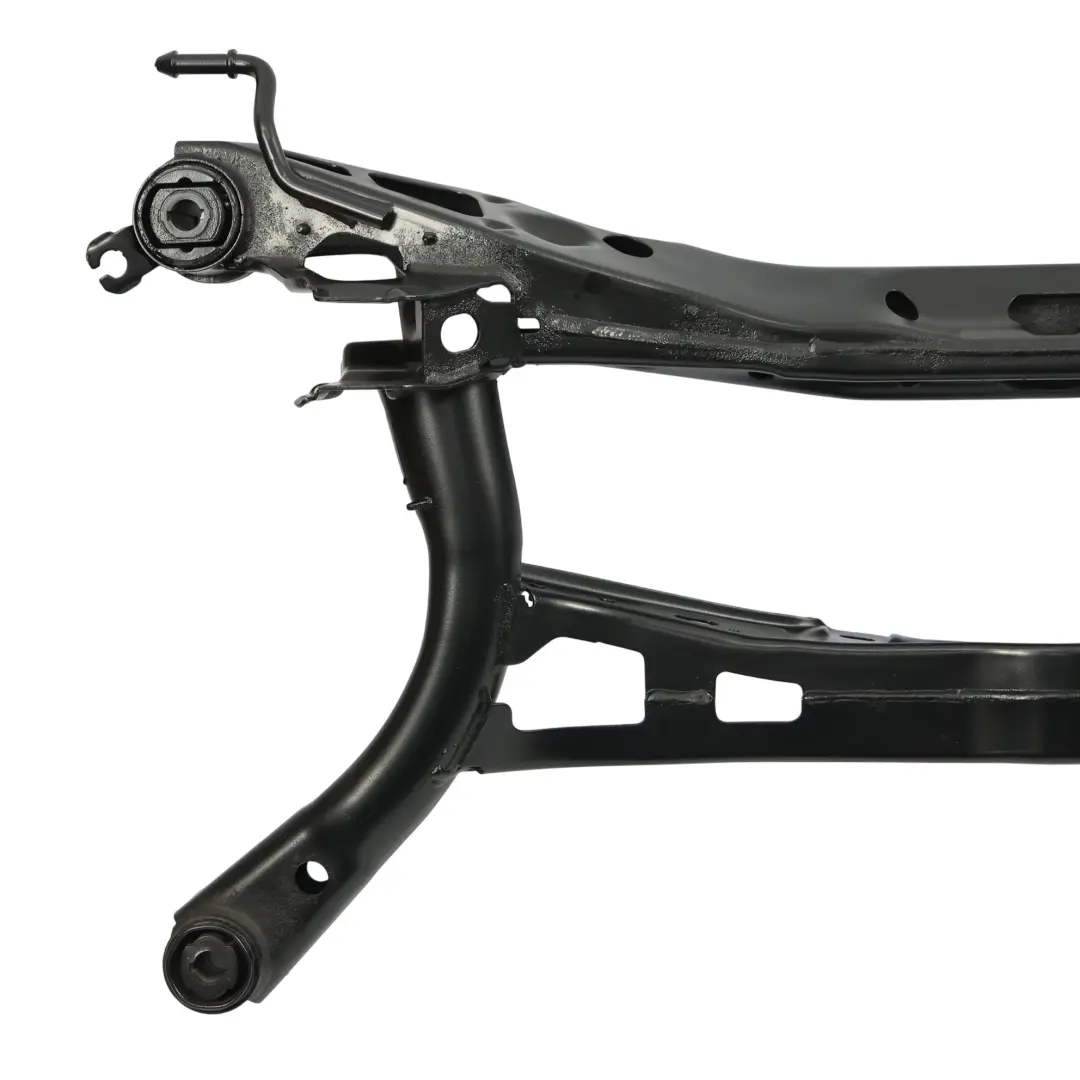

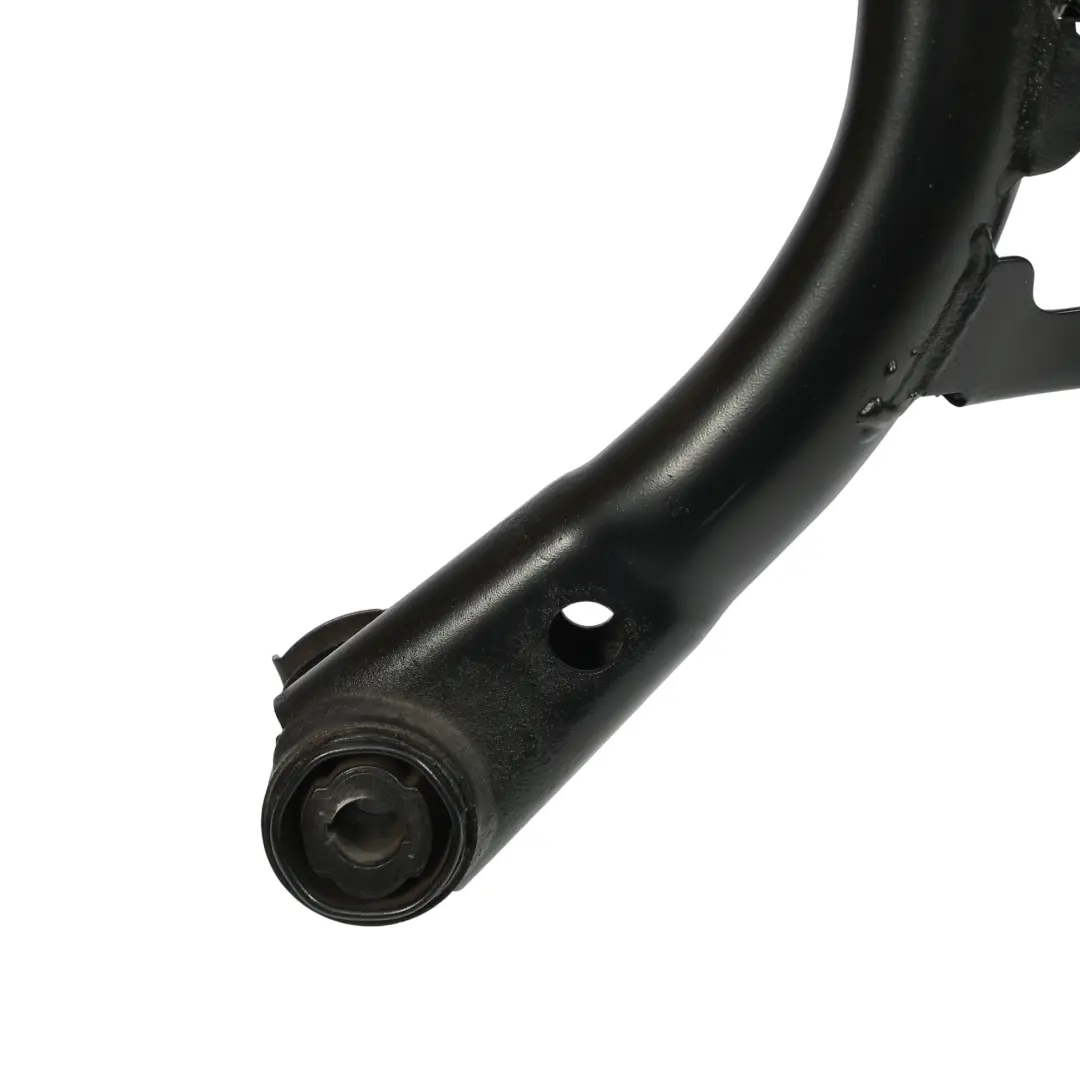

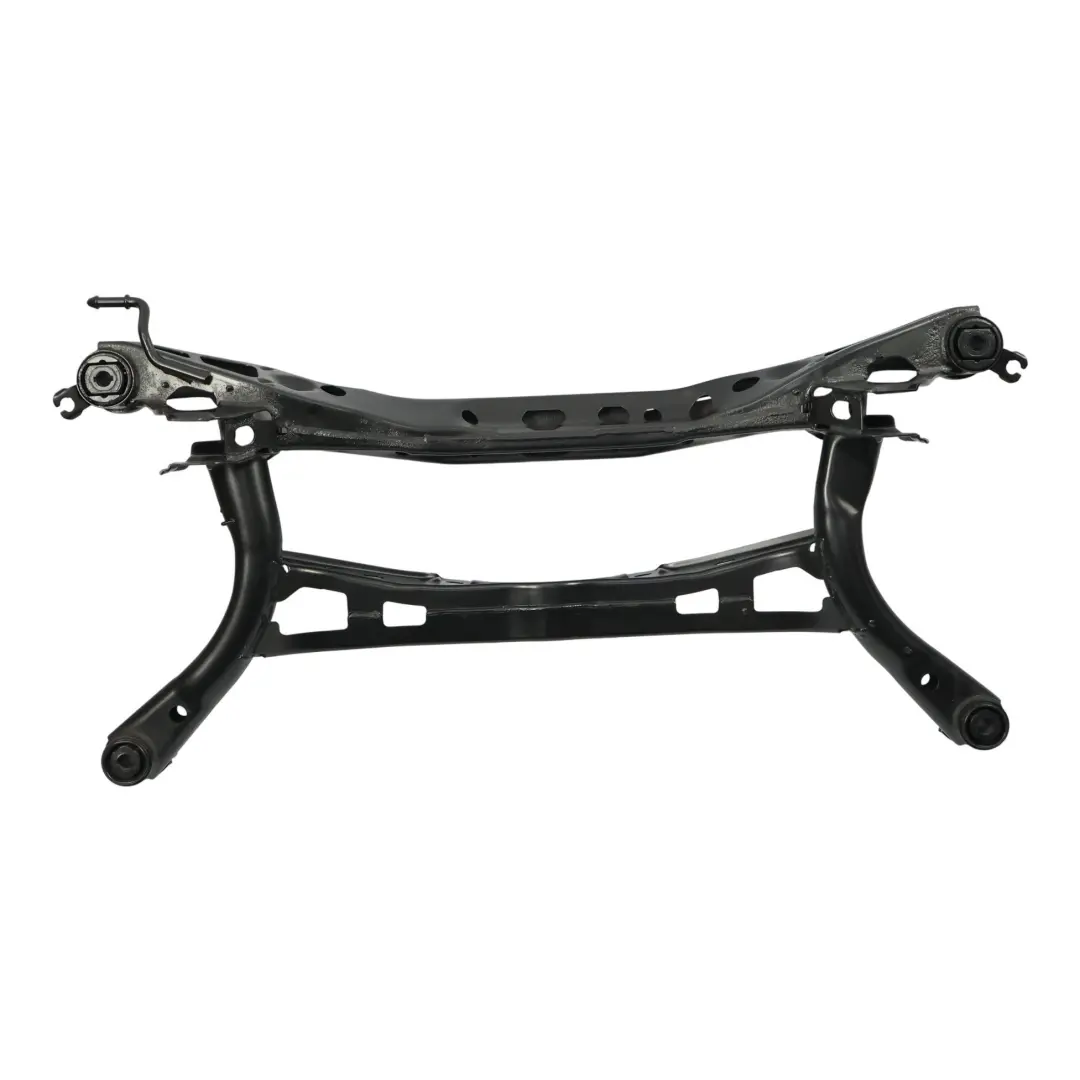

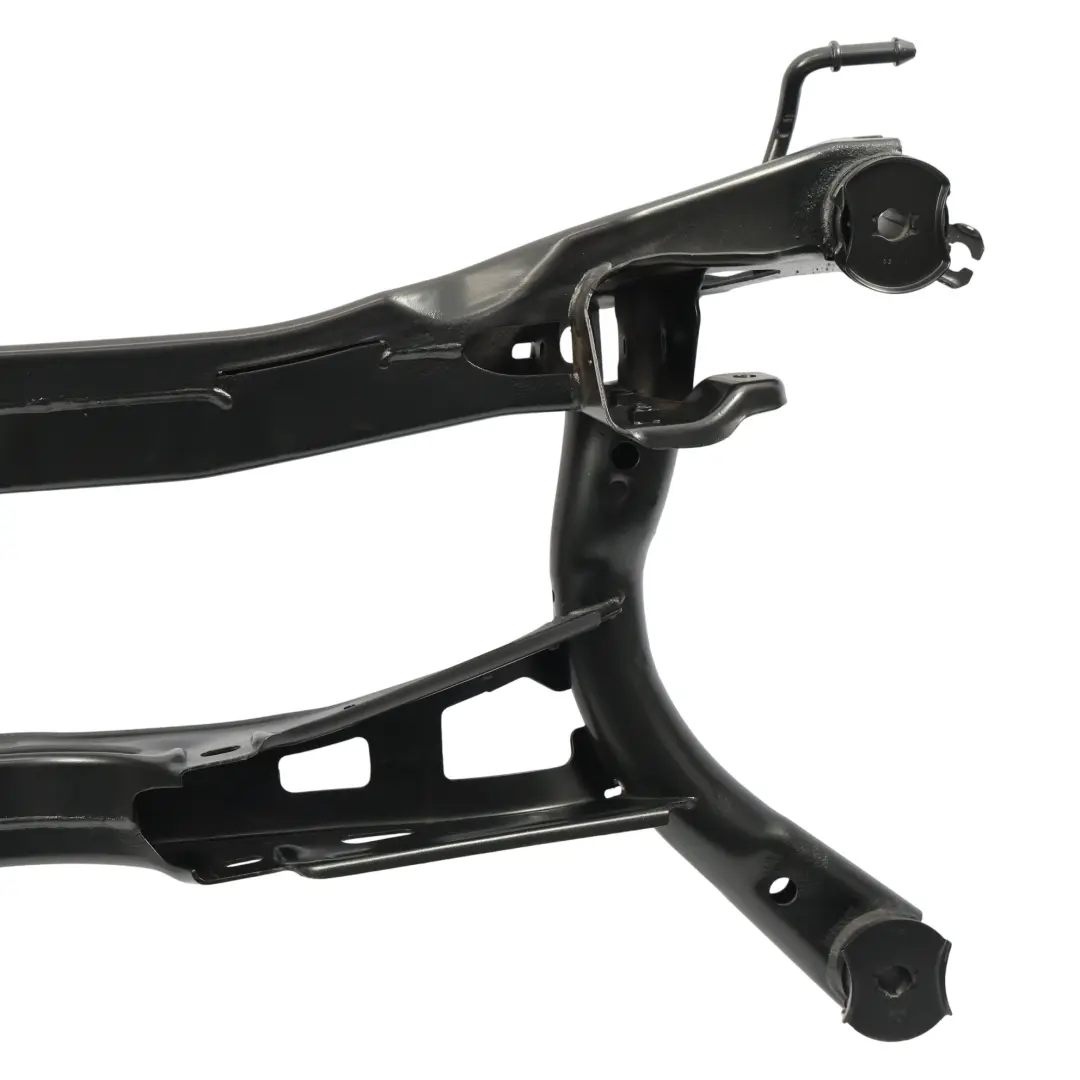

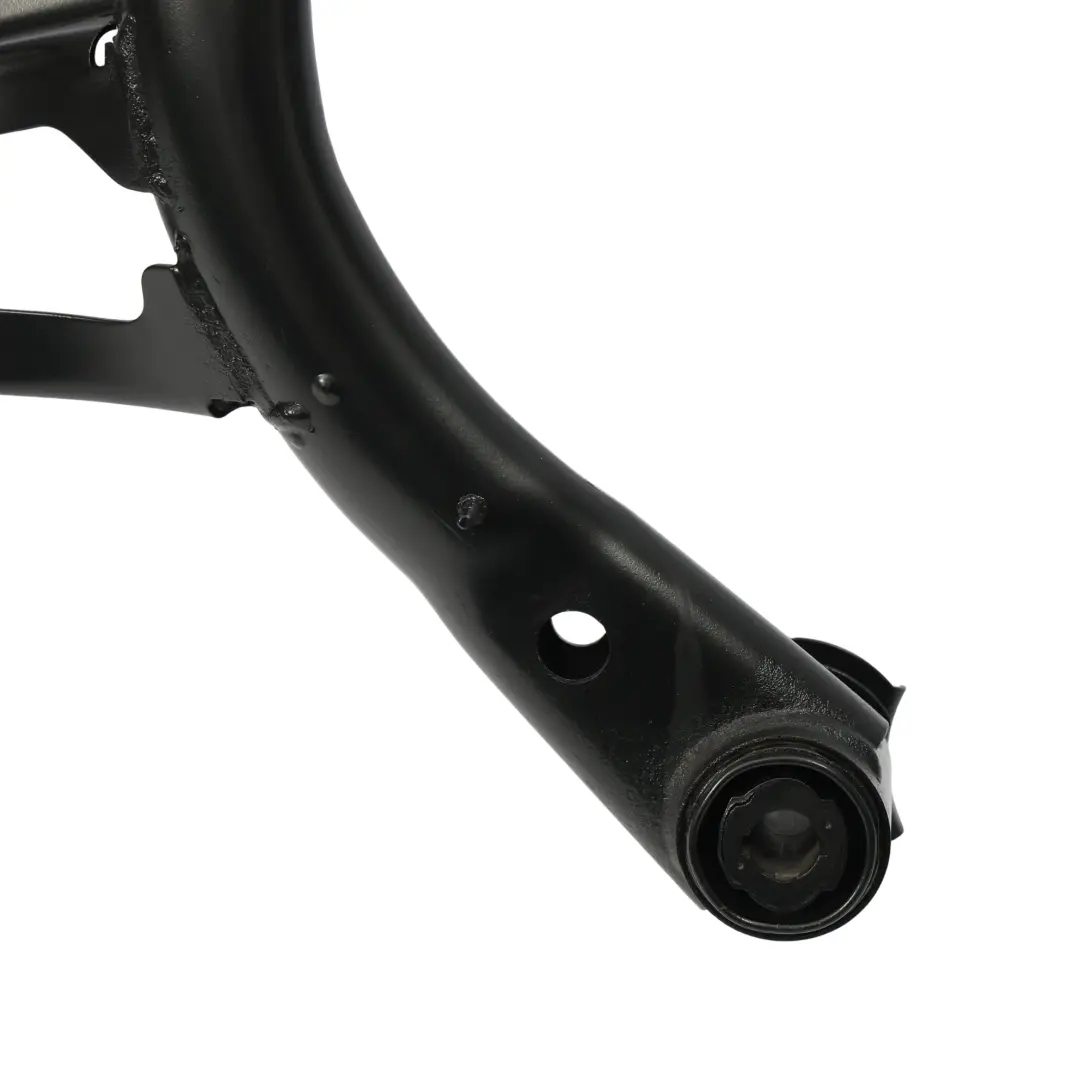

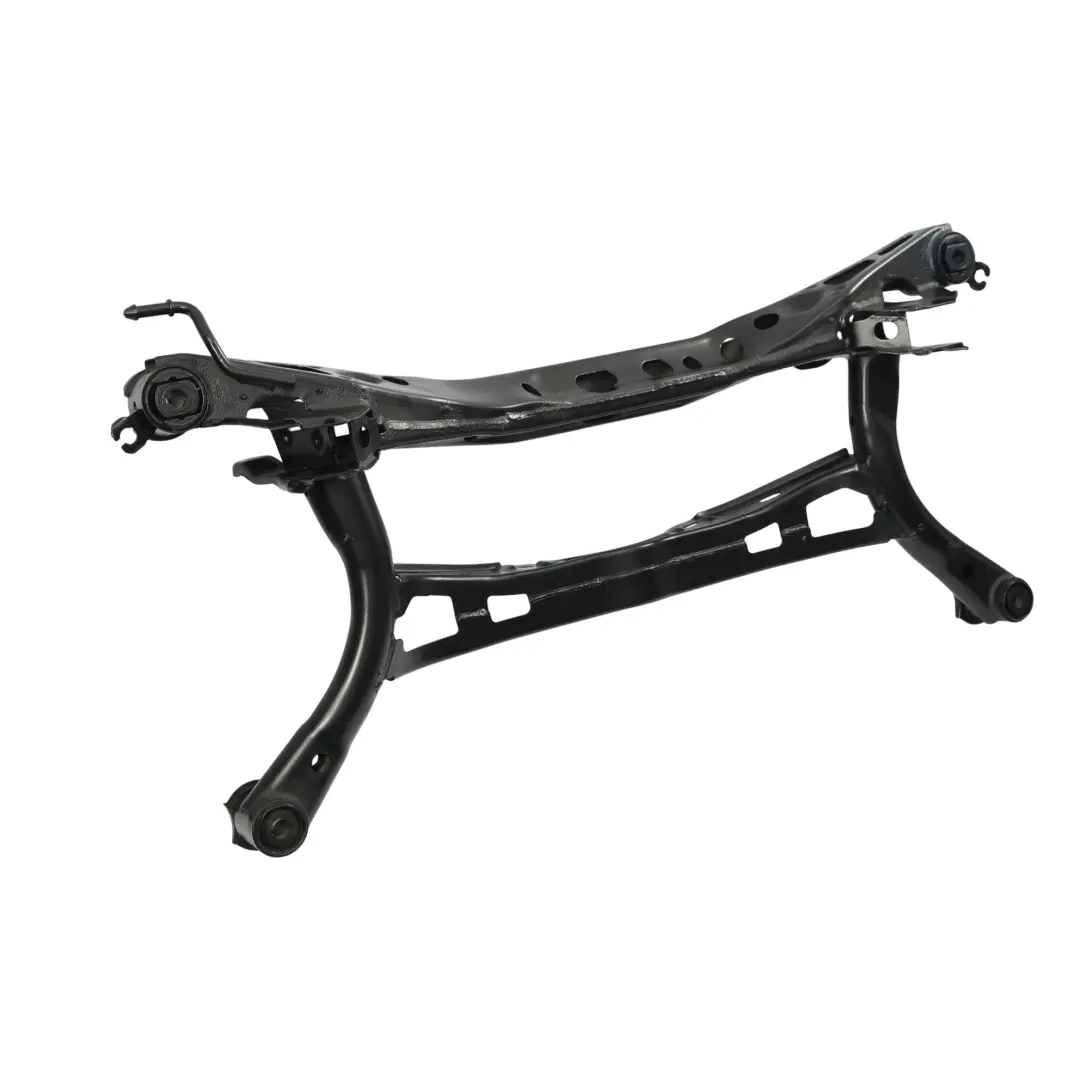

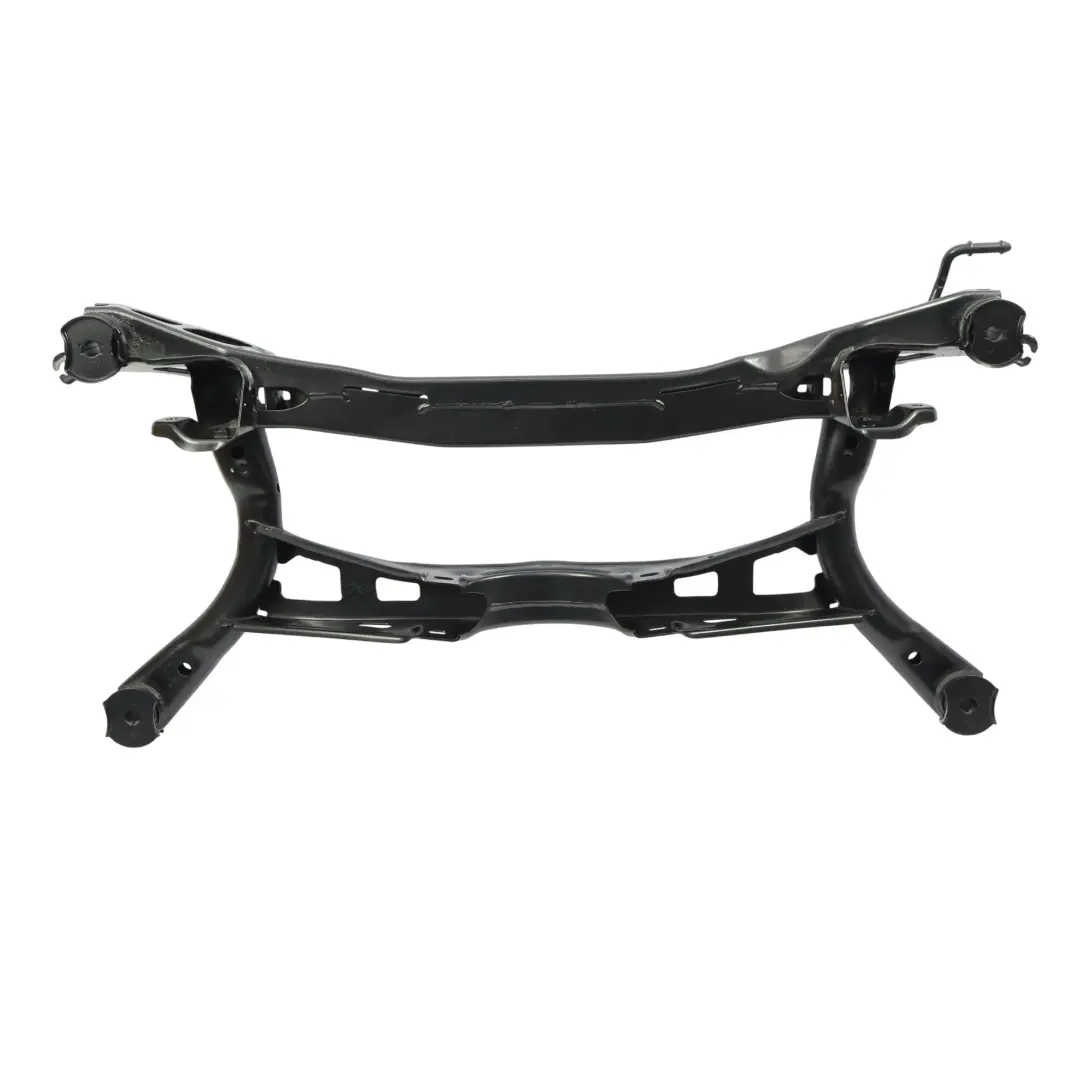

VW Tiguan AD Passat B8 Rear Axle Suspension Cradle Subframe Carrier 3Q0505235AA

VW Tiguan AD Passat B8 Rear Axle Suspension Cradle Subframe Carrier is an original structural component of the rear suspension, classified under the Longitudinal body frame parts and supports group. It provides stable support for suspension components, maintaining proper axle geometry and body rigidity in Volkswagen vehicles.

Specifications and technical data

• SKU: 3Q0505235AA
• Mark: Volkswagen
• Condition: Used
• OEM Part Number: 3Q0505235AA

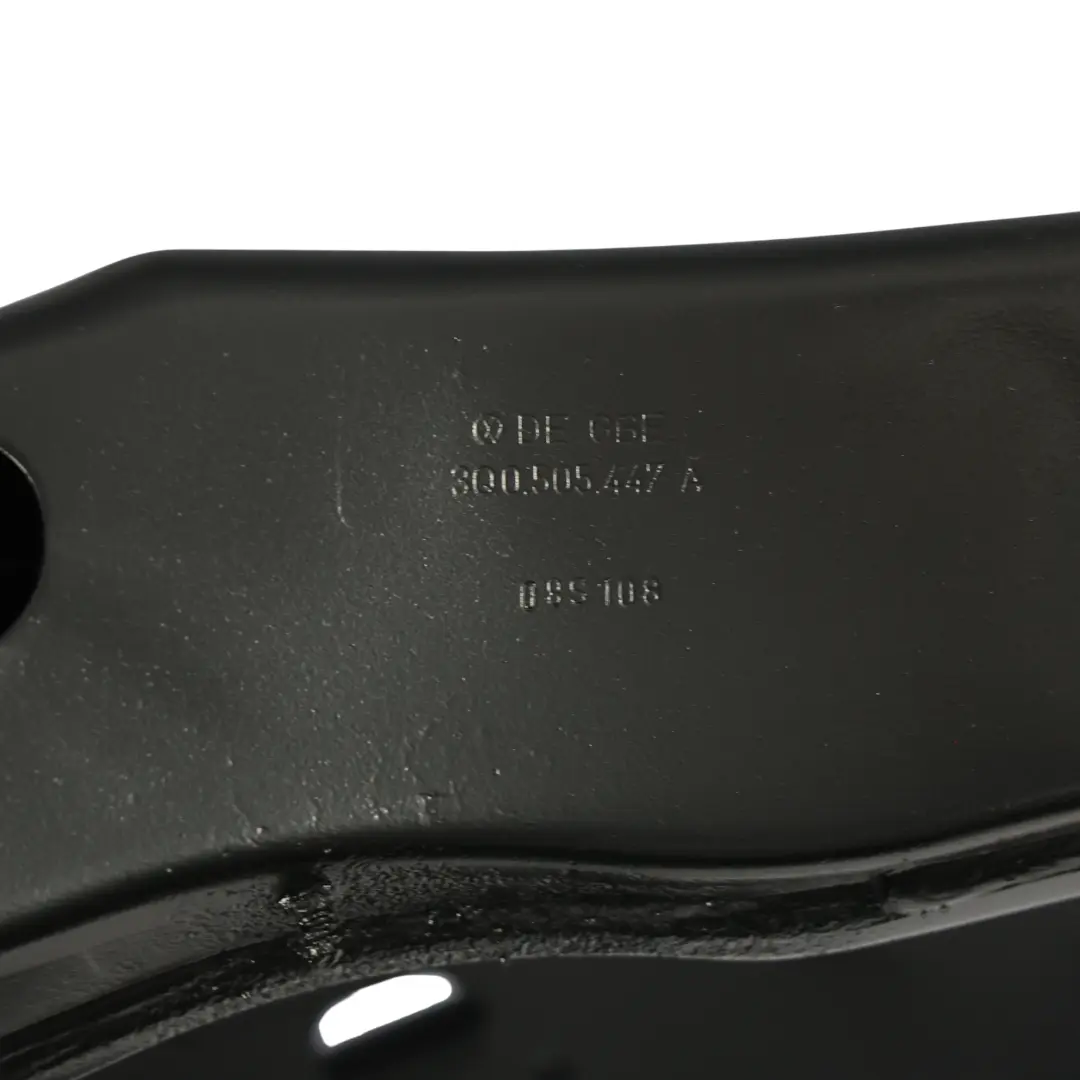

• Substitutable numbers: 3Q0505235AA, 3Q0 505 235 AA, 3Q0505447A, 3Q0 505 447 A
• Location on the vehicle: Rear
• Category: Frame Rails & Subframes

Purpose and function in the vehicle

The presented rear suspension cradle operates in the rear axle area, serving as a mounting base for components responsible for wheel guidance and transferring loads to the body. As a load-bearing part, it is responsible for:

• maintaining the correct position of control arms and other suspension elements,
• transferring longitudinal and lateral forces to the body structure,
• maintaining driving stability during braking and acceleration,
• reducing vibrations transmitted from the suspension to the cabin.

Thanks to its factory design tailored to the specific vehicle platform, the cradle ensures compliance with the manufacturer's requirements regarding stiffness, safety, and ride comfort.

Construction and fitment for VW Tiguan AD and Passat B8

The rear suspension beam has been designed specifically for the architecture of the VW Tiguan AD and Passat B8 models, which translates into precise mounting points to the body and compatibility with factory suspension components. Properly selected geometry:

• facilitates the adjustment of wheel alignment and camber angles,
• ensures correct wheel guidance throughout the entire suspension travel range,
• minimizes the risk of improper fitment with other components.

As an element of the body construction group, the cradle is crucial for post-collision repairs, replacing corroded load-bearing parts, or restoring factory driving parameters after mechanical damage.

Characteristics of the used component

The offered rear suspension beam is a used component, sourced from dismantling. This type of solution allows for maintaining original structural quality while reducing repair costs. In practice, this means:

• preservation of factory material and dimensional specifications,
• possibility of installation in place of a damaged element without interfering with the vehicle's design,
• attractive price-to-durability ratio compared to unreliable aftermarket replacements.

Before installation, it is recommended to perform a standard inspection of the surface of the mounts, bushing seats, and the flatness of contact points with the body to ensure proper seating and subsequent geometry adjustment.

Benefits of using an original suspension beam

Using an original rear suspension cradle in a VW Tiguan AD or Passat B8 allows for maintaining the consistency of the entire chassis system. The most important advantages include:

• Factory fitment – no need for modifications, drilling additional holes, or using spacers.
• Stable vehicle handling – maintaining the predictable behavior of the car in corners and during emergency maneuvers.
• Trouble-free service – easier wheel alignment using standard service procedures.

For workshops and users, this means faster installation, a lower risk of complaints, and maintaining driving parameters in accordance with the manufacturer's specifications.

Technical support and additional information

When selecting a rear suspension cradle, it is worth verifying compatibility with the specific body version and drivetrain using the manufacturer's markings and catalog data. In case of doubt, it is helpful to compare the mounting points and the shape of the beam with the element removed from the vehicle.
