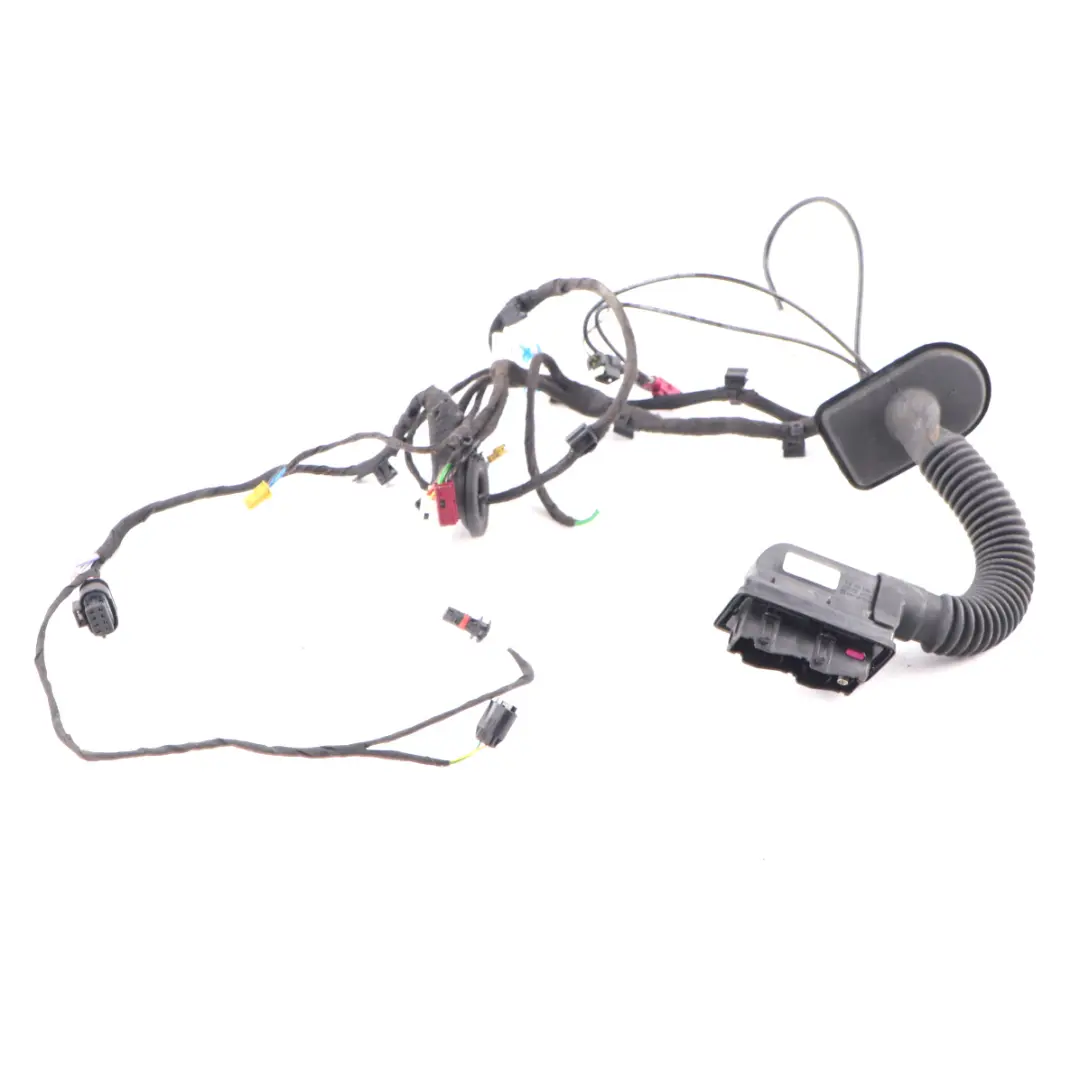

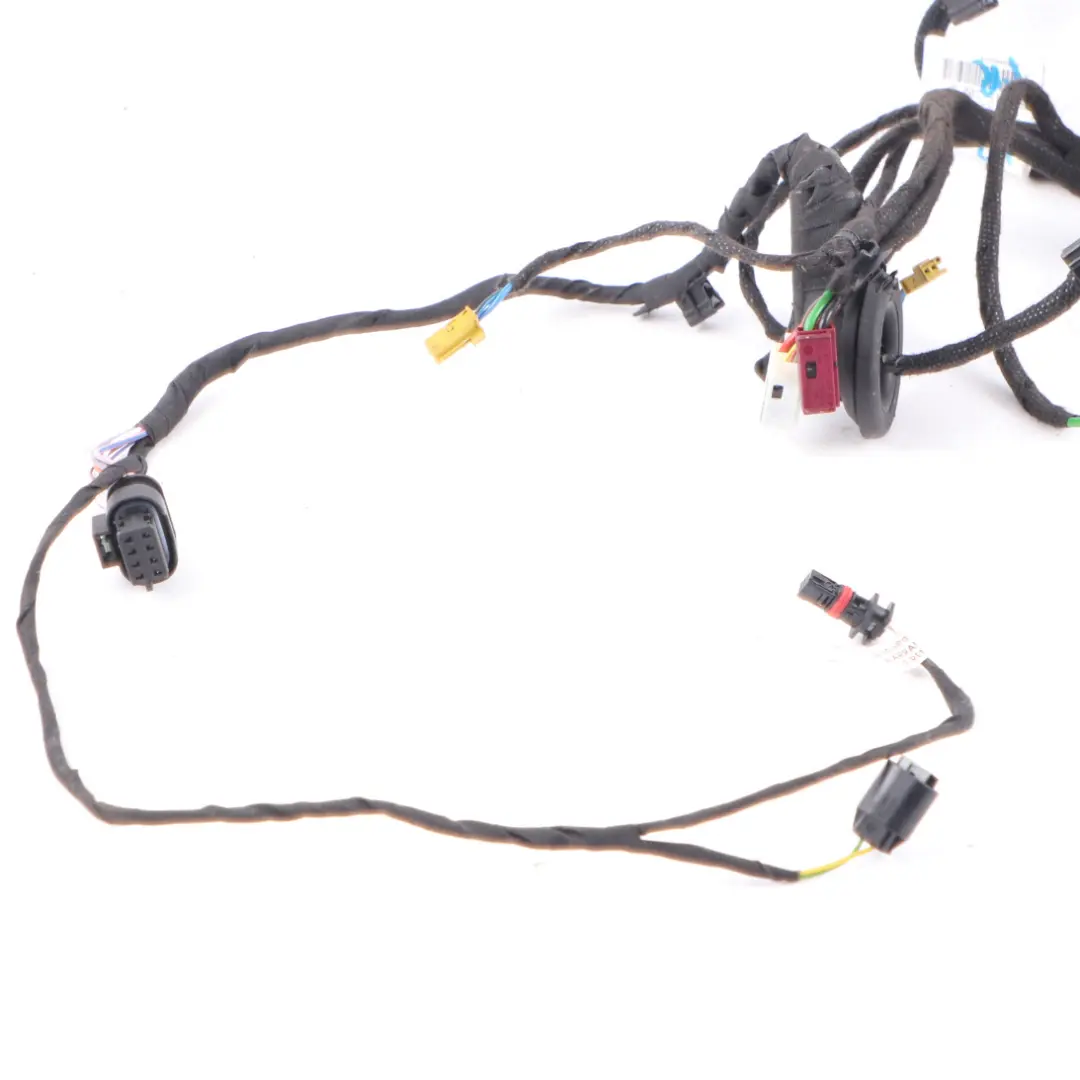

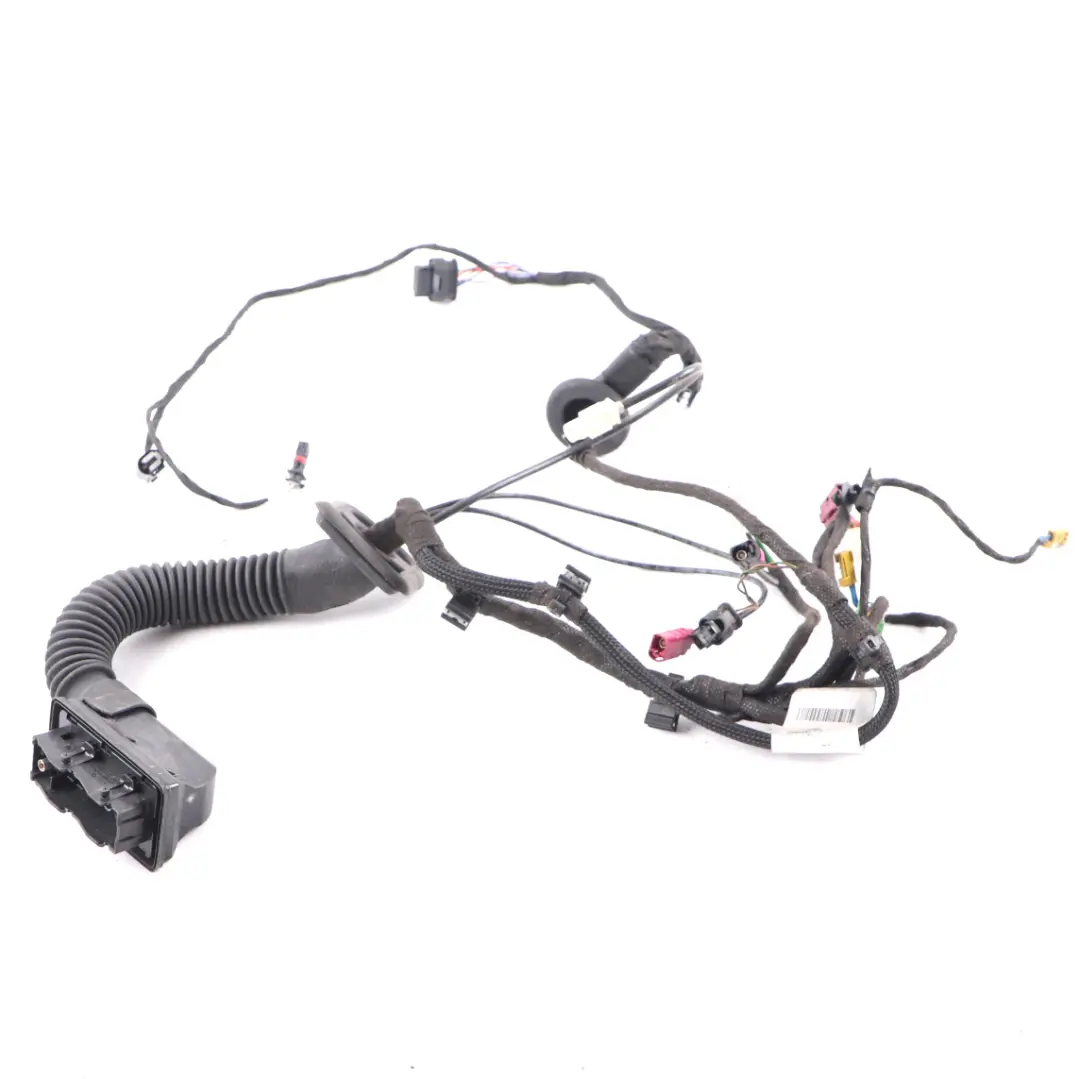

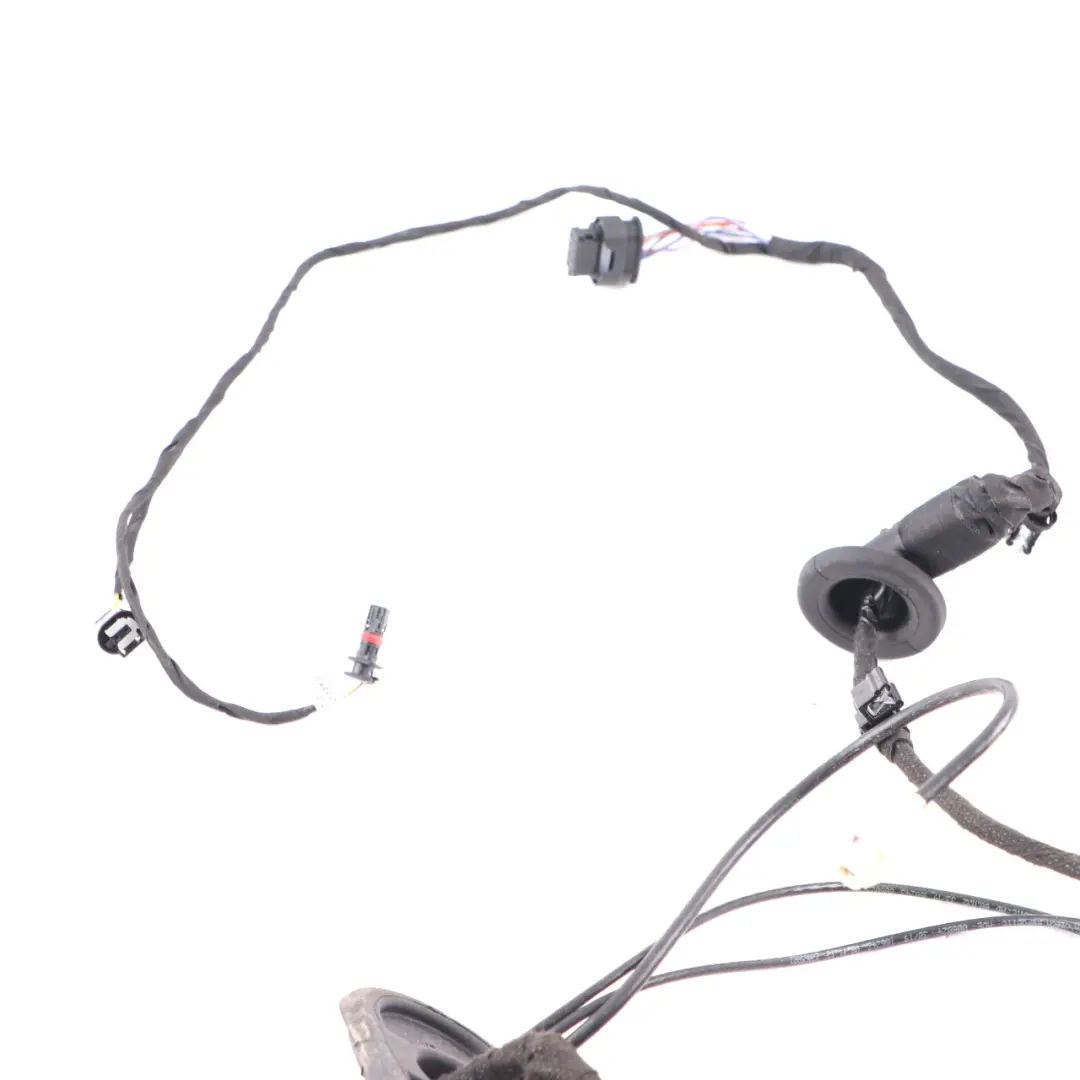

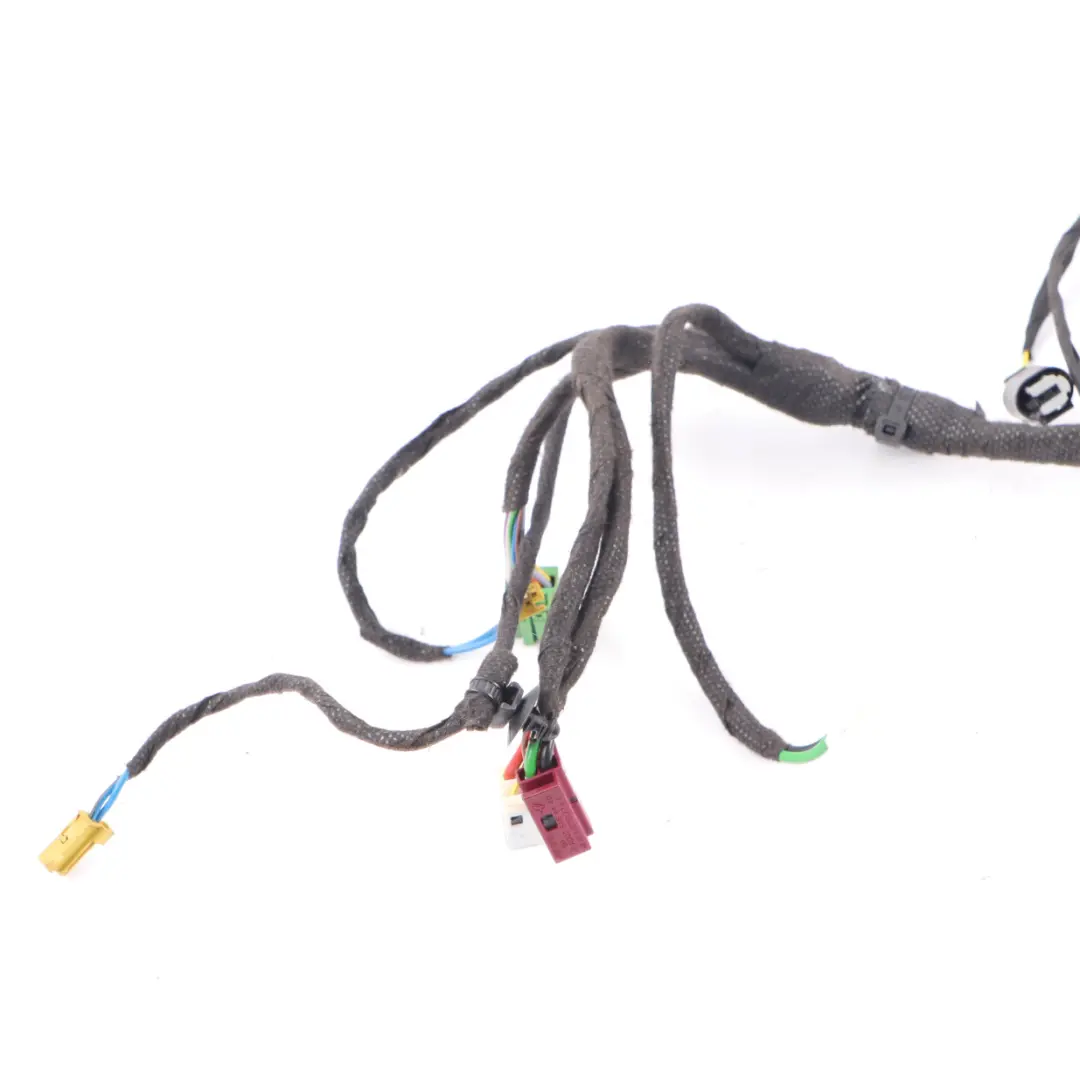

Mercedes W205 Door Wiring Front Right O/S Harness Loom Cable A2055409648

Right Front Door Wiring Harness Mercedes W205 is an original part from the Cables, Harnesses, and Connectors group, designed for installation in the right front door of vehicles in this series. It ensures proper electrical connection between the body's wiring and the door's accessories, which translates to stable operation of window regulators, locks, mirrors, and other components.

Specifications and technical data

• SKU: rhd-A2055409648
• Mark: Mercedes (Genuine OE)
• Condition: Used

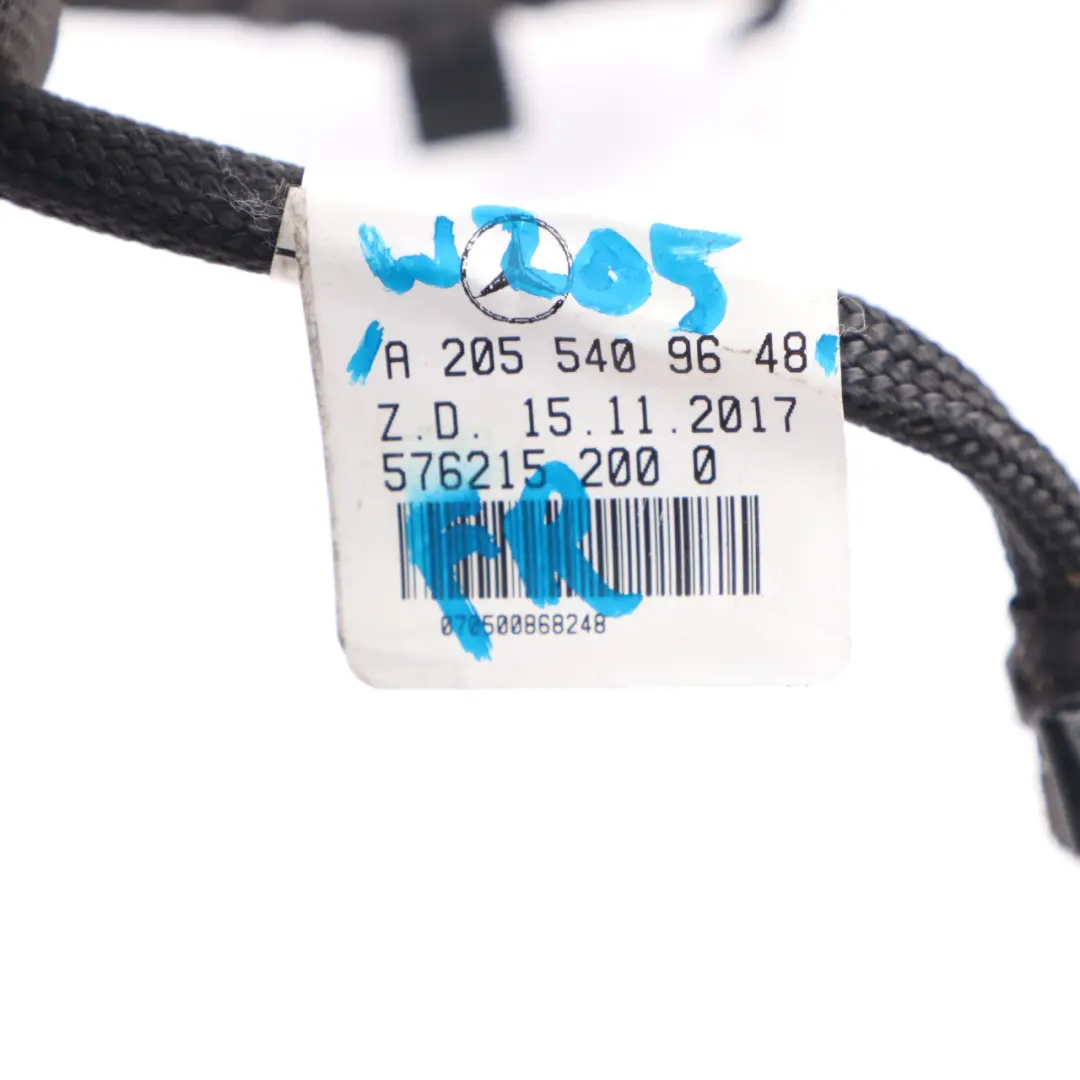

• OEM Part Number: A2055409648
• Substitutable numbers: A2055409648, A 205 540 96 48
• Location on the vehicle: Front, Right
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function in the Electrical System

The presented door harness has been specifically designed for the right front door of the W205 body, maintaining the factory wiring routing geometry. It is responsible for transmitting control signals and power between the body modules and the components located in the door, which is crucial for the correct operation of comfort and safety systems.

Thanks to its dedicated placement in the front – right side of the vehicle zone, the harness is adapted to factory grommets, mounts, and connectors, which reduces the risk of wire strain, insulation abrasion, and installation errors.

Construction, Connectors, and Compatibility

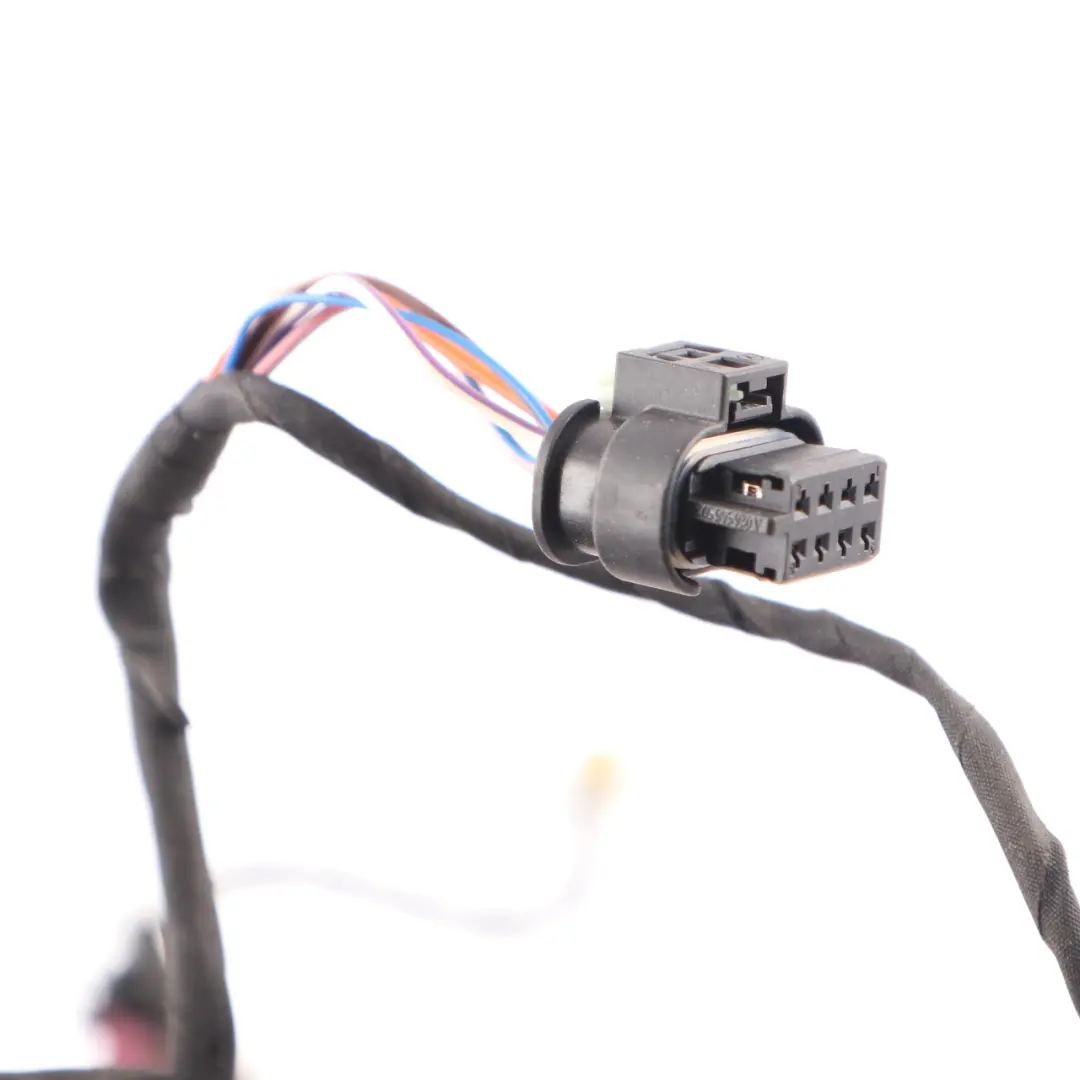

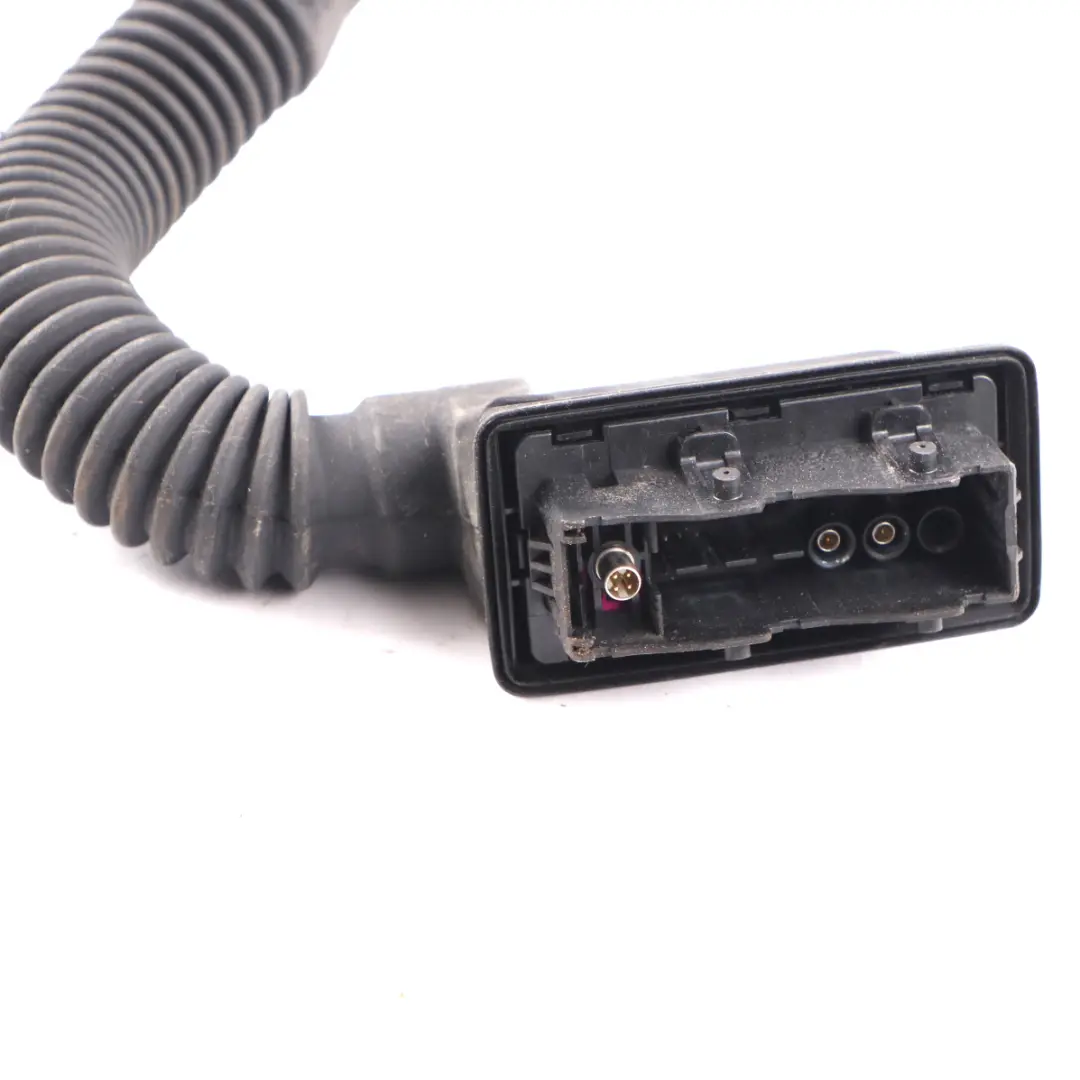

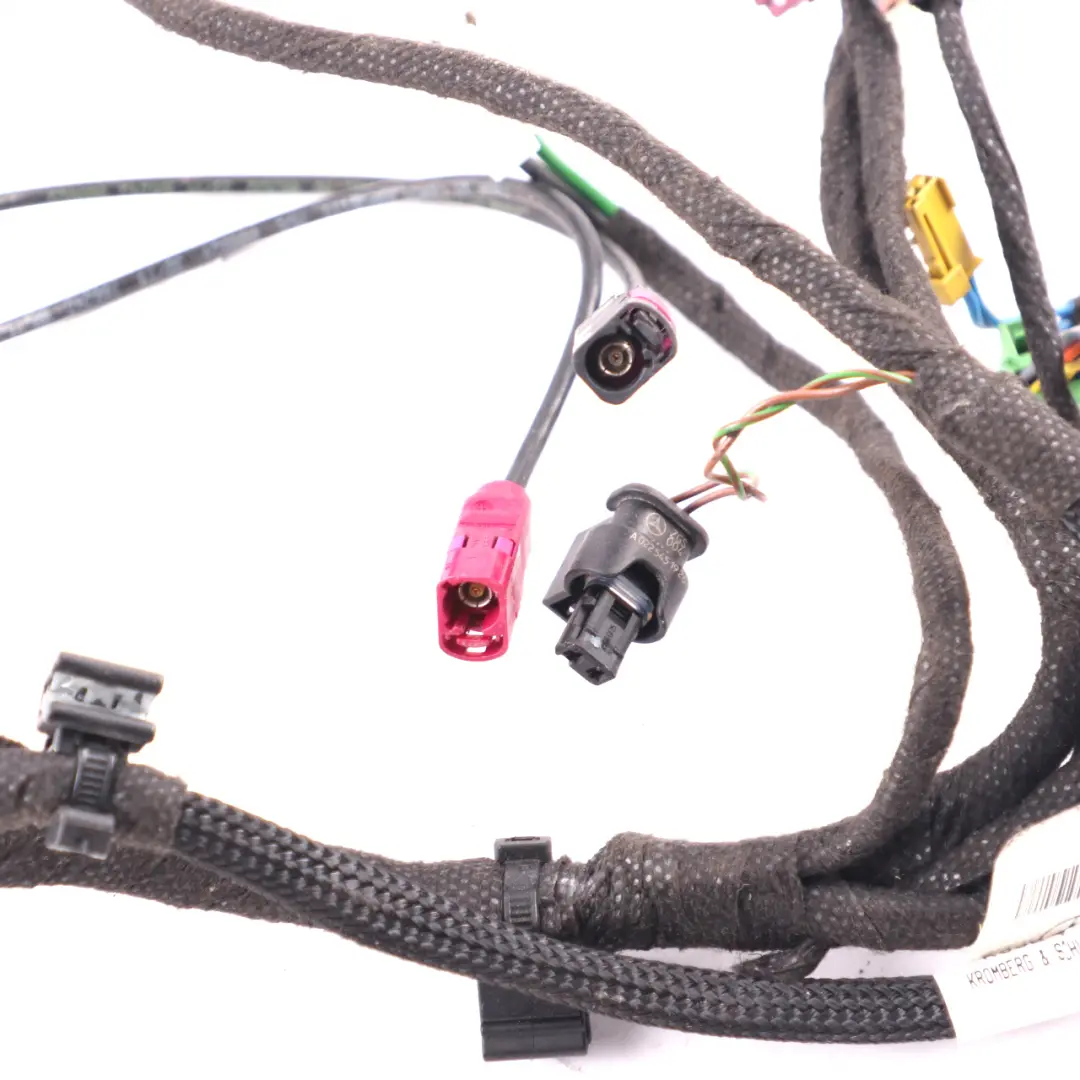

The door harness uses original connectors characteristic of the Mercedes brand, allowing for a near plug-and-play installation without the need for wiring modifications. The wires used are routed in protective sleeves and conduits, which help protect them from moisture, vibrations, and mechanical damage within the door hinges and pass-throughs.

As a part of the Cables, Harnesses, and Connectors group, the harness works with factory control modules and door accessories, which helps maintain the consistency of the entire vehicle's electrical system. The appropriate placement of mounting points allows for an aesthetically pleasing and technically correct routing of wires within the door structure.

Benefits of Using an Original Door Harness

Using a dedicated harness for the right front door panel in the Mercedes W205 helps reduce common problems associated with incorrect circuit resistance, unstable power supply, or intermittent communication failures between modules. Appropriately selected wire gauges and correct pin configurations in the connectors contribute to maintaining the correct electrical parameters of the entire circuit.

For workshops and users, this means:

• easier diagnostics of door-related faults,
• reduced risk of installation errors resulting from custom wiring,
• better repeatability of repairs and future servicing.

Condition, Installation, and Service Application

The item is offered as a used part, allowing for an economical repair of the door wiring while maintaining the original manufacturer's specifications. The harness is suitable for both replacing damaged wiring (e.g., after wire abrasion in the pass-through) and for reconstructing doors after a collision or bodywork intervention.

Before installation, a standard inspection of the insulation, connectors, and correct wire routing relative to factory mounting points is recommended. A correctly installed harness helps restore full electrical functionality to the right front door panel without the need to modify the vehicle's main wiring.

If you are planning a comprehensive repair or upgrade of the door area in your Mercedes and need other parts from the same group, such as additional harnesses, connectors, or wire sections, check the available parts in the Mercedes Cables, Harnesses, and Connectors category.
