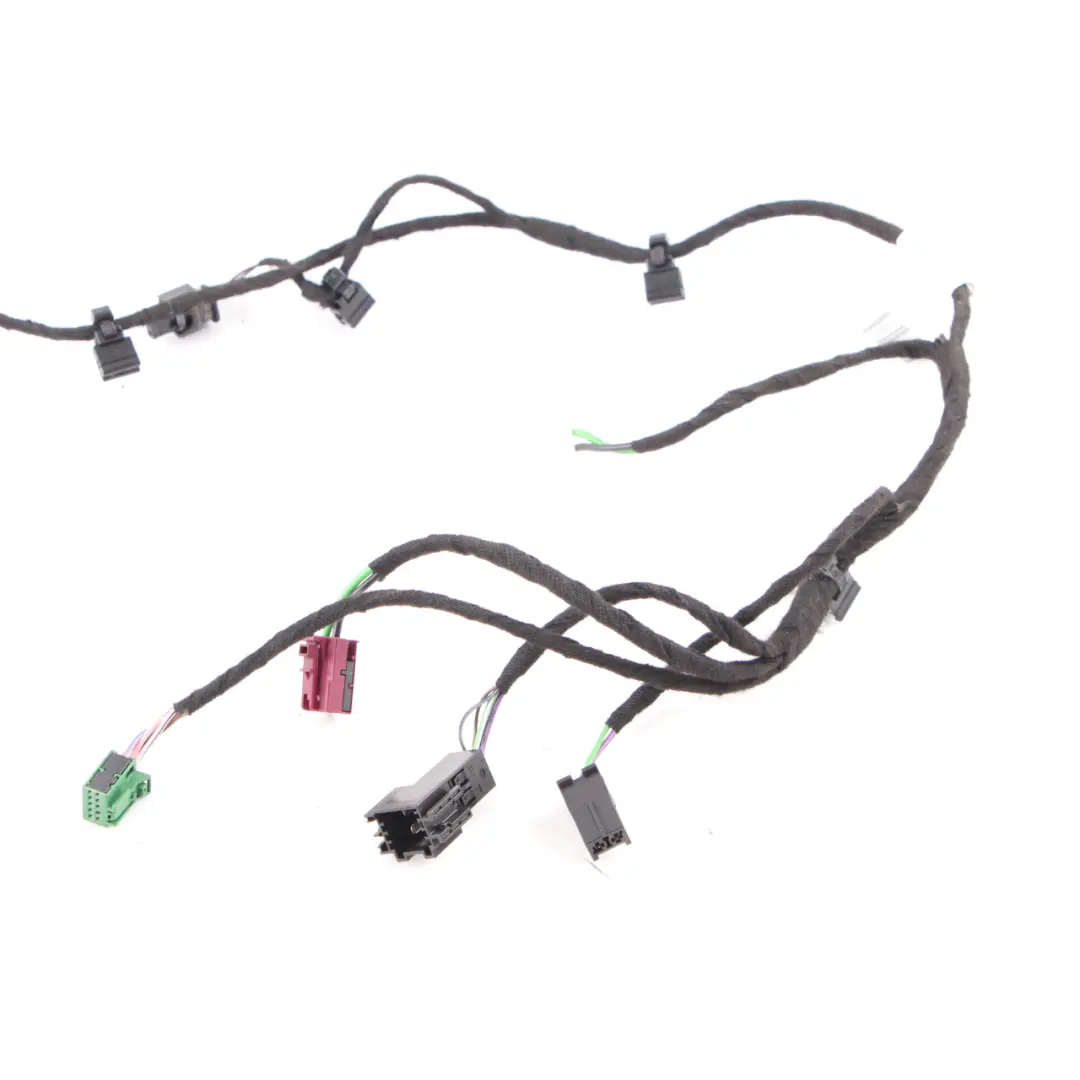

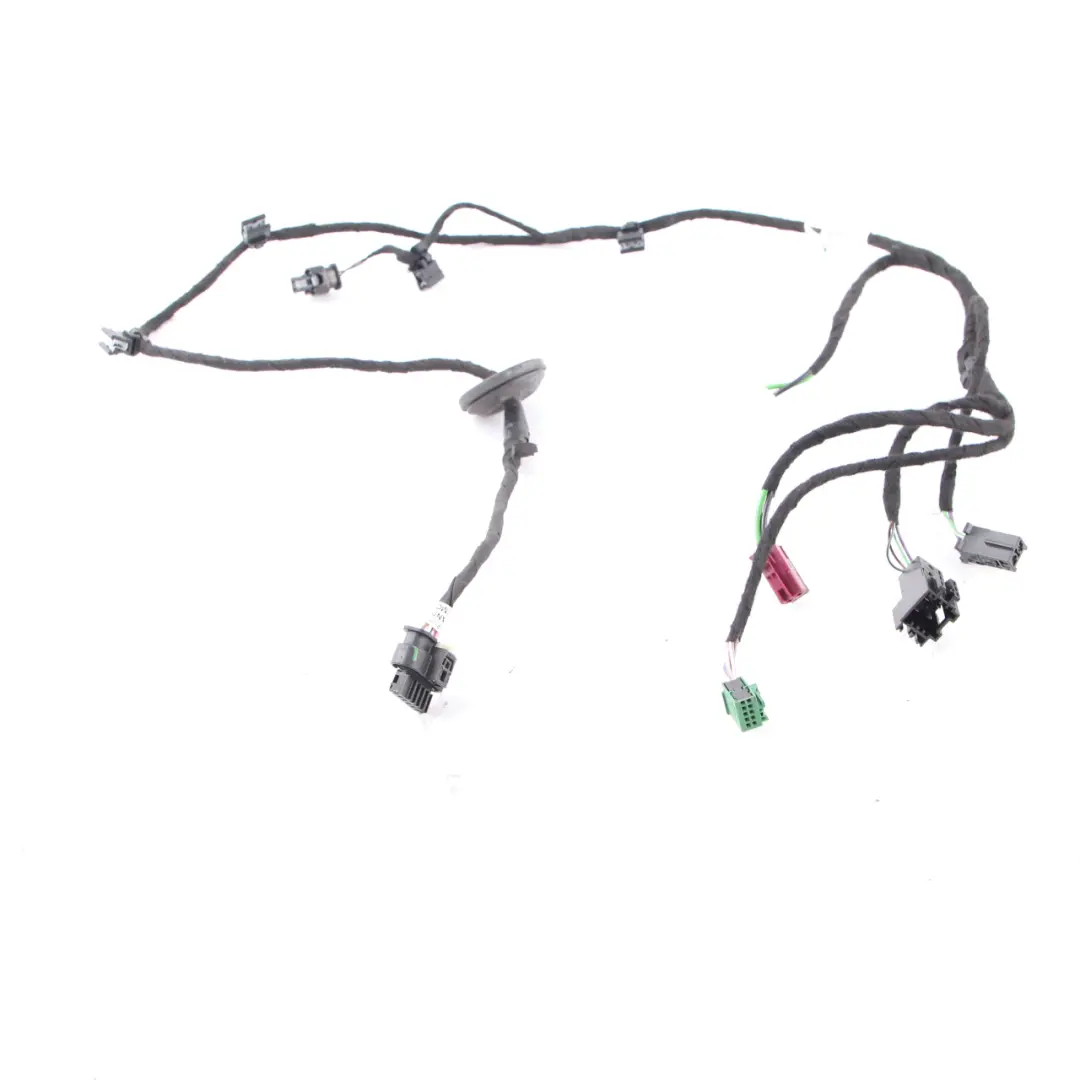

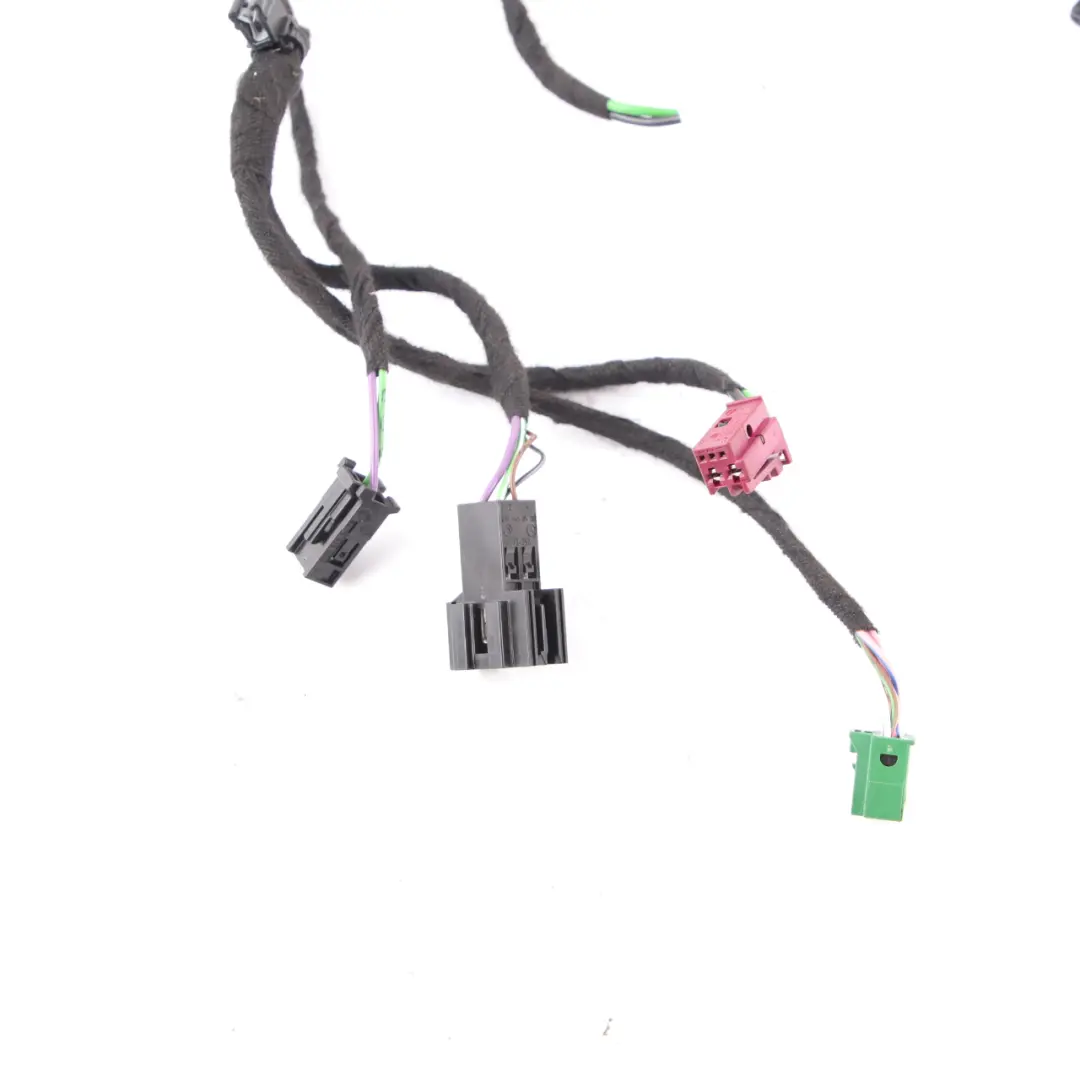

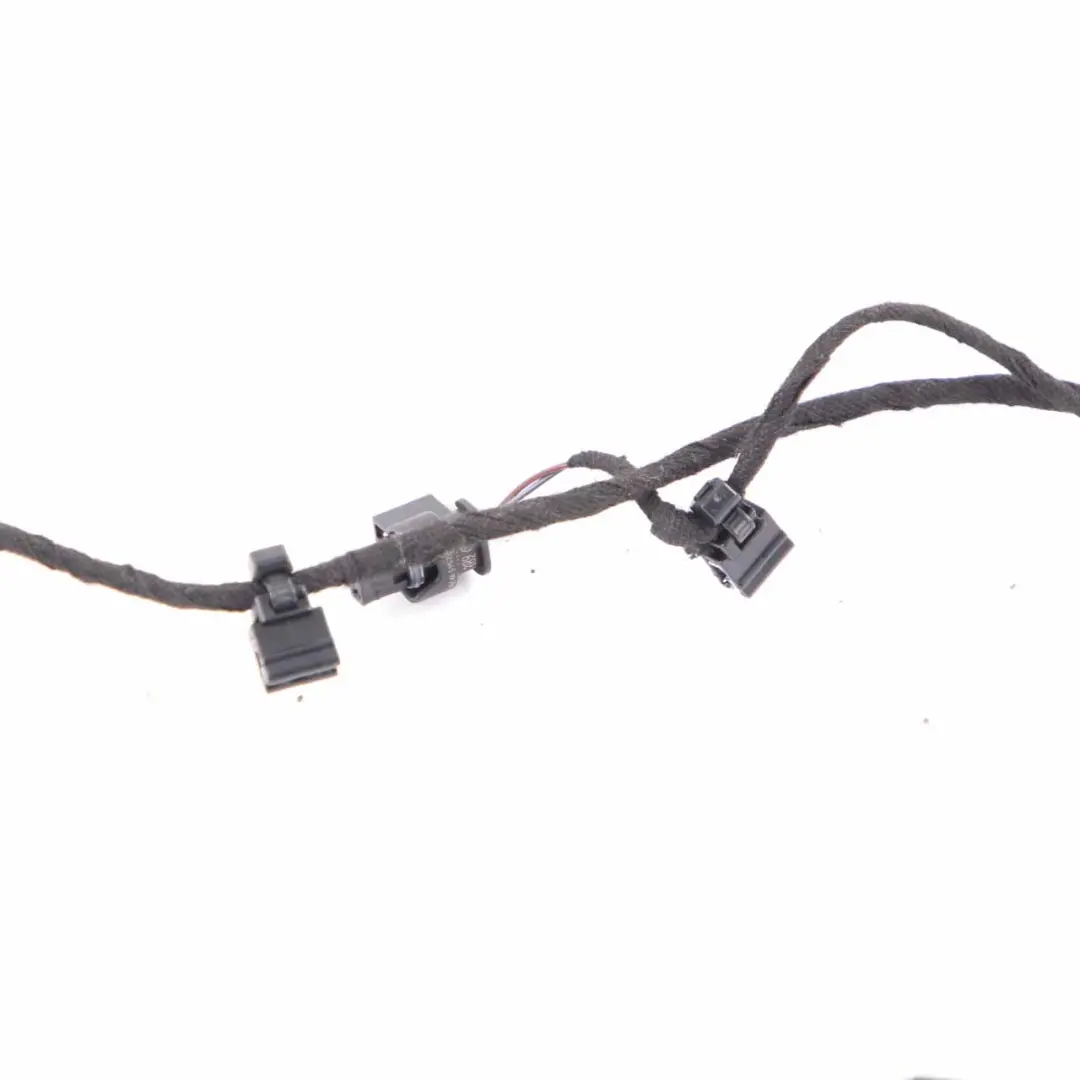

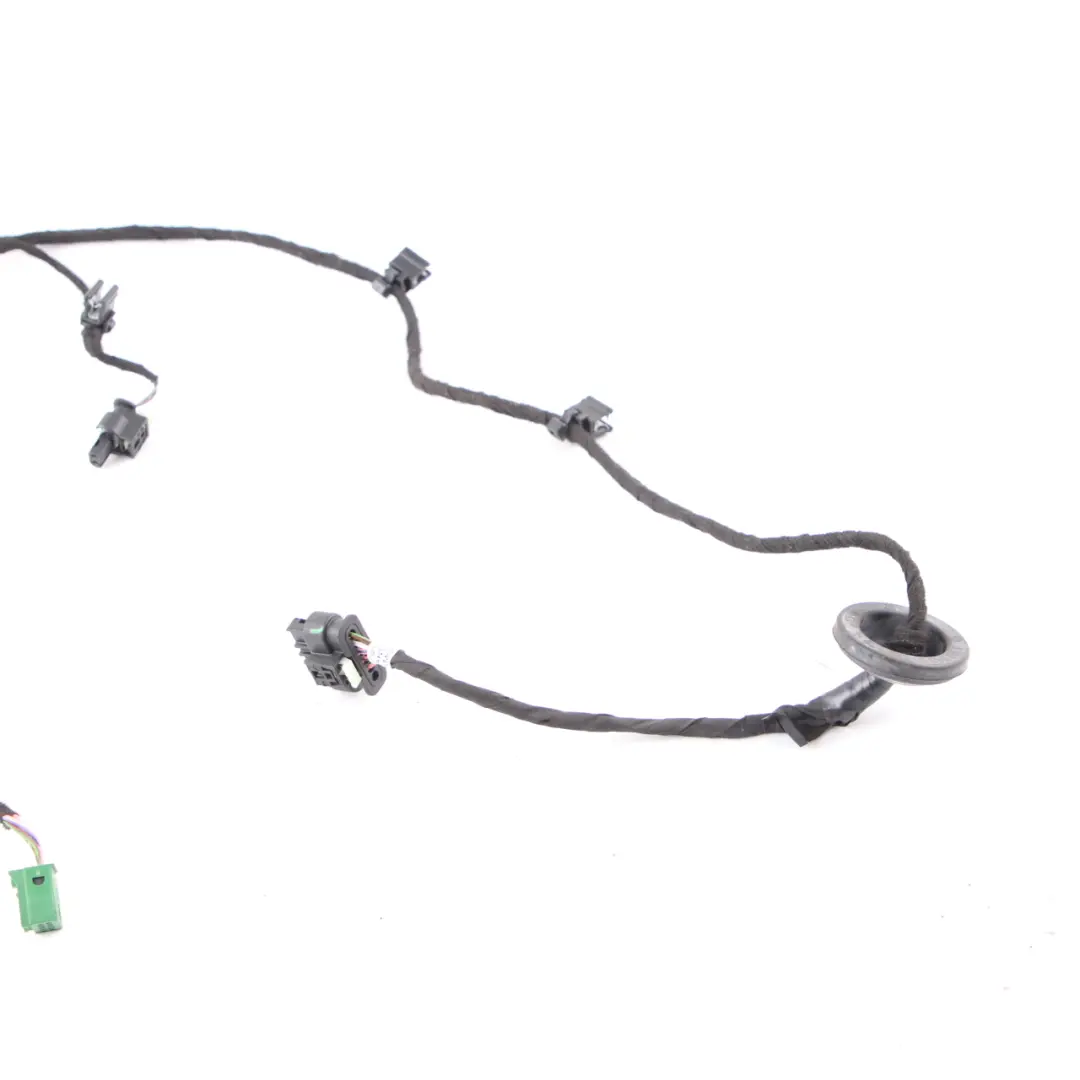

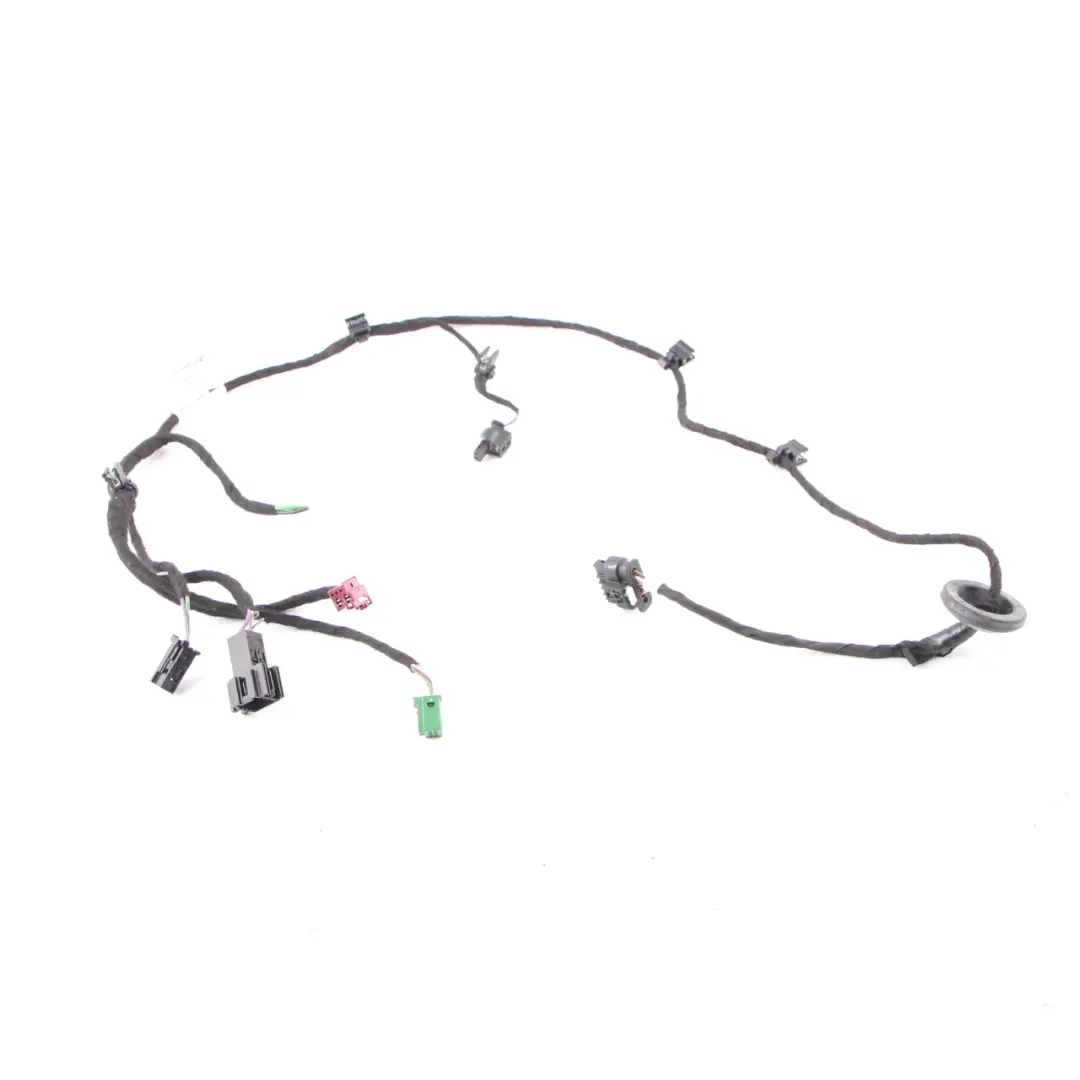

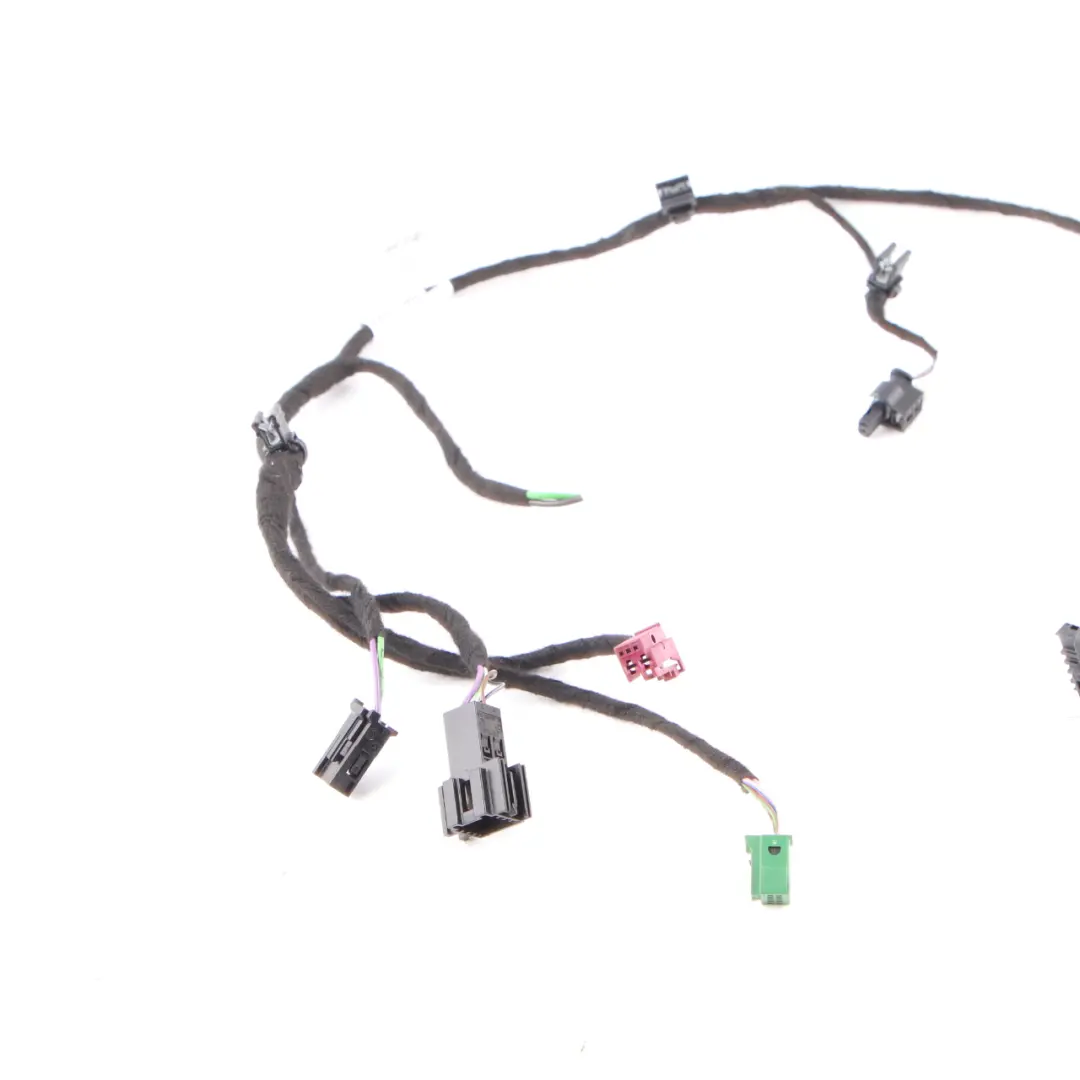

Mercedes W177 Door Cable Wiring Harness Loom Front Left Right Door A1775409710

The Mercedes W177 Door Wiring Harness is an original electrical cable designed for the front left or right door. This component belongs to the Cables, Harnesses, and Connectors group and is a crucial part of the door's electrical system, responsible for stable connections between modules and accessories. Using a used OEM part allows you to maintain the factory installation architecture in your Mercedes without the need for modifications.

Specifications and technical data

• SKU: rhd-A1775409710
• Mark: Mercedes (Genuine OE)
• Condition: Used

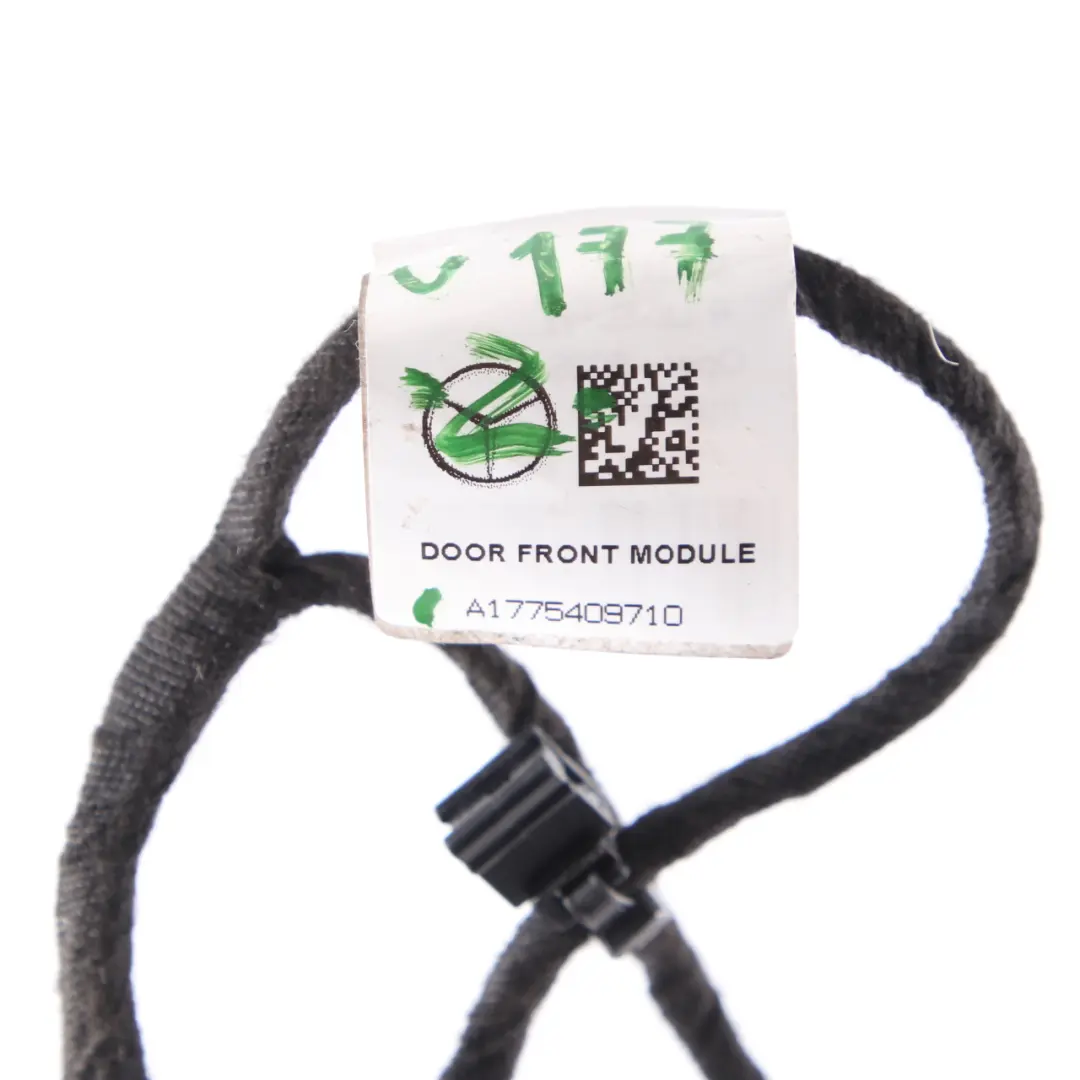

• OEM Part Number: A1775409710
• Substitutable numbers: A1775409710, A 177 540 97 10, BG
• Location on the vehicle: Front, Left, Right
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function in the Mercedes W177 Door Installation

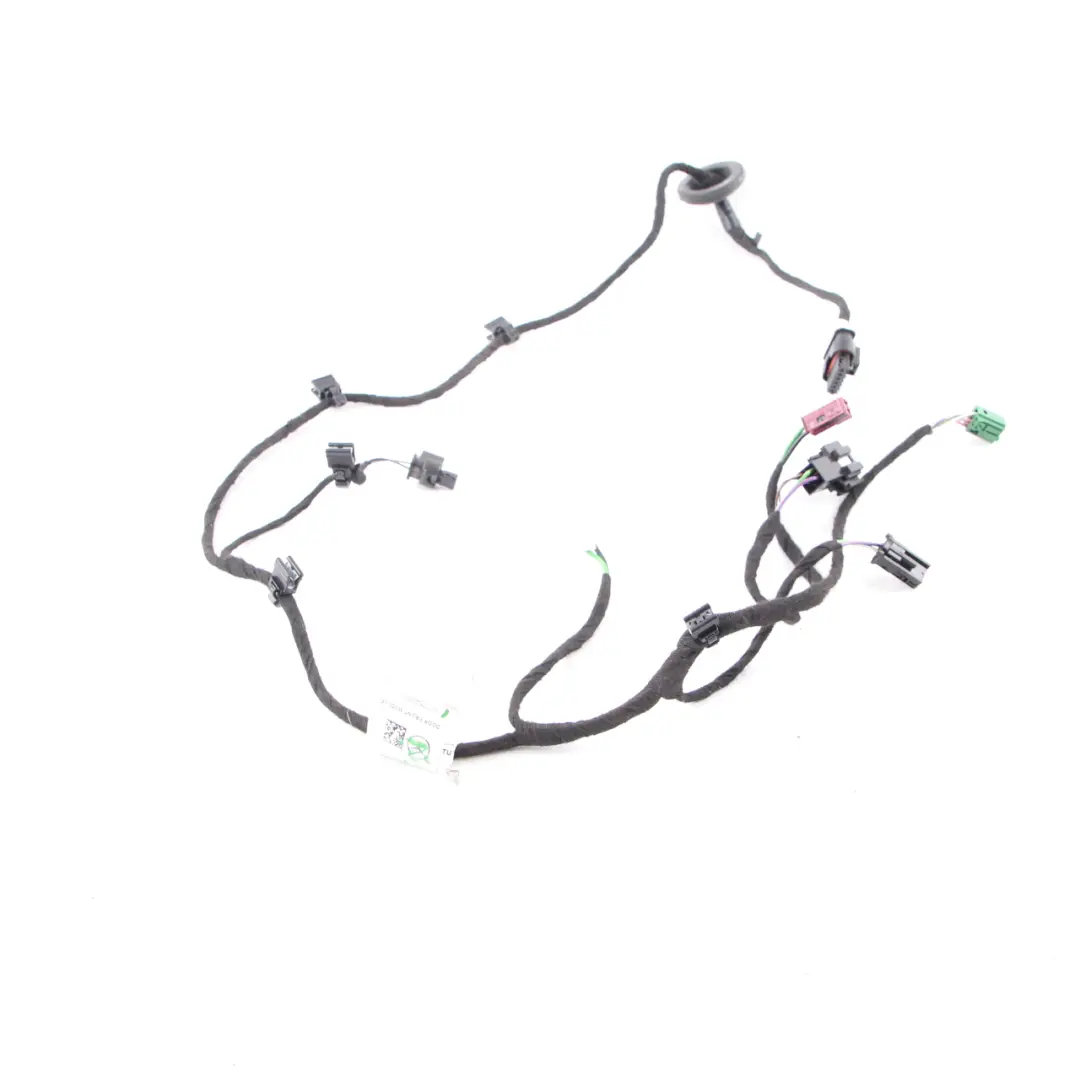

The Mercedes W177 Door Cable Wiring Harness Loom Front Left Right Door is a complete door wiring harness specifically designed for the front doors of W177 family models. It is responsible for transmitting signals and power between the vehicle's body wiring and the components located within the door, such as window controls, central locking, and other electrical elements specified by the manufacturer.

Thanks to factory-style wire routing and original connectors, the harness ensures:

• compliance with the vehicle's factory electrical diagram,
• secure module connections without the need for soldering or custom wiring,
• easier diagnosis of potential future faults.

Construction and Body Fitment

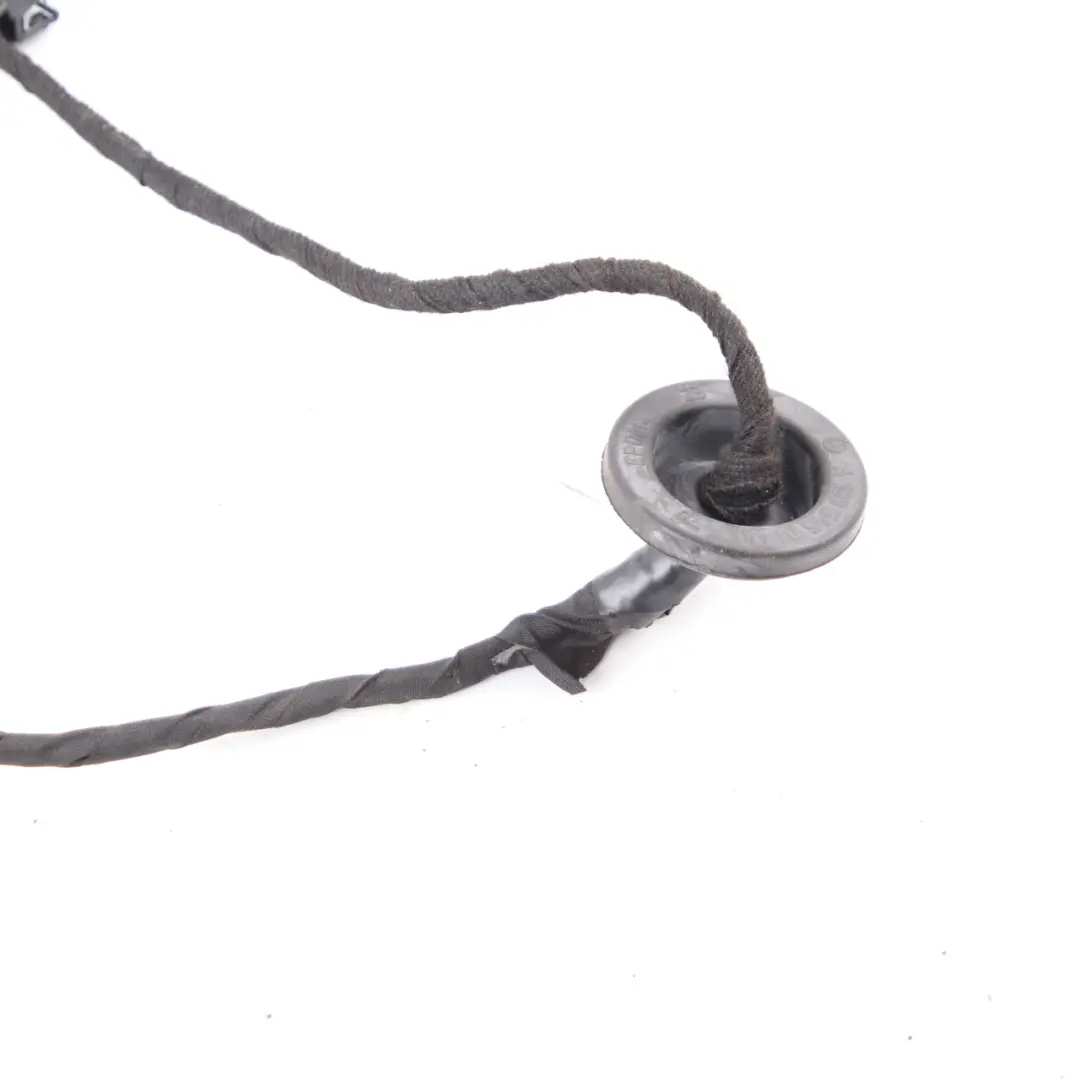

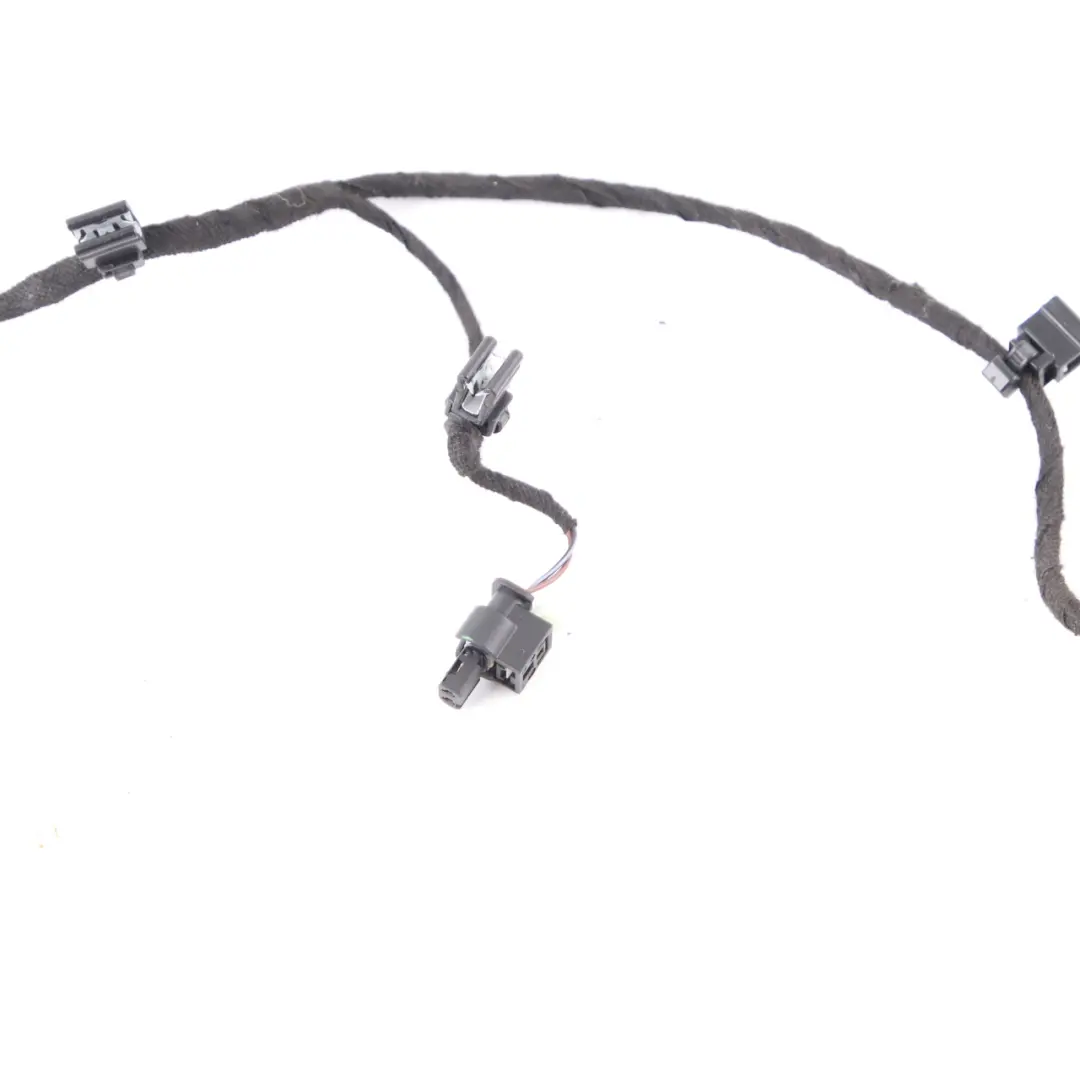

The harness is prepared for installation in the front left or right door, with appropriately shaped branches and factory connectors. The arrangement of wires and mounting points is adapted to the W177 door structure, facilitating the routing of the installation through original grommets and clips.

Original door and body connectors allow for a near plug-and-play installation, without interfering with the main vehicle wiring harness. This solution reduces the risk of installation errors and minimizes the possibility of communication problems between modules.

Service Application and Installation Benefits

This type of door wiring harness is particularly useful in situations where wires in the door grommet have been damaged, contacts have corroded, or the installation has been mechanically interrupted. Using an original harness from the Cables, Harnesses, and Connectors group allows for the restoration of correct operation of electrical systems in the door, without compromises associated with makeshift repairs.

The main benefits of installation include:

• restoration of the factory door wiring path,
• maintaining compatibility with the vehicle's electronics,
• reducing the risk of errors in comfort and safety systems.

Part Condition and Practical Aspects

The offered wiring harness is a used part, sourced from disassembly, which allows for an economical repair while maintaining original manufacturer quality. This type of solution is often chosen in professional workshops when compliance with factory specifications and fitment for a specific body model are priorities.

Before installation, it is recommended to perform a standard check of the connectors' condition and ensure correct wire routing within the door grommets to avoid mechanical stress during repeated opening and closing of the doors.
