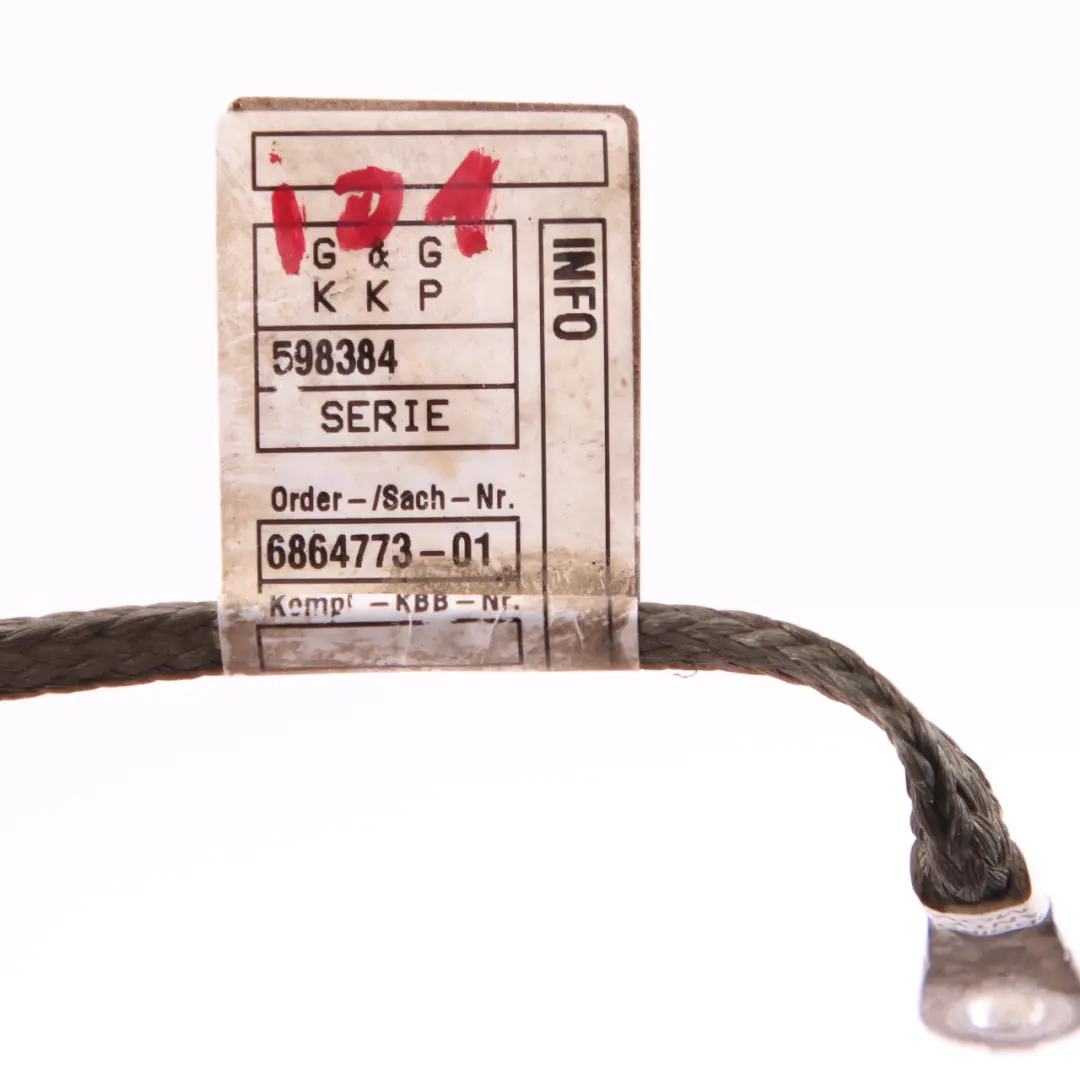

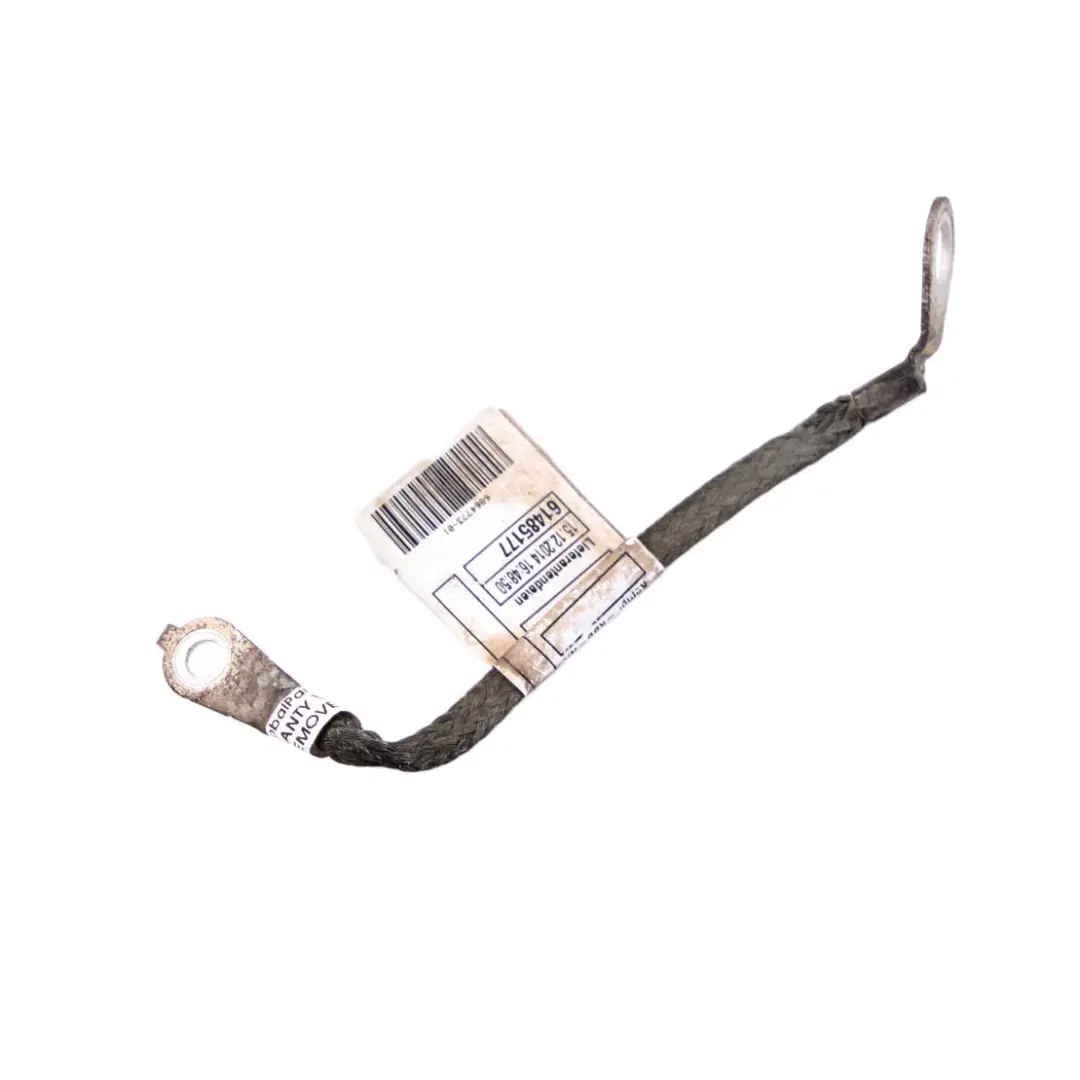

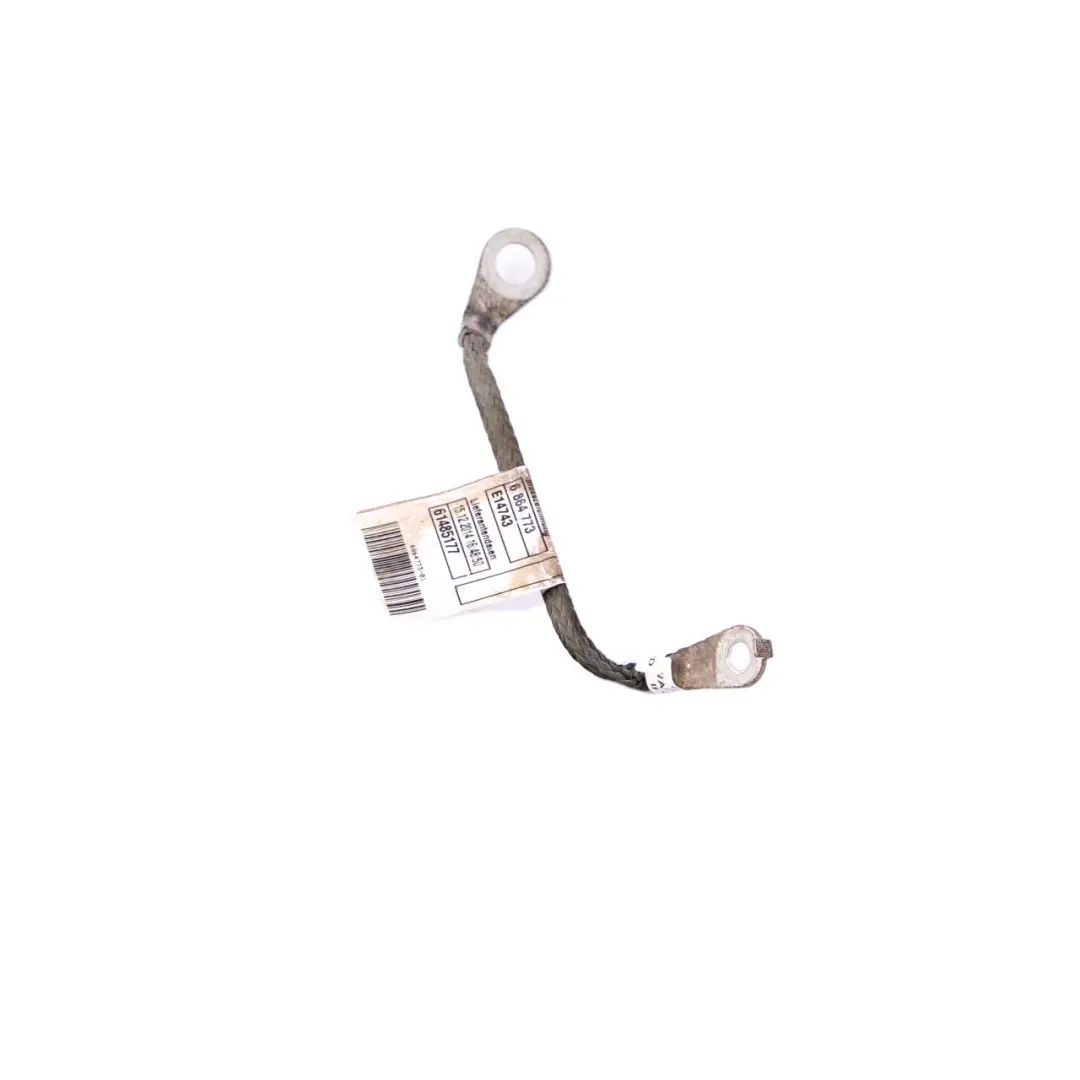

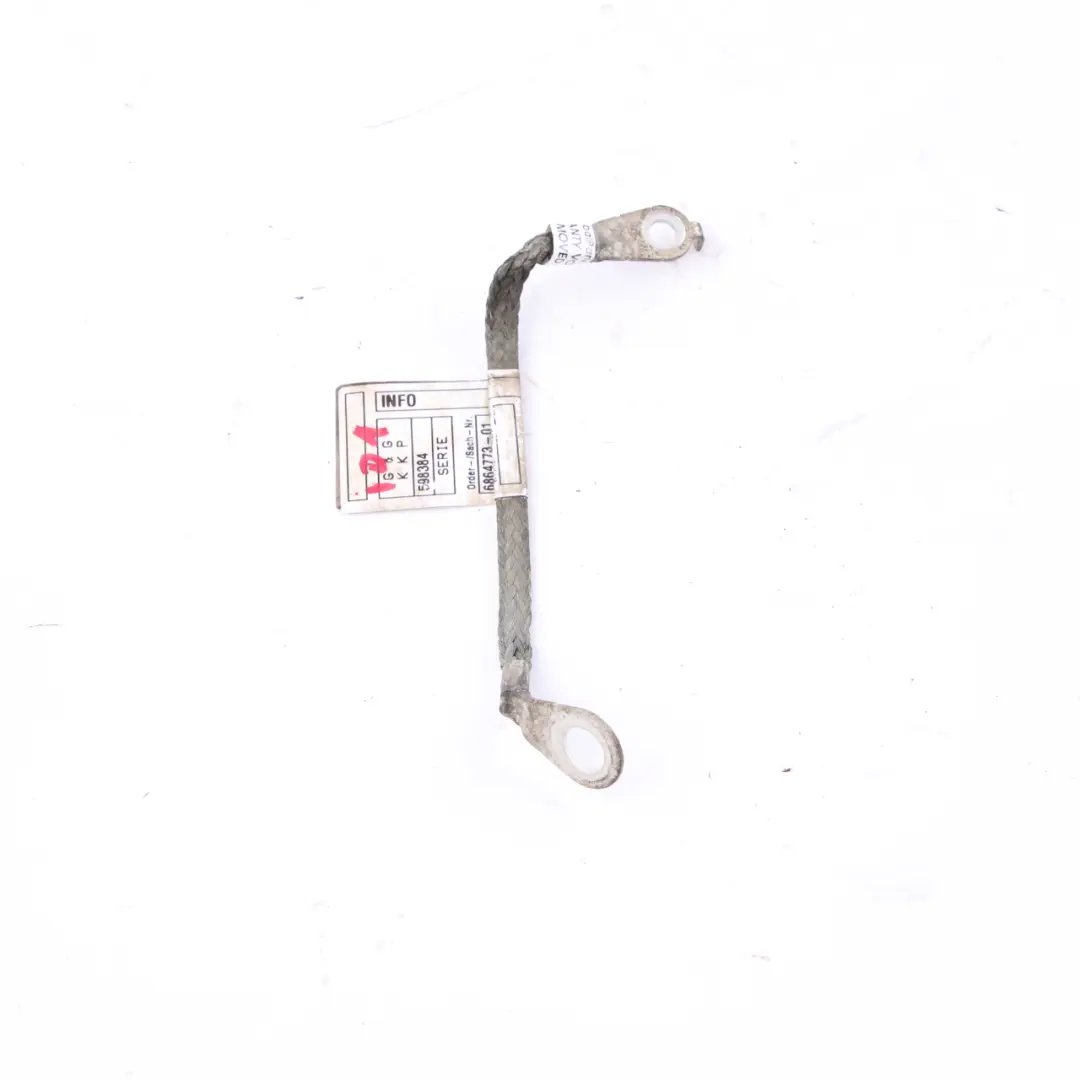

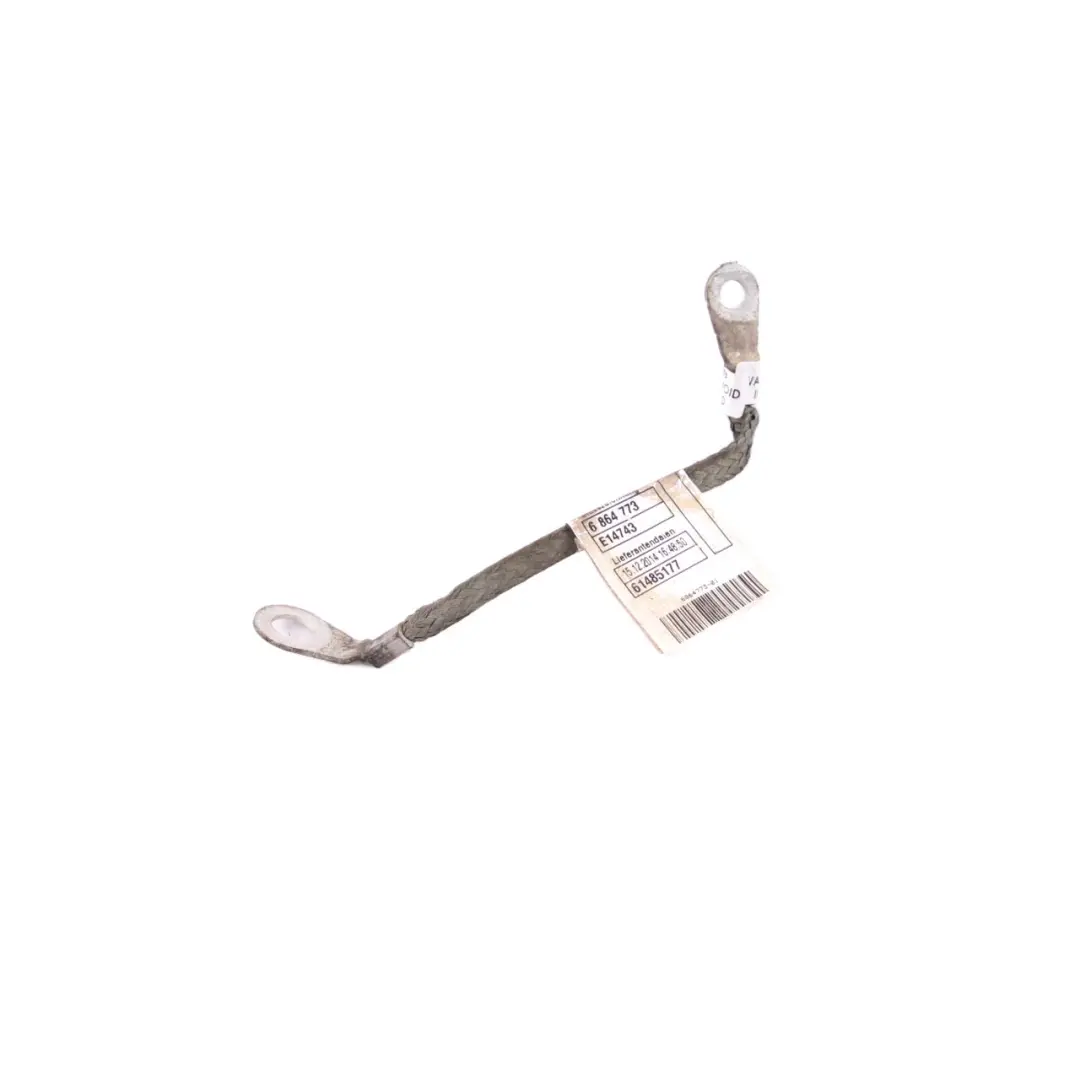

Earth Cable BMW i3 I01 Hybrid Electric Negative High Voltage Battery 6864773

The BMW i3 I01 traction battery high-voltage ground cable is a specialized component of the electrical system in the hybrid-electric version of the BMW i3. The original ground harness ensures a stable connection of the high-voltage battery's negative terminal to the vehicle body, which is crucial for the safe operation of the entire high-voltage system. A used OEM component allows for technically correct repairs without altering the HV installation's structure.

Specifications and technical data

• SKU: rhd-6864773
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 6864773
• Substitutable numbers: 32106864773, 6864773, KZ
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function in the High-Voltage System

This cable belongs to the Cables, Harnesses, and Connectors group and is dedicated to the electric-hybrid drive system of the BMW i3 generation I01. It is responsible for a secure, low-resistance connection of the high-voltage battery's negative terminal to the vehicle's ground point, which directly impacts:

• proper operation of HV inverters, converters, and controllers,
• stability of electrical parameters of the entire high-voltage system,
• safe potential discharge and reduction of interference risk.

Thanks to its factory geometry and appropriately selected cross-section, the cable ensures repeatable operating conditions for the traction system in line with the manufacturer's specifications.

Construction and Fitment for BMW i3 I01

The ground cable was designed by BMW as an OEM component, taking into account the specifics of the I01 platform and the placement of the high-voltage battery. Appropriately shaped ends and factory connectors allow for installation in original mounting points without the need for wiring modifications.

In practice, this means:

• secure fit with factory brackets and ground points,
• preservation of the designed cable length and routing,
• reduction of mechanical stress and vibrations during operation.

Such a solution is particularly important in electric vehicles, where the stability of high-voltage connections affects both safety and component longevity.

Benefits of Using an Original BMW Cable

Using an original ground cable in the BMW i3 I01 maintains the consistency of the entire electrical system with the manufacturer's service documentation. Compared to aftermarket or self-made harnesses, an OEM component ensures:

• compliance with factory electrical and mechanical parameters,
• correct fit with other HV installation components,
• easier future diagnostics due to the preservation of the original harness architecture.

A used component of this class is a sensible choice for repairing electric vehicles, where both technical correctness of installation and control of service costs are important.

Component Condition and Application in Service Practice

The cable is a dismantled part and is offered as a Used component, meaning it has been previously operated in a vehicle. Such parts are frequently used in professional electromobility workshops, especially for:

• repairs after collisions in the traction battery area,
• troubleshooting related to HV ground interruptions or degradation,
• restoring installations after improper modifications.

For many users and service centers, this is a way to maintain the original quality of BMW installations while reducing costs compared to new components.

System Expansion and Selection of Related Components

If you are planning a comprehensive repair or upgrade of the high-voltage installation area in your BMW and need other parts from the same group, such as additional harnesses, ground cables, or service connectors, check the available parts in the BMW Cables, Harnesses, and Connectors category.

If you have any doubts regarding the selection of a used component or want to better understand the specifics of the used parts market, it is worth reading the article explaining the most common concerns and misconceptions – you can find it here: Used Car Parts: Myths and Facts You Need to Know.
