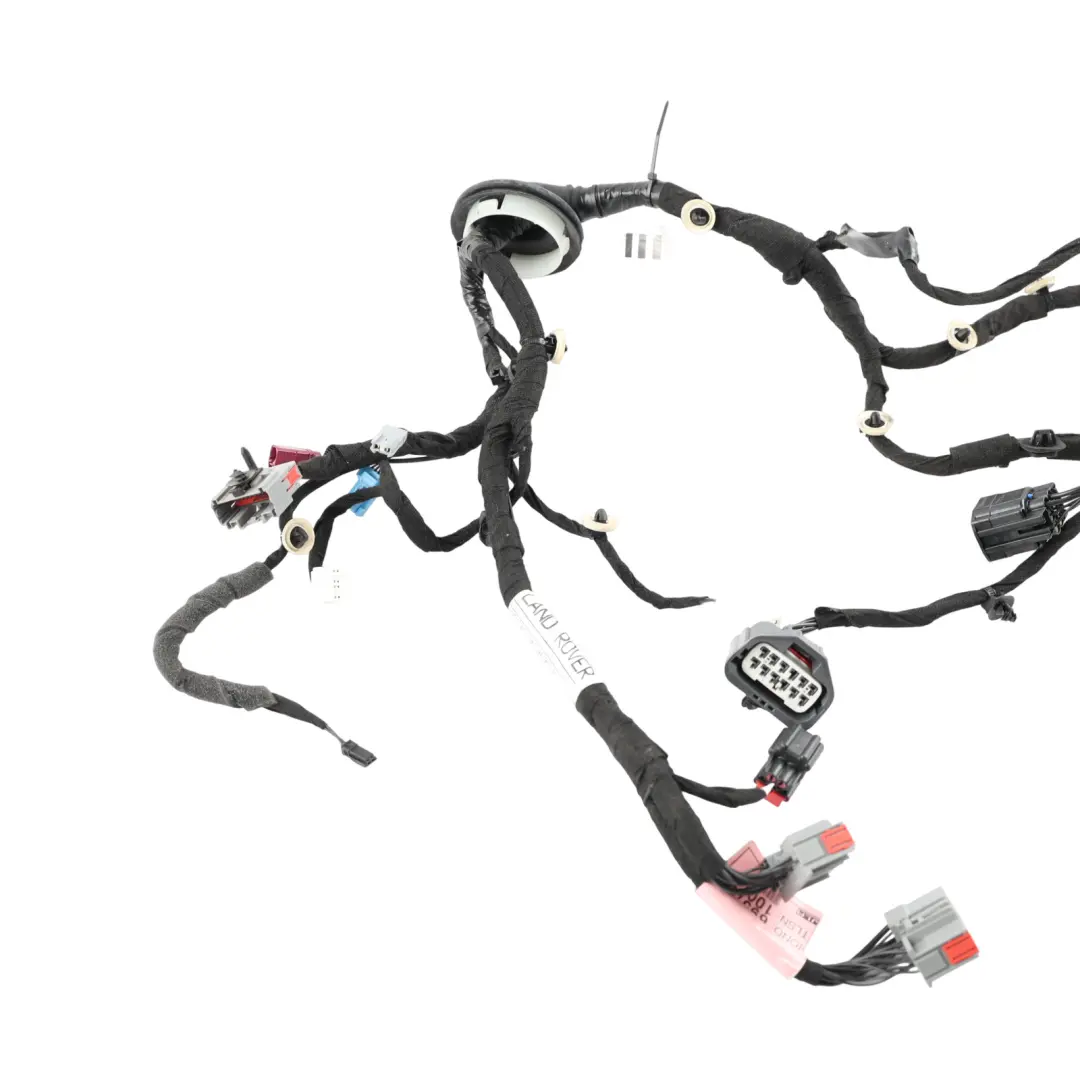

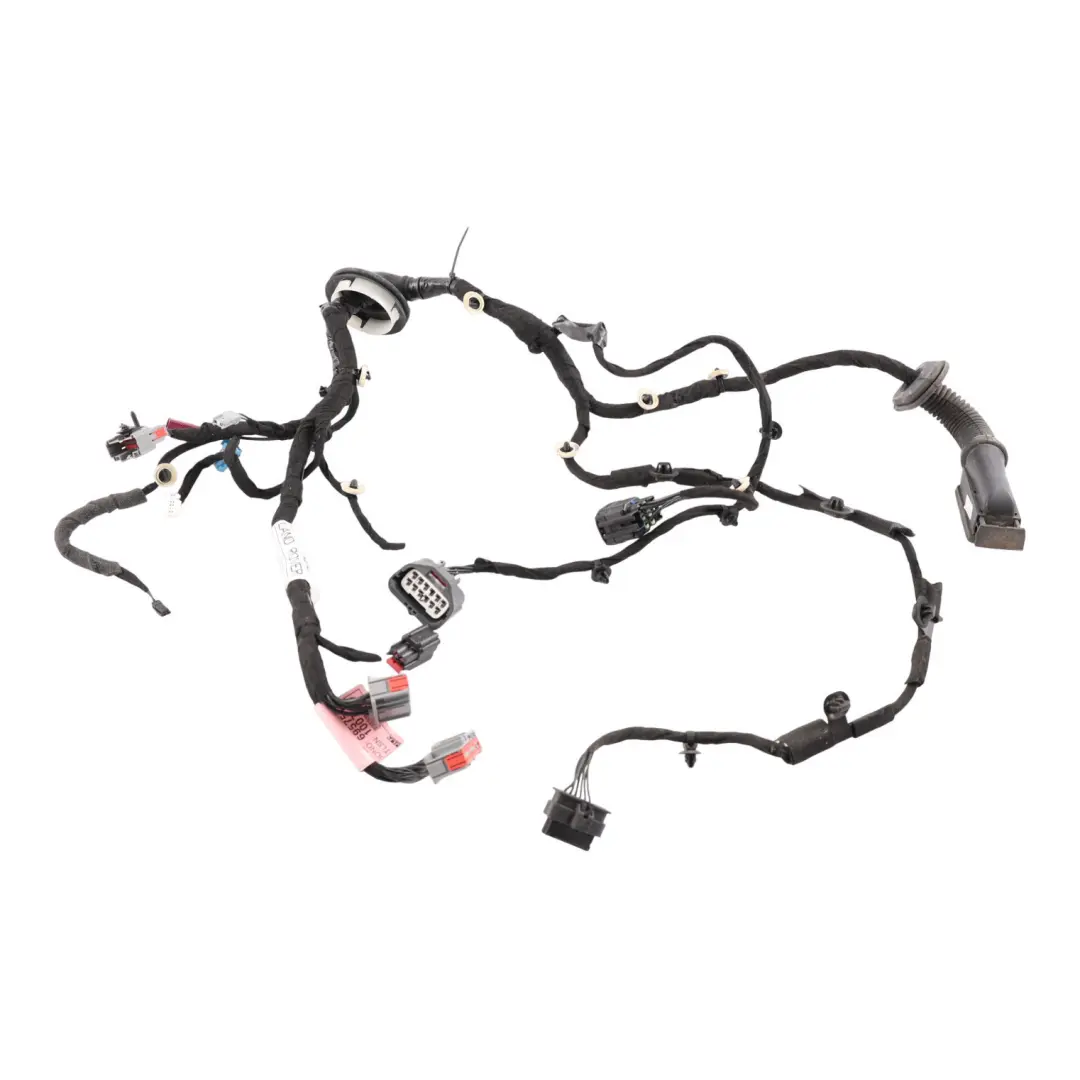

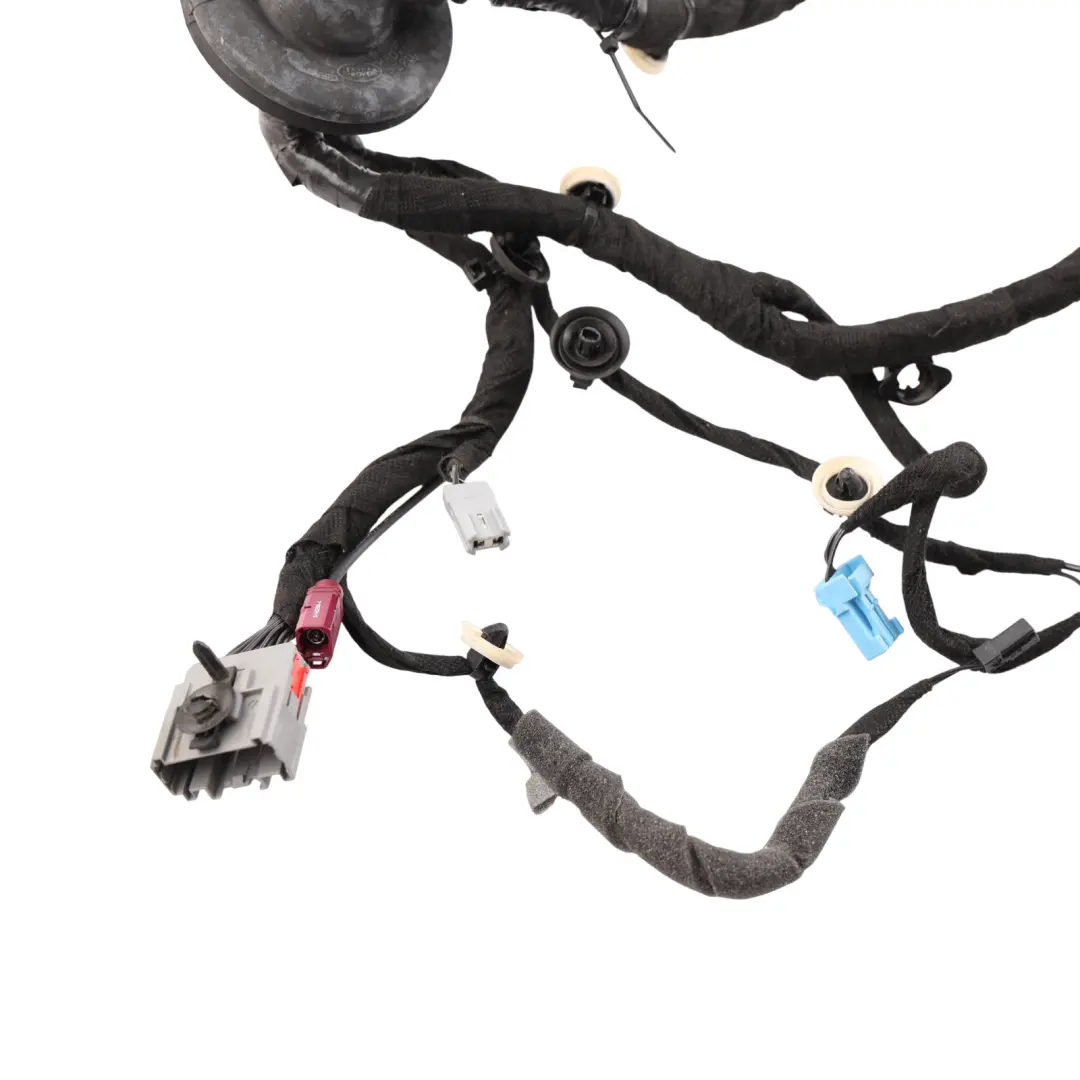

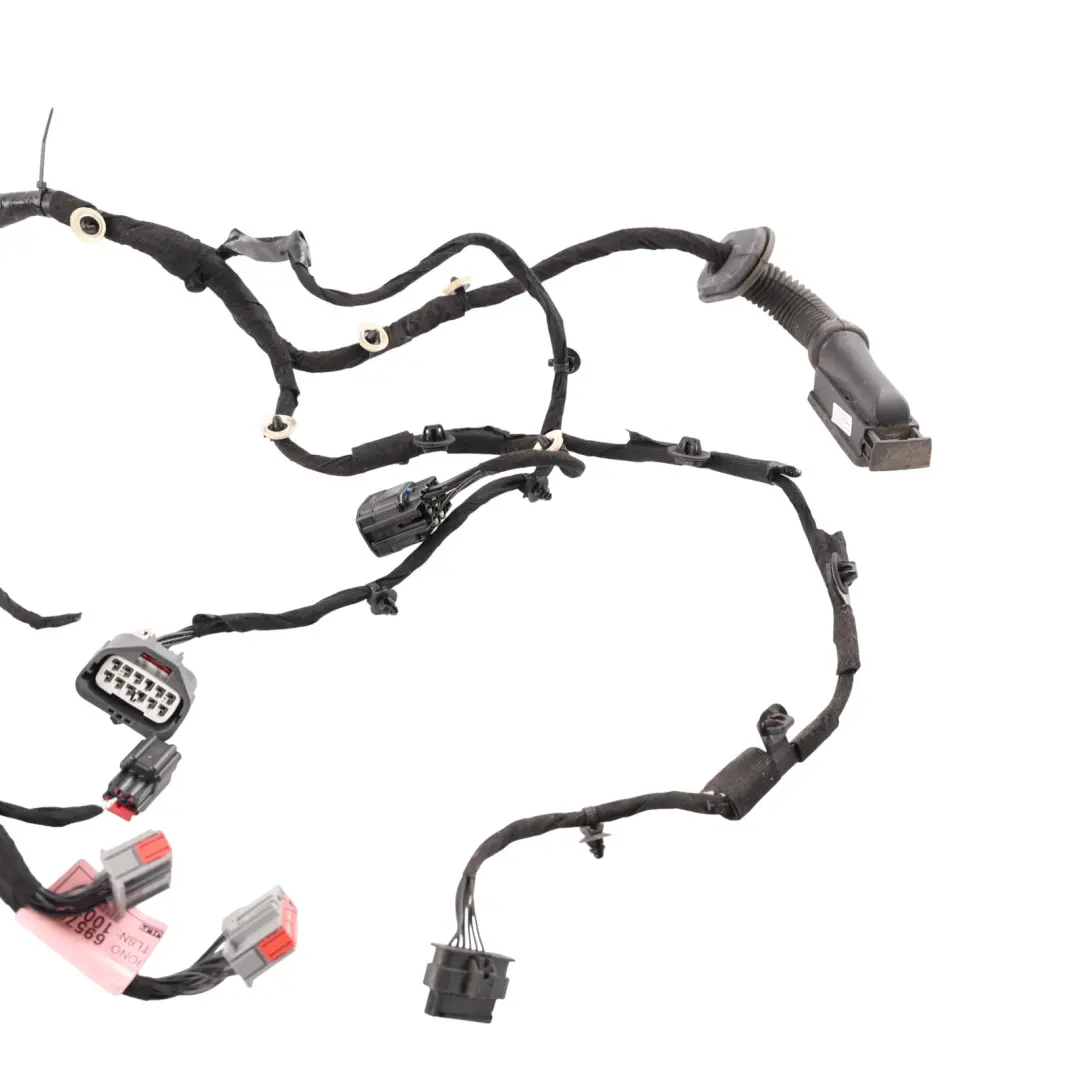

Range Rover Evoque L551 Front Door Wiring Harness Passenger Side M8D2-14630-ABC

Range Rover Evoque L551 Front Door Wiring Harness Passenger Side is an original Land Rover electrical system component, designed for installation on the front passenger side. This is a used, fully functional wiring harness that allows for professional repair or replacement of the factory door wiring without interfering with the vehicle's main electrical system.

Specifications and technical data

• SKU: RHD-M8D2-14630-ABC
• Mark: Land Rover
• Condition: Used

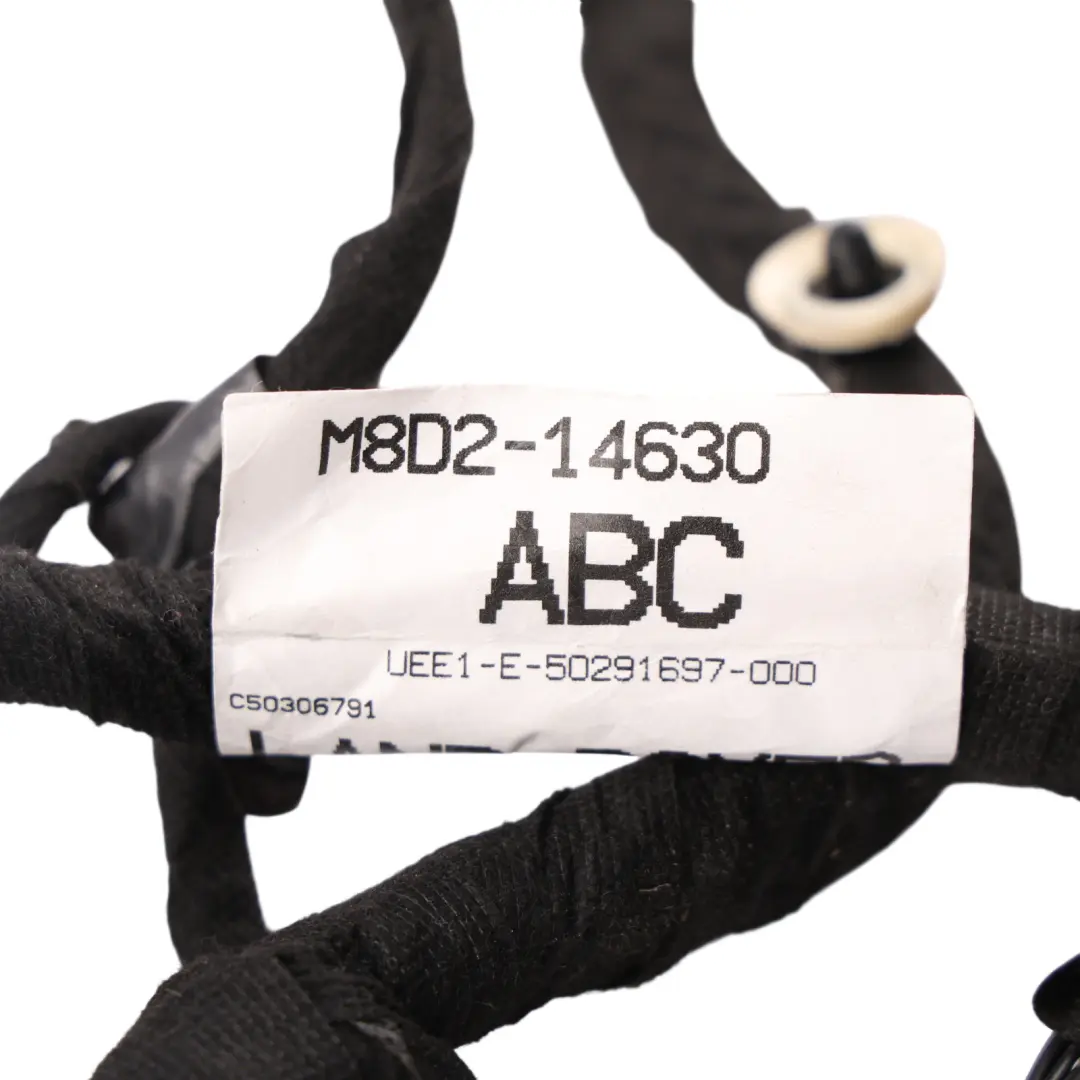

• OEM Part Number: M8D2-14630-ABC
• Substitutable numbers: M8D2-14630-ABC, M8D214630ABC, LR144222
• Location on the vehicle: Front
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the vehicle

The presented door wiring harness has been designed specifically for the Range Rover Evoque L551 generation and is installed in the front passenger door area. It is responsible for transmitting signals and power between the body control modules and components located in the door, such as window controls, mirrors, locks, or lighting, depending on the specific vehicle configuration.

Thanks to its factory fit for the L551 body, the harness maintains proper wire routing, correct segment lengths, and compatibility with original connectors. This avoids the need for wiring modifications, soldering, or the use of adapters, which is particularly important in modern vehicles with complex electronics.

Construction and installation fit

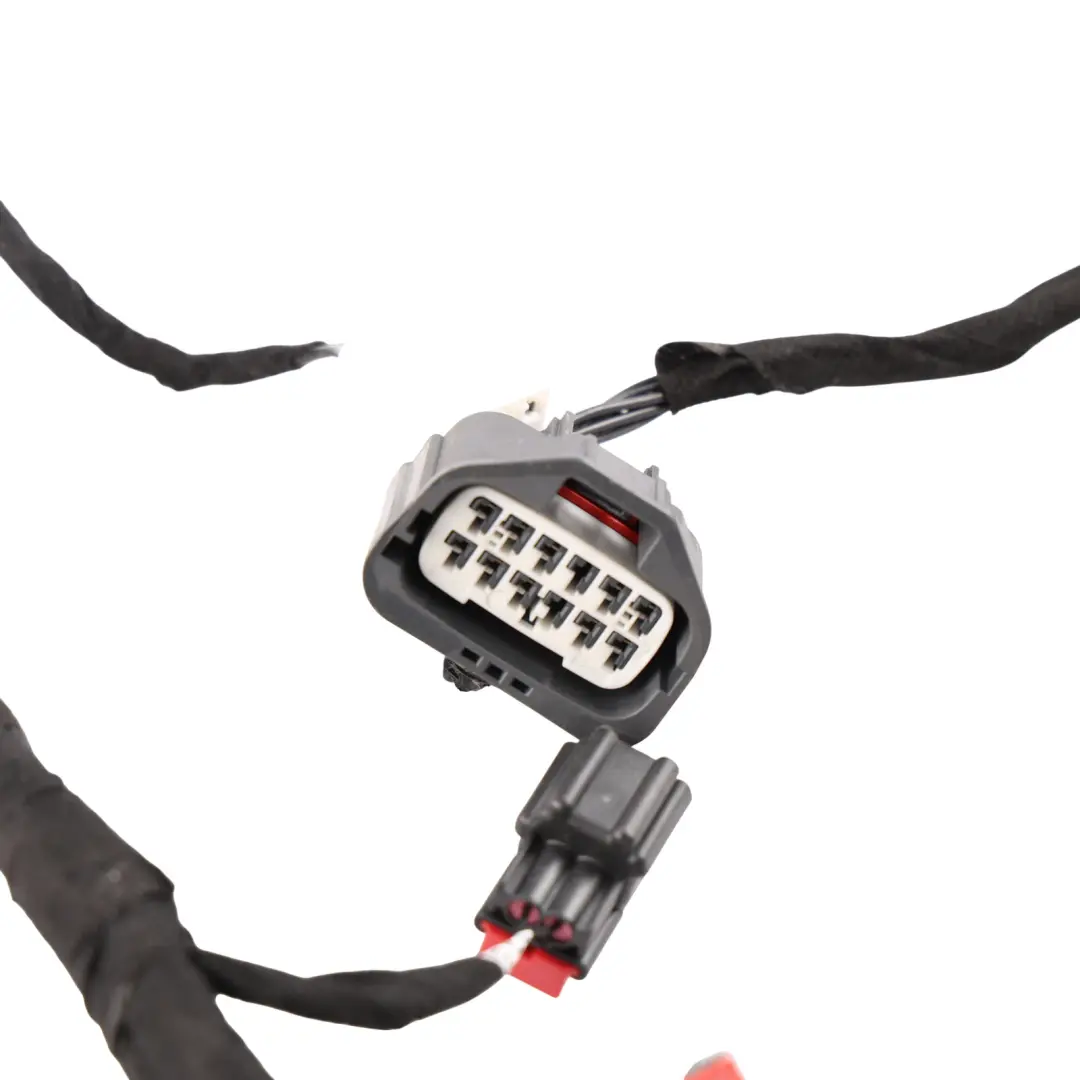

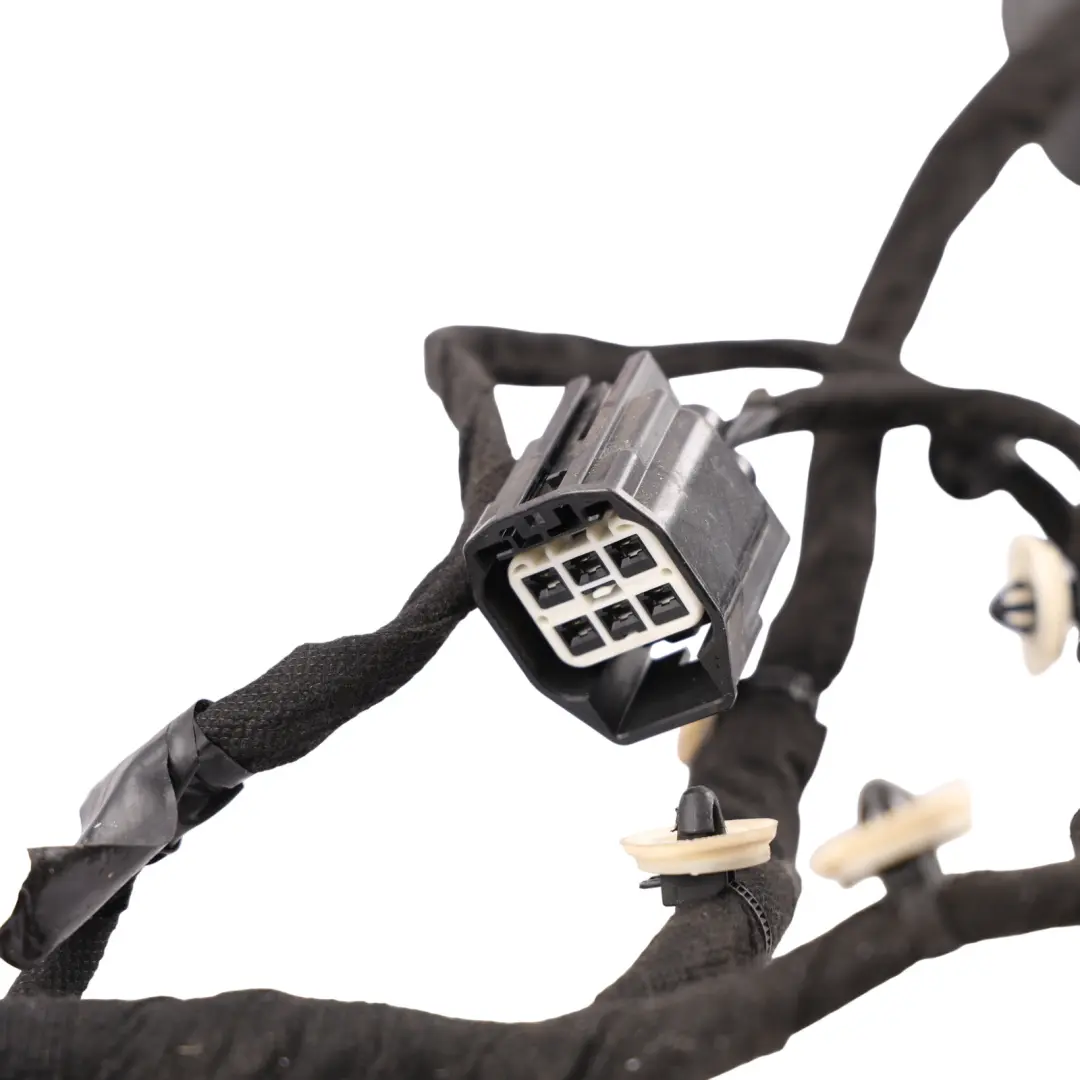

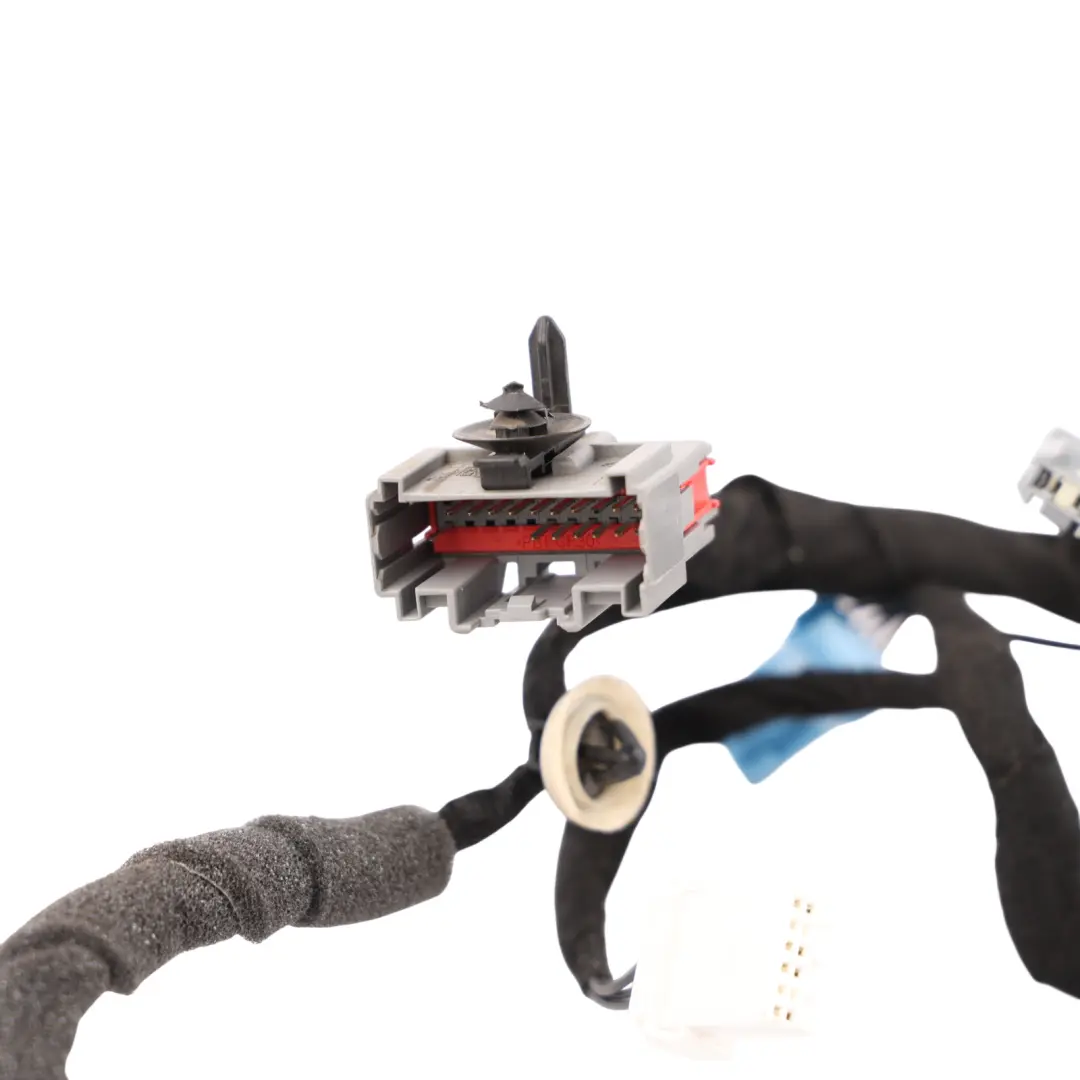

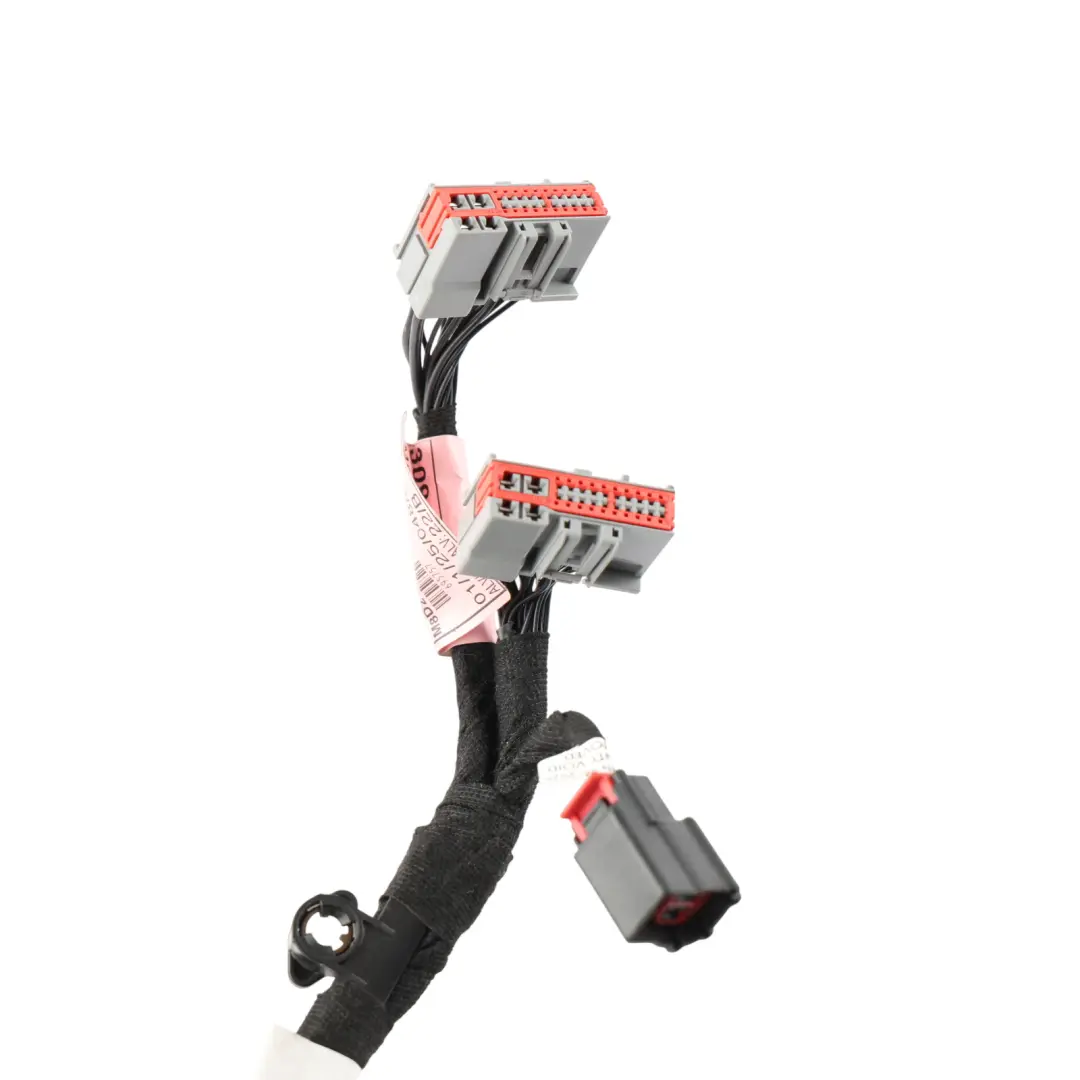

The harness belongs to the Wires, harnesses, and connectors category, meaning it is an integral part of the vehicle's body electrical system. The connectors used are factory-prepared for integration with control modules and door equipment, and their design minimizes the risk of incorrect connection.

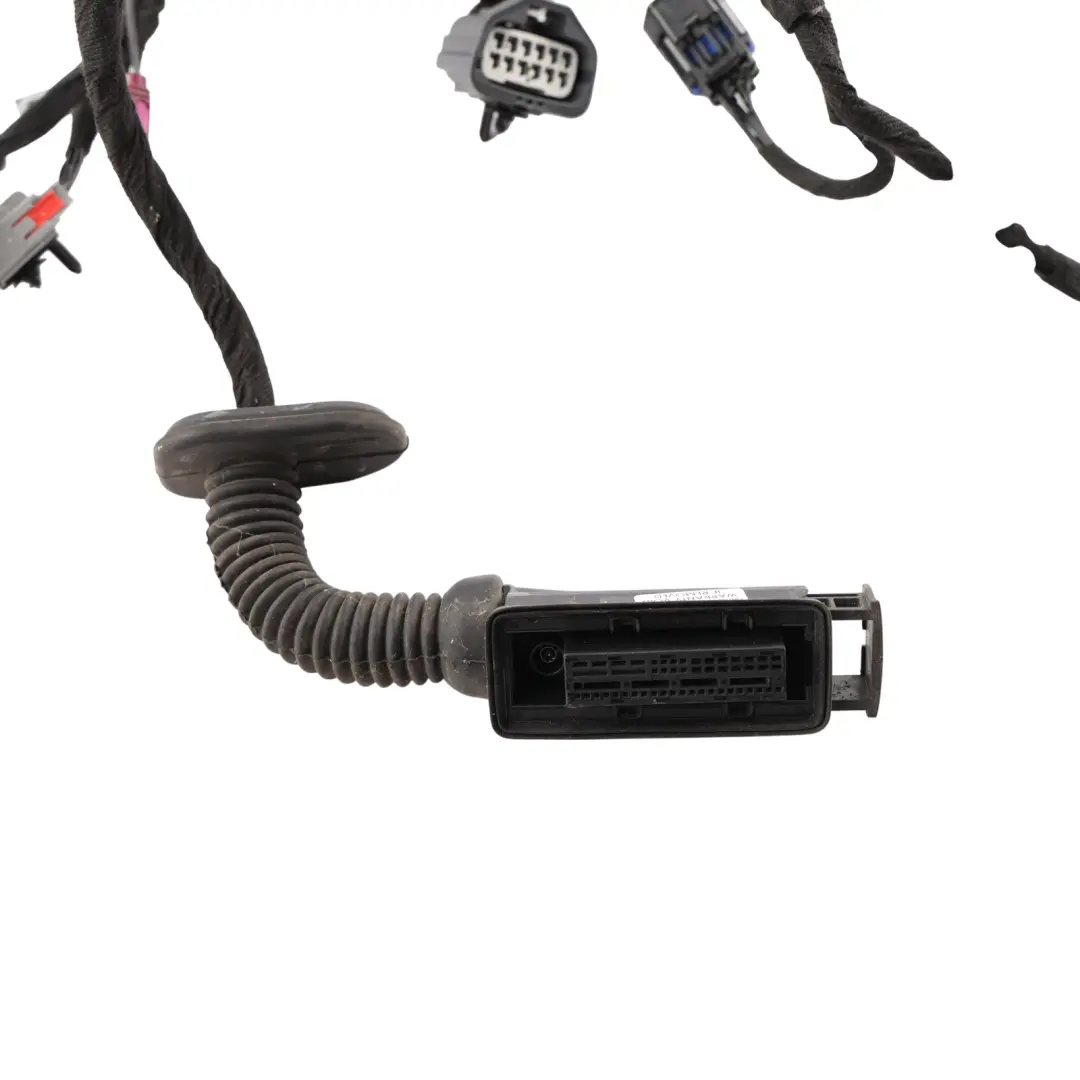

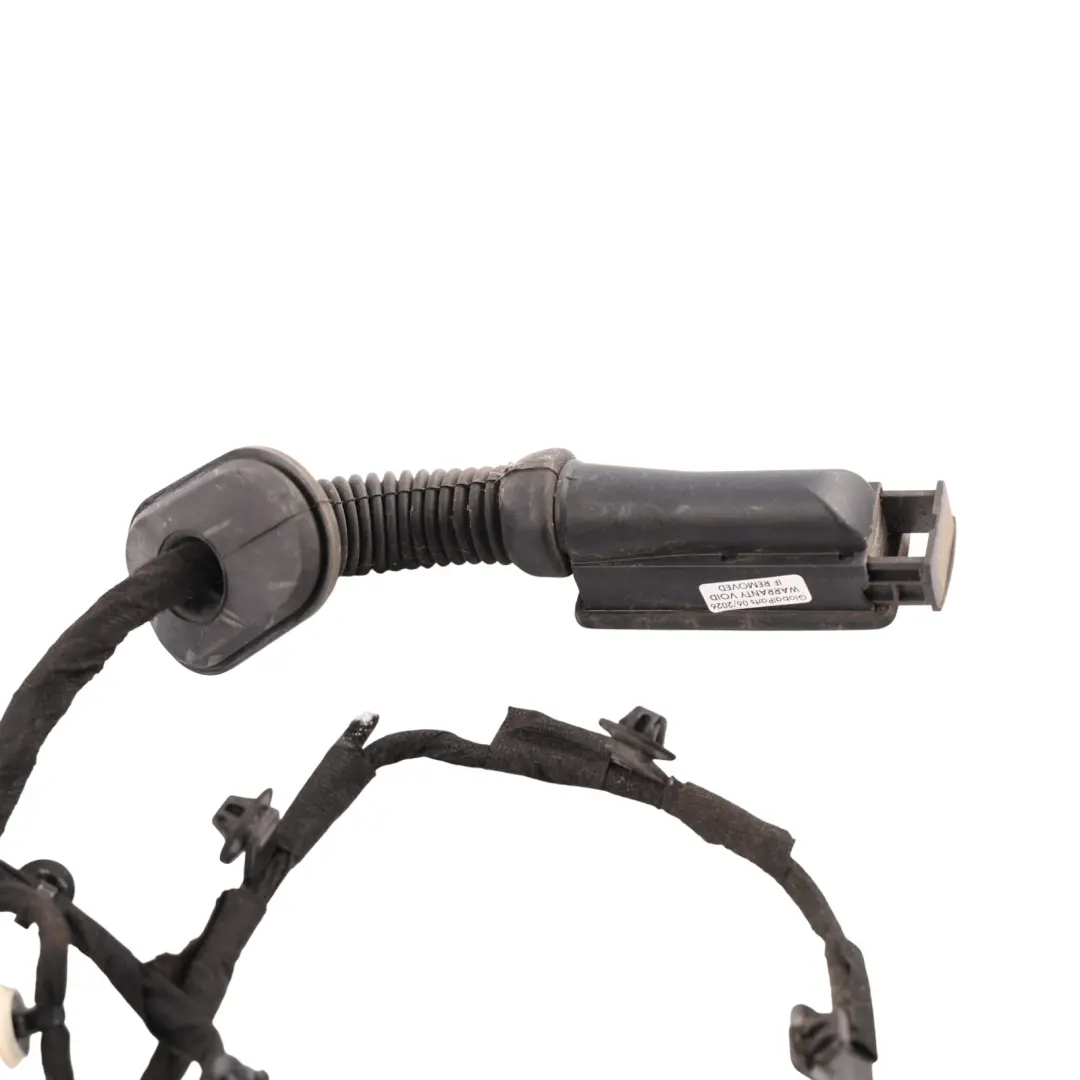

The layout of the wires and mounting points is consistent with the manufacturer's original design, which facilitates routing the harness through the door and the grommet between the door and the pillar. This solution reduces stress on the wires during door opening and closing, which translates into stable system operation in the long term.

Benefits of using an original Land Rover harness

Using an original Land Rover component allows for maintaining the consistency of the electrical system with the vehicle's factory service documentation. This is important both for subsequent computer diagnostics and for potential repairs at authorized service centers or specialized workshops.

• secure fit for the Evoque L551 model on the front passenger side,
• preservation of the original electrical system architecture,
• reduced risk of installation errors and module communication issues,
• easier diagnostics based on factory schematics.

The used door wiring harness is a good solution in cases of mechanical wire damage, breaks in the grommet area, or problems resulting from previous unprofessional repairs.

Service application and installation

The component is intended for installation in the front part of the vehicle, in the passenger door area. In practice, this requires removing the door trim, disconnecting existing connectors, and routing the harness through the factory grommets. Thanks to the preservation of the original wire layout, the installation process is orderly and predictable.

In the case of comprehensive work on the body electrical system, it is worth considering an inspection of other elements from the Wires, harnesses, and connectors group, which will help maintain the consistency of the entire system. More information about the role of the installation and related components can be found in the article: how key electrical and electronic systems work in modern cars.

Practical operational tips

When replacing the door wiring harness, it is recommended to thoroughly check the condition of the rubber grommets and ground points within the door and pillar area. Proper wire routing and protection against abrasion have a direct impact on the reliability of the window controls, mirrors, and central locking system.

If you are simultaneously working on the steering system or column, the guide material Steering system and power steering – how it works and what fails? may be helpful, which discusses, among other things, the diagnostics of components that interact with the vehicle's electrical system.
