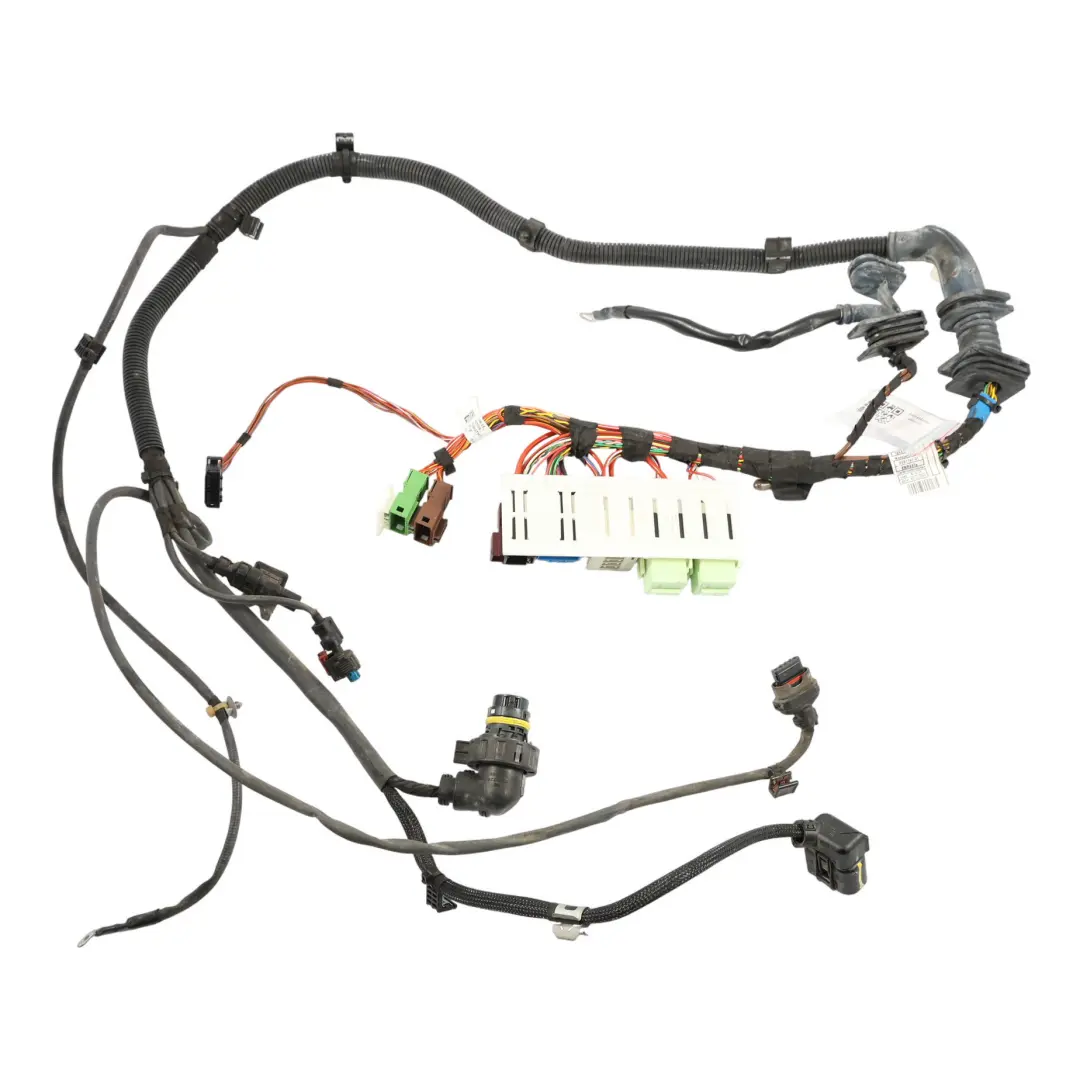

Gearbox Wiring Loom BMW X5 F15 X6 F16 Diesel N57 Wire Harness Engine 8583564

The BMW X5 F15 / X6 F16 Diesel N57 Gearbox Wiring Harness is an original part from the Cables, Harnesses, and Connectors category, designed for N57 diesel engines. It ensures proper connection of the gearbox to the engine's electrical system, providing stable communication between controllers and sensors. This is a practical solution for users who want to restore full functionality to the drivetrain in their BMW X5 F15 or X6 F16 diesel models.

Specifications and technical data

• SKU: RHD-8583564
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8583564
• Substitutable numbers: 8583564, 12518583564, 8572095, 12518572095
• Fuel type: Diesel
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function of the Harness

This harness is dedicated to BMW X5 F15 and BMW X6 F16 models equipped with the N57 diesel engine. Its purpose is to handle the electrical connections between the gearbox, the engine unit, and the rest of the vehicle's electrical system. It is responsible for:

• transmitting signals from gearbox sensors to the engine control unit,
• powering actuators related to the transmission's operation,
• ensuring a stable connection with the main engine harness,
• maintaining proper communication within the drivetrain of diesel vehicles.

Construction and Fit for BMW X5 F15 / X6 F16

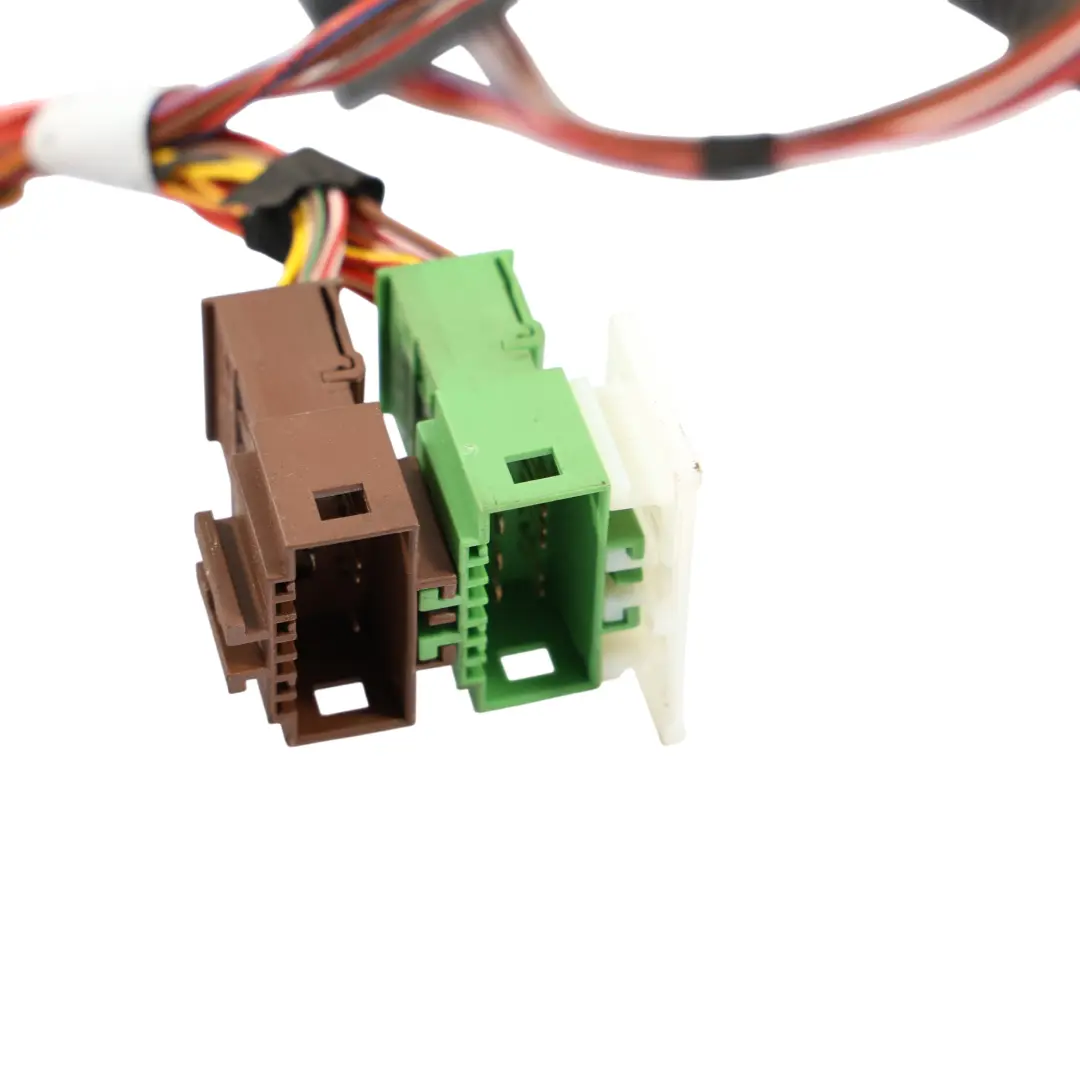

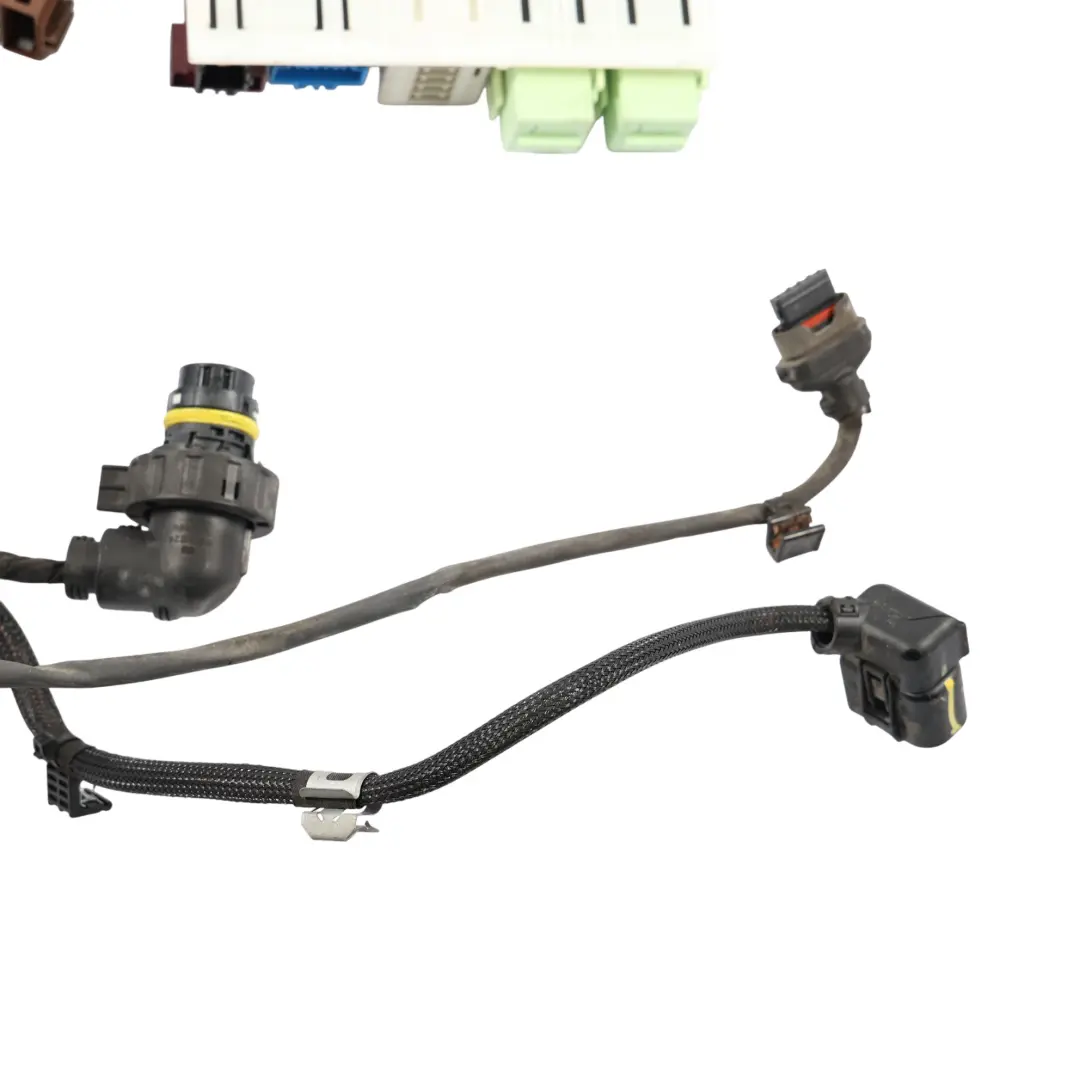

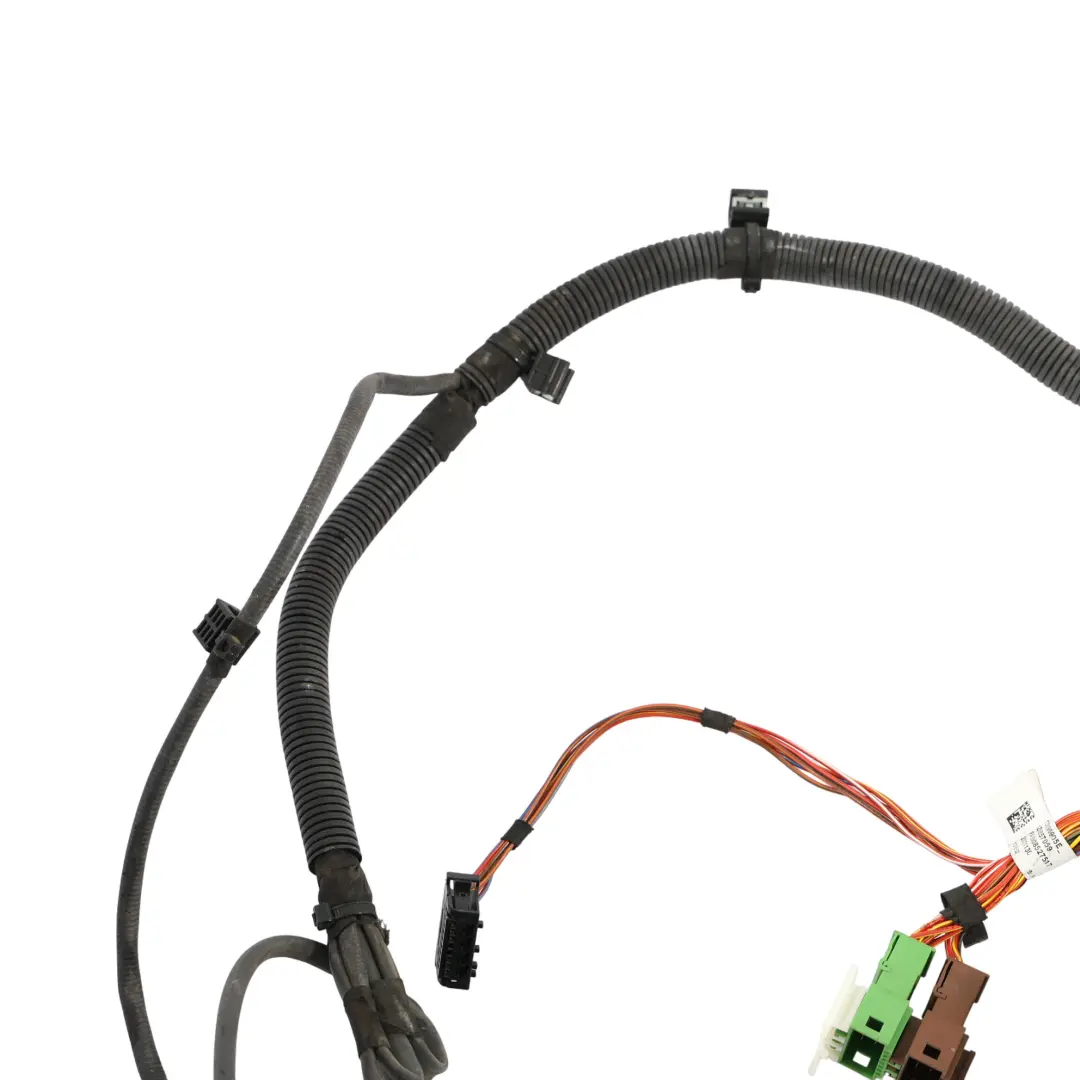

The harness is designed as an OEM component for the F15/F16 platform, offering factory-matched connectors and wire lengths. Appropriately shaped branches and standard mounting points allow the wires to be routed along the original path in the engine bay and near the gearbox.

This solution simplifies installation, reduces the risk of chafing, and minimizes the possibility of incorrect connector connections. For a mechanic, this means faster and more predictable work, and for the user, it ensures drivetrain performance parameters remain consistent with BMW standards.

Application in N57 Diesel Engines

The N57 engine is an advanced diesel unit where the proper functioning of the gearbox is closely linked to its electronics. The described harness works with the diesel engine control system, transmitting signals necessary for:

• the gearbox to select gears correctly,
• coordinating engine torque with transmission operation,
• diagnosing faults related to sensors and actuators.

This ensures stable drivetrain operation, with predictable responses to load and gear changes that align with the manufacturer's specifications.

Condition of the Part and Benefits of Using a Used Part

The offered harness is a used part from a dismantled vehicle and is an original used BMW component. For many users, this represents a sensible compromise between cost and quality, as the part retains its factory geometry, connector types, and compatibility with the vehicle's electrical system, while also allowing for cost savings compared to a new component.

Using an original used harness is particularly beneficial for post-accident repairs, replacing damaged wires, or restoring vehicle functionality after a gearbox electrical system failure.
