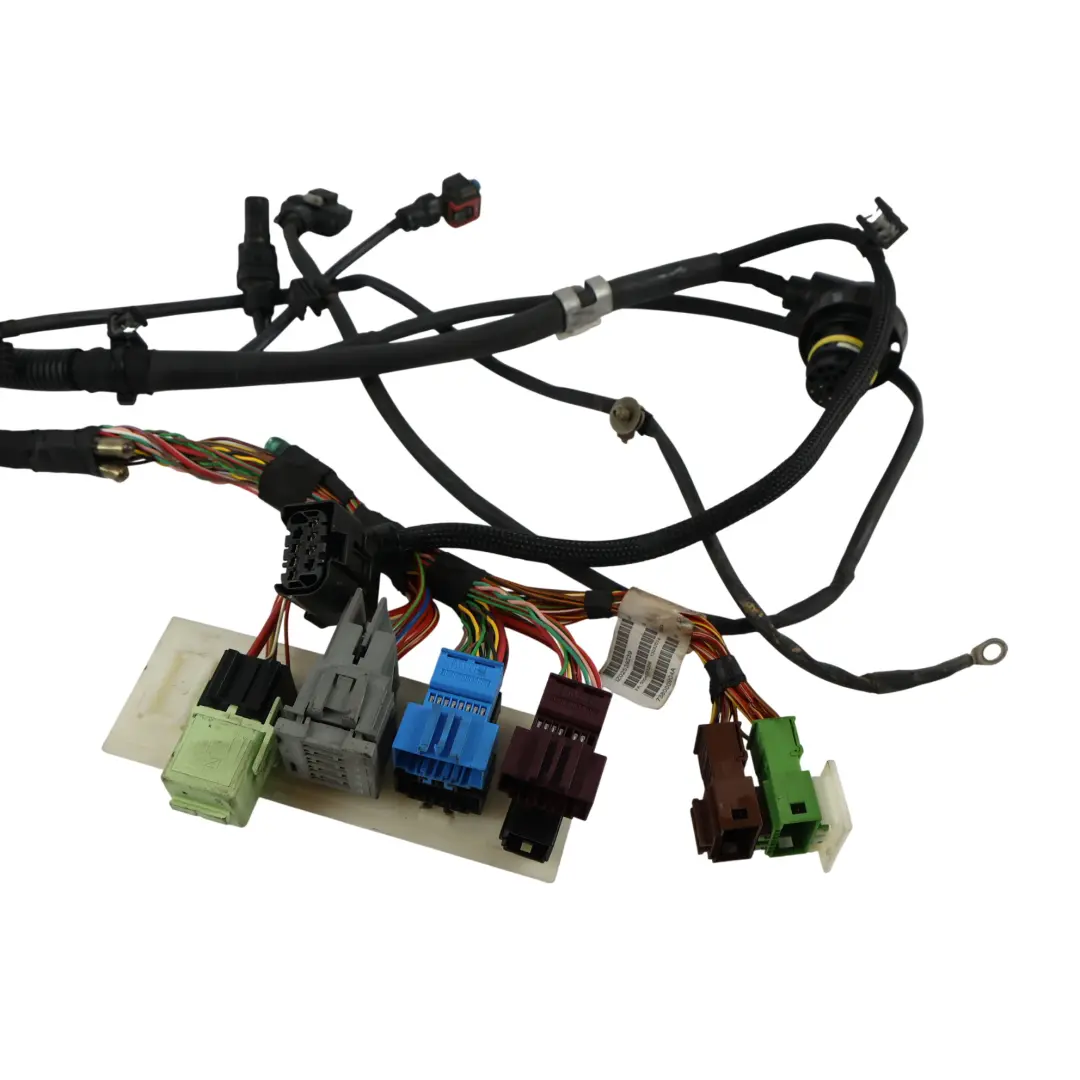

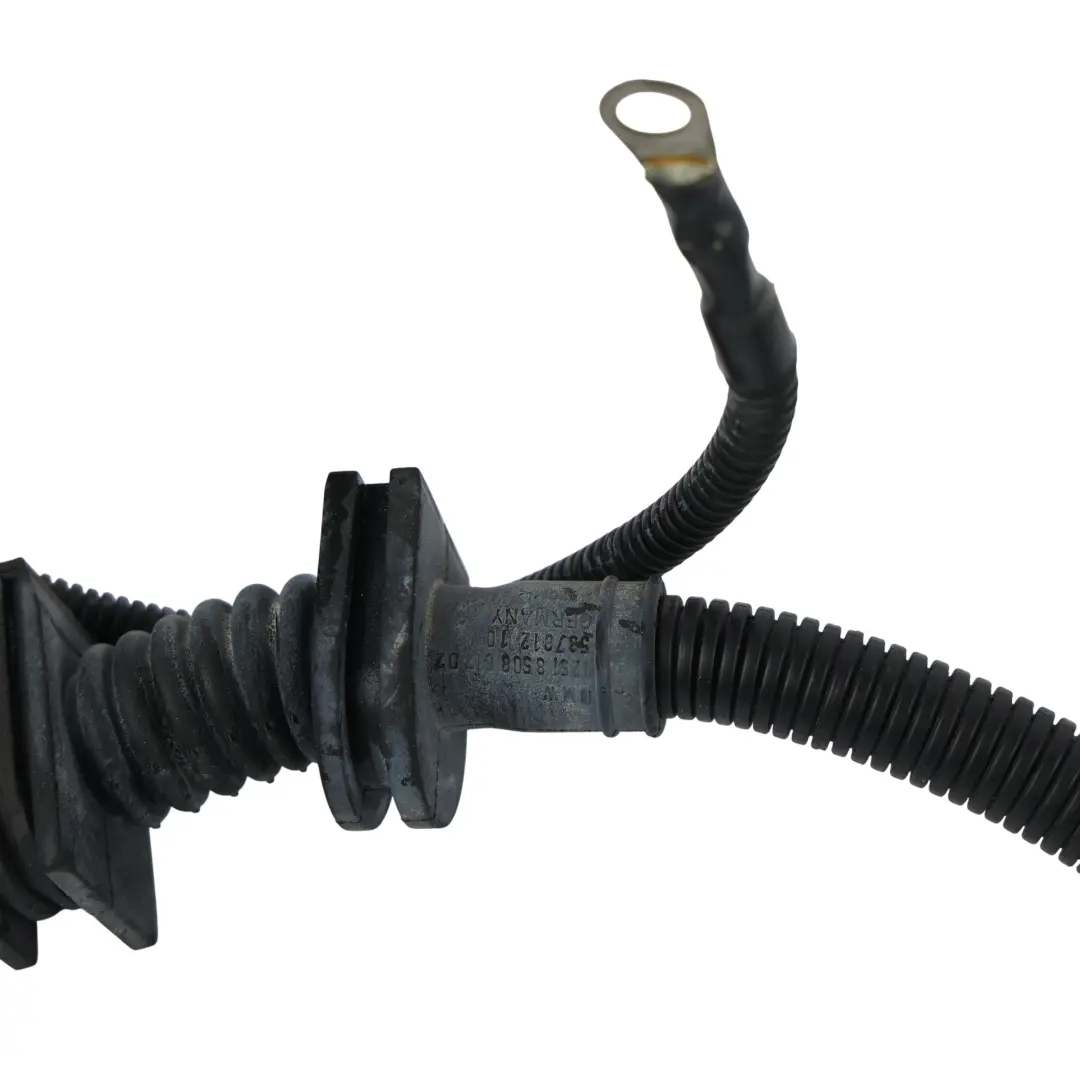

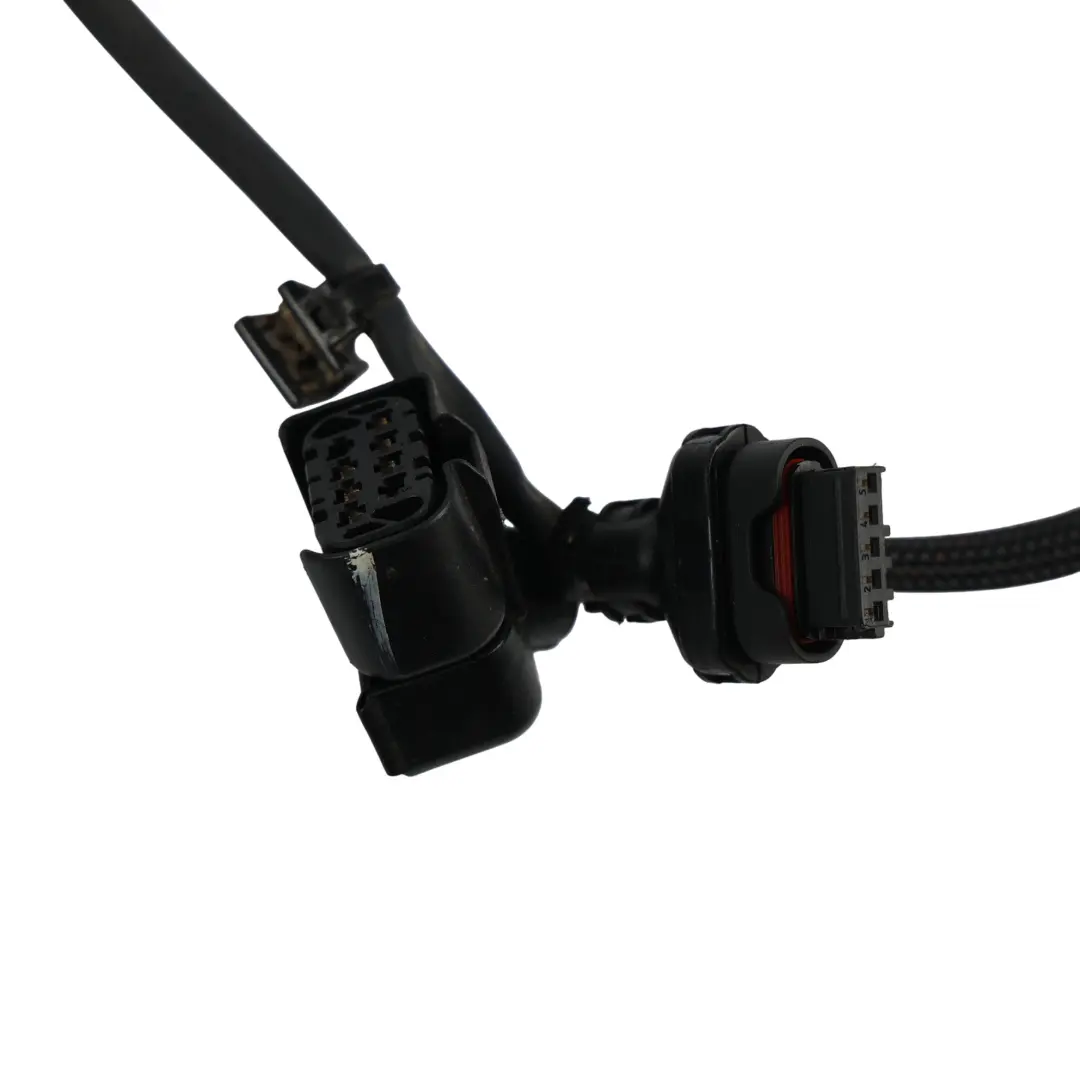

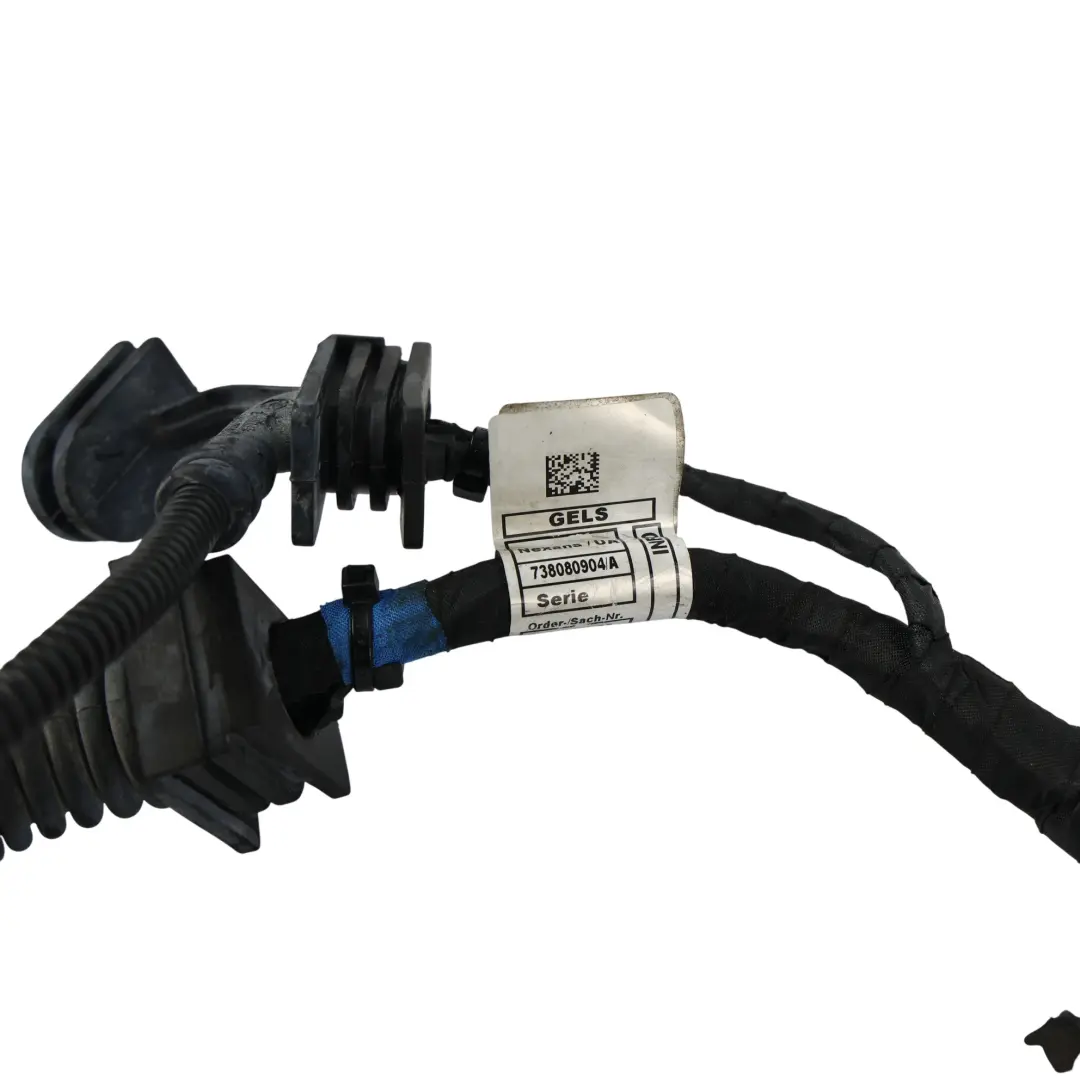

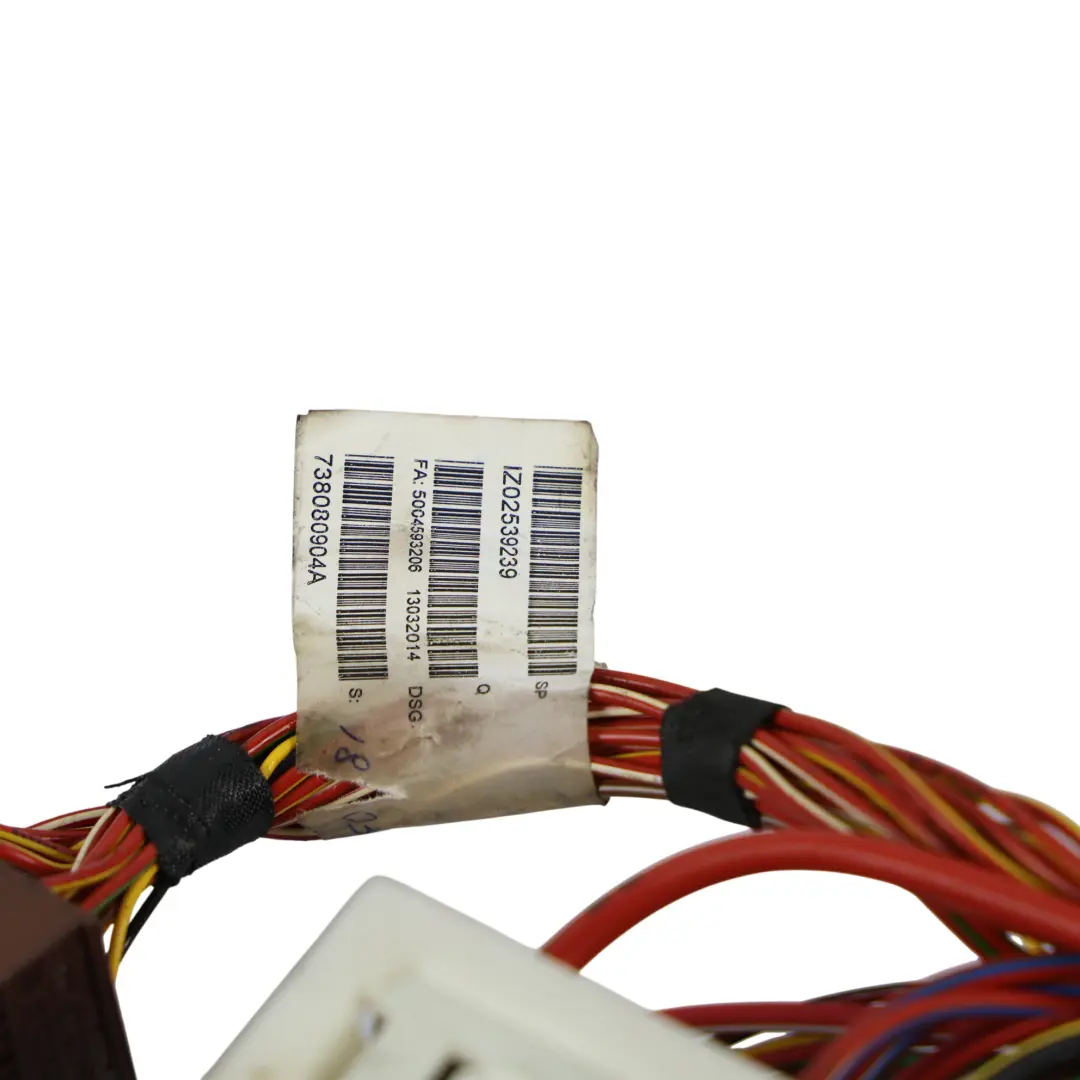

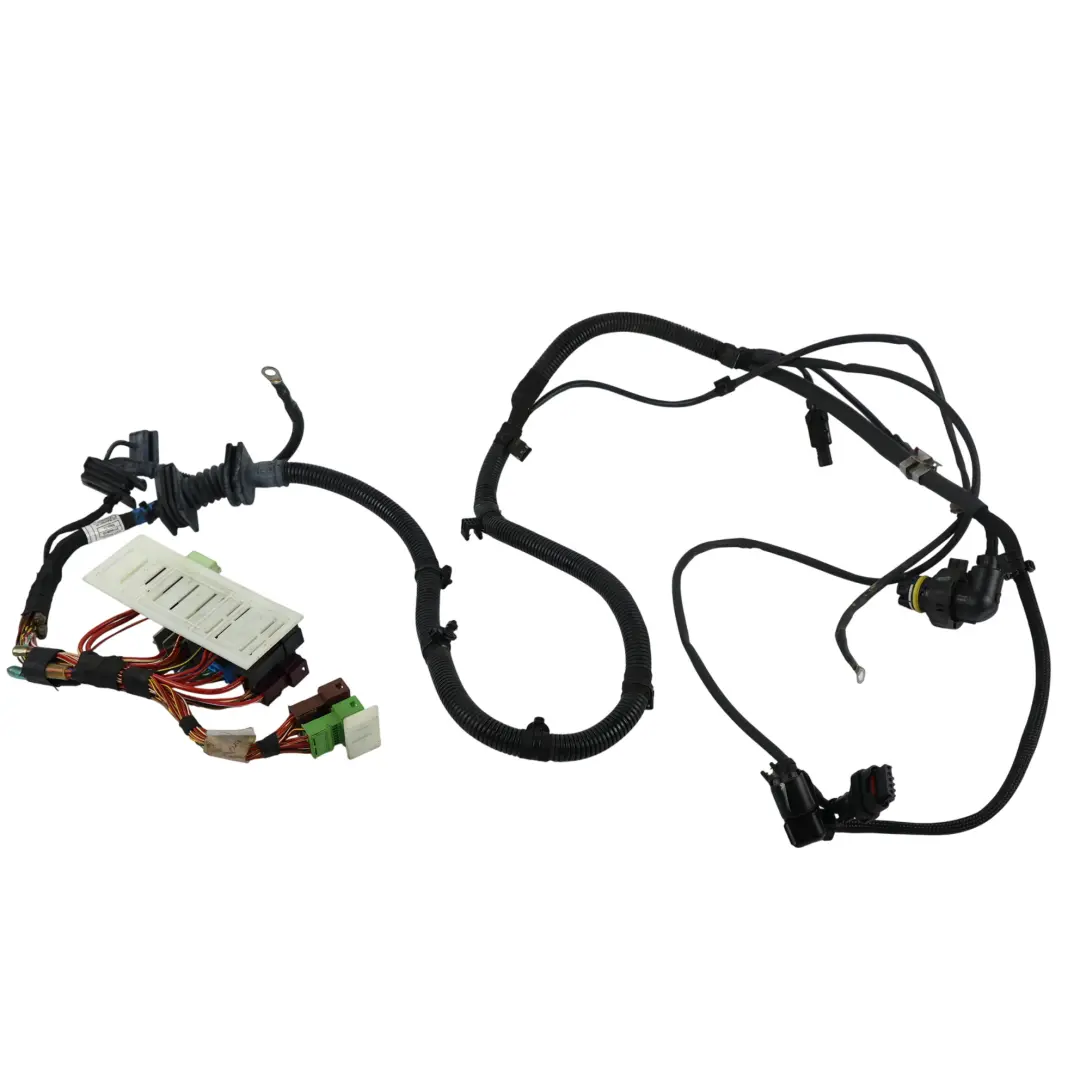

BMW X5 F15 X6 F16 Wiring Loom Harness Gearbox Diesel N57 8516446

BMW X5 F15 X6 F16 Wiring Loom Harness Gearbox Diesel N57 8516446 is an original component from the Cables, harnesses and connectors group, designed for the automatic transmission control system in BMW models with a diesel engine. This used, factory-spec harness ensures a proper electrical connection between the gearbox and the vehicle's electronics, which translates into stable drivetrain operation and correct module communication.

Specifications and technical data

• SKU: RHD-8516446
• Mark: BMW (Genuine OE)
• Condition: Used

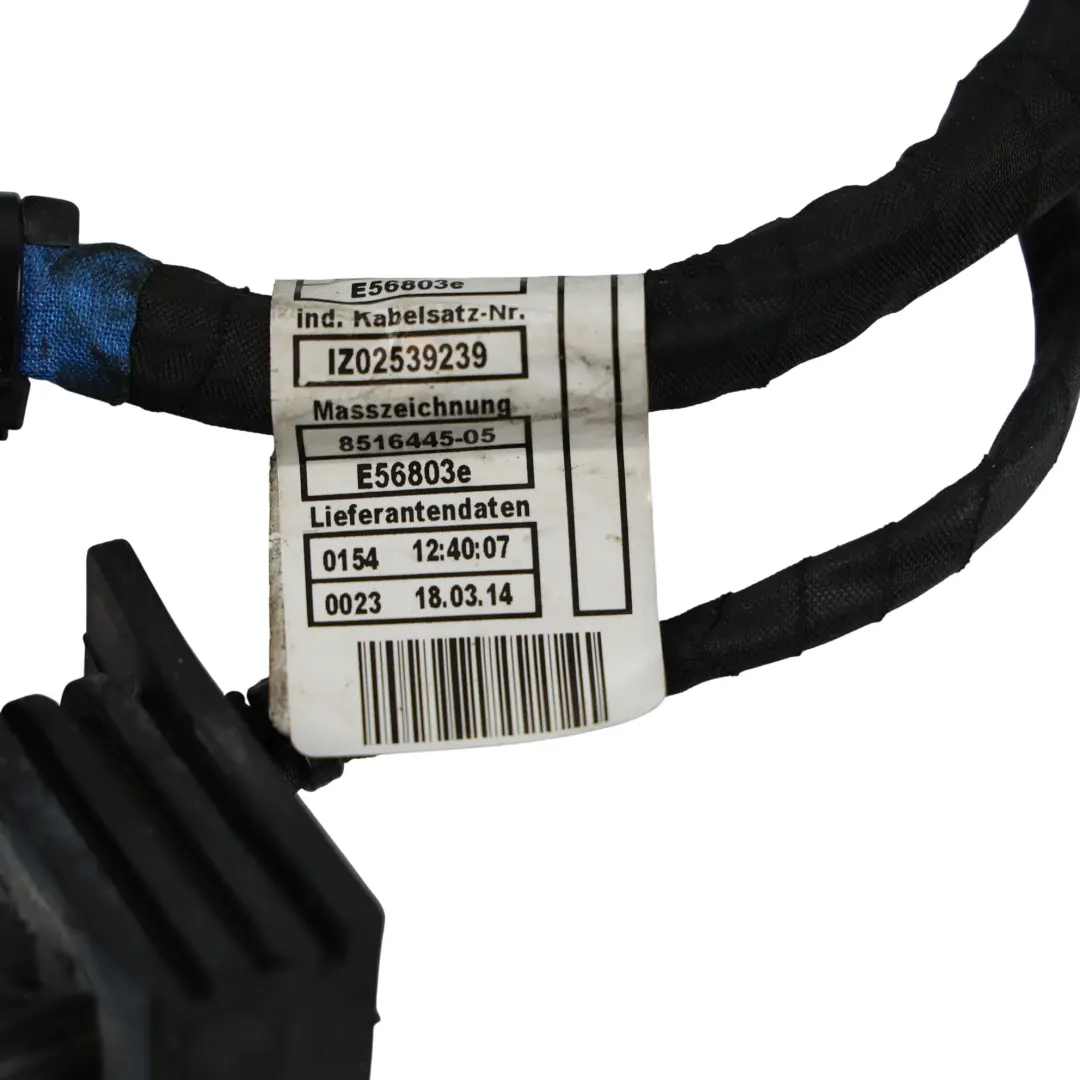

• OEM Part Number: 8516446
• Substitutable numbers: 8516446, 12518516446
• Fuel type: Diesel
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the vehicle

The presented gearbox wiring harness is dedicated to BMW X5 F15 and X6 F16 models with an N57 family diesel engine. It is responsible for transmitting signals between sensors, solenoid valves, and the transmission control unit, which has a direct impact on:

• smoothness and precision of gear shifting,
• proper operation of driving modes,
• diagnostics and reading of transmission operating parameters,
• safe interaction with vehicle systems (e.g., drivetrain, assistance systems).

A well-selected, original harness is particularly important in modern diesel units, where the drivetrain is highly integrated with the vehicle's electronics.

Construction and advantages of using an original harness

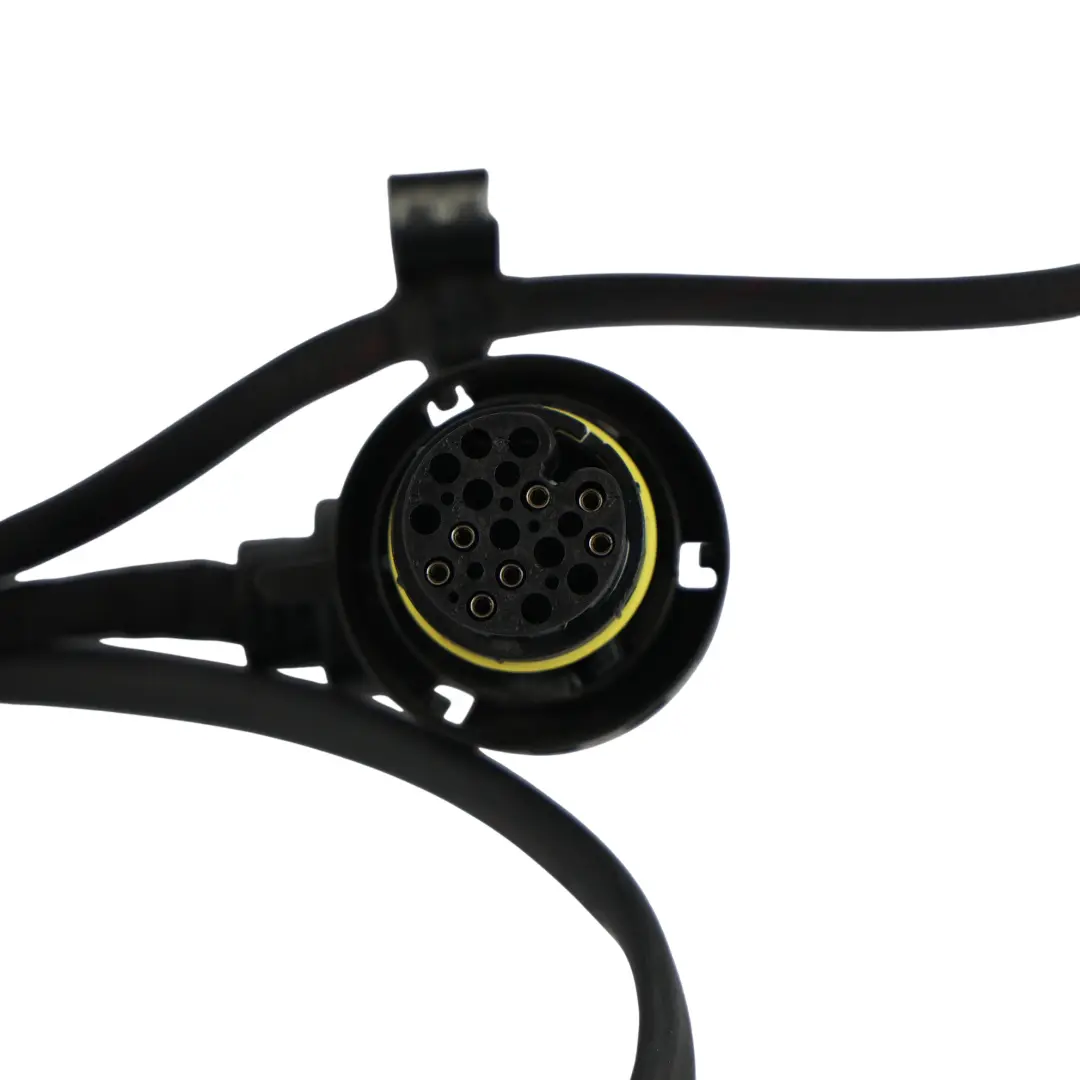

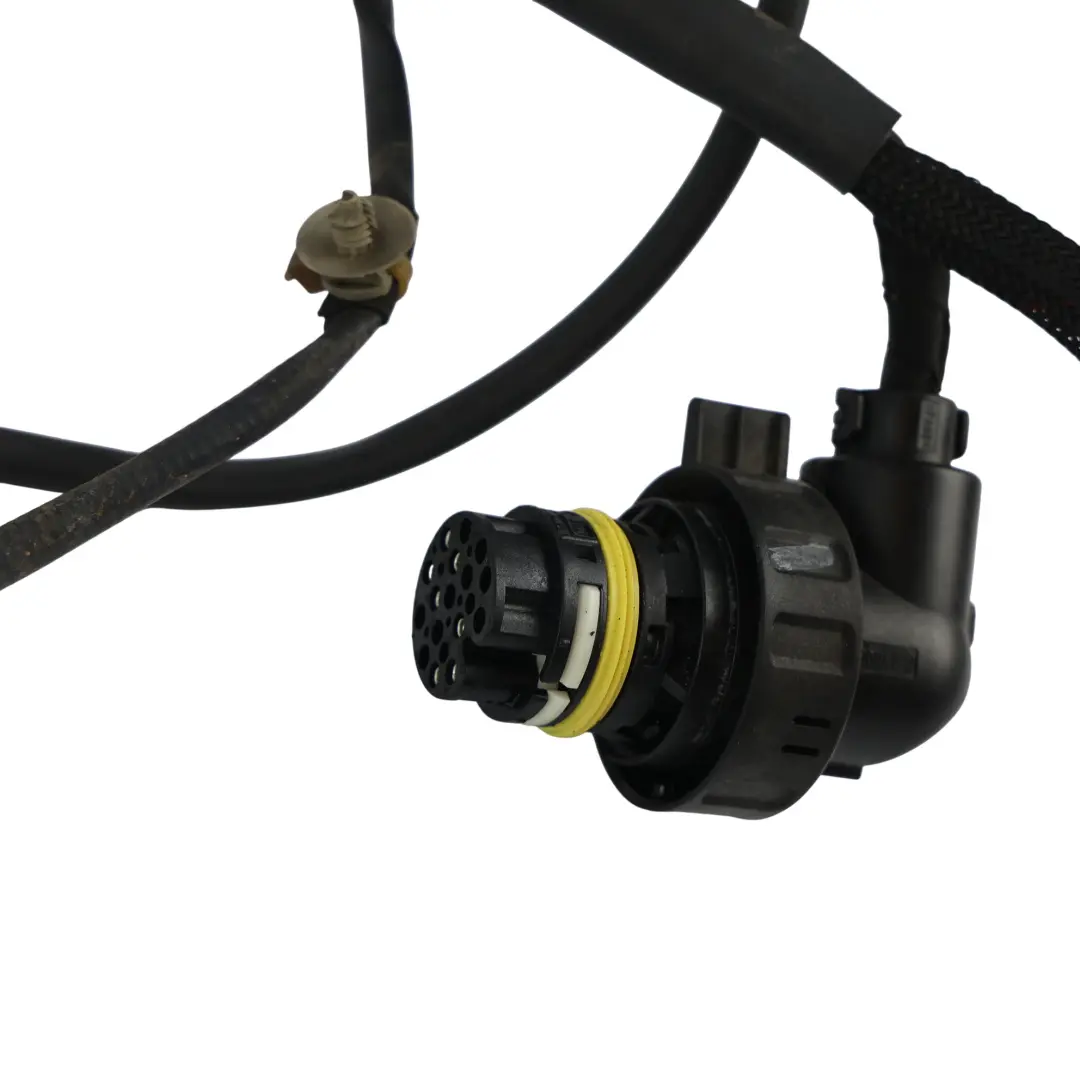

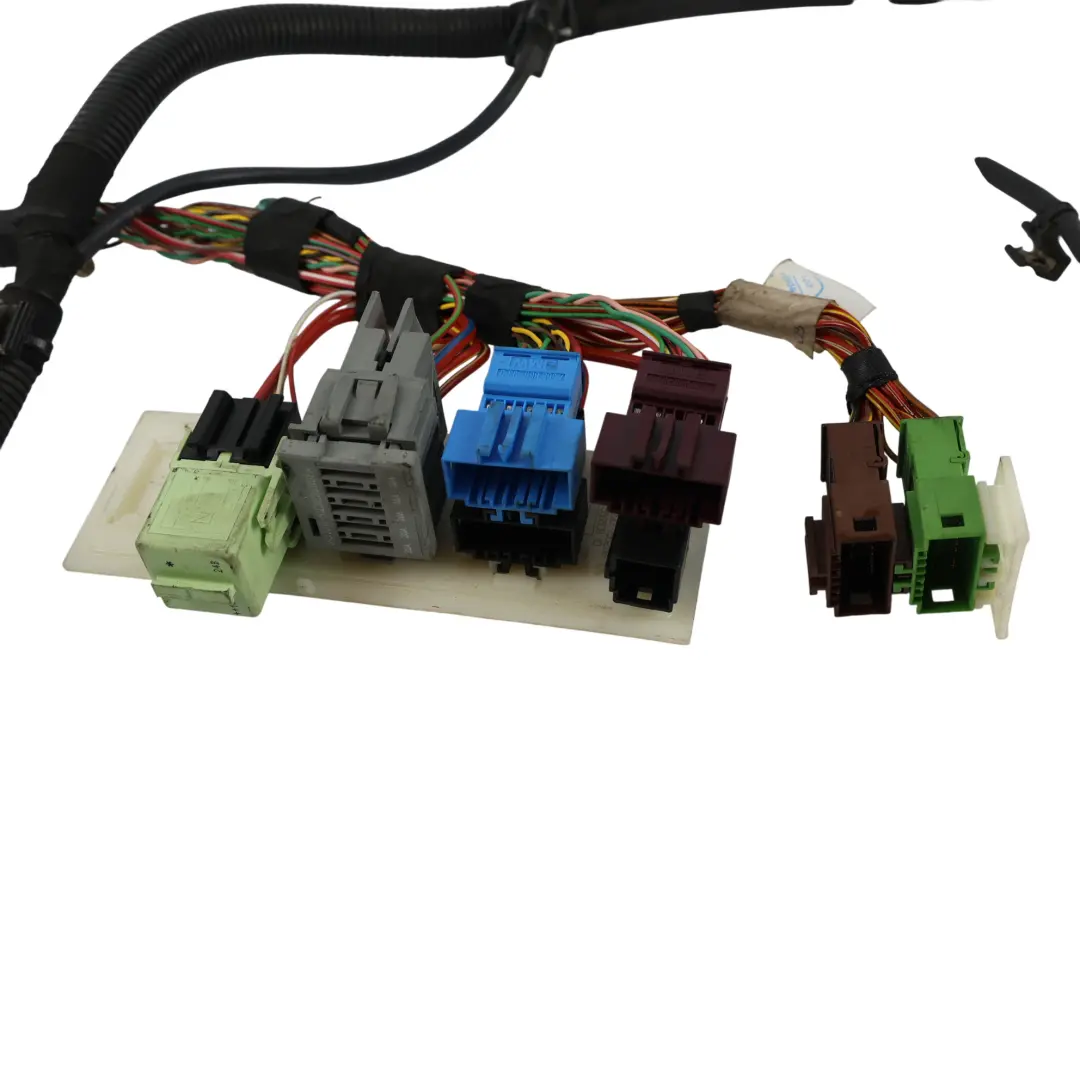

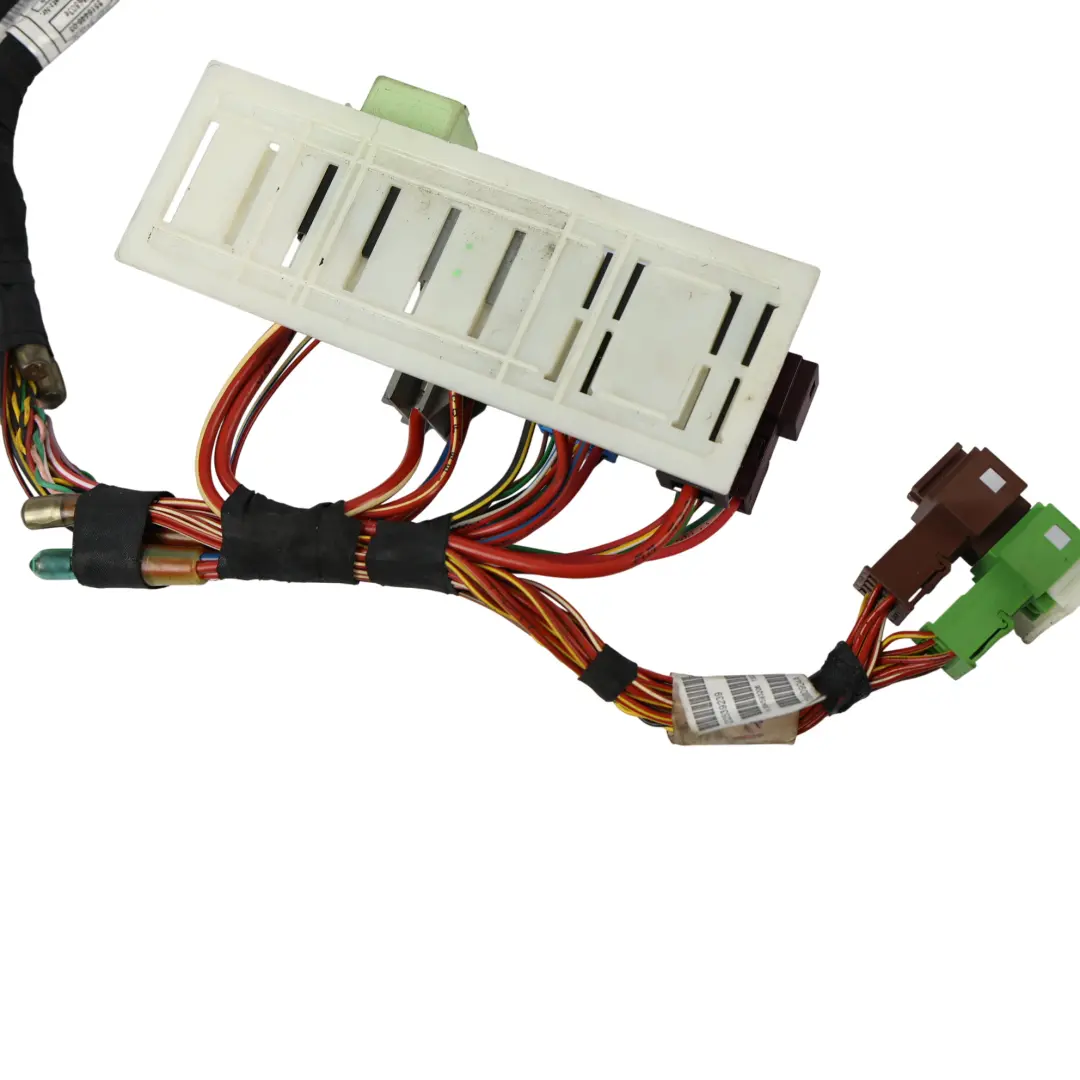

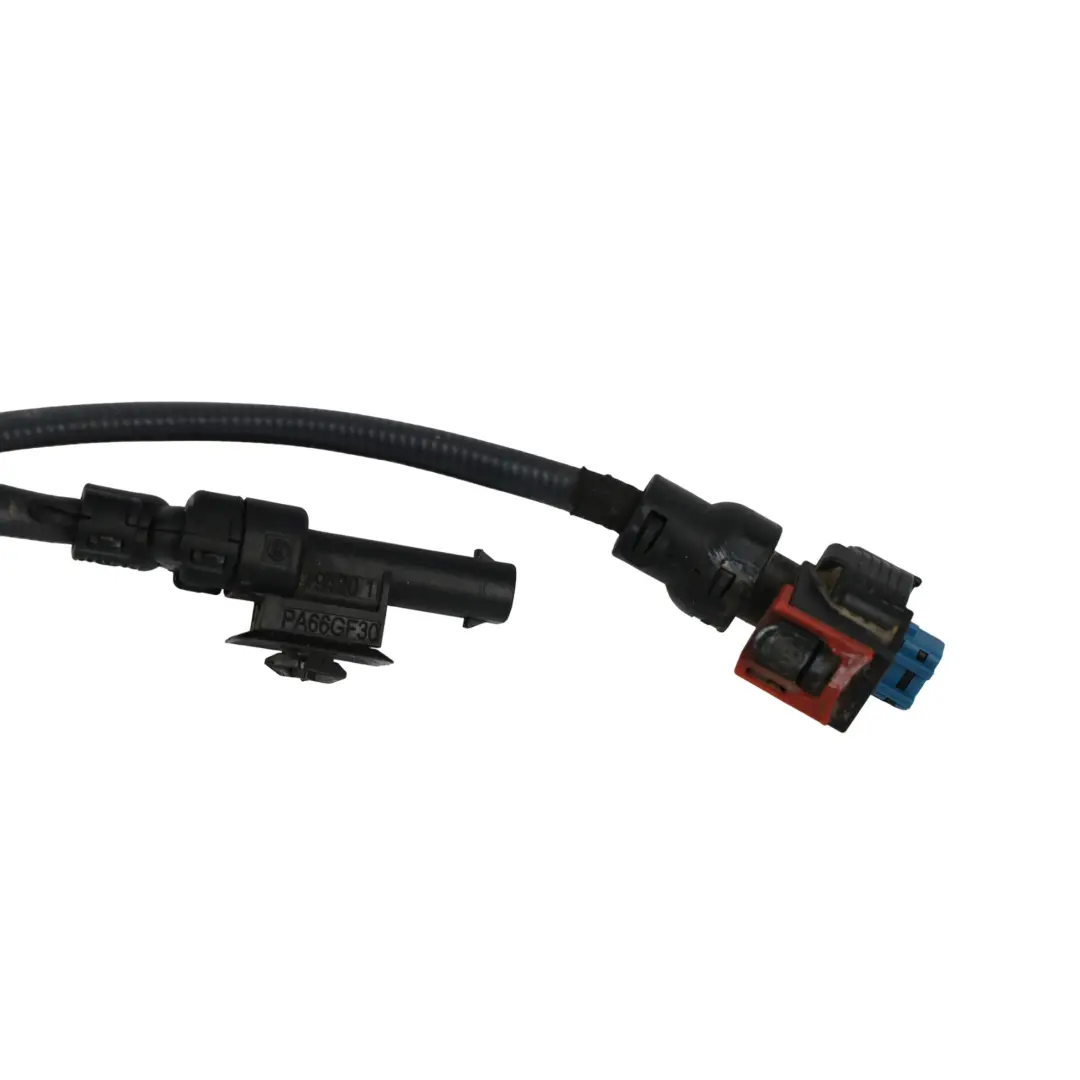

The gearbox wiring harness in this application includes a set of connectors and wires matched to the electrical architecture of the BMW X5 F15 and X6 F16. Using a factory solution means:

• appropriate length and routing of wires in accordance with factory paths,
• connectors compatible with original sensors and modules,
• adequate insulation resistance to temperature and operating conditions in the engine bay,
• maintaining the integrity of the installation without the need for modifications.

Choosing an original BMW harness minimizes the risk of CAN communication issues, controller errors, or unstable transmission operation, which often occur with unprofessional installation repairs.

Benefits of using a used OEM part

A used gearbox wiring harness is a solution that allows you to combine cost control with maintaining the factory operating parameters of the system. In practice, this means:

• maintaining the original electrical and mechanical specifications,
• no need to adapt universal connectors or fabricate wires,
• the ability to restore proper transmission operation after installation damage (abrasions, corrosion, workshop interference),
• better compatibility with controller software compared to replacements of uncertain origin.

For vehicles with the N57 diesel engine, where thermal and vibration loads are higher than in gasoline units, using the correct harness is crucial for the durability of the entire drivetrain.

Professional installation and diagnostics

To fully utilize the potential of this harness, installation in a specialized service center familiar with the construction of the BMW X5 F15 and X6 F16 is recommended. Proper wire routing, securing of mounting points, and checking the condition of connectors help reduce the risk of:

• accidental short circuits and circuit breaks,
• communication errors between the transmission controller and the rest of the installation,
• re-damaging the harness due to improper routing.

After installation, it is worth performing computer diagnostics to confirm correct communication of all modules and clear any previously stored errors.
