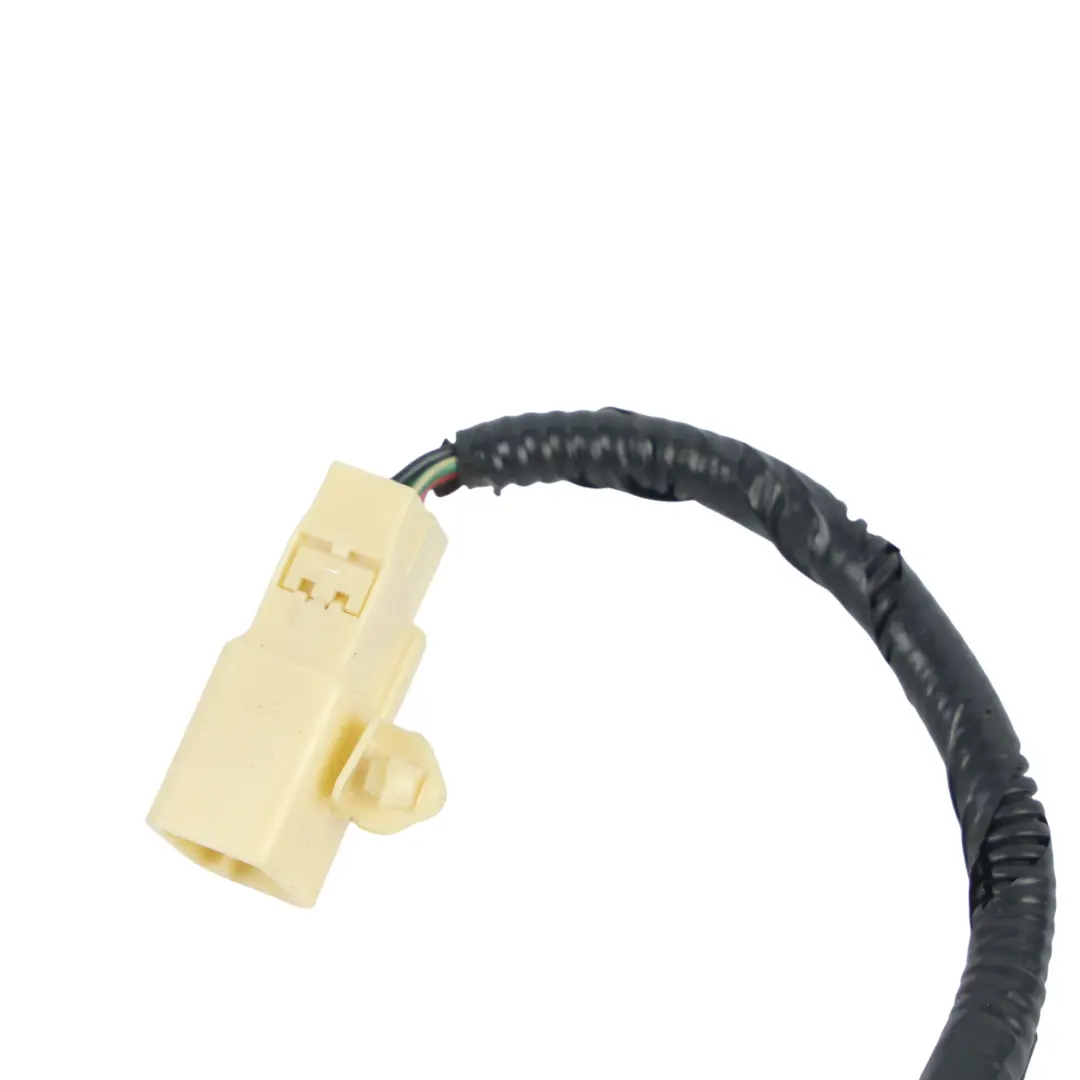

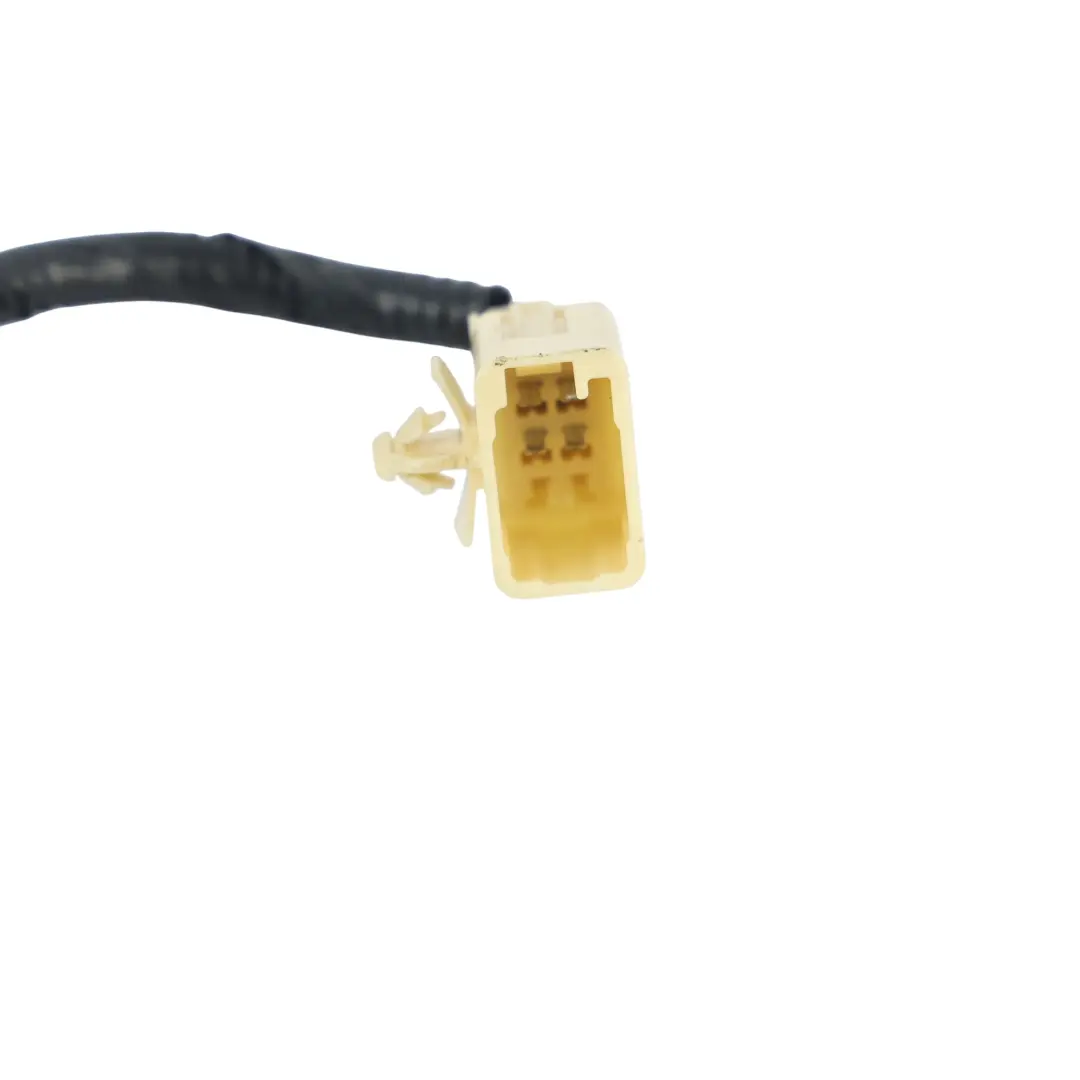

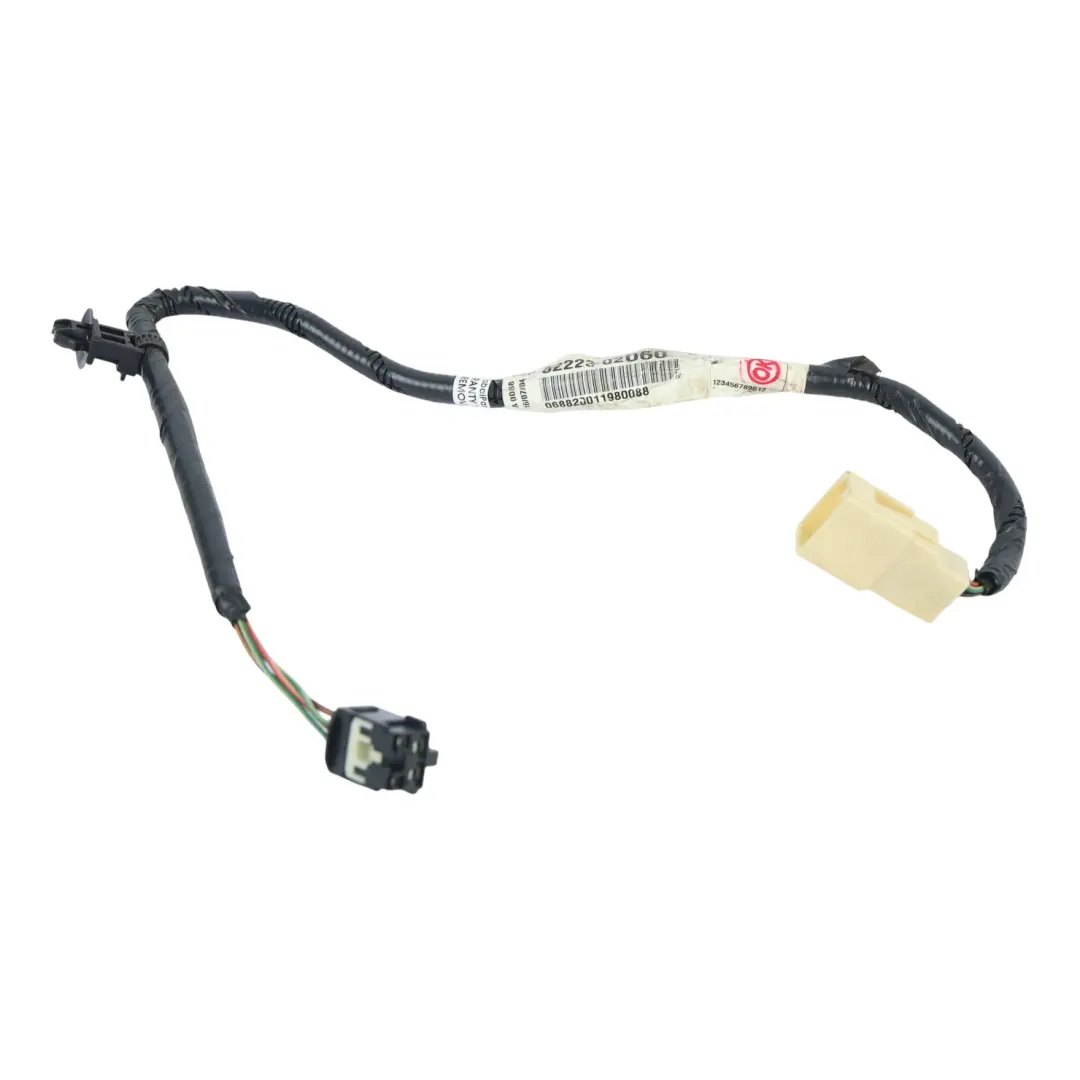

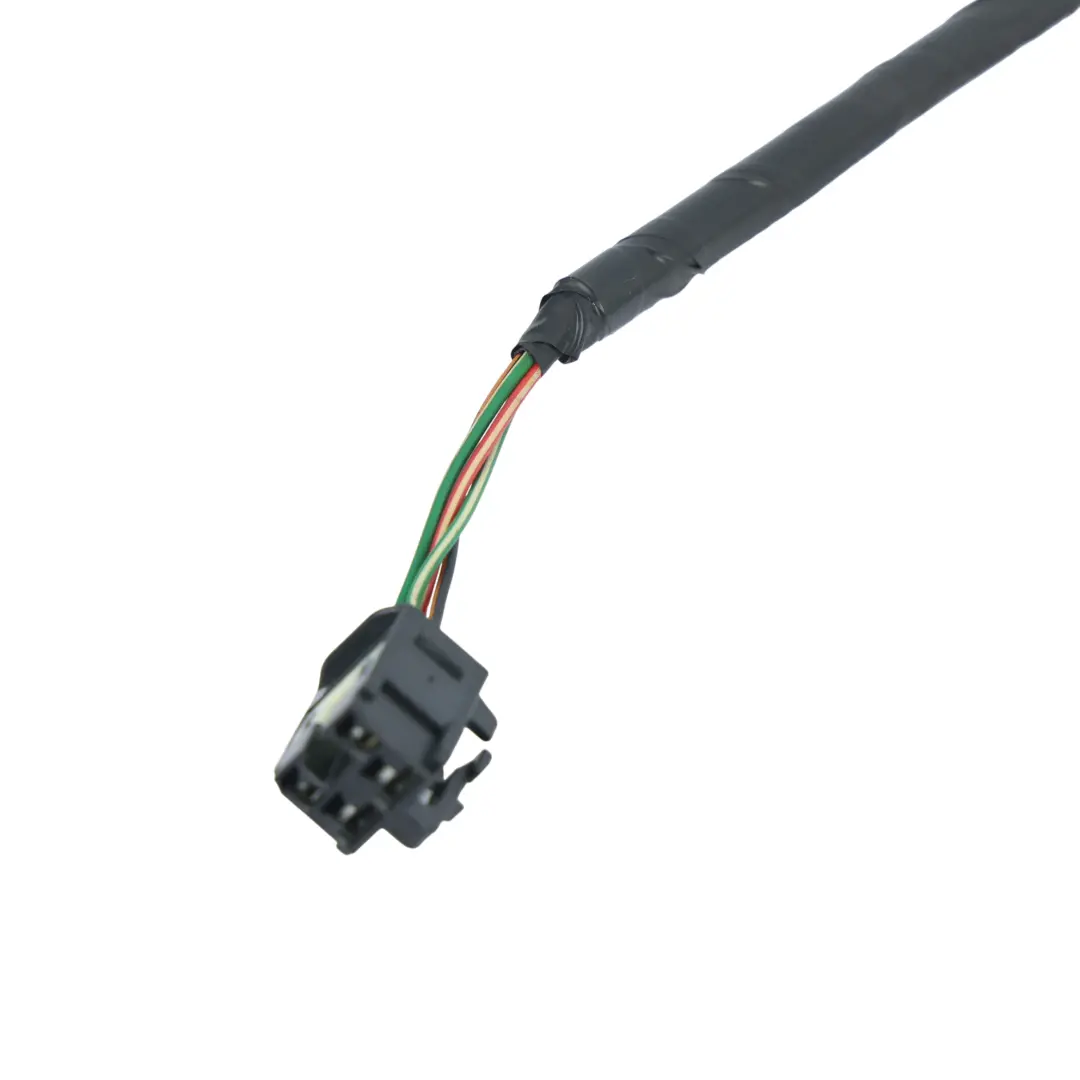

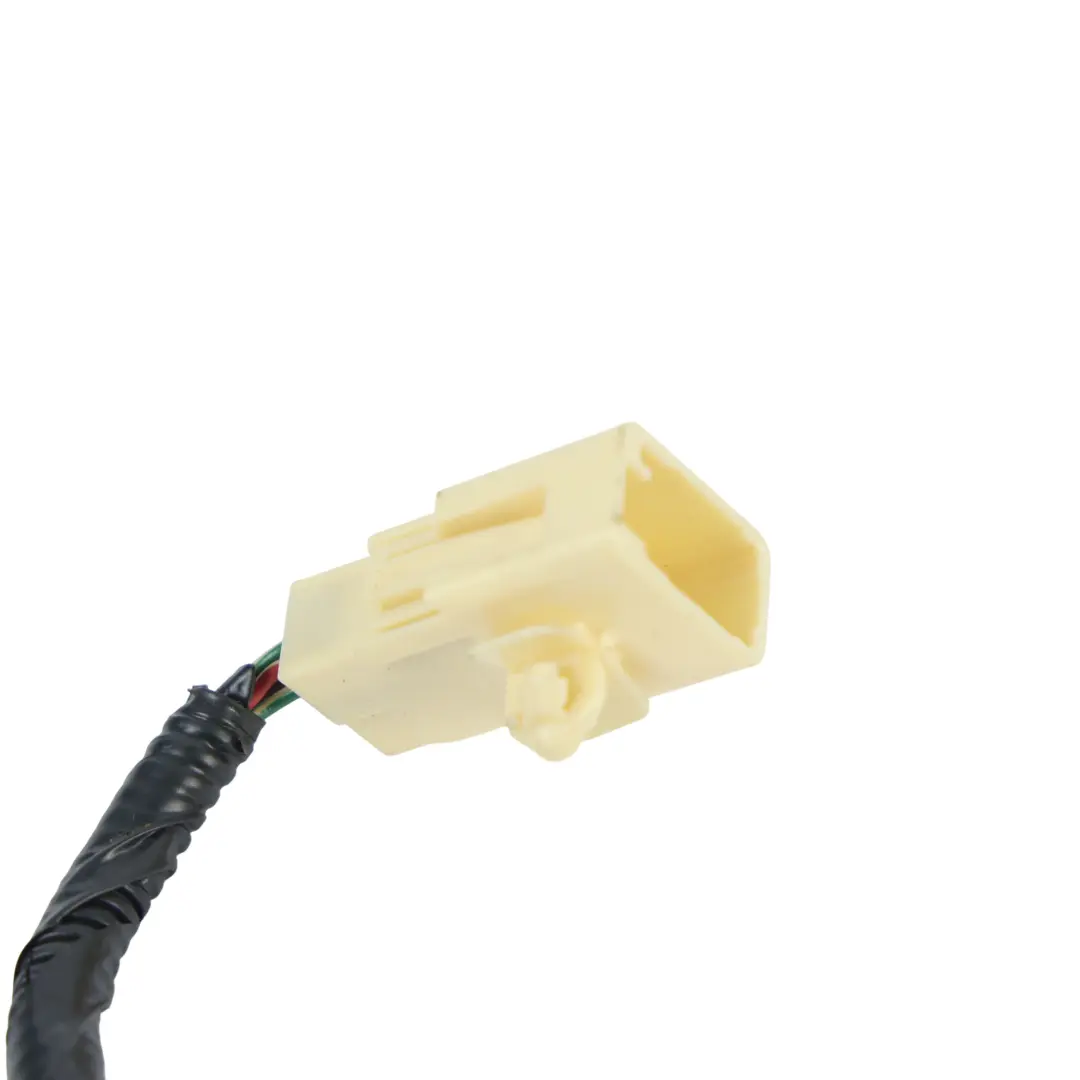

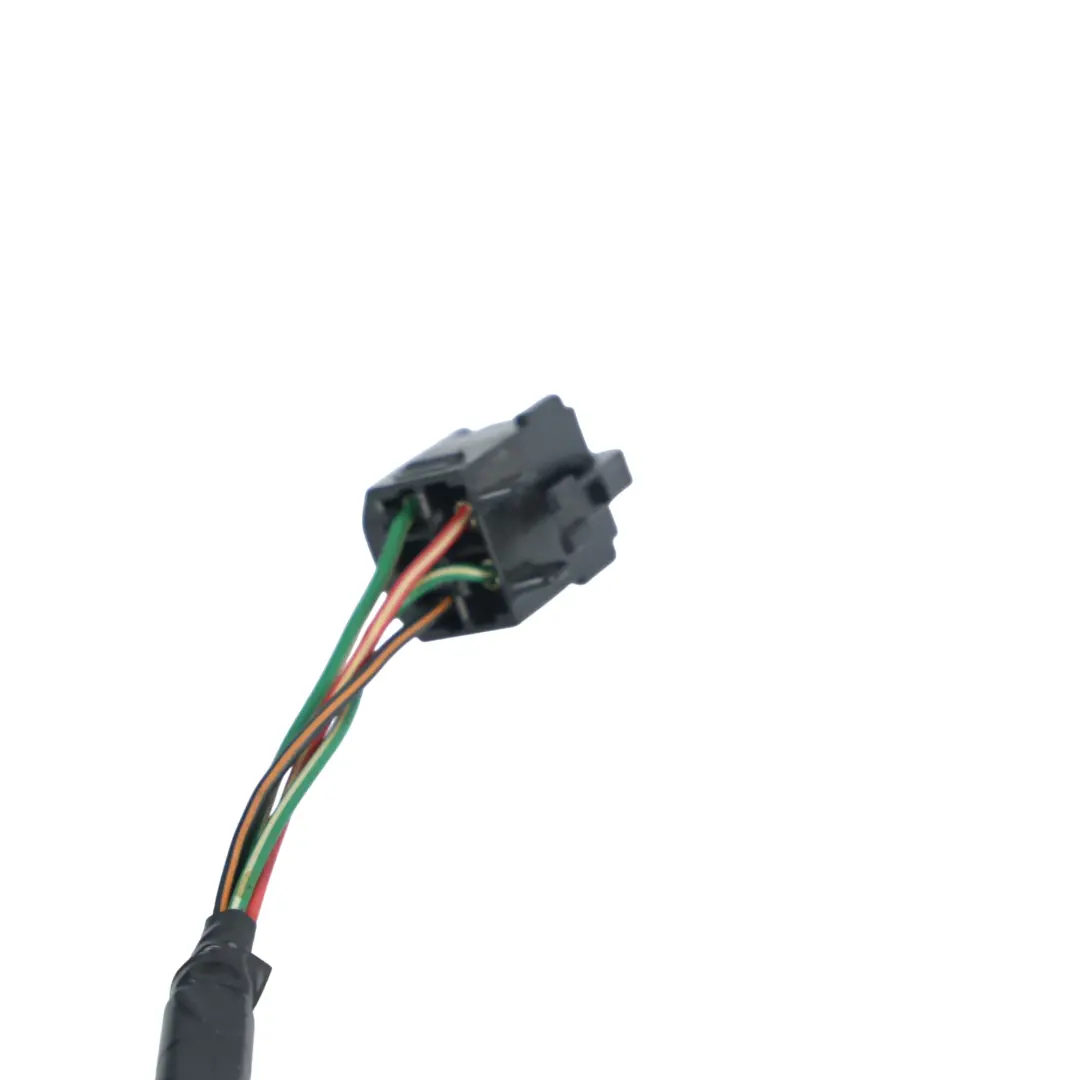

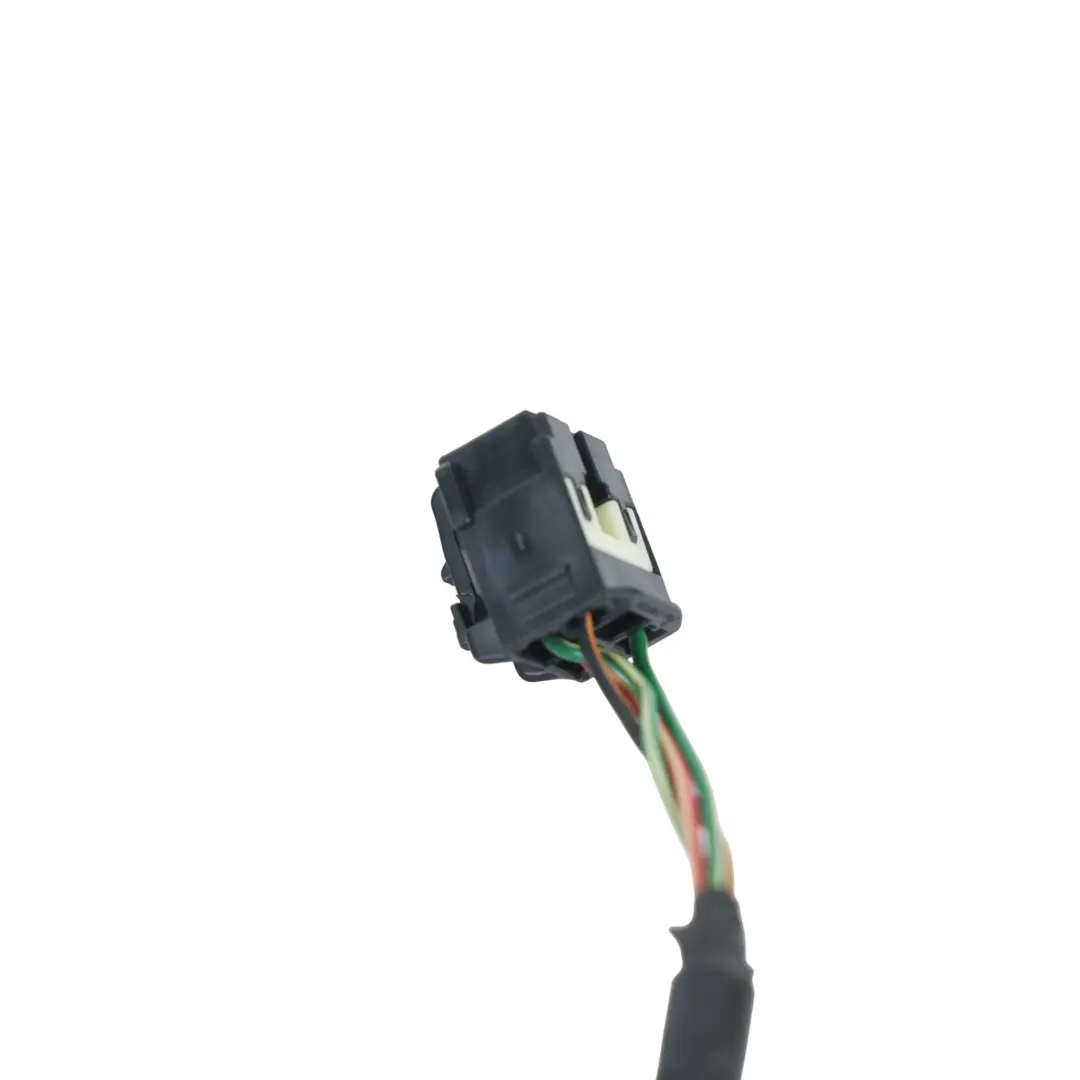

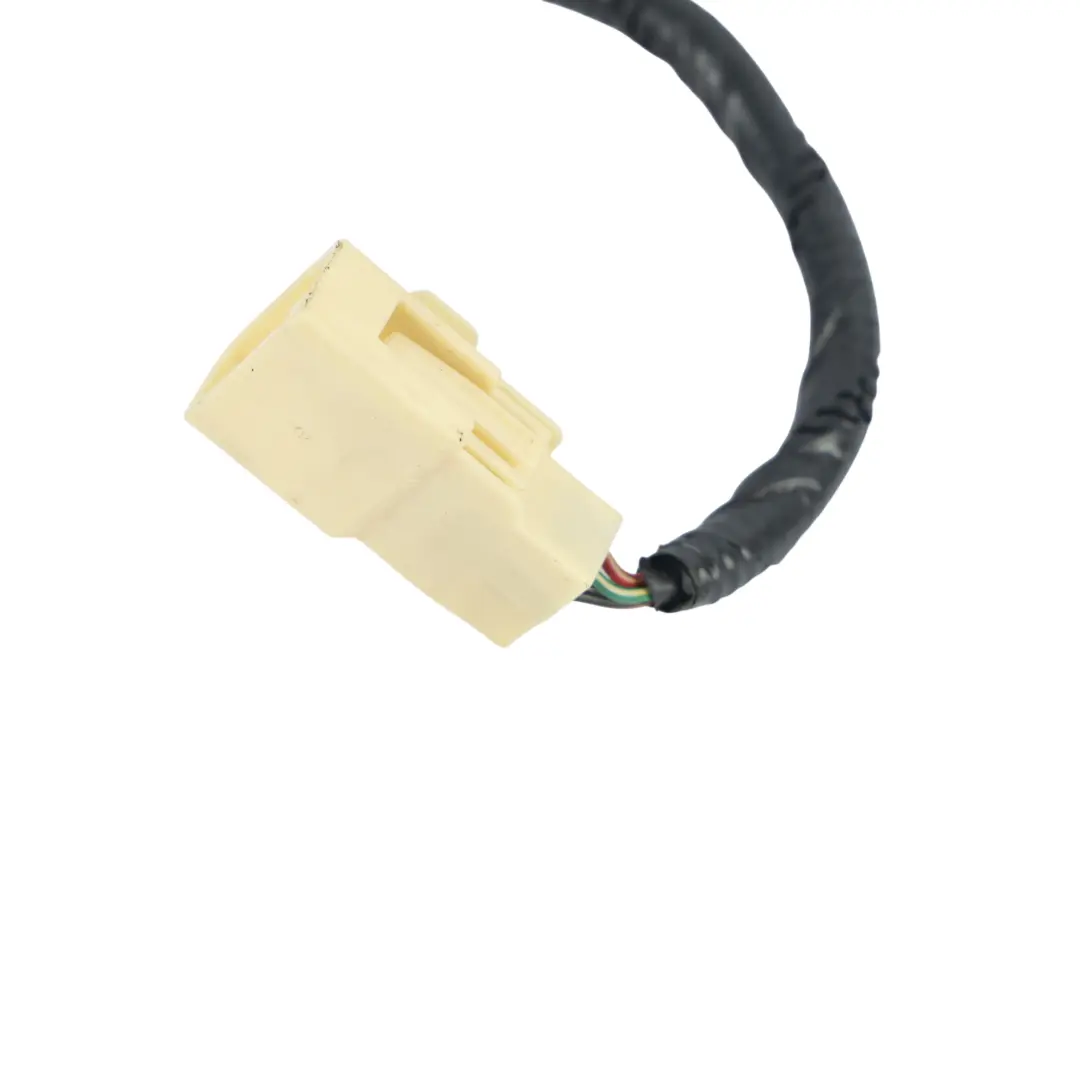

Toyota Corolla E12 Brake Light Switch Cable Harness Loom 8222302060

Toyota Corolla E12 Brake Light Switch Cable Harness Loom is an original electrical system component designed to support the brake light switch. Thanks to the factory Toyota design and perfectly matched connectors, this used harness allows for the precise restoration of proper brake light circuit operation without the need for any modifications to the installation. It is a practical solution for electrical system repairs in the Corolla E12 model when maintaining factory standards is required.

Specifications and technical data

• SKU: RHD-8222302060
• Mark: Toyota
• Condition: Used

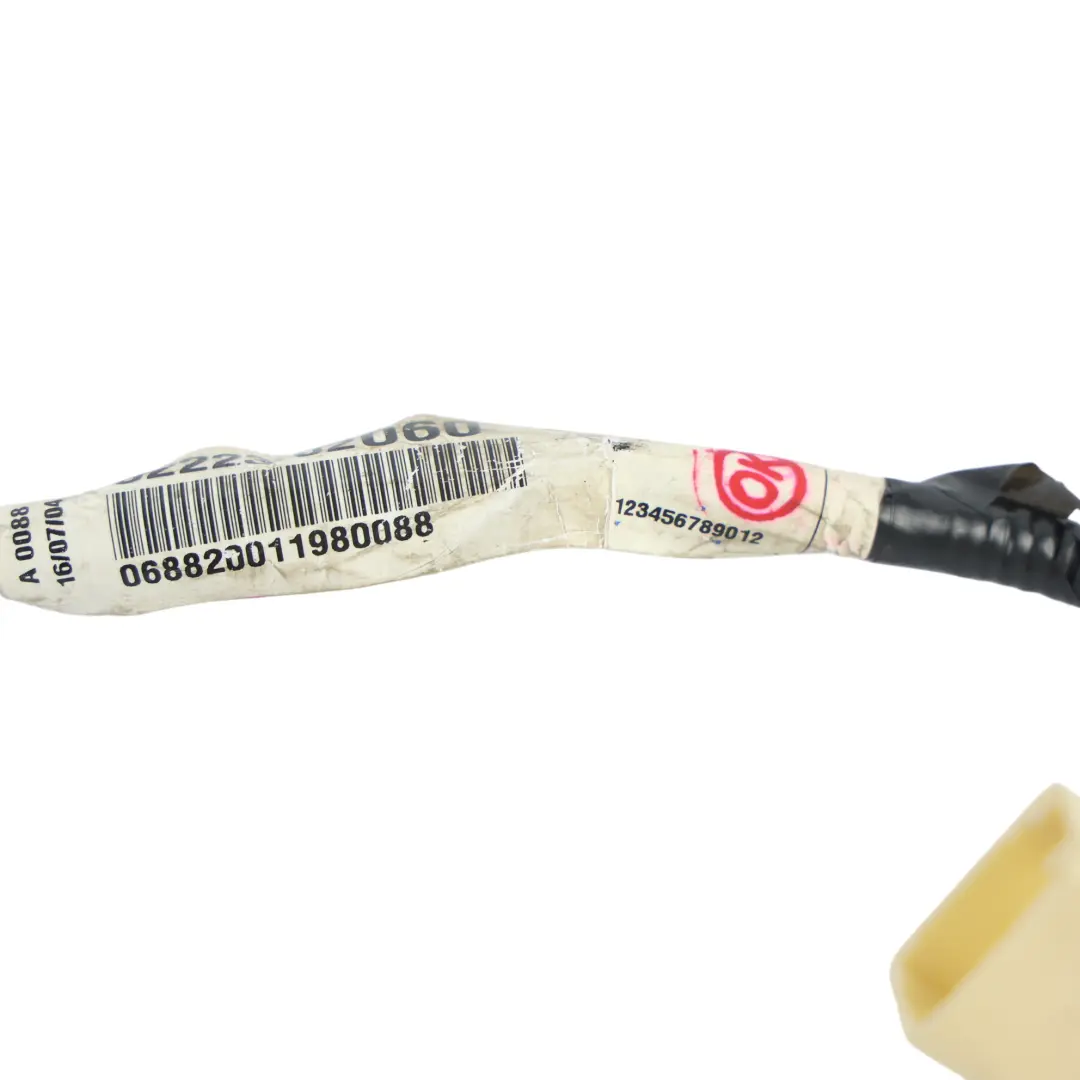

• OEM Part Number: 8222302060
• Substitutable numbers: 8222302060, 82223-02060
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the vehicle

The presented harness belongs to the Wires, harnesses, and connectors category and is dedicated to the brake light sensor circuit in the Toyota Corolla E12. It is responsible for a stable electrical connection between the brake pedal switch and the rest of the installation, which directly affects the correct activation of the brake lights and interaction with vehicle systems that utilize the braking signal. Factory connectors and appropriately selected wire lengths allow for installation in original mounting points, maintaining proper harness routing and minimizing the risk of chafing or looseness in the installation.

Construction and technical features

The harness was designed by Toyota as an OEM installation component, which means it complies with the factory electrical and mechanical standards for this specific model. The wires used have the appropriate cross-section and insulation adapted to the operating conditions near the brake pedal, where temperature changes and movement of mechanical components occur. Key functional features of this harness include:

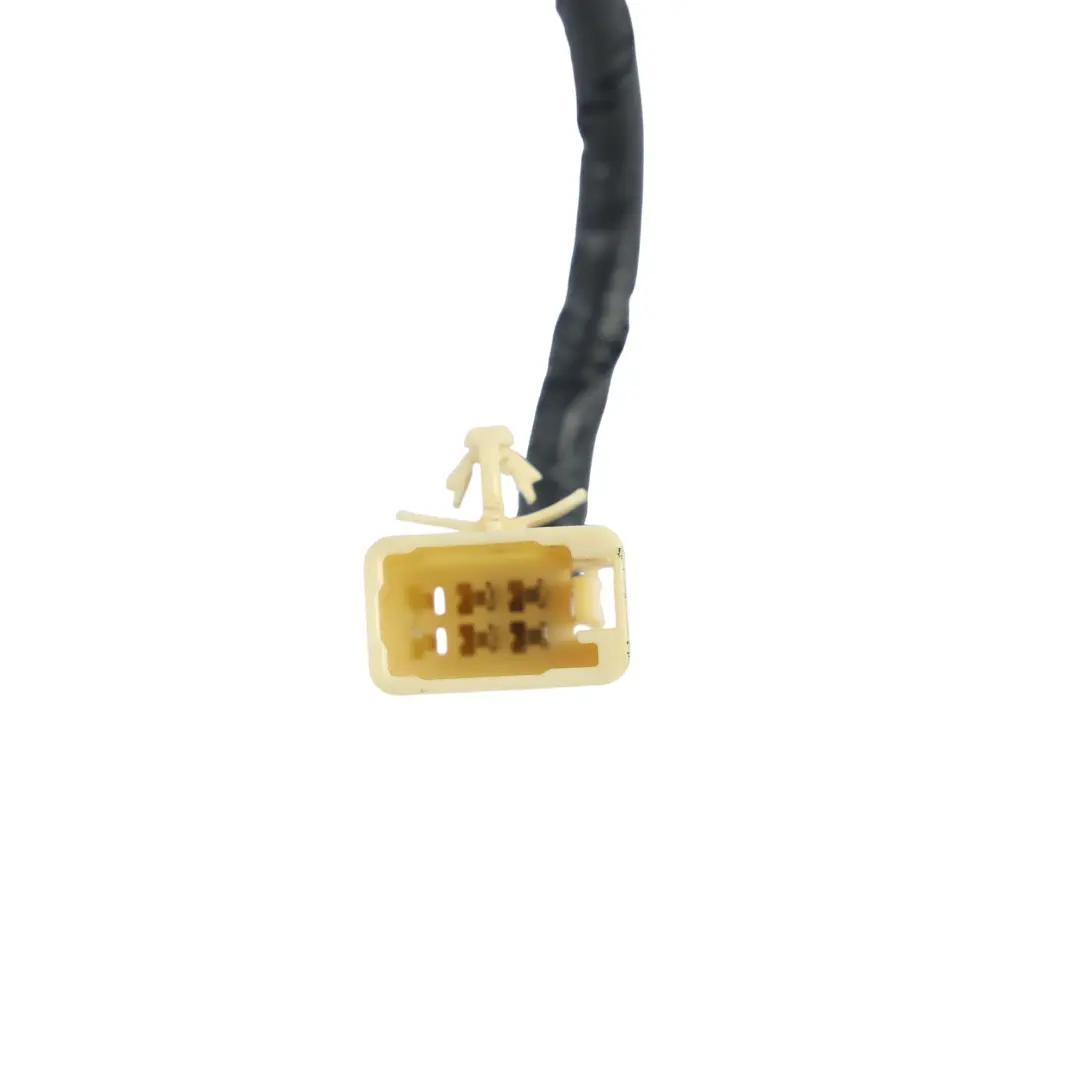

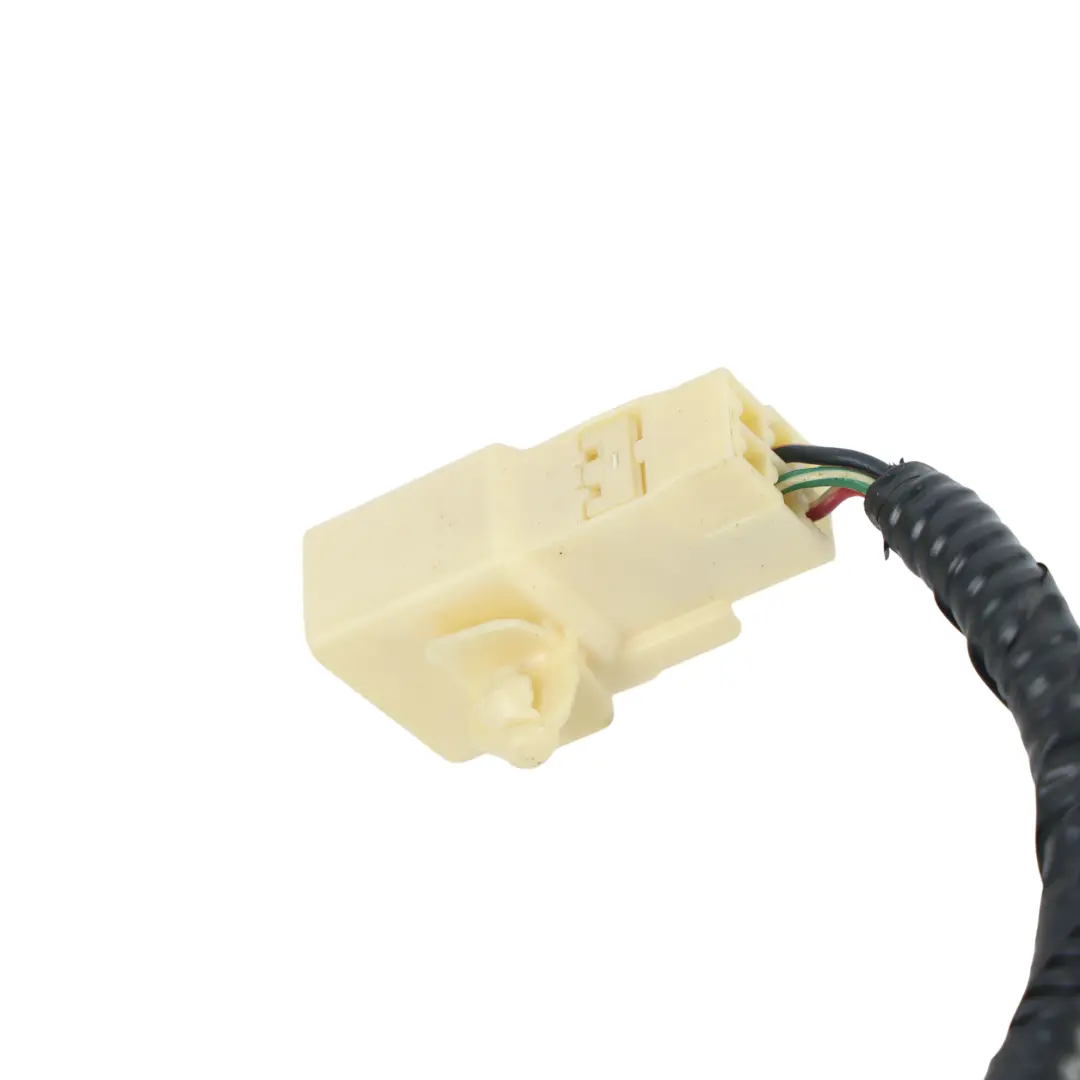

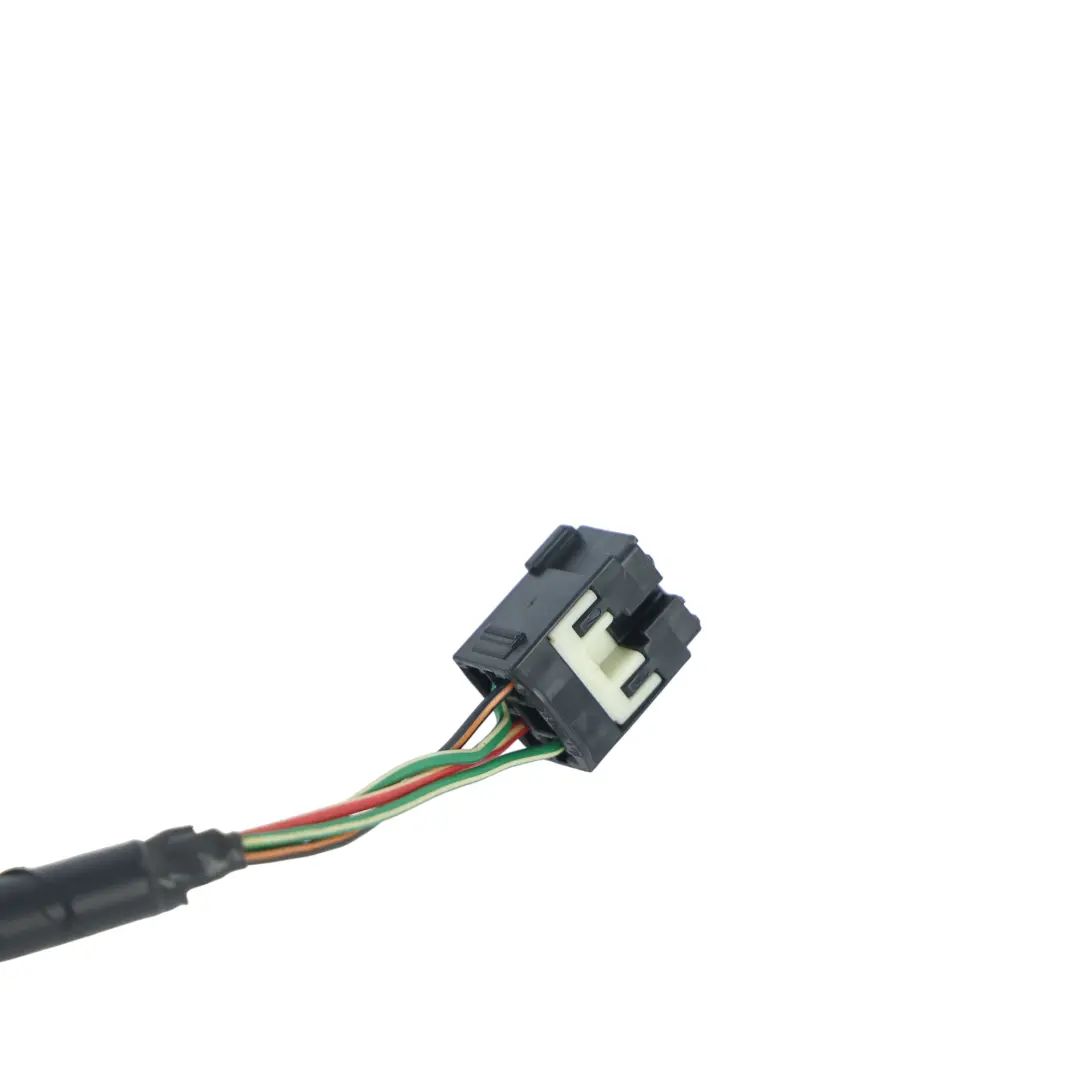

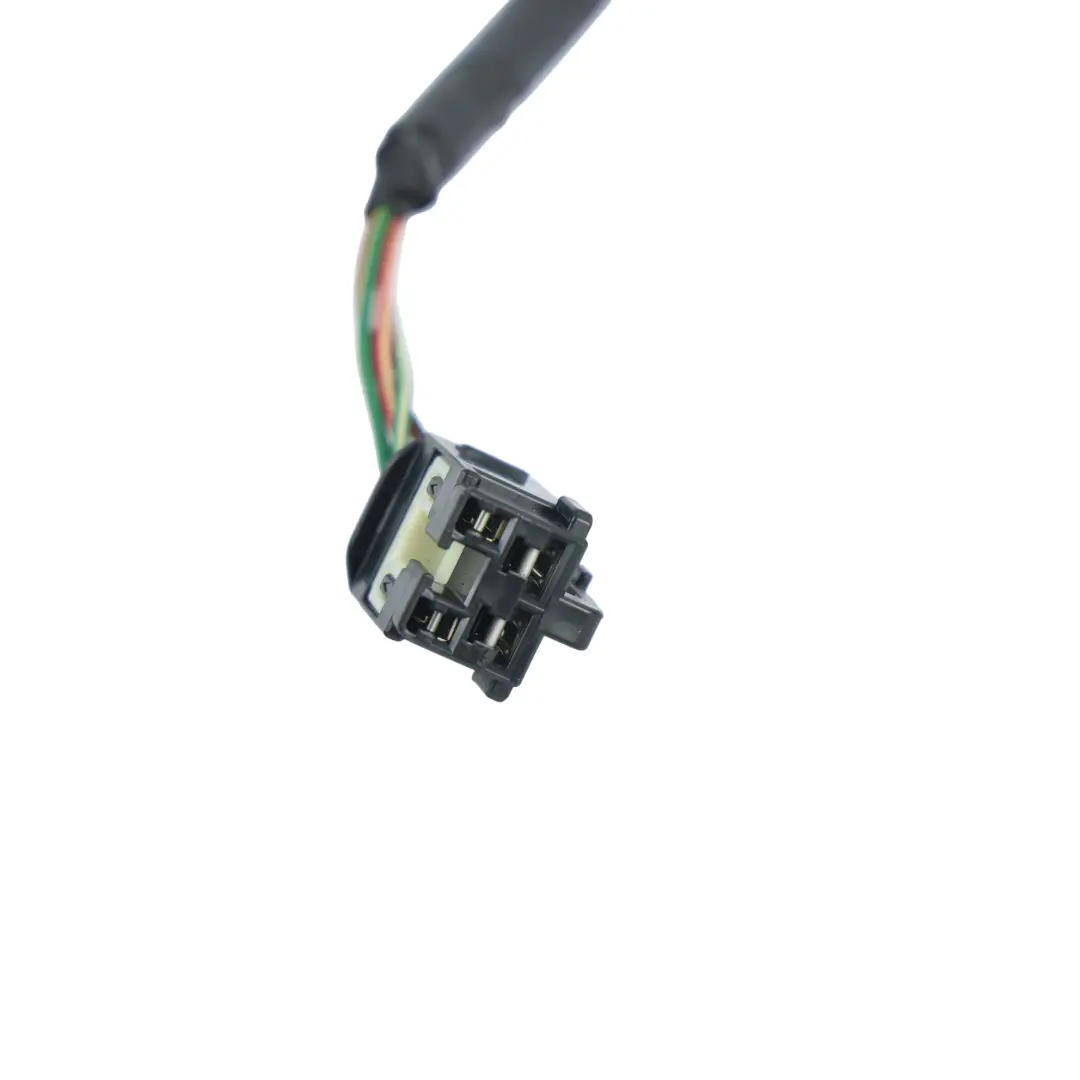

• dedicated connectors matched to the brake light sensor and the vehicle's installation,
• factory wire layout facilitating routing according to the original path,
• compatibility with the factory Corolla E12 electrical system without the need for soldering or cutting wires.

Use in service and repairs

The used Toyota Corolla E12 Brake Light Switch Cable Harness Loom is particularly useful in situations where the original installation has been mechanically damaged (chafing, tearing, damaged connectors) or where there are issues with the braking signal caused by contact corrosion. Using an original component from the same assembly group allows for reduced repair time and avoids unreliable electrical modifications. For workshops and individual users, this means:

• easier diagnostics and replacement within a specific section of the installation,
• maintaining consistency with factory service documentation,
• the ability to restore proper brake light operation at a reduced cost.

Condition and benefits of choosing a used part

The item is offered as a used part, sourced from dismantling, which allows for combining compatibility with the original installation with a more favorable cost level compared to new components. For many users, this is a reasonable compromise between quality and budget, especially in the case of older vehicle generations. A harness of this type, when installed correctly, enables the restoration of a stable electrical connection in the brake light circuit, which translates into safe vehicle operation in road traffic. If you are planning a comprehensive repair or upgrade of the electrical installation zone in your Toyota and need other components from the same group, such as wires, harnesses, or connectors, check out the available parts in the Toyota Wires, harnesses, and connectors category. Additionally, if you notice disturbing noises from the suspension during service work and want to better plan the scope of repairs, it is worth checking out the practical tips in the article Knocking in the suspension? Discover a clever way to restore factory handling precision without spending a fortune at the service center, which will help you assess the cost-effectiveness of using parts from dismantling.
