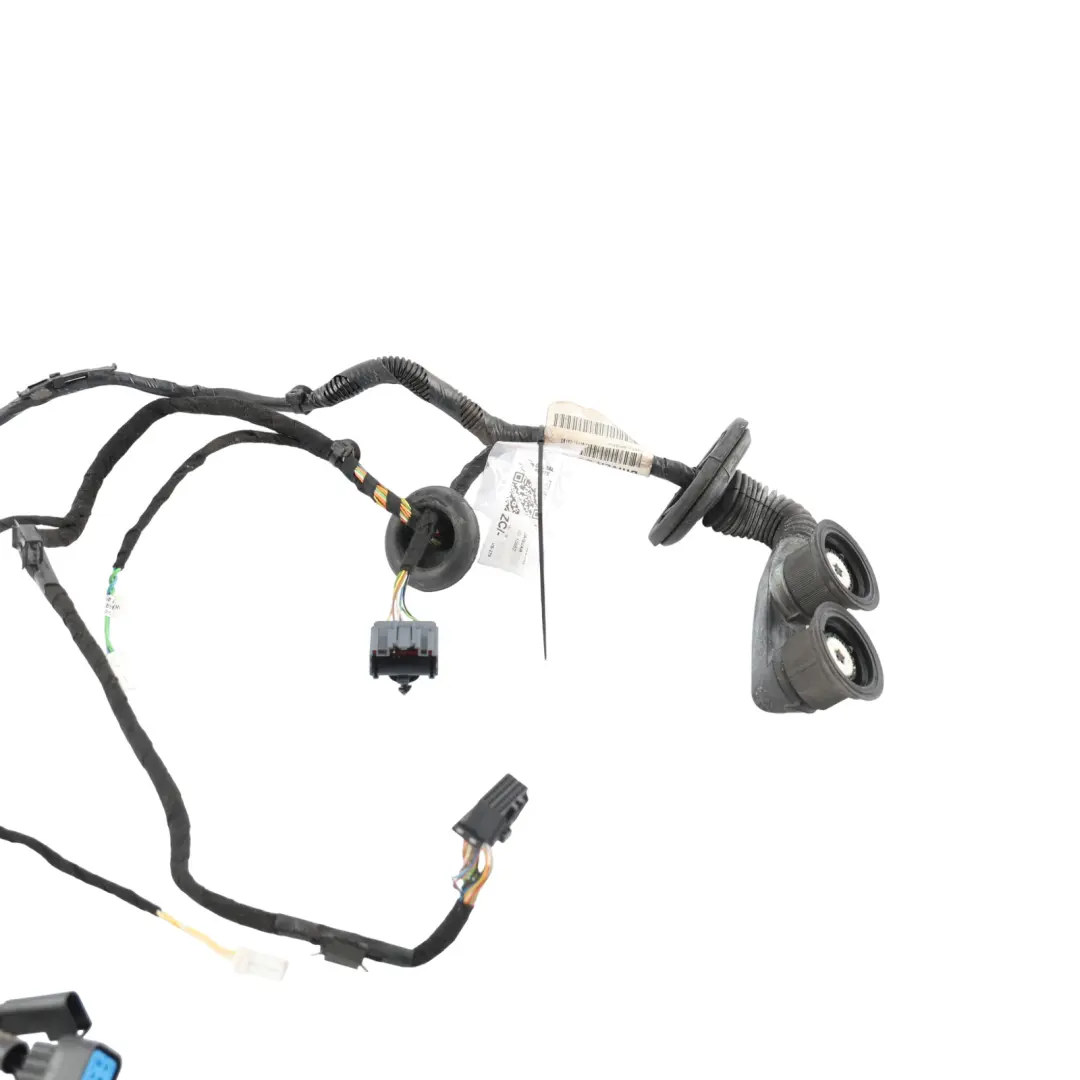

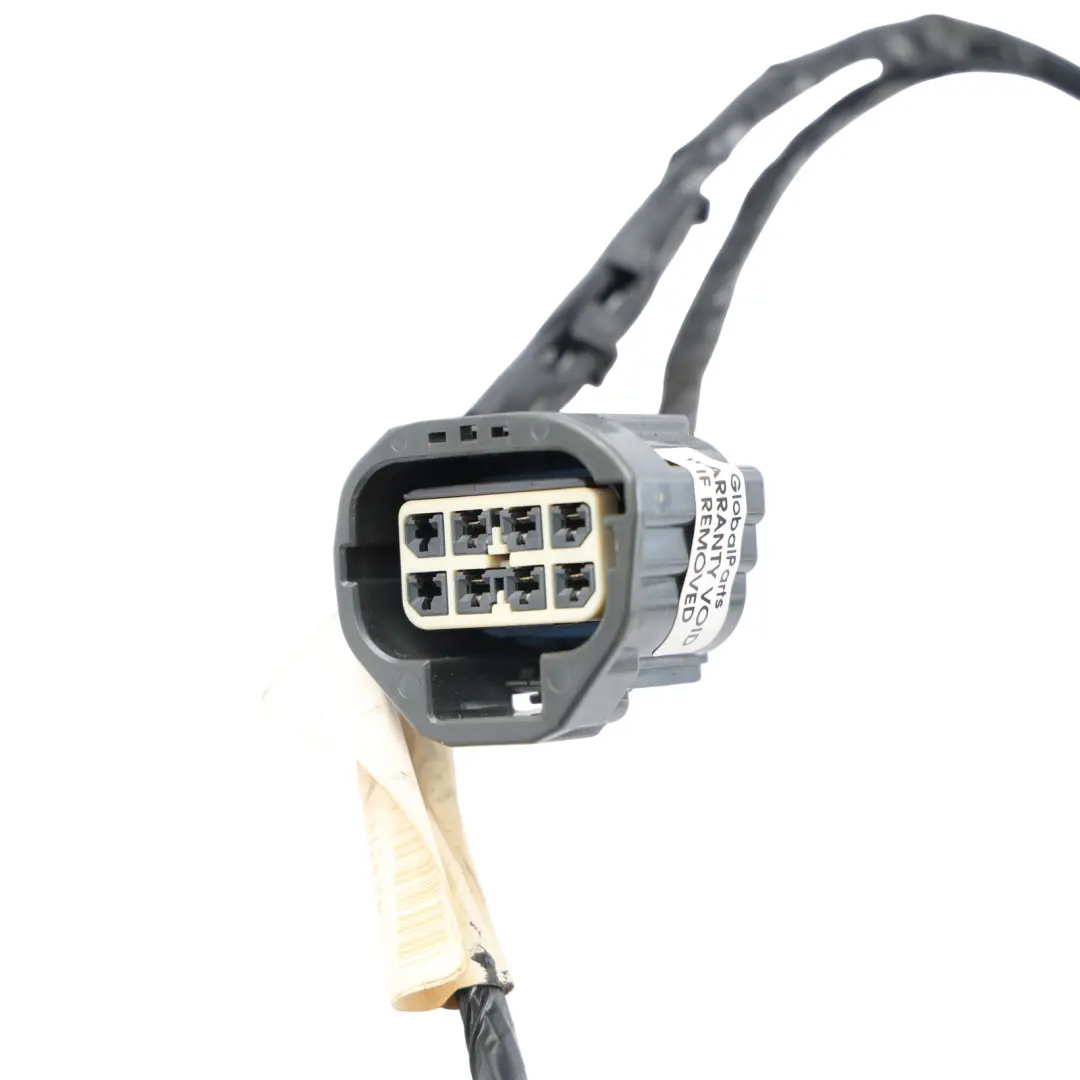

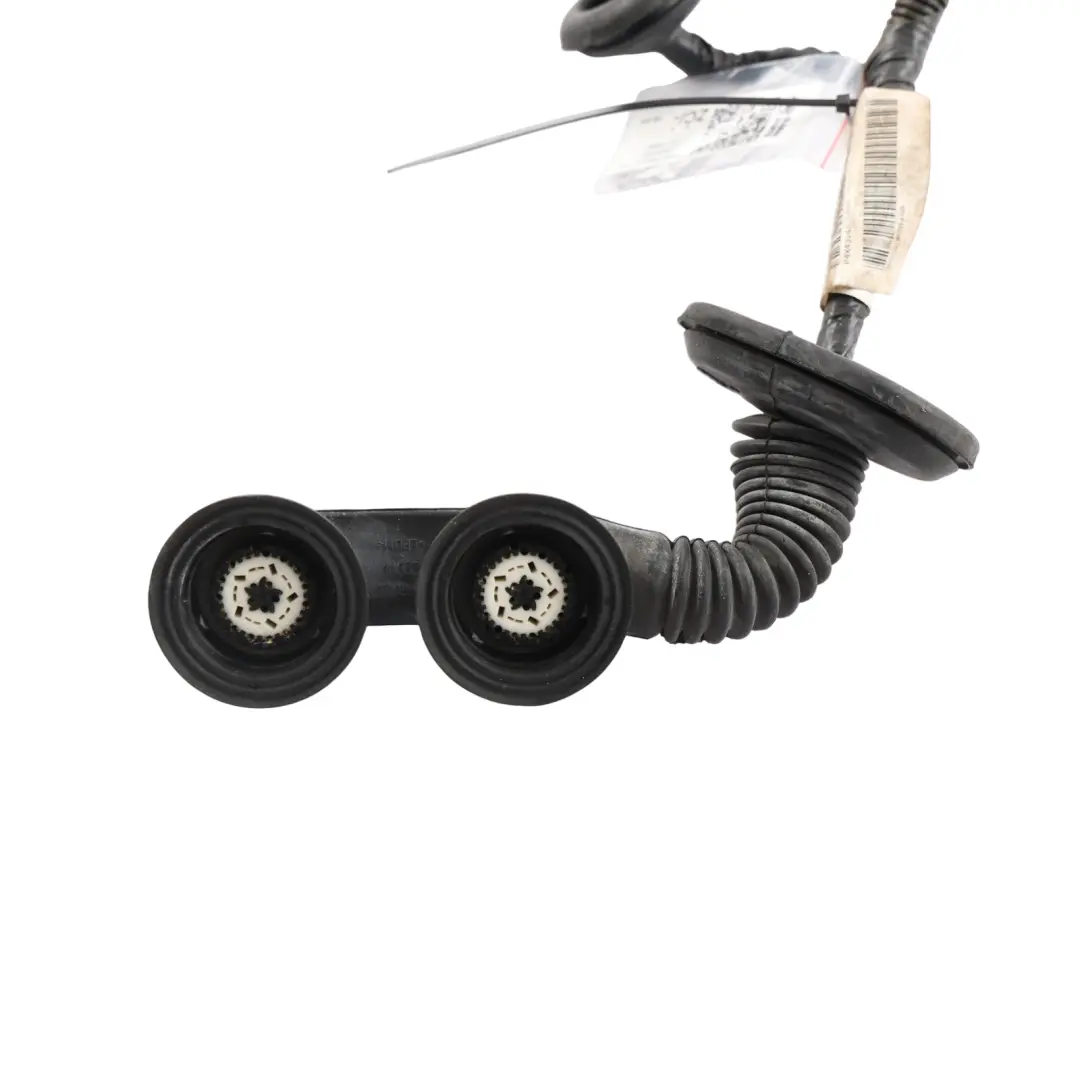

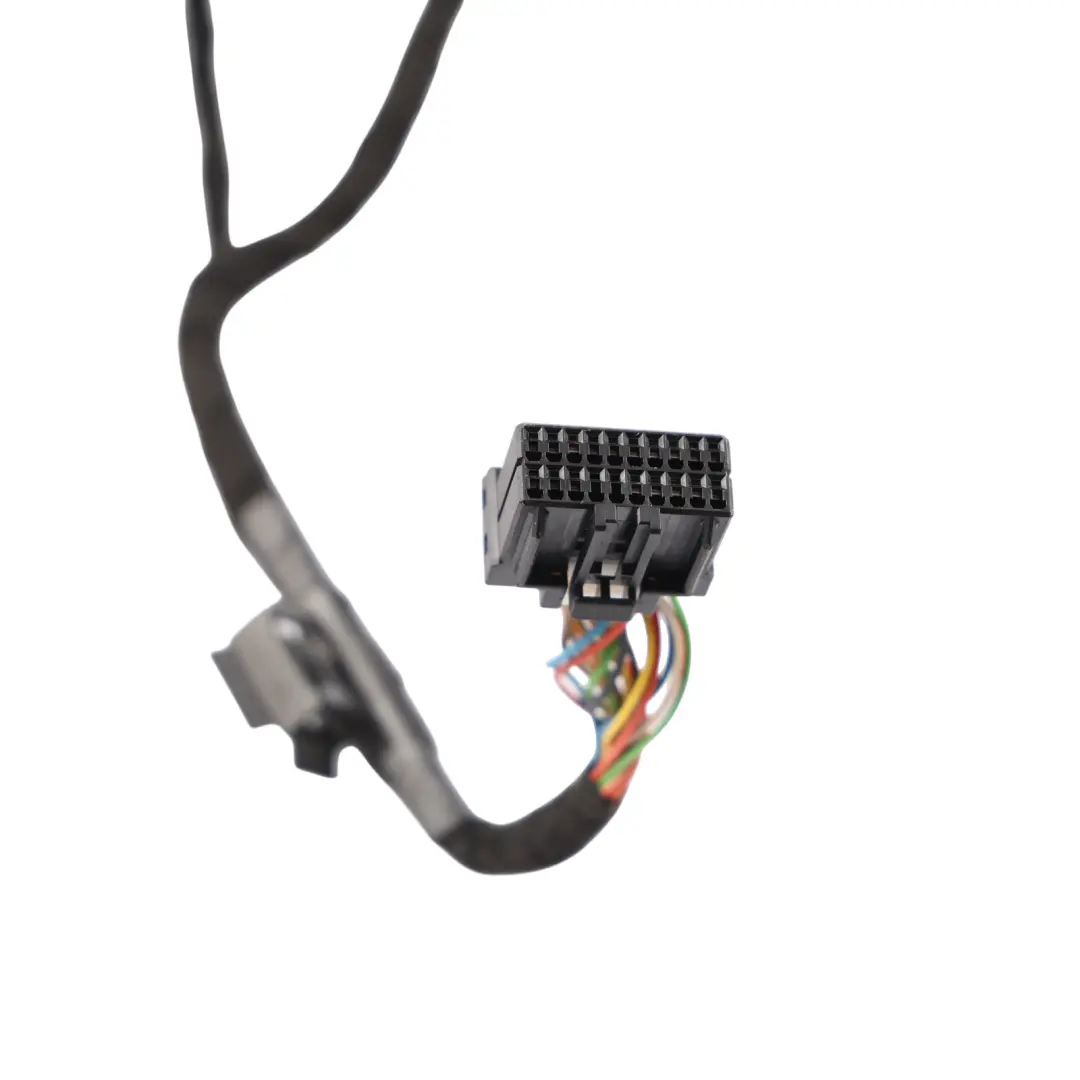

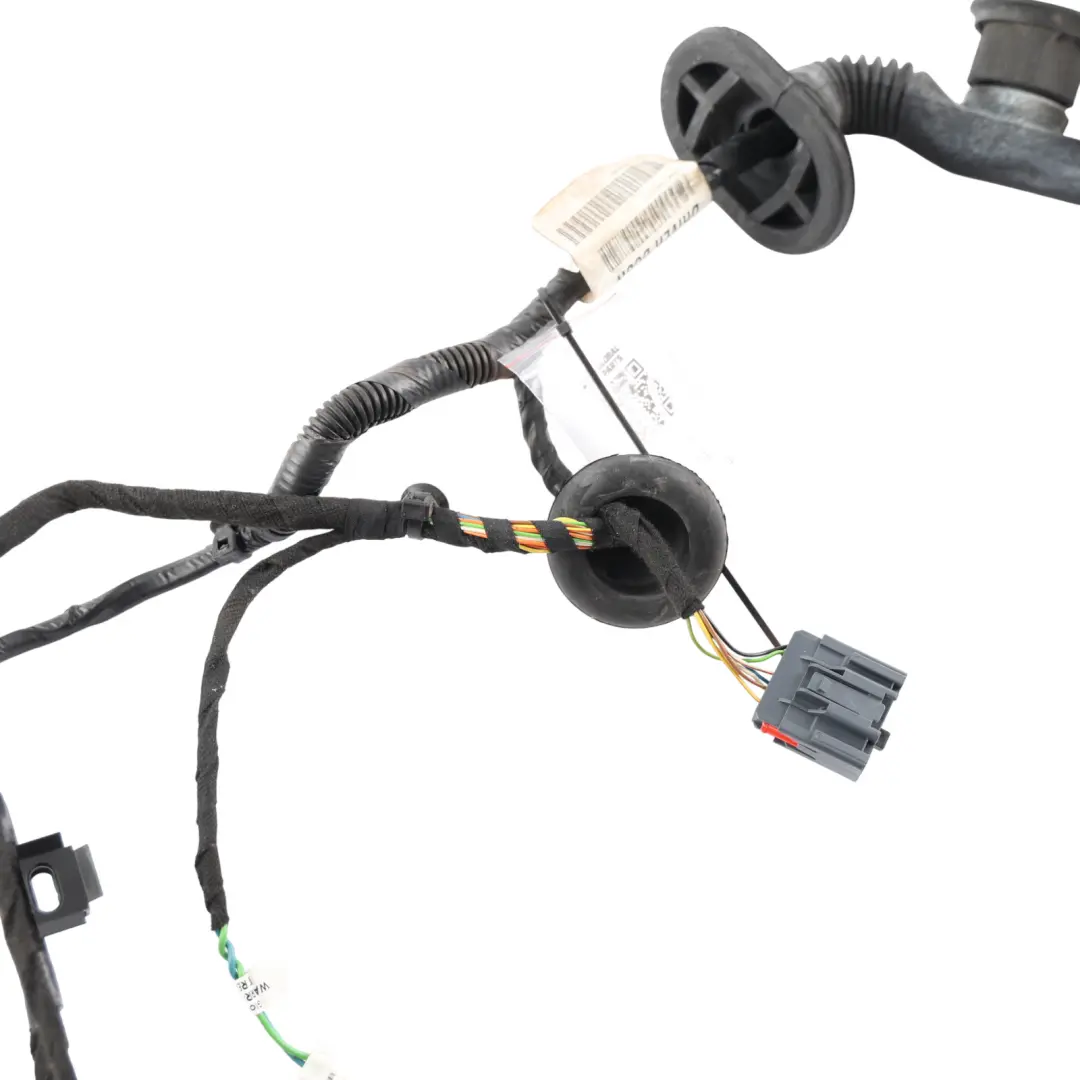

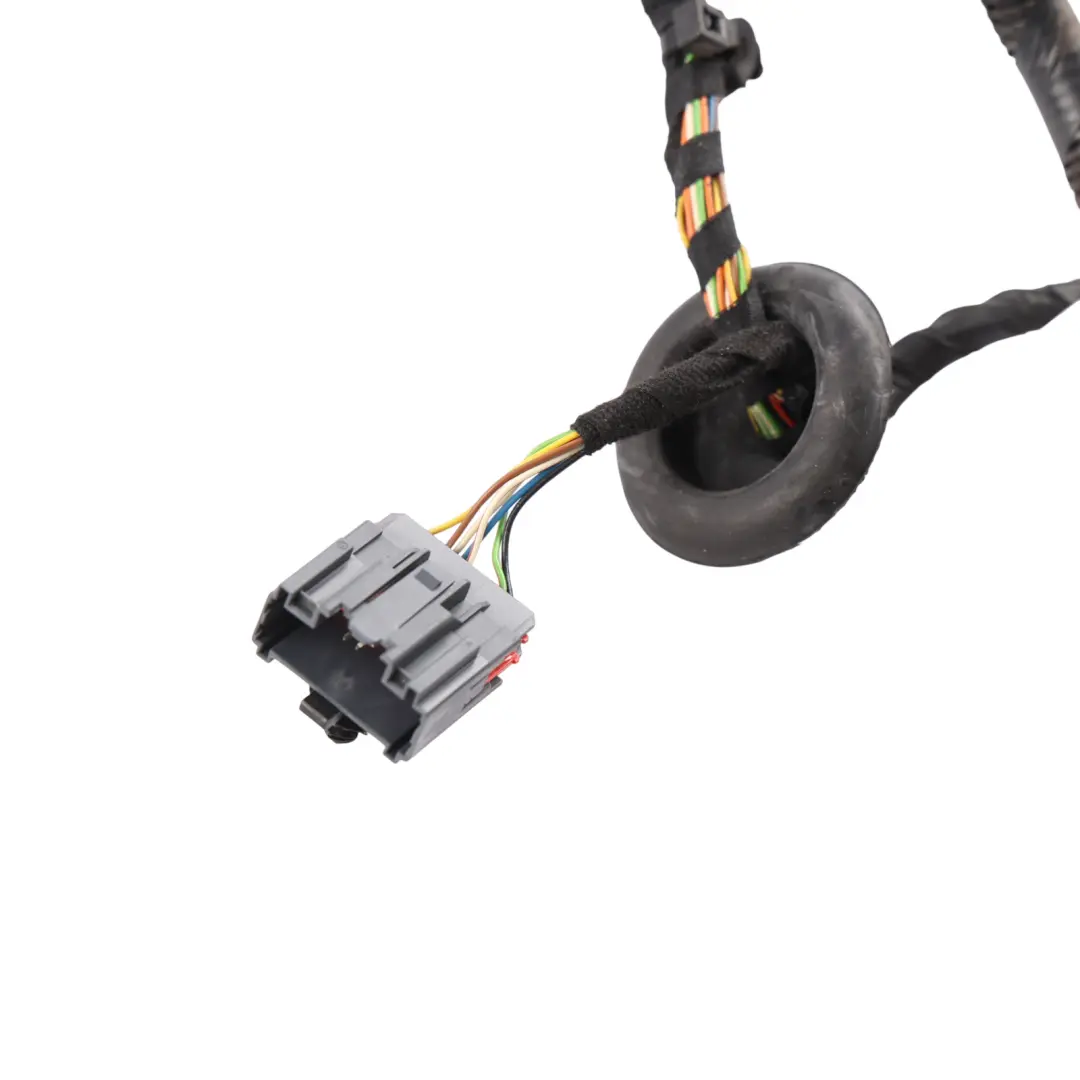

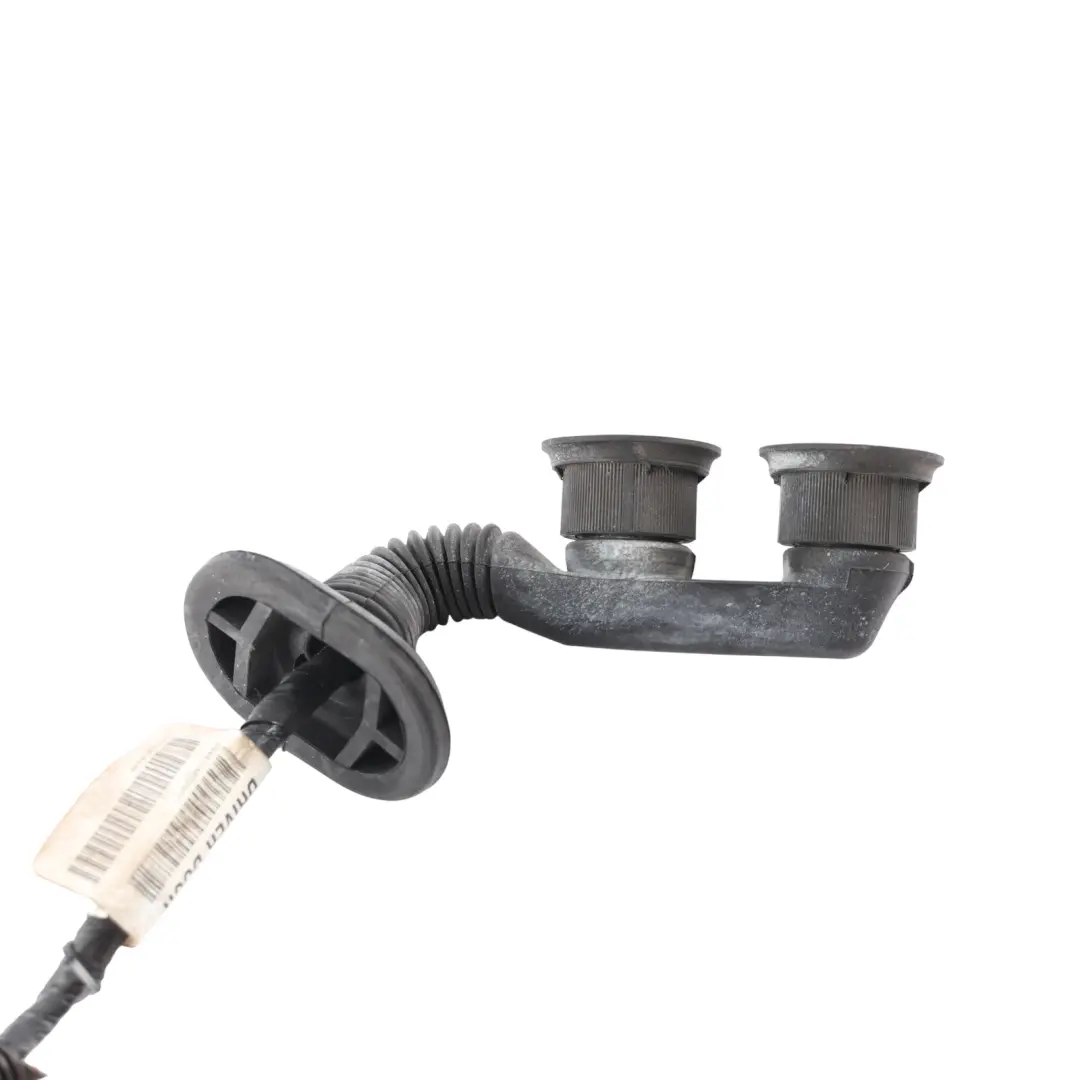

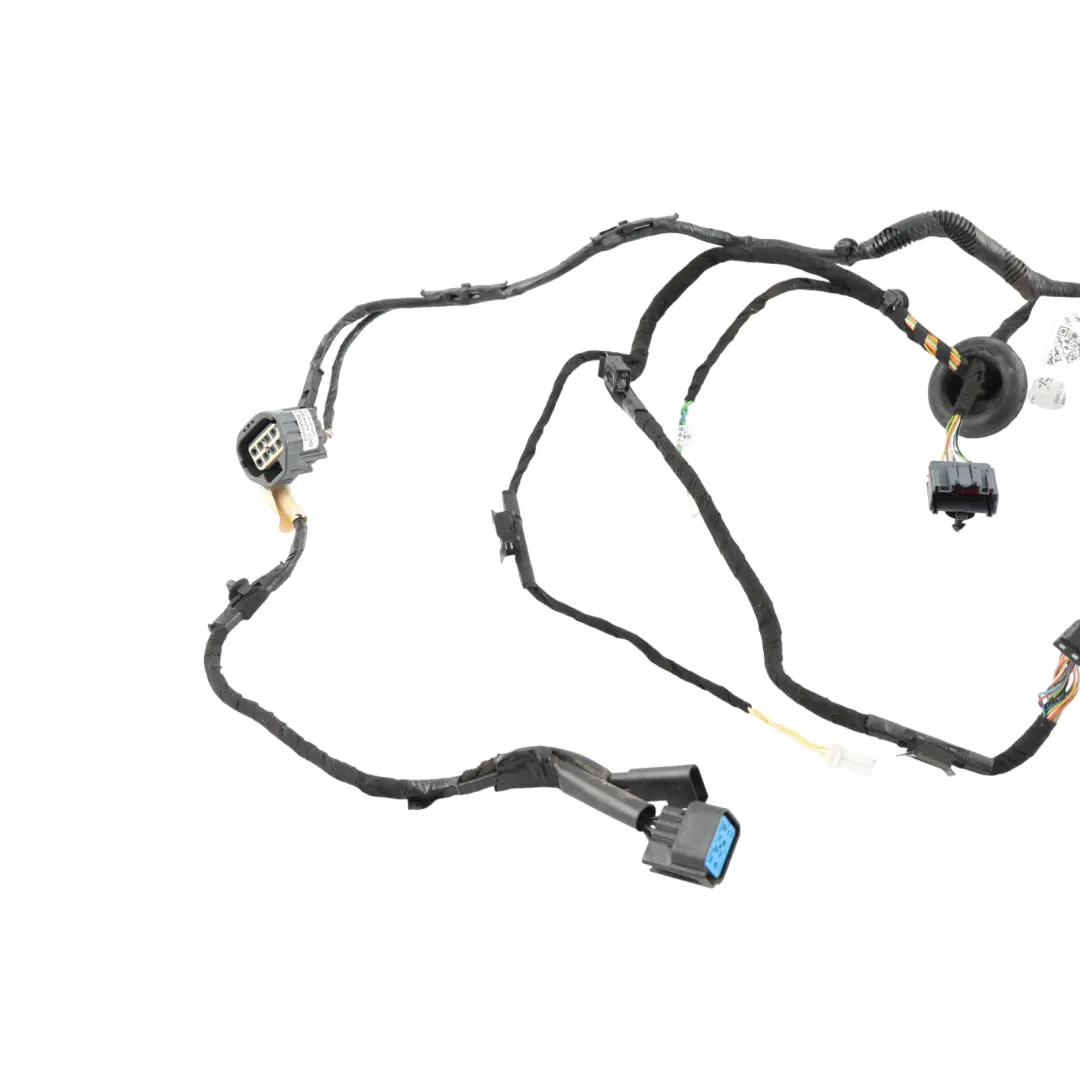

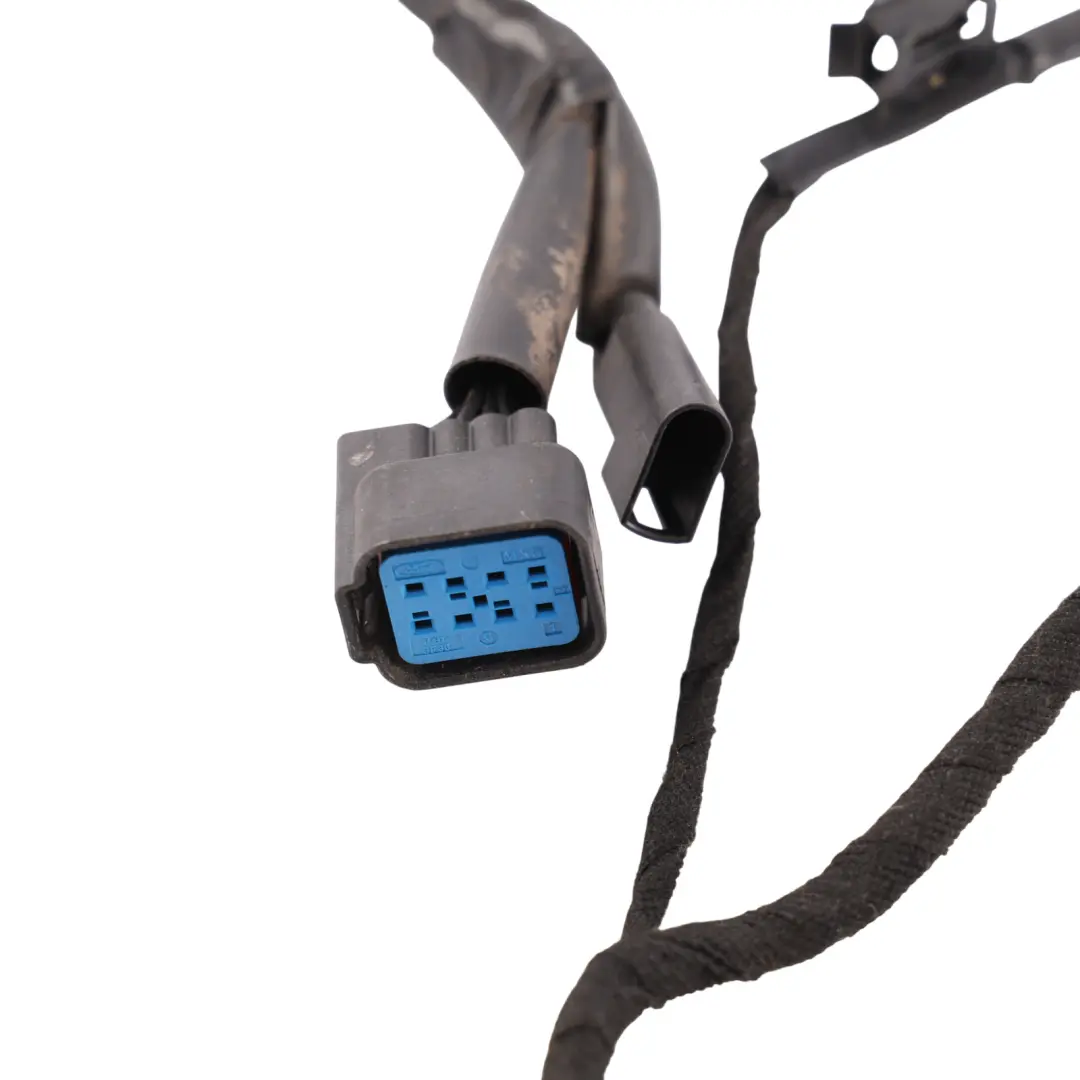

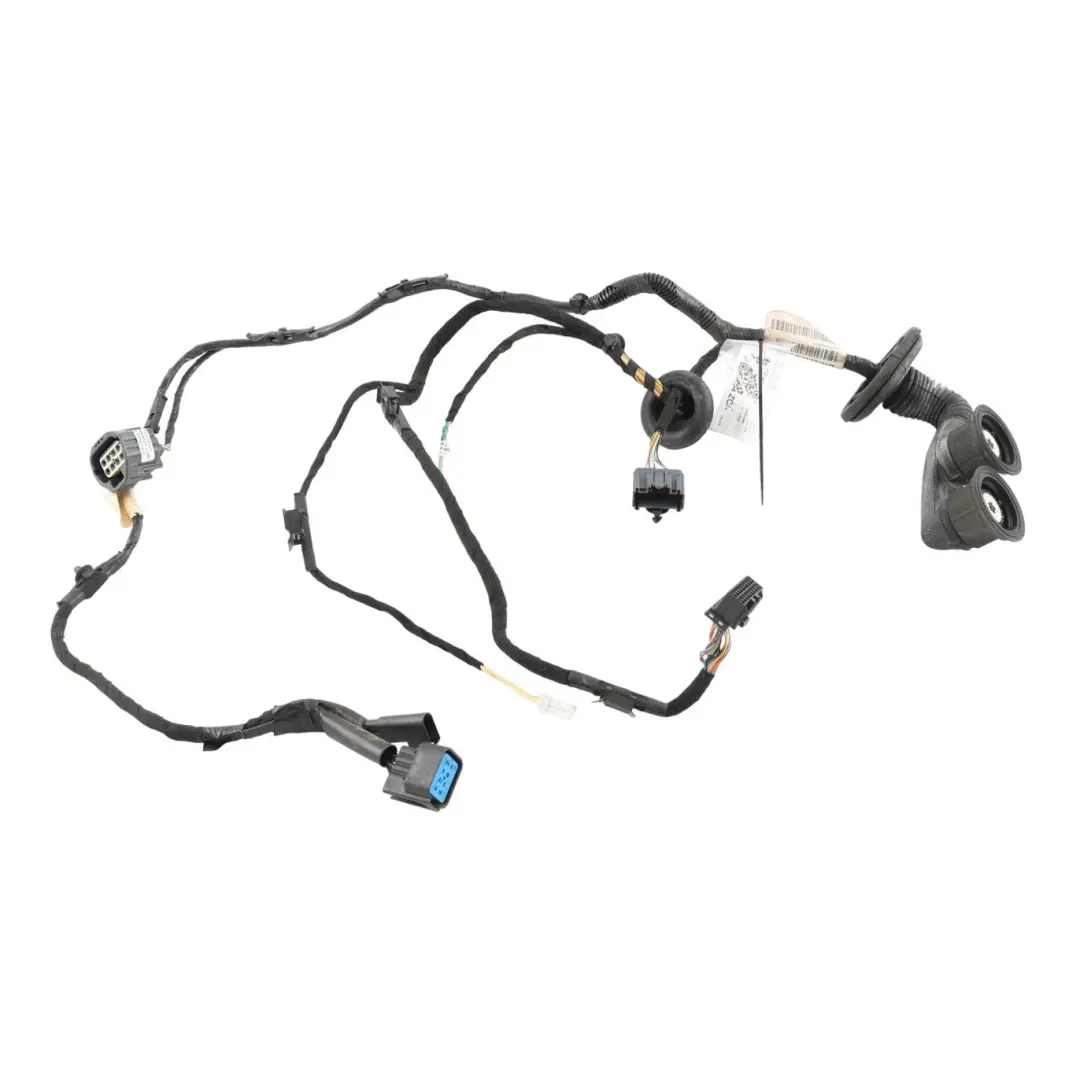

Jaguar X-Type X400 Door Wiring Loom Front Right O/S Driver's Side 4X43-14A584-HH

Jaguar X-Type X400 Door Wiring Loom Front Right O/S Driver's Side is an original electrical installation component designed for the driver's side. As a part of the Wires, looms, and connectors group, it ensures a proper electrical connection between the door and the body, enabling the correct operation of factory receivers and modules within the door. This used OEM component is a sensible choice for professional repairs or replacing damaged wiring in a Jaguar X-Type.

Specifications and technical data

• SKU: RHD-4X43-14A584-HH
• Mark: Jaguar
• Condition: Used

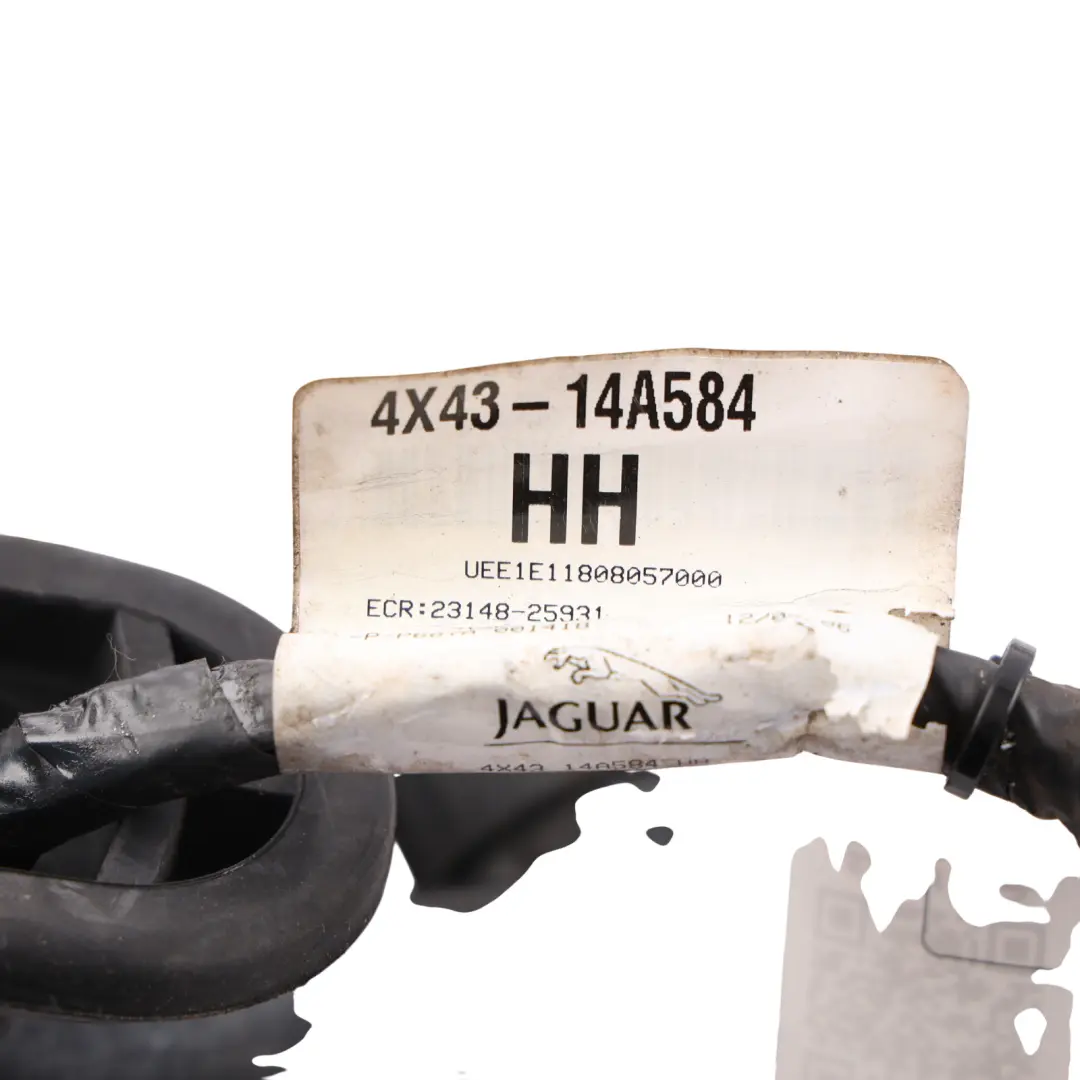

• OEM Part Number: 4X43-14A584-HH
• Substitutable numbers: 4X4314A584HH, 4X43-14A584-HH, C2S44536
• Part type: Loom
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the vehicle

The described wiring loom is dedicated to the front right door (driver's side in RHD versions) of the Jaguar X-Type X400 model. It is responsible for transmitting signals and power between the vehicle's main wiring harness and components located in the door, such as window controls, mirrors, or central locking, in accordance with the factory configuration of a specific trim level. By maintaining the original architecture of wires and connectors, the loom allows for the restoration of proper electrical system operation in the door without the need for modifications. This is particularly important in the case of post-accident repairs or replacing corroded, chafed, or broken wires in the grommet between the door and the pillar.

Construction and advantages of using OEM parts

As a Jaguar OEM component, the door wiring loom has been designed for the specific X-Type X400 body model, taking into account wire lengths, connector placement, and the routing of the installation within the door. This means:

• factory fitment to mounting points and grommets,
• compatibility with the vehicle's original wiring connectors,
• maintenance of the correct wire sequence and cross-sections,
• minimization of the risk of installation errors and diagnostic issues. Using an original wiring loom instead of universal solutions reduces the risk of subsequent faults, module communication issues, and hard-to-locate circuit breaks. It is a practical solution for workshops specializing in the Jaguar brand and for users who want to keep their vehicle in a configuration as close to the factory state as possible.

Condition, installation, and service aspects

The item is offered as a used part, which allows for a significant reduction in repair costs compared to a new OEM loom, while maintaining the original design and compatibility. Before installation, a standard inspection of the insulation and connector condition is recommended, along with cleaning the contacts according to good service practice. The wiring loom is intended for installation in place of the factory door wiring. With proper removal of the old component and by maintaining the wire routing sequence, the installation process is similar to a plug-and-play concept, without the need for interference with the vehicle's main wiring. This is a beneficial solution for both professional service centers and advanced users servicing their own cars.

Selection by part numbers and vehicle compatibility

To ensure the selection of the correct door wiring loom for a specific version of the Jaguar X-Type X400, it is worth using the manufacturer's markings and interchangeable numbers assigned to this component. This allows for verification of compatibility with the model year, body version, and vehicle equipment configuration. In case of doubt, it is recommended to compare the removed loom with the offered item in terms of connector type and their layout.

Expanding Jaguar electrical system repairs

If you are planning a comprehensive repair or upgrade of the door area in your Jaguar and need other elements from the same group, such as additional wire sections, looms for other doors, or installation connectors, check the available parts in the Jaguar wires, looms, and connectors category. When planning broader service work within the electrical system, it is also worth familiarizing yourself with practical principles for selecting components by OEM numbers and methods for verifying their condition. A helpful expert guide describing, among other things, procedures for selecting parts by VIN and OEM, available in the article Why it is worth buying used gearboxes and engines – facts instead of myths, may be useful, the tips from which can also be applied when purchasing other used sub-assemblies.
