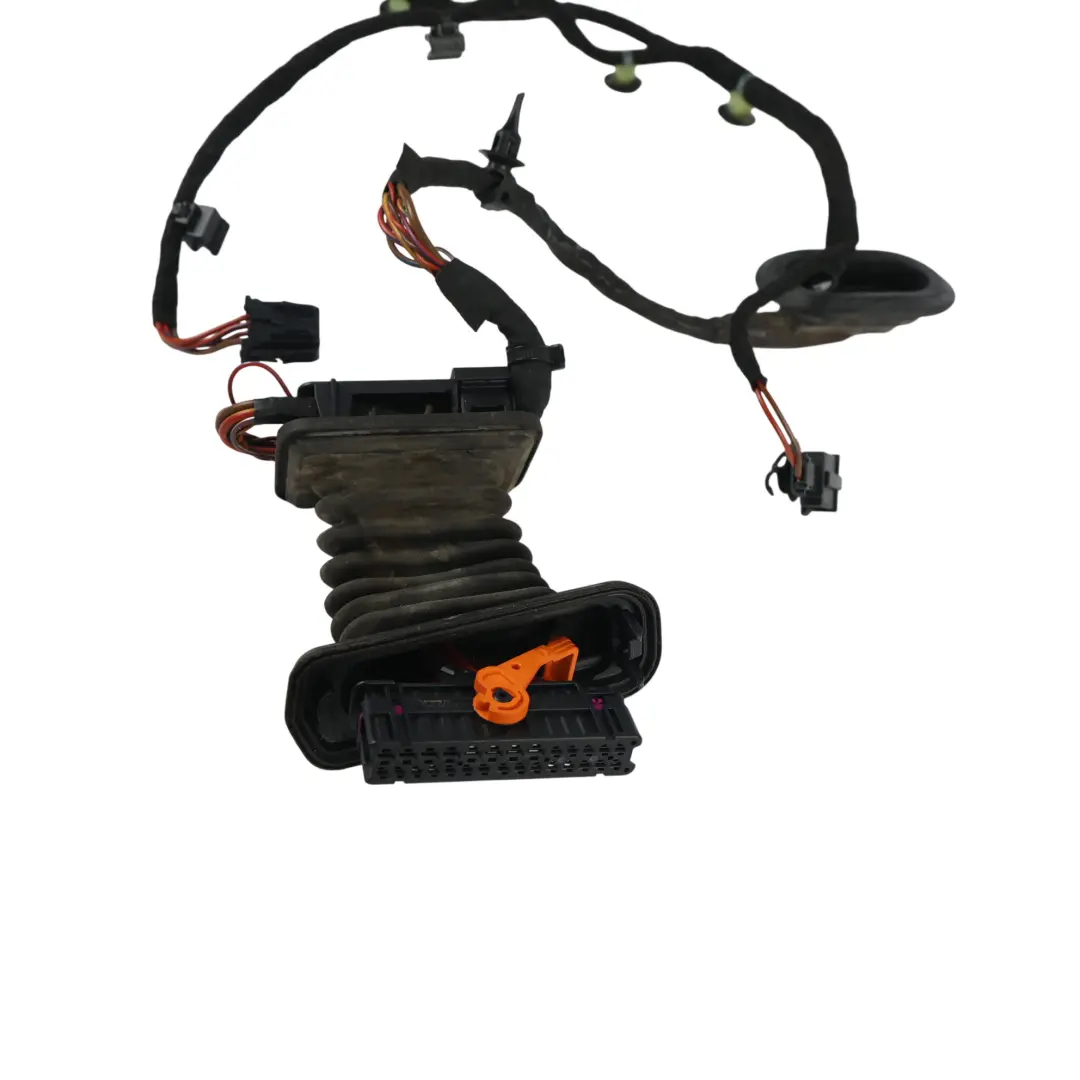

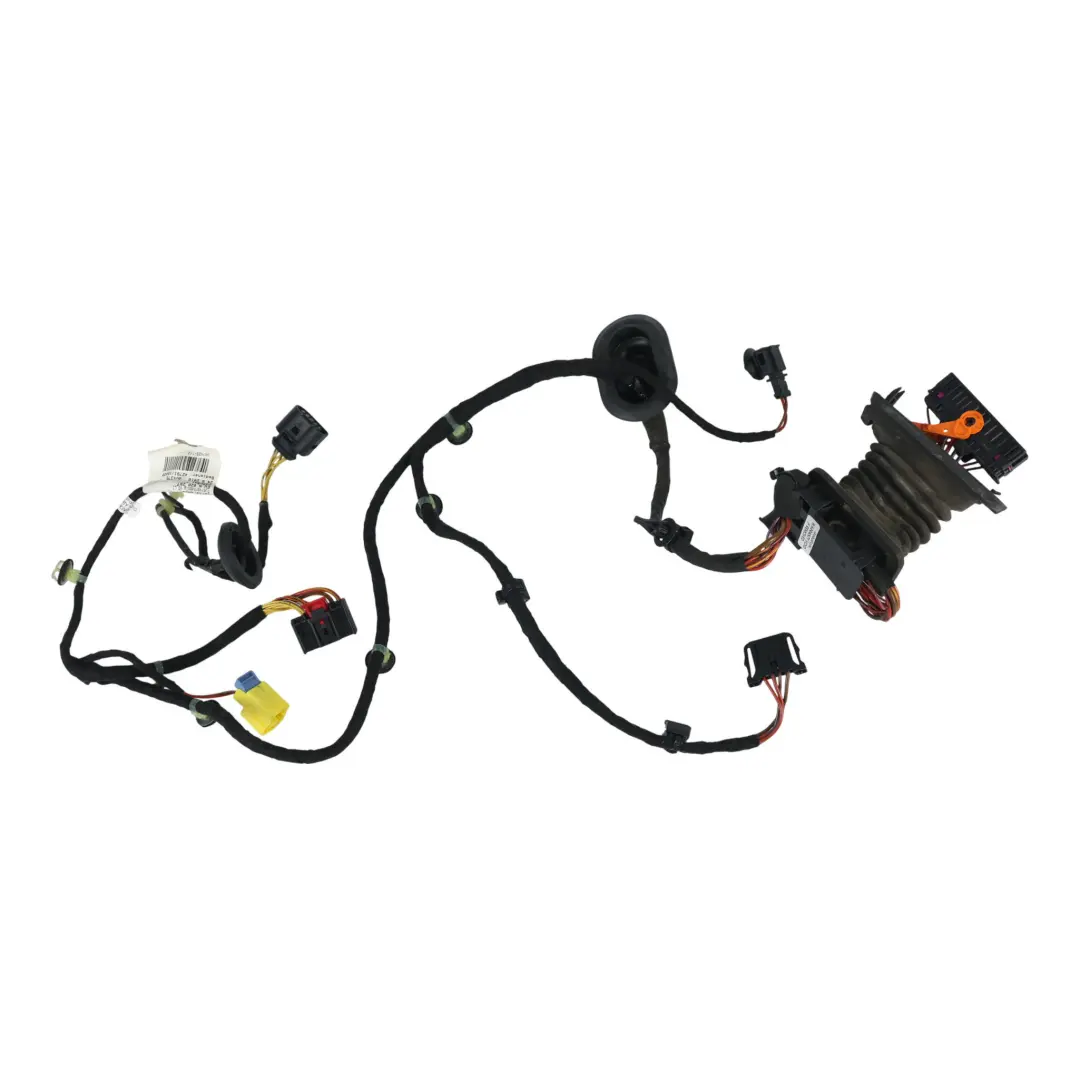

Volkswagen Passat B6 Front Door Wire Harness Loom Passenger Side 3C2971121CF

Volkswagen Passat B6 Front Door Wire Harness Loom Passenger Side is an original electrical installation component designed for installation on the front passenger side. Thanks to its factory-fit design for the Passat B6 body and compatibility with door equipment, this door wire harness allows for the efficient restoration of full electrical functionality in the door without the need for modifications.

Specifications and technical data

• SKU: RHD-3C2971121CH
• Mark: Volkswagen
• Condition: Used

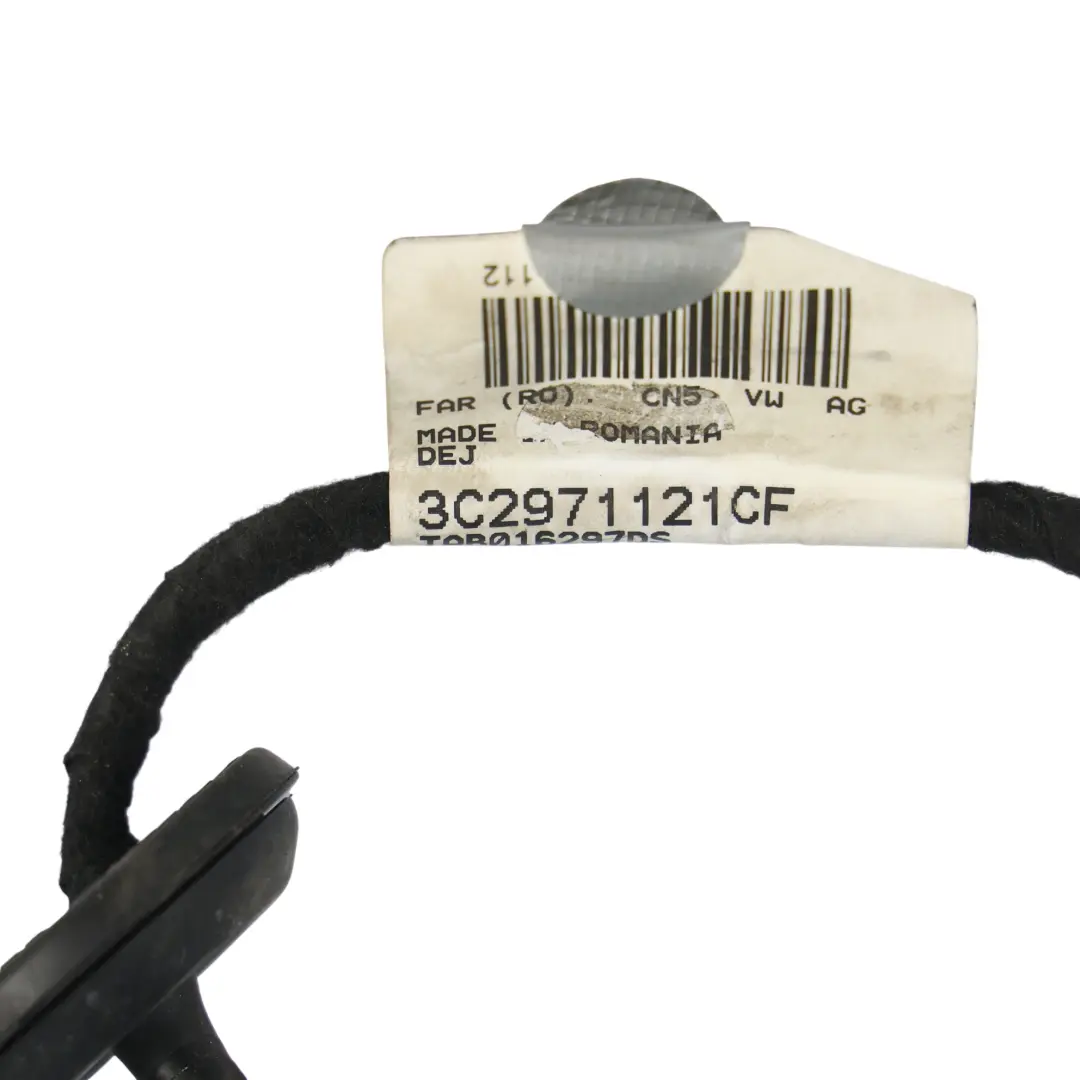

• OEM Part Number: 3C2971121CH
• Substitutable numbers: 3C2971121CH, 3C2 971 121 CH, 3C2971121CF, 3C2 971 121 CF
• Location on the vehicle: Front
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the electrical system

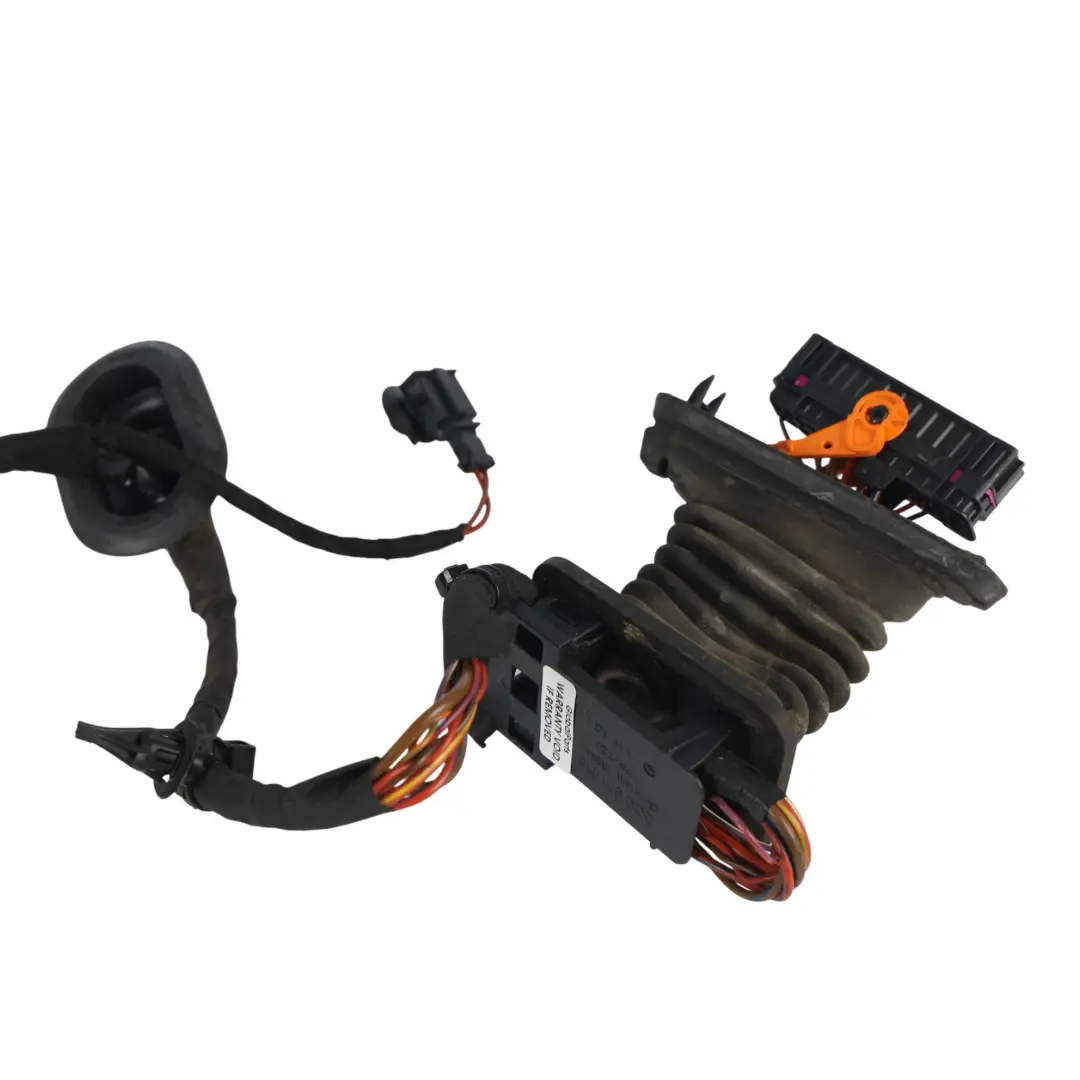

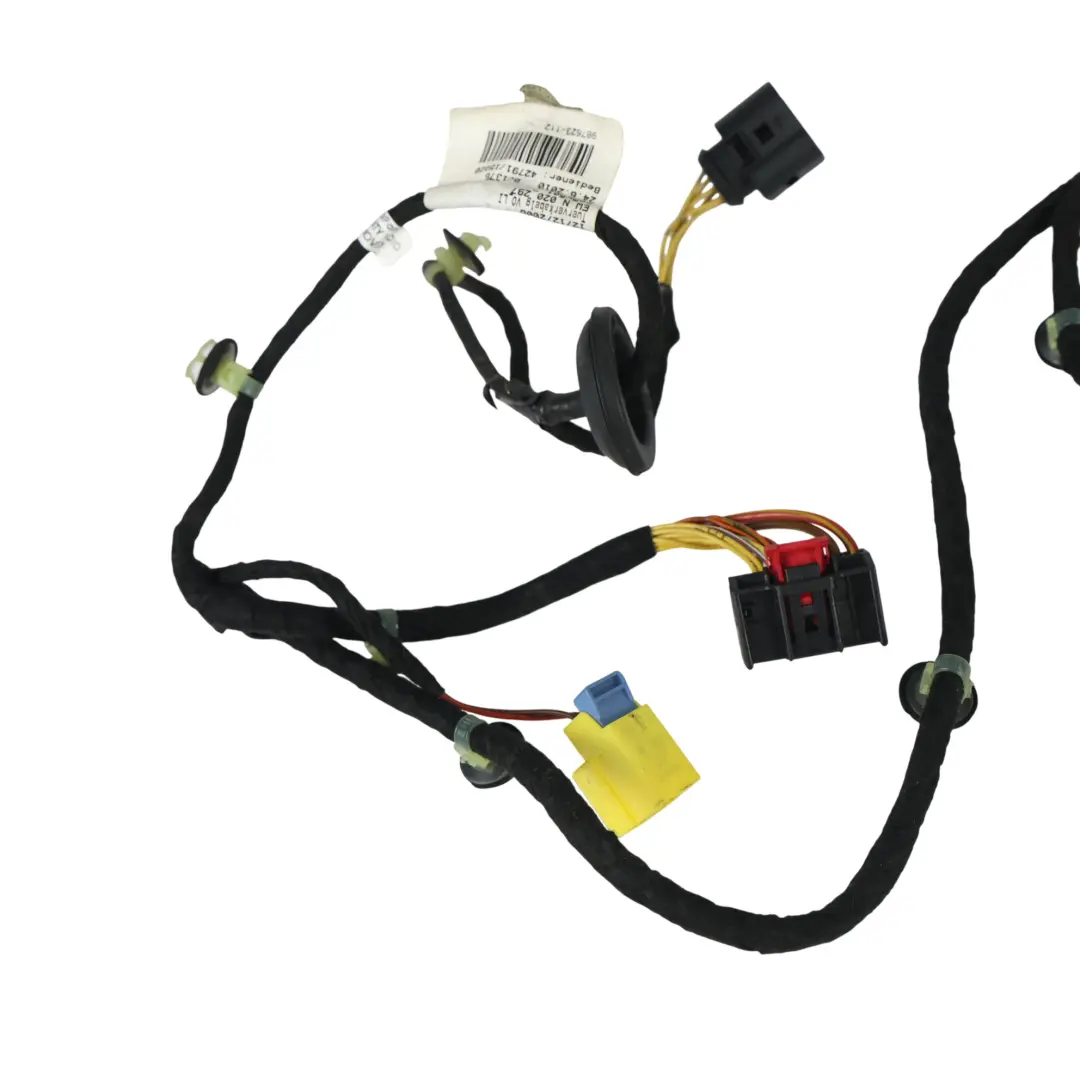

The presented harness belongs to the Wires, harnesses, and connectors group and is designed specifically for the front passenger door of the Volkswagen Passat B6 model. It is responsible for connecting modules and receivers in the door to the vehicle's main electrical system, enabling the proper operation of components such as window controls, central locking, mirrors, or door lighting (depending on the specific car configuration). The vehicle placement specified as front means that the harness has been structurally adapted to the geometry of the front passenger door, including rubber grommets, mounting points, and connectors in the pillar and the door.

Construction, connectors, and compatibility

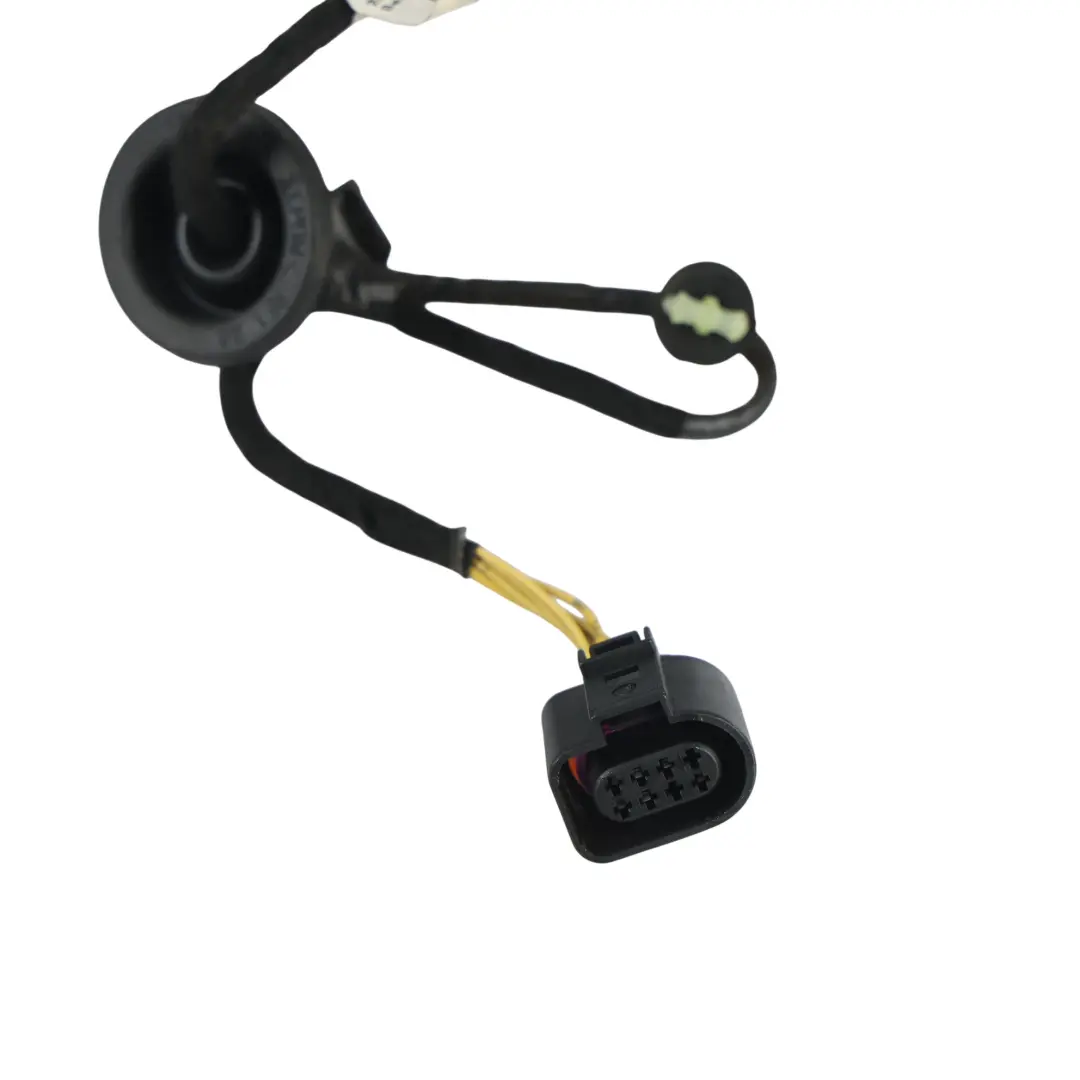

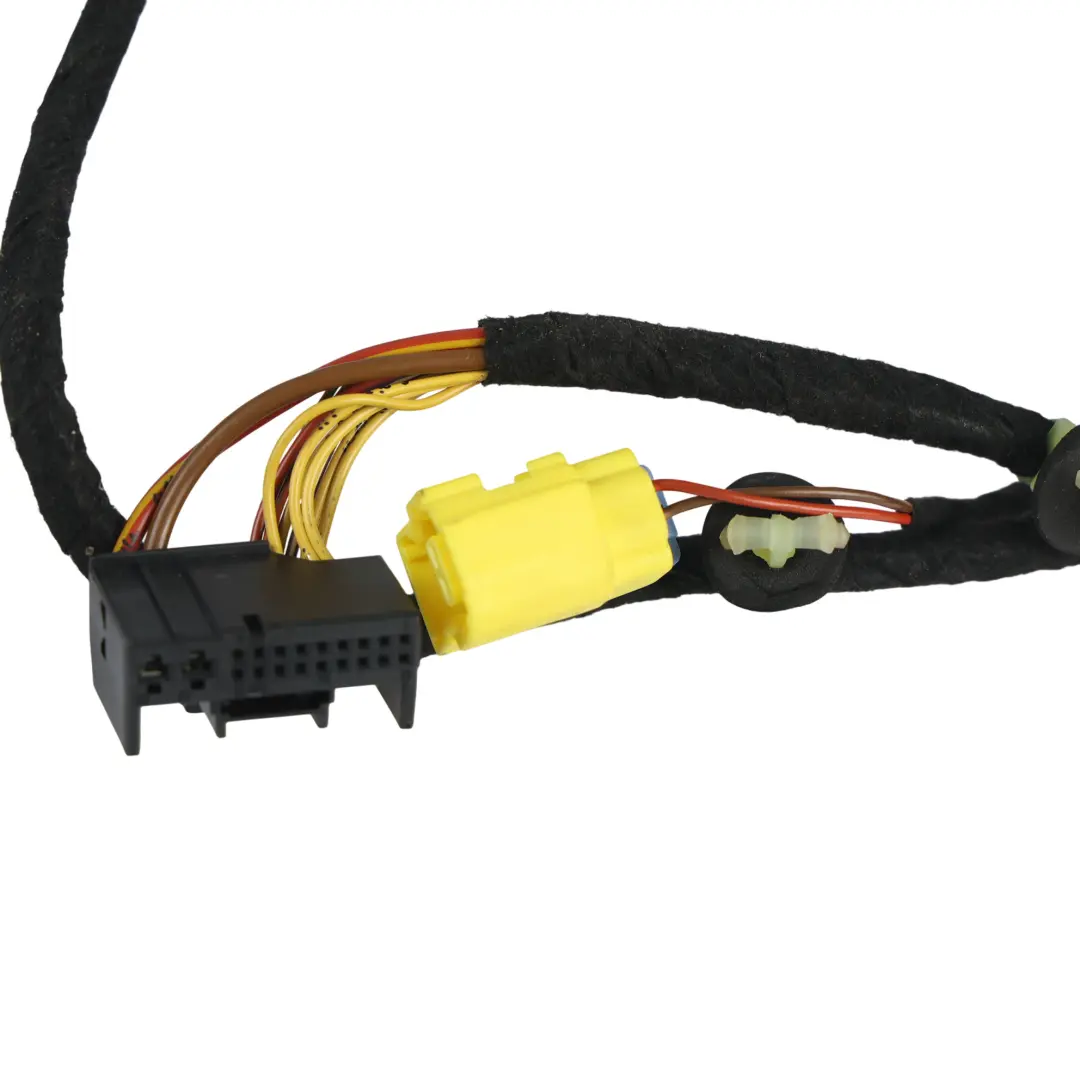

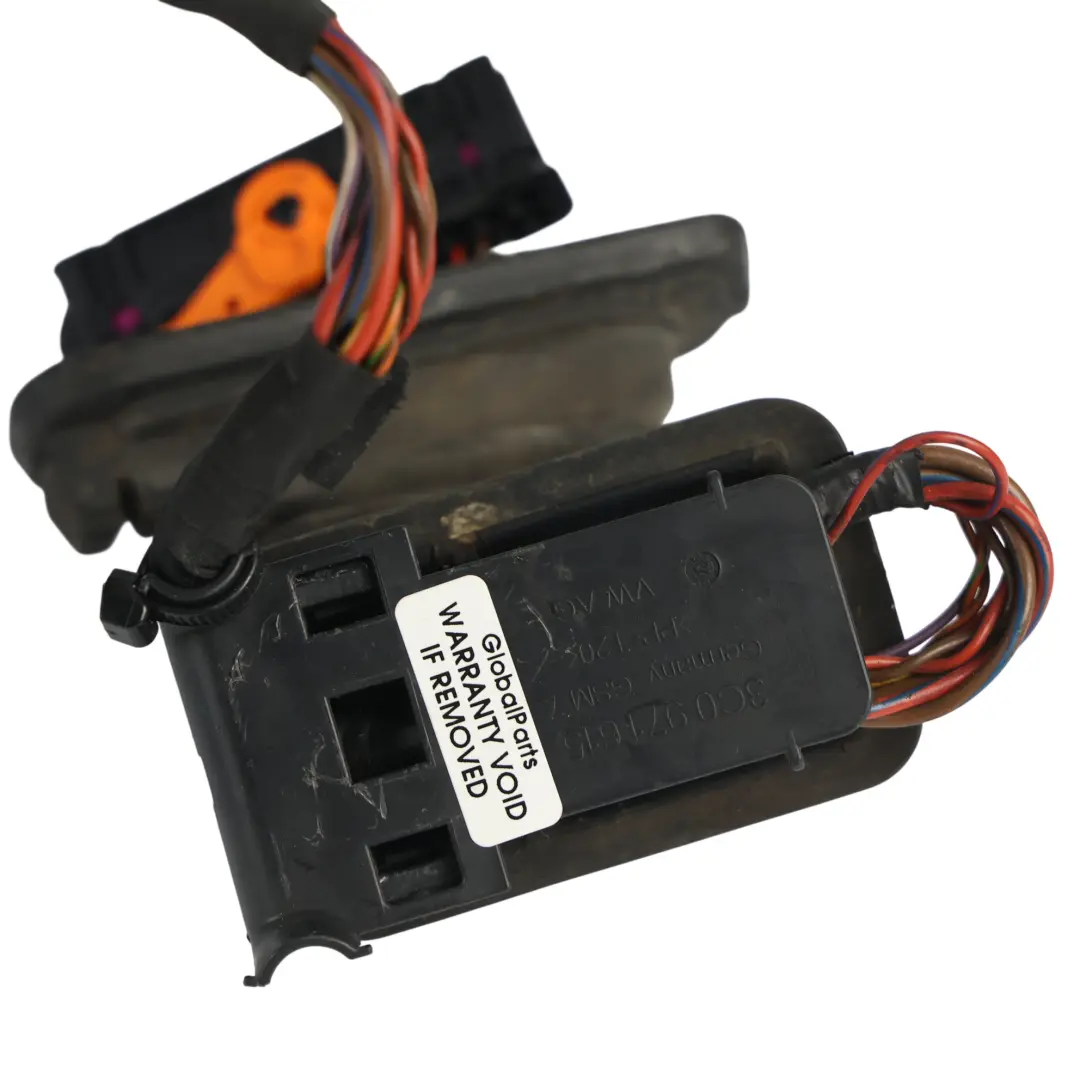

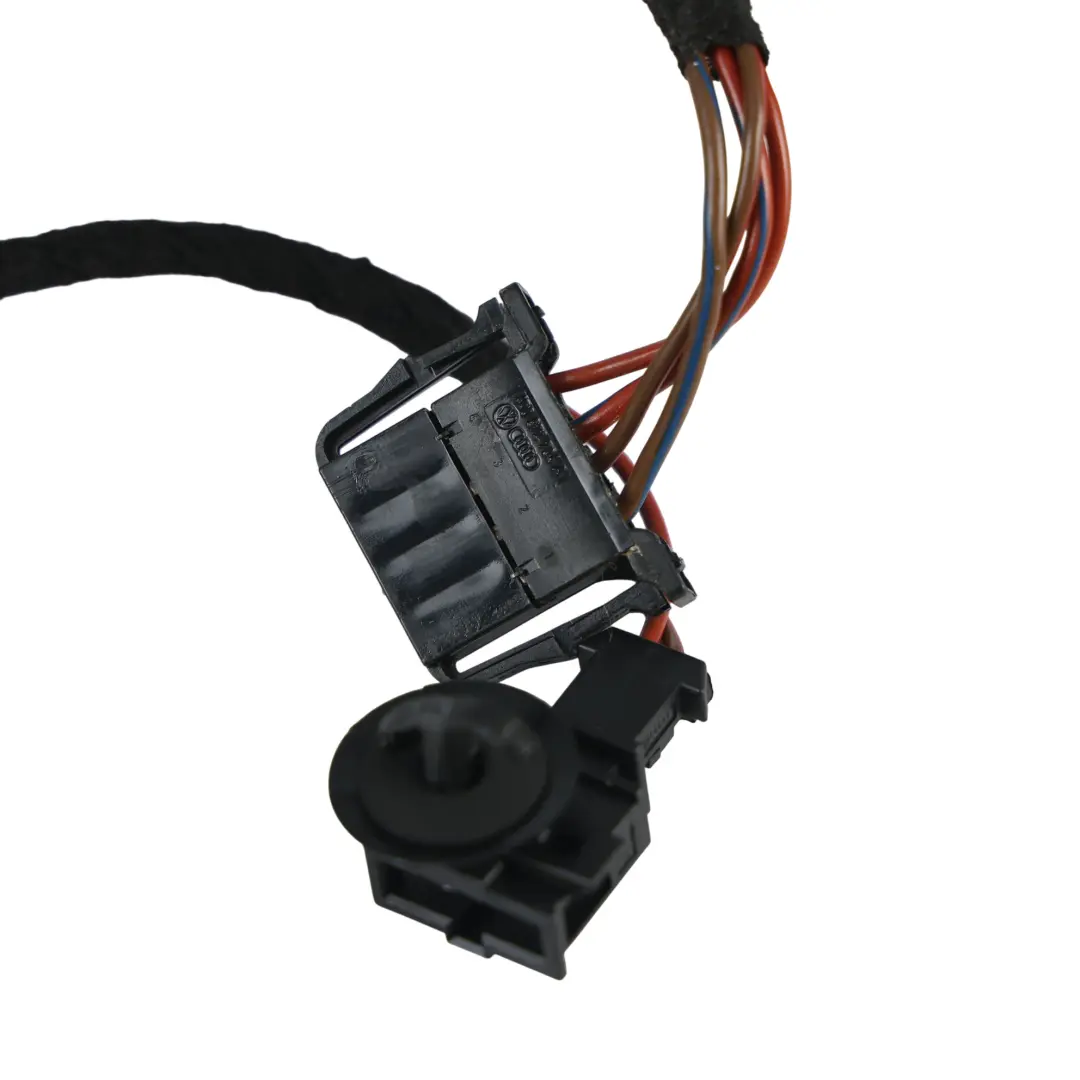

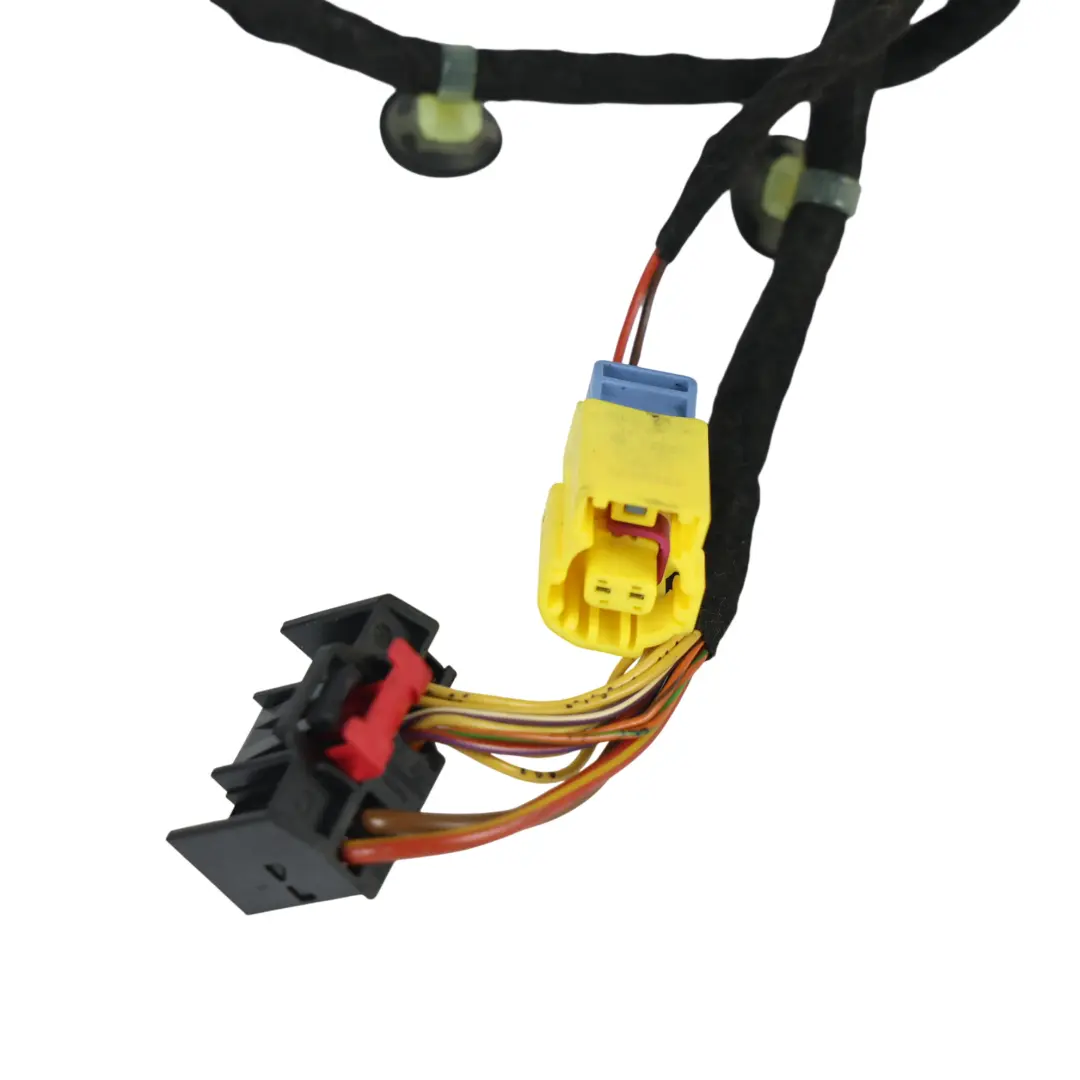

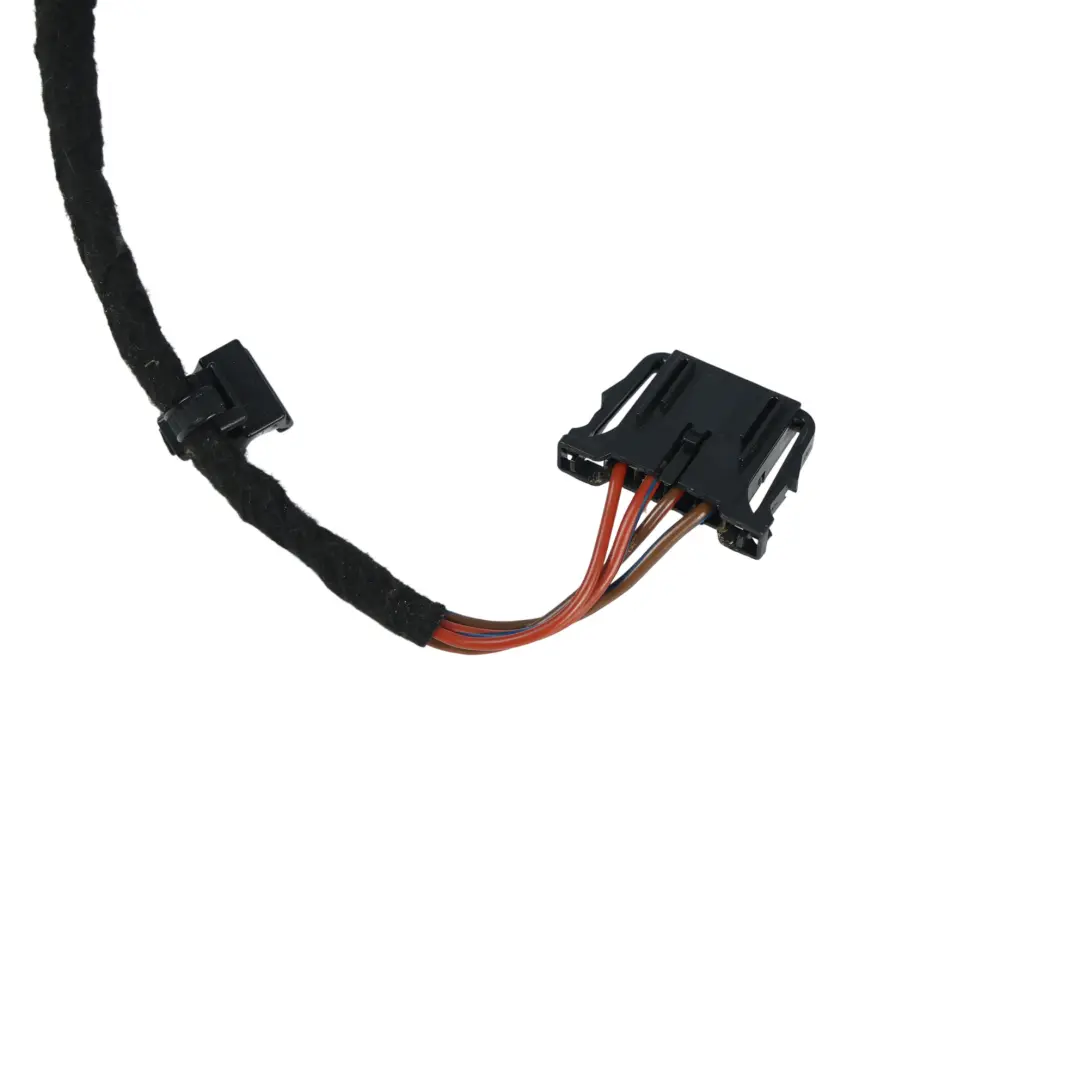

The door harness has been manufactured in accordance with Volkswagen standards, using appropriately selected wire gauges, insulation, and factory connectors. The connectors used are prepared for direct connection to modules and the body harness, which allows for a plug-and-play style installation without the need for soldering or creating additional adapters. Original connectors ensure:

• a stable electrical connection with the door module and body harness,
• correct routing of control and power signals,

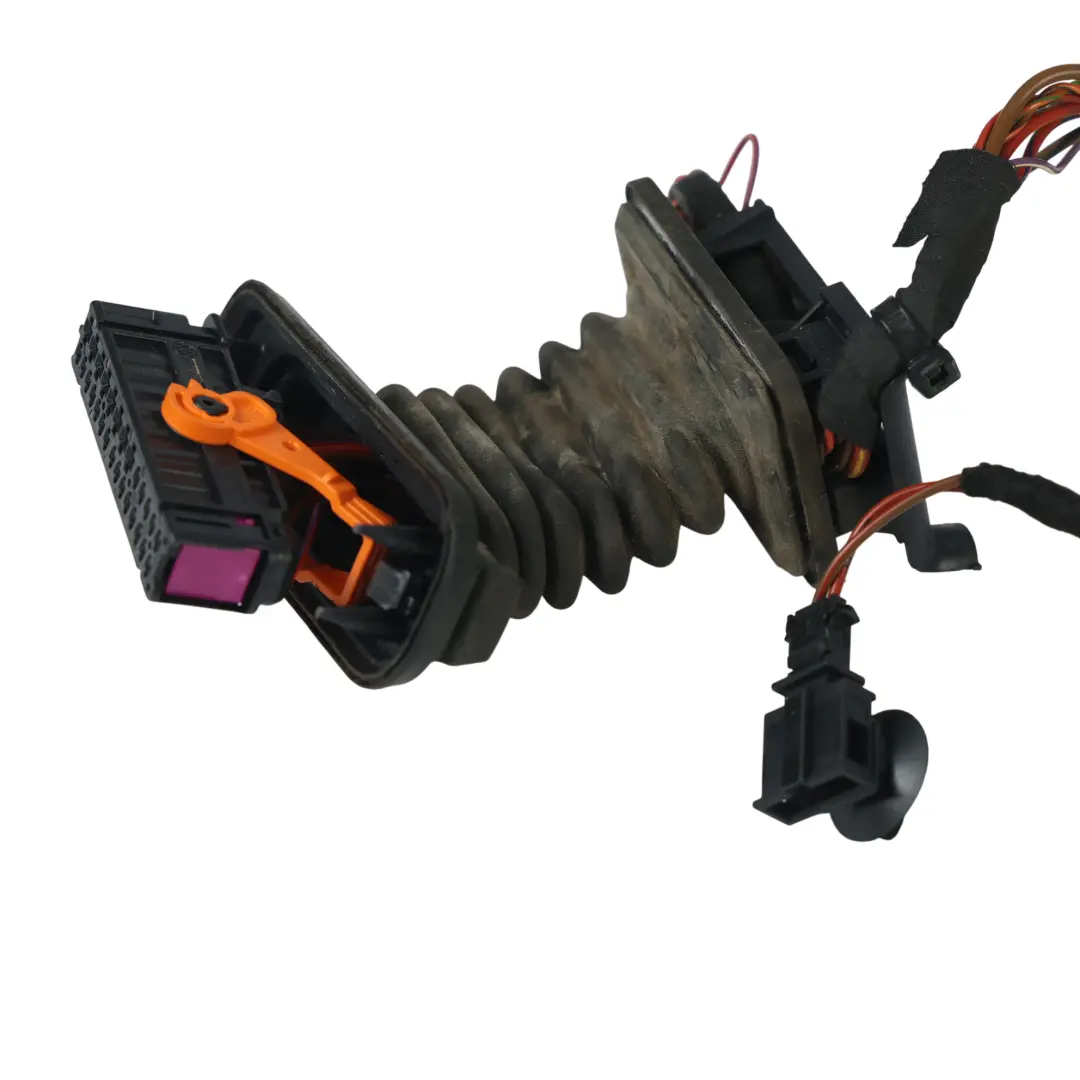

• maintenance of seal integrity in the passage between the pillar and the door. As a result, the harness is a suitable choice when replacing a damaged door installation, especially in cases of wire abrasion, unstable door electrical operation, or previous non-factory repairs.

Condition and advantages of using an original part

The item is offered as a used part, sourced from dismantling, which allows for maintaining factory compatibility with the Passat B6 electrical system while reducing repair costs. The original door harness ensures:

• compliance with the vehicle's electrical architecture,
• appropriate wire lengths and mounting placement,
• factory wire colors and markings, facilitating diagnostics. Choosing an original door wire is particularly beneficial when you want to maintain system consistency and avoid problems with fitting universal replacements.

Practical installation tips

When replacing the door harness in a Passat B6, it is worth paying attention to the correct routing of wires in the grommet between the pillar and the door, as well as the proper seating of all clips and holders. It is recommended to:

• remove the door upholstery in a controlled manner to avoid damaging the clips,
• compare the old and new harness in terms of connector placement before installation,
• check the operation of all electrical door functions after completing the work. This approach minimizes the risk of recurring faults and facilitates subsequent diagnostics of any potential installation problems. If you are planning a comprehensive repair or upgrade of the front door area in your Volkswagen and need other components from the same group, such as additional harnesses, adapter wires, or door installation connectors, check the available parts in the Volkswagen Wires, harnesses, and connectors category. For drivers interested in a broader perspective on selecting used OEM components, upgrade strategies, and the impact of components on driving characteristics, an article describing the comparison of turbochargers in sports designs may be helpful – you can find it here: Go-Kart Feeling XXL: used N18 turbocharger vs. B48 – what to choose for a Mini Cooper S?.
