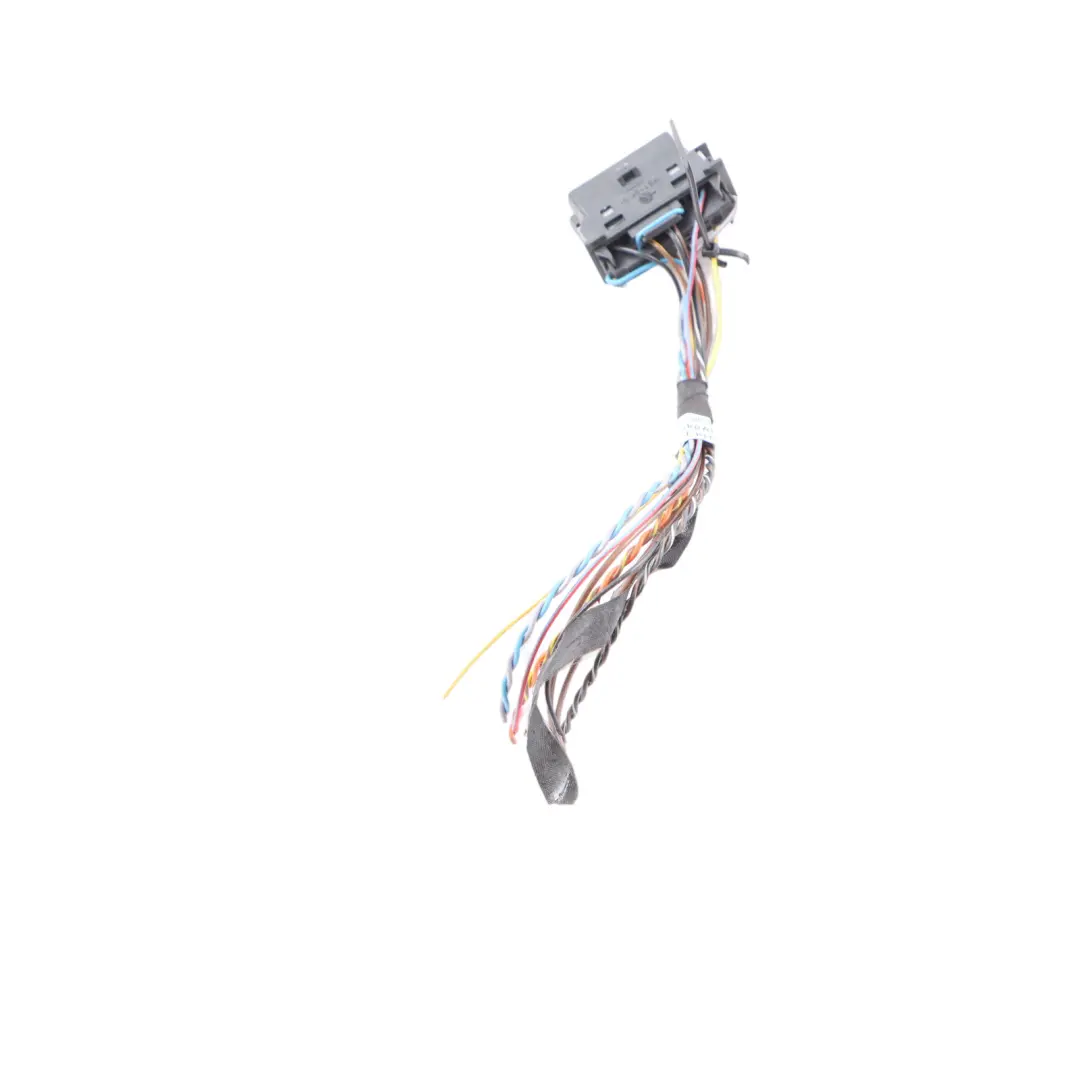

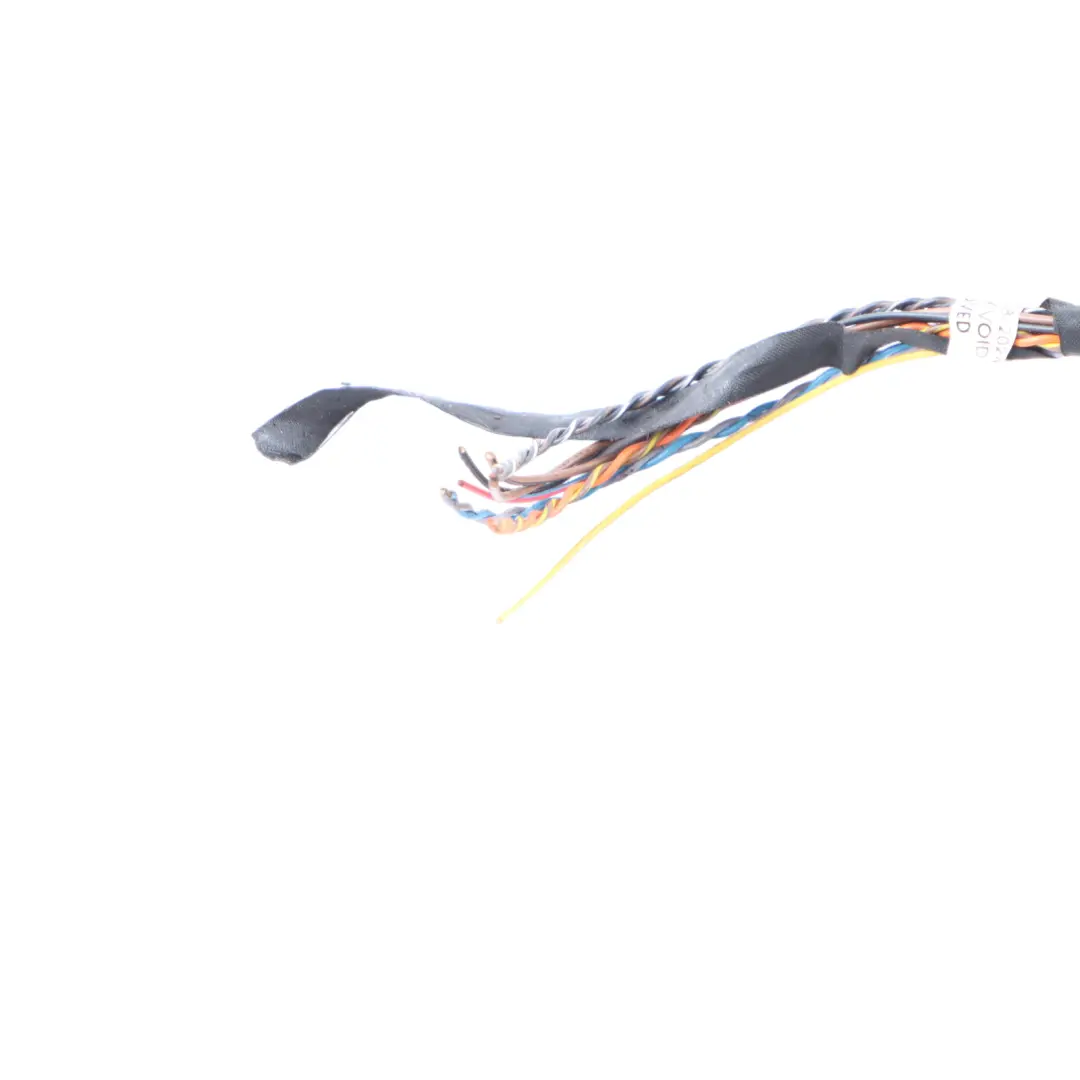

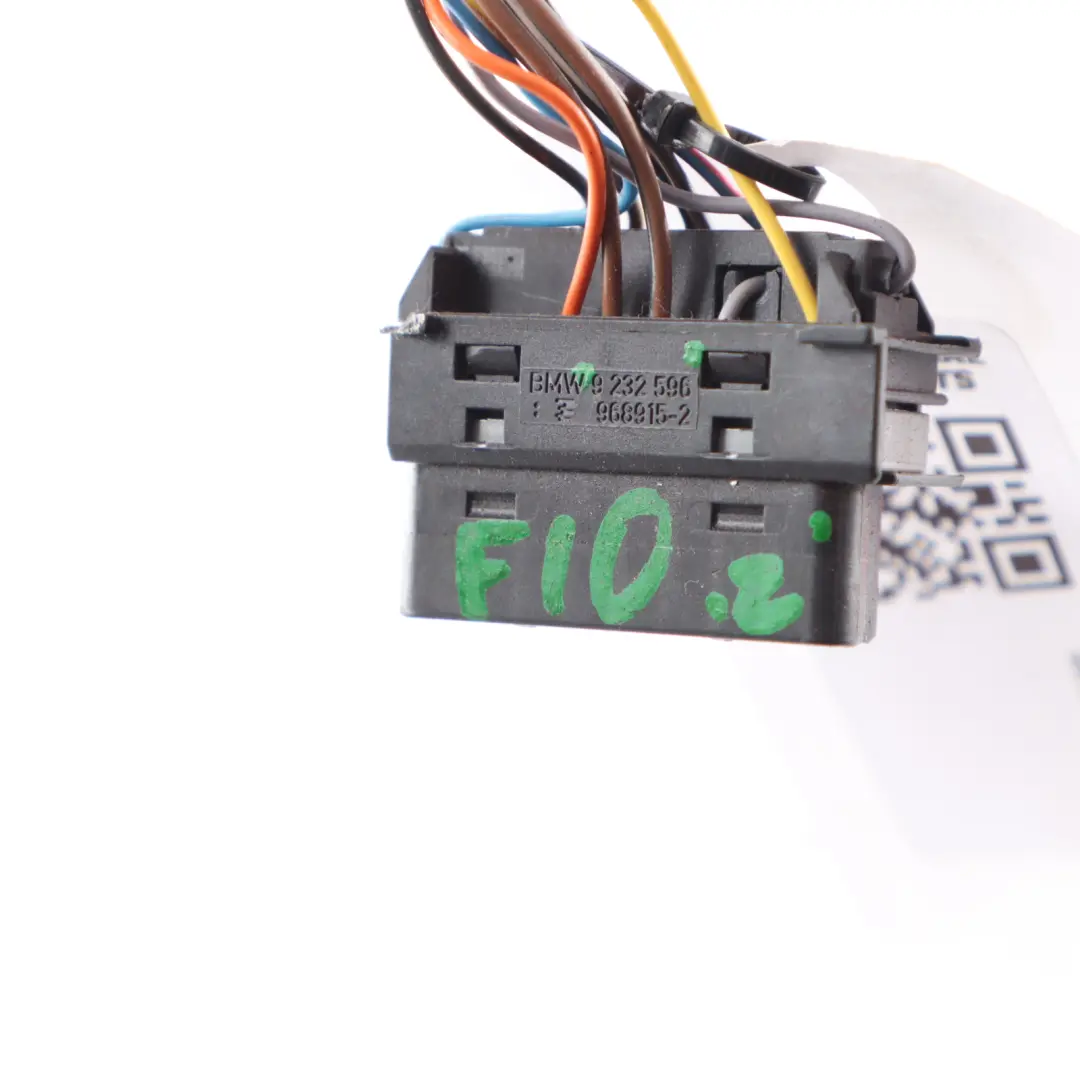

BMW F01 F07 GT F10 F11 F12 F13 OBD Plug Socket Diagnostic Wiring Loom 9232596

BMW F01 F10 F11 F12 F13 OBD Diagnostic Socket Wiring Harness is an original electrical installation component from the BMW group, designed for servicing the OBD diagnostic connector in F-series vehicles. This product from the Wires, Harnesses, and Connectors category ensures a stable connection between the service socket and the vehicle's electrical system, enabling proper communication with diagnostic testers.

Specifications and technical data

• SKU: 9232596
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9232596
• Substitutable numbers: 9232596, 61139232596
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function of the OBD Harness

The BMW OBD Diagnostic Socket Wiring Harness is responsible for a safe and reliable connection to the vehicle's factory electronic system. It enables:

• reading control unit errors using service interfaces,
• monitoring the operating parameters of control units in real-time,
• programming and coding modules according to manufacturer procedures,
• maintaining installation integrity without the need to interfere with the main vehicle harness.

By using an original OBD connector and a dedicated harness, the diagnostic system maintains compliance with BMW's factory standards, which is important for both servicing and subsequent resale of the car.

Construction and Advantages of the Original BMW Harness

This component belongs to the Wires, Harnesses, and Connectors group, meaning it was designed as part of the vehicle's electrical system, not as a universal adapter. The original design ensures:

• factory OBD connector matched to the socket in BMW F-series vehicles,
• appropriately selected wire length and cross-sections adapted to the loads in the diagnostic circuit,
• proper shielding and routing of communication lines, which minimizes data transmission interference,
• compatibility with BMW's electrical architecture, without requiring installation modifications.

Using an original harness translates to stable communication with service testers and a reduced risk of problems with reading or clearing errors.

Product Condition and Service Application

The offered BMW Diagnostic Socket with Wiring Harness comes from the secondary market, allowing for economical installation repair while retaining an OEM component. This is a beneficial solution in situations where:

• the original OBD socket has suffered mechanical damage (e.g., pulled out, cracked housing),
• contacts have overheated or corroded due to improper use of interfaces,
• a section of the harness needs replacement without interfering with the main vehicle installation,
• post-accident repairs are being carried out in the dashboard or center console area.

Using an original component from the same BMW model family minimizes the risk of pin mismatches, communication errors, or problems accessing all control modules.

Benefits of Using Original BMW Wires, Harnesses, and Connectors

Choosing a component from the Wires, Harnesses, and Connectors category dedicated to BMW offers a range of practical benefits:

• consistency with factory service documentation – easier identification of wires and pins in diagrams,
• maintenance of correct diagnostic network topology (communication lines routed according to manufacturer's specifications),
• reduced risk of secondary faults resulting from unprofessional installation modifications,
• better cooperation with professional testers used in workshops specializing in the BMW brand.

This solution is particularly recommended for workshops that aim to maintain a high standard of electrical installation repairs in premium vehicles.

Complementary Offer of BMW Wires, Harnesses, and Connectors

If you also need other elements from the Wires, Harnesses, and Connectors category for this brand, check out the BMW Wires, Harnesses, and Connectors available in our store to select a complete solution for your service or modernization project.
