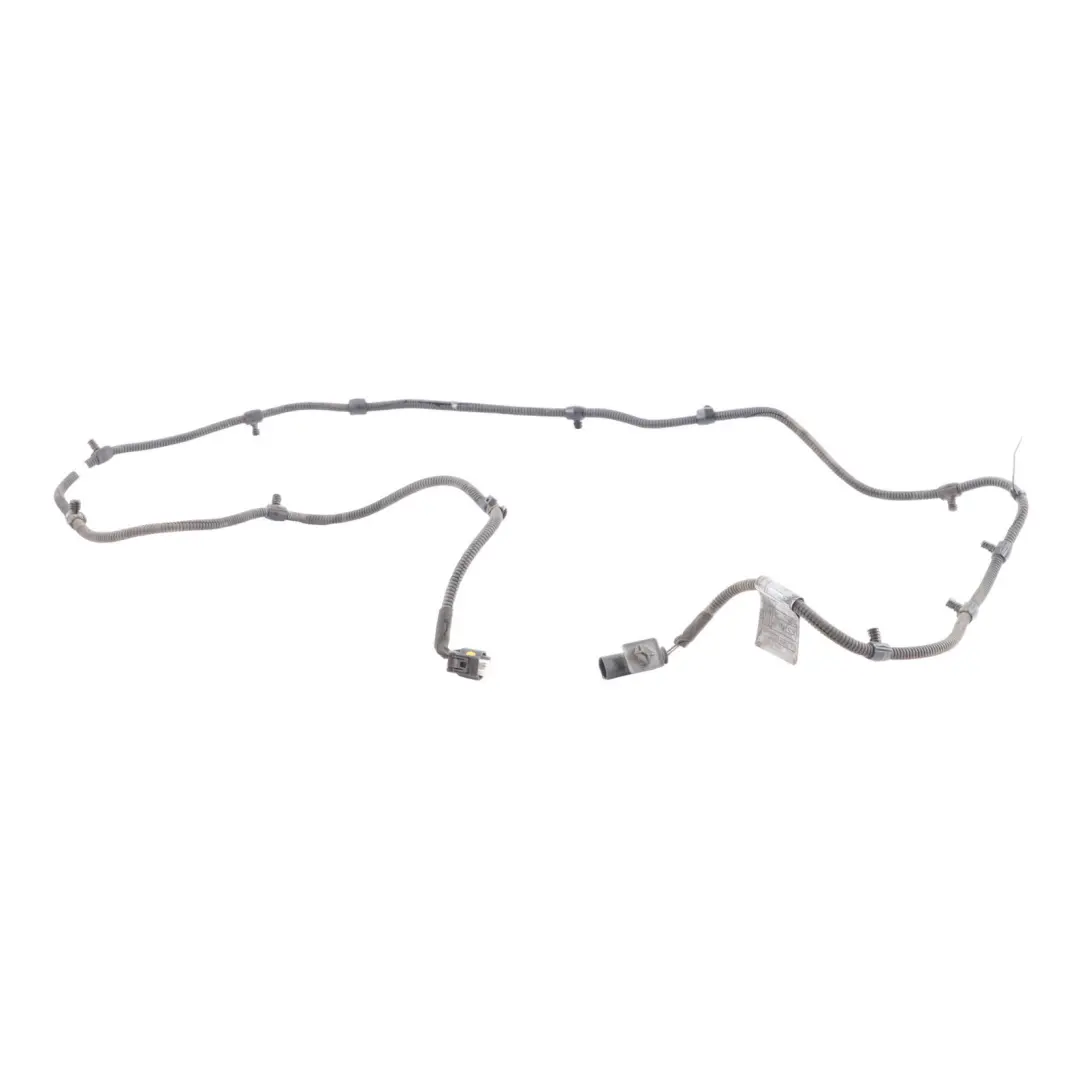

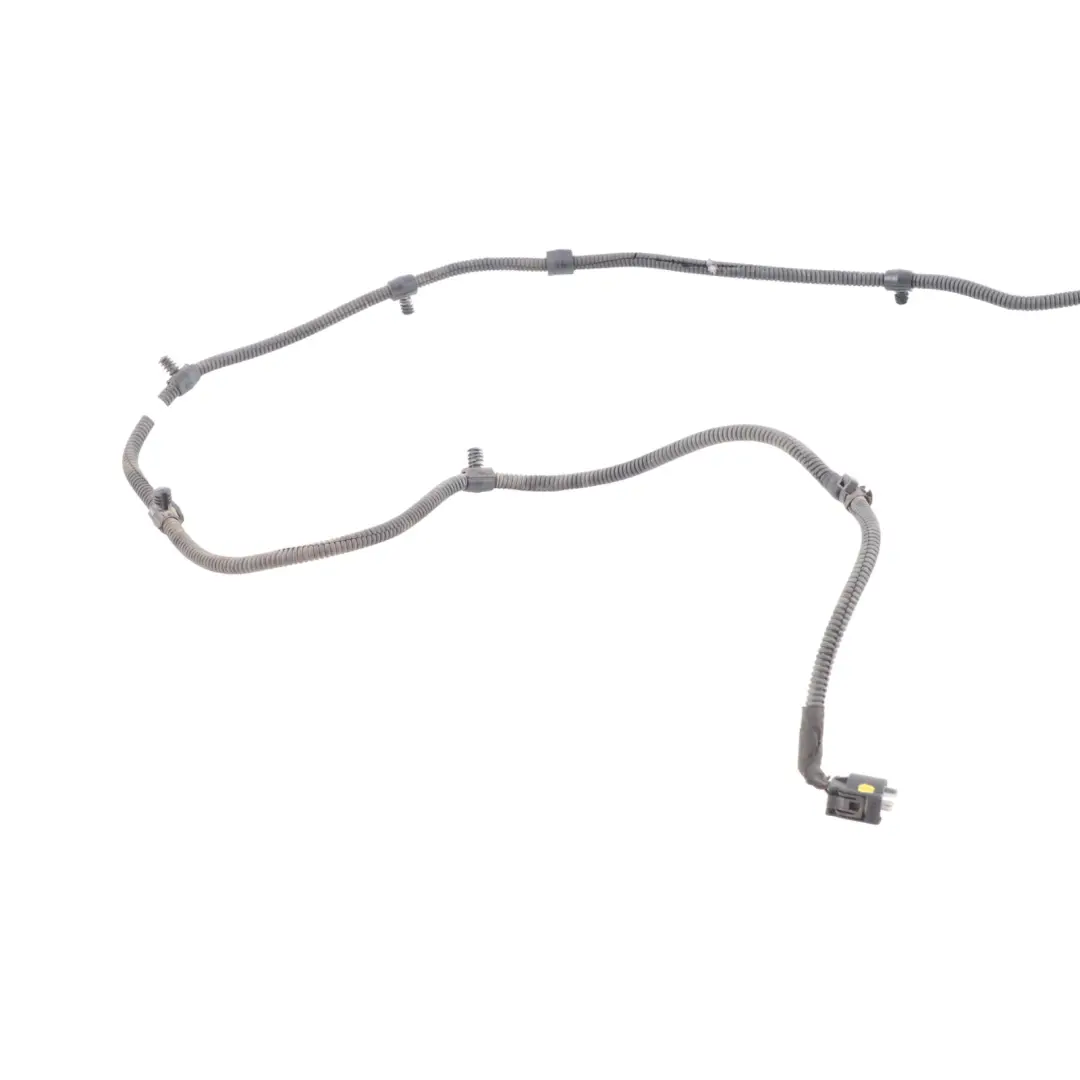

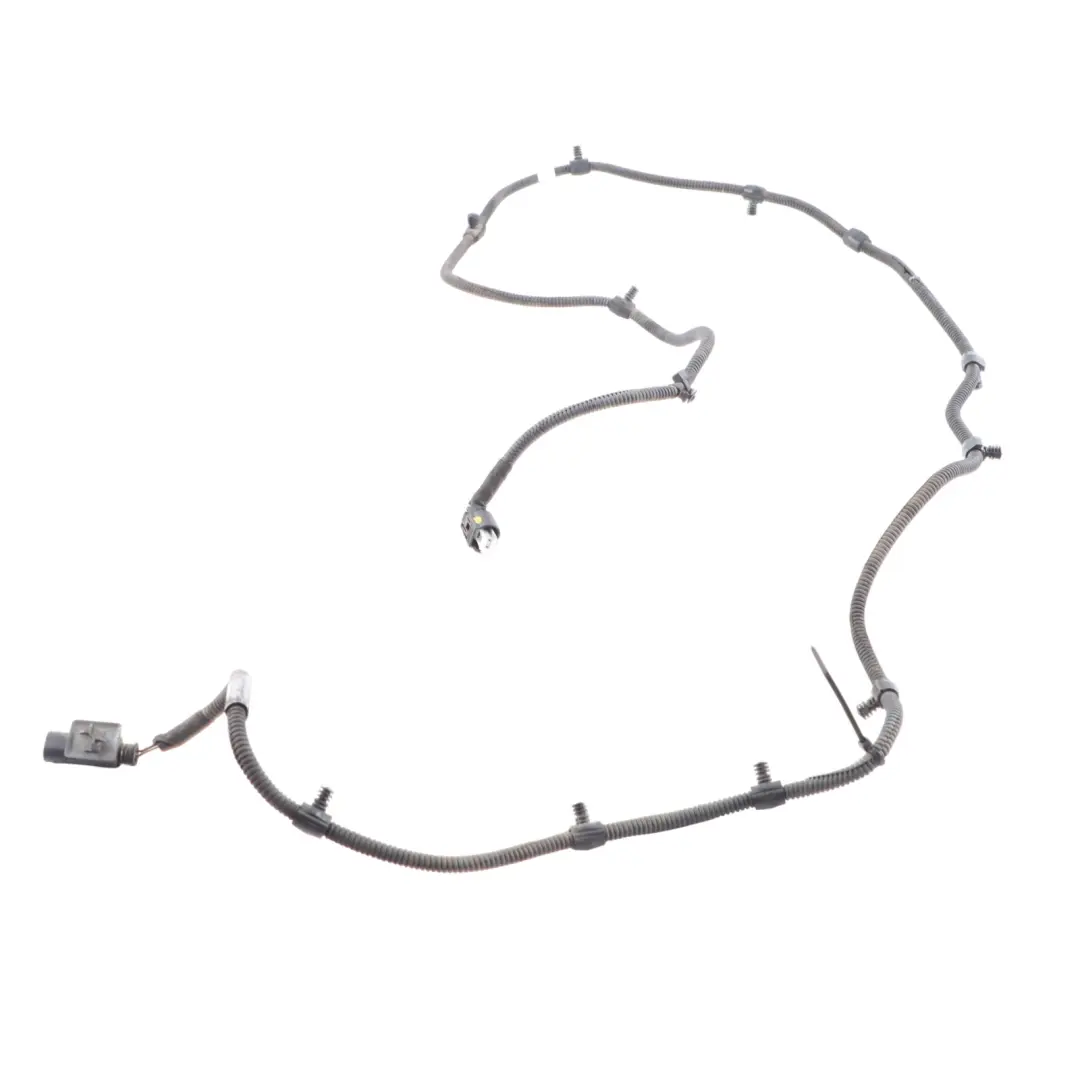

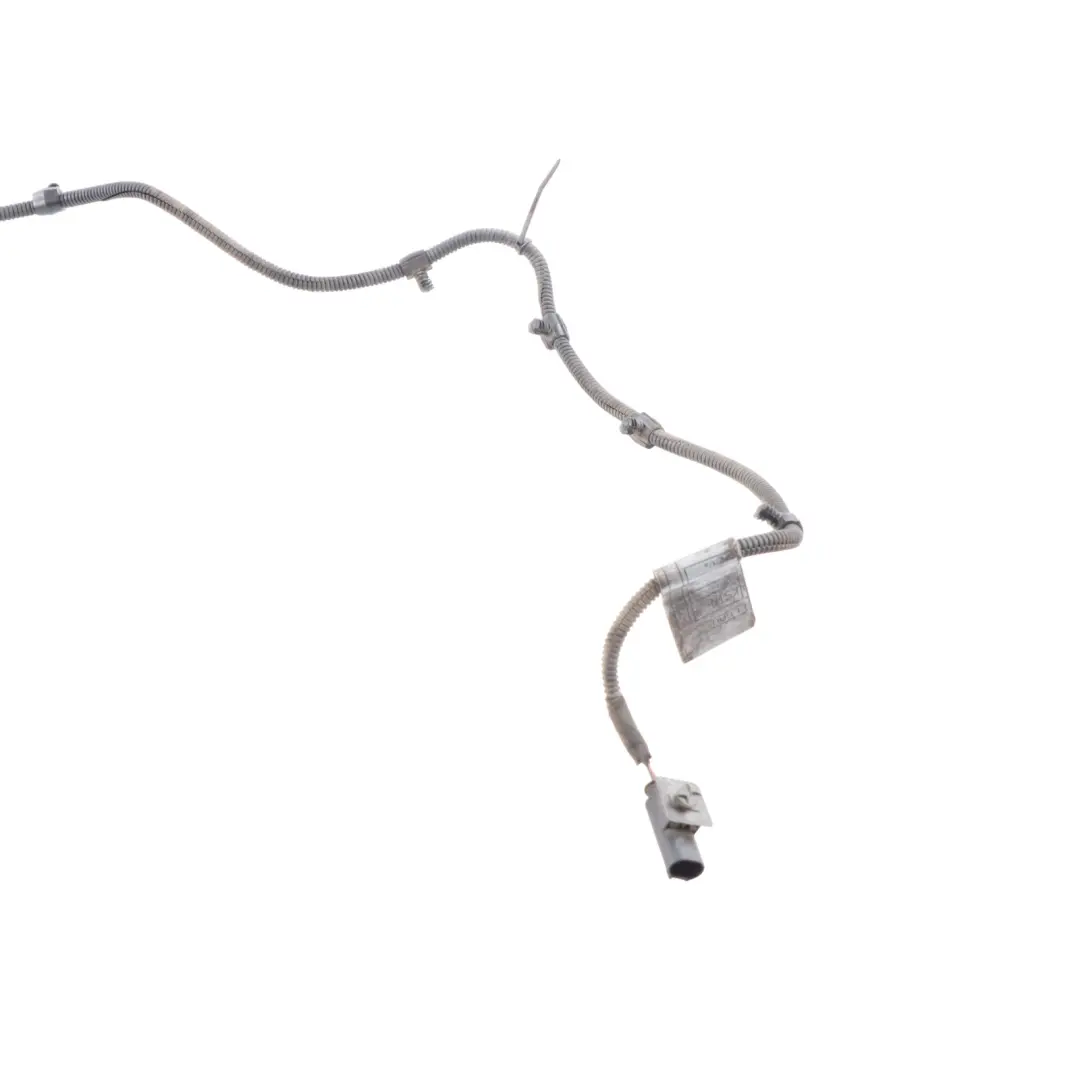

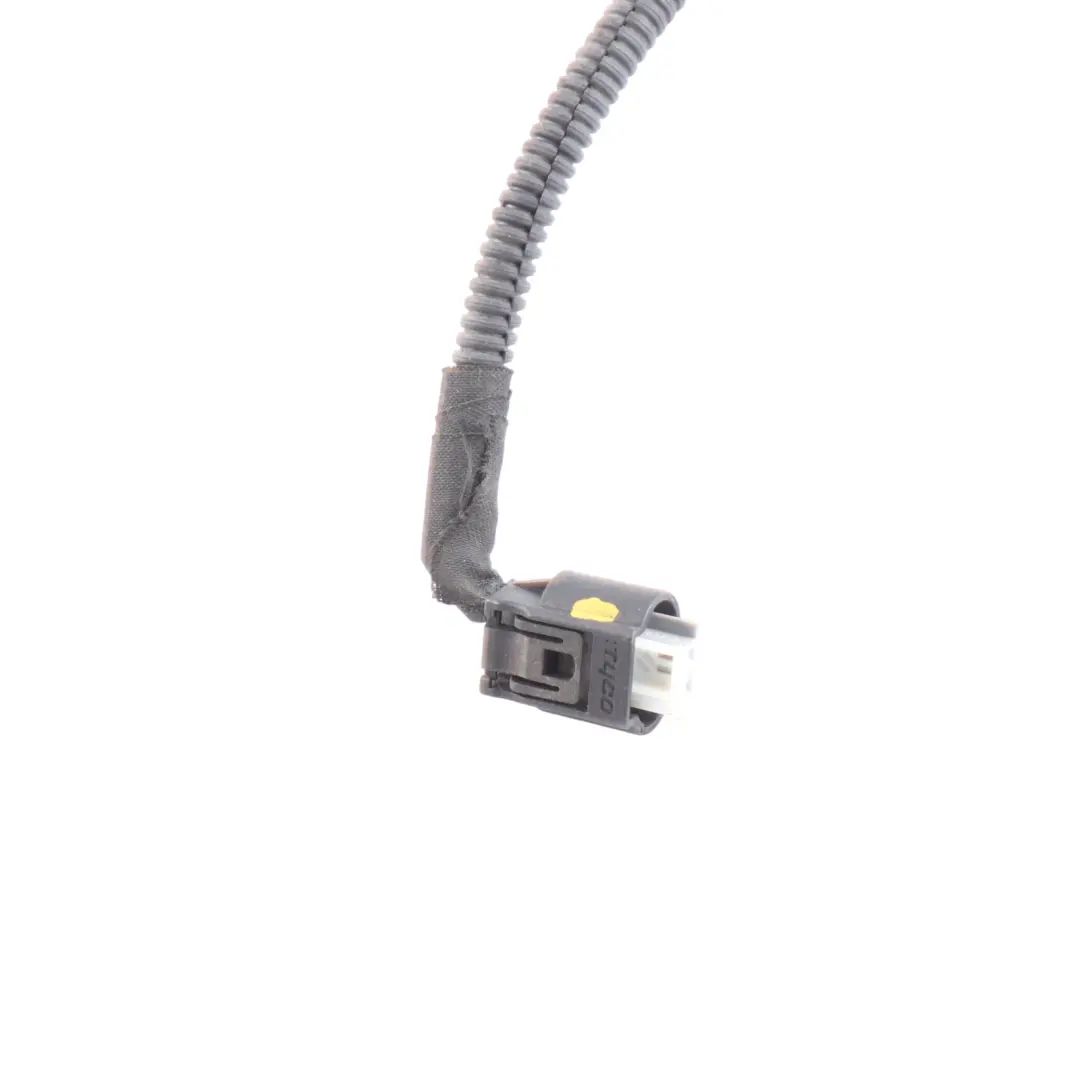

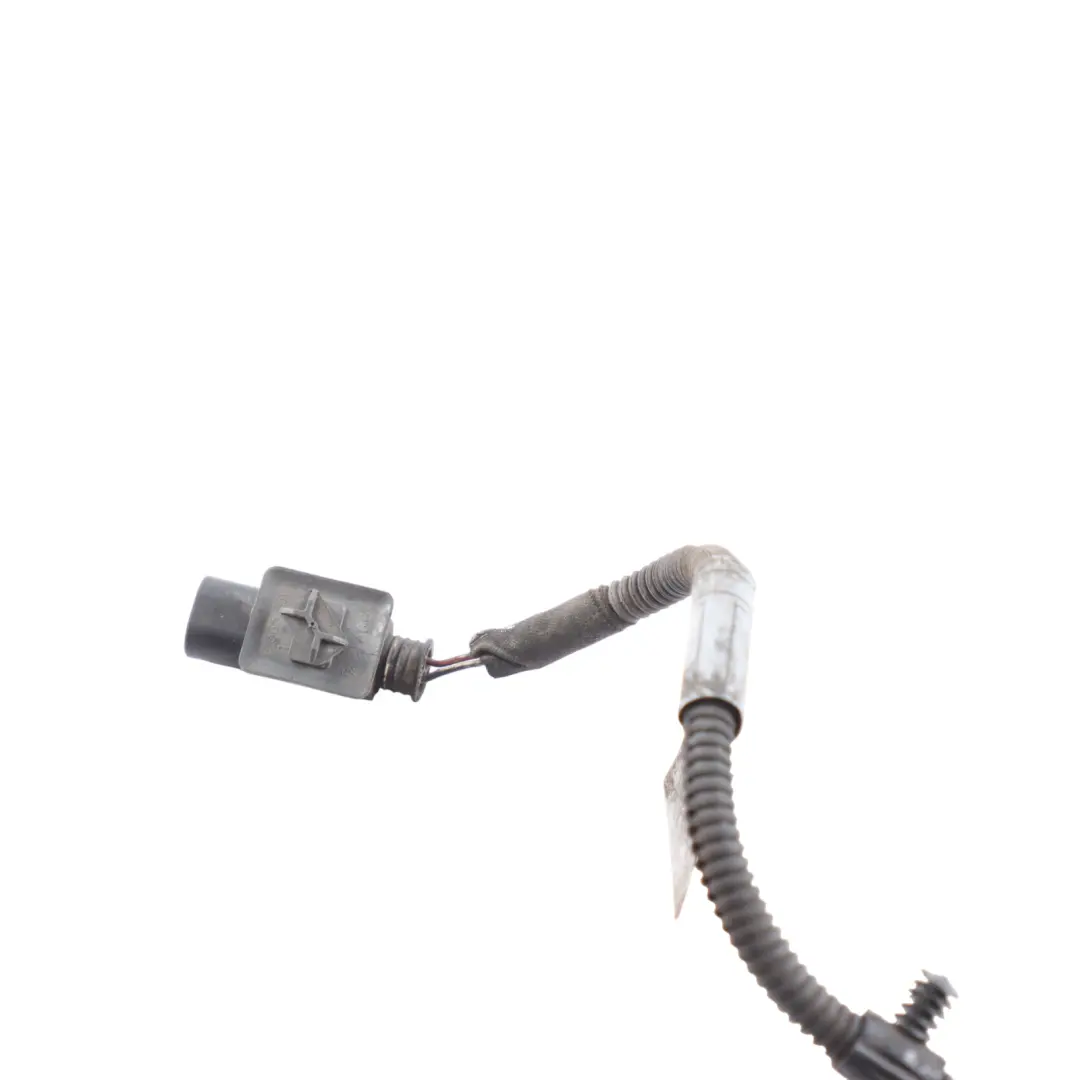

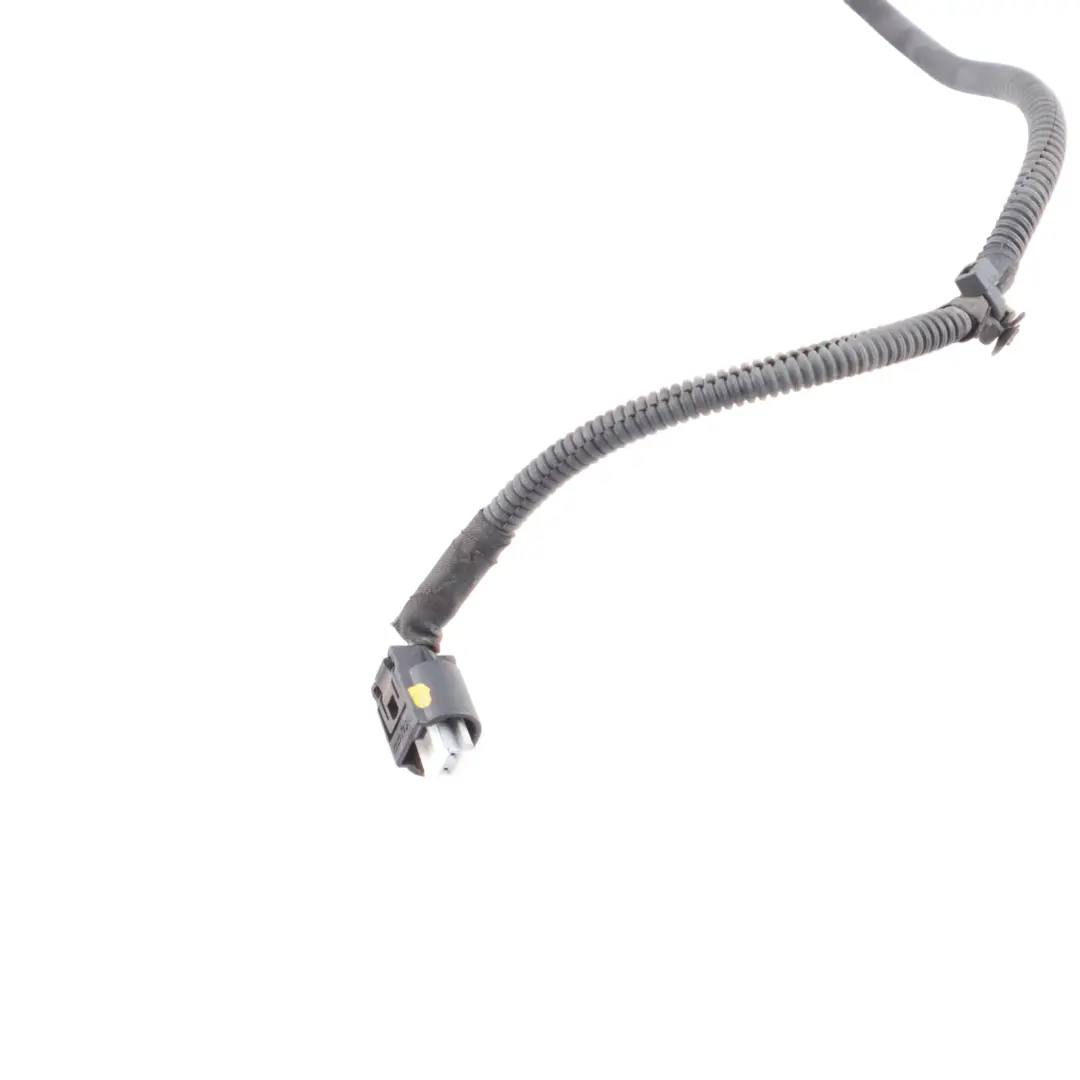

BMW F01 F02 Servotronic Cable Wiring Power Steering Loom Harness Set 9205362

BMW F01 F02 Servotronic Cable Wiring Power Steering Loom Harness Set is an original power steering system component designed for the precise connection of the Servotronic module to the electric pump or steering gear. This wiring set from the Cables, Harnesses and Connectors group ensures stable power supply and control signals, which translates into predictable steering assistance and driving comfort. This solution is particularly useful for post-collision repairs, steering rack replacement, or restoring the factory installation configuration in BMW 7 Series F01/F02 models.

Specifications and technical data

• SKU: 9205362
• Mark: BMW (Genuine OE)
• Condition: Used

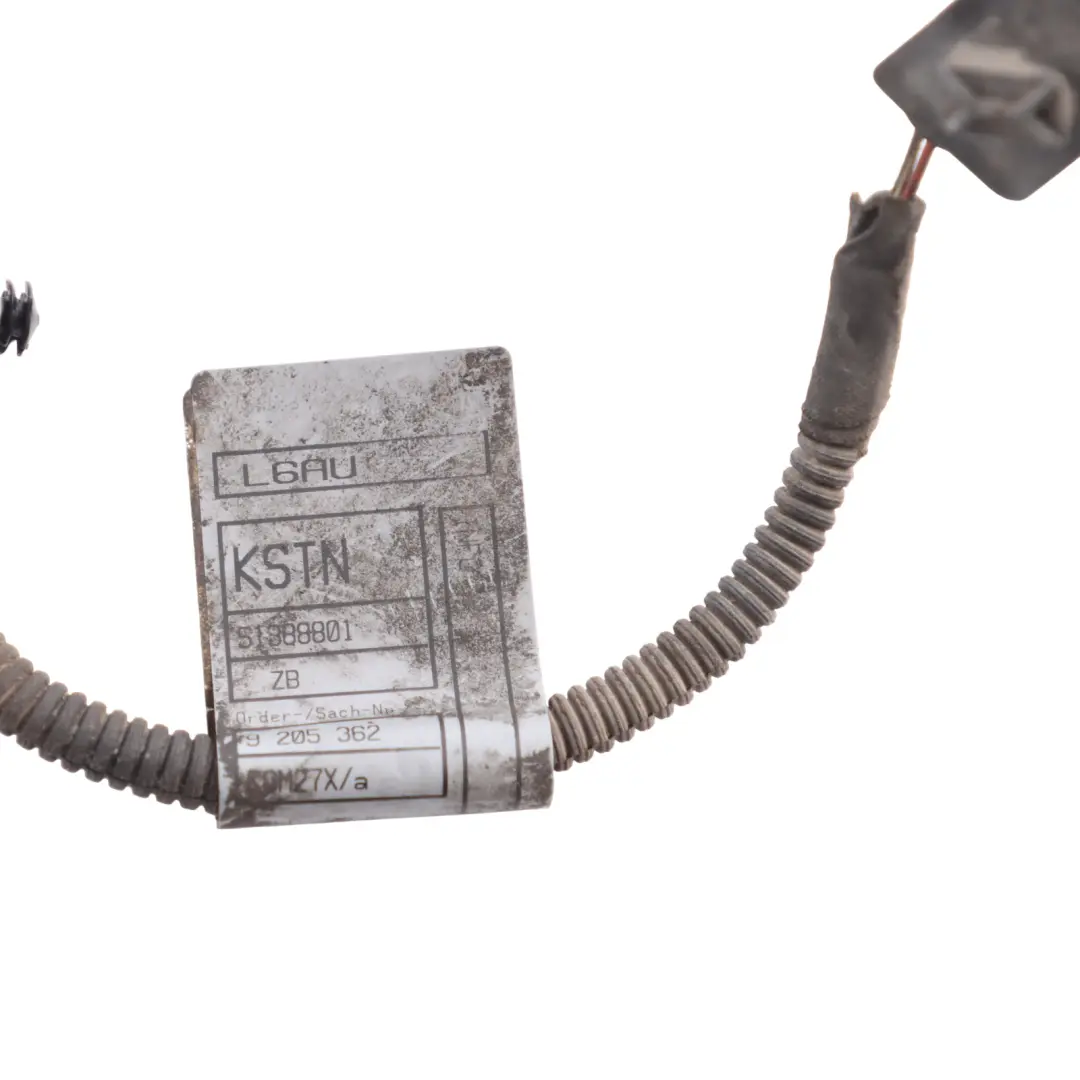

• OEM Part Number: 9205362
• Substitutable numbers: 9205362
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the Servotronic system

The presented harness is a component dedicated to the electric Servotronic power steering system in the BMW F01/F02. It is responsible for:

• transmitting power to the power steering system actuators,
• transmitting control signals between the controller and the steering gear,
• maintaining proper communication with the vehicle's electronics, which affects speed-dependent steering assistance.

Thanks to the proper fit of connectors and cable lengths, the harness allows for the restoration of the factory installation routing, which reduces the risk of abrasion, interference, and diagnostic errors.

Construction, connectors and compatibility

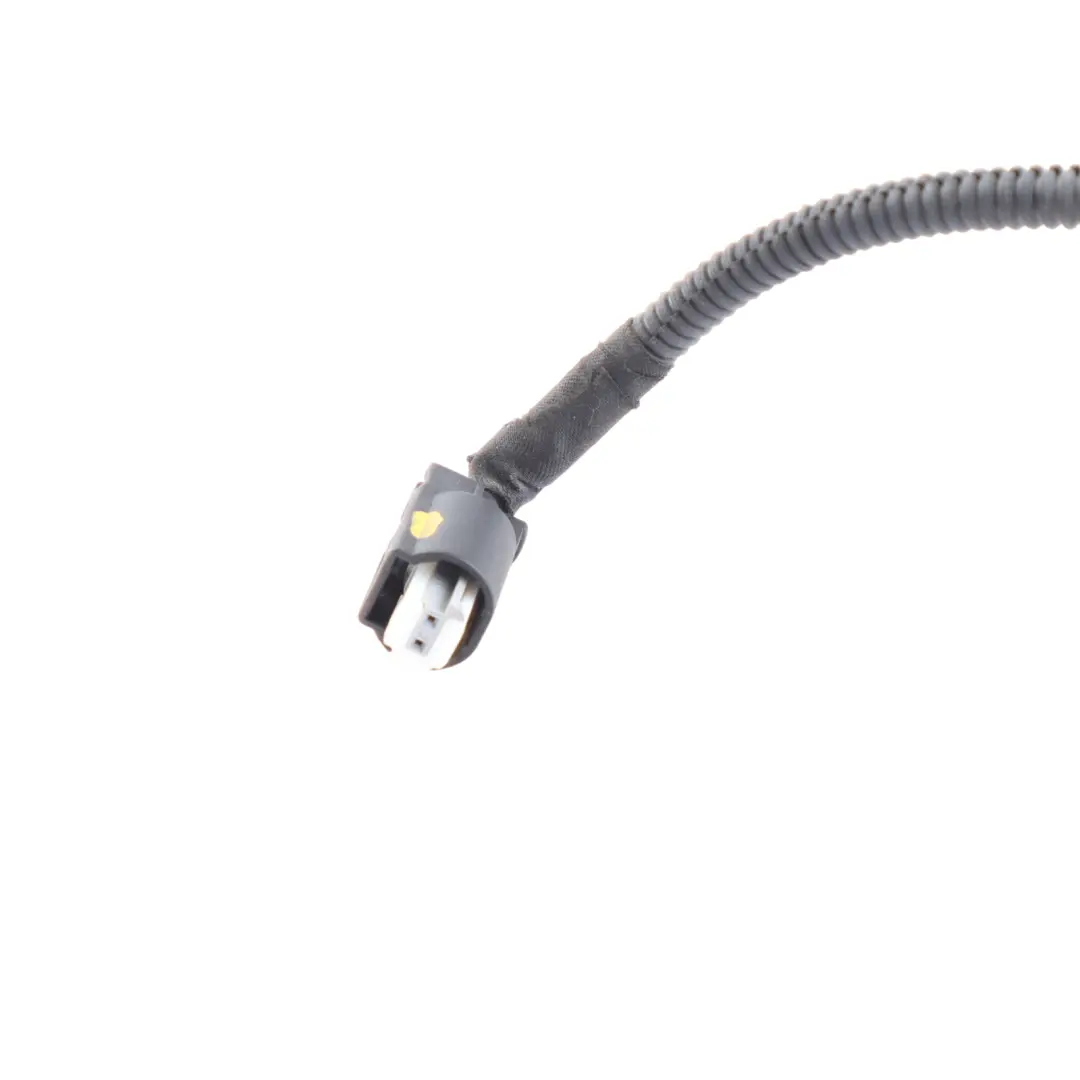

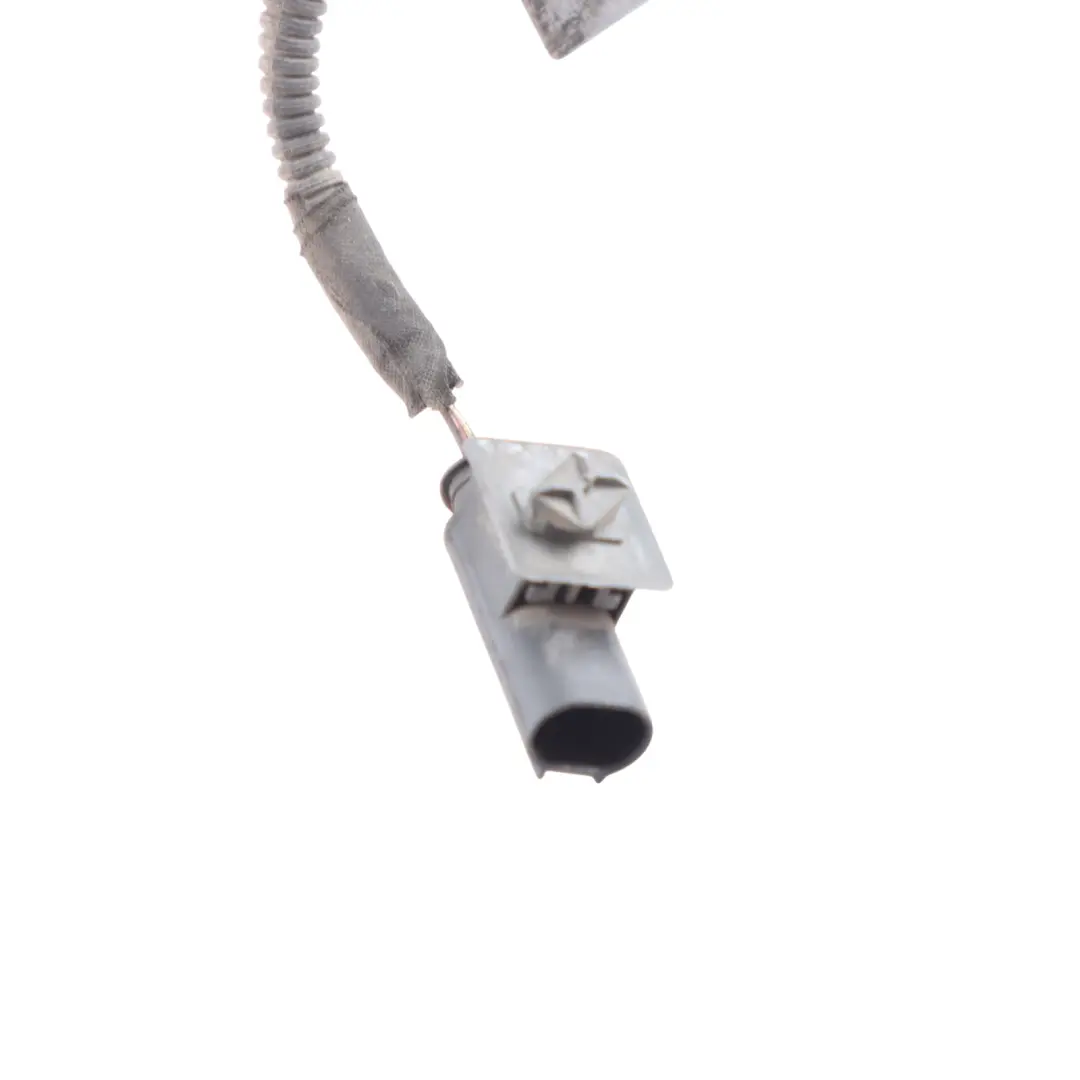

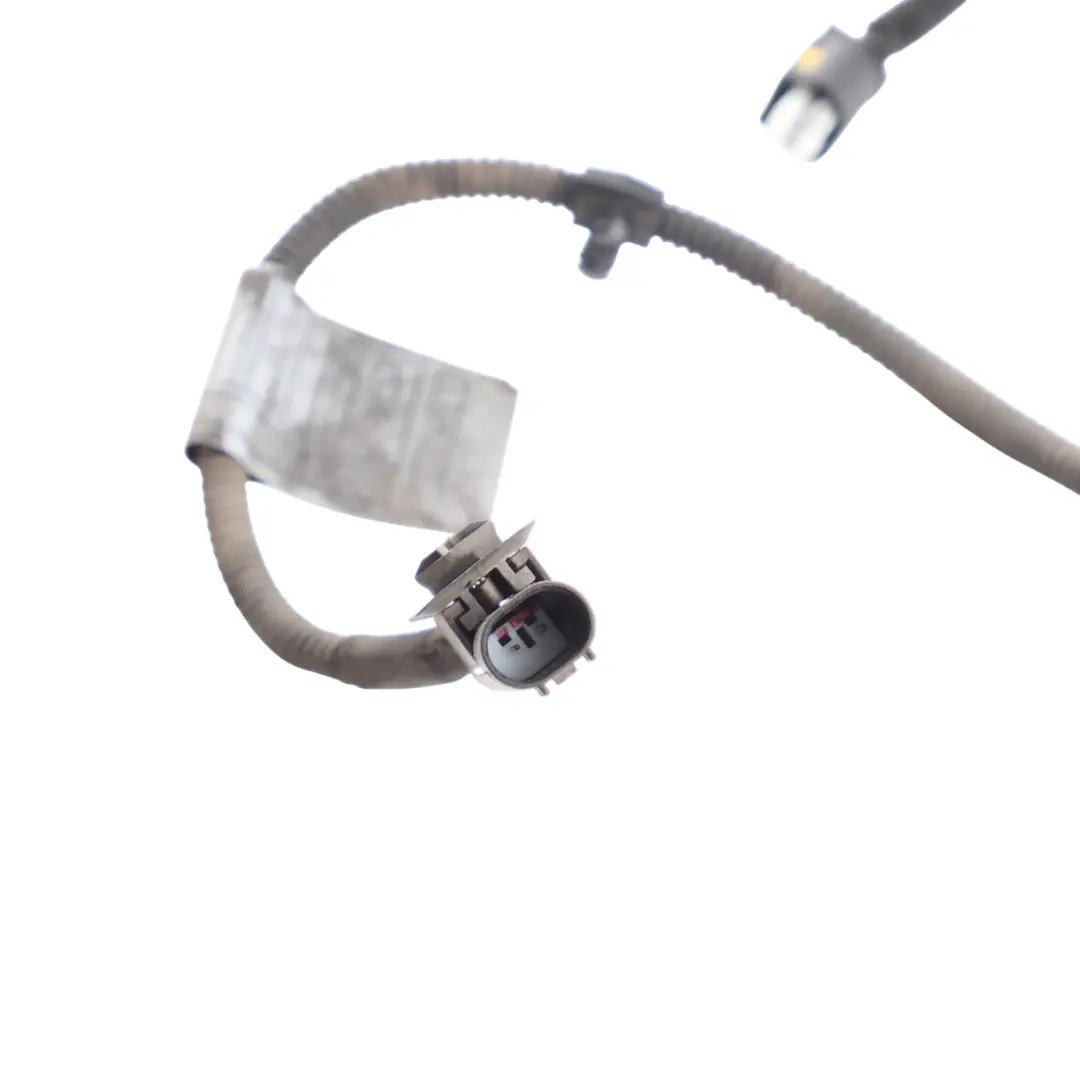

As an element from the Cables, Harnesses and Connectors group, the set includes a section of wiring with factory terminals, adapted for installation in the engine compartment and the steering gear area. The connectors used are structurally matched to the BMW installation, which enables plug-and-play assembly without the need for modifying the installation or soldering wires.

The harness is designed to work with the factory Servotronic system in the BMW 7 Series F01/F02 generation, allowing for compliance with the vehicle's original electrical architecture. Proper shielding and cable routing promote stable system operation, reducing susceptibility to electromagnetic interference.

Benefits of using an original BMW harness

Using original BMW wiring in the power steering system brings a number of practical benefits:

• Factory fit – cable length, connector type, and routing method correspond to solutions used in mass production, which facilitates assembly and service.
• Stable Servotronic system operation – a properly selected harness minimizes the risk of voltage drops, power interruptions, and communication errors with control modules.
• Better diagnostics – maintaining the original installation structure facilitates work with diagnostic testers and locating potential faults.

For workshops specializing in the BMW brand and users who care about compliance with factory specifications, using such a harness is a reasonable solution for steering system repairs.

Condition, assembly and service recommendations

The item comes from disassembly and is offered as a used part, which allows for economical repair while maintaining original manufacturing quality. Before installation, a standard inspection of the insulation and connector condition is recommended, as well as correct routing of the harness according to the factory path to avoid mechanical stress and contact with high-temperature components.

During assembly, it is worth paying attention to:

• proper latching of all connectors,
• using factory mounting points and brackets,
• checking the correct operation of the Servotronic system after starting the vehicle (no errors in the controller, uniform steering assistance).
