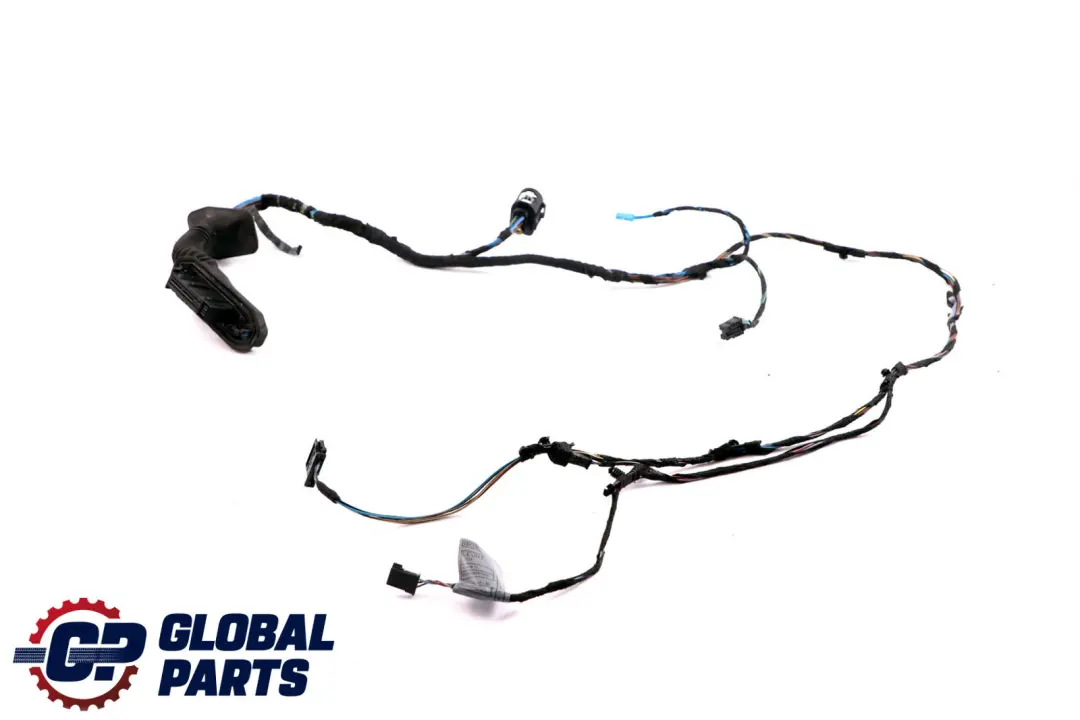

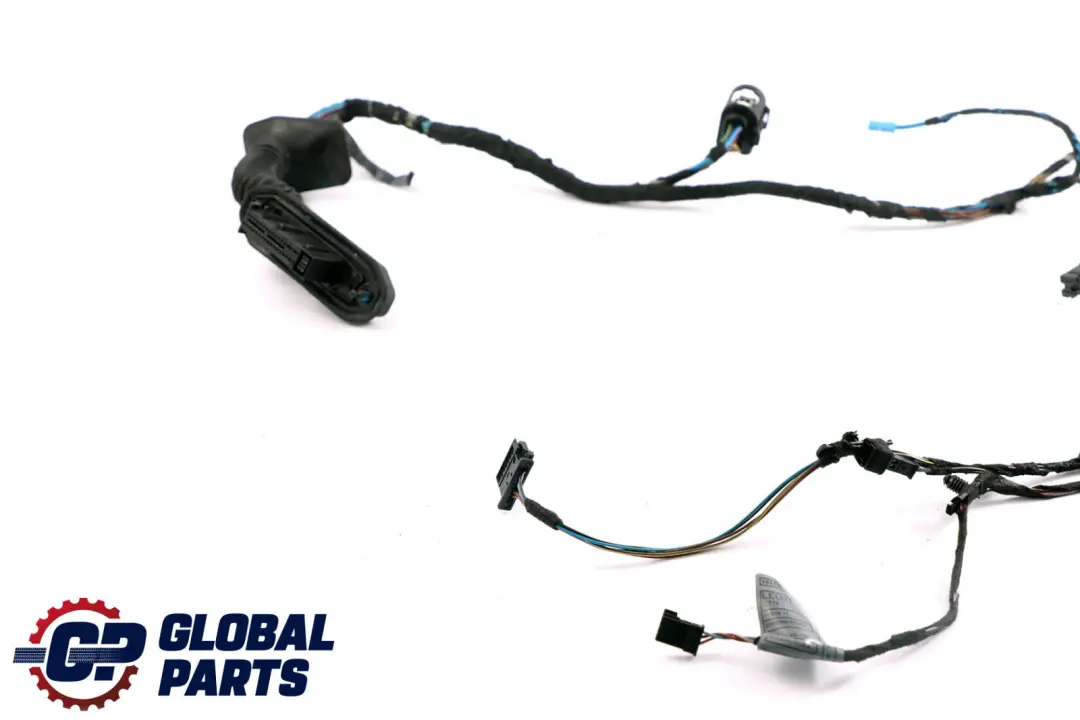

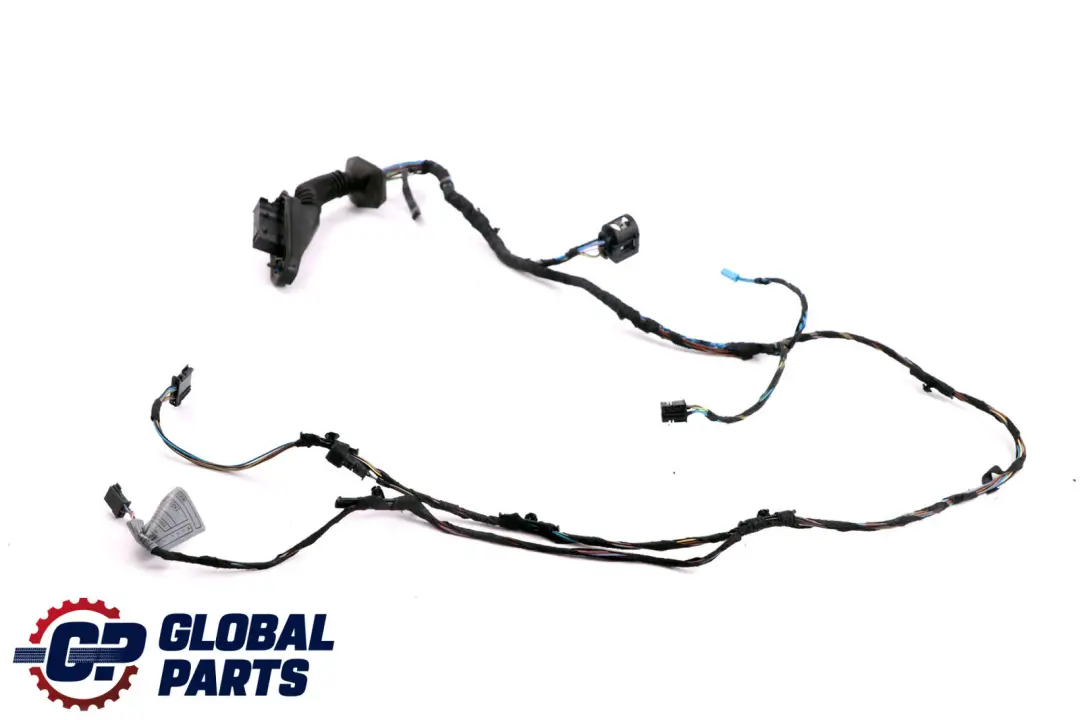

BMW 1 Series E81 E82 Wiring Set Door Co-driver 9118109

BMW E81 E82 Door Wiring Harness Right 9118109 is an original part from the Wires, Harnesses, and Connectors category, designed for the factory door electrics in BMW 1 Series E81/E82 cars. The product ensures a stable connection between the body modules and the door hardware, which translates to reliable operation of electric mechanisms and seamless diagnostics.

Specifications and technical data

• SKU: 9118108
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9118108
• Substitutable numbers: 61129118109, 9118109, 9118108, 61129260915, 9260915, 9118107
• Location on the vehicle: Left
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function of the BMW E81 E82 Door Harness

The presented door wiring harness is dedicated for use on the left side of the vehicle in BMW E81/E82 models. It is responsible for transmitting signals and power to the elements located in the door, such as window controls, central locking, mirrors, or lighting, according to the specific car's configuration.

By maintaining the factory architecture of wires and connectors, the harness allows for the preservation of the original installation path, which facilitates installation, servicing, and subsequent diagnostic operations with standard BMW service tools.

Construction, Connectors, and Compatibility

This item belongs to the group of OEM BMW wires, harnesses, and connectors, which means it complies with the manufacturer's factory standards regarding wire cross-sections, insulation, and connector types. The construction includes:

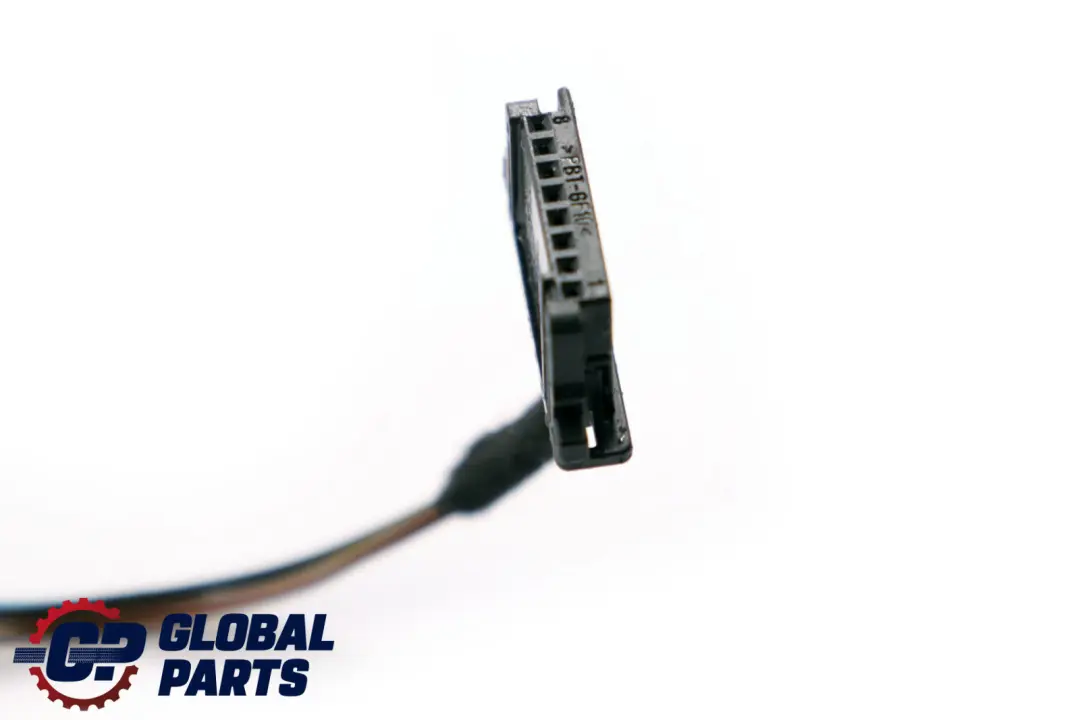

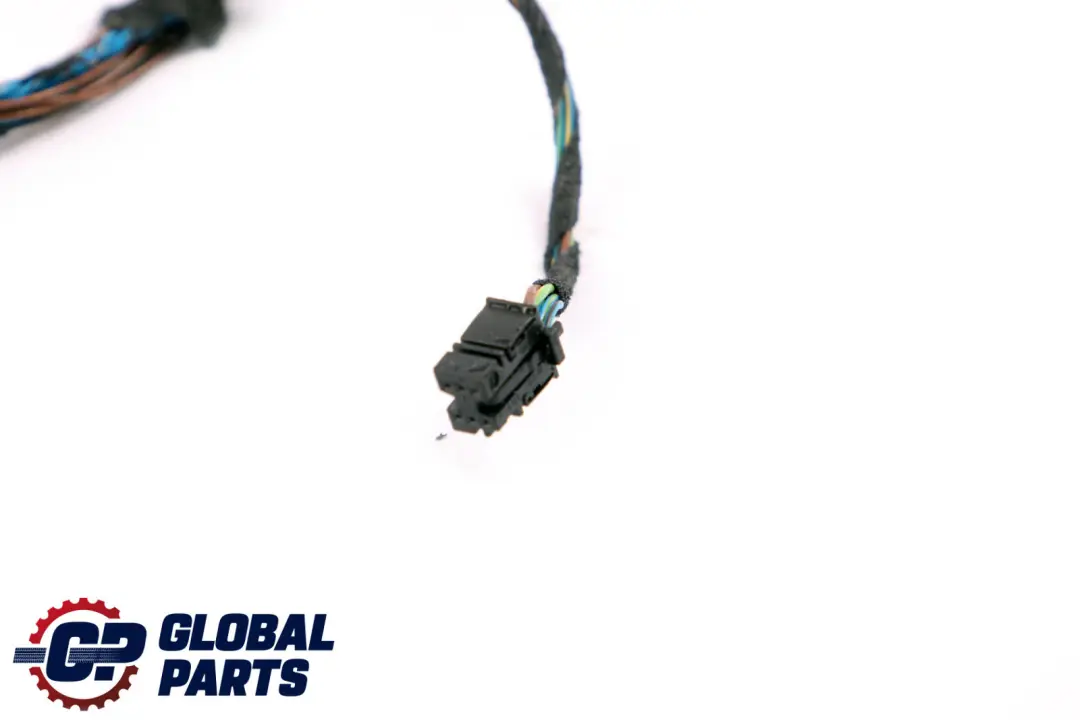

• factory connectors matched to body modules and door hardware,
• appropriately selected wire lengths enabling correct routing within the door and grommet,
• insulation adapted for operation in conditions typical for the interior of a door (moisture, temperature changes, movement of mechanical parts).

Such construction promotes maintaining correct circuit resistance, minimizes the risk of signal interference, and facilitates integration with the existing vehicle wiring without the need for modifications.

Benefits of Using an Original BMW Harness

Using an original door harness in a BMW E81/E82 offers a range of practical benefits in daily operation:

• Full Electrical Compatibility – maintaining the factory connection diagram reduces the risk of communication errors between modules.
• Easier Installation – the wires are already properly terminated and shaped, which speeds up the replacement of damaged wiring.
• Stable Operation of Door Hardware – correct power supply and control signals contribute to the reliable operation of electrical mechanisms.
• Possibility of maintaining the original wire color scheme, which facilitates potential future repairs and diagnostics.

Condition, Verification, and Service Application

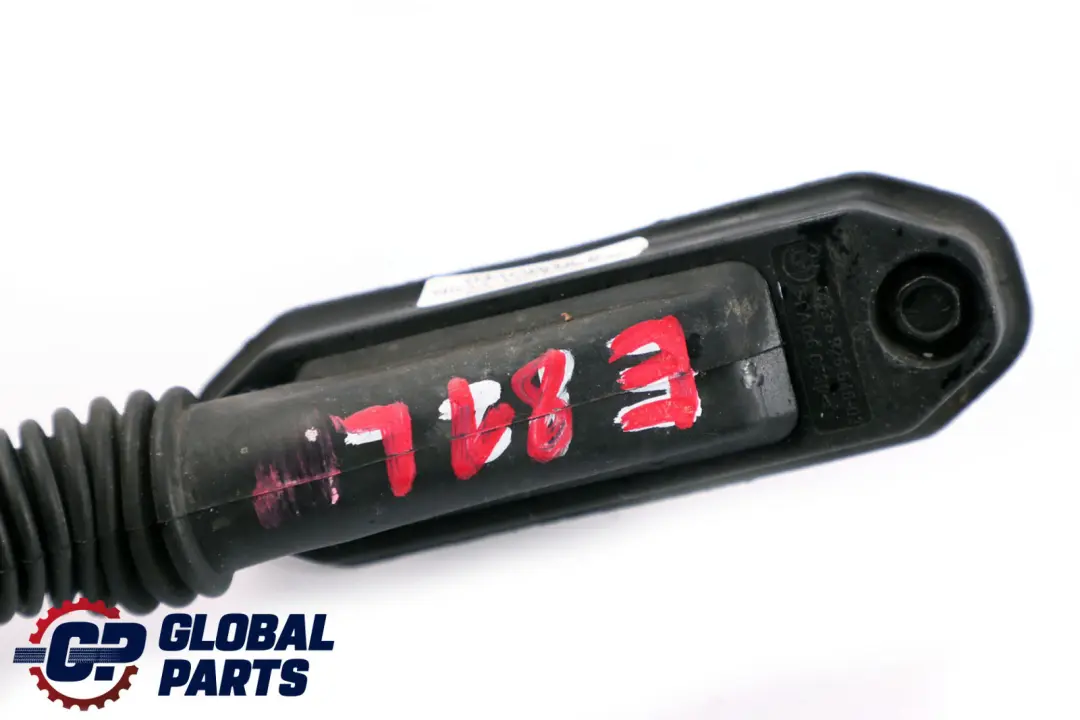

The harness is a used OEM BMW part obtained from disassembly. This type of part is an excellent replacement for damaged door wiring, especially in cases of wire chafing, contact corrosion, or mechanical damage in the grommet between the pillar and the door.

Before installation, a standard check of the insulation condition, connectors, and correct wire routing within the vehicle is recommended. A properly selected and installed harness allows for the restoration of full door electric functionality without the need to interfere with the main body wiring.
