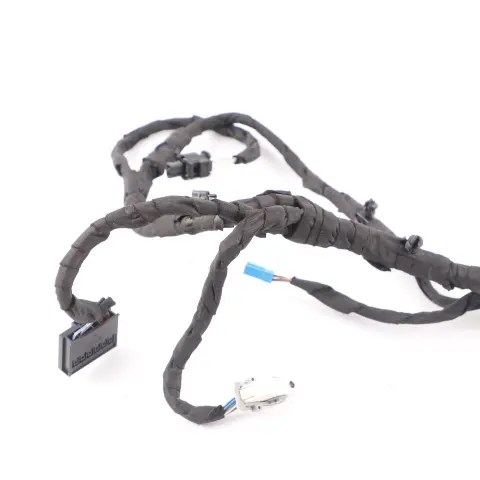

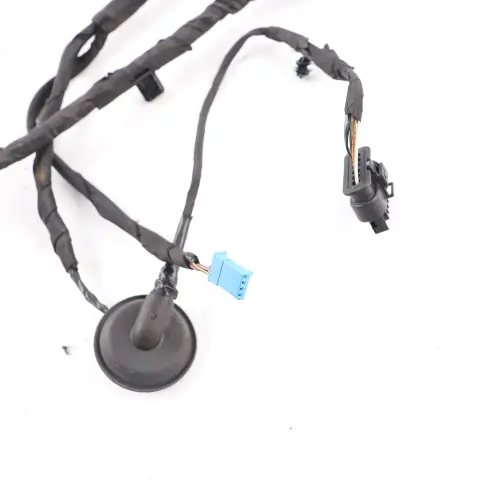

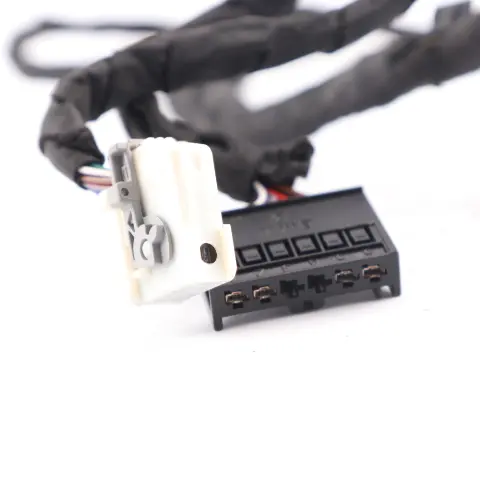

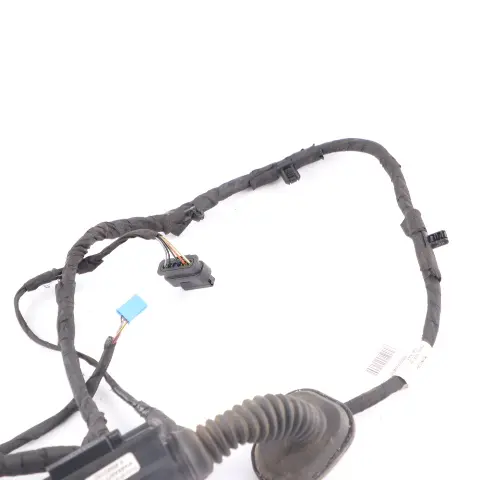

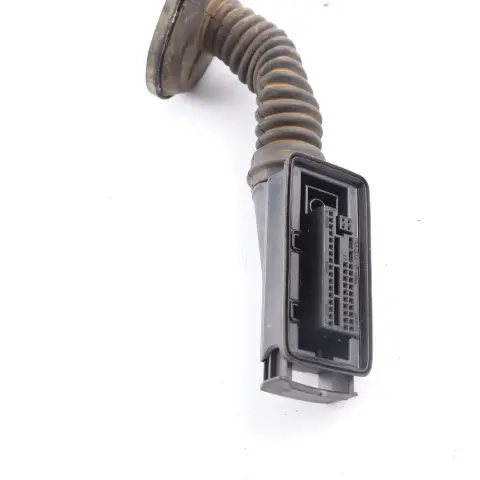

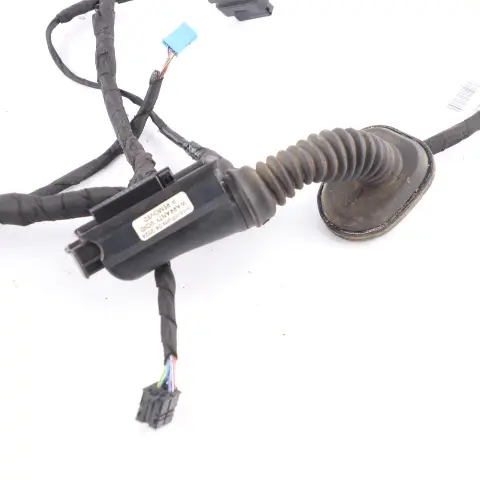

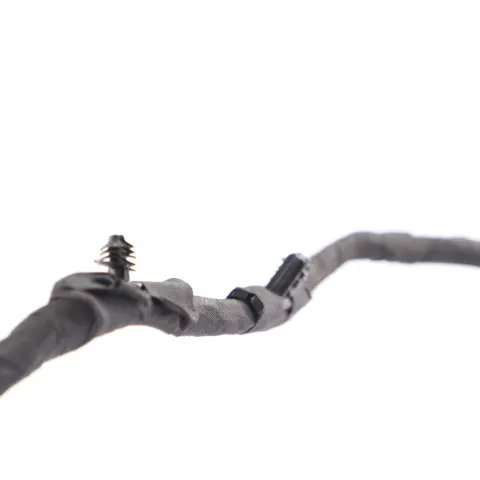

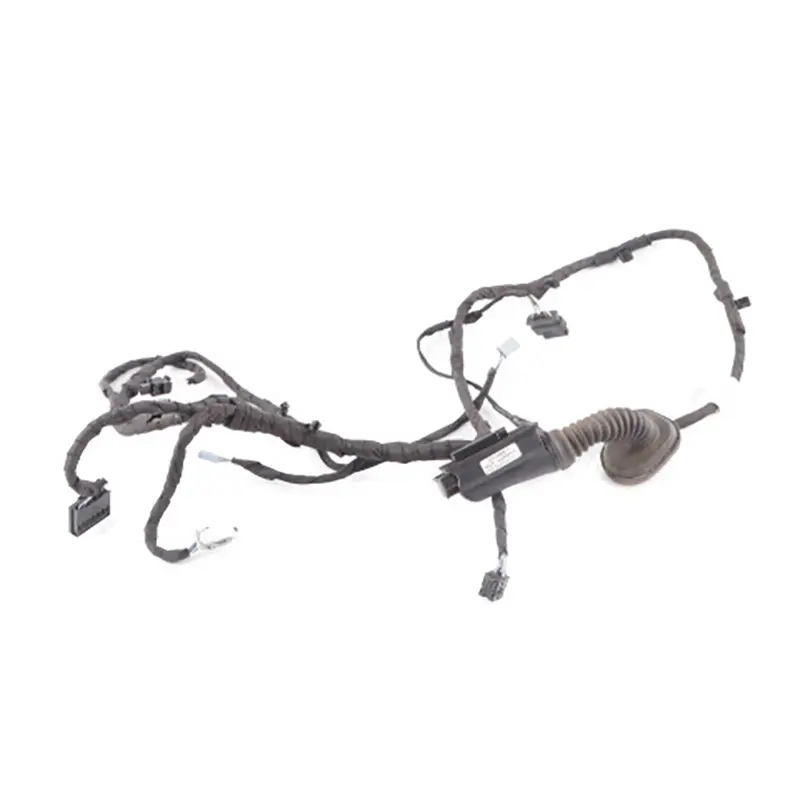

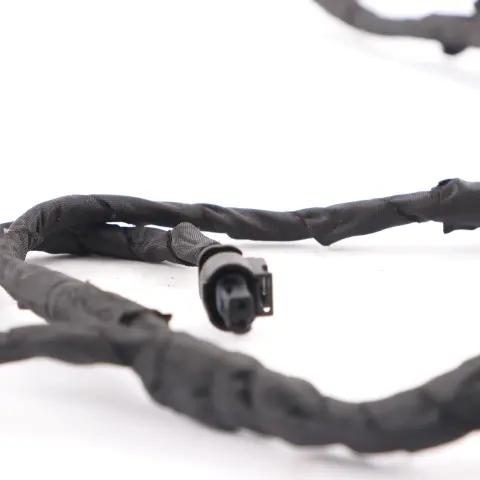

BMW F40 Door Wiring Cable Harness Loom 8714461

The BMW F40 Door Wiring Cable Harness Loom is an original door electrical installation component designed for BMW F40 models. It provides a precisely fitted service solution that restores proper door electrical functionality – from window control and mirrors to the central locking system. Thanks to its construction compliant with factory BMW standards, this door wiring harness facilitates professional repairs without requiring any installation modifications.

Specifications and technical data

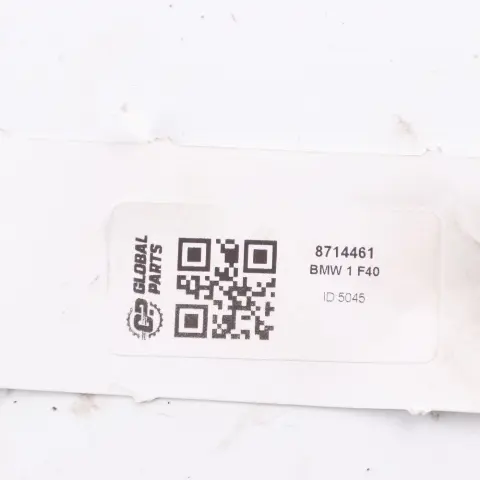

• SKU: 8714461
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8714461
• Substitutable numbers: 8714461
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function of the BMW F40 Door Harness

The presented BMW F40 door harness belongs to the Cables, Harnesses, and Connectors category, responsible for distributing signals and power between body modules and door accessories. Its function is to provide a stable electrical connection to, among others:

• window regulator motors,
• mirror adjustment and heating (if applicable),
• central locking system and door sensors,
• control buttons in the door panel.

With factory-standard wiring routing and appropriately selected wire gauges, the harness ensures proper operating parameters for the door's electrical systems, minimizing voltage drops and signal interference.

Construction and Compatibility with BMW Installation

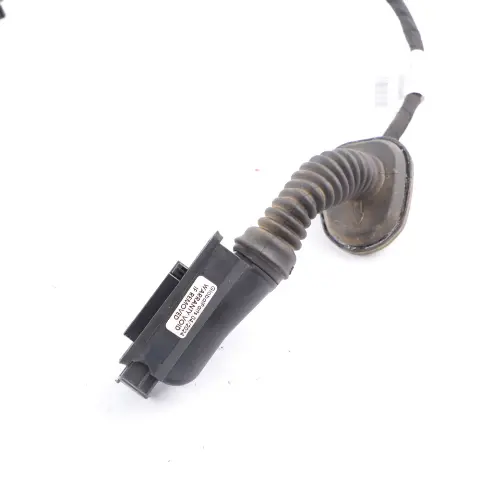

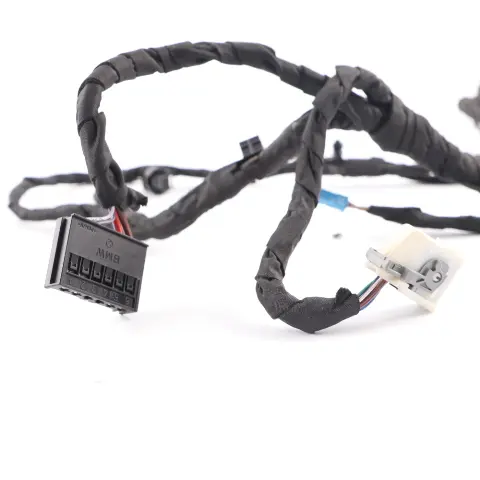

The harness is designed by BMW as an OEM part, meaning it offers full compatibility with the F40 body's electrical architecture. The connectors used are factory-configured for specific sockets in the door and pillar, allowing for a near plug-and-play installation without the need for soldering or creating adapters.

The wire layout, section lengths, and mounting points are consistent with the original installation path, facilitating correct routing of the harness within the door and grommet. This solution helps maintain sealing and protection against mechanical damage during the vehicle's daily operation.

Benefits of Using an Original Door Harness

Using an original harness from the Cables, Harnesses, and Connectors group in a BMW F40 offers a range of practical service and user benefits:

• Full Electrical Compatibility – wires and connectors are adapted to the parameters of the factory control module and door accessories.
• Stable Connections – dedicated connectors and clips minimize the risk of contact looseness and wire chafing.
• Easier Diagnostics – maintaining the original installation structure simplifies work with BMW diagnostic testers and service schematics.
• Operational Safety – correctly routed harness reduces the risk of short circuits that could affect other body systems.

Component Condition and Service Application

The offered harness is a used part, making it an attractive solution for accident repairs, replacement of damaged door wiring, or restoring functionality after mechanical failure of the grommet. For workshops specializing in the BMW brand, it is a practical component that allows for maintaining the factory connection logic without the need to reconstruct the entire installation from scratch.

Replacing the harness is particularly recommended in situations where several wires have been broken, insulation has been damaged over a significant length, or connectors have melted. Using a complete, original harness reduces repair time and minimizes the risk of subsequent faults related to makeshift connections.

Expanding Door Installation in BMW

If you are planning a comprehensive repair or upgrade of the door area in your BMW and need other components from the same group, such as additional harnesses, connectors, or wire sections, check the available parts in the BMW Cables, Harnesses, and Connectors category.
