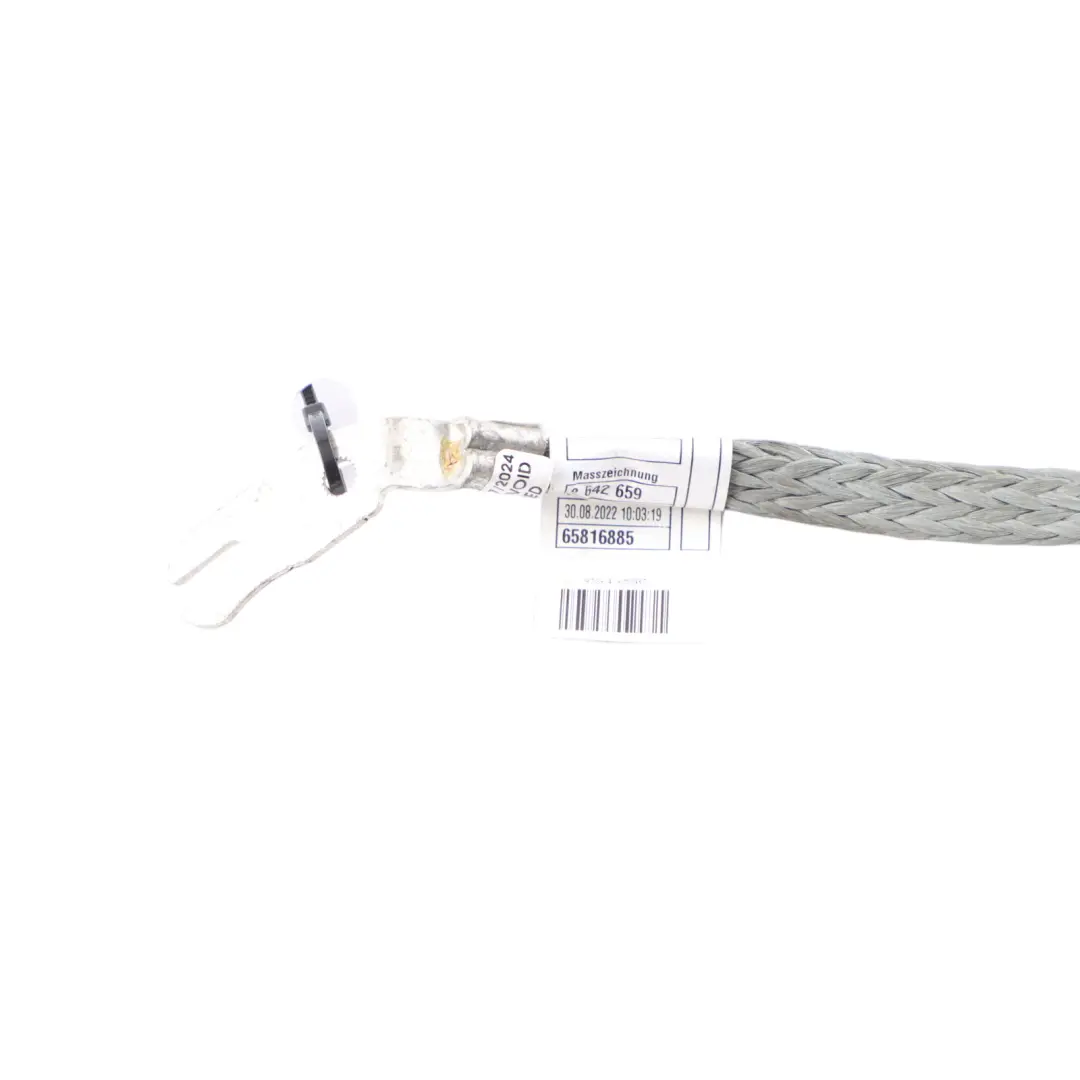

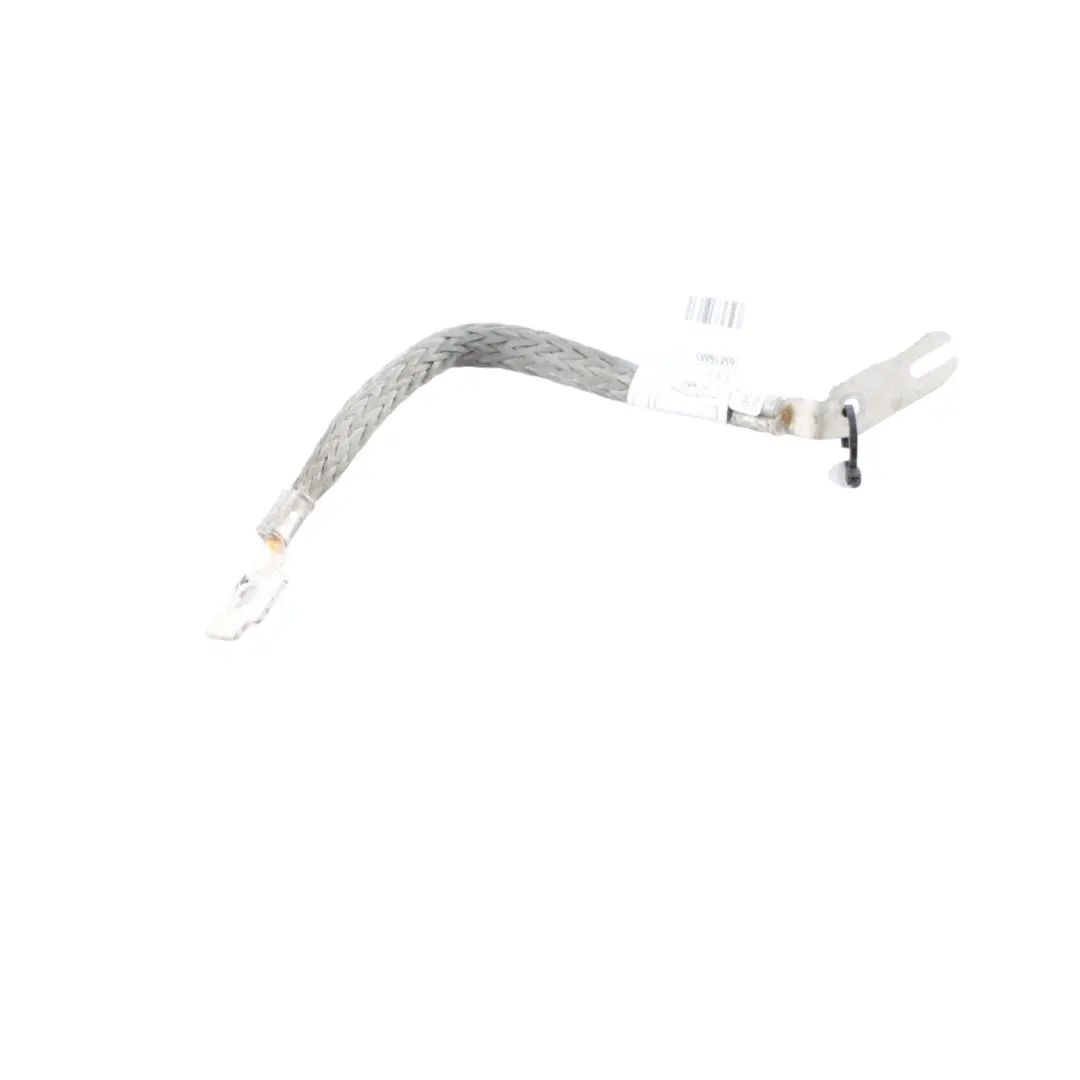

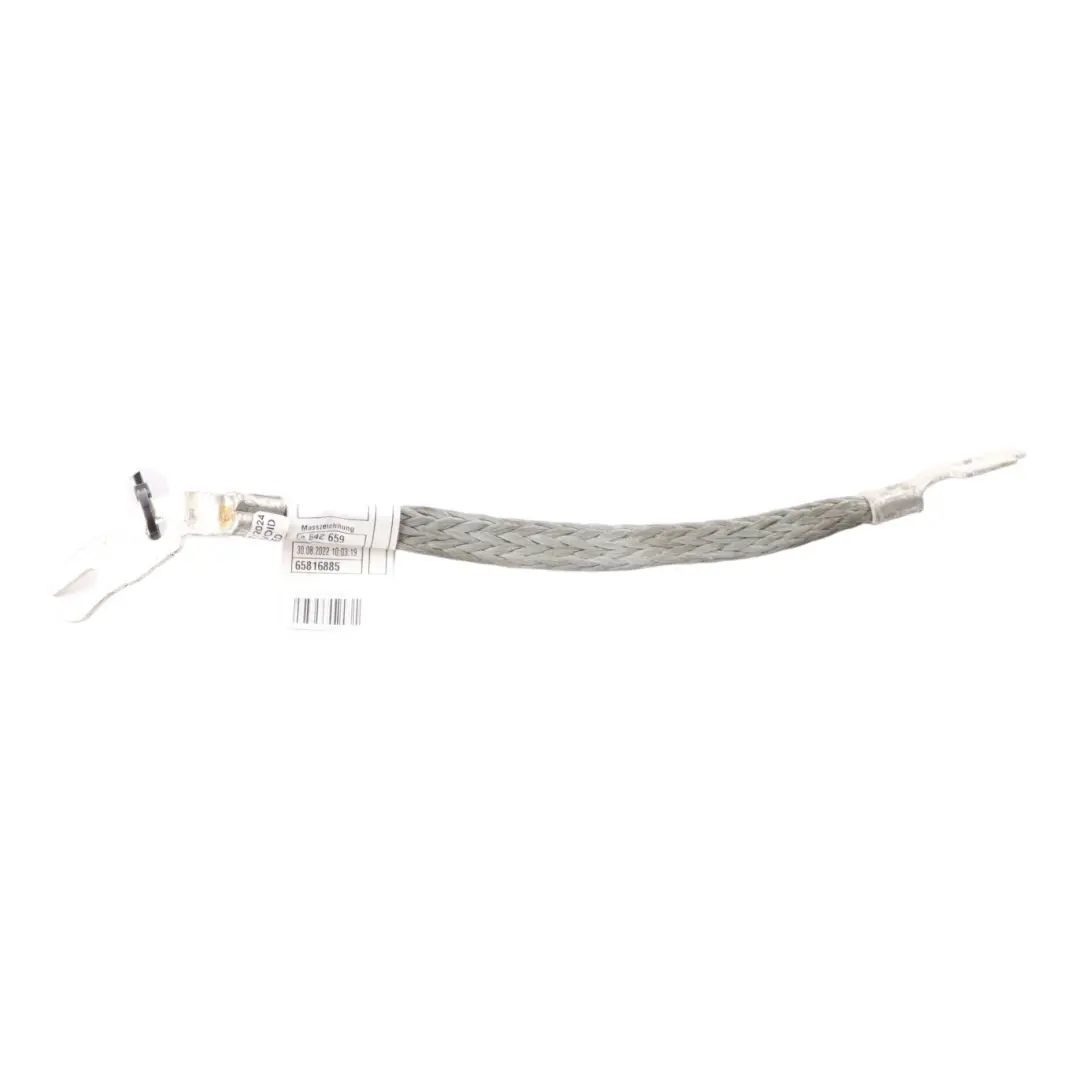

BMW G11 LCI G12 LCI G30 Earth Ground Line Cable Transmission Gearbox 8642658

The BMW G11 LCI, G12 LCI, G30 Gearbox Ground Strap is an original electrical system component, belonging to the Cables, Harnesses, and Connectors group. It ensures a stable ground connection between the gearbox and the body, which translates to proper operation of the drive control systems and onboard electronics. This solution is dedicated to specific BMW models, designed for the correct length, cross-section, and mounting method.

Specifications and technical data

• SKU: 8642658
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8642658
• Substitutable numbers: 8642658, 61258642658
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function in the Vehicle

The described ground strap is used in BMW 7 Series G11 LCI, G12 LCI, and 5 Series G30 models, in the gearbox area. Its purpose is to provide a low-resistance electrical connection between the transmission and the body, which stabilizes the ground reference for control units, sensors, and actuators related to the drivetrain.

A properly selected ground strap limits the risk of interference, voltage drops, and communication problems with control bus systems. In practice, this translates to more predictable gearbox operation, correct response of safety systems, and reduced load on other electrical system components.

Construction and Fit for BMW

The strap belongs to the group of factory BMW components, meaning its geometry, terminal types, and routing have been specifically developed for the gearbox and chassis design of the mentioned generations. The eyelet terminals and mounting points used are matched to factory bolts and brackets, which facilitates installation and minimizes the risk of improper strap routing.

Original manufacturing promotes consistency within the entire vehicle's ground harness, and the appropriately selected conductor cross-section allows for safe dissipation of operating and starting currents. This enables the strap to operate in demanding thermal and mechanical conditions typical for the gearbox area.

Condition, Verification, and Service Application

The item is offered as a used part, which, in the case of original BMW components, offers a favorable compromise between quality and repair cost. This type of strap is particularly useful for:

• gearbox replacement or removal,
• diagnosing ground issues in the drive area,
• mechanical or corrosion damage to the existing strap,
• comprehensive renovation of the electrical system in the chassis area.

By maintaining the original mounting specifications, the strap can be used as a direct replacement for the factory component, without the need for modifications or additional connections.

Benefits of Using an Original Ground Strap

Using an original ground strap in BMW G11 LCI, G12 LCI, and G30 models helps maintain the electrical system's consistency with the manufacturer's design. Key benefits include:

• Factory Fitment – correct length, shape, and mounting points reduce mechanical stress and the risk of chafing.
• Stable Ground Reference – proper ground connection supports the operation of gearbox control units and driver assistance systems.
• Hassle-Free Installation – the strap works with original brackets and bolts, reducing service time.
• Consistency with the Rest of the Harness – maintaining uniform quality throughout the vehicle's electrical system.

Part Selection and Additional Information

When selecting a gearbox ground strap for a specific BMW model, it is advisable to use the manufacturer's part numbers and vehicle data to ensure full compatibility with the body version and installed transmission. If in doubt, comparing the strap's routing and terminal types with the factory-installed component is helpful.

If you are planning a comprehensive repair or upgrade of the electrical system area in your BMW and need other components from the same group, such as additional ground straps, harness sections, or service connectors, check the available parts in the BMW Cables, Harnesses, and Connectors category.
