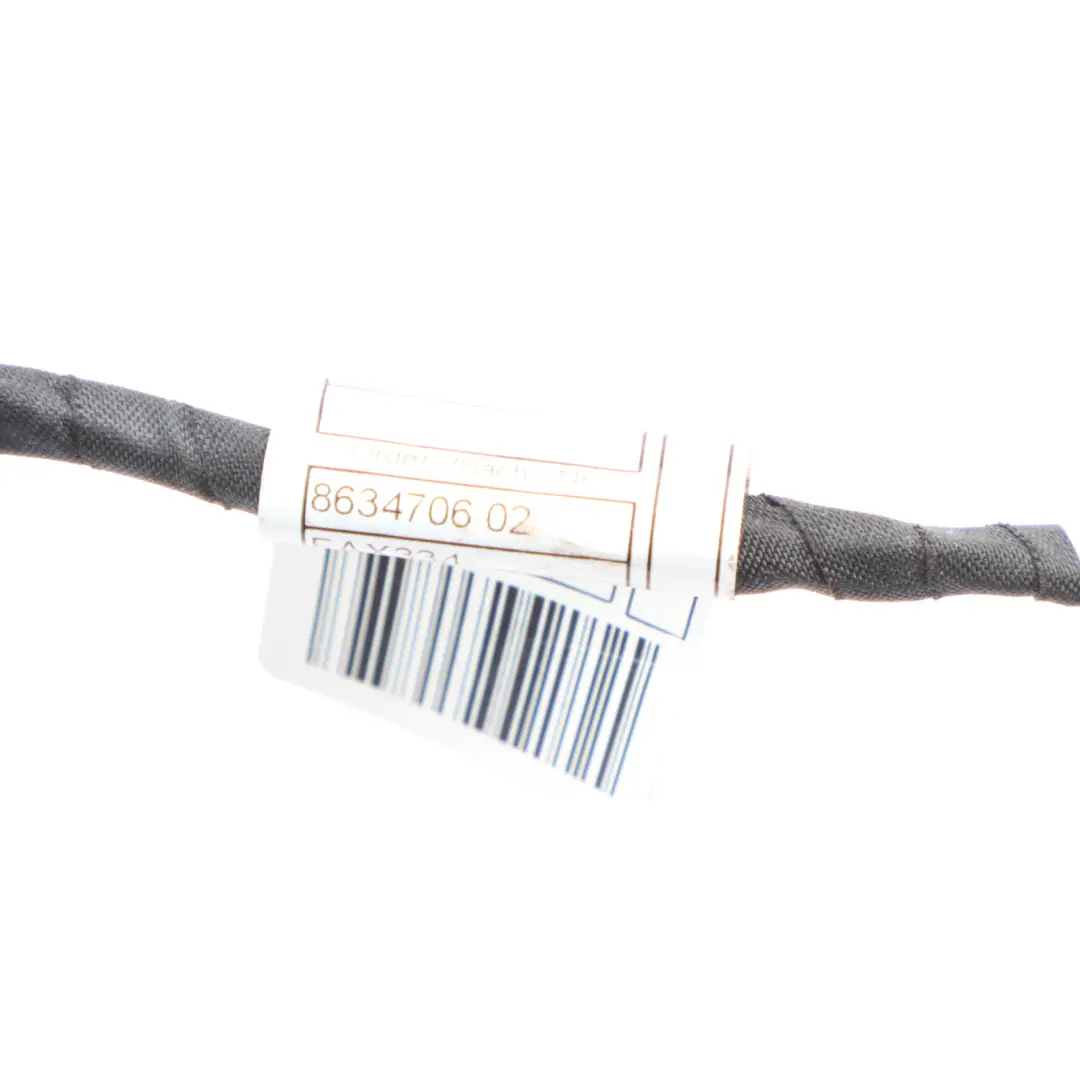

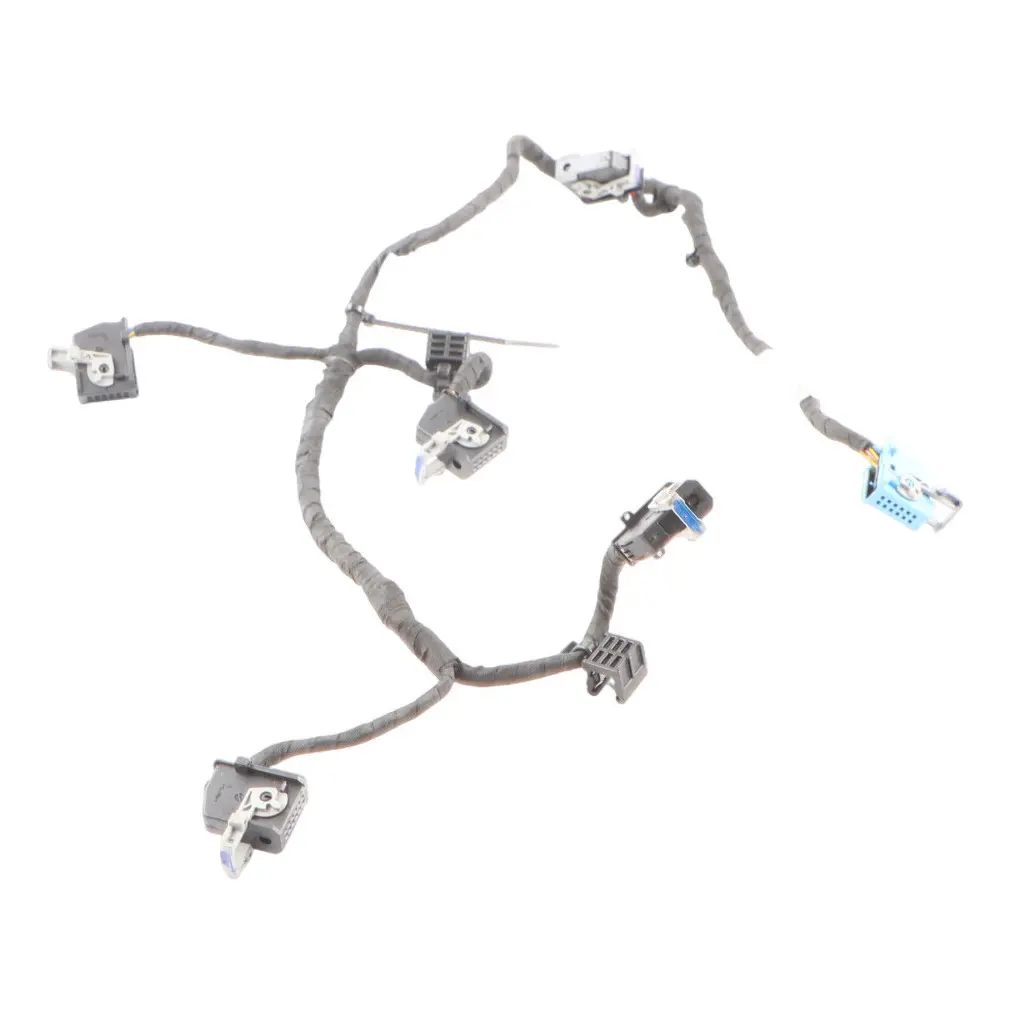

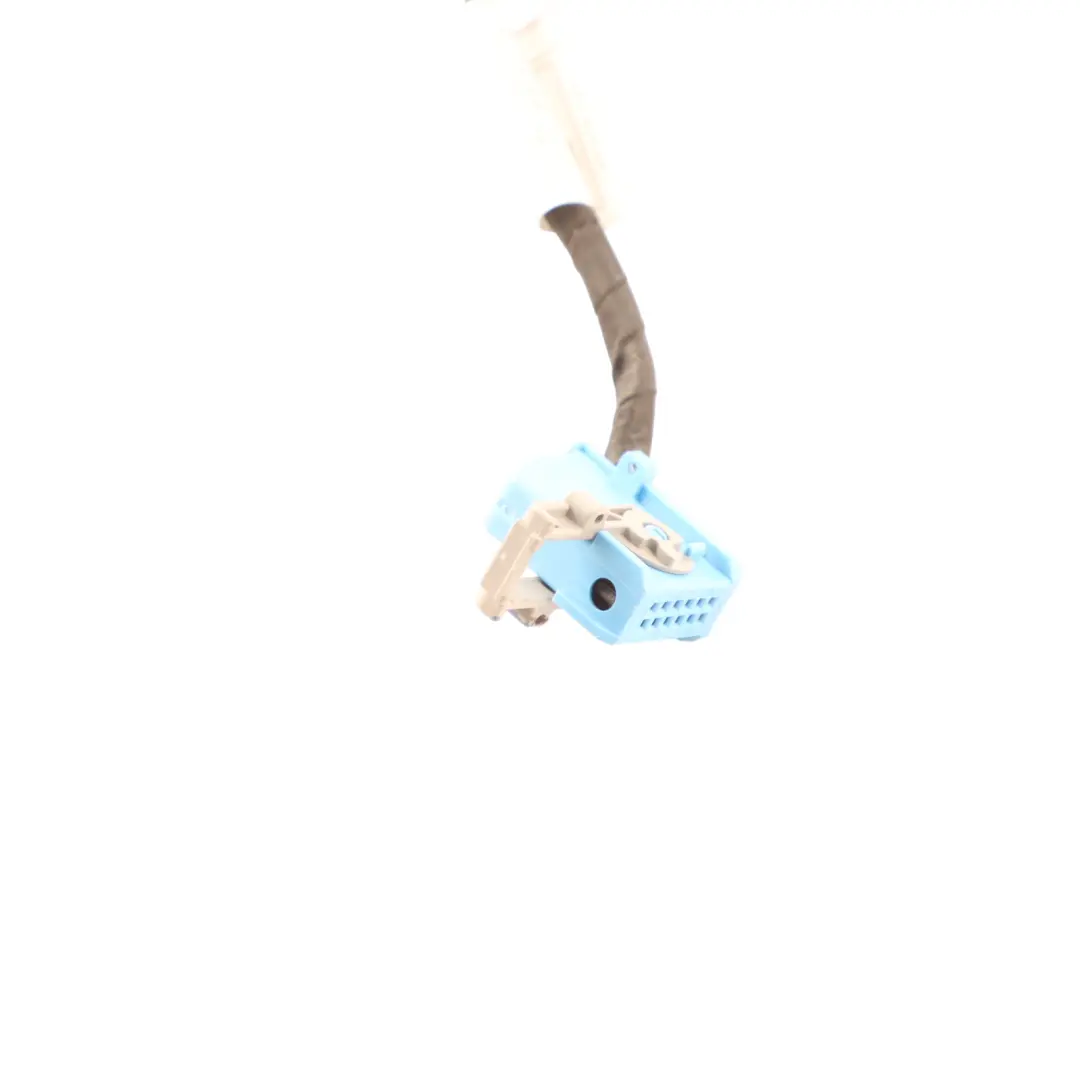

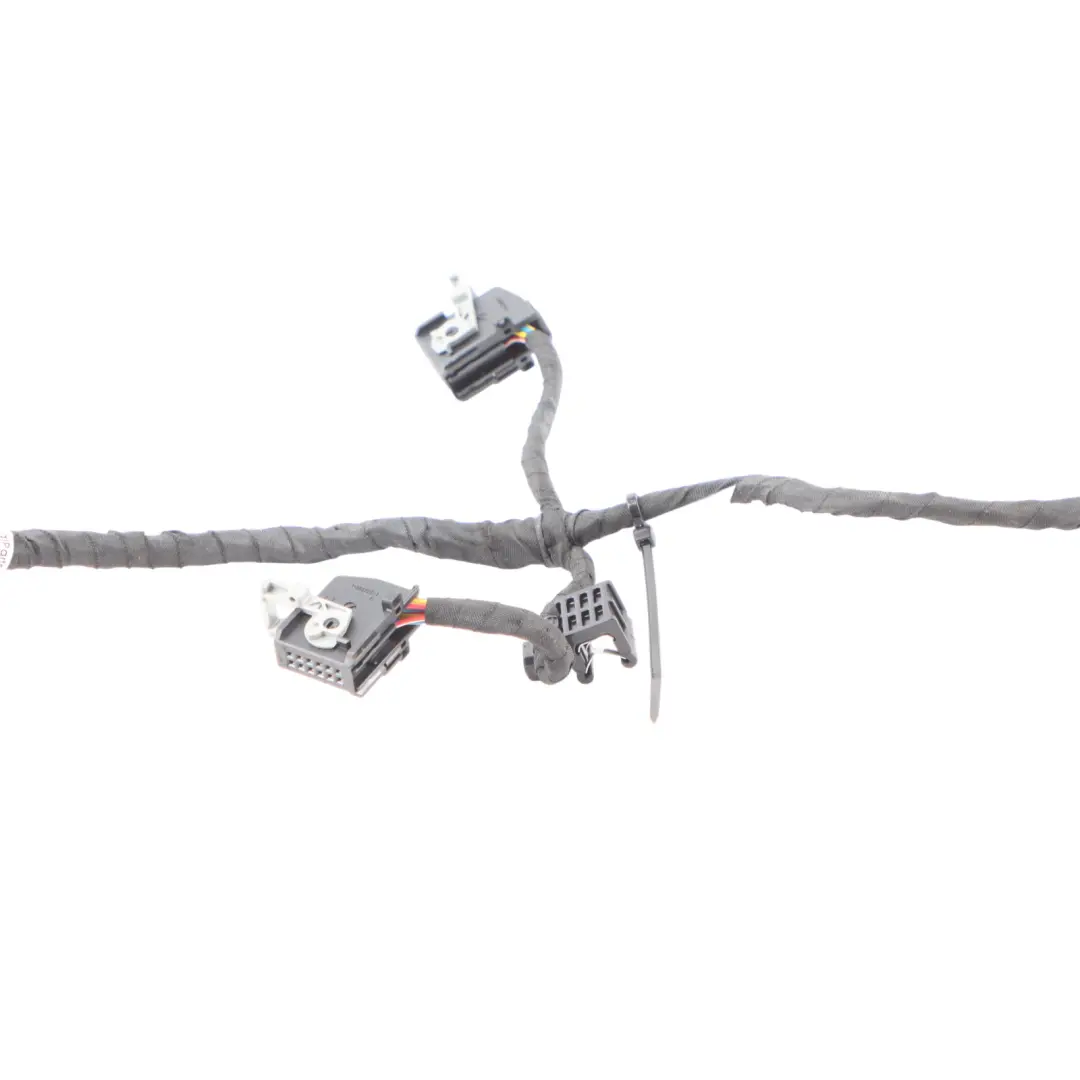

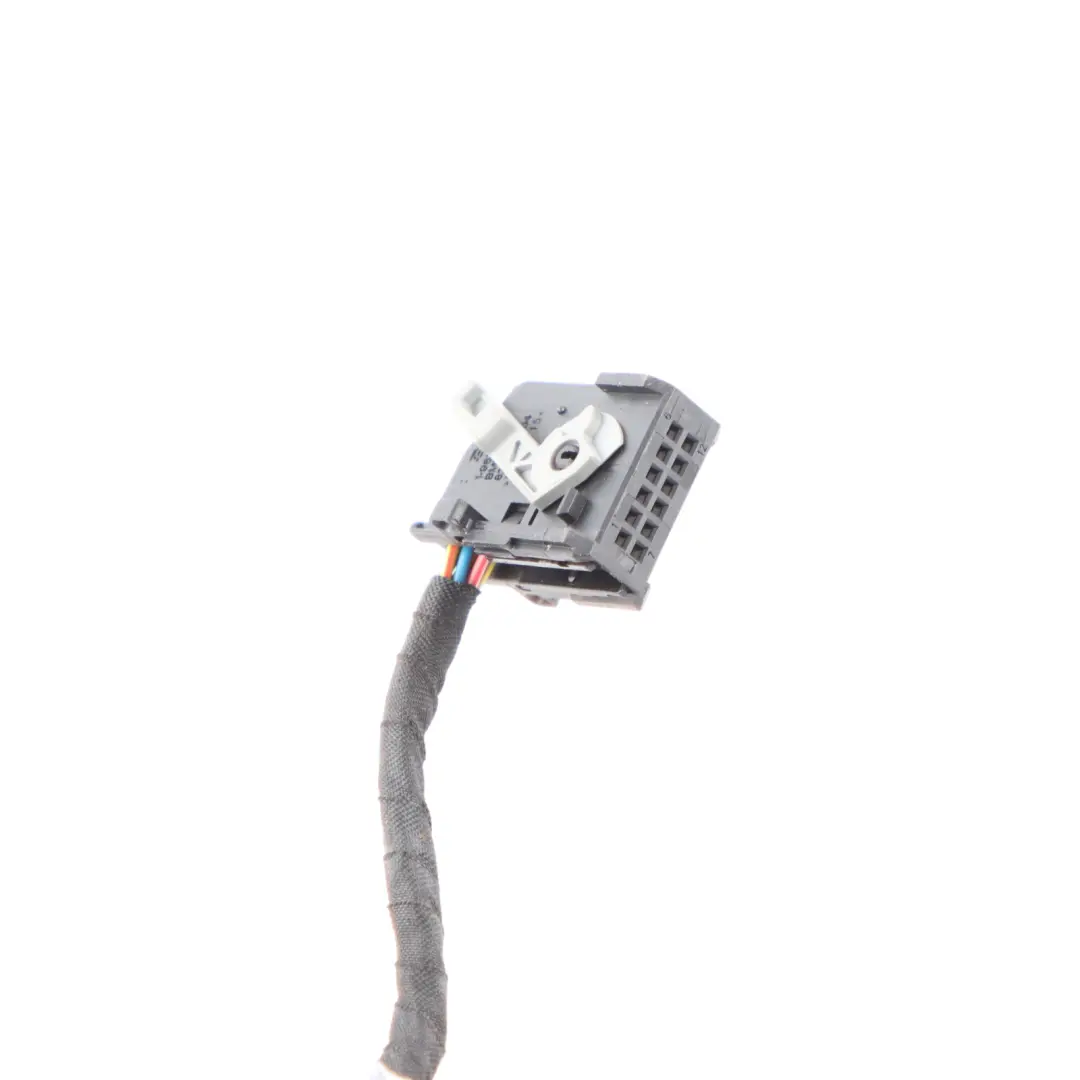

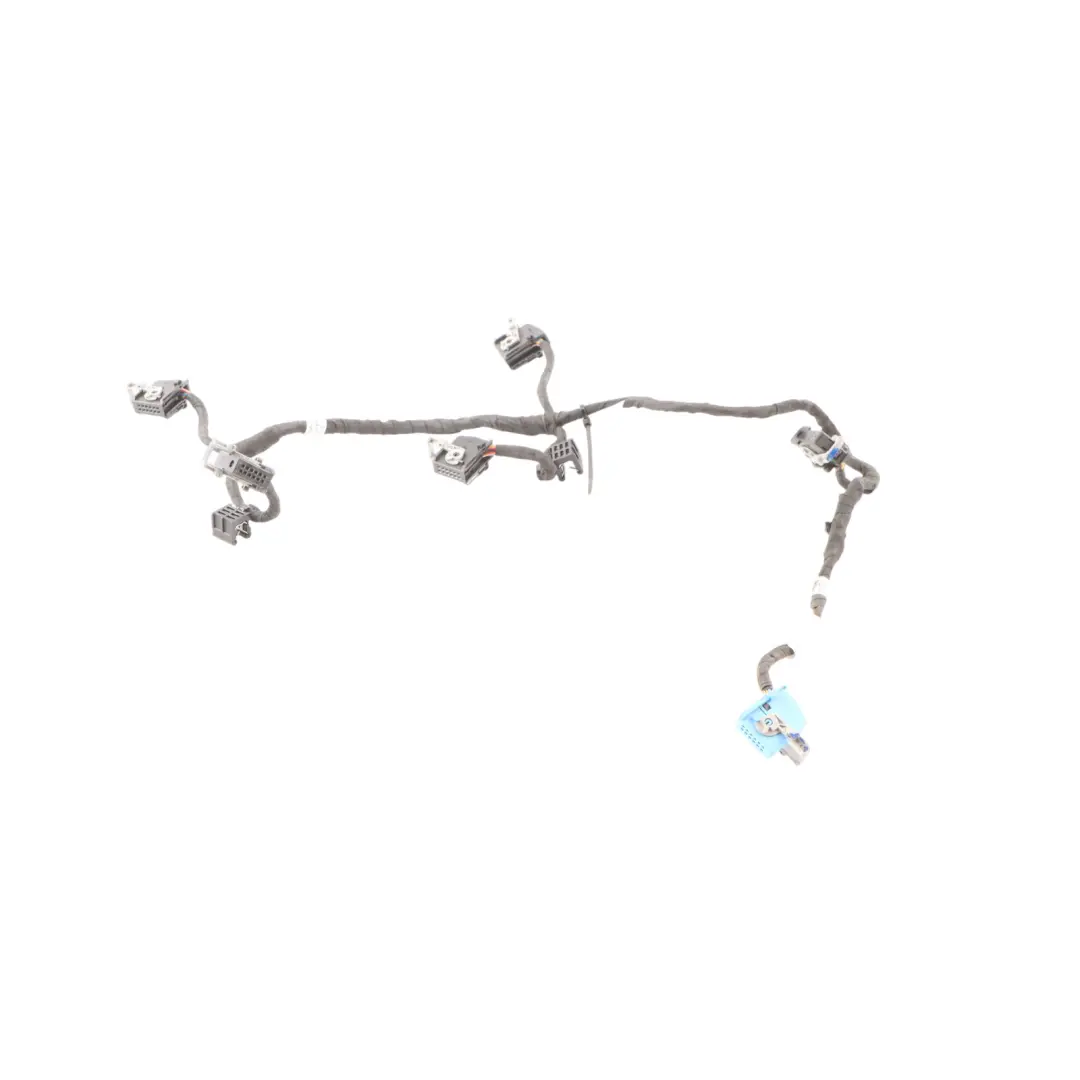

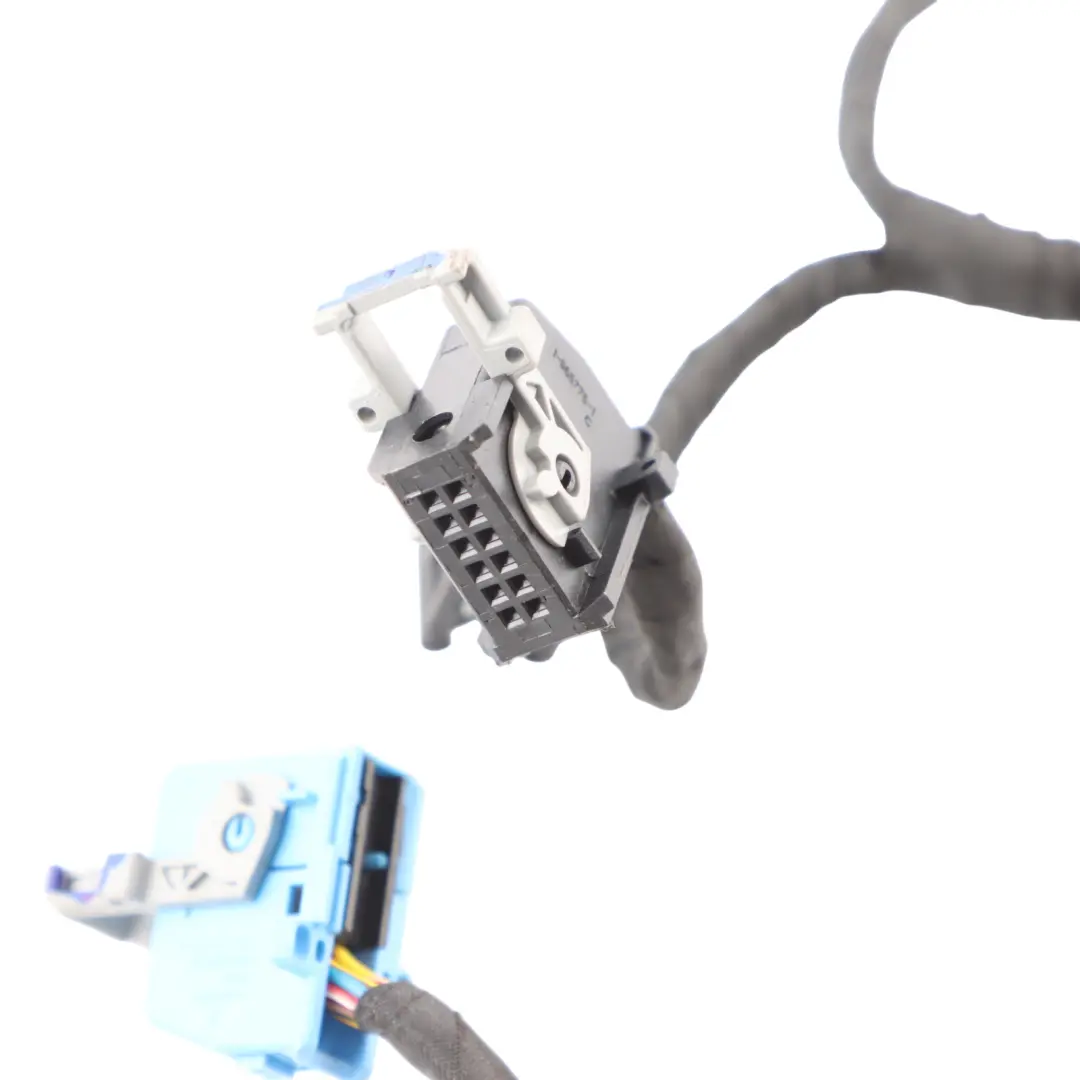

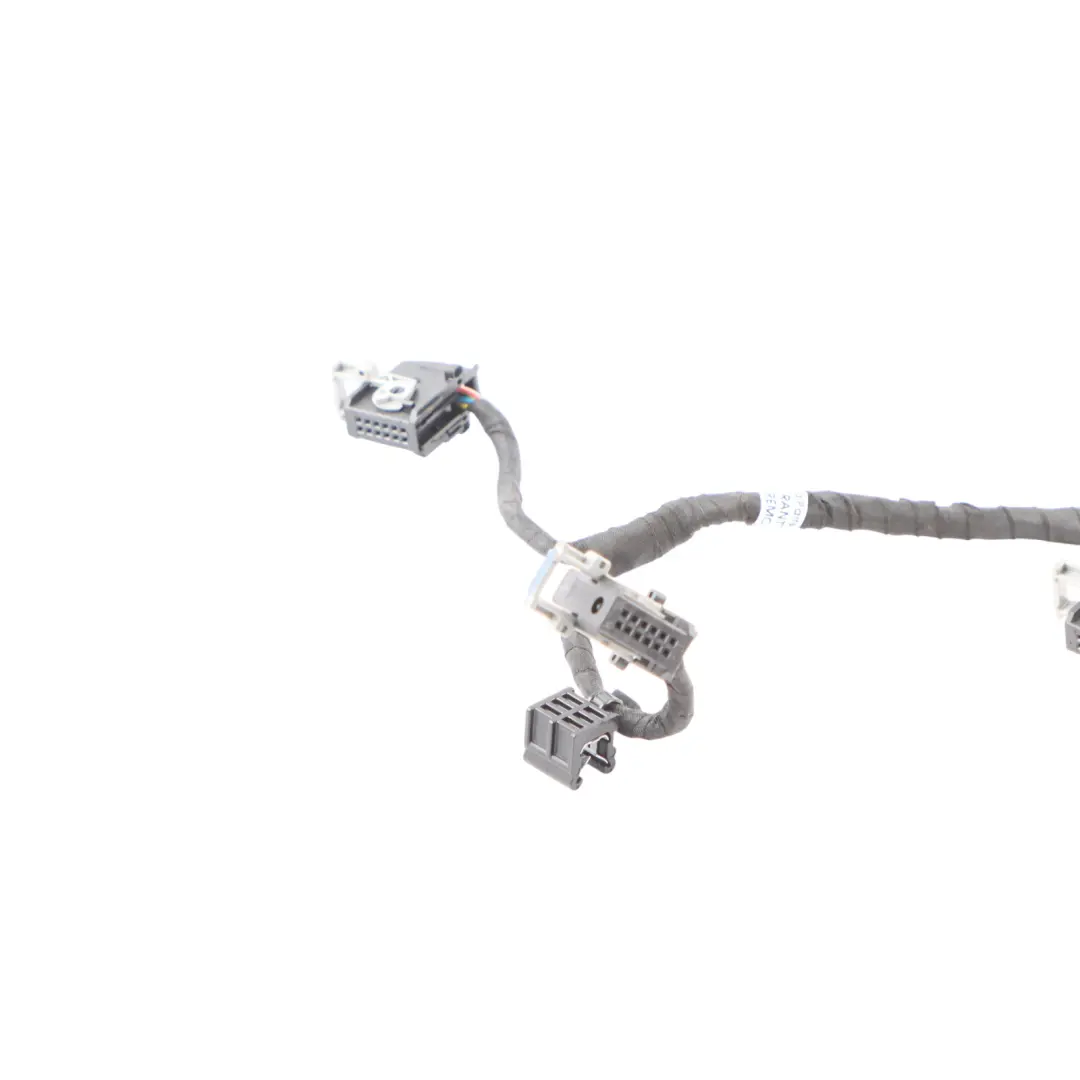

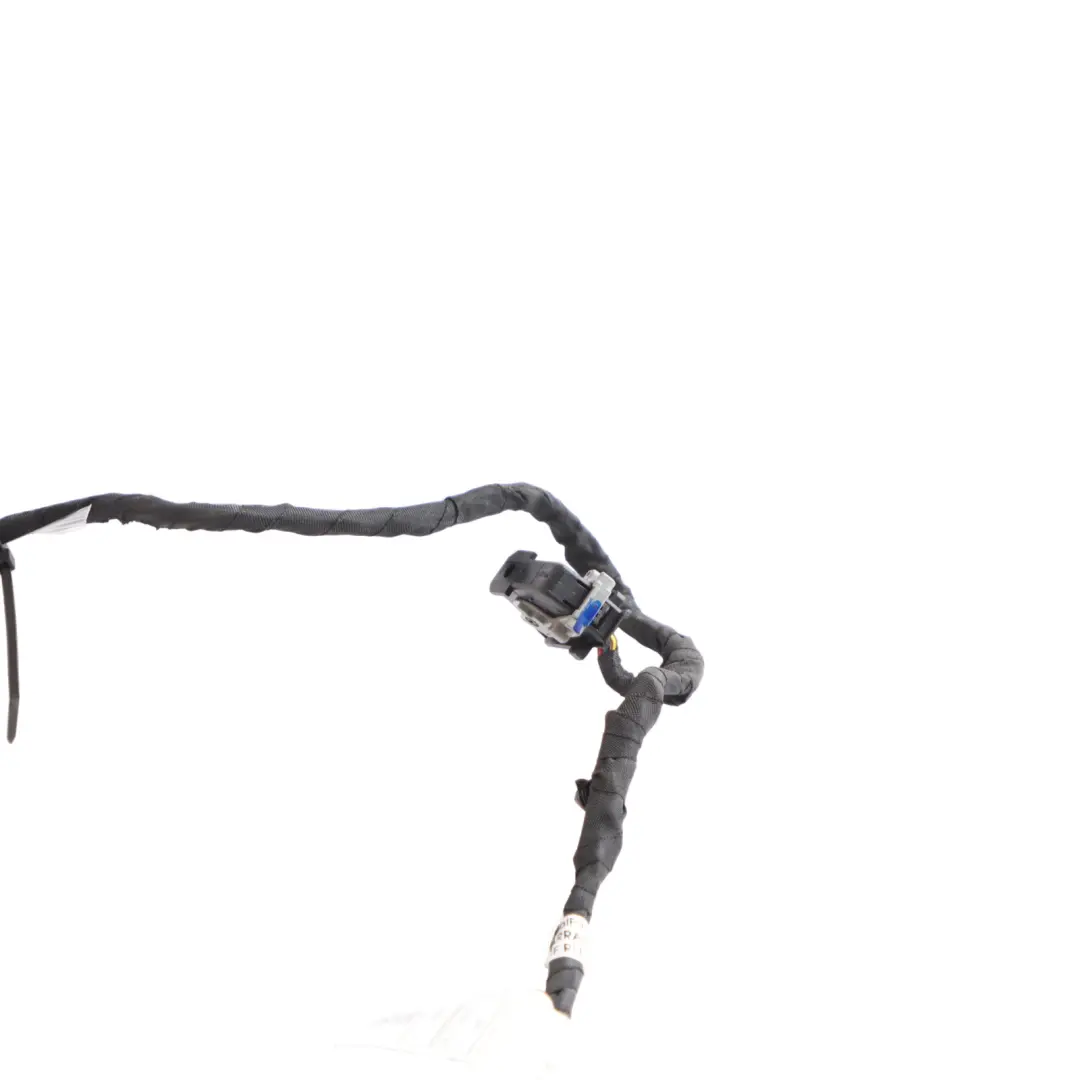

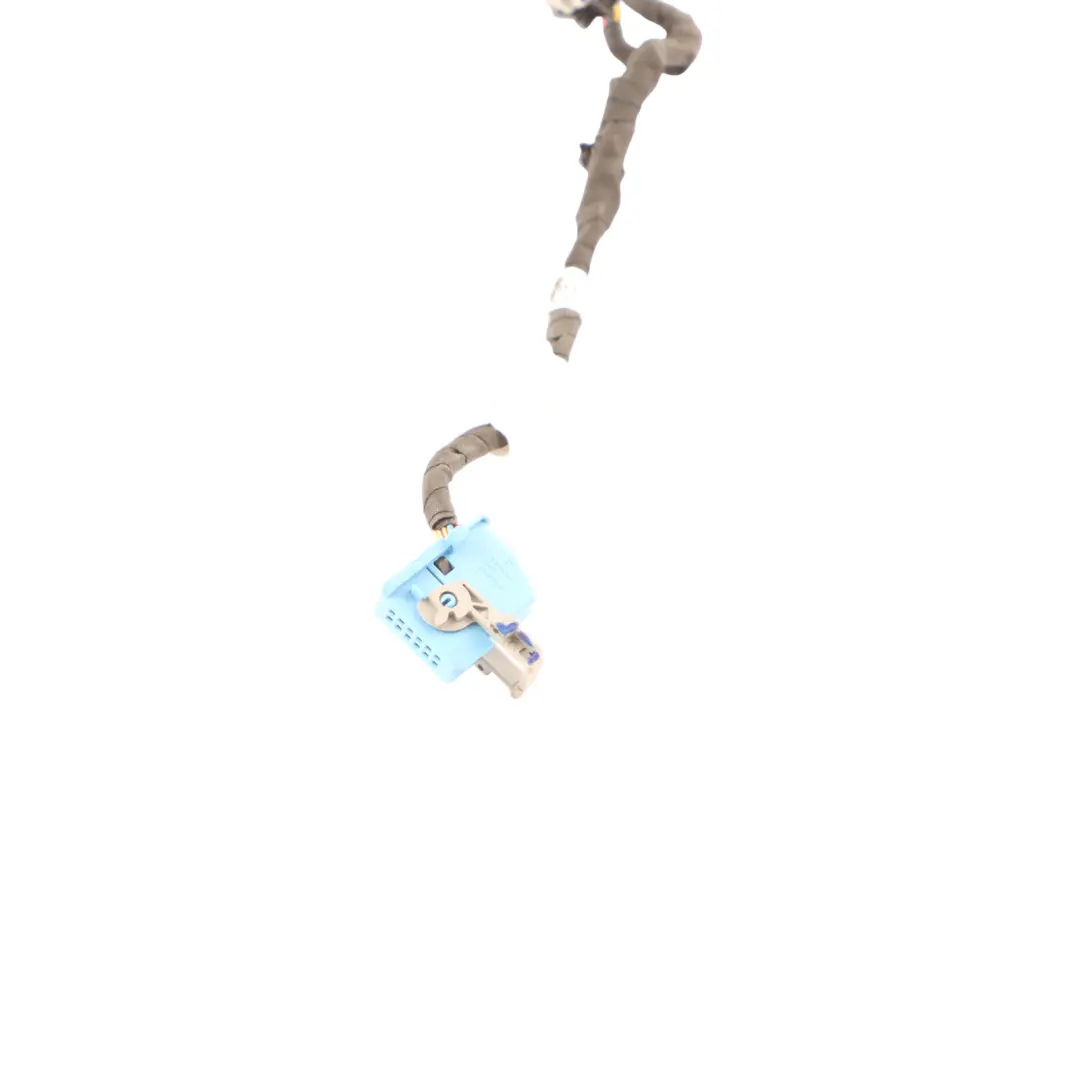

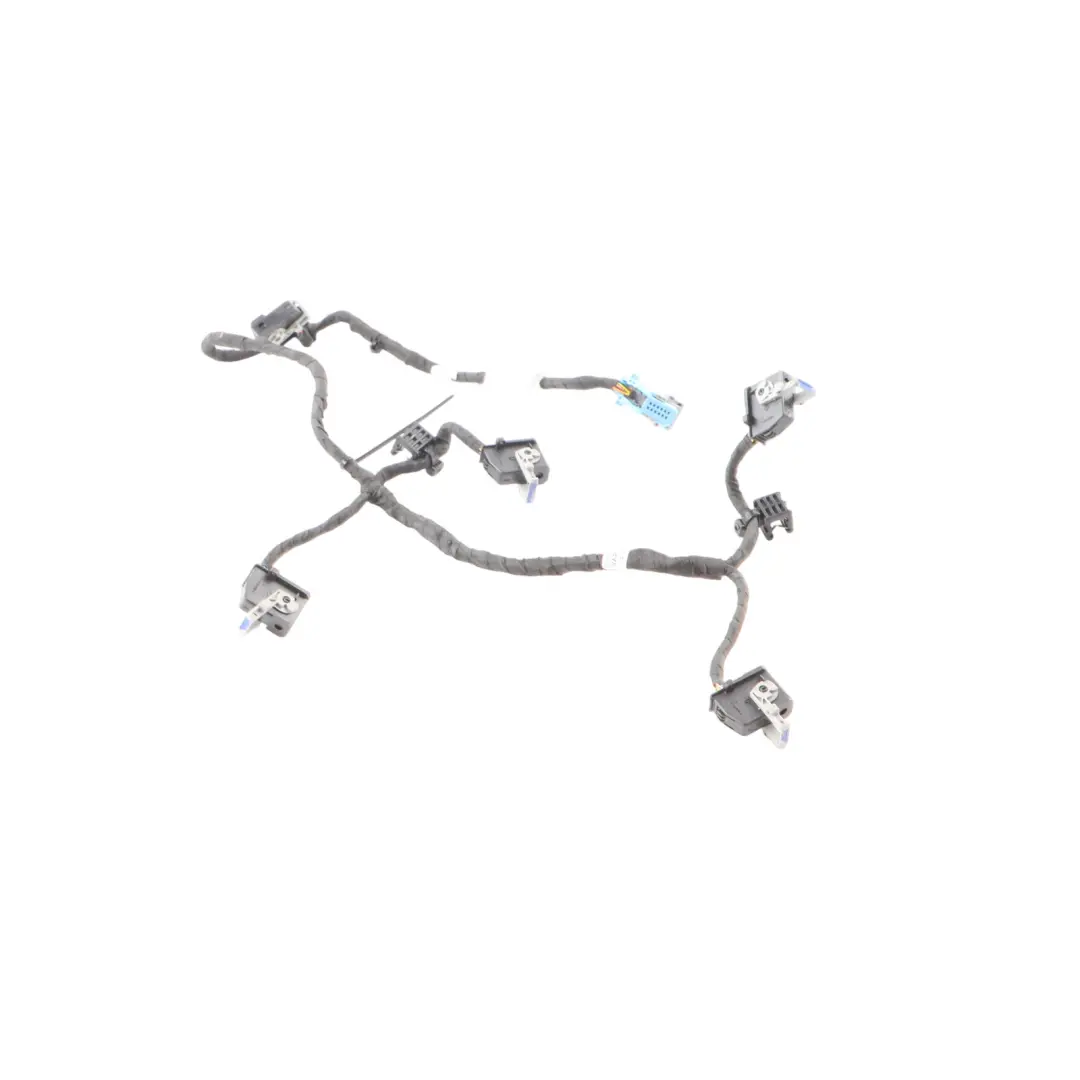

BMW F45 Mini F60 Battery Cable Battery CSC Lead Wiring Harness Loom 8634706

BMW F45 Mini F60 Battery Cable Battery CSC Lead Wiring Harness Loom is an original electrical system component designed for professional battery power circuit maintenance. As part of the Cables, harnesses, and connectors group, it ensures a stable electrical connection and proper communication with the CSC module, which is essential for reliable starting and the operation of onboard systems. This is a practical solution for service centers and users looking for a factory component to repair or replace a damaged harness.

Specifications and technical data

• SKU: 8634706
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8634706
• Substitutable numbers: 8634706, 61278634706
• Category: Wiring Harnesses, Cables & Connectors

Application and function in the vehicle

The presented BMW F45 Mini F60 Battery Cable Battery CSC Lead Wiring Harness Loom is a low-voltage installation component responsible for safely routing power from the battery and integrating with the battery status monitoring system. In BMW F45 series and Mini F60 vehicles, this type of cable works with the sensor and control electronics, allowing for the monitoring of charging parameters, load, and battery condition.

Thanks to its factory design, the harness is matched to the geometry of the battery compartment and the routing of cables in the body, which reduces the risk of chafing, incorrect positioning, or excessive stress. A properly routed battery cable reduces voltage drops and supports the stable operation of starting systems, comfort features, and body electronics.

Construction and technical features

The harness belongs to the Cables, harnesses, and connectors group, meaning it includes both the power cable section and factory connectors and connection points to the vehicle's installation. The cable construction is designed for the appropriate wire cross-section, insulation resistance to temperature and vibration, and compatibility with original ground points and battery terminals.

Key advantages of this solution include:

• factory fit for the BMW F45 and Mini F60 electrical system,
• designed cable routing path in the body,
• integrated connectors enabling a secure connection to the vehicle's installation,
• construction adapted for cooperation with the battery monitoring system (CSC).

A harness configured in this way facilitates service and reduces the need for installation modifications, which is important for both workshops and users who care about maintaining the original electrical architecture.

Installation and service aspects

The original BMW F45 Mini F60 Battery Cable Battery CSC Lead Wiring Harness Loom is prepared for installation in the factory location, which promotes consistent installation routing and adherence to the manufacturer's safety standards. When replacing a damaged cable or upgrading the power circuit, it is worth paying attention to the correct positioning of the harness relative to body elements, ground points, and protective covers.

In service practice, using the original harness allows you to:

• maintain compliance with the manufacturer's technical documentation,
• minimize the risk of installation errors resulting from custom-made cables,
• maintain proper cooperation with the battery monitoring module.

This solution is particularly beneficial in vehicles equipped with extensive energy management systems, where the quality of connections and cable parameters have a direct impact on diagnostics and battery durability.

Product condition and benefits of choosing OEM parts

The offered harness is an aftermarket component, which allows for economical repair while maintaining the original manufacturer's specification. Compared to replacements, the factory battery cable harness ensures compatibility with the installation design, correct connector types, and predictable performance during long-term operation.

For users and workshops, this means:

• easier identification and matching of parts to a specific vehicle configuration,
• lower risk of electrical compatibility issues,
• maintaining the consistency of the installation with other power system components.
