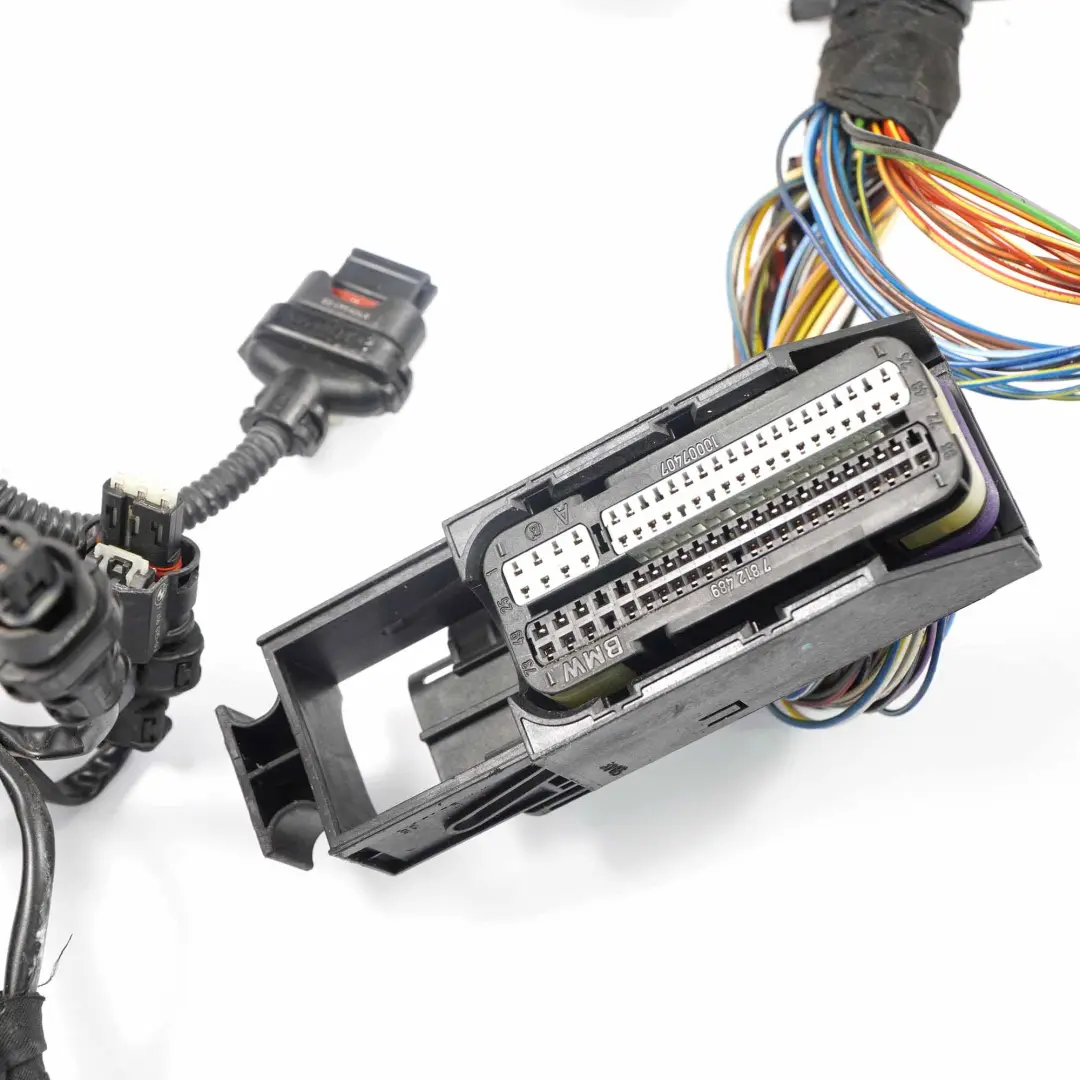

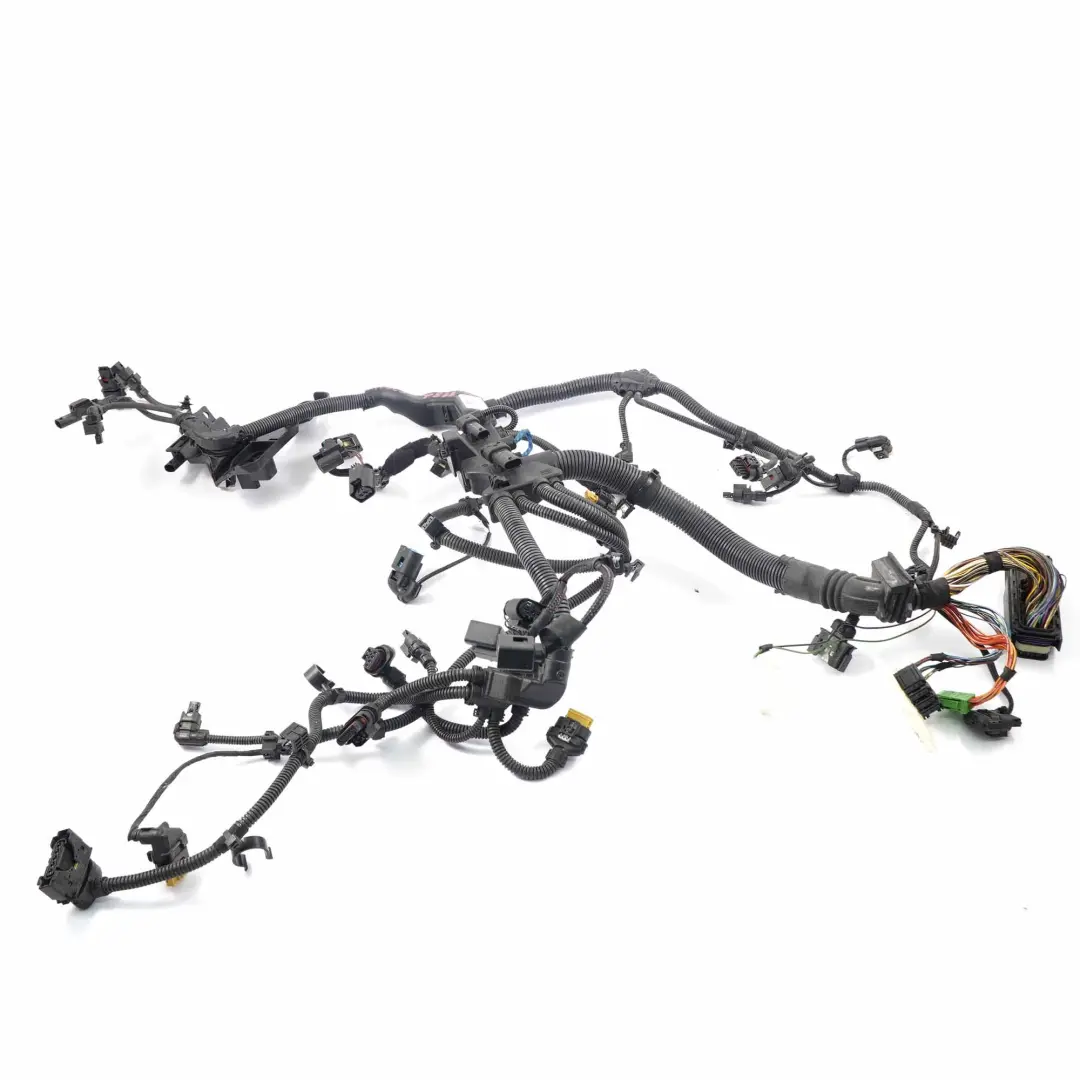

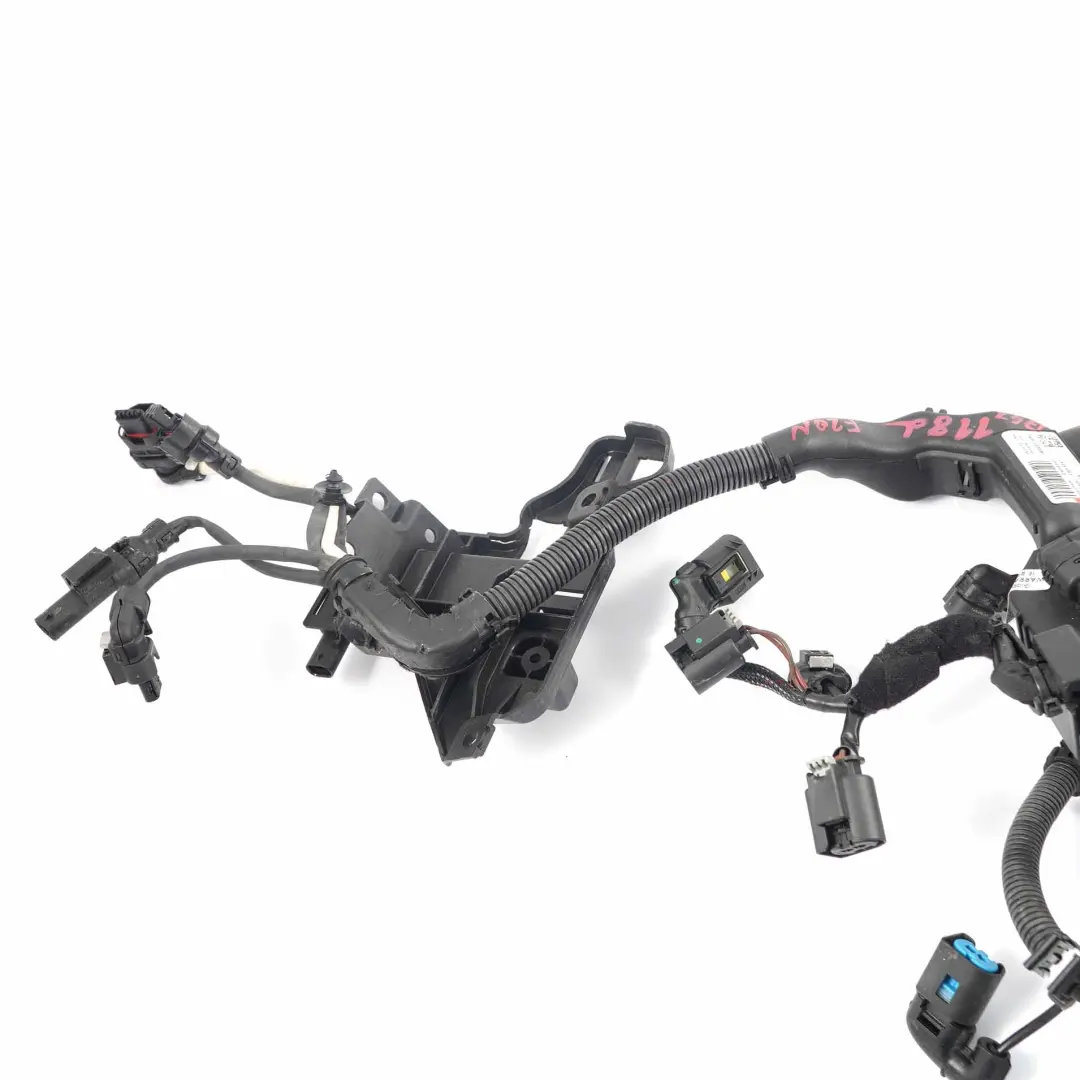

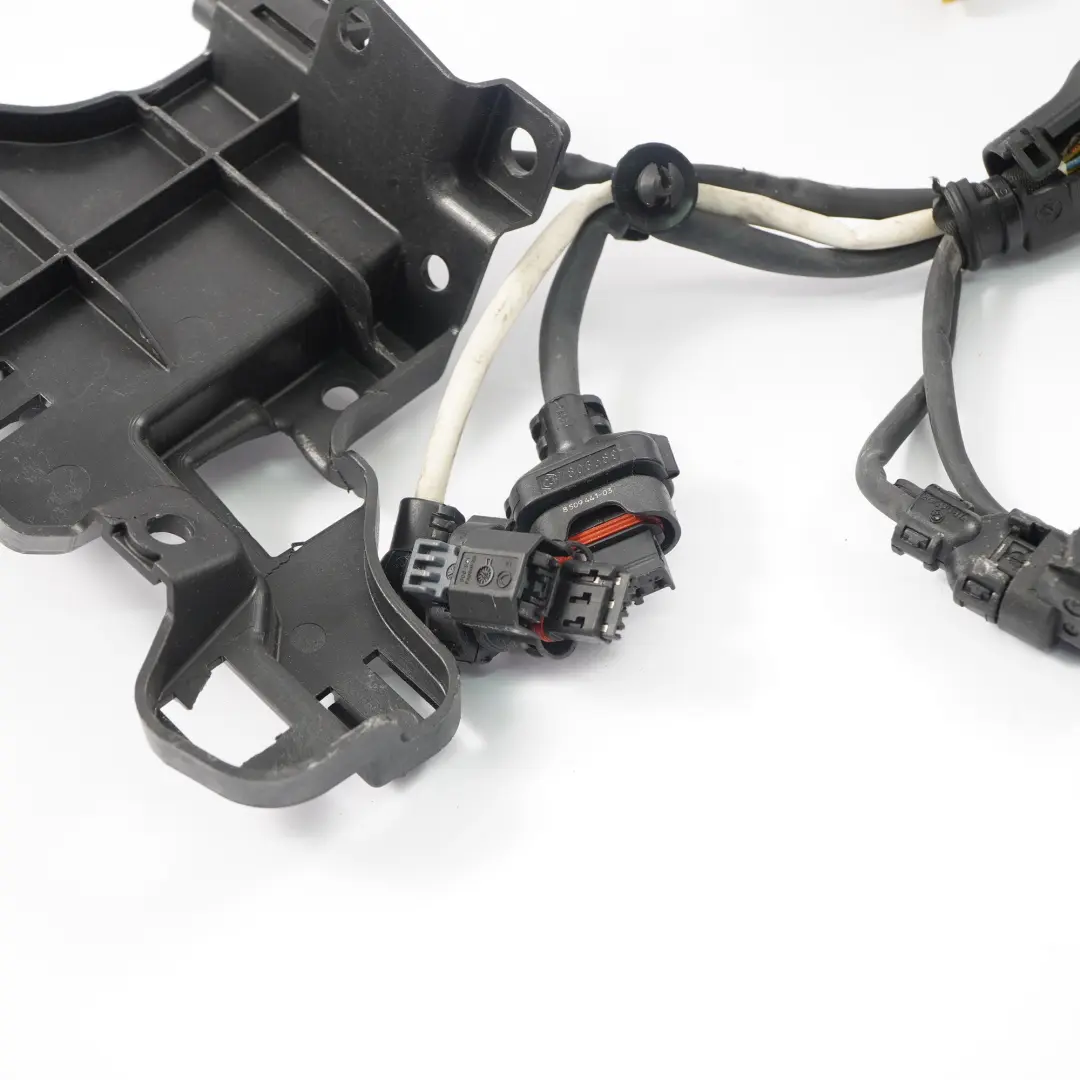

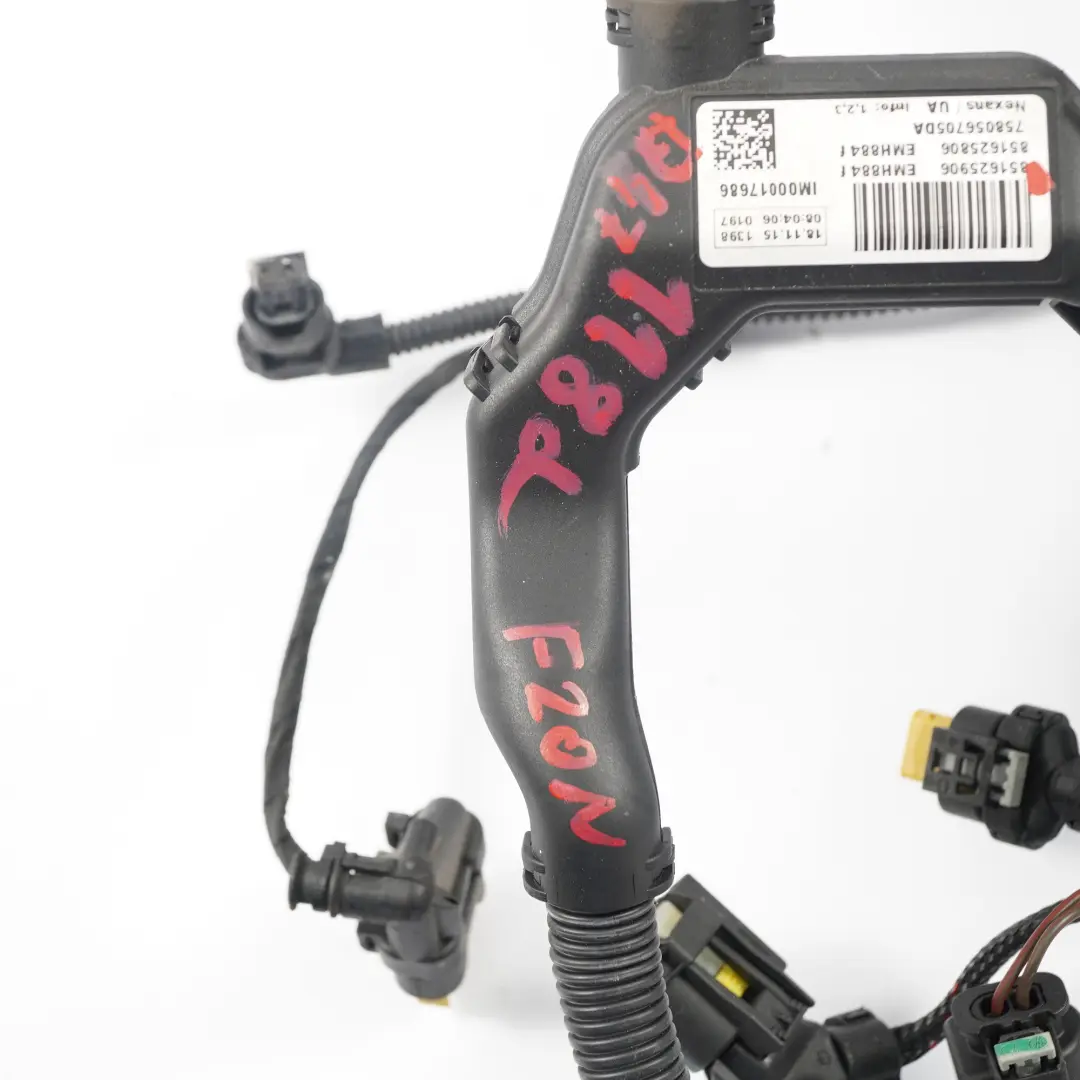

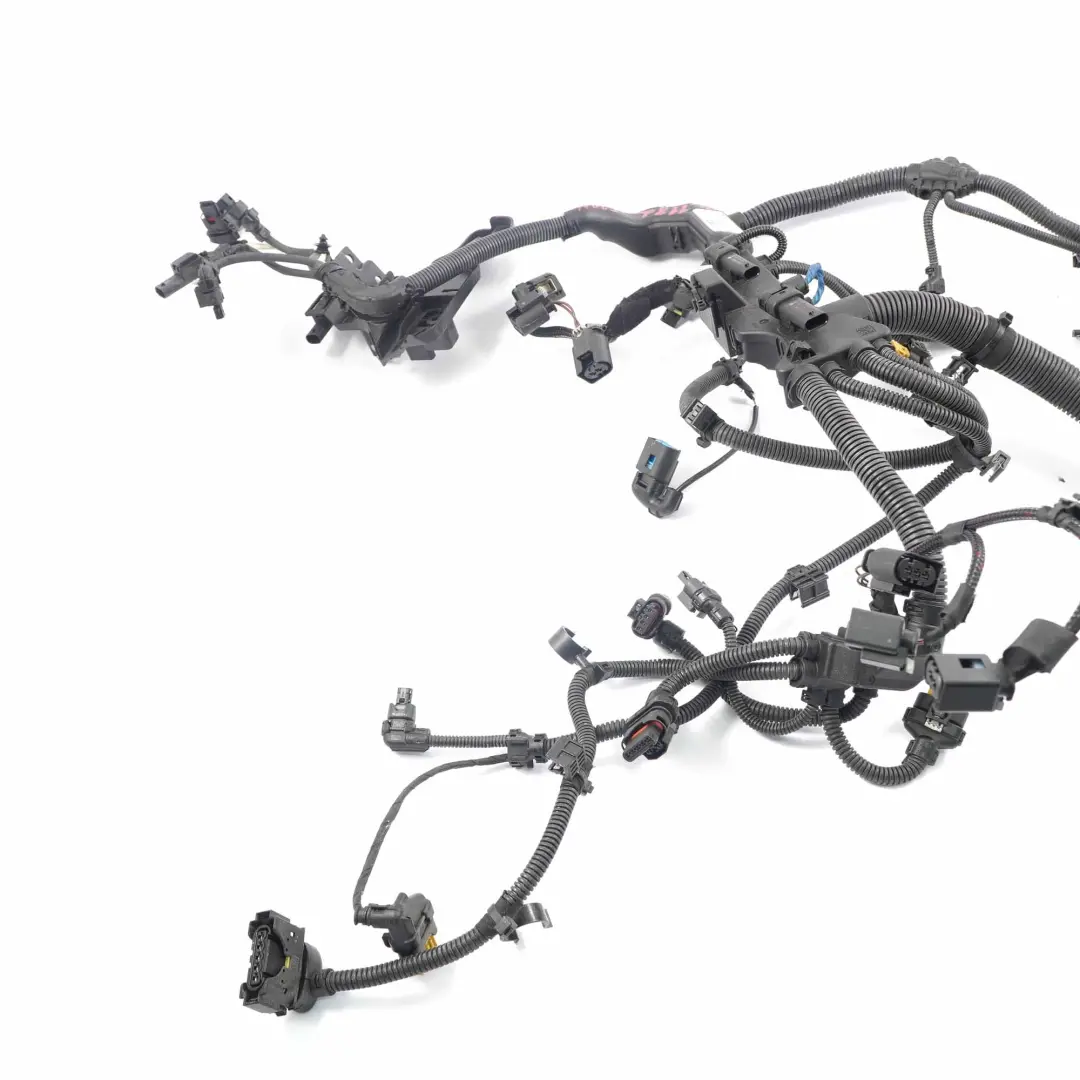

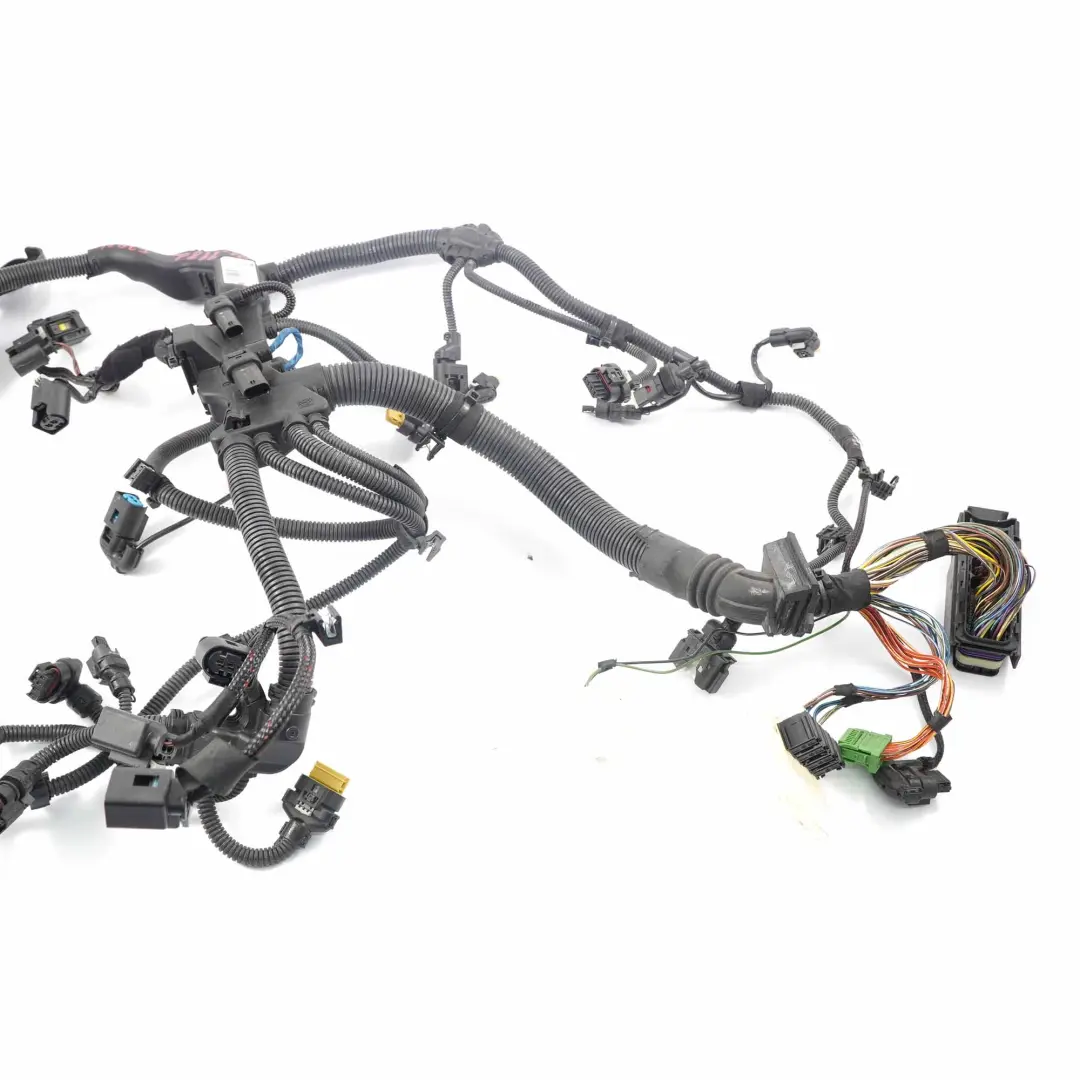

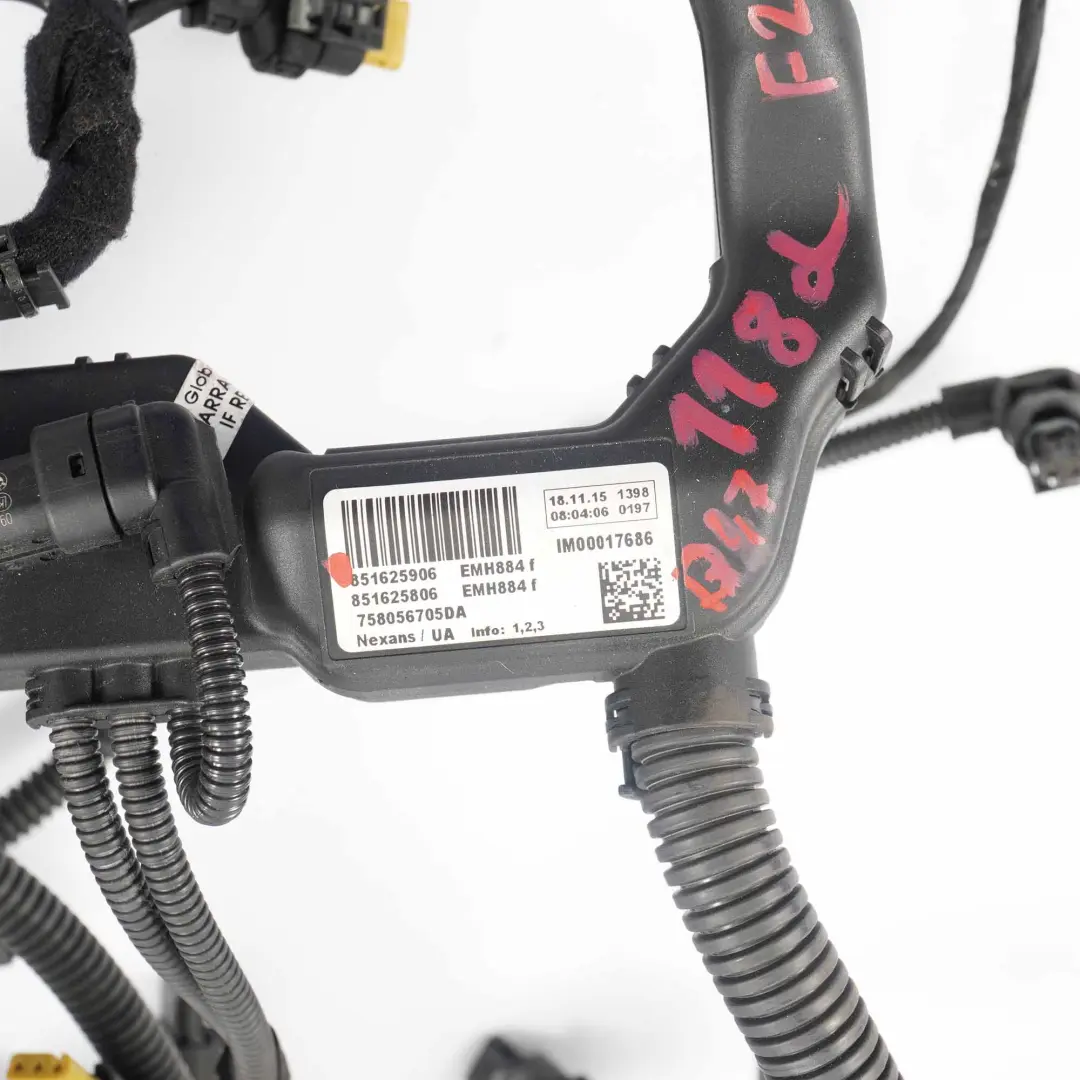

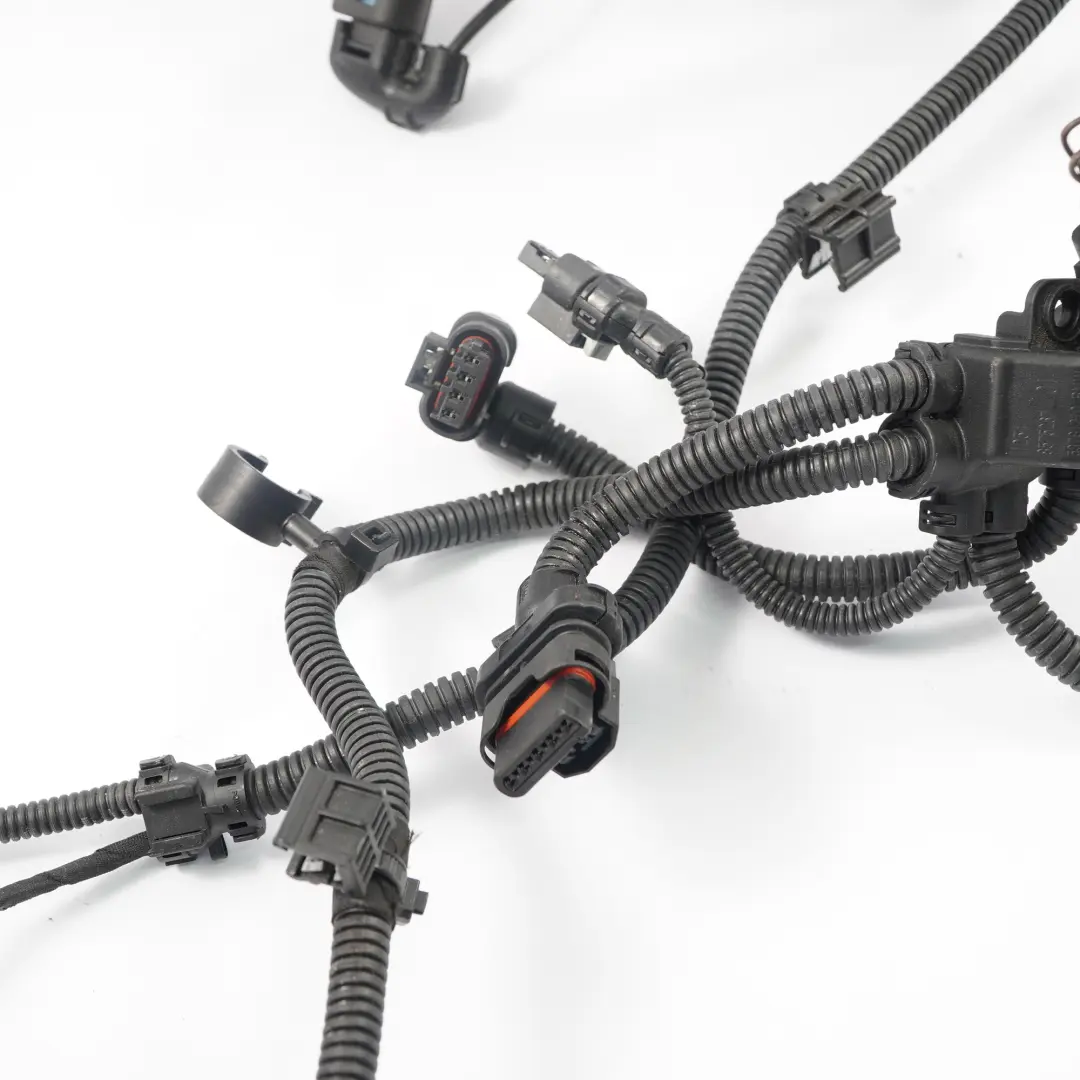

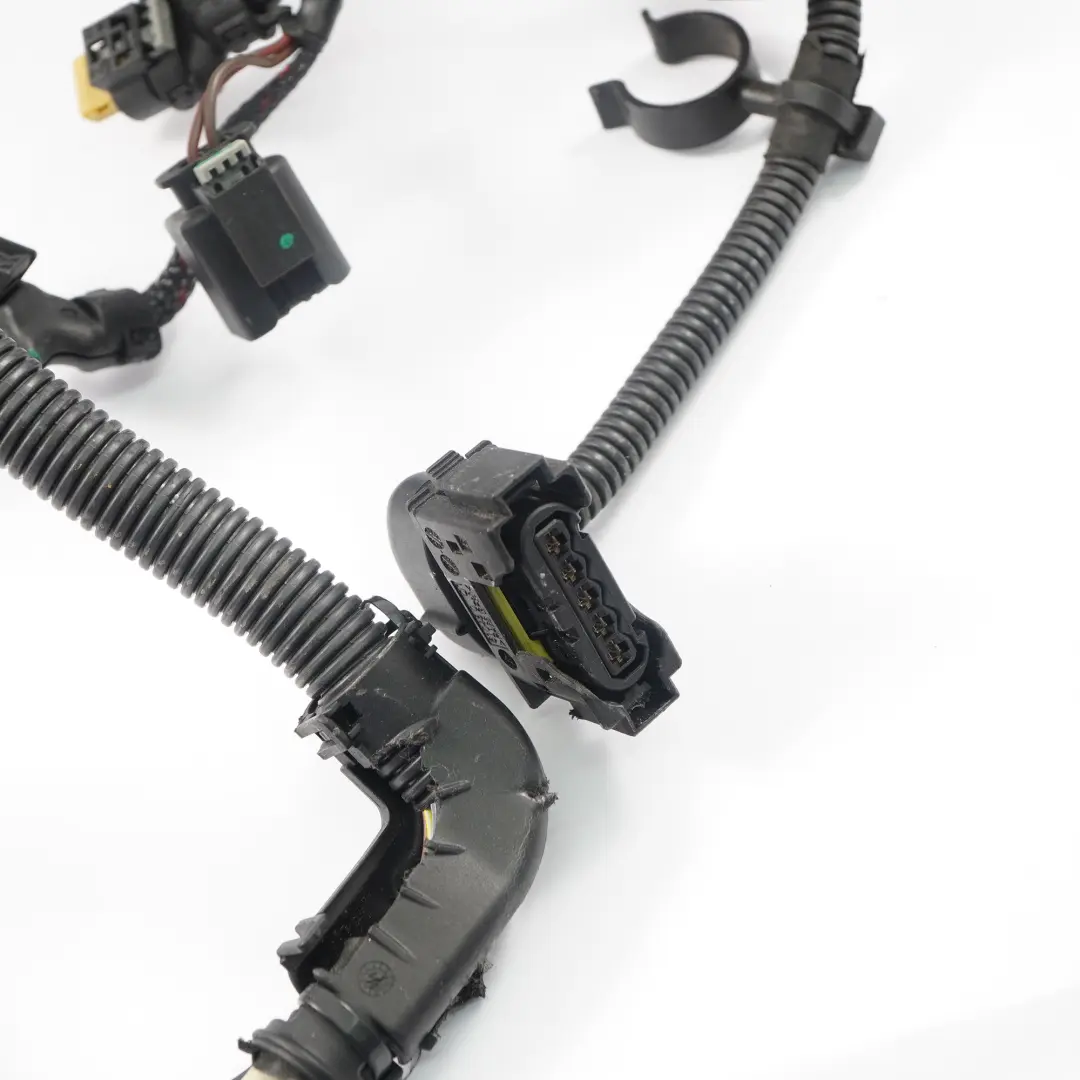

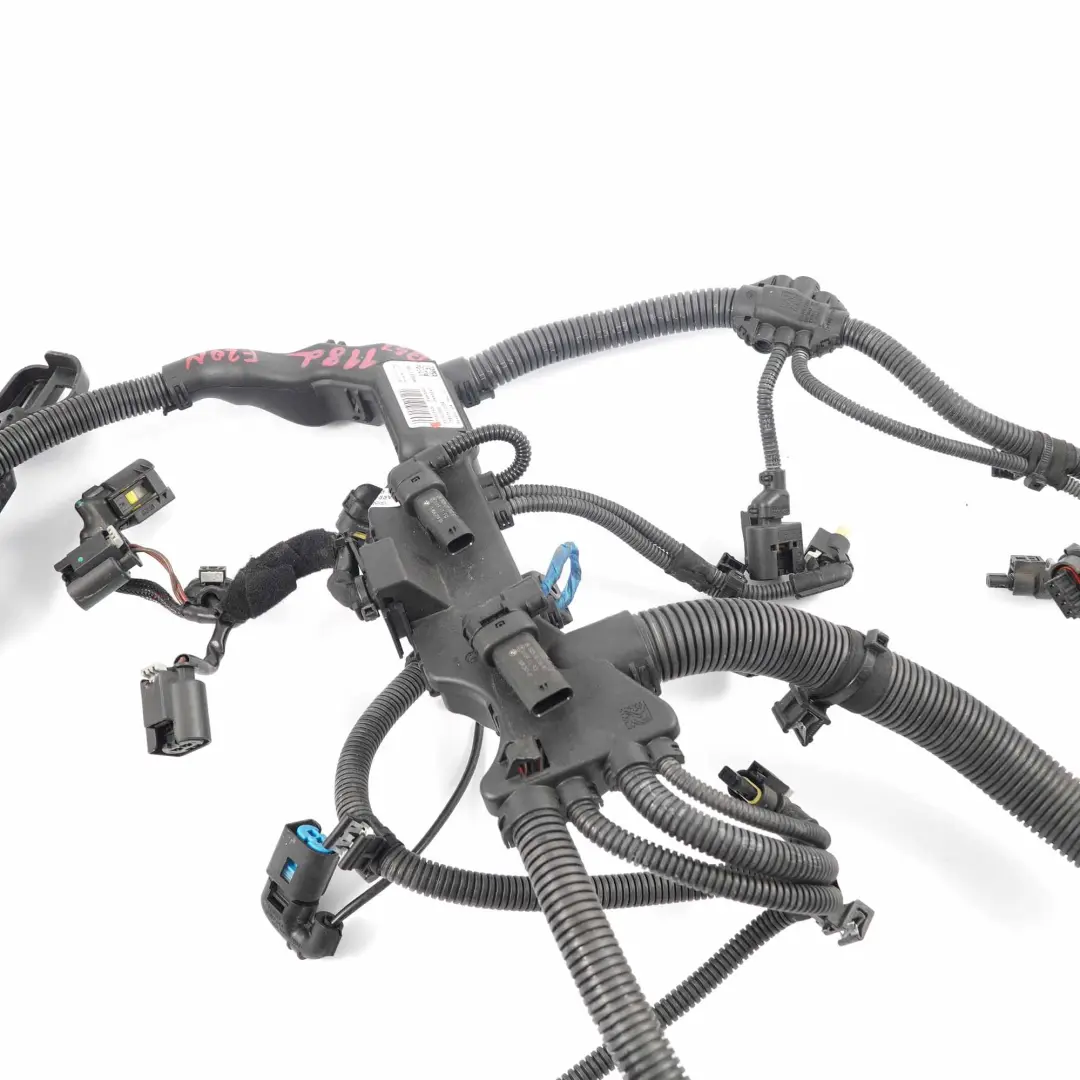

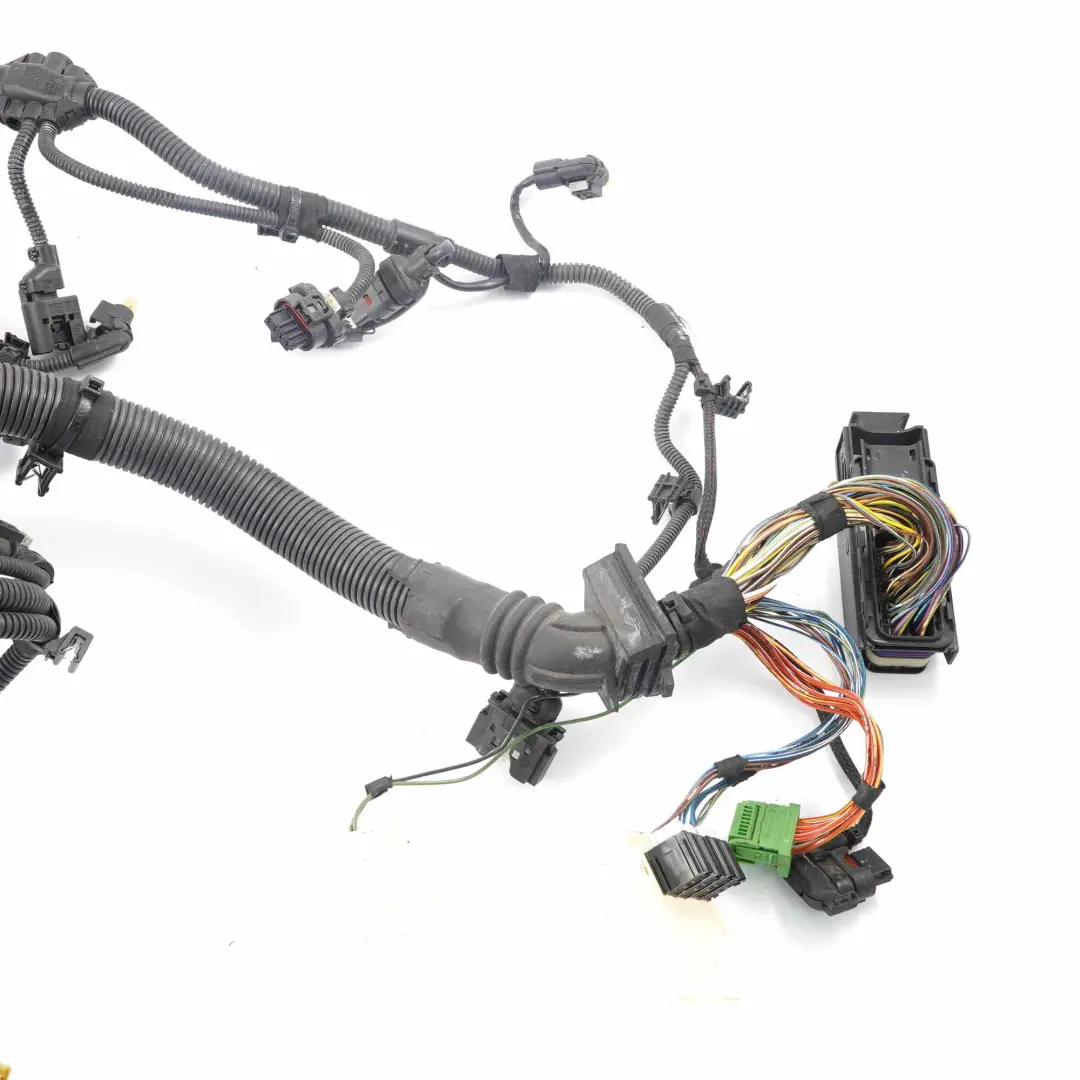

Engine Wiring BMW F20 F30 LCI B47 Loom Harness Cable 8516259

Engine Wiring BMW F20 F30 LCI 118d 318d B47 Loom Harness Cable is an original electrical installation component intended for the diesel unit, designed specifically for the 1 Series F20 with the B47 engine. It enables a stable connection between sensors, actuators, and the ECU, which translates into reliable powertrain operation and proper communication between all components. This is a solution for users who are looking for a factory-fitted harness instead of random replacements.

Specifications and technical data

• SKU: 8516259
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8516259
• Substitutable numbers: 12518516259, 8516259, KZ
• Fuel type: Diesel
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the engine system

The engine wiring harness in the BMW F20 118d with the B47 unit is responsible for distributing power and control signals between the ECU and the engine accessories. In the case of a Diesel engine, precise communication with the injection system, pressure, temperature, and boost sensors is particularly important, which is why a correctly selected harness is crucial for the stable operation of the powertrain.

The original design intended for a specific BMW model minimizes the risk of assembly errors, incorrect cable routing, or compatibility issues with the factory engine control unit.

Benefits of using an original BMW harness

Using an engine wiring harness dedicated to the BMW F20 118d B47 allows you to maintain the factory architecture of the electrical installation. In practice, this means:

• consistent cable routing in accordance with the original mounting points,
• properly selected connectors matching the sensors and engine accessories,
• maintenance of electrical parameters specified by the manufacturer,
• reduced risk of faults resulting from installation modifications.

For the user, this translates into more predictable diagnostics, easier maintenance, and a reduction in ECU errors resulting from improper connections.

Product characteristics and use in a Diesel engine

The engine wiring harness version for the diesel unit has been designed with the specifics of Diesel engine operation in mind, including higher thermal loads in the engine bay and a larger number of components related to the injection and boost systems. Thanks to this solution, the installation:

• is adapted to the layout of accessories in the B47 engine,
• takes into account the requirements of the injection and boost control system,
• ensures proper cable routing near hot components.

A harness configured in this way helps maintain stable engine operating parameters and reduces the risk of chafing or overheating of the wires during long-term use.

Condition, origin, and economic aspect

The offered item comes from the Cables, harnesses, and connectors group and is a used product, which allows for an economical repair of the vehicle while maintaining the original manufacturer's specification. For many BMW users, this is a reasonable compromise between cost and maintaining the factory standard of workmanship, especially in the case of complex electrical installation elements such as the engine harness.

Choosing an original, used harness instead of random replacements reduces the risk of problems with connector fitment, cable length, or compatibility with the factory ECU, which is important both for routine repairs and for rebuilding the powertrain after a major failure.

System expansion and selection of other components

If you are planning a comprehensive repair or upgrade of the engine area in your BMW and need other elements from the same group, such as additional harnesses, sensor cables, or installation connectors, check the available parts in the BMW cables, harnesses, and connectors category.

To better plan your purchases and select a coherent set of original electrical installation elements and other components, it is worth using the One-Stop-Shop approach described in the article Comprehensive supply: from the engine to the smallest clip – how to complete used car parts in one place, which helps to consciously combine used components and avoid problematic replacements.
