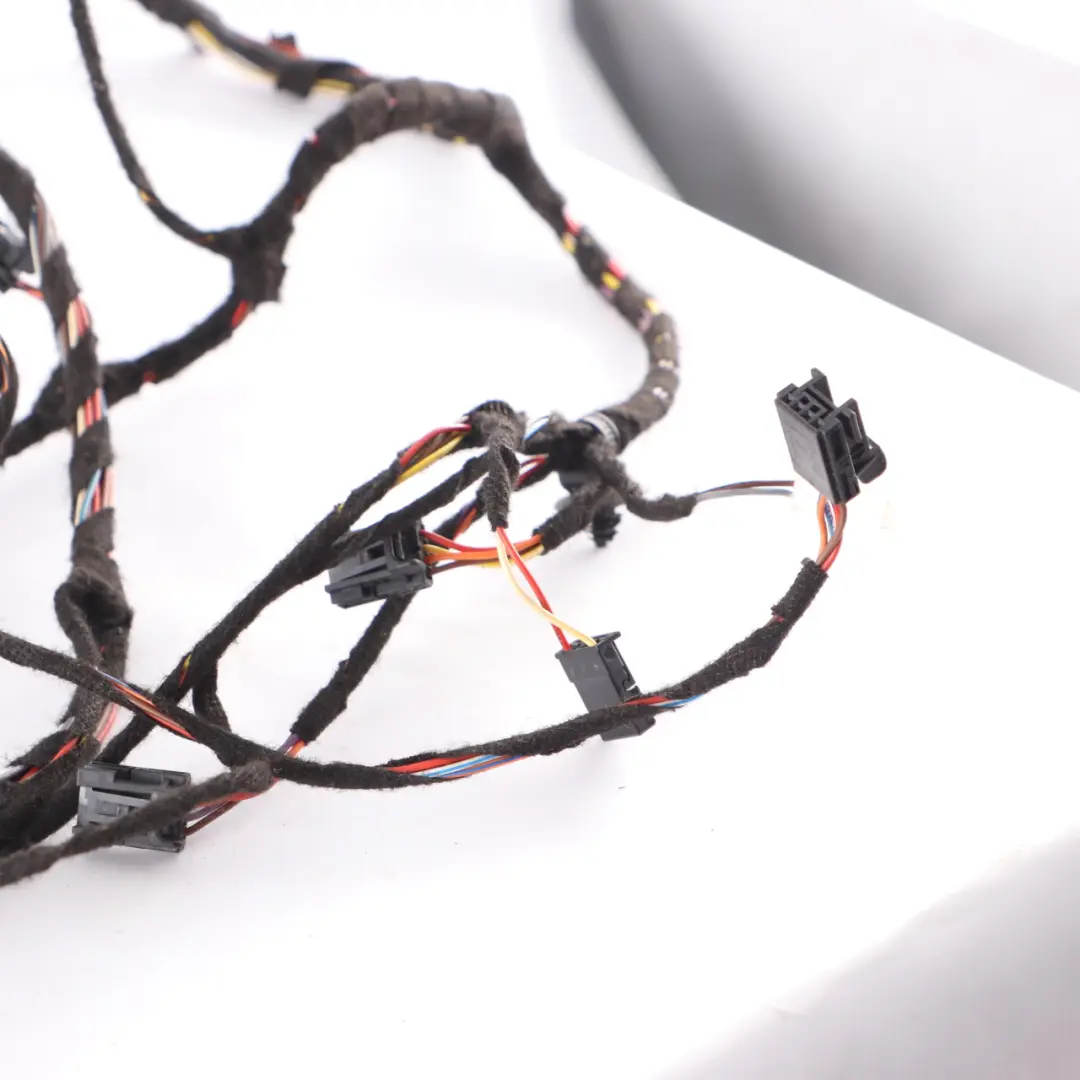

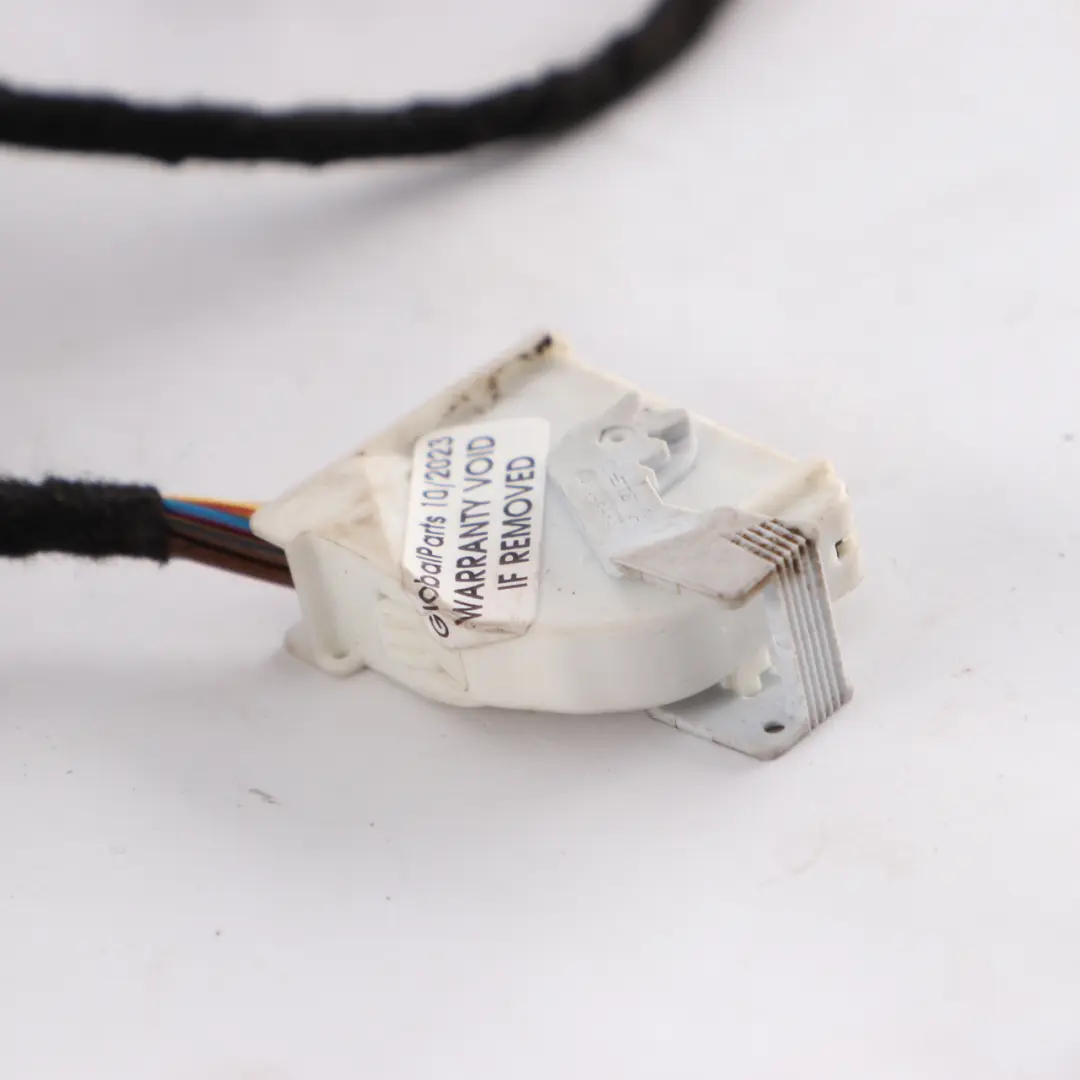

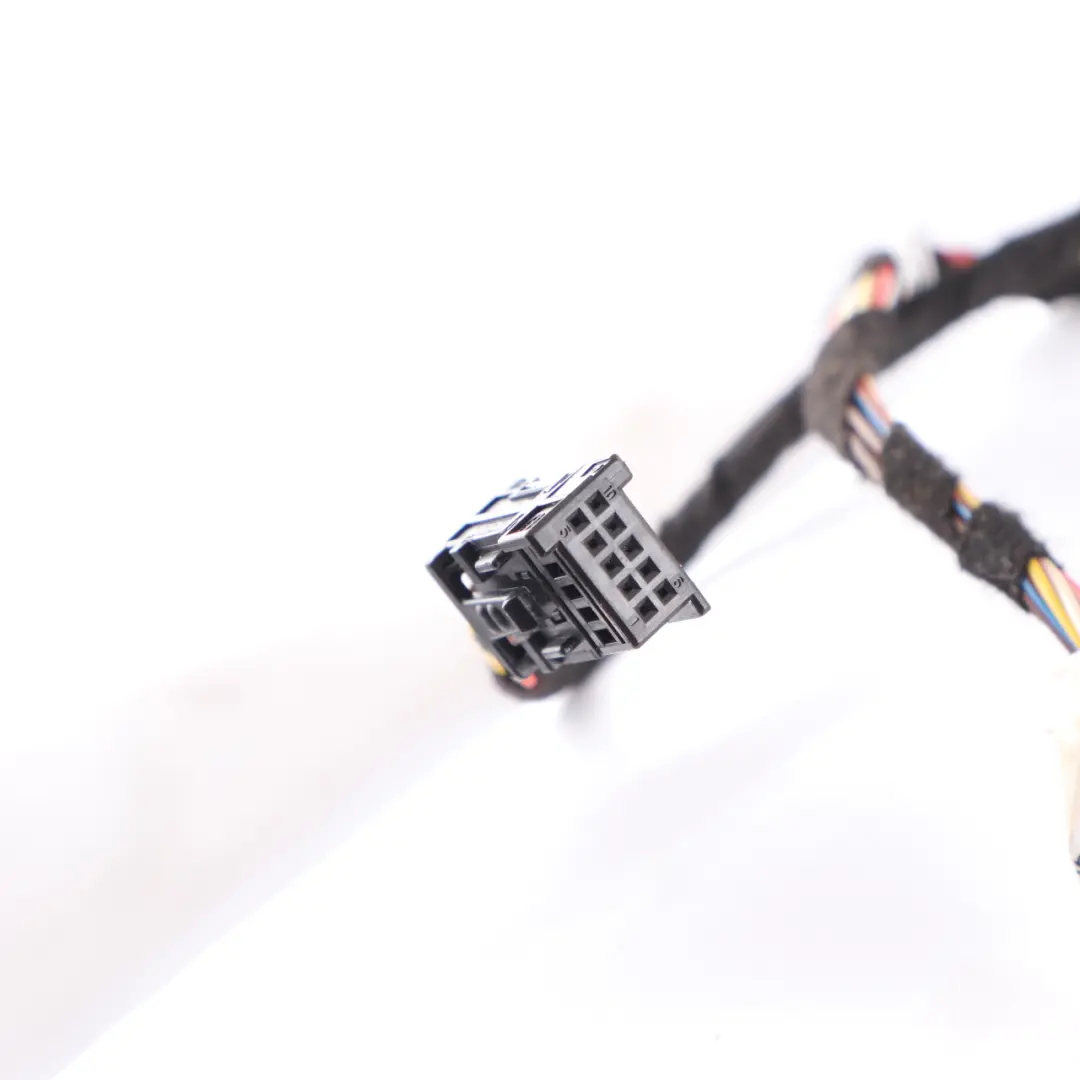

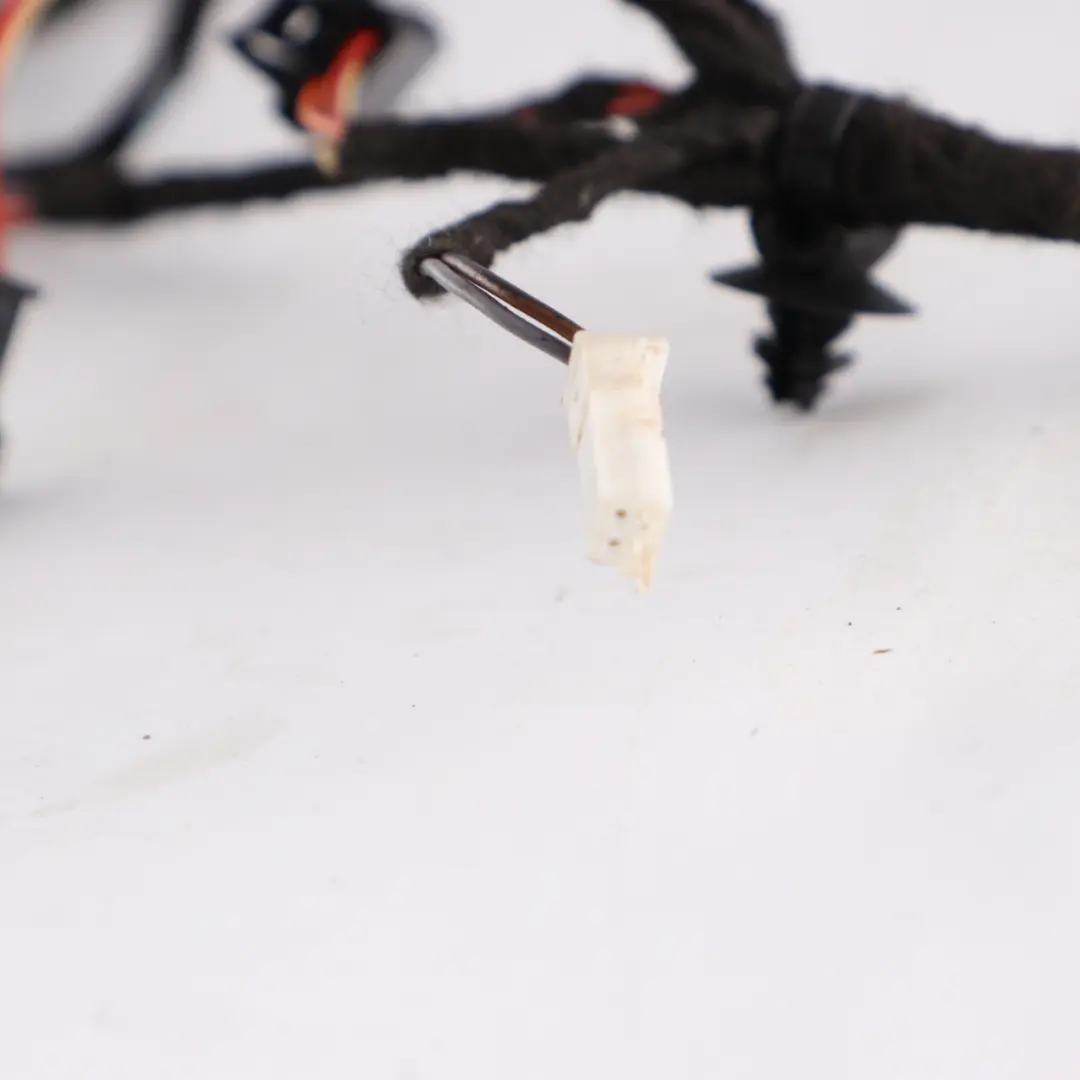

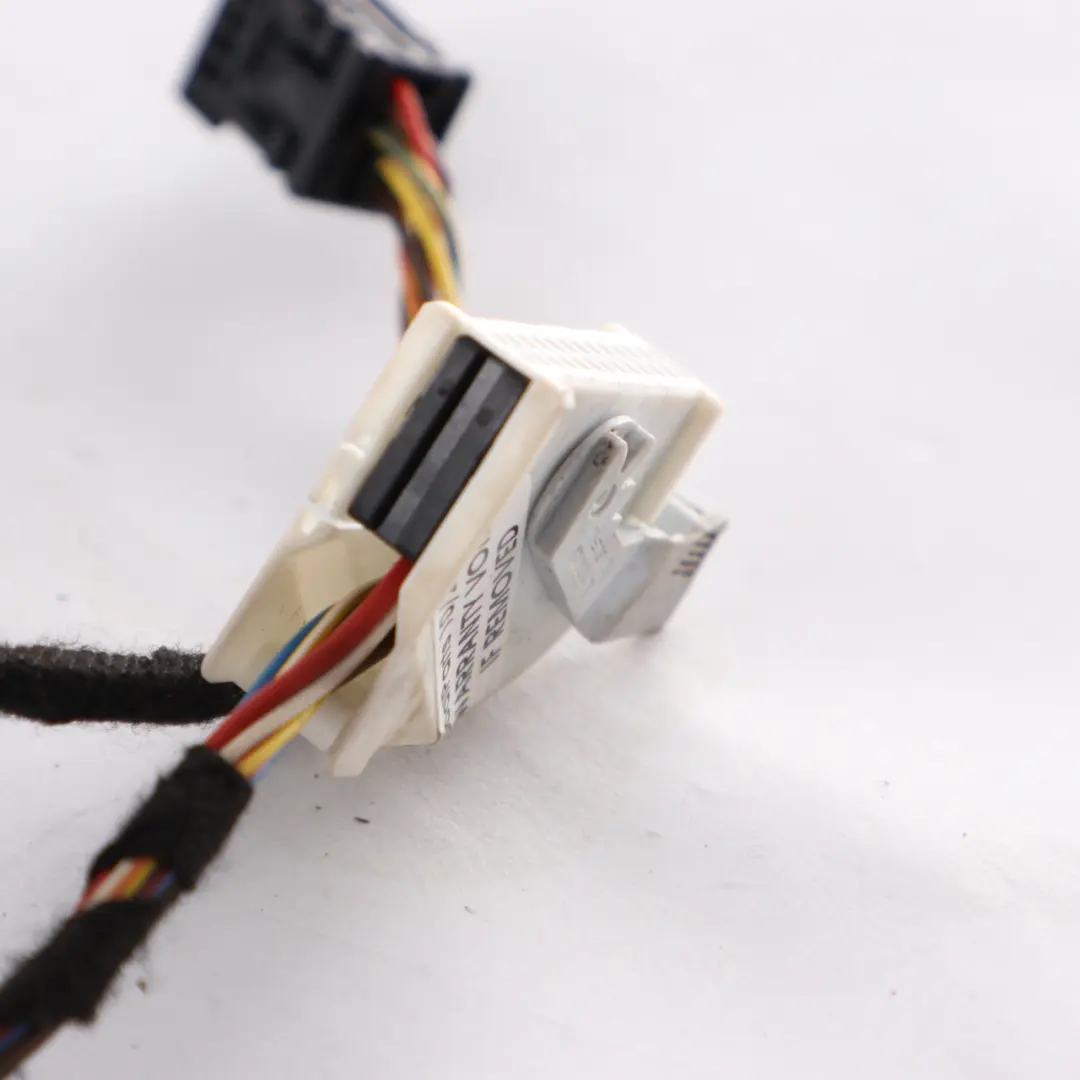

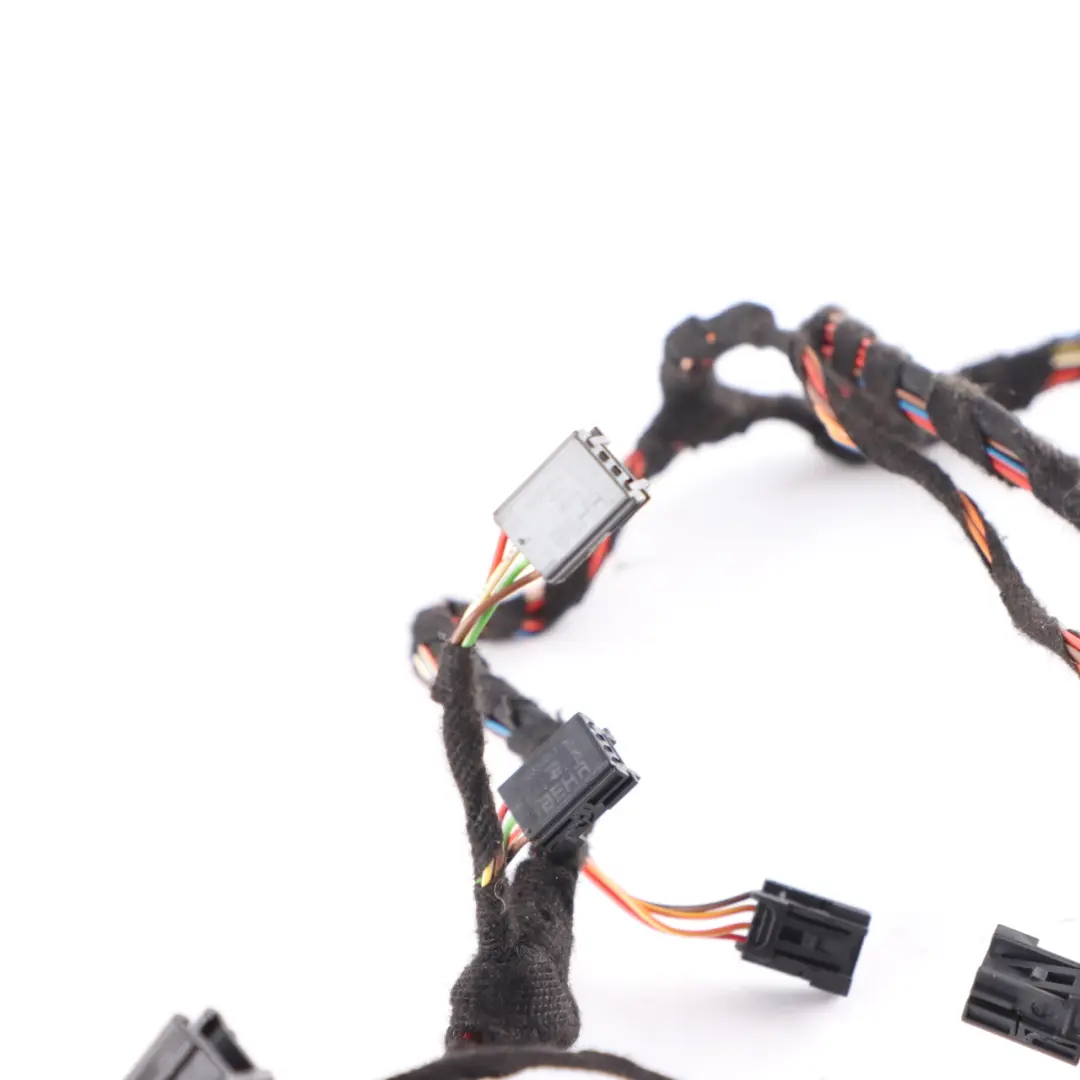

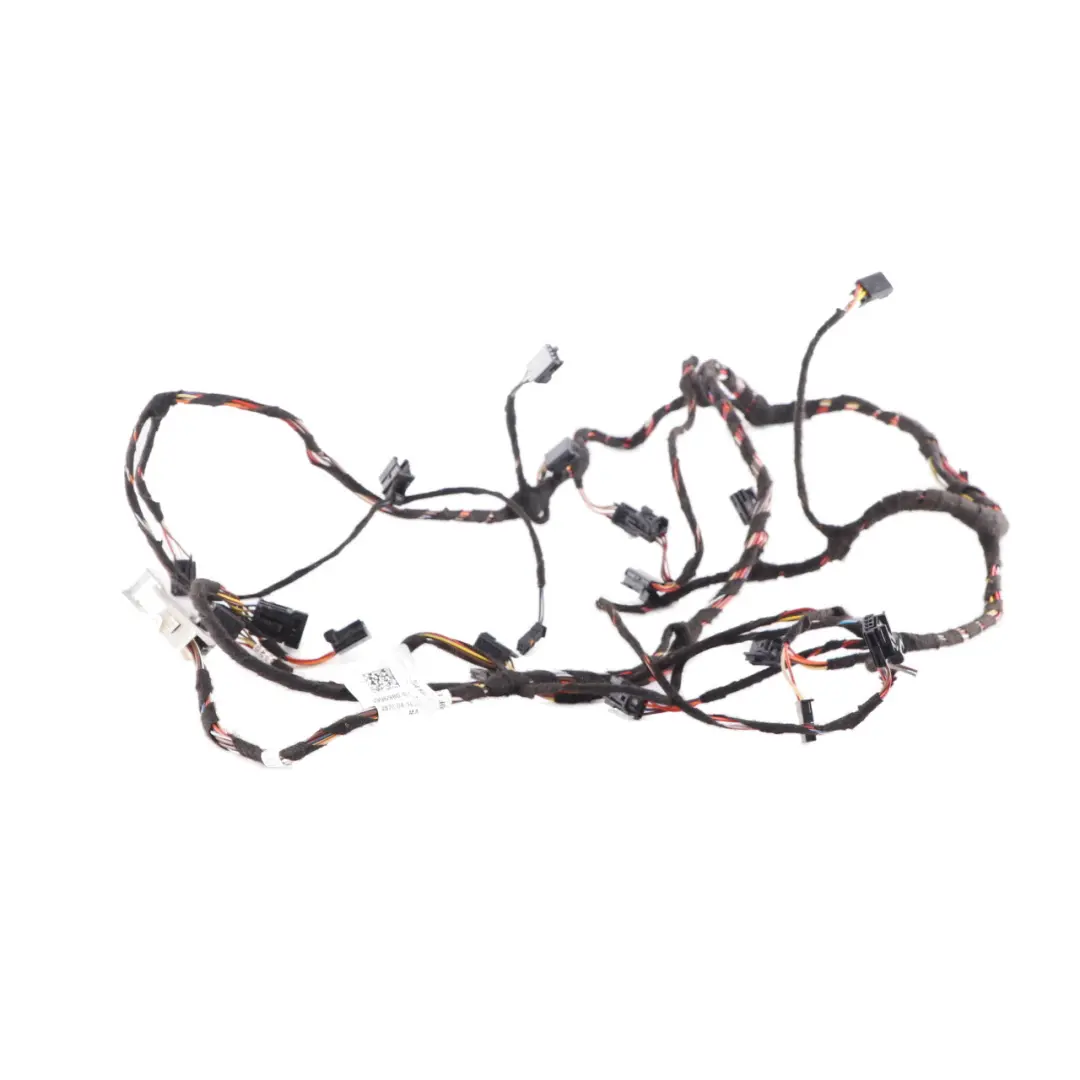

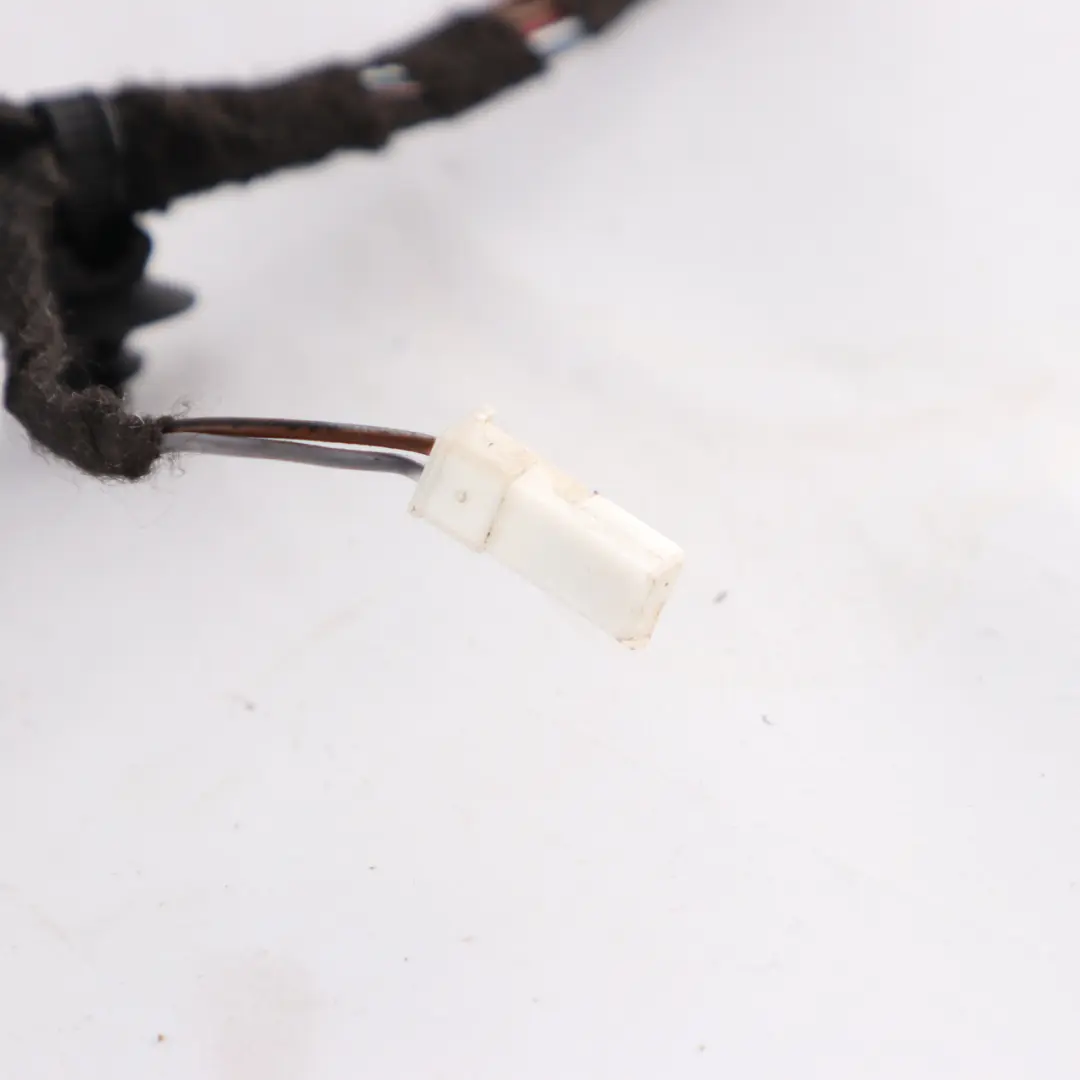

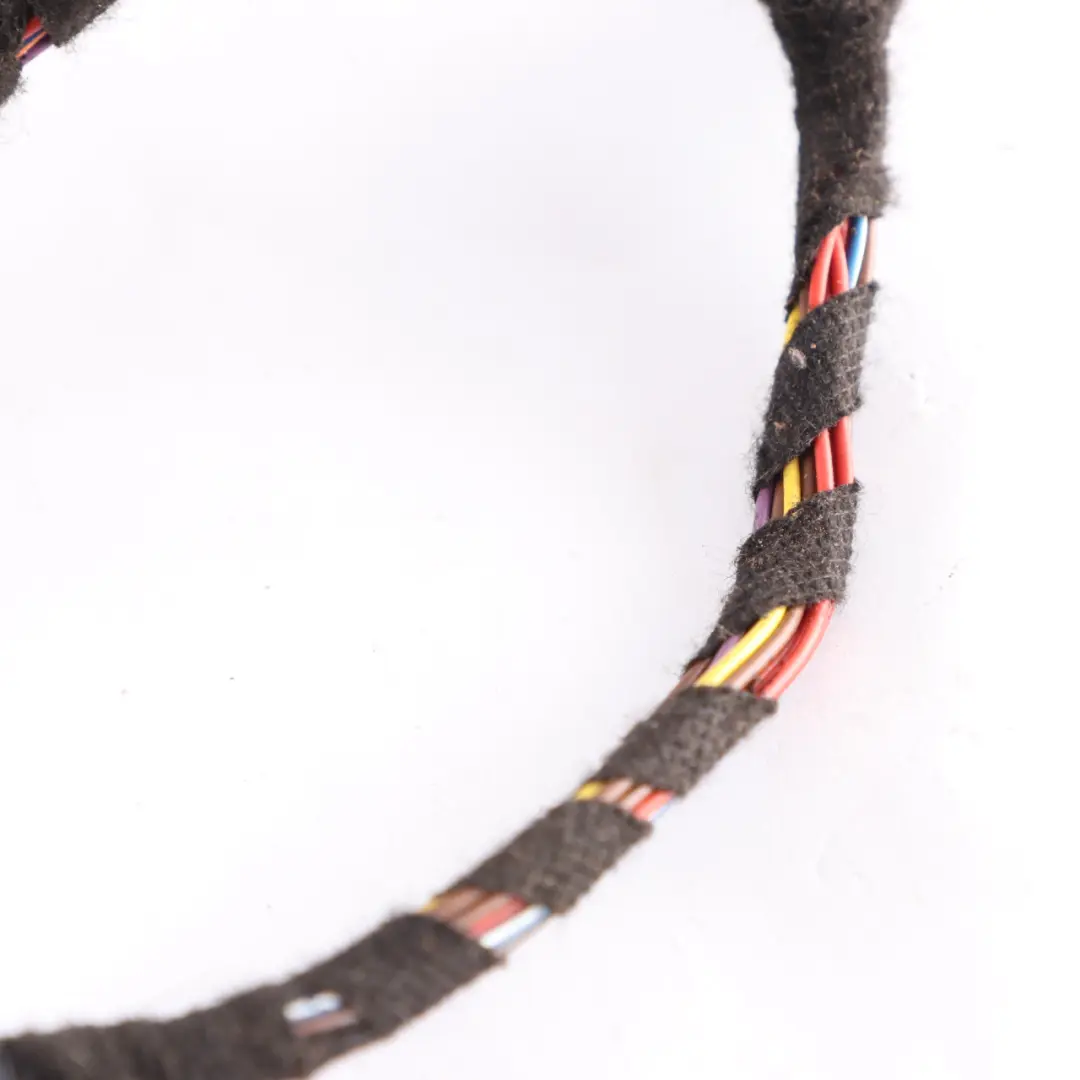

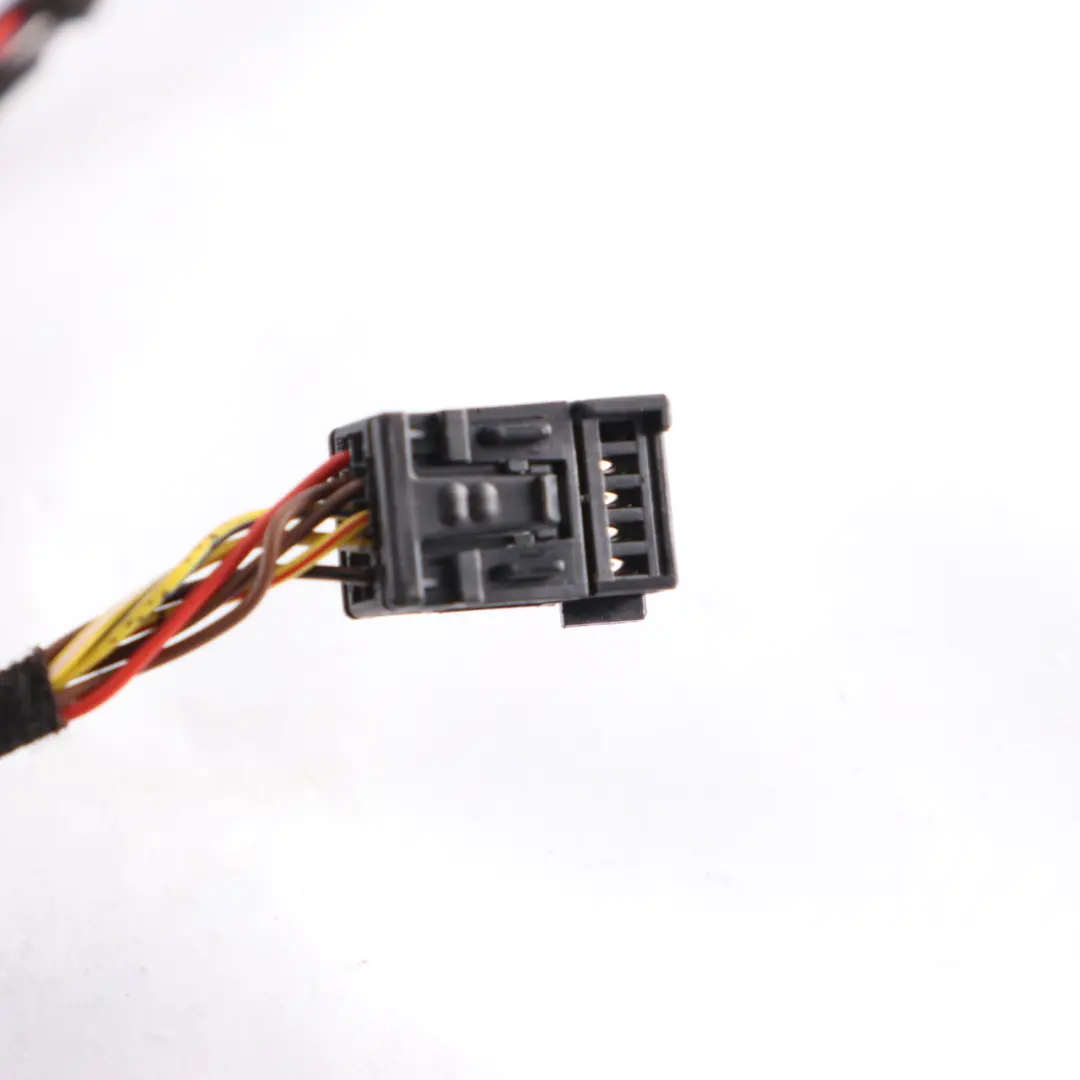

Heater Wiring BMW G11 G30 Cable Harness Loom Matrix Air Conditioner 6996980

The BMW G11 G30 Heater Harness is an original electrical component for the matrix air conditioning system, designed for installation in the front left part of the vehicle. As part of the Cables, Harnesses, and Connectors group, it ensures proper power supply and communication between the heater and other air conditioning system components. This is a practical solution for BMW users who need a reliable part to repair or restore the factory wiring configuration.

Specifications and technical data

• SKU: 6996980
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 6996980
• Substitutable numbers: 6996980, 64116996980
• Location on the vehicle: Front, Left
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function in the Air Conditioning System

The presented wiring harness is dedicated to BMW G11 and G30 models equipped with a matrix air conditioning system. It is responsible for a stable electrical connection between the heater and control modules and sensors, enabling precise temperature control and even heat distribution within the cabin.

Its placement in the front – left side of the vehicle allows for direct connection to the factory wiring connectors, without the need for modifications to the original body harness. This makes the component suitable for both standard repairs and for restoring the system after mechanical or thermal damage.

Construction and Fit for BMW

As a BMW branded product, the heater wiring harness has been designed for full compatibility with factory mounting points and original connectors. The appropriately selected wire length, connector placement, and geometry facilitate routing the harness within the heater housing and under the dashboard.

Key construction features of this harness include:

• dedicated connectors matched to the BMW matrix air conditioning system,
• wire routing consistent with the factory installation path in the front left part of the vehicle,
• use of insulation adapted for operation at elevated temperatures in the heater area.

This solution helps maintain factory order in the wiring, reduces the risk of wire chafing, and simplifies future servicing.

Benefits of Using an Original Harness

Using the original heater wiring harness in a BMW G11/G30 offers a range of practical operational benefits:

• Factory Fit – no need for wiring modifications, soldering, or custom connectors.
• Stable Air Conditioning System Operation – correct electrical connections contribute to the proper functioning of the heater and matrix control.
• Reduced Diagnostic Errors – accurate signals from sensors and actuators minimize the risk of errors in the control unit memory.
• Easier Diagnostics – maintaining the original wiring architecture simplifies the work for service centers using BMW documentation.

For users who want to restore the functionality of their heating and air conditioning system without compromise, using such a harness is a technically safe and predictable solution.

Vehicle Placement and Installation Aspects

The component is designed for installation in the front left area of the vehicle, in the vicinity of the heater and air conditioning related modules. This placement requires access to the space under the dashboard and to the appropriate wiring mounting points.

During installation, pay attention to:

• routing the harness according to factory clips and ties,
• correctly connecting each connector to its corresponding module or sensor,
• maintaining adequate clearance from heating elements and moving parts.

This approach minimizes the risk of future failures due to chafing, overheating, or loose connectors.

Product Condition and Service Application

The heater wiring harness is offered as a used part, making it an attractive option for users seeking an economical yet original-compliant repair solution. It is particularly suitable for situations where the factory wiring has been damaged due to heater overheating, electrical system interference, or a collision in the front of the vehicle.

By retaining its original construction and intended purpose, this part allows for the restoration of the matrix air conditioning system's proper operation without the need for aftermarket alternatives with uncertain fitment.

If you are planning a comprehensive repair or upgrade of the air conditioning electrical system in your BMW and need other parts from the same group, such as additional harnesses, power cables, or service connectors, check the available parts in the BMW Cables, Harnesses, and Connectors category.
