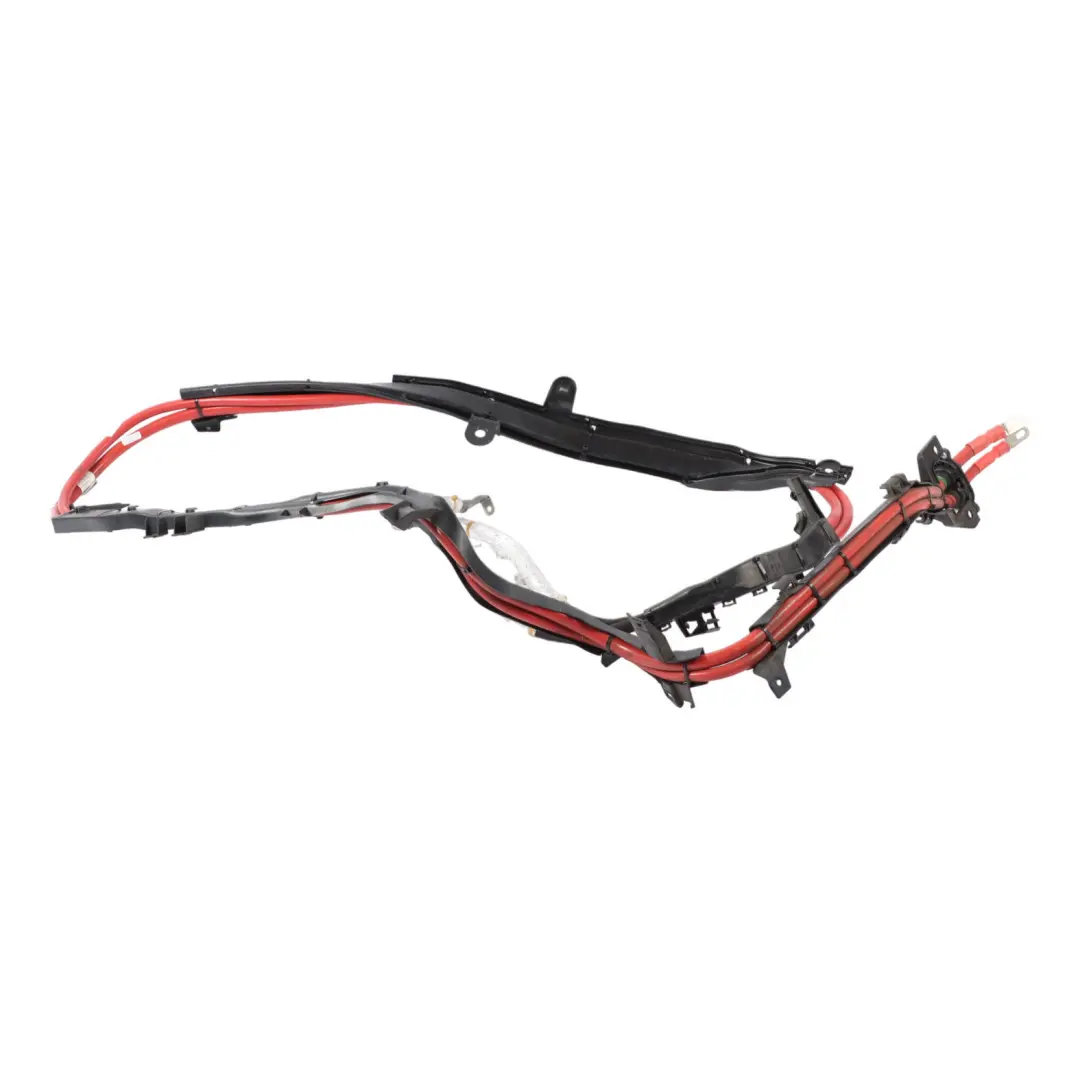

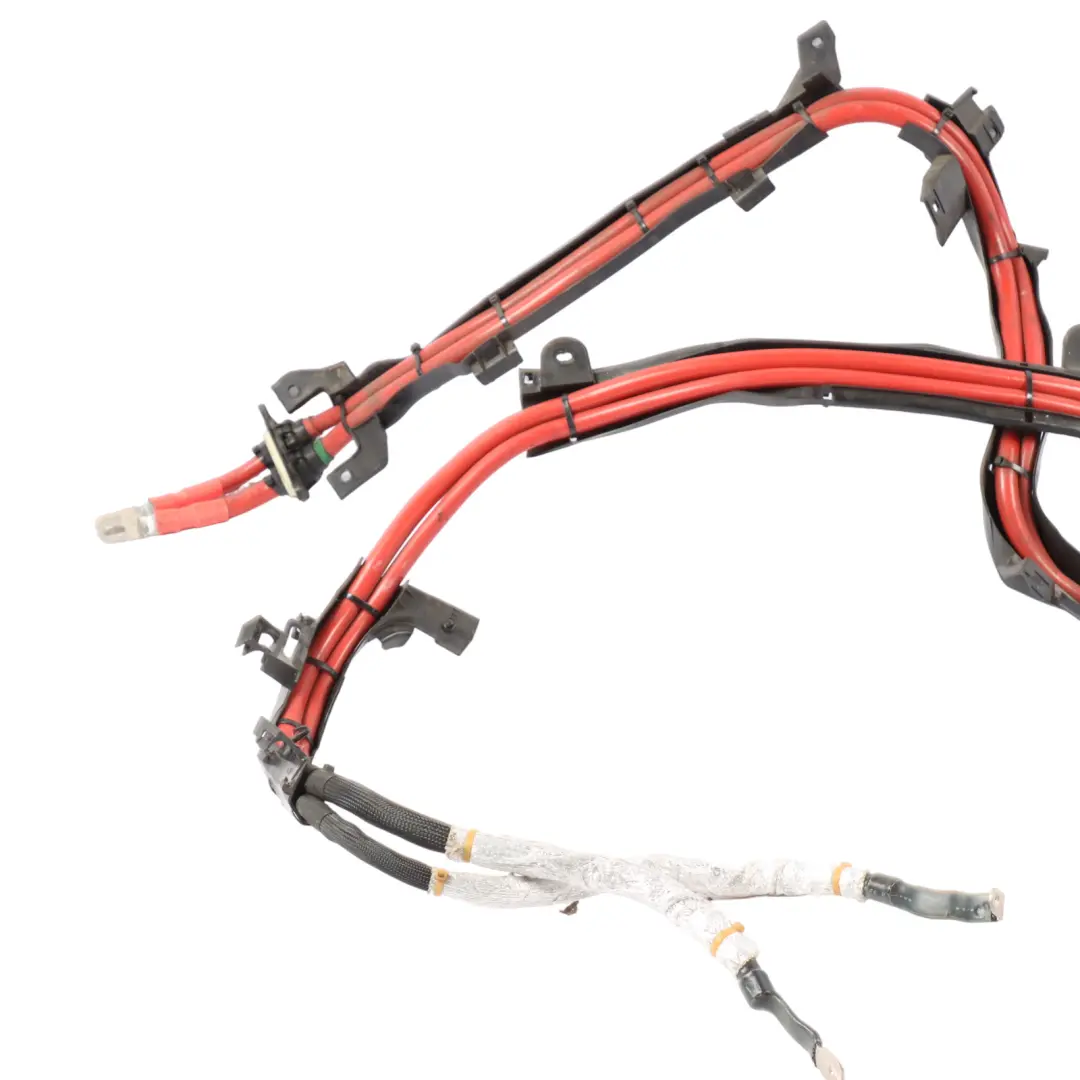

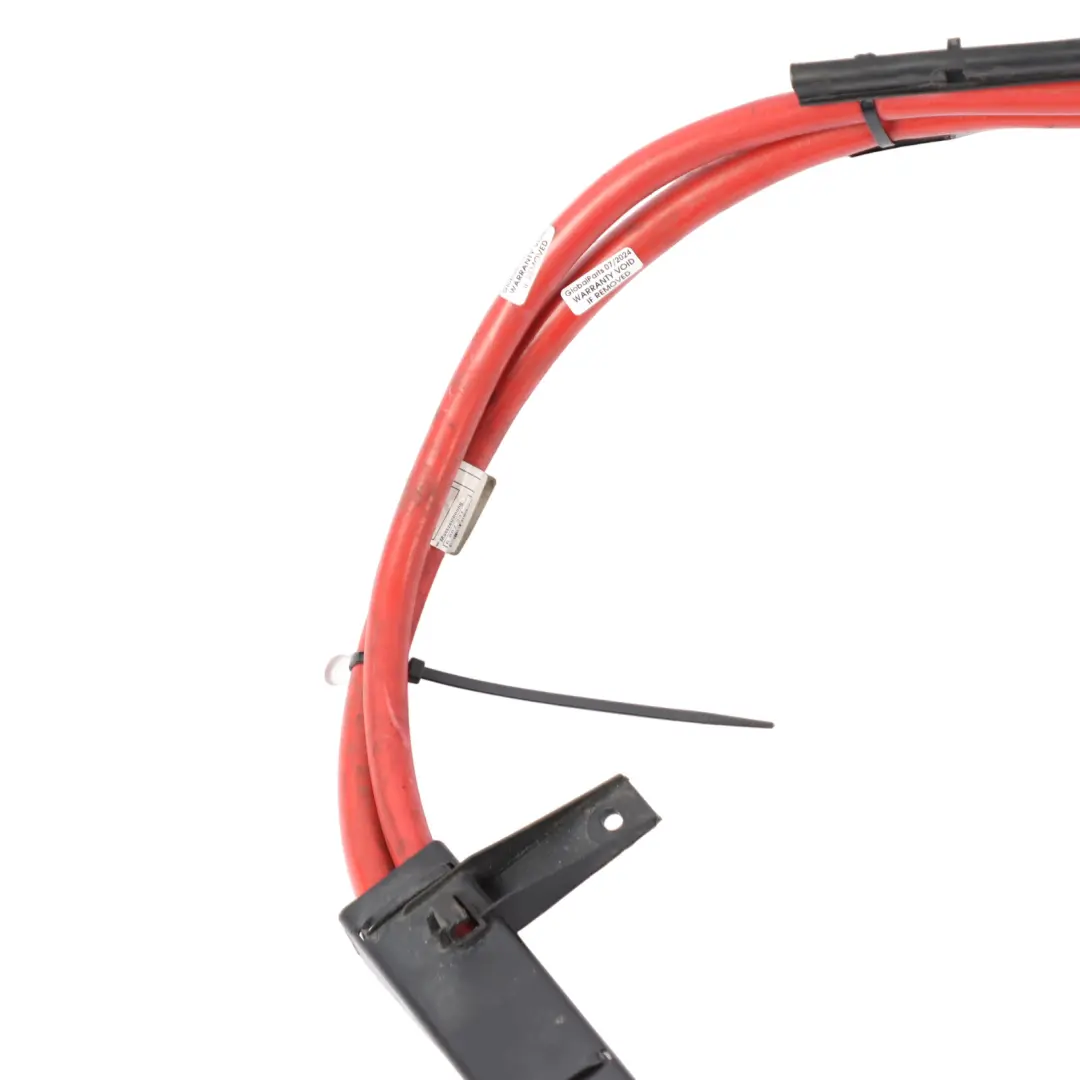

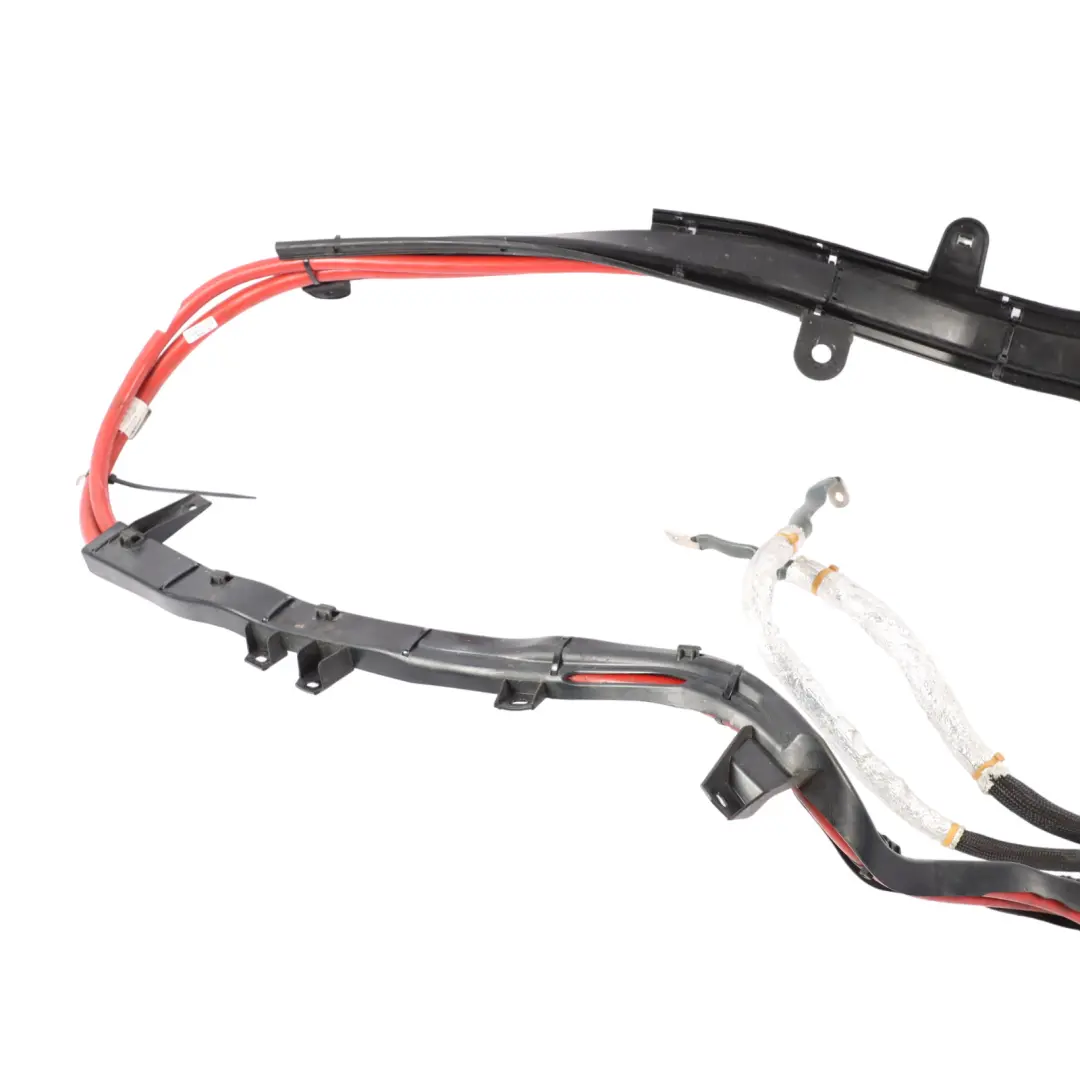

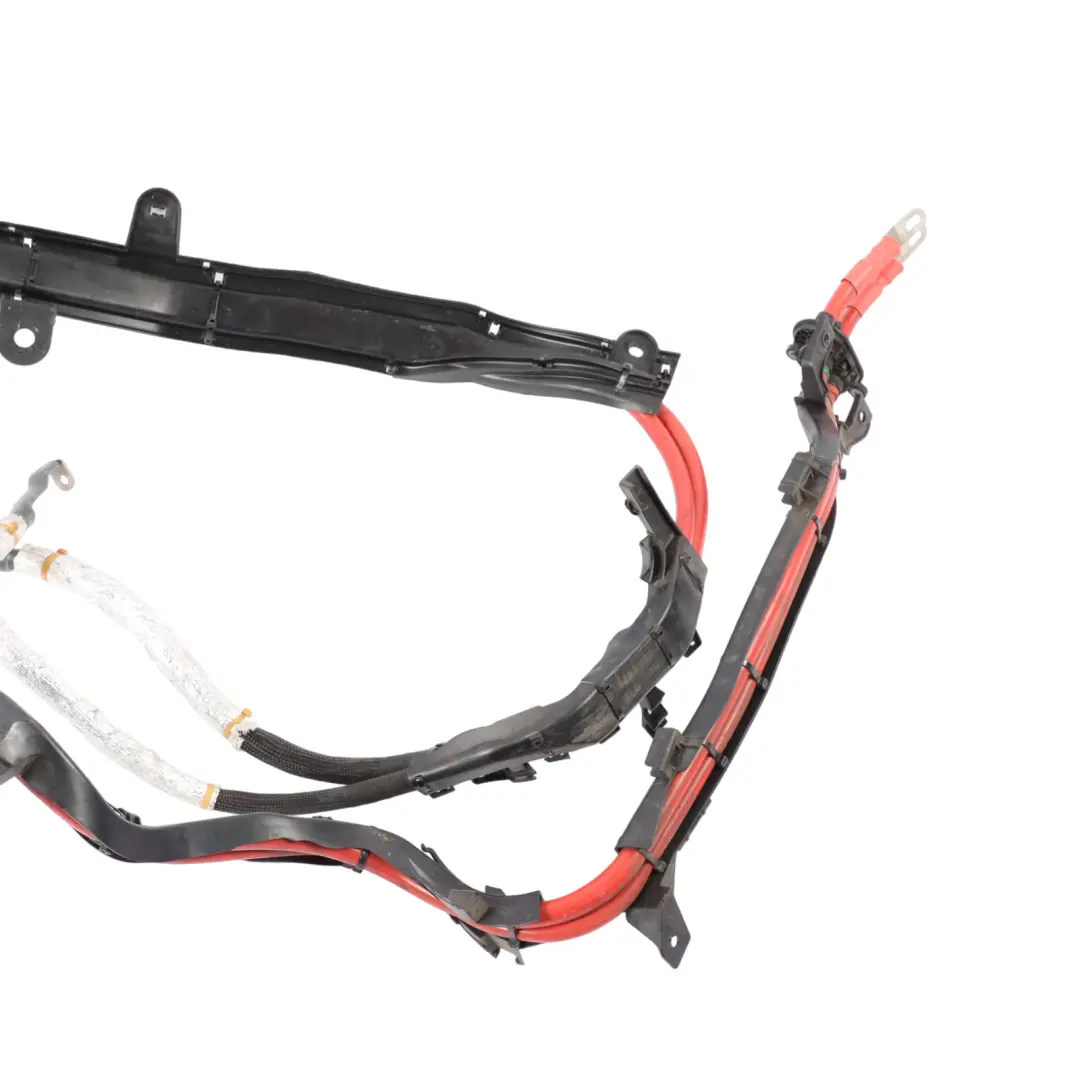

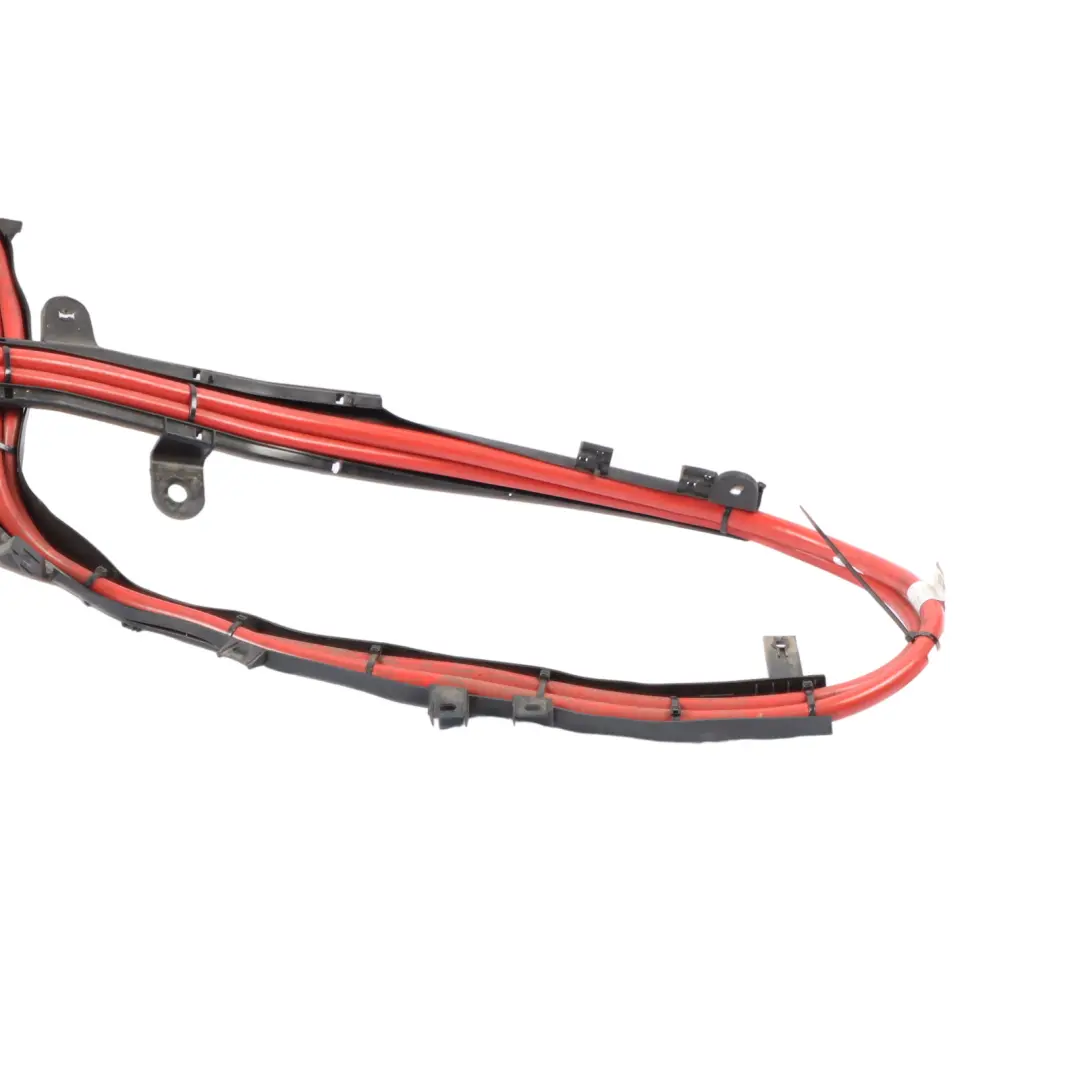

BMW G30 530e 530eX B48X Hybrid Battery Wiring Positive Under Floor Cable 6807332

The BMW G30 530e / 530e xDrive Hybrid Battery Positive Cable is an original underfloor harness component designed for hybrid models based on the B48X engine unit. This used component from the Cables, Harnesses, and Connectors group allows for professional repair or restoration of the original positive cable routing in the vehicle's floor area, maintaining BMW manufacturer standards.

Specifications and technical data

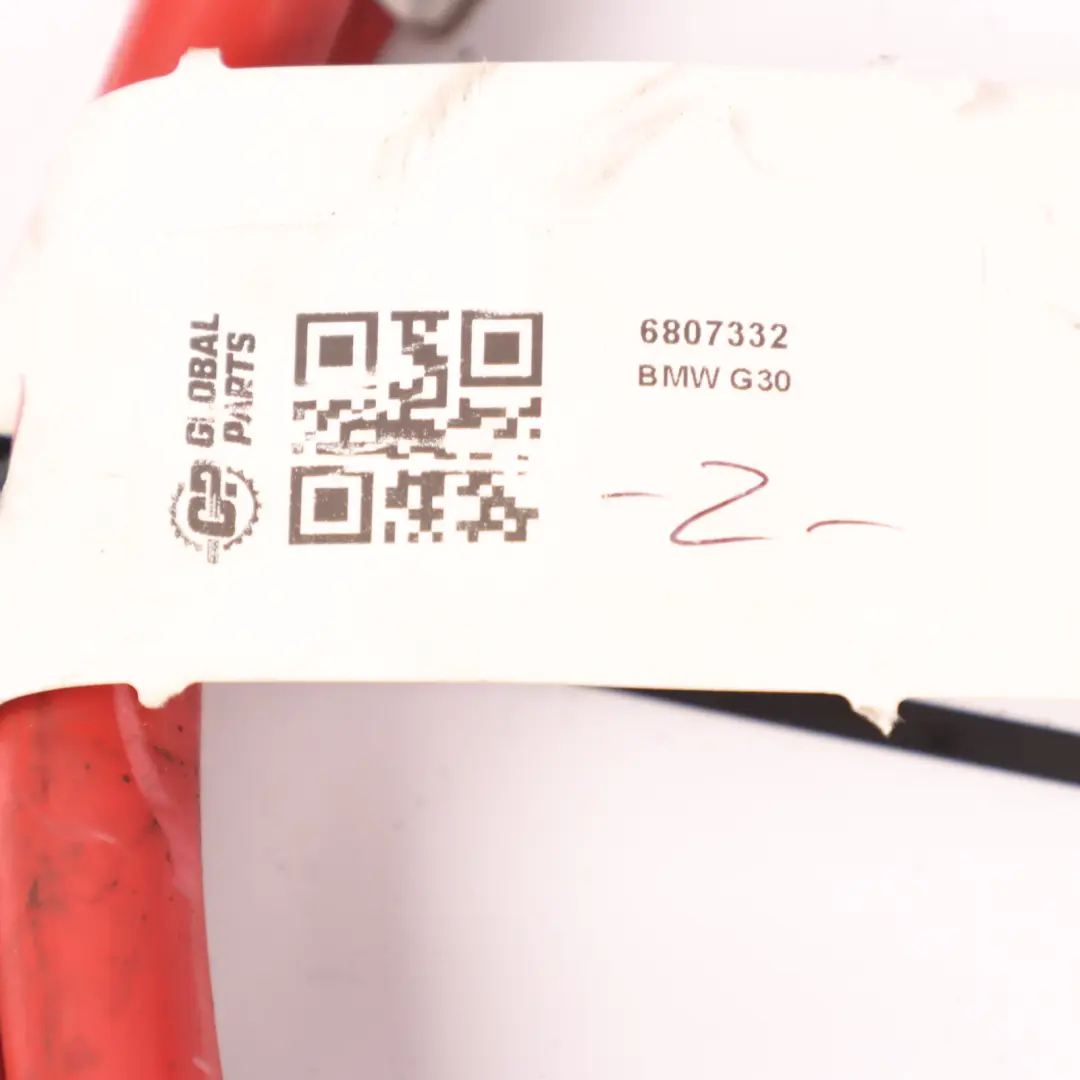

• SKU: 6807332
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 6807332
• Substitutable numbers: 6807332, 61126807332
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function in the Hybrid System

This underfloor positive cable is a high-voltage system component responsible for the safe and stable connection of the hybrid battery to other powertrain components in the BMW 5 Series G30, specifically the 530e and 530e xDrive versions with the B48X engine. It is responsible for:

• transferring electrical energy from the hybrid battery to the powertrain,
• maintaining proper electrical continuity in the vehicle's floor area,
• interfacing with factory high-voltage system protections and covers.

Thanks to its original geometry and mounting points, the cable allows for the restoration of the original harness routing, which is crucial for the safety and correct operation of the entire hybrid system.

Construction and Technical Characteristics

The offered component belongs to the Cables, Harnesses, and Connectors group, meaning it is designed as an integral part of the BMW electrical system. The cable's construction includes:

• a appropriately selected conductor cross-section, adapted to the hybrid system's loads,
• insulation suitable for underfloor operating conditions,

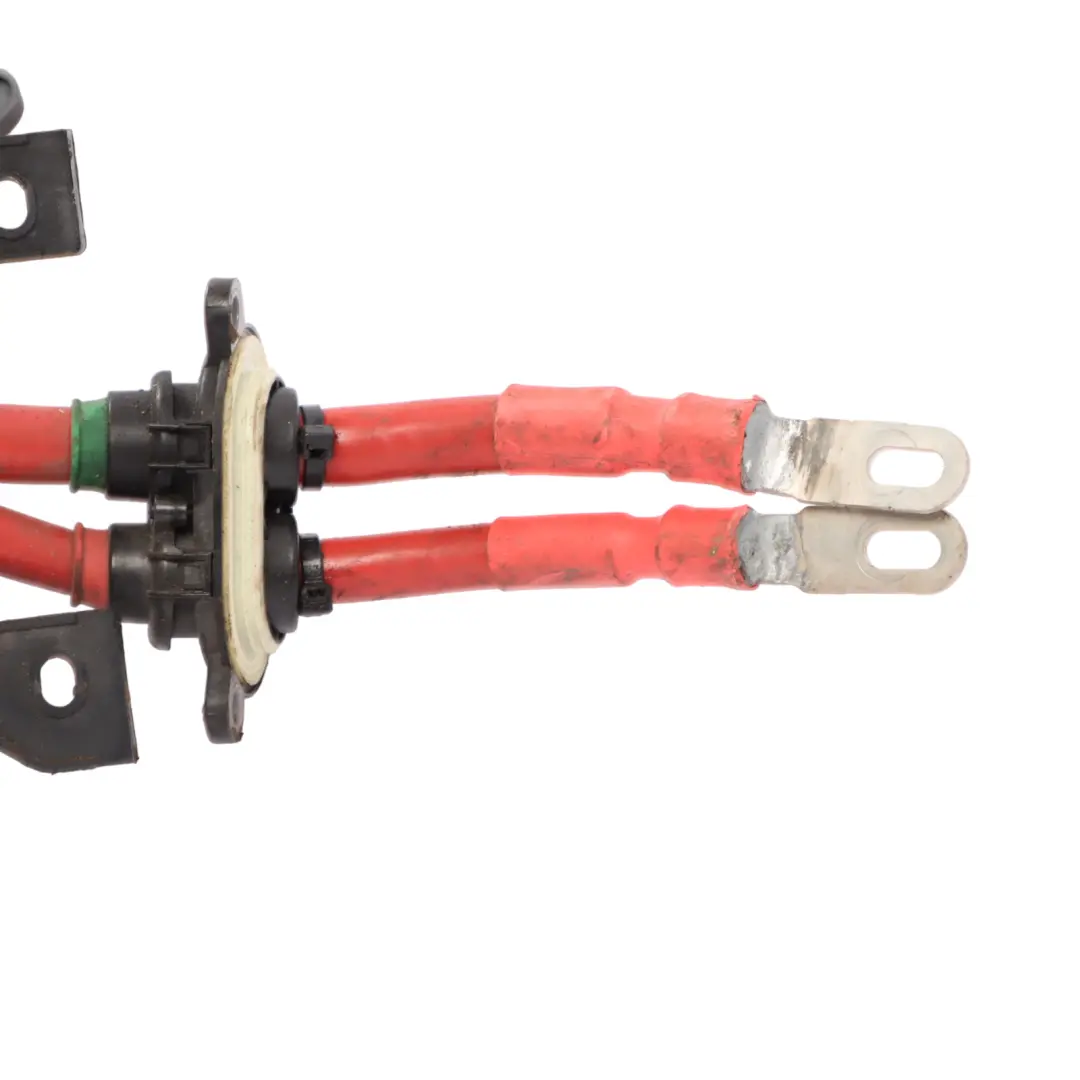

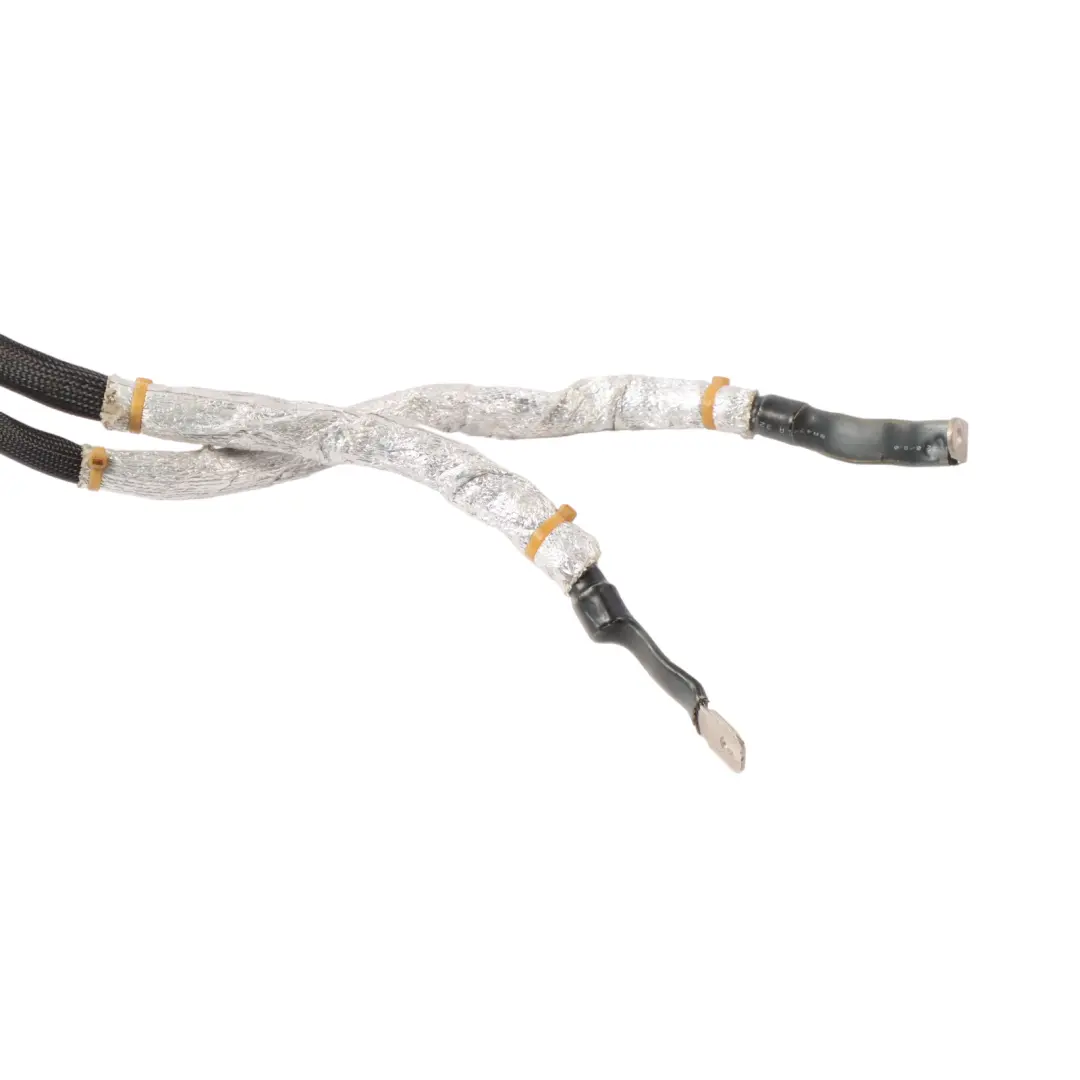

• factory-endings and connectors enabling correct connection to other system components.

This solution facilitates installation in original mounting points and minimizes the risk of errors during high-voltage system servicing.

Service Application and Installation

The underfloor positive cable for the BMW G30 530e / 530e xDrive is primarily used in situations where replacing a damaged section of the hybrid harness is necessary, for example, after a collision, mechanical intervention in the vehicle's floor, or during repairs related to the hybrid battery. In service practice:

• it allows for restoring the correct routing and mounting of the cable in the floor area,
• it reduces the need for harness modifications due to its factory fit,
• it supports compliance with manufacturer requirements for high-voltage system safety.

Due to the nature of the component, installation by a workshop experienced in servicing BMW hybrid vehicles and possessing appropriate procedures for working with high-voltage systems is recommended.

Benefits of Using an Original BMW Cable

Using an original underfloor positive cable in a hybrid BMW G30 offers a range of practical service benefits:

• Factory Fit – maintaining the original length, shape, and mounting points simplifies installation and reduces repair time.
• Consistency with the Rest of the Harness – the cable integrates with existing system components, covers, and brackets in the vehicle.
• Operational Safety – a correctly routed cable in the floor area reduces the risk of mechanical damage and improper system loading.

This solution is particularly beneficial for repairs where maintaining compliance with BMW's original technical documentation and hybrid system requirements is paramount.

System Expansion – Related Components

If you are planning a comprehensive repair or upgrade of the electrical and hybrid system area in your BMW and require other components from the same group, such as additional harnesses, cable sections, or service connectors, check the available parts in the BMW Cables, Harnesses, and Connectors category.
