Mercedes EQA H243 Plug Wiring Loom Module Control Unit Orange C4000H000F190002

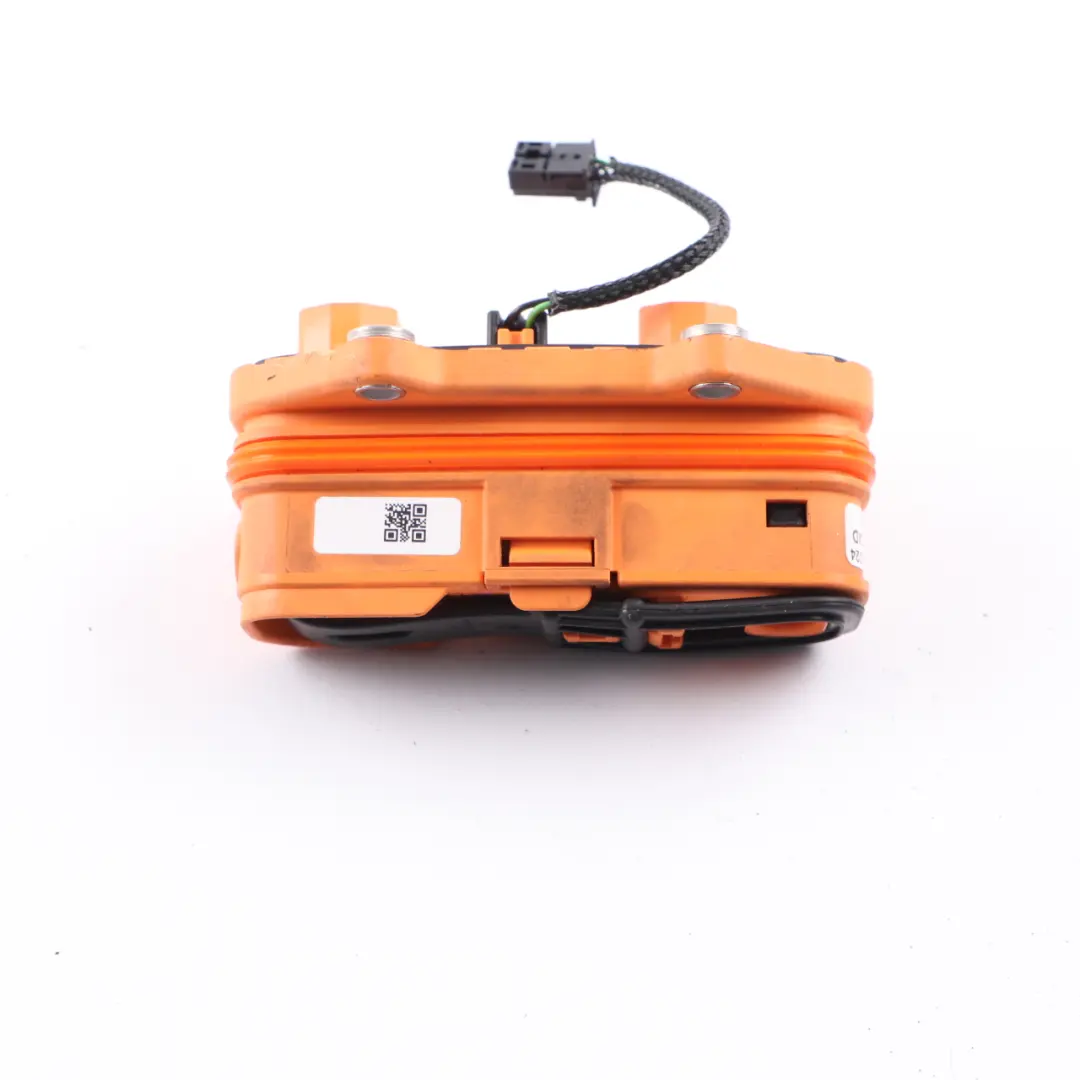

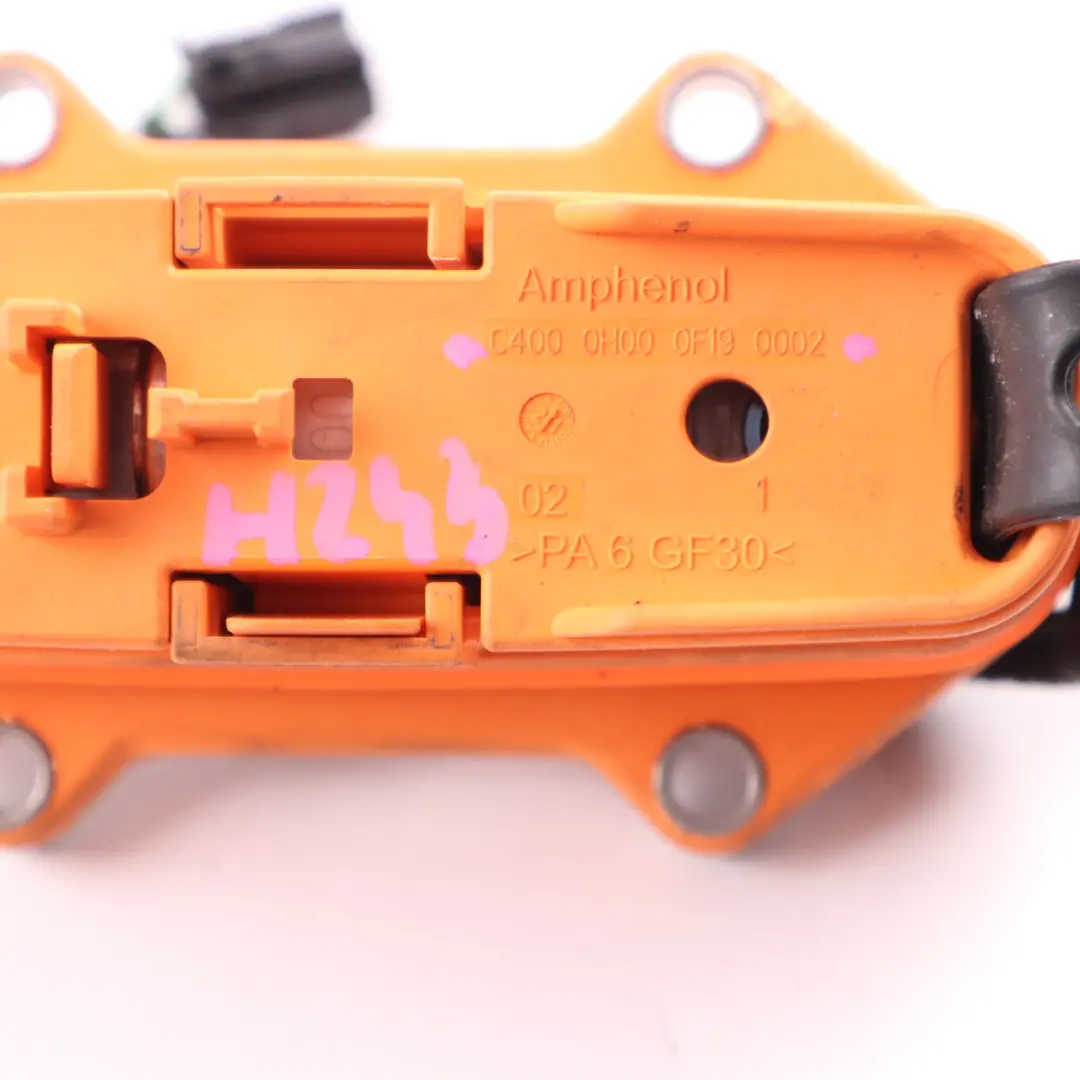

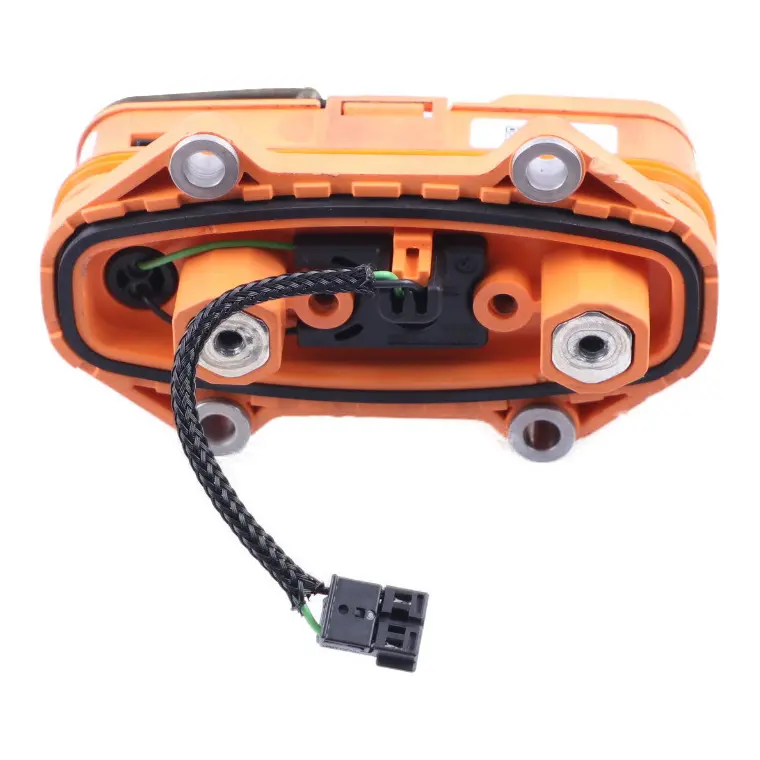

The plug-in wiring harness module for Mercedes EQA H243 is a specialized component from the Cables, Harnesses, and Connectors group, designed for operation within the high-voltage system of an electric vehicle. The characteristic orange color of the cable facilitates clear identification of HV circuits and supports safe servicing.

Specifications and technical data

• SKU: C4000H000F190002
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: C4000H000F190002
• Substitutable numbers: C4000H000F190002, C400 0H00 0F19 0002
• Color: Orange
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function in the Mercedes EQA H243 System

The presented plug-in wiring harness module is a component of the control and power supply system in the electric Mercedes EQA series H243. It is responsible for a stable electrical connection between control modules and other powertrain components, as well as auxiliary systems, ensuring the correct flow of signals and energy.

The orange insulation of the cable indicates its use in the high-voltage area, which is a safety standard in modern electric vehicles. This makes the harness easily recognizable during servicing, reducing the risk of incorrect connections and facilitating diagnostics.

Construction, Color Coding, and Safety Aspects

The harness is designed as a compact plug-in module, integrating cables and connectors into a single, cohesive unit. This design minimizes the number of individual connections, which translates to a lower risk of loose contacts, interference, and voltage drops in the system.

The orange color serves both visual and safety functions – it clearly signals a high-voltage circuit, in line with the practice used in electric and hybrid vehicles. This aids in the correct routing, tracing, and inspection of the cables during technical checks.

Benefits of Using an Original Plug-in Harness

Using a dedicated plug-in wiring harness module in the Mercedes EQA H243 allows for the preservation of the factory electrical system architecture. Appropriately selected cable cross-sections, connector types, and their arrangement are adapted to the current and thermal requirements of the specific model, which is important for the durability of the entire system.

• Seamless integration with the vehicle's existing system.
• Reduction of potential failure points due to modular design.
• Easier location and replacement of the component during service.
• Color coding of the cable supporting HV safety procedures.

A component from this group is particularly important for work related to the powertrain, charging control, and energy management systems, where high connection stability and operational resistance are required.

Condition, Installation, and Service Application

The offered plug-in wiring harness module is a used element, making it an economical servicing solution for owners and workshops specializing in the maintenance of Mercedes electric vehicles. Such components are often used in post-accident repairs, replacement of damaged sections of the system, or restoration of full control system functionality.

Due to the nature of working in the high-voltage area, installation should be carried out according to the manufacturer's procedures, adhering to health and safety regulations for HV systems. Proper seating of connectors, checking mechanical locks, and verifying the condition of the cable insulation are crucial for the safe operation of the vehicle after repair.

System Expansion and Selection of Other Components

If you are planning a comprehensive repair or upgrade of the high-voltage electrical system area in your Mercedes and need other components from the same group, such as additional harnesses, connectors, or HV cable sections, check the available parts in the Mercedes Cables, Harnesses, and Connectors category.

When selecting used control modules, sensors, and other electrical system components, it is worth paying attention to the compatibility of markings, hardware, and software versions. A detailed discussion of these issues, along with practical tips on selection by part numbers and installation, can be found in the guide: Used Automotive Electronics Onboard – Why Choose Second-Hand ECUs and Sensors?.
