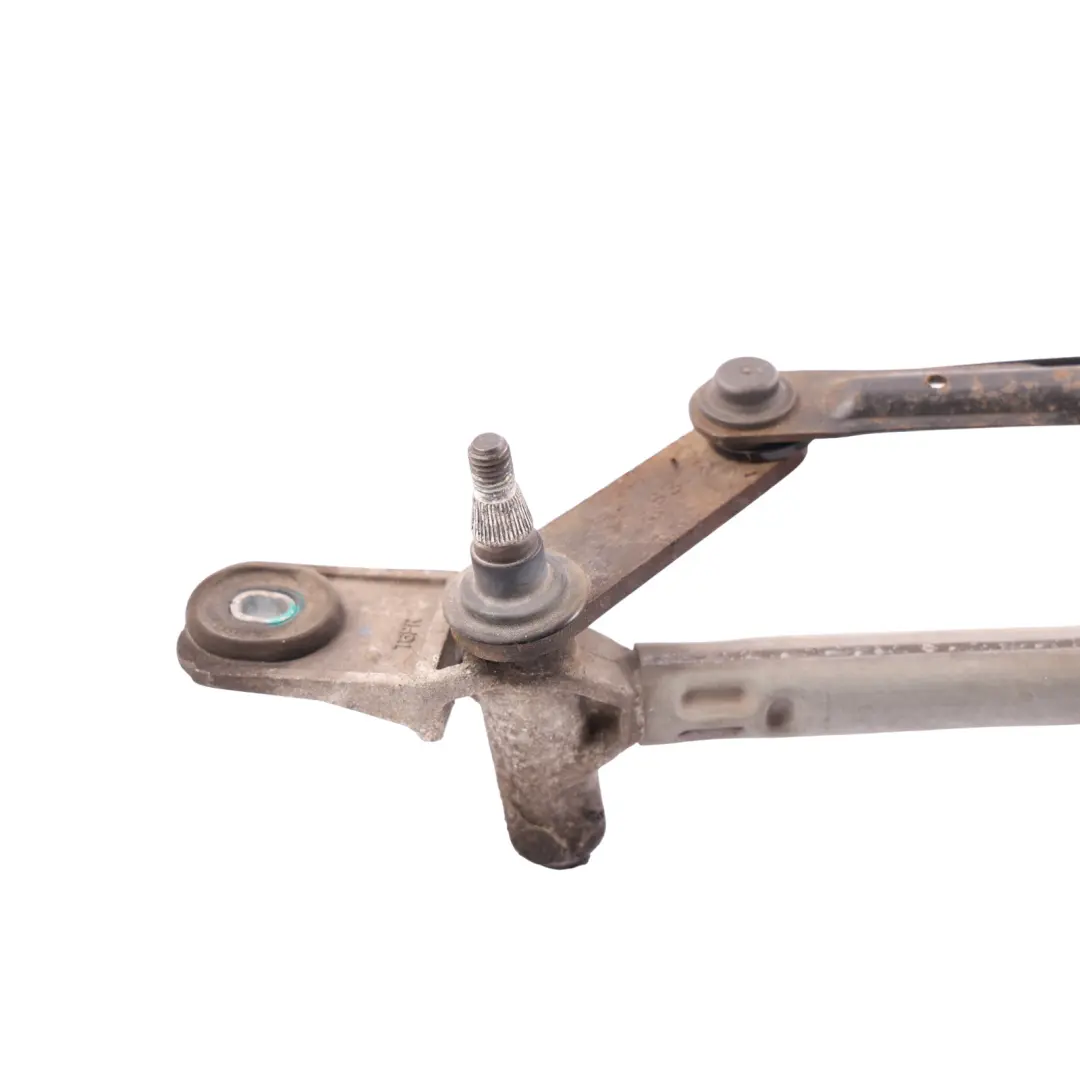

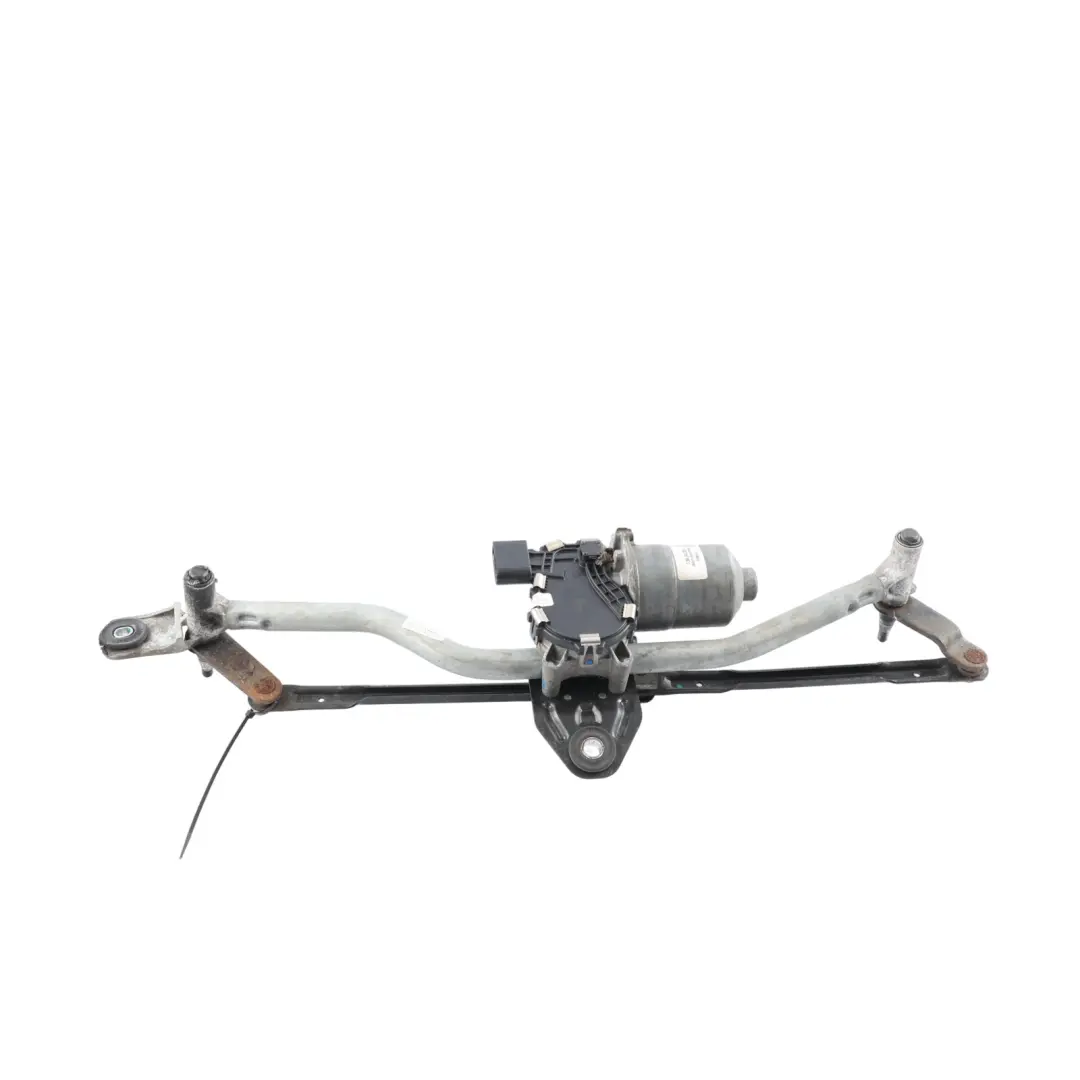

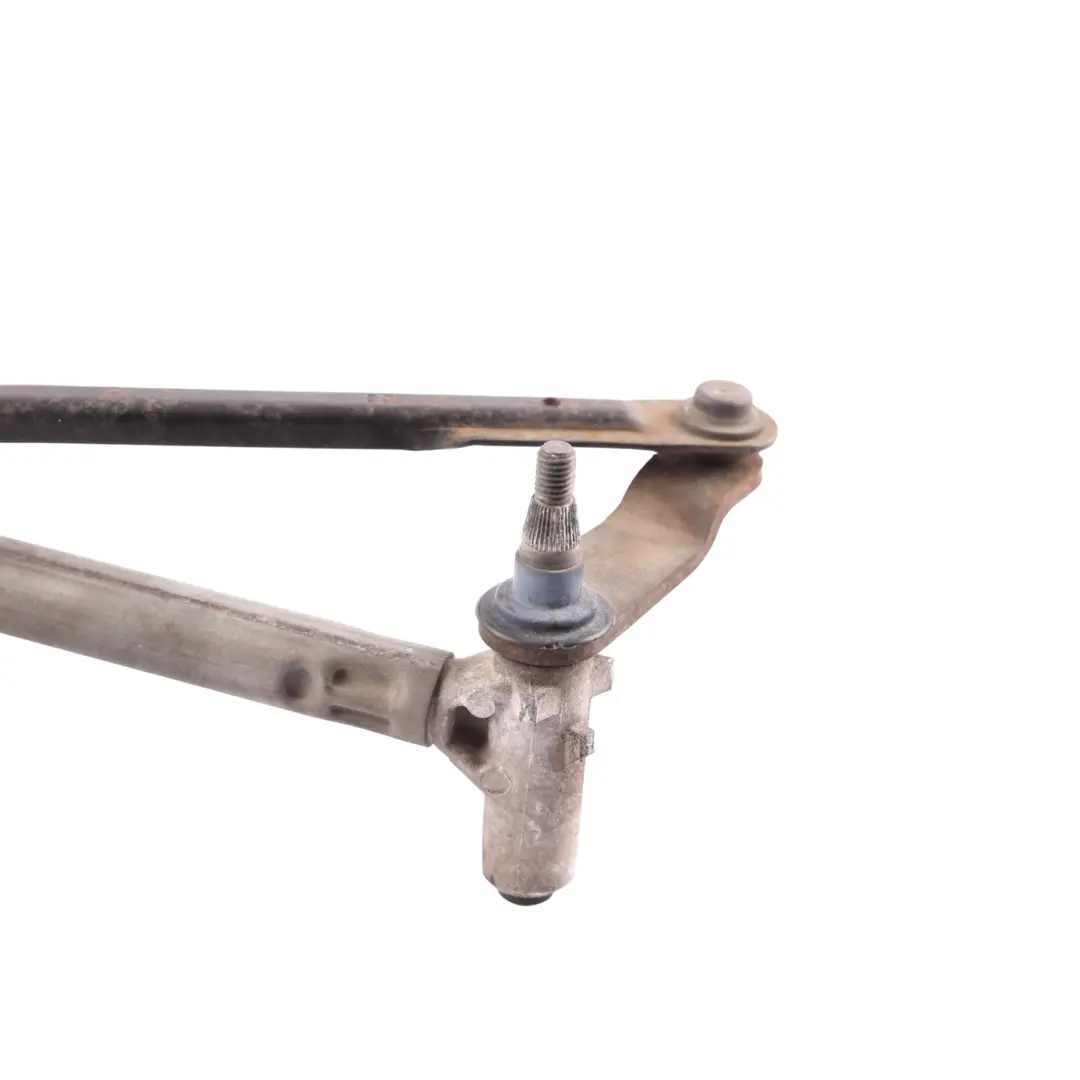

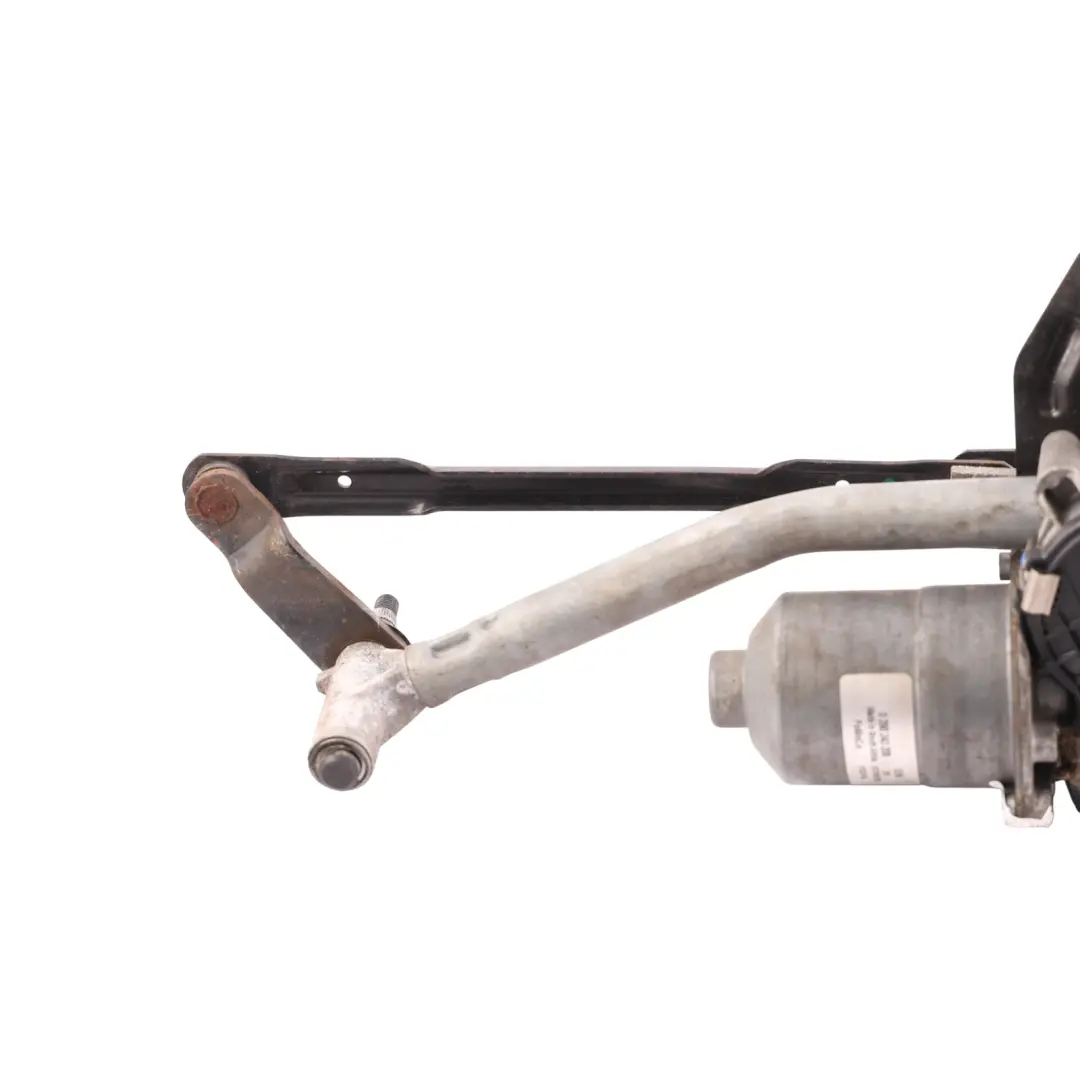

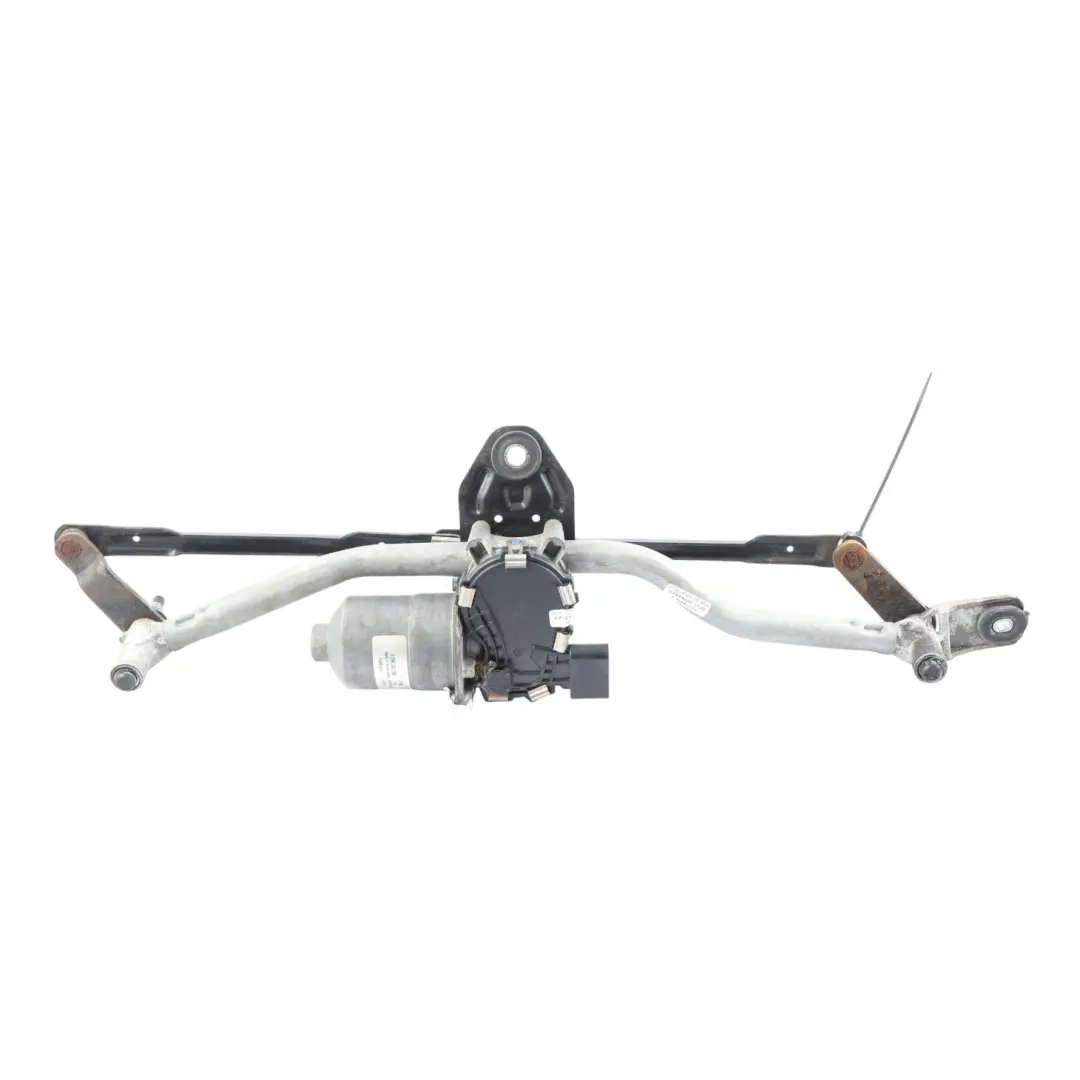

Ford Ranger Mk6 Front Windscreen Wiper Linkage Motor Mechanism AB39-17504-BD

Ford Ranger Mk6 Front Windscreen Wiper Linkage Motor Mechanism is a precision component of the windshield cleaning system, responsible for the smooth and stable operation of the wiper blades. Thanks to the original Ford design, this component ensures the correct geometry of the wiper arm movement, which translates into clear visibility for the driver in various weather conditions and seamless integration with the factory electrical system.

Specifications and technical data

• SKU: RHD-AB39-17504-BD
• Mark: Ford
• Condition: Used

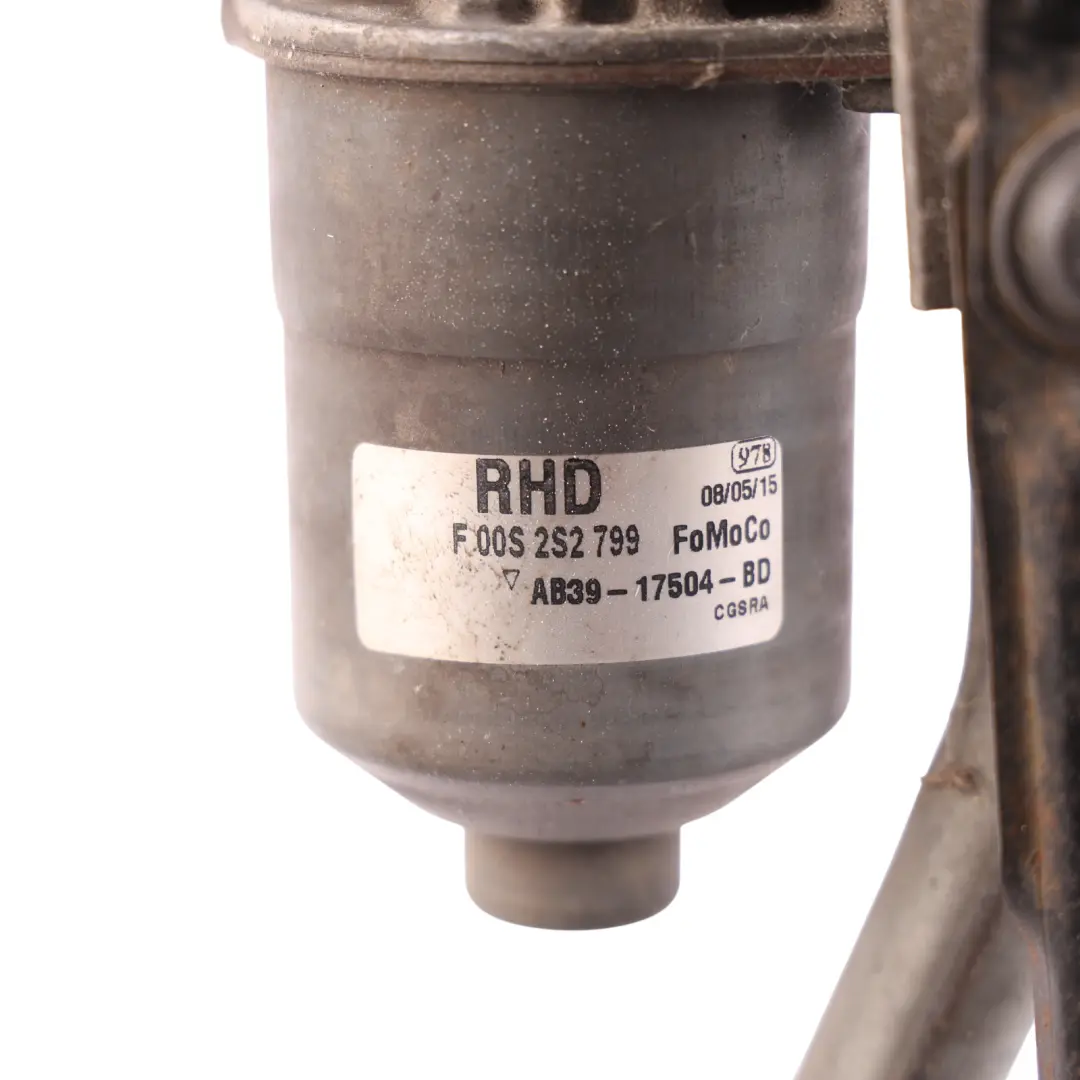

• OEM Part Number: AB39-17504-BD
• Substitutable numbers: AB39-17504-BD, AB3917504BD, 03902432089, F00S2S2799, 1736639, AB3917K484BC, AB39-17K484-BC
• Location on the vehicle: Front
• Category: Wiper Linkages, Transmissions & Motors

Purpose and function in the vehicle

The presented mechanism belongs to the Wiper Motors and Linkages category and has been designed for operation on the front windshield of the Ford Ranger Mk6. It is responsible for transferring torque from the wiper motor to the linkages, ensuring the correct angle, range, and synchronization of both blades. A properly functioning system in this area has a direct impact on driving safety, especially during heavy rain or snow.

The mechanism works with the factory wiper control, maintaining original operating speeds, intermittent mode, and washer function, provided they are equipped in the specific vehicle. As a result, after installation, the driver receives performance identical to the factory standard, without the need for additional modifications to the wiring.

Construction and performance features

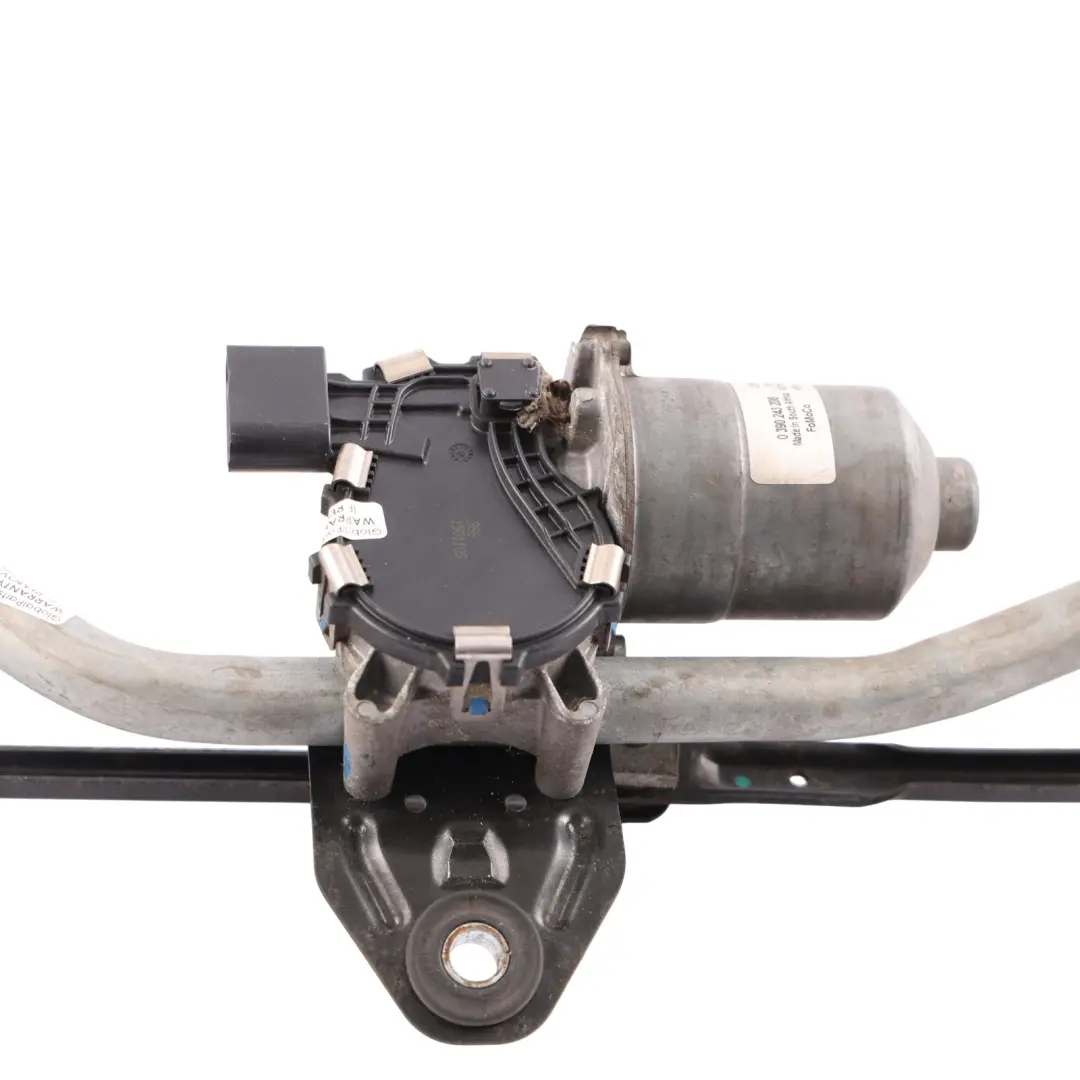

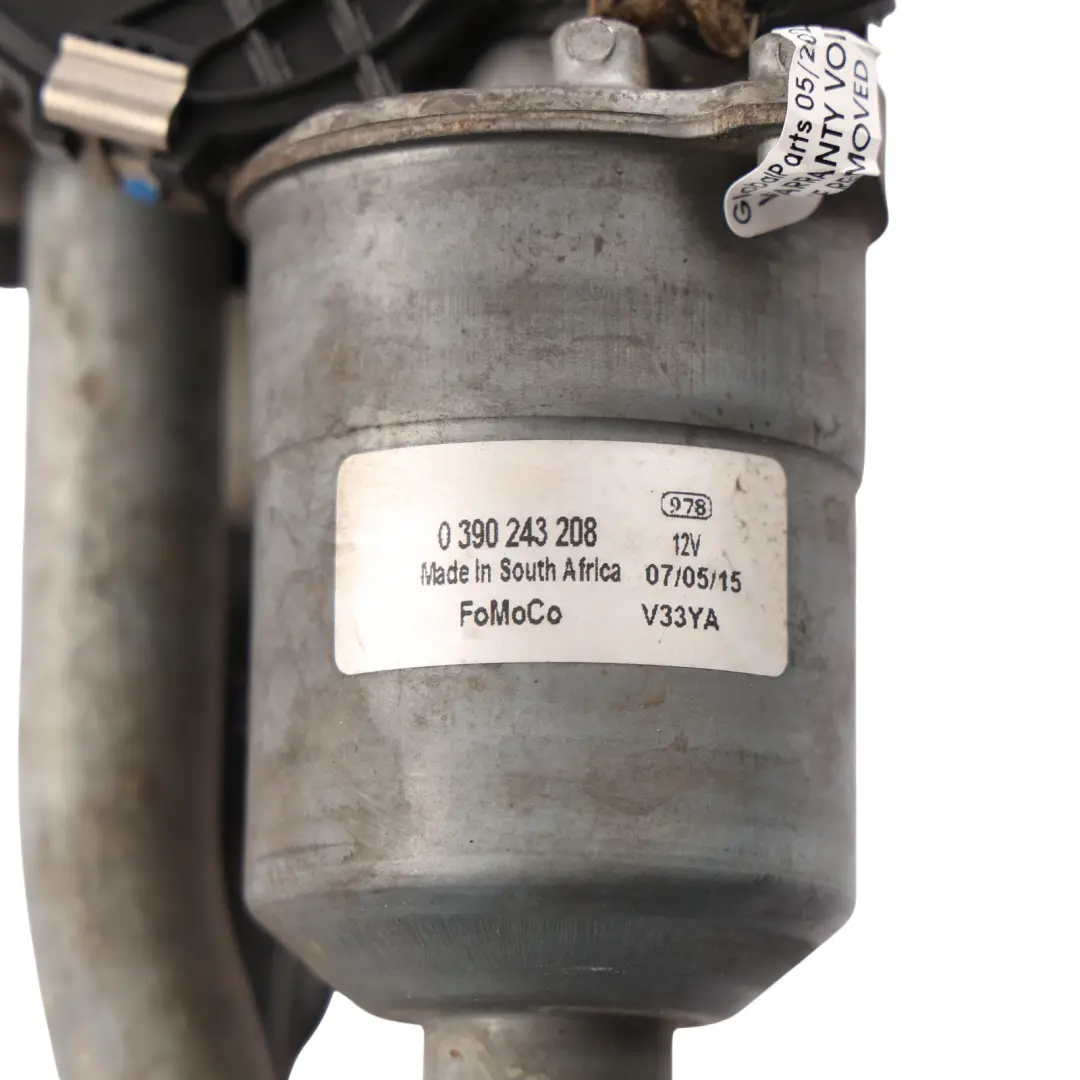

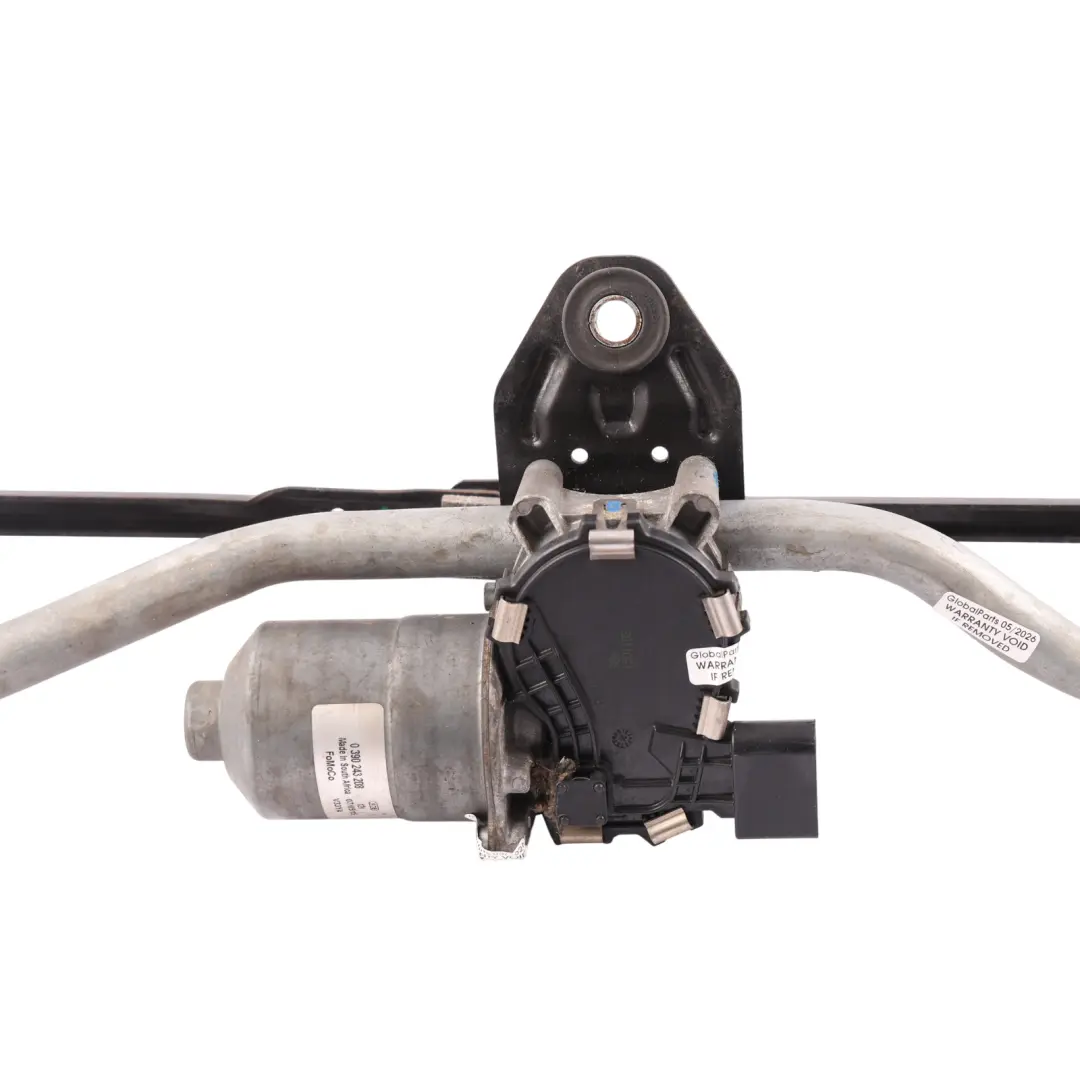

The motor with the gearbox and the linkage system form an integrated assembly that transfers mechanical loads generated during wiper operation. The design was developed by Ford for use in demanding operating conditions typical of commercial and off-road vehicles, such as the Ranger Mk6. The applied solutions ensure:

• stable movement of the wiper arms throughout the full range of operation,
• appropriate rigidity of the linkage system,
• proper compatibility with factory mounts on the cowl panel,
• maintenance of proper blade pressure against the windshield.

Thanks to the original geometry of the linkage system, the working surface of the windshield is cleaned evenly, which reduces the formation of blind spots and improves driving comfort.

Benefits of using an original Ford mechanism

Choosing an original Ford solution for the windshield wiper drive allows you to avoid problems typical of replacements with imprecise geometry. Key advantages include:

• secure fit for the Ford Ranger Mk6 – compatibility with factory mounting points and arm layout,
• preservation of the wiper operating parameters designed by the manufacturer,
• consistency with the factory electrical system and steering column controls,
• reduction of the risk of excessive play, knocking, or uneven blade operation.

The element comes from the Wiper Motors and Linkages group, which means it was designed specifically to handle dynamic loads and operate in an environment exposed to moisture and road debris.

Condition, fitment, and service application

The offered mechanism is a used part, which makes it an attractive service solution for users looking for a technically sound component at a reasonable price. In practice, it works well both for typical replacement of a worn-out system and for post-accident repairs, when it is necessary to rebuild the cowl area and restore full wiper functionality.

Before installation, it is recommended to perform a standard verification of the electrical system and the condition of the wiper arms and blades to fully utilize the capabilities of the offered mechanism and ensure even windshield cleaning in daily operation.

If you are planning a comprehensive repair or upgrade of the wiper system area in your Ford and need other elements from the same group, such as drives, gearboxes, or complete arm assemblies, check the available parts in the Ford Wiper Motors and Linkages category.
