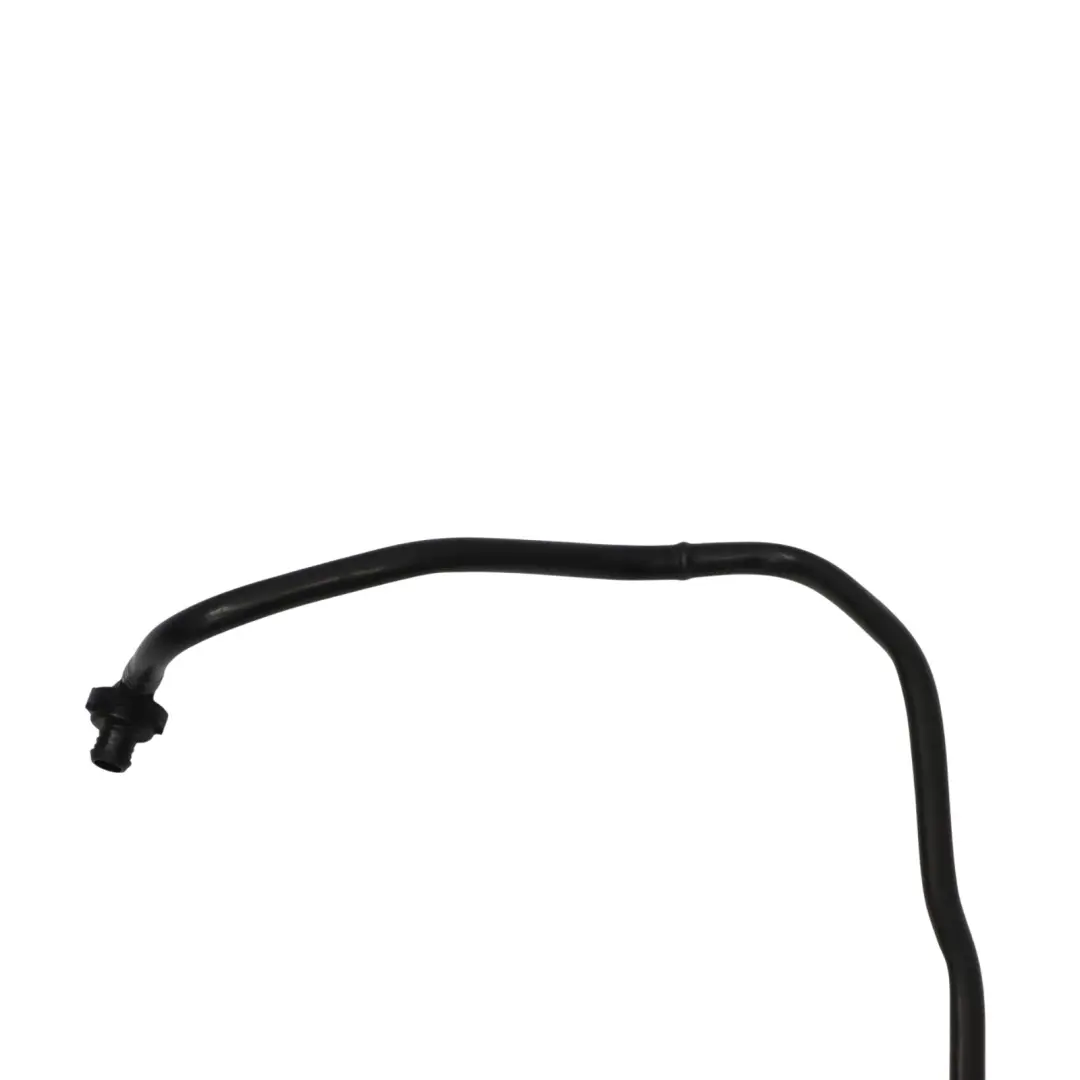

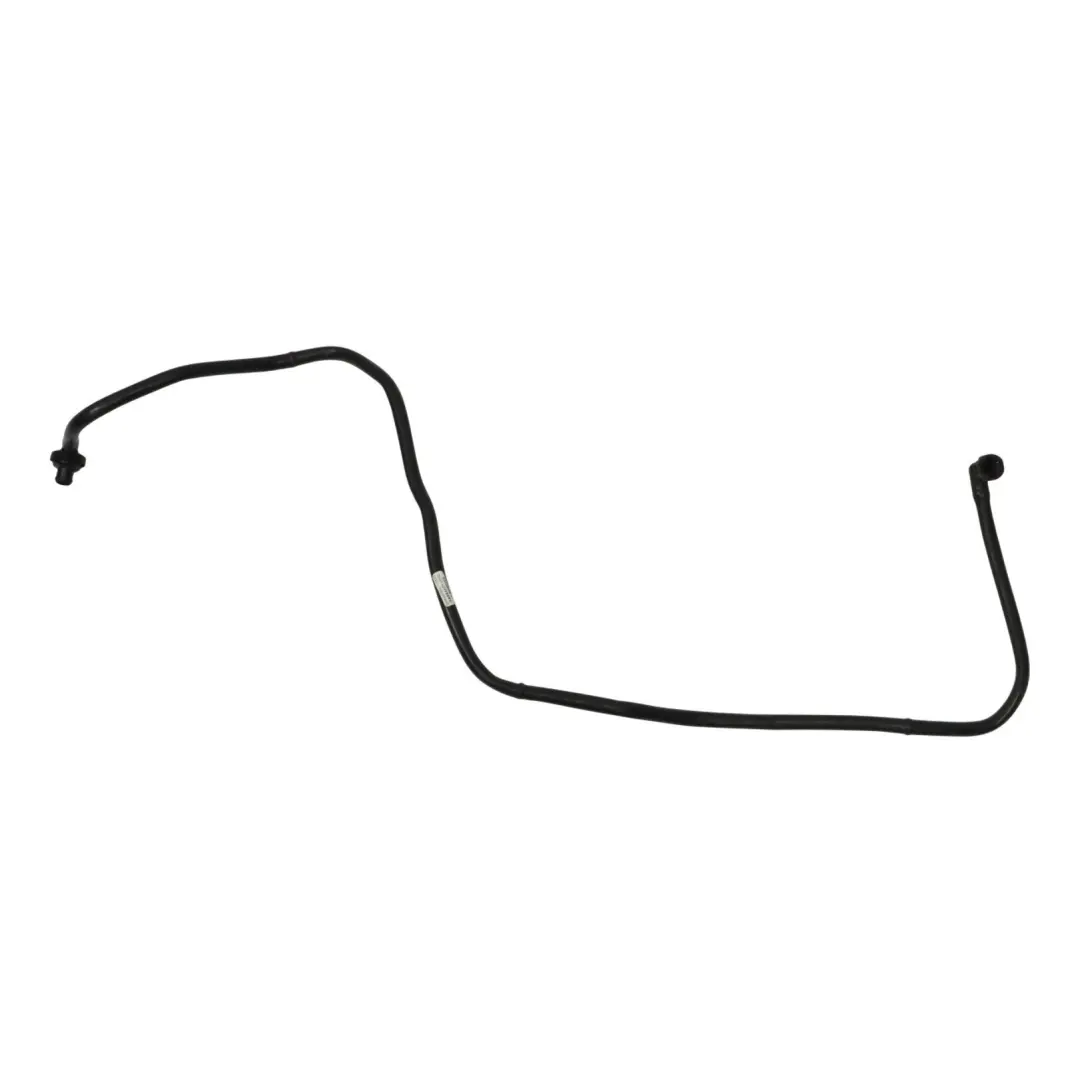

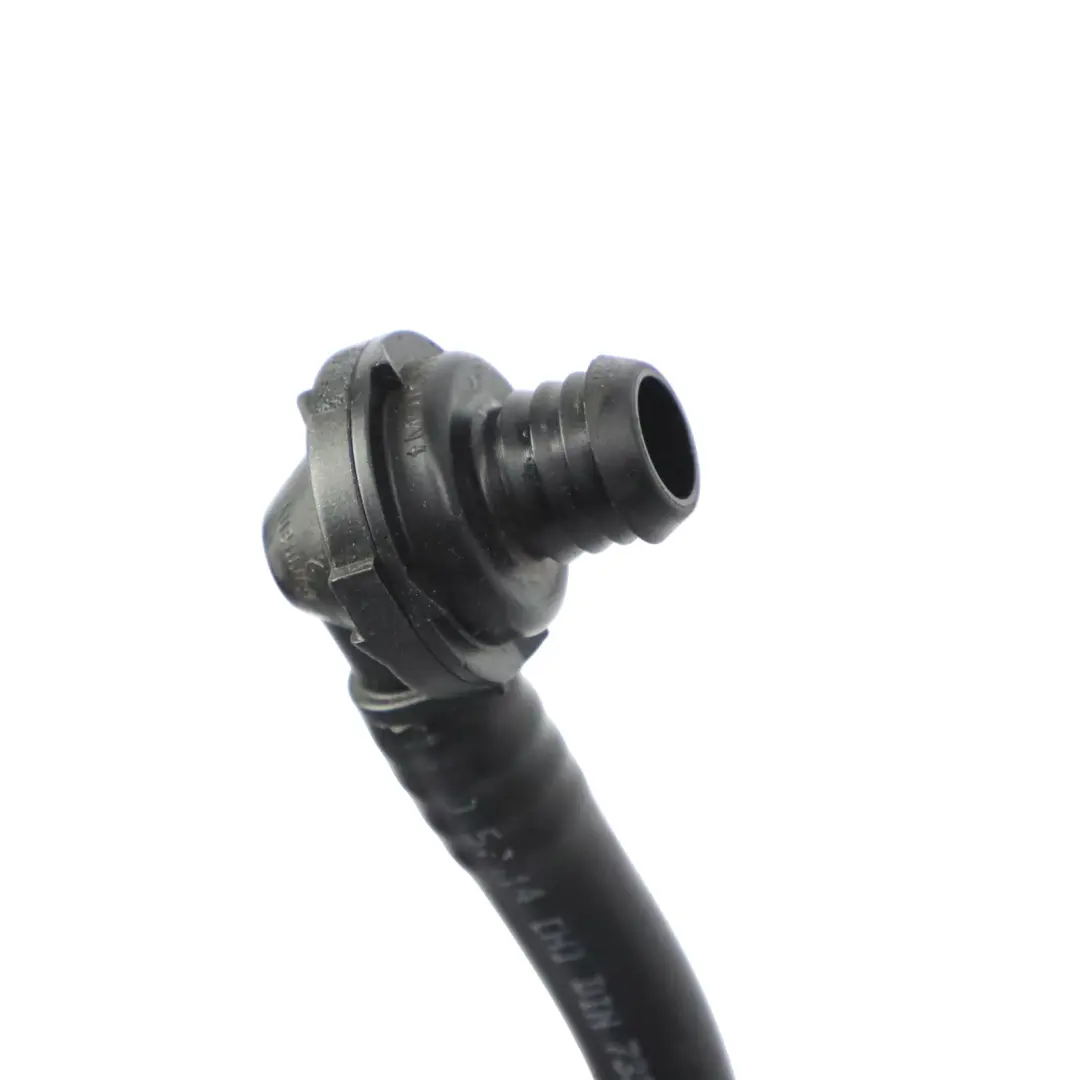

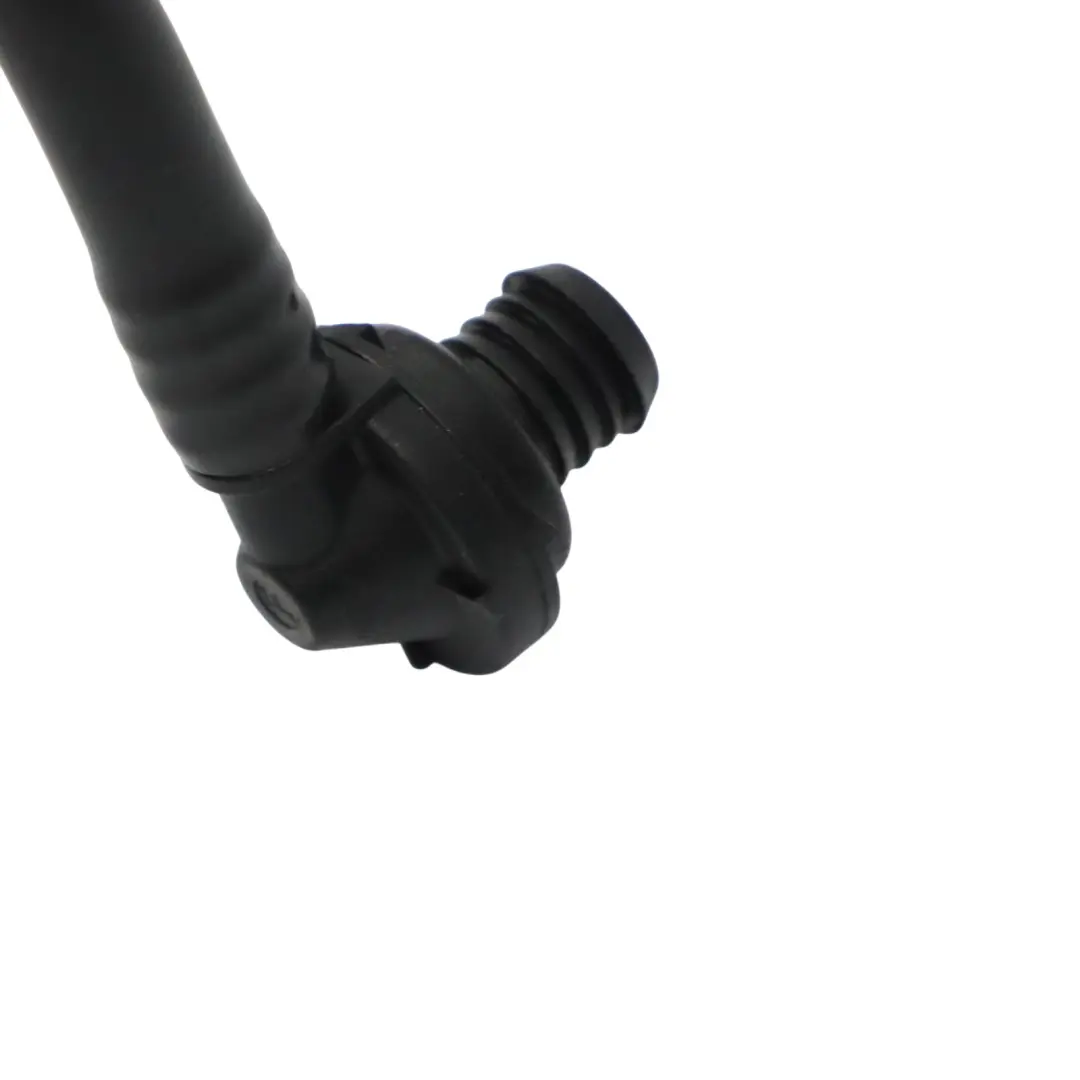

BMW X5 F15 X6 F16 Servo Brake Vacuum Pipe Hose Line Tube N57Z Diesel 8570111

BMW X5 F15 X6 F16 Servo Brake Vacuum Pipe Hose Line Tube is an original vacuum system component designed for diesel engines, ensuring stable brake assistance in models equipped with a Diesel unit. Thanks to its precise fit to the factory brake system installation, it maintains proper vacuum flow parameters and connection tightness. It is a practical solution for users who want to maintain the efficiency of the braking system while preserving the original installation architecture.

Specifications and technical data

• SKU: RHD-8570111
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8570111
• Substitutable numbers: 8570111, 11668570111
• Fuel type: Diesel
• Category: Vacuum Pumps

Application in BMW X5 F15 and X6 F16 with Diesel engine

The presented brake servo pipe is a vacuum system component that works with the vacuum pump in BMW vehicles with a diesel engine. It is responsible for transporting vacuum from the pump to the brake servo, which translates into the proper operation of the brake pedal assistance. The design of the pipe is matched to the geometry of the engine compartment in X5 F15 and X6 F16 models, which facilitates routing the vacuum line according to the factory layout.

The vacuum system in diesel engines operates under demanding conditions, which is why choosing the right servo pipe is important for the stability of the entire braking system. Using an original component from the Vacuum pumps group and related hoses helps reduce the risk of leaks, vacuum drops, and extended braking distances.

Construction and function of the brake servo vacuum pipe

The brake servo pipe in this application acts as a rigid yet vacuum-resistant line connecting the vacuum pump to the servo. It is designed to:

• maintain the appropriate internal diameter for stable vacuum flow,
• ensure tight connections with the vacuum pump and servo ports,
• provide resistance to temperature and vibrations typical for a diesel engine compartment,
• maintain proper rigidity, reducing the risk of pipe kinking.

Thanks to the factory fit, the pipe works with the original brackets and mounts in the engine compartment, which facilitates installation and minimizes stress during engine operation.

Benefits of using an original servo pipe

Using an original vacuum pipe in the braking system brings a number of practical operational benefits. The most important include:

• Stable brake assistance – a properly selected pipe reduces vacuum drops, which translates into a predictable brake pedal response.
• Compatibility with the diesel vacuum system – the component is designed to work with the vacuum pump and brake servo in specific BMW models.
• Factory geometric fit – maintaining the original pipe routing reduces the risk of chafing, kinking, and incorrect positioning in the engine compartment.
• Reduction of diagnostic problems – using components compliant with factory specifications facilitates subsequent diagnostics of the braking and vacuum system.

Characteristics of the used component

The offered brake servo pipe comes from disassembly and is a used component, which allows for economical repair of the system while maintaining the original design. Such components are often chosen by users who prefer parts from the factory assembly line instead of replacements with uncertain parameters. In the case of vacuum pipes, this is particularly important in the context of matching the vacuum pump and brake servo.

Before installation, it is recommended to perform a standard check of tightness and the condition of the connectors to ensure proper cooperation with the vehicle's existing braking system. A properly selected and functional servo pipe is an essential safety element, especially in heavier SUV-class vehicles such as the BMW X5 and X6.
