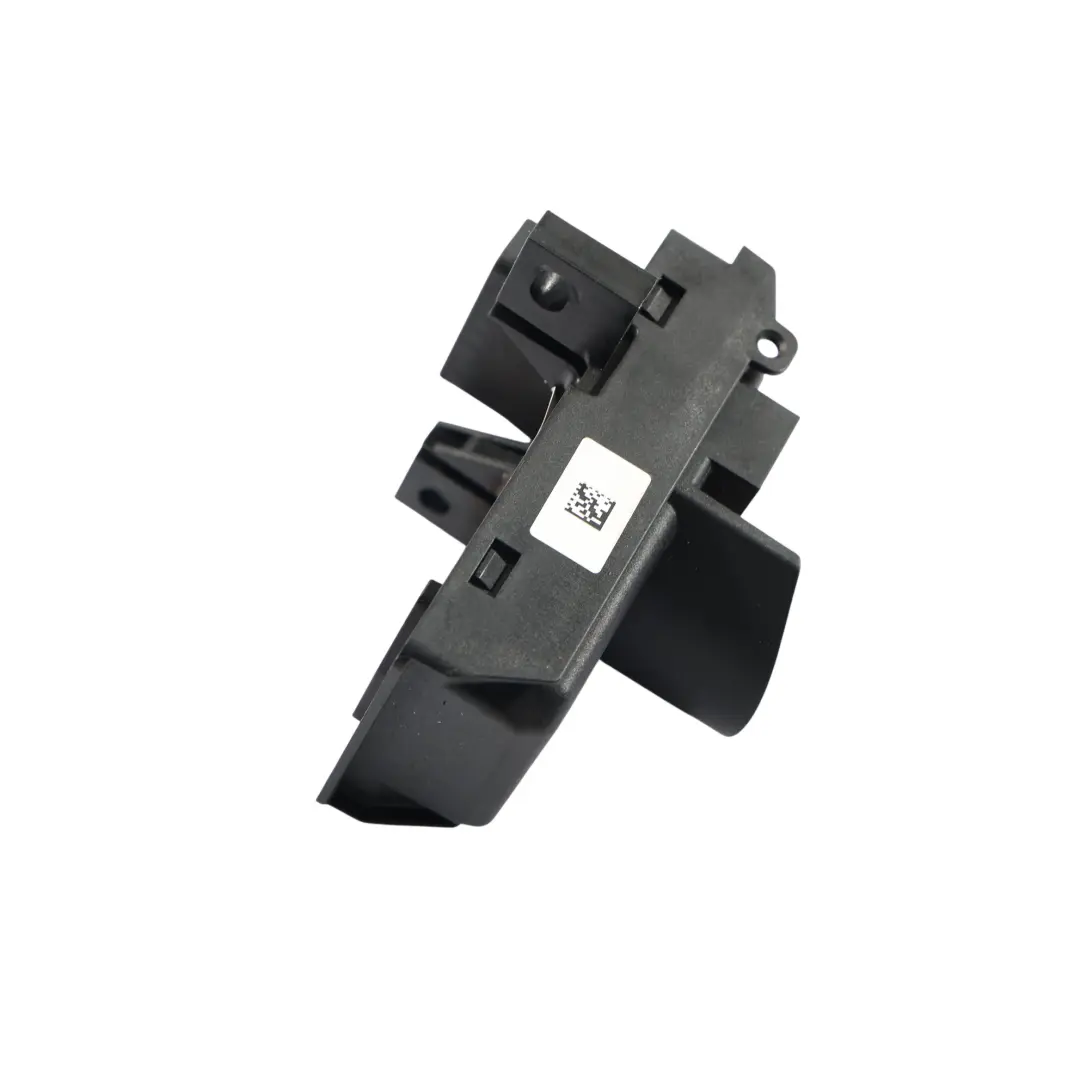

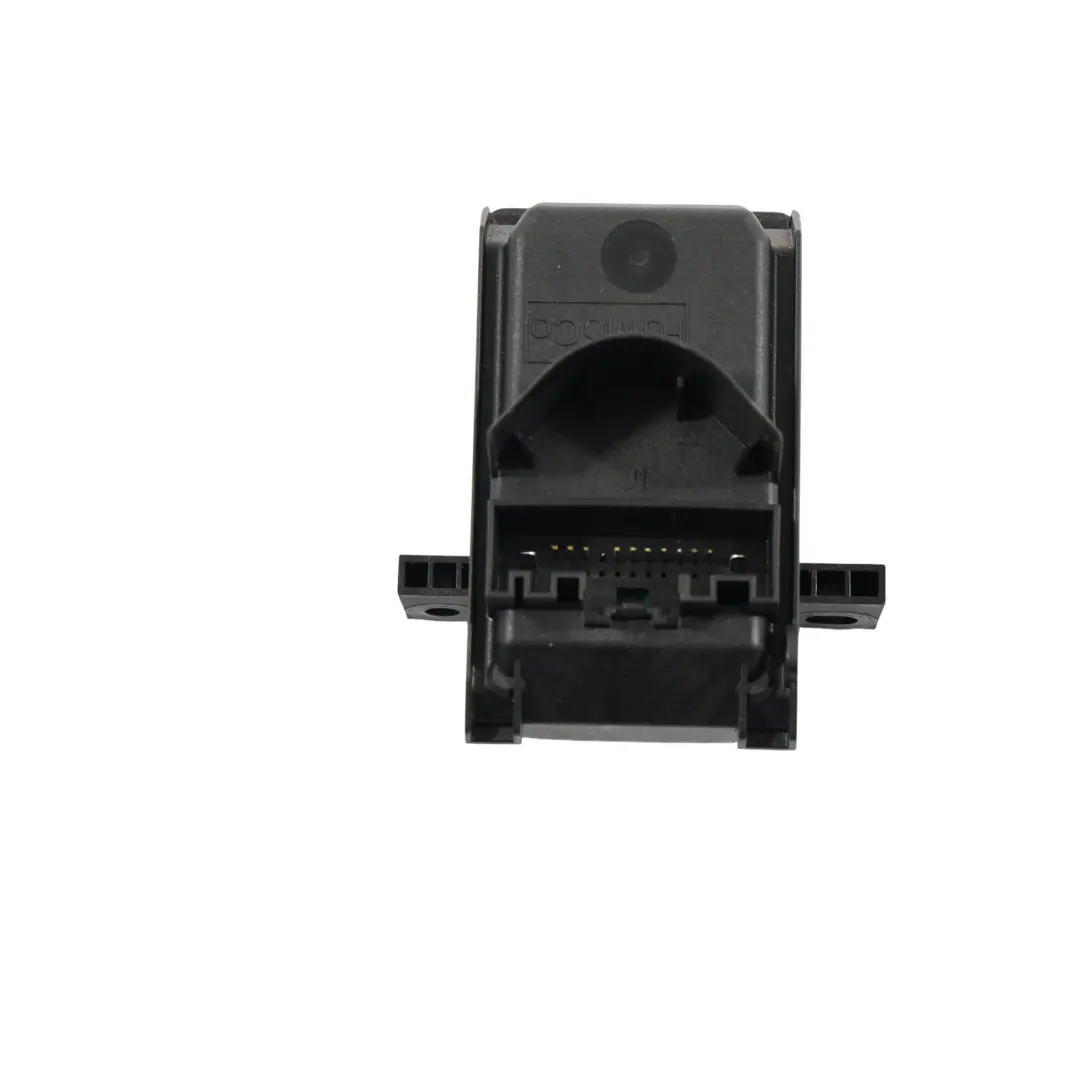

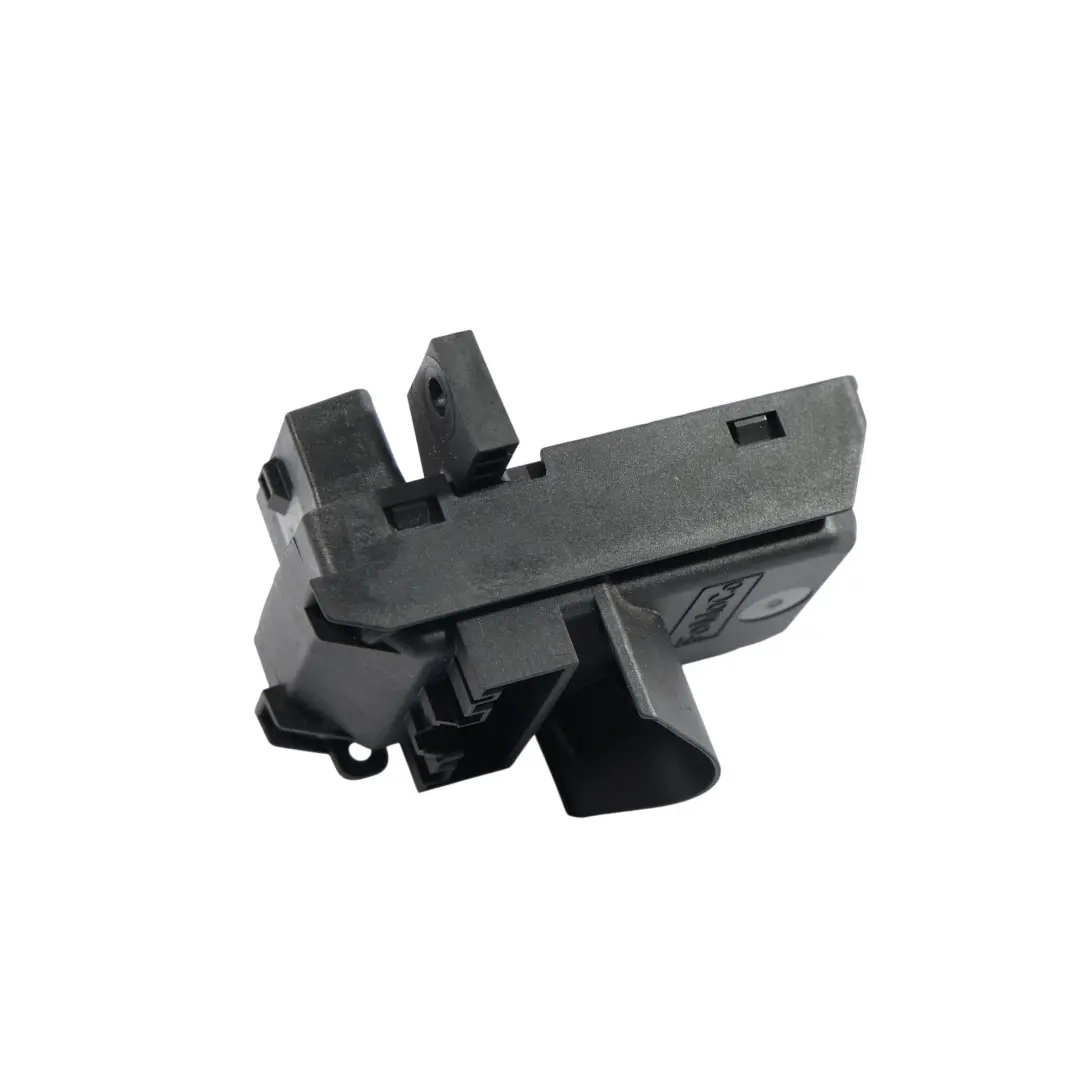

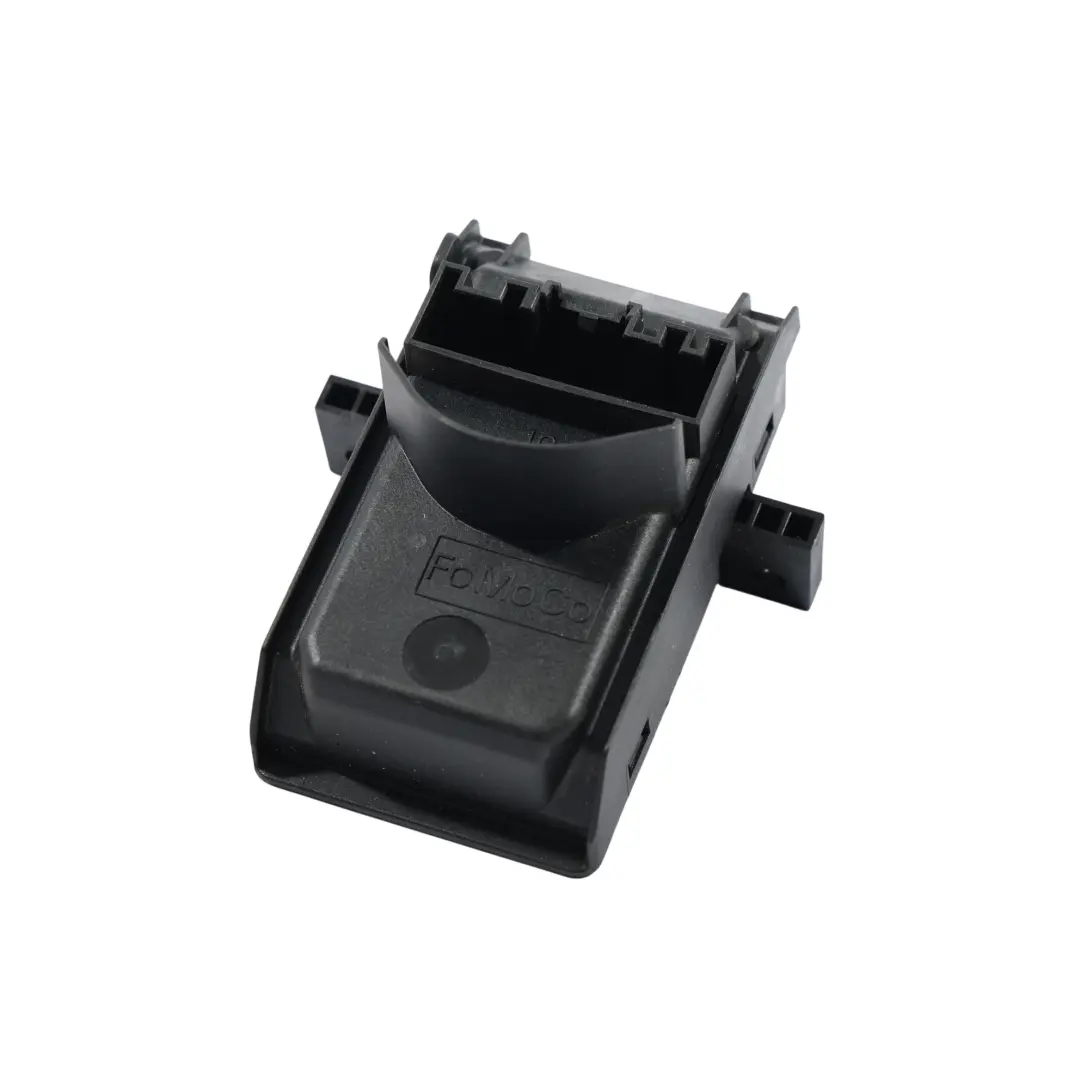

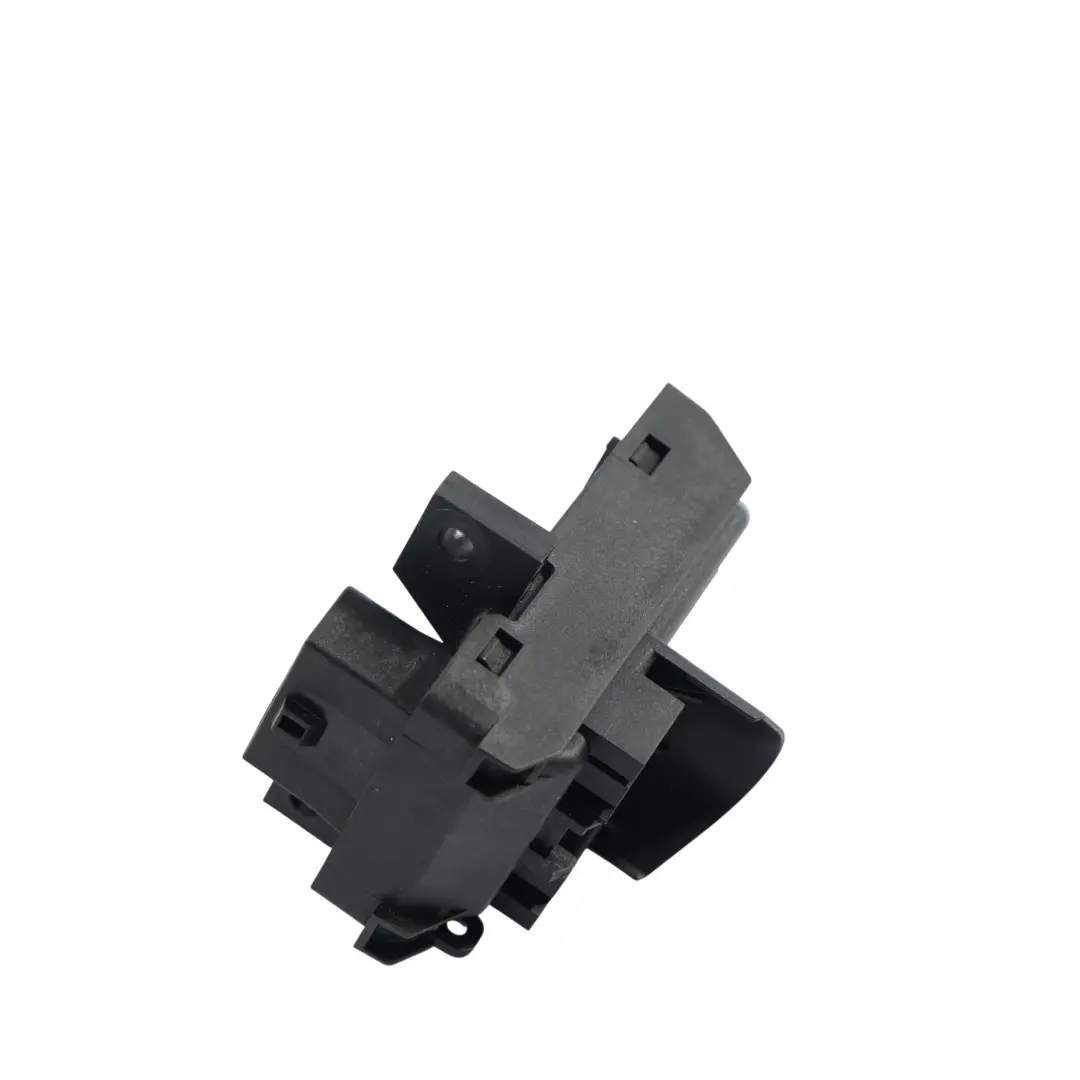

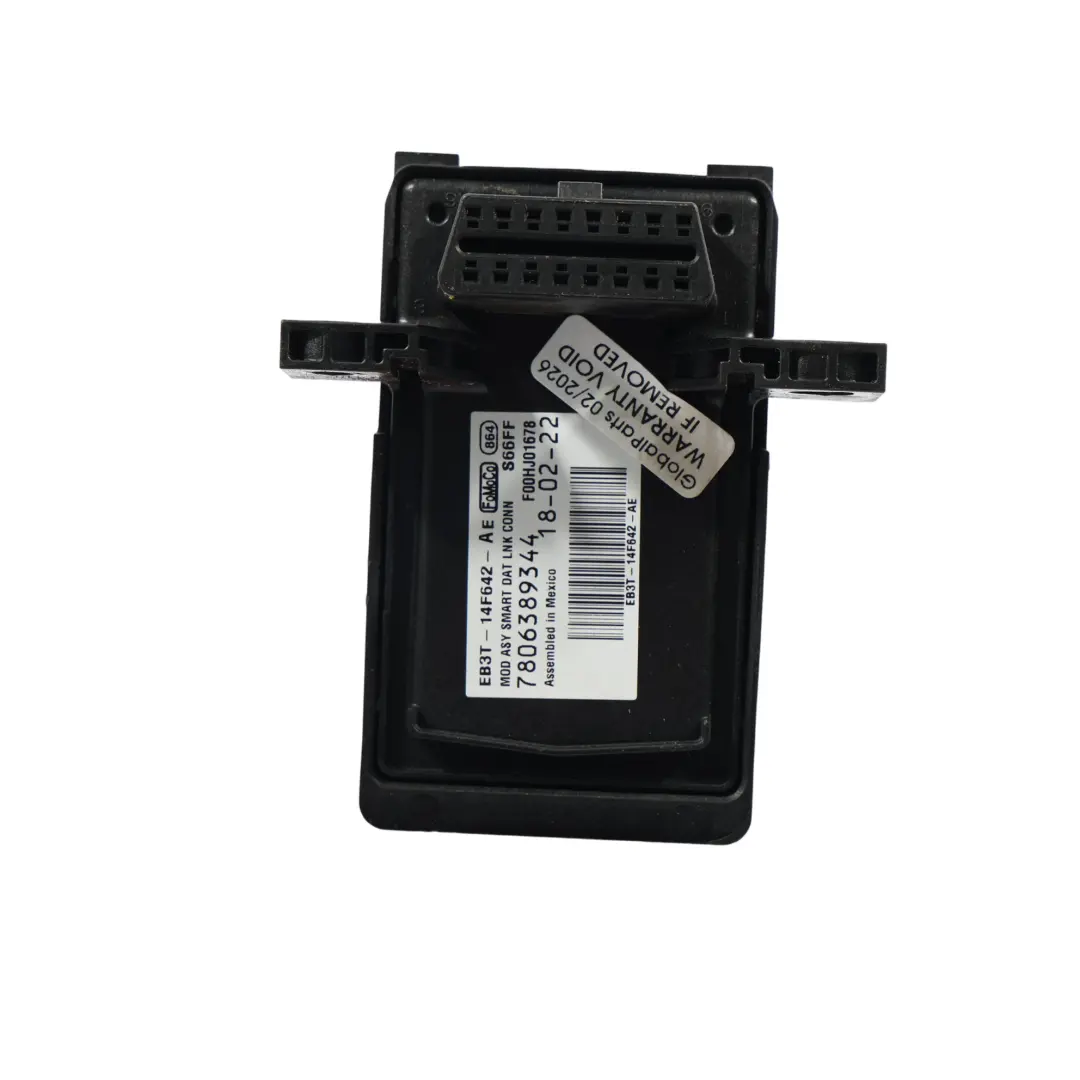

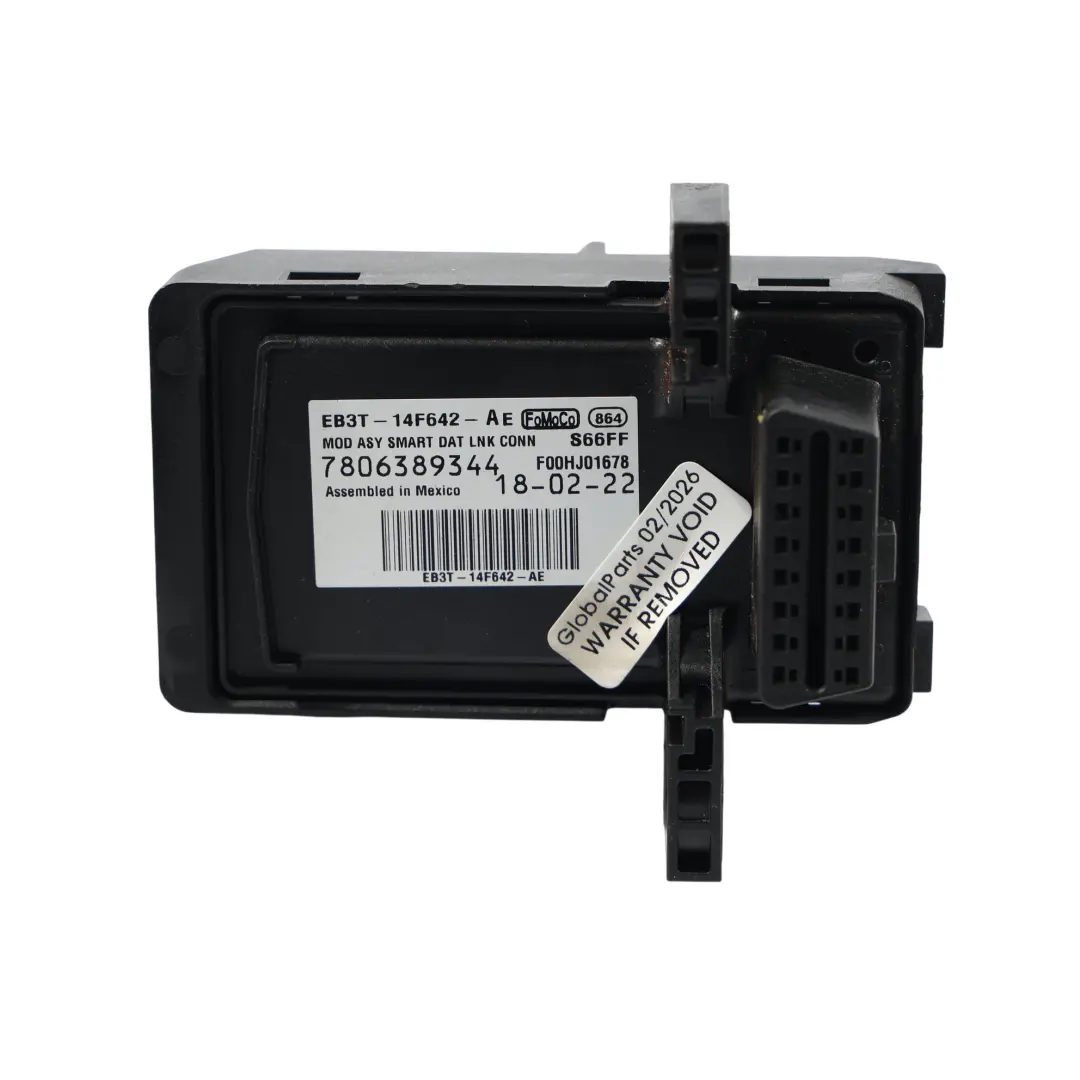

Ford Ranger Mk1 TKE Smart Data Link OBD Module Control Unit EB3T-14F642-AE

The Ford Ranger Mk1 TKE Smart Data Link OBD Socket Module is a specialized component within the electronic control modules and controllers group, responsible for the vehicle's diagnostic communication via the OBD connector. This is a practical solution for workshops, automotive electronics specialists, and owners who want to maintain the proper functioning of electronic systems in the first-generation Ford Ranger TKE.

Specifications and technical data

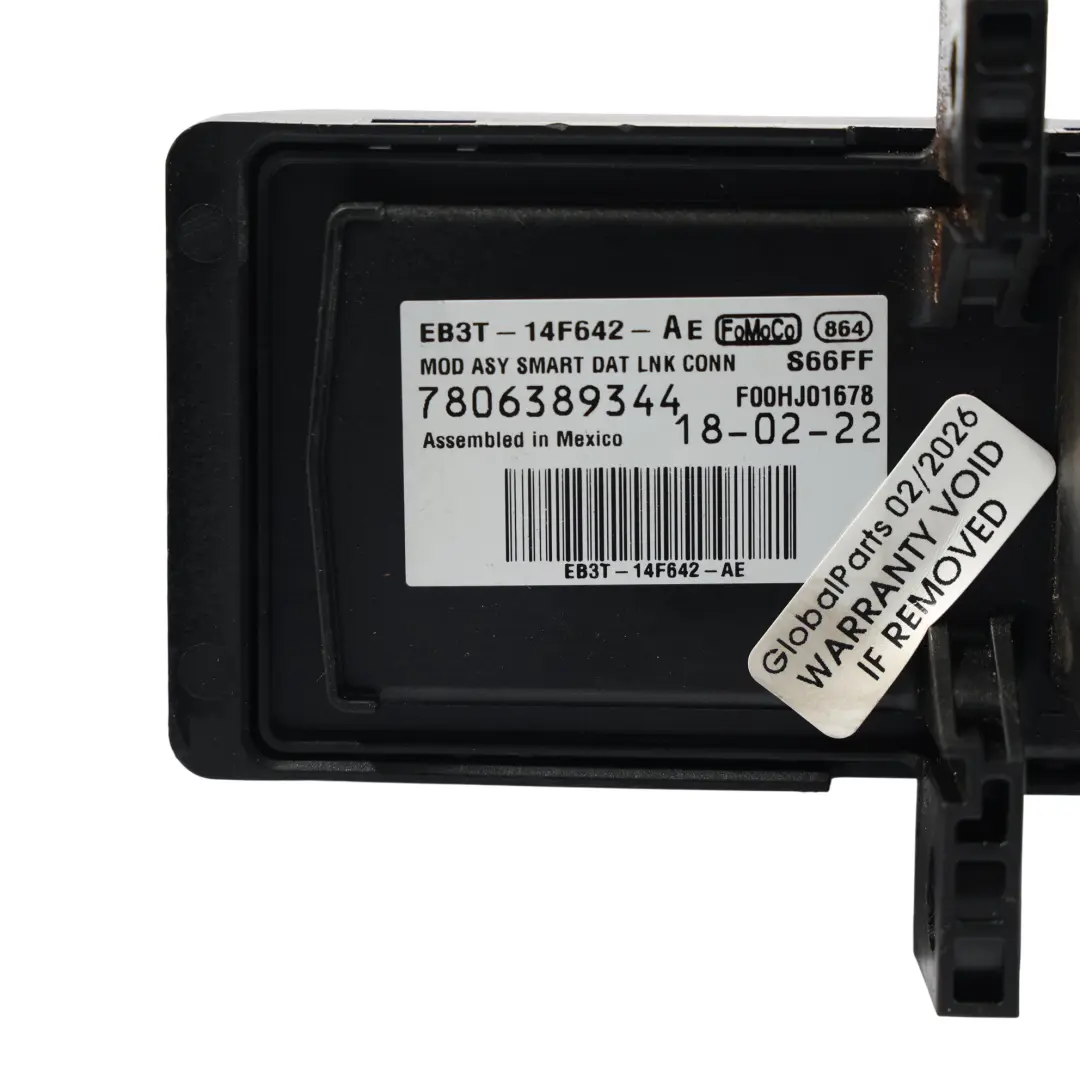

• SKU: EB3T-14F642-AE
• Mark: Ford
• Condition: Used
• OEM Part Number: EB3T-14F642-AE
• Substitutable numbers: EB3T-14F642-AE, EB3T14F642AE
• Category: ECUs & Computer Modules

Purpose and Function of the Smart Data Link OBD Module

The Smart Data Link OBD Socket Module in the Ford Ranger Mk1 TKE plays a crucial role in managing communication between the vehicle's control units and a diagnostic tester. It ensures the correct transfer of data from the vehicle's network to the OBD interface, enabling:

• reading and clearing error codes stored in control units,
• monitoring the operating parameters of the engine and auxiliary systems,
• handling service and adaptation procedures,
• seamless integration with professional diagnostic testers.

Thanks to this module, consistent communication within the vehicle's network can be maintained, which is important for both daily operation and advanced service work.

Benefits of Using an Original Ford Module

As a Ford branded component, the Smart Data Link OBD Socket Module has been designed for the specific electrical architecture of the Ford Ranger Mk1 TKE. This translates to:

• factory-matched fit to the vehicle's electrical system and wiring harnesses,
• compatibility with the control unit software used in this model,
• stable communication with diagnostic systems used in service centers,
• preservation of operating parameters as intended by the vehicle manufacturer.

Choosing an original module from the electronic control modules and controllers category minimizes the risk of communication issues, accidental disconnections, or errors resulting from incompatible aftermarket parts.

Application in Service and Diagnostics of the Ford Ranger Mk1 TKE

The Smart Data Link OBD Socket Module is particularly important in vehicles experiencing problems with diagnostic tester connection, lack of communication with selected control units, or unstable data reading. Replacing this component is recommended, among other situations, when:

• the tester fails to establish communication via the OBD port despite a functional interface,
• data transmission interruptions occur during diagnostics,
• the vehicle has undergone electrical system repairs in the vicinity of the OBD socket,
• mechanical damage or signs of overheating are observed in the module's area.

For workshops specializing in the Ford brand, such a module is a practical addition to their parts inventory, allowing for quick resolution of common diagnostic communication problems without interfering with the main vehicle wiring harness.

Product Characteristics and Condition

The offered module belongs to the group of used electronic control components. This means it comes from a dismantled vehicle, and its design and parameters are consistent with the factory-installed solutions in the Ford Ranger Mk1 TKE. This type of part is an attractive alternative to new components, especially for vehicles used intensively or with higher mileage, where a reasonable balance between repair cost and maintaining correct electronic system functionality is important.

Why Choose Original Electronic Modules?

For components responsible for diagnostic communication, maintaining compatibility with the vehicle's architecture is crucial. Original modules, such as the presented Smart Data Link for the Ford Ranger, help maintain system integrity and reduce the risk of difficult-to-diagnose faults. We discuss a similar approach to selecting electronic parts in more detail in our blog article: how used, original electronic modules help maintain a car's character and functionality.

Summary

The Ford Ranger Mk1 TKE Smart Data Link OBD Socket Module is a practical solution for those who want to restore or maintain proper diagnostic communication in their vehicle. Its original design, compatibility with Ford's electrical system, and its classification within the electronic control modules and controllers group make it a sensible choice for repairing electronic systems in the first-generation Ranger TKE.
