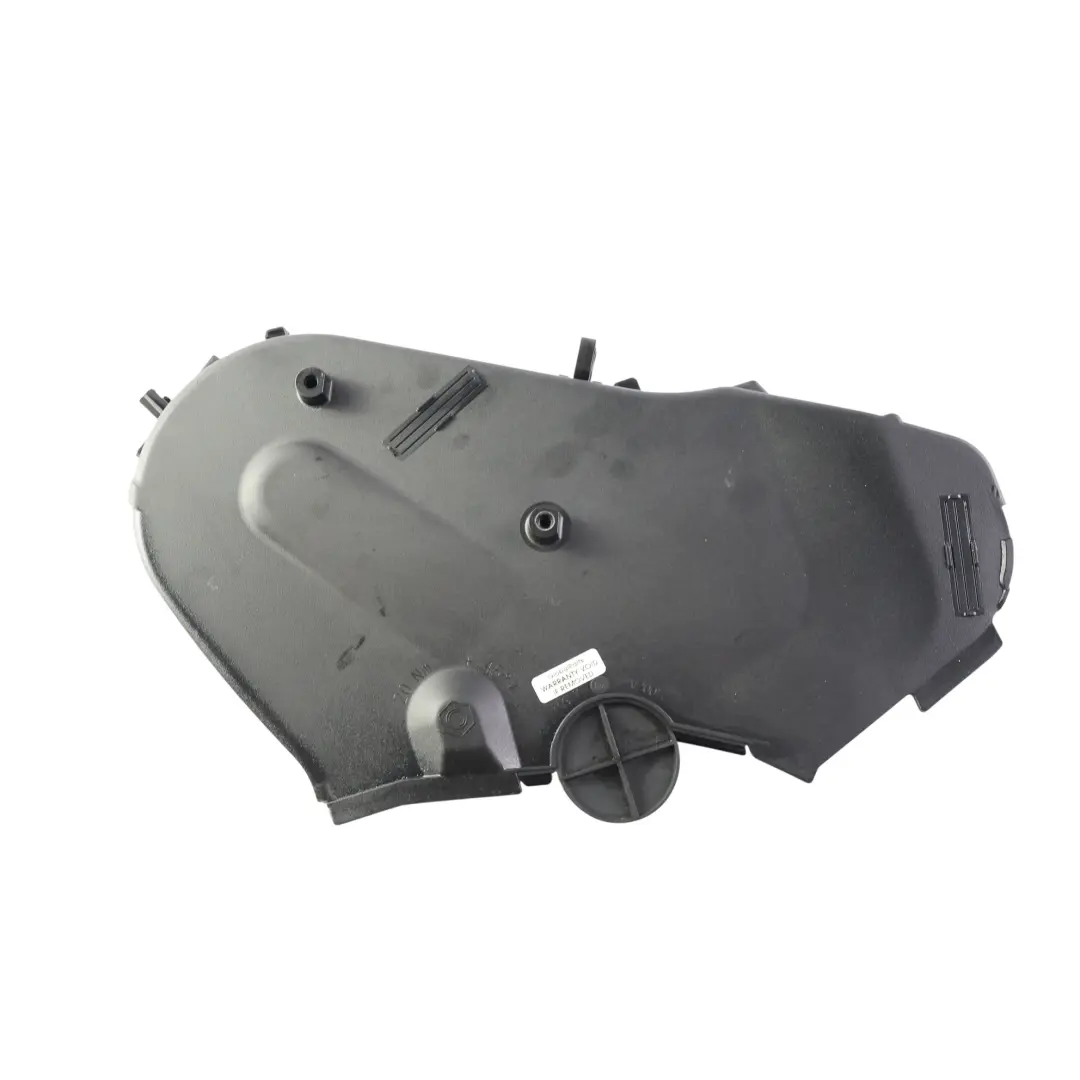

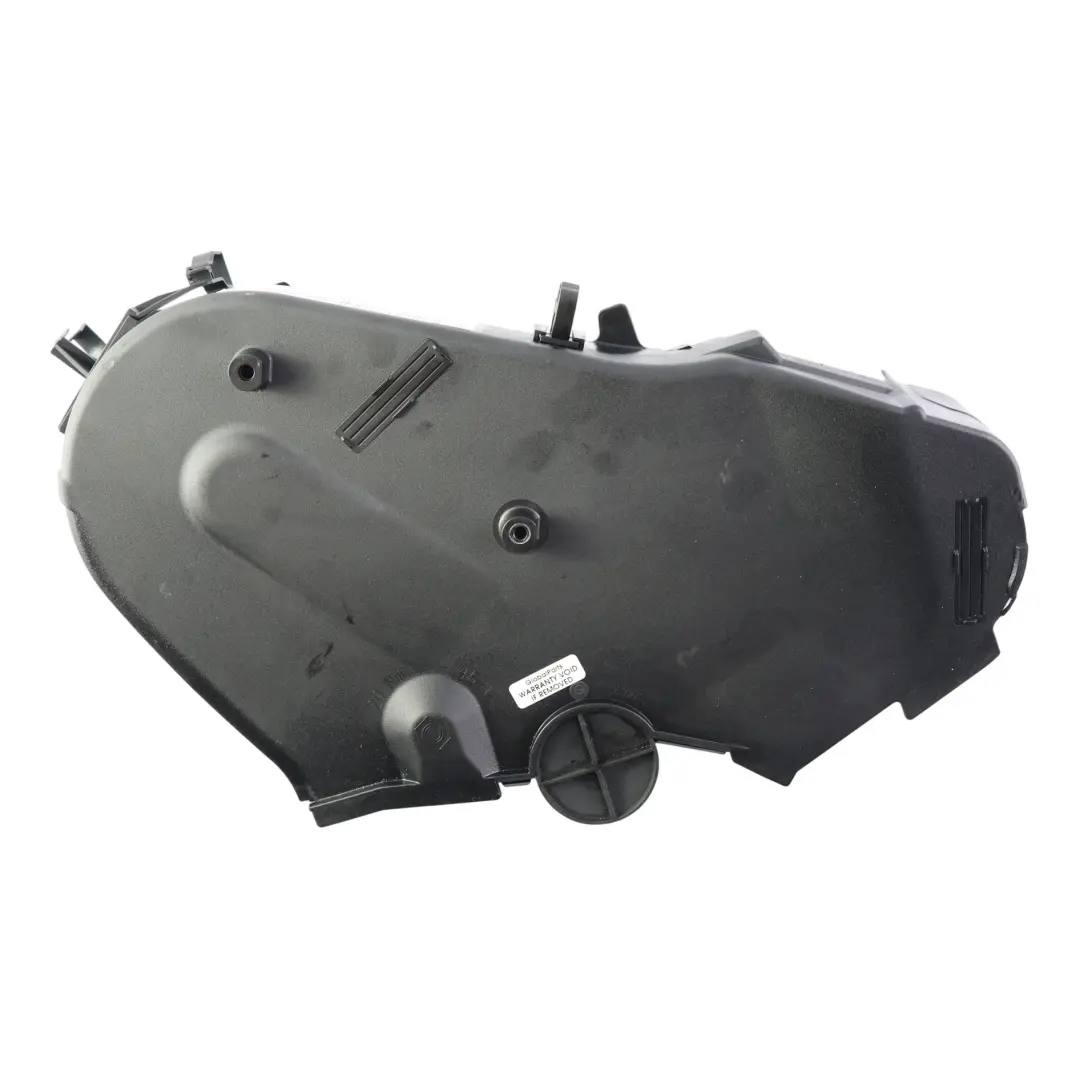

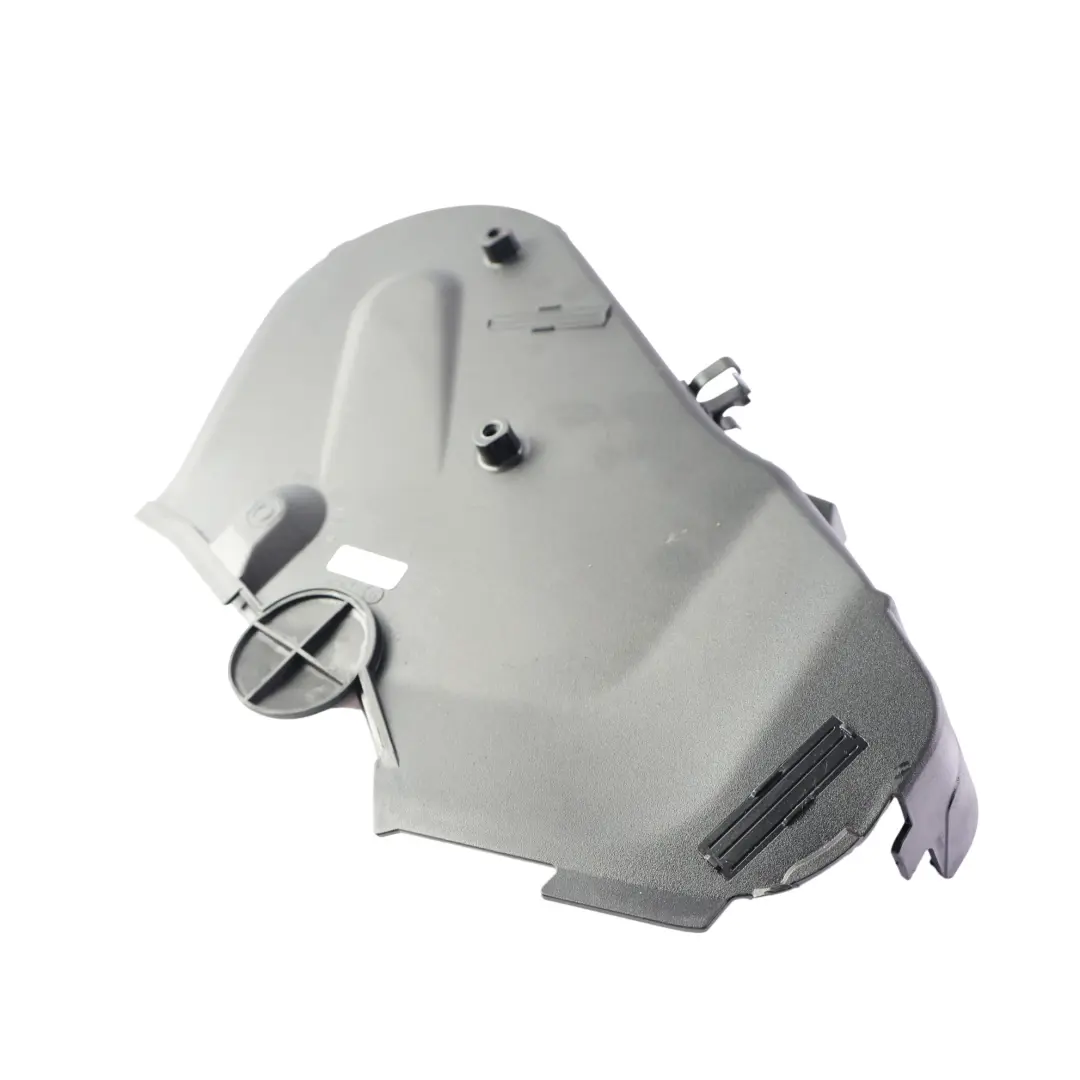

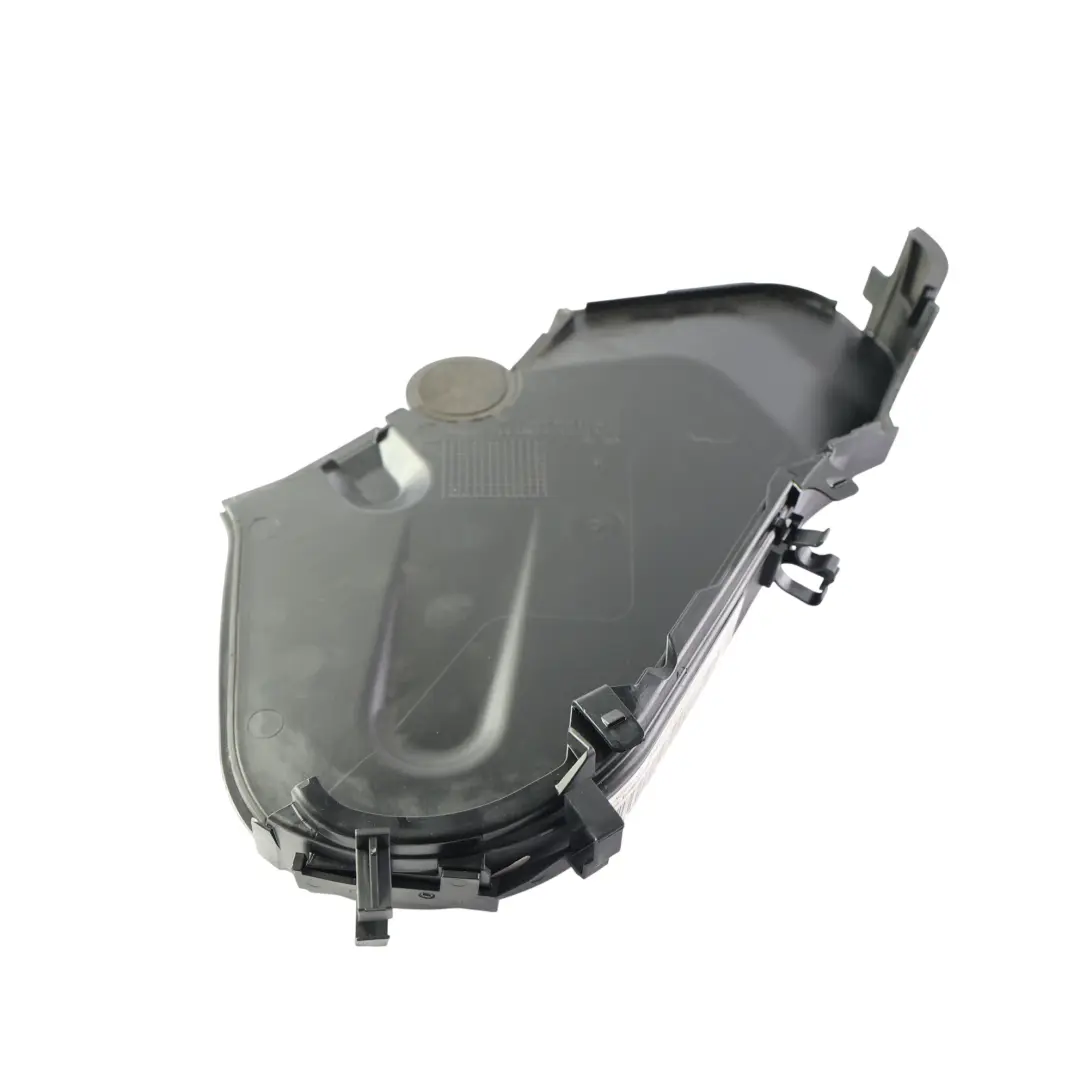

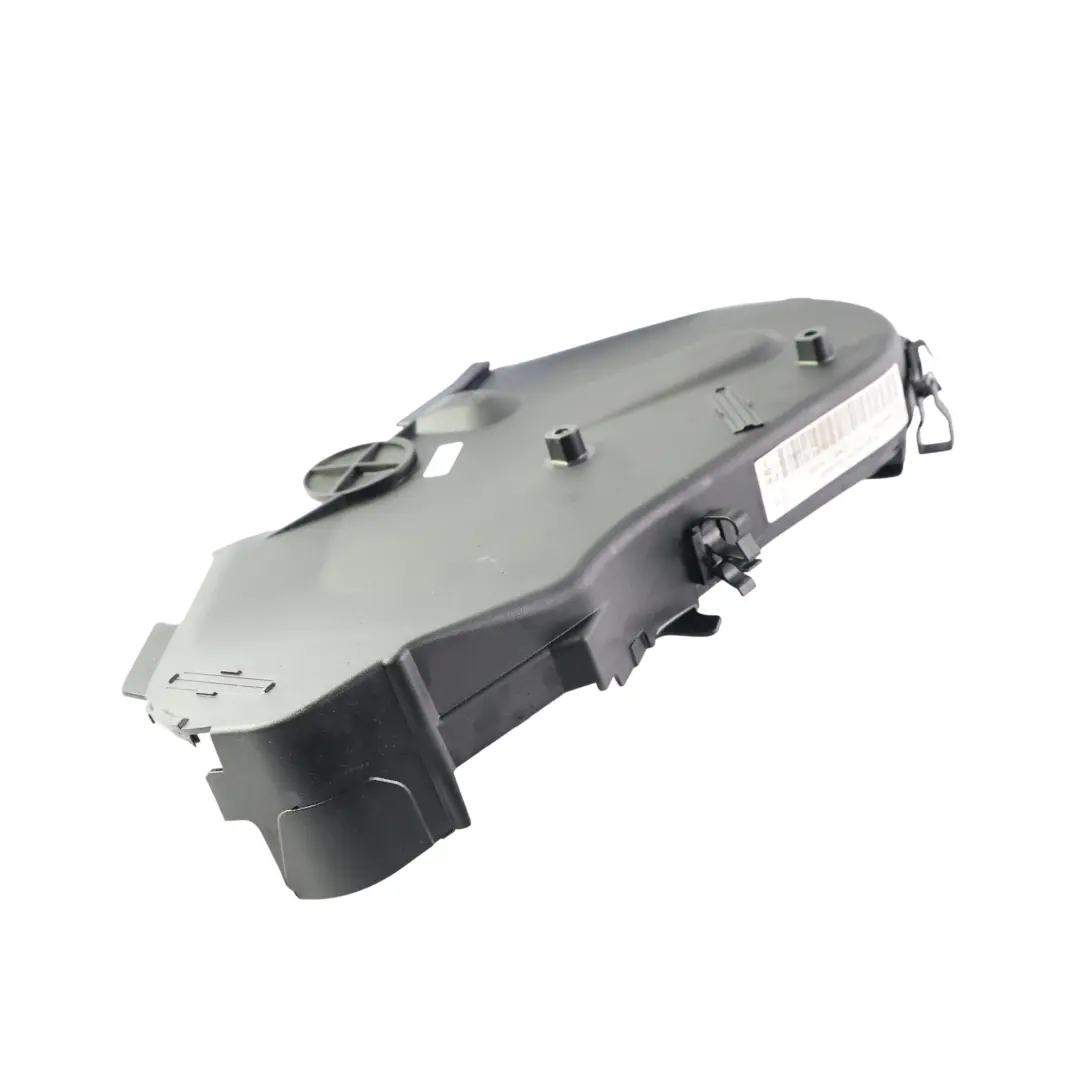

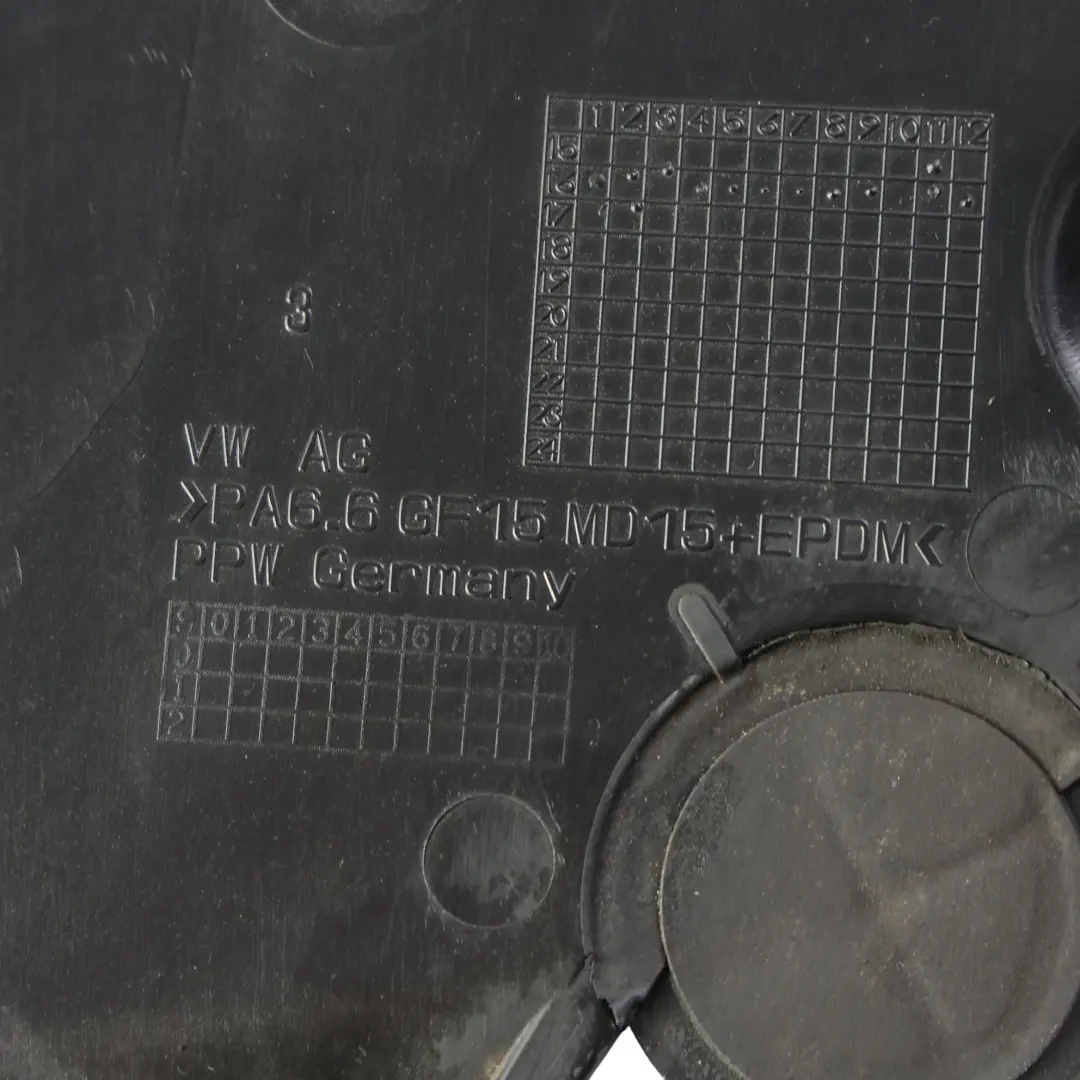

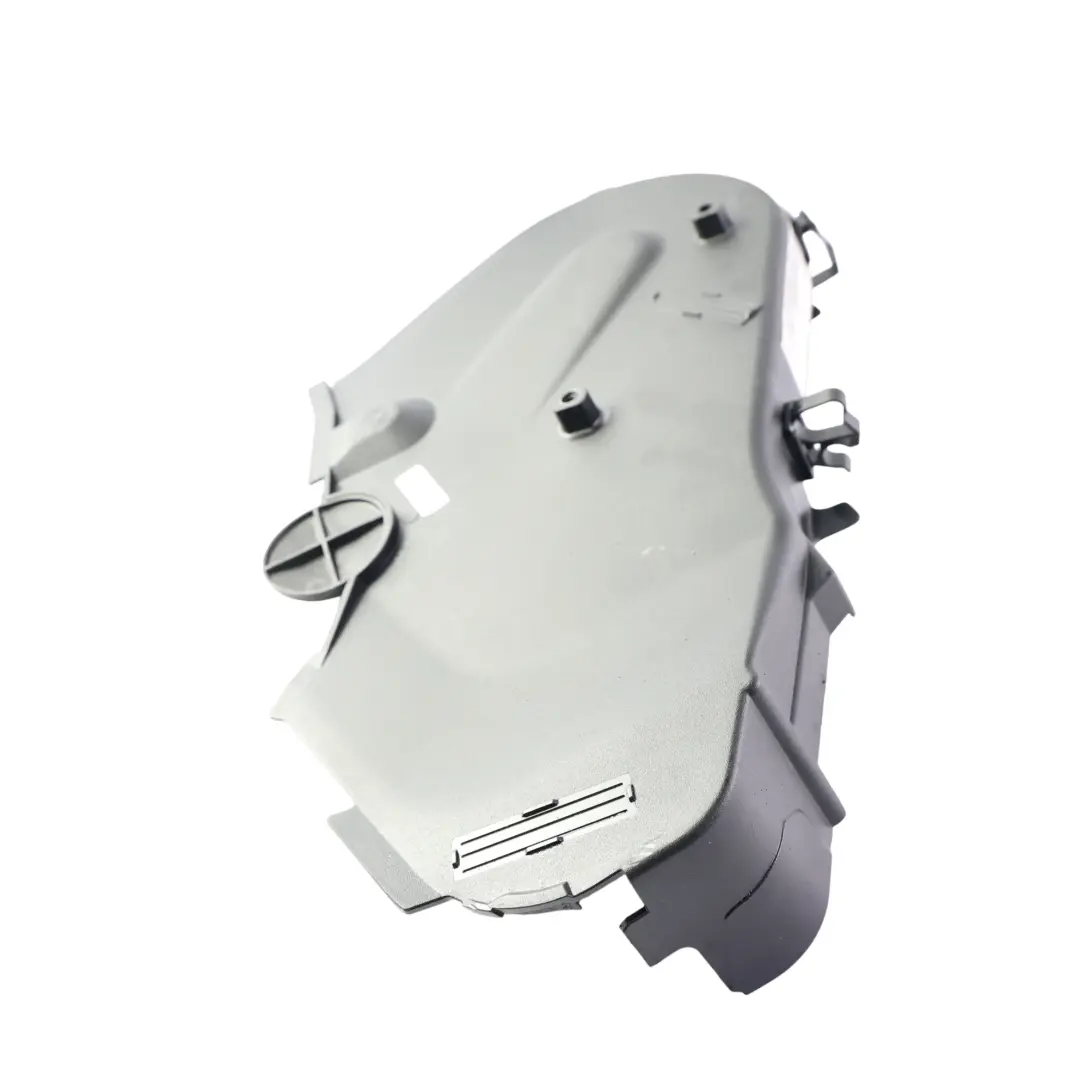

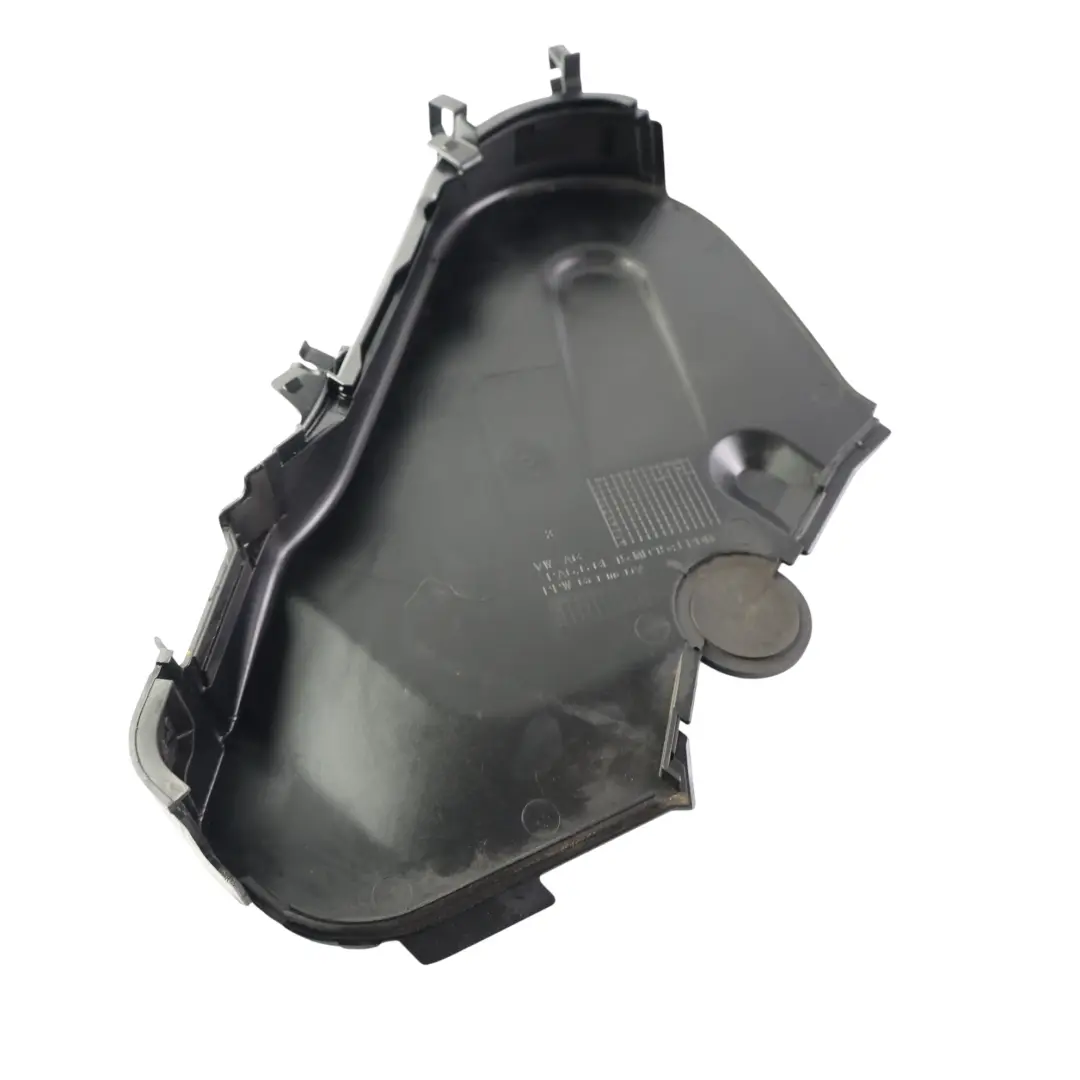

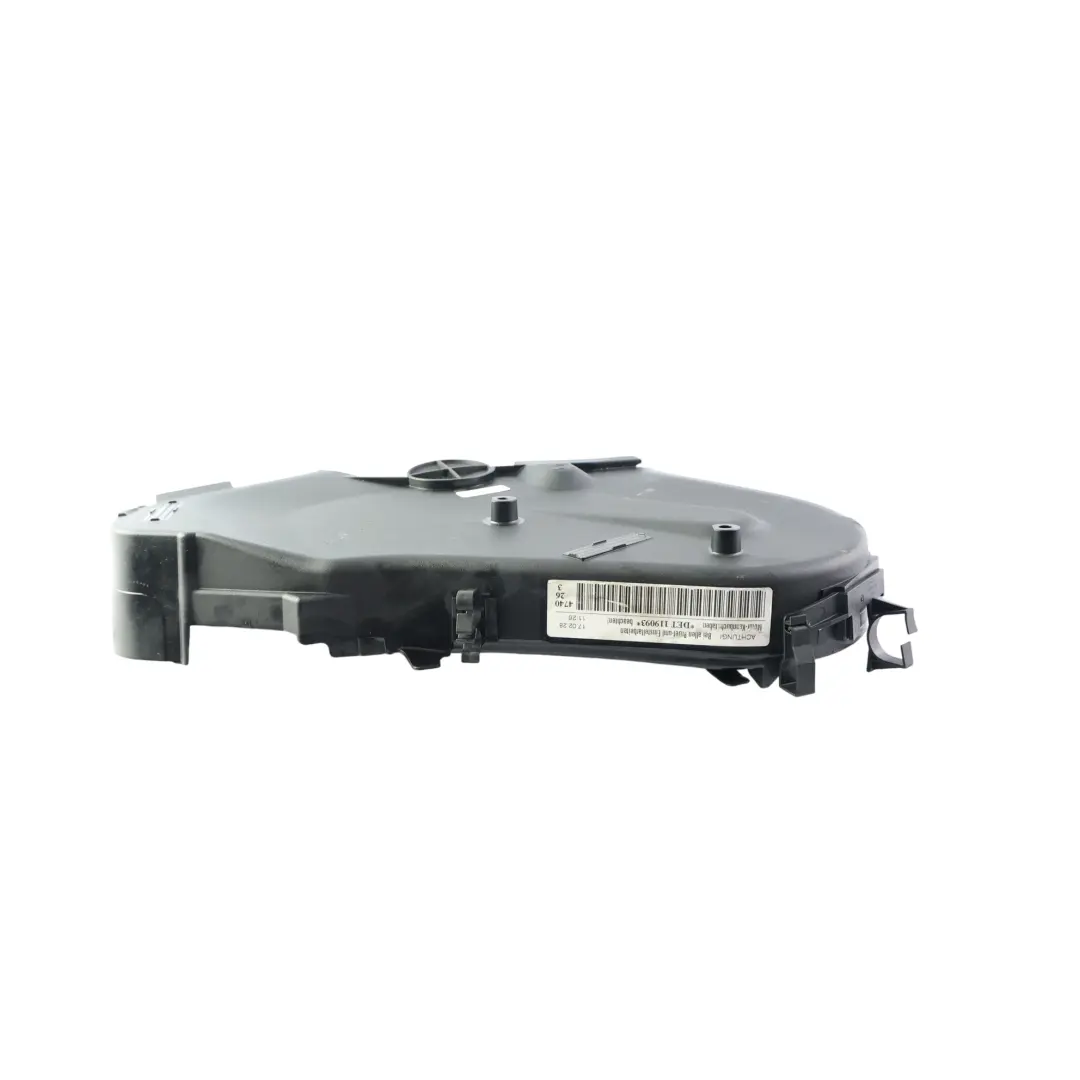

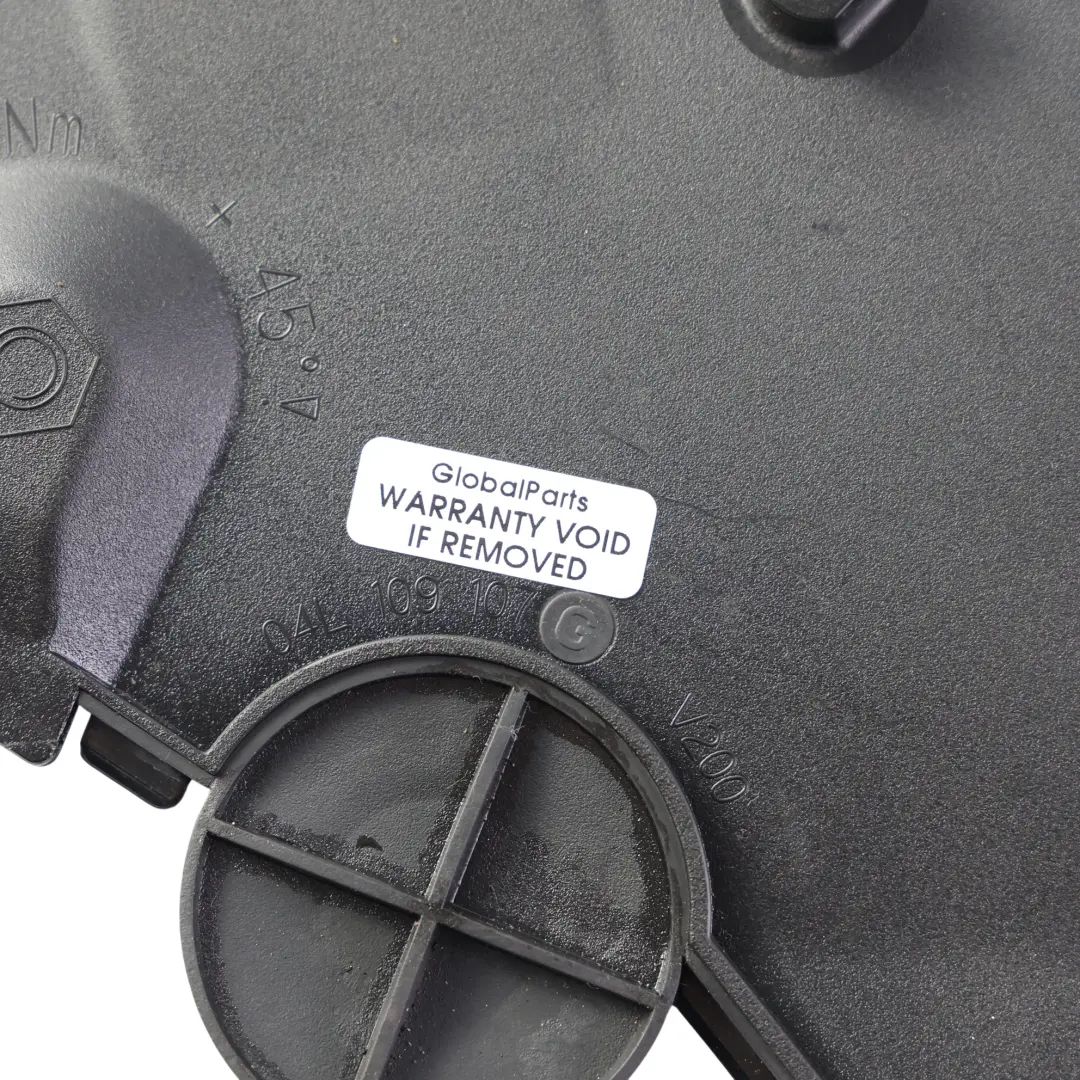

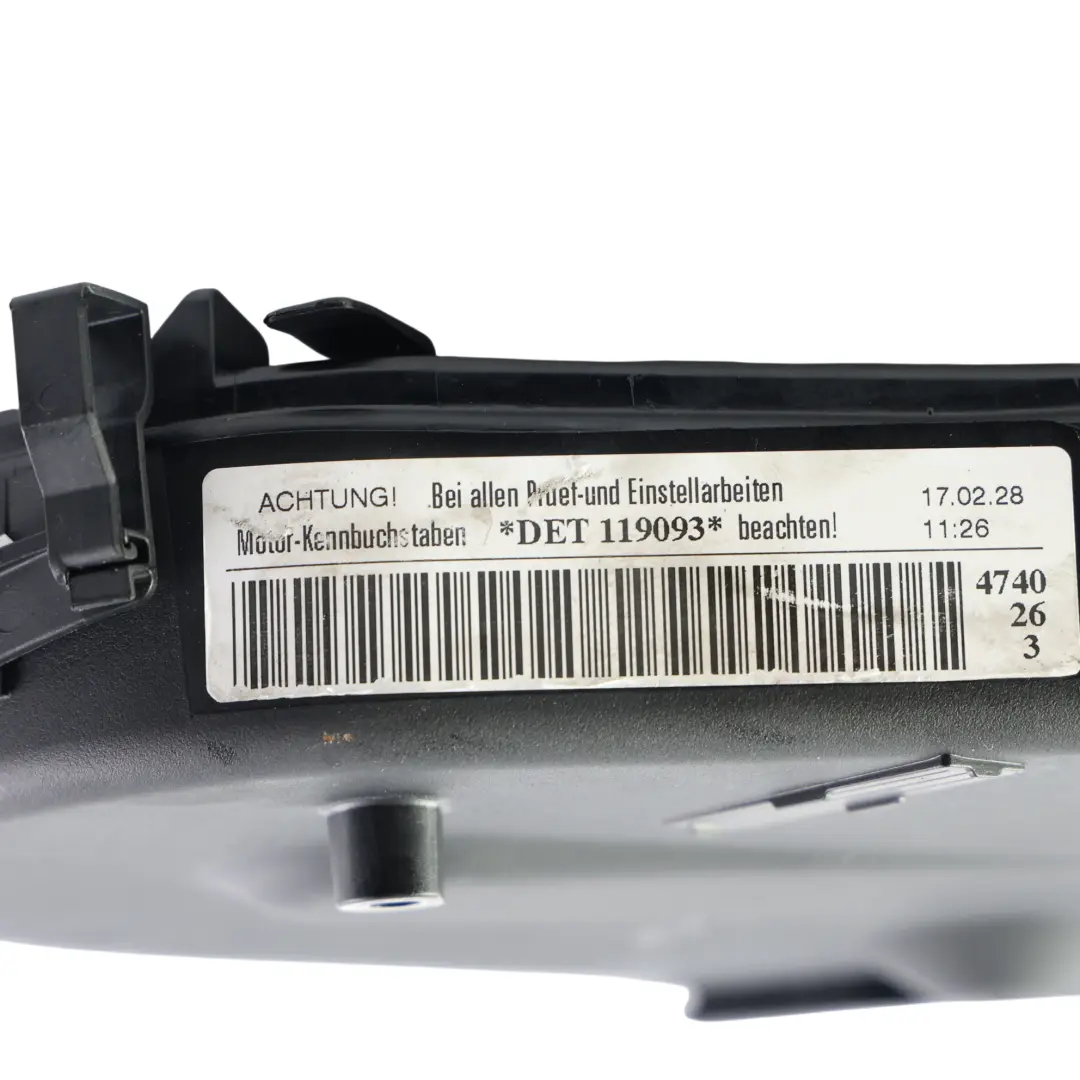

Audi A4 B8 A5 8T Engine Toothed Timing Belt Guard Cover Panel 04L109107G

Visual condition of the part

The product shows signs of use visible in the photos.

Audi A4 B8 A5 8T Engine Toothed Timing Belt Guard Cover Panel is a precisely fitted protective panel, designed specifically for the power units of these models. This component stabilizes and secures the timing drive area, which is crucial for trouble-free engine operation and maintaining the correct belt guidance geometry. Thanks to its original design, it ensures proper adhesion to adjacent components and limits the risk of contaminants entering the timing workspace.

Specifications and technical data

• SKU: 04L109107G
• Mark: Audi
• Condition: Used
• OEM Part Number: 04L109107G
• Substitutable numbers: 04L109107G, 04L 109 107 G
• Part type: Timing Belt
• Category: Timing Belts

Purpose and function in the timing system

The presented cover is an element from the Timing belts group and acts as a protective barrier between the timing drive and the engine compartment. Its task is to:

• limit the belt's contact with dust, fine particles, and moisture,
• stabilize the belt's path within the designated workspace,
• provide mechanical protection against accidental external damage,
• help create the proper working environment for rollers, tensioners, and gears.

Due to its fitment to the engine geometry in the Audi A4 B8 and Audi A5 8T, the cover does not require any modifications, and its installation allows for maintaining the factory timing drive concept.

Construction and fitment for Audi A4 B8 / A5 8T

The timing belt cover is designed as a panel with a shape that strictly corresponds to the outline of the factory timing drive in these models. The construction provides:

• dedicated mounting points to the engine block and/or engine accessories,
• edge profiling for factory seals and embossments,
• a workspace ensuring free movement of the belt and gears.

Such a solution enables plug-and-play installation in place of a worn or damaged cover, without the need to interfere with other system components.

Benefits of using an original timing belt cover

Using an original protective panel in the timing area translates into a number of practical operational benefits:

• Better belt protection – reducing the risk of foreign objects entering, which could accelerate wear or damage the belt teeth.
• Consistency with the factory design – maintaining the original belt guidance geometry and compatibility with other drive components.
• Service facilitation – the mechanic receives a component with a known mounting layout, which shortens the disassembly and assembly time during timing work.
• Engine compartment aesthetics – an organized, closed space around the timing system makes it easier to diagnose potential leaks and seal failures from other sub-assemblies.

Component condition and use in service practice

The offered cover comes from disassembly and is a used component, which allows combining the original construction with a cost-effective repair. This type of part is particularly useful in situations where the existing cover has cracked, deformed, or has damaged mounting points after previous service interventions.

Replacing the protective panel is recommended especially during work related to timing belt maintenance, when access to the drive area is already provided. This allows for restoring full cover functionality in a single service cycle and minimizing the risk of later problems resulting from leaks or looseness.

Expanding the scope of repair and additional materials

If you are planning a comprehensive repair or upgrade of the engine area in your Audi and need other elements from the same group, such as tensioners, guide rollers, or complete drives, check the available parts in the Audi Timing belts category.

When planning work in the timing area, it is worth familiarizing yourself with practical tips regarding the diagnostics and replacement of drive components. A good point of reference may be an article describing typical problems with the timing drive in modern units, available here: BMW N47 timing chain – typical failure and repair using original BMW parts. Additionally, if you want to more efficiently plan the purchase of multiple components in one place and better understand the advantages of original used parts, the following guide will be helpful: Comprehensive supply: how to collect used car parts in one place.
