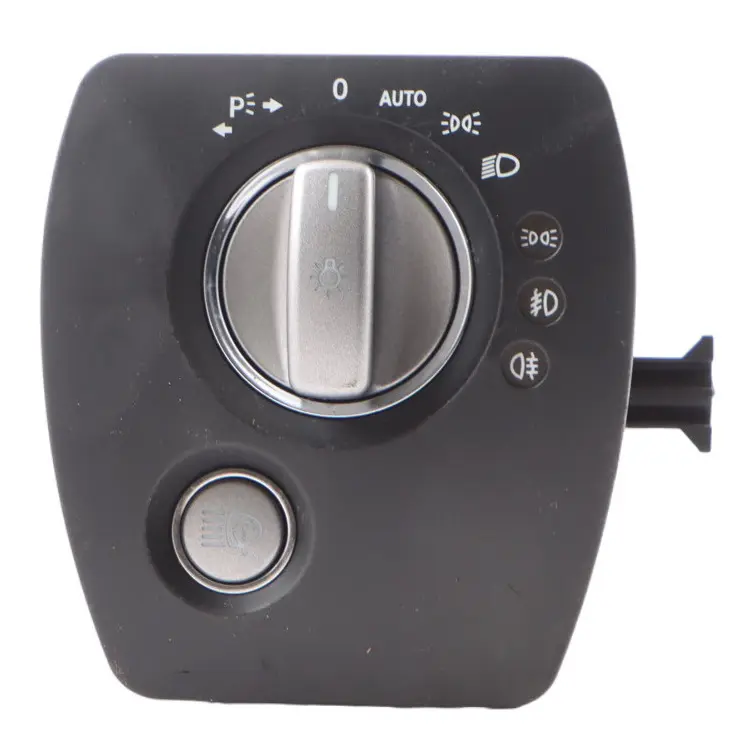

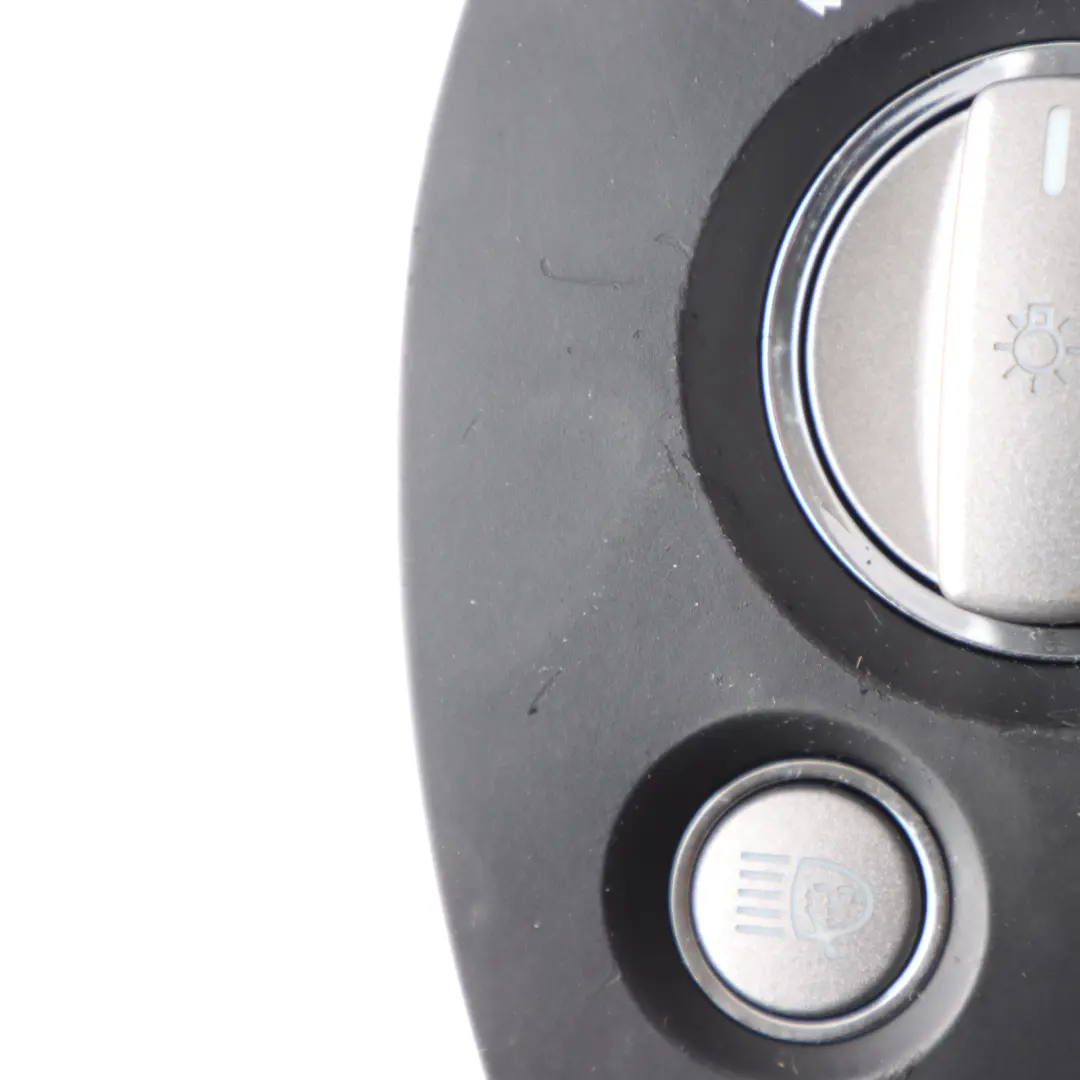

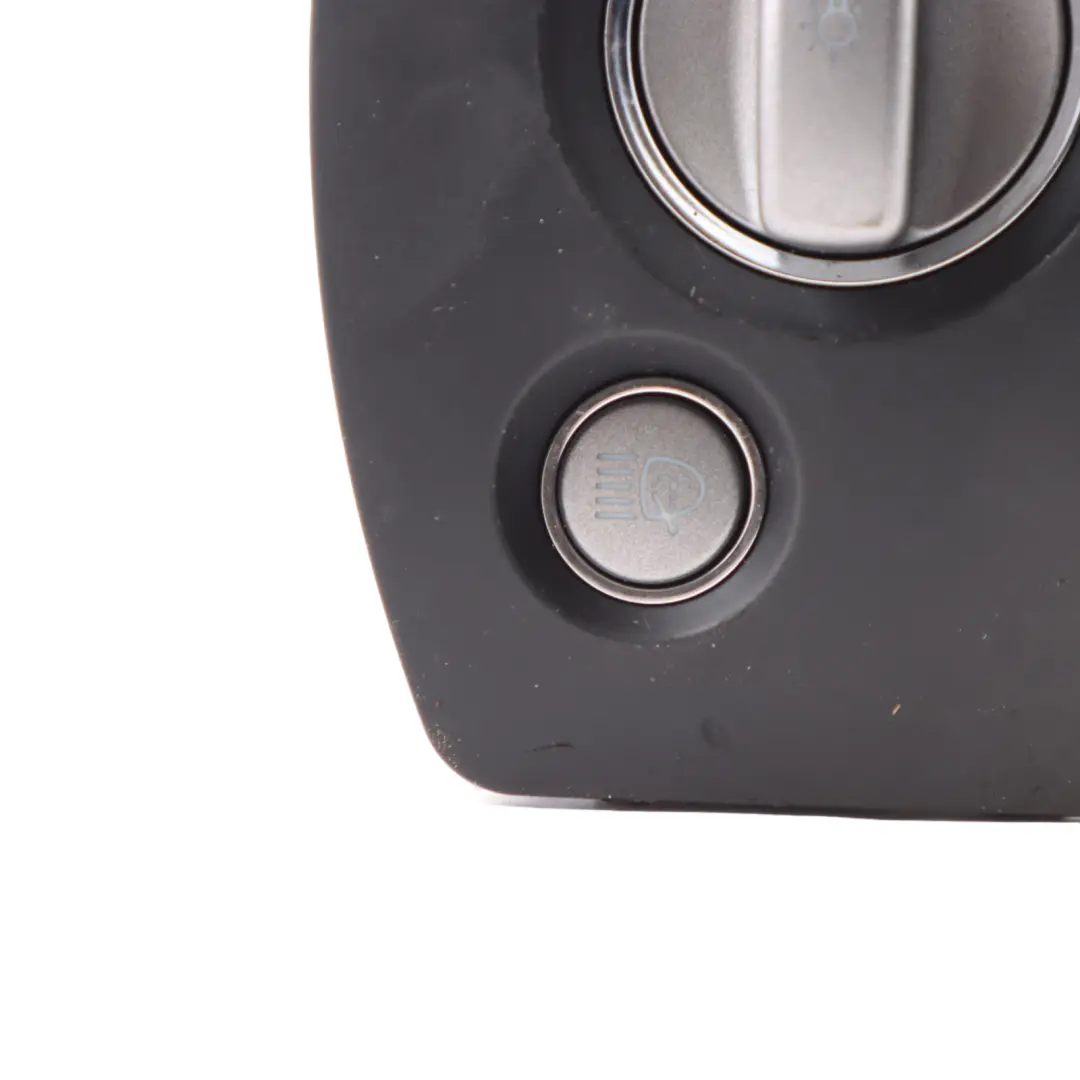

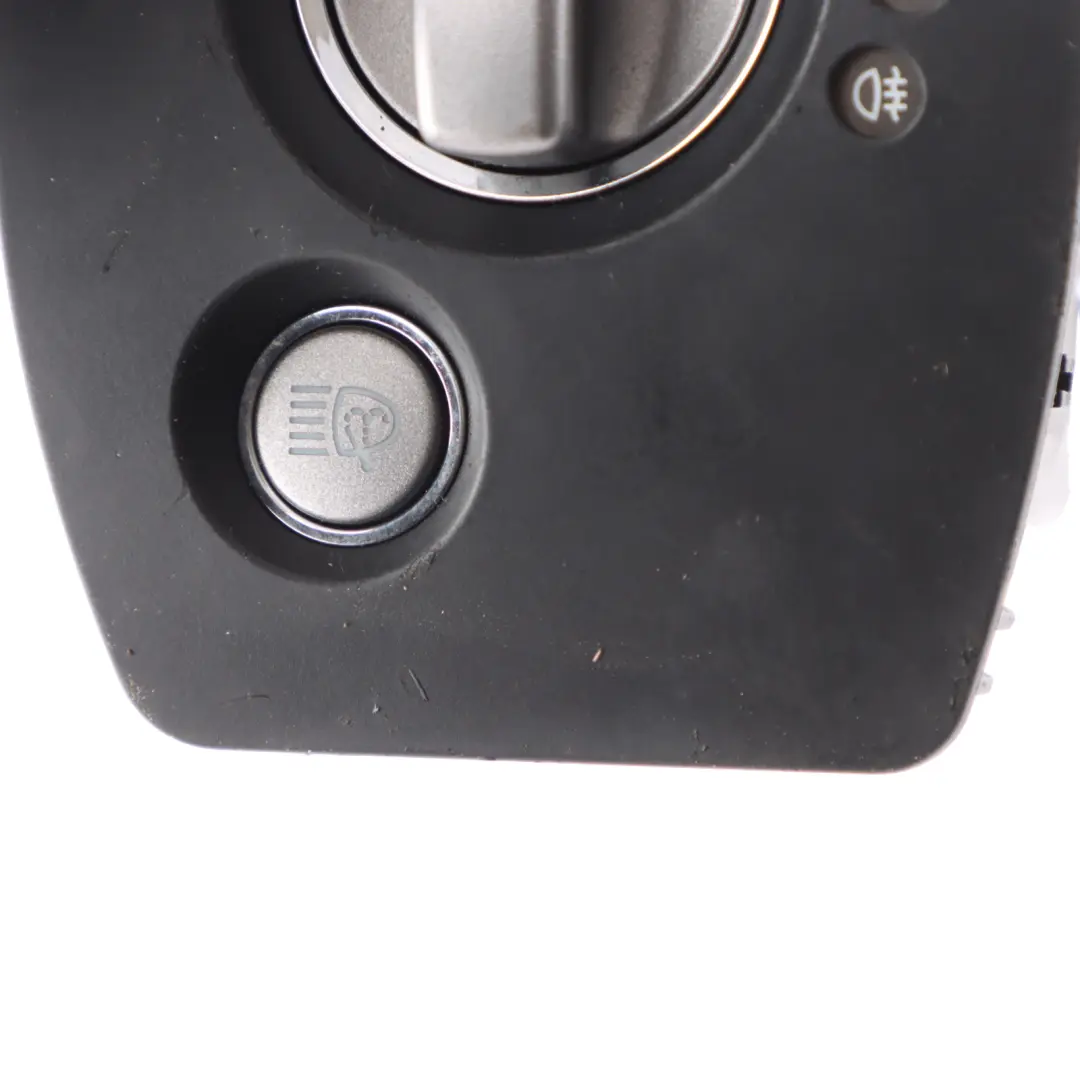

Mercedes R171 Headlight Switch Unit Light Control Panel A1715450604

Mercedes R171 Headlight Switch Unit Light Control Panel is an original headlight switch designed for factory installation in vehicles of this series. As a component from the Switches, control elements and ignition locks group, it is responsible for precise management of lighting functions, ensuring consistency with the electrical system and the ergonomics of the Mercedes interior. Using an OEM component allows for a technically correct replacement of a damaged module without interfering with the wiring harness or the dashboard.

Specifications and technical data

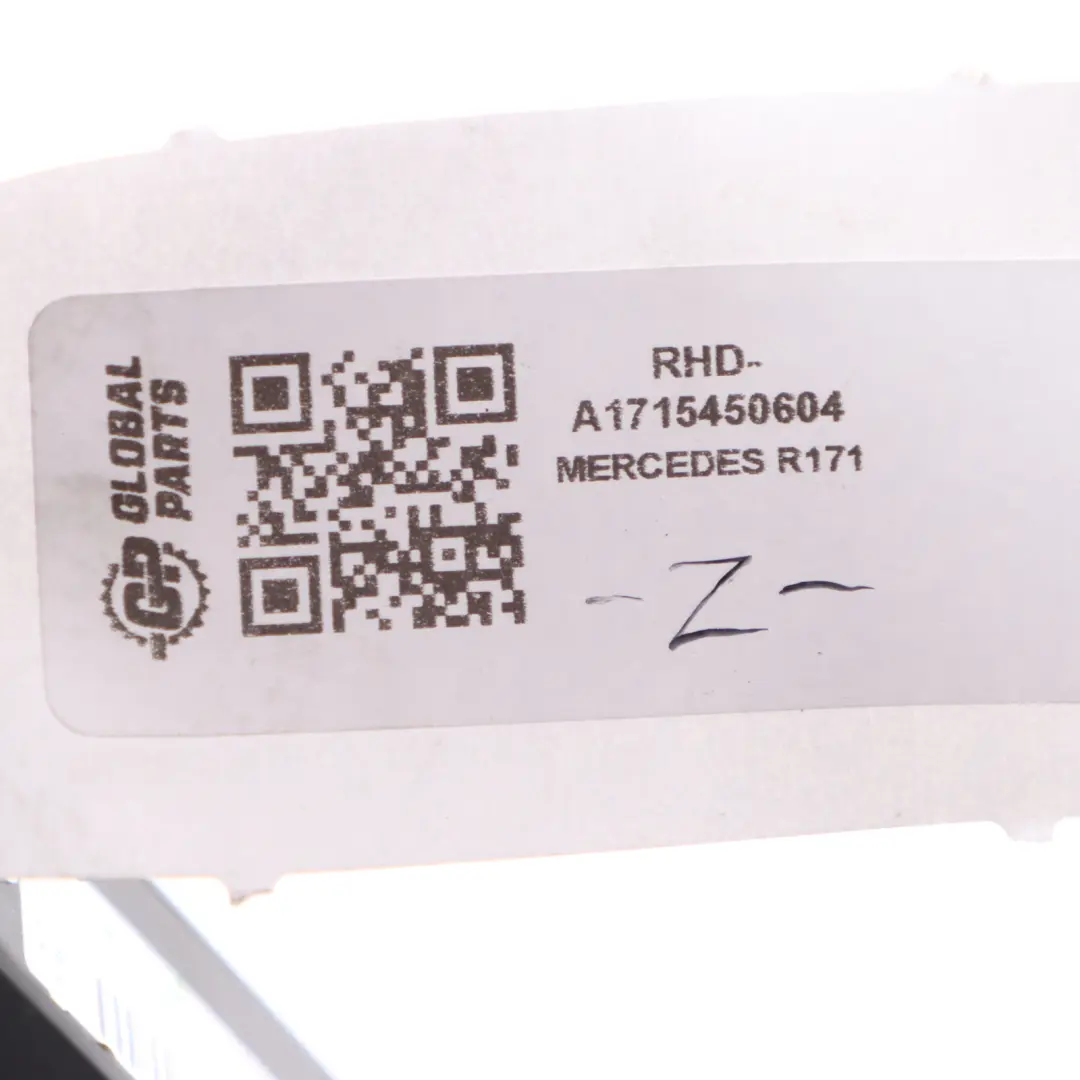

• SKU: RHD-A1715450604
• Mark: Mercedes (Genuine OE)
• Condition: Used

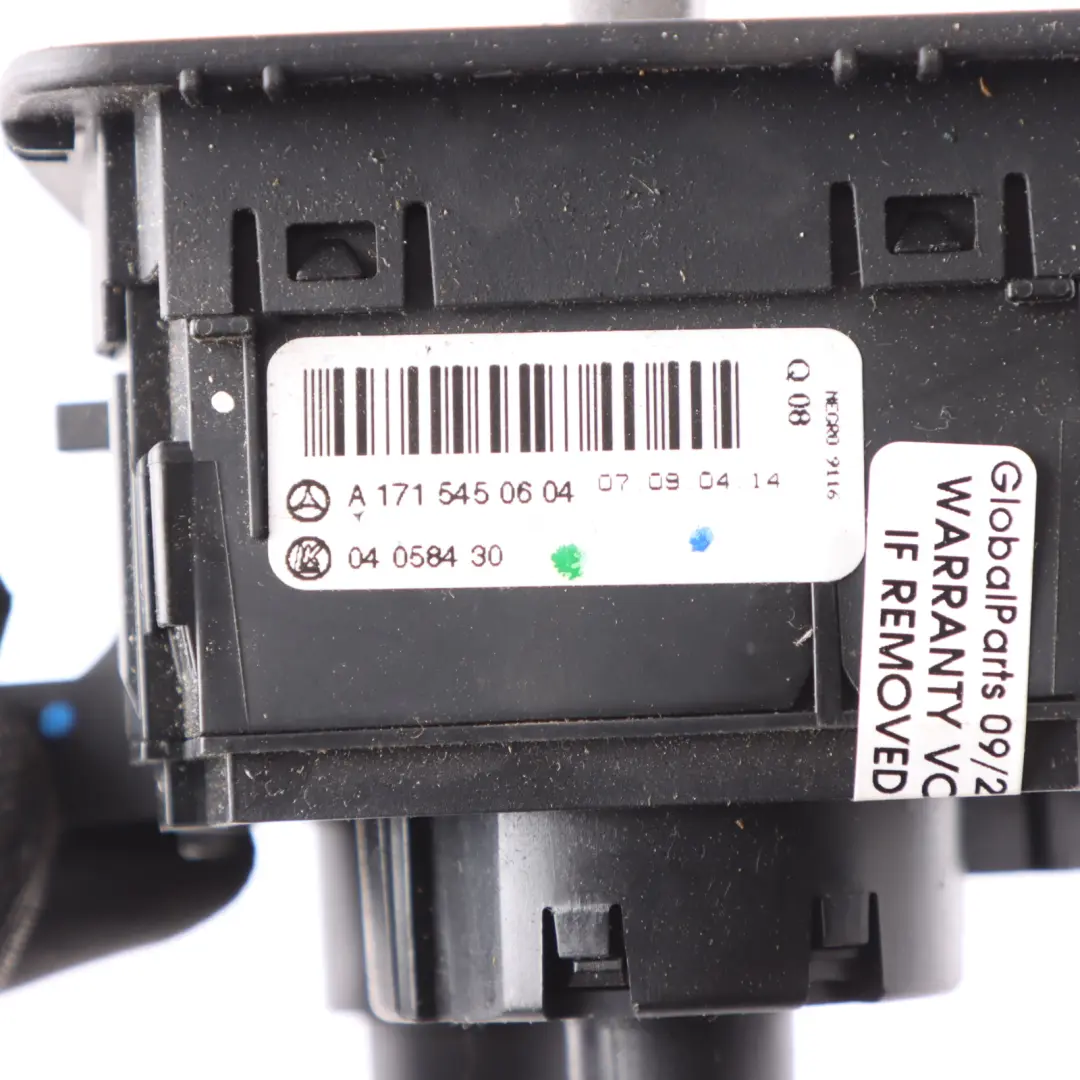

• OEM Part Number: A1715450604
• Substitutable numbers: A1715450604, A 171 545 06 04
• Category: Switches & Controls

Function and application of the headlight control panel

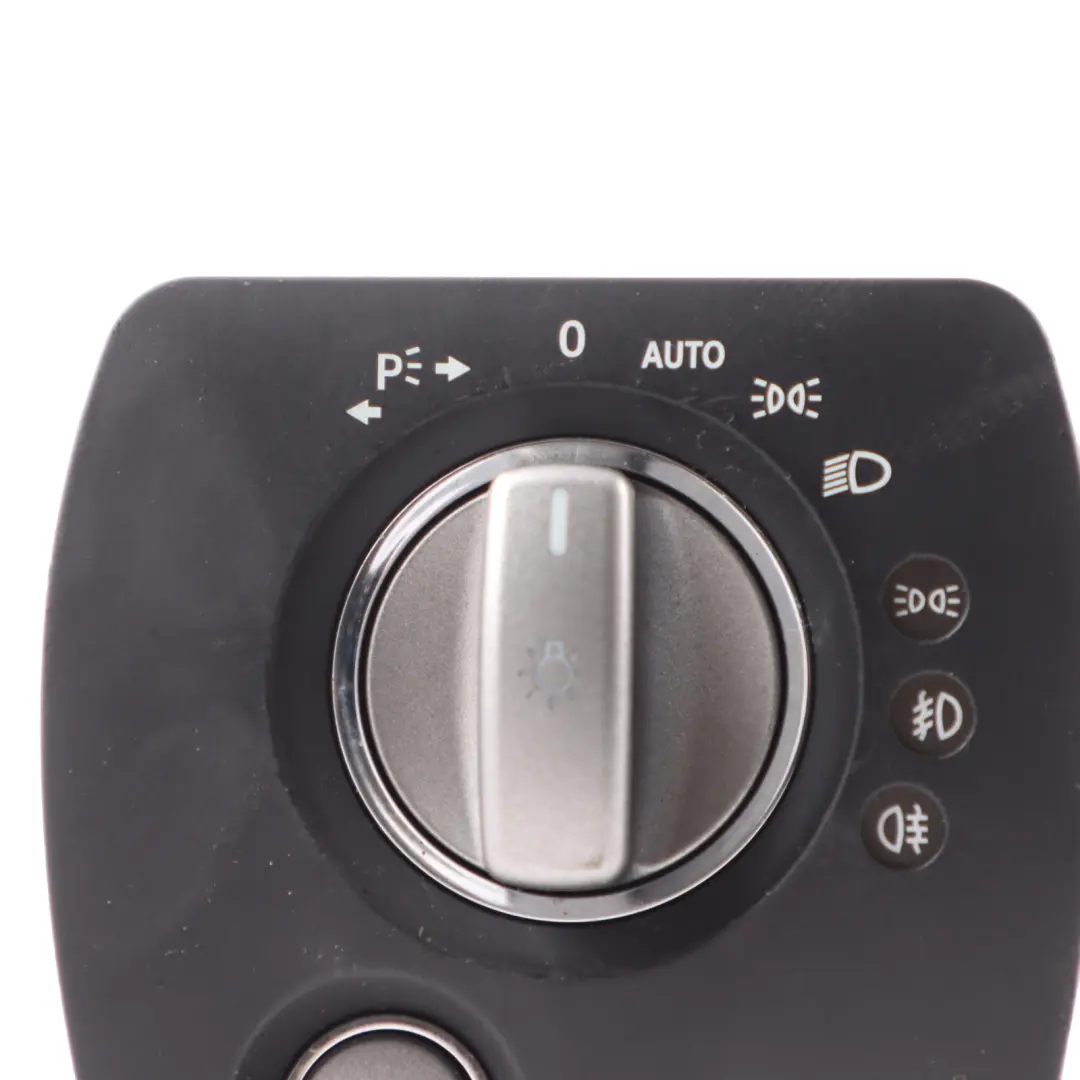

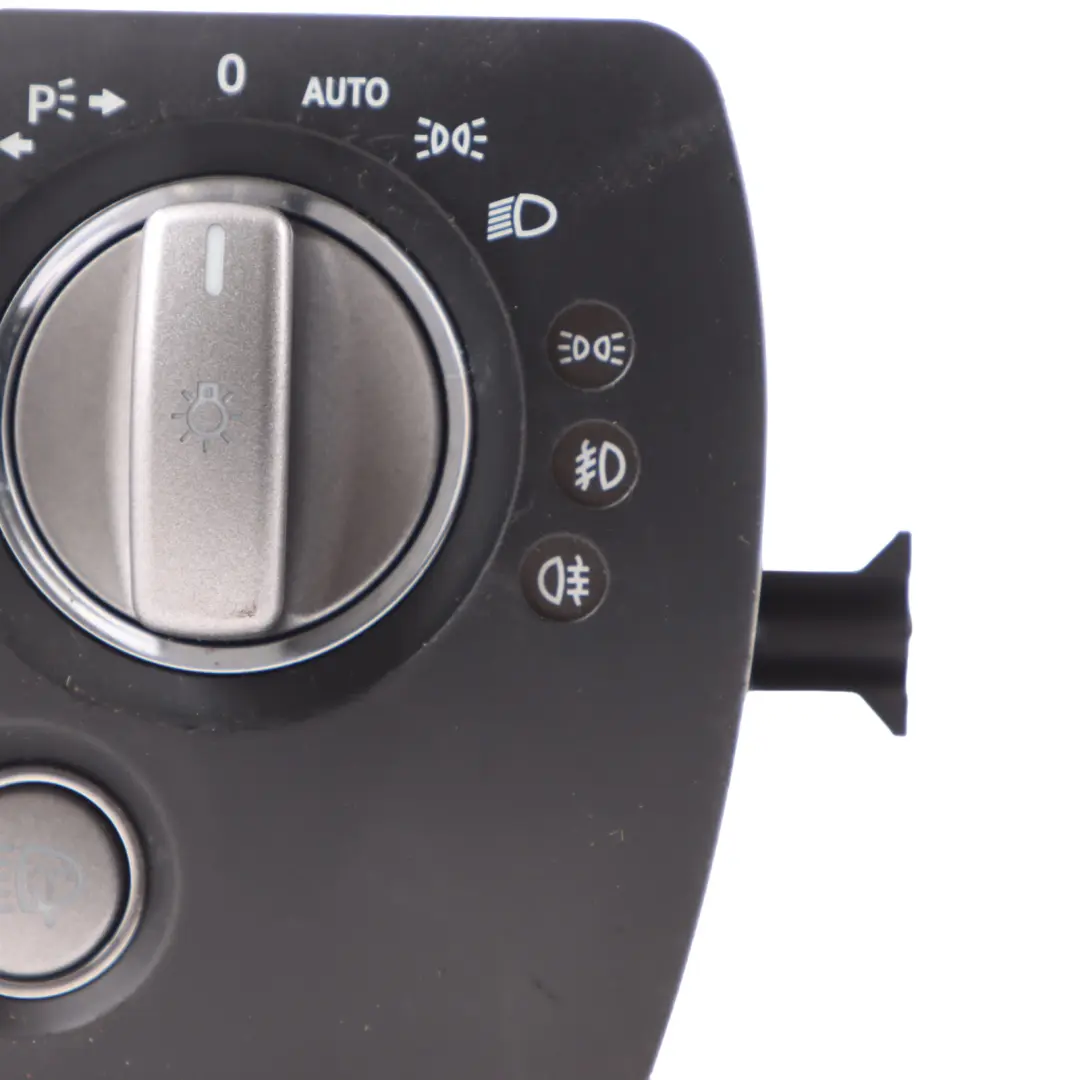

The presented light panel is responsible for operating basic and extended lighting modes in the Mercedes R171, such as parking lights, low beams, or high beams, as well as additional functions provided by the manufacturer for specific equipment levels. The module's design is integrated with the vehicle's electrical system, ensuring full compatibility with factory control systems and vehicle bus communication.

The original switch from this series ensures:

• consistent operation with the factory Mercedes electrical system,
• ergonomic access to all lighting functions from the dashboard,
• preservation of the original control logic intended by the manufacturer.

Construction and integration with the electrical system

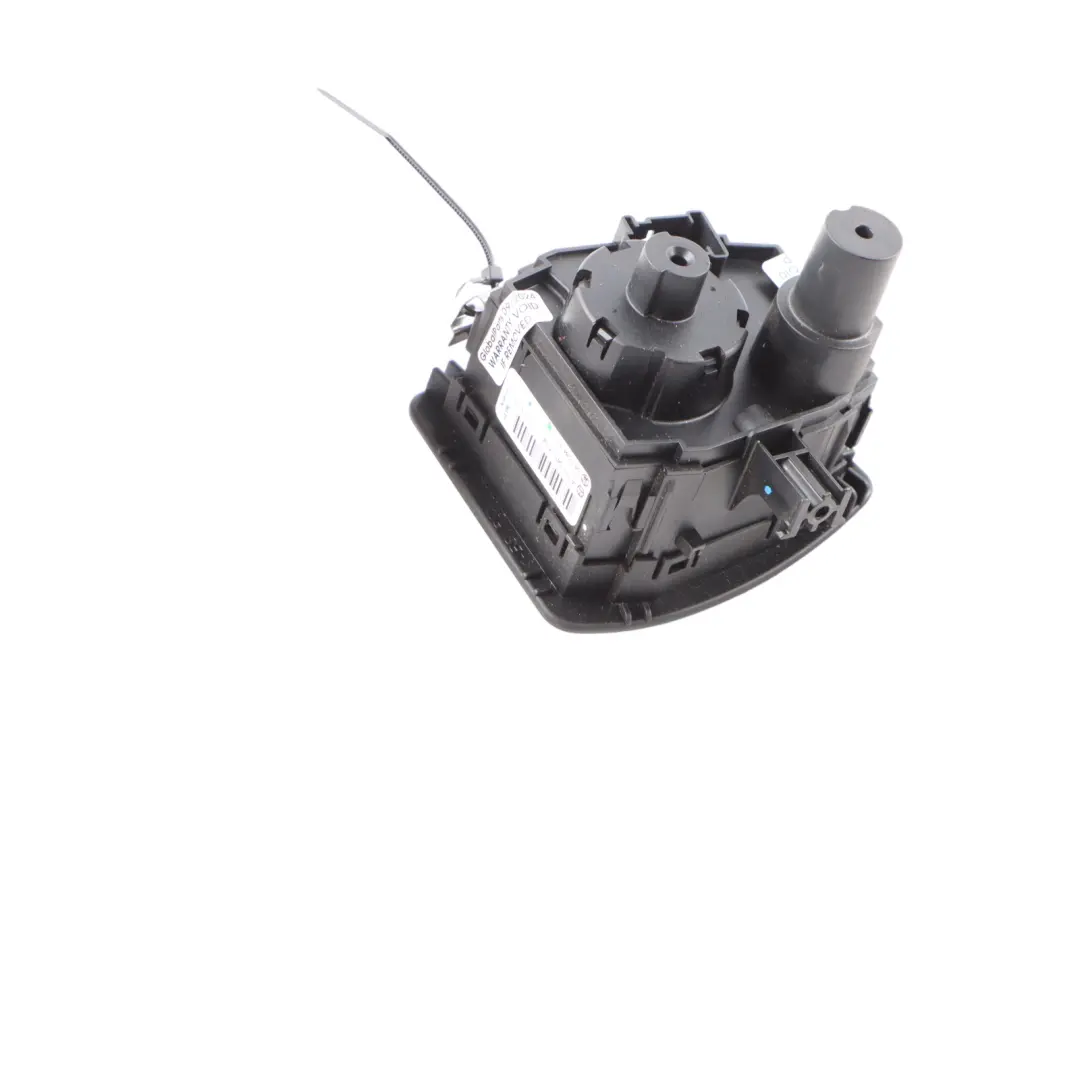

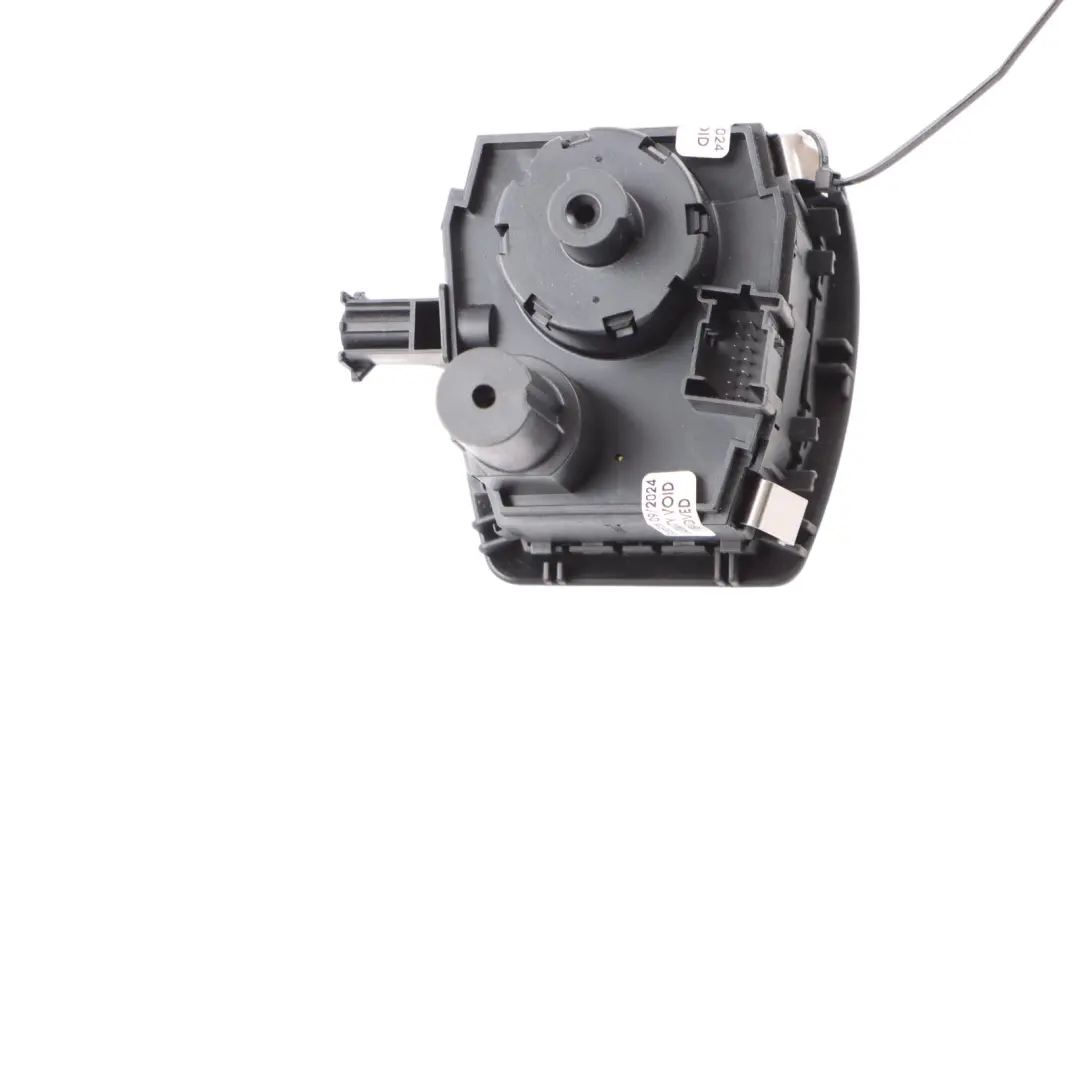

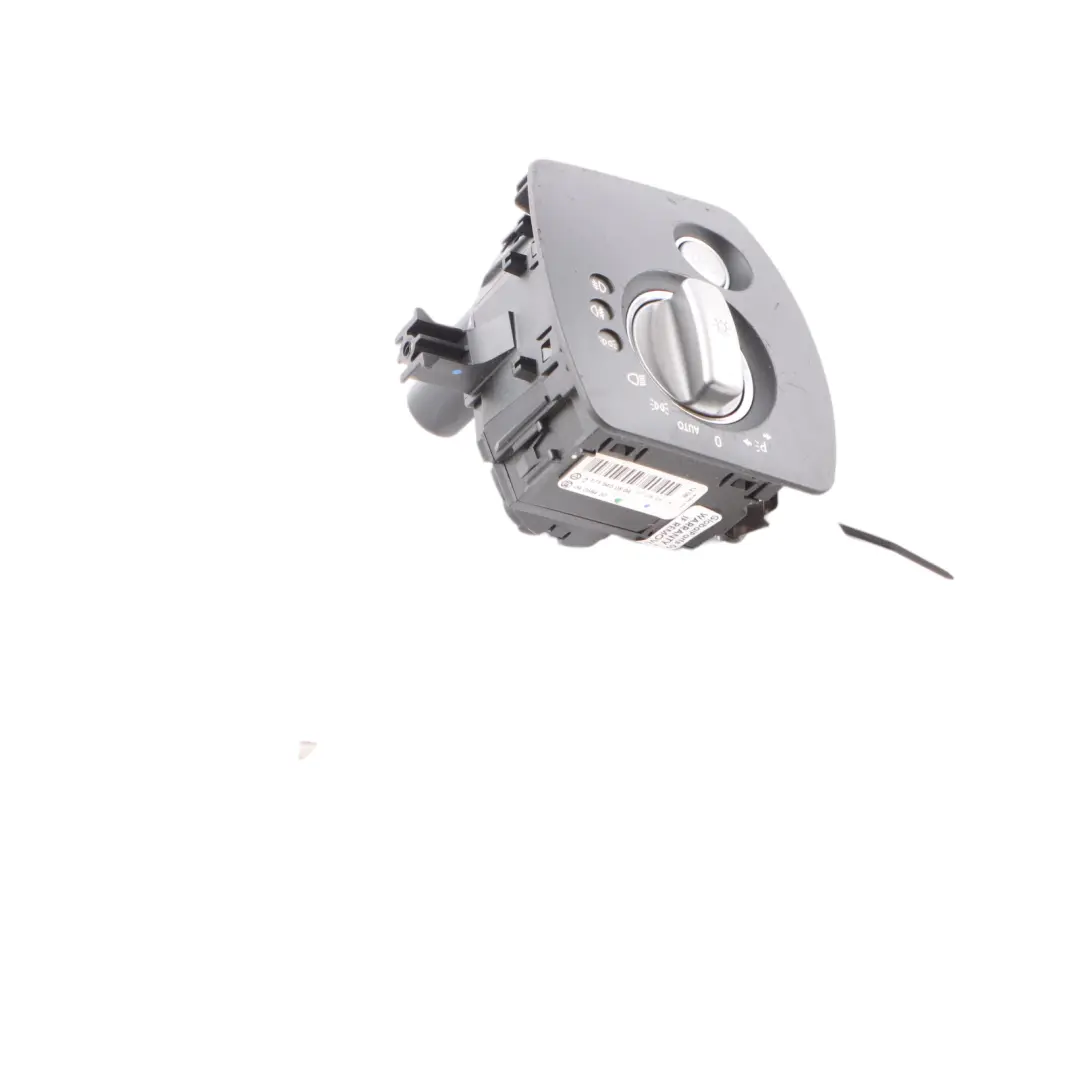

The headlight control panel in the Mercedes R171 is designed as a module mounted directly into the console, with a properly shaped connector for the factory wiring harness. The original design guarantees correct mechanical fitment and proper positioning of knobs and buttons relative to the interior trim. The applied mechanical and electrical solutions comply with the manufacturer's standards, which limits the risk of looseness, poor contact, or communication errors in the system.

The module is prepared to work with Mercedes diagnostic systems, which facilitates potential verification of correct operation after installation and allows for quick detection of any irregularities in the lighting system.

Benefits of using an original headlight switch

Using an original headlight control panel in the Mercedes R171 brings a number of practical benefits compared to low-quality replacements. Factory fitment translates into the correct operation of all lighting functions, proper illumination of control elements, and a consistent appearance with other interior components.

Key advantages include:

• preservation of the original aesthetics of the Mercedes cockpit,
• reliable operation of switches and knobs over a long service life,
• no need for modifications to the electrical or mechanical installation,
• easier diagnostics during subsequent service inspections.

Condition, selection, and practical aspects of installation

The offered headlight control panel is a used item, which allows for an economical repair of the lighting control system while maintaining original manufacturing quality. Before installation, it is recommended to perform a standard check of the vehicle's electrical system and verify the module's compatibility with the specific vehicle equipment version to ensure full functionality of all lighting modes.

In practice, installation usually comes down to removing the trim, disconnecting the factory connector, replacing the module, and reconnecting the harness. Because it is a component from the Switches, control elements and ignition locks group, there is no need to interfere with deeper layers of the electrical installation, which shortens work time and reduces the risk of installation errors.

If you are planning a comprehensive repair or upgrade of the cockpit area in your Mercedes and need other elements from the same group, such as comfort function switches, window control modules, or ignition locks, check the available parts in the Mercedes Switches, control elements and ignition locks category.

System safety and the selection of used components

A functional headlight control panel has a direct impact on driving safety, as it is responsible for the quick and predictable activation of lights in various road conditions. When using used control elements, it is worth knowing the basic principles of their selection and technical condition verification. Detailed tips on the safe selection of used components in critical vehicle systems can be found in the article: Second-hand braking system: how to safely choose discs, calipers, and ABS?, which discusses universal procedures for evaluating used parts in the context of operational safety.
