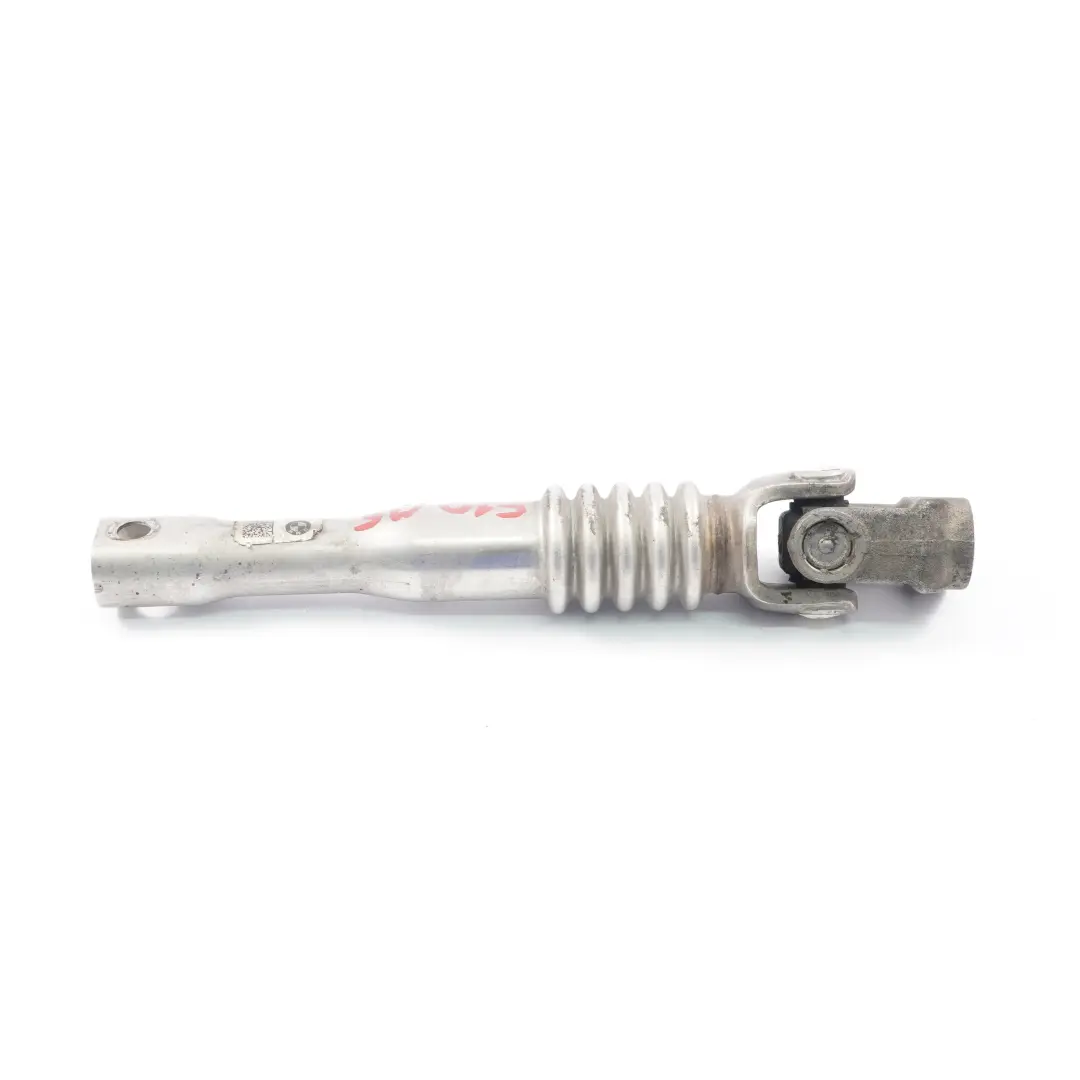

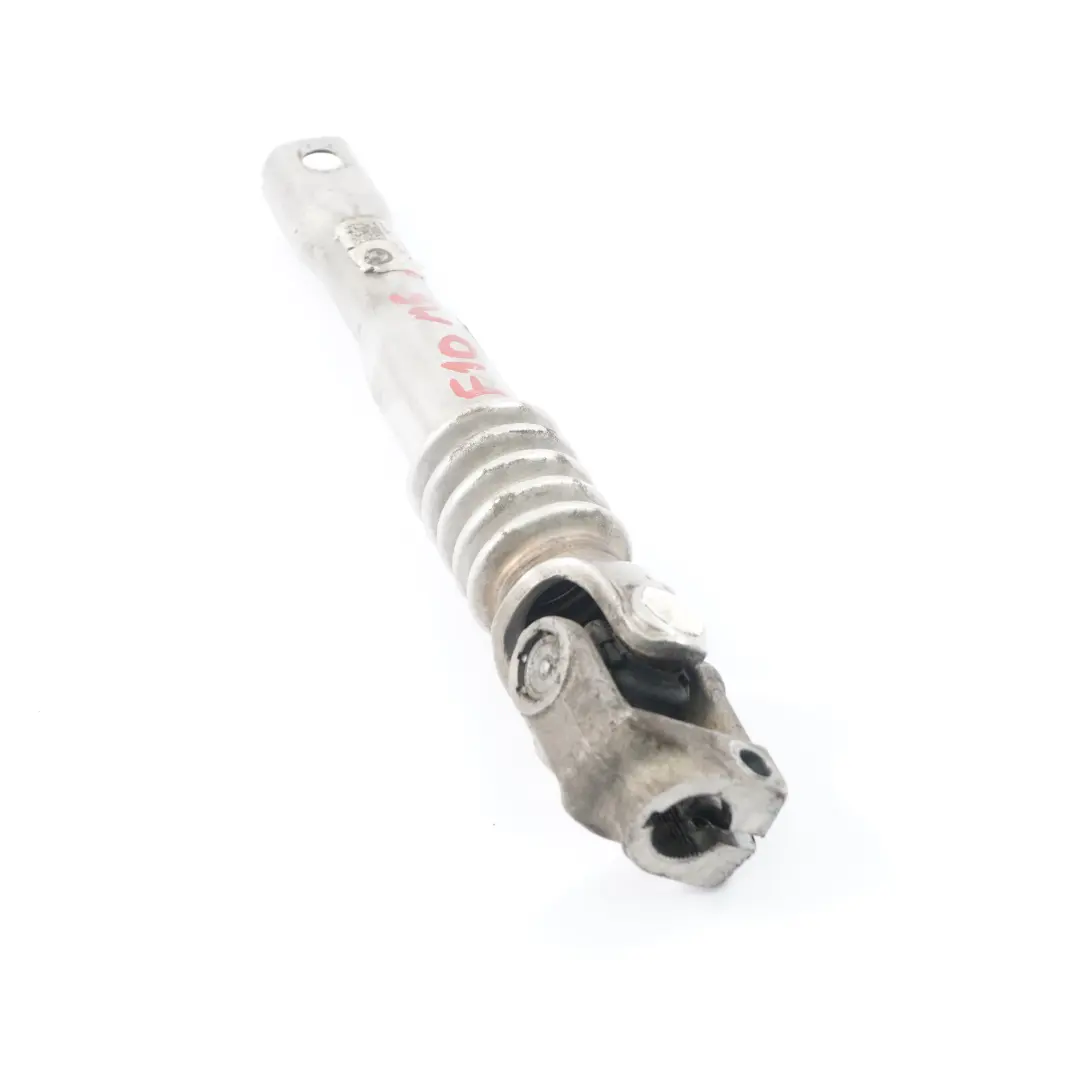

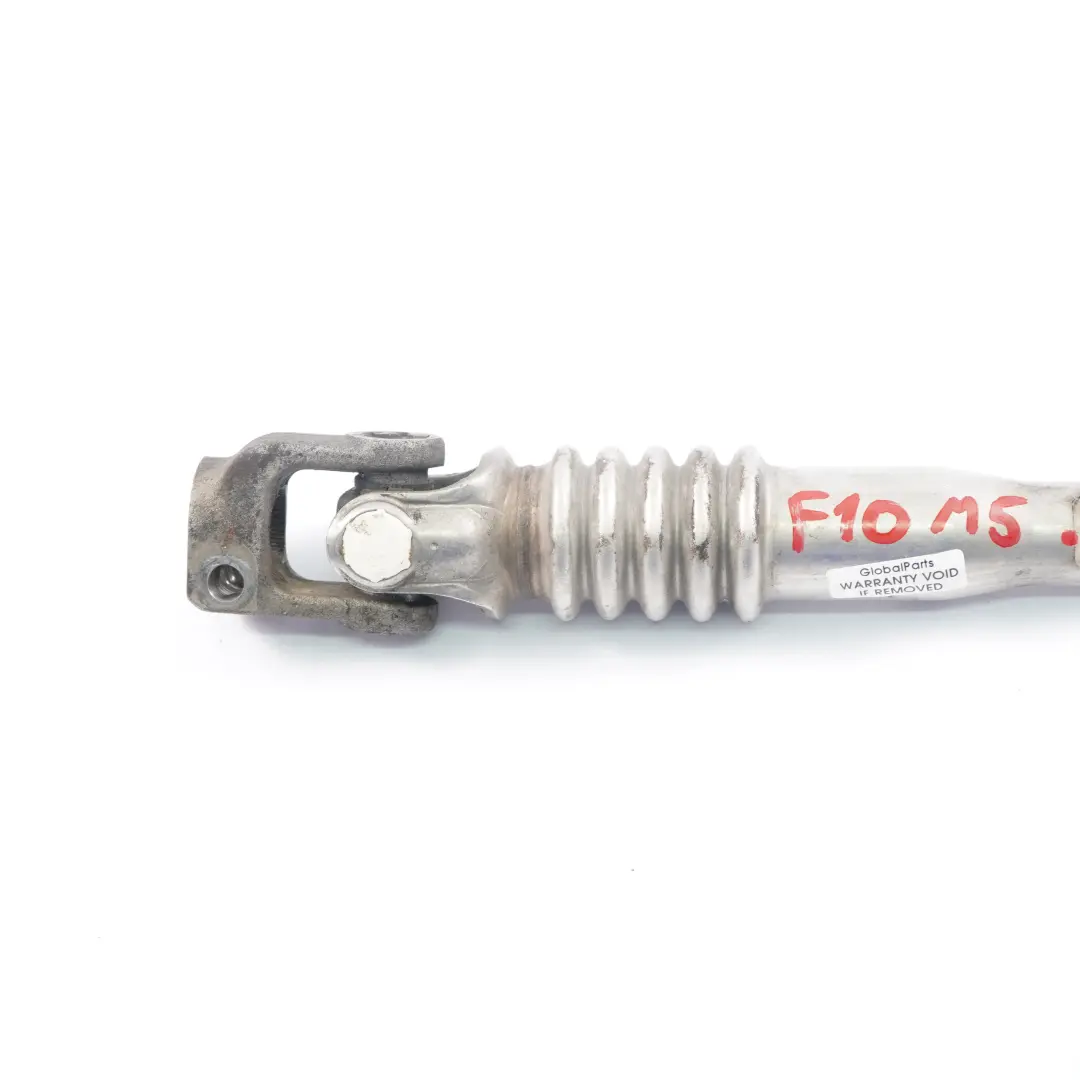

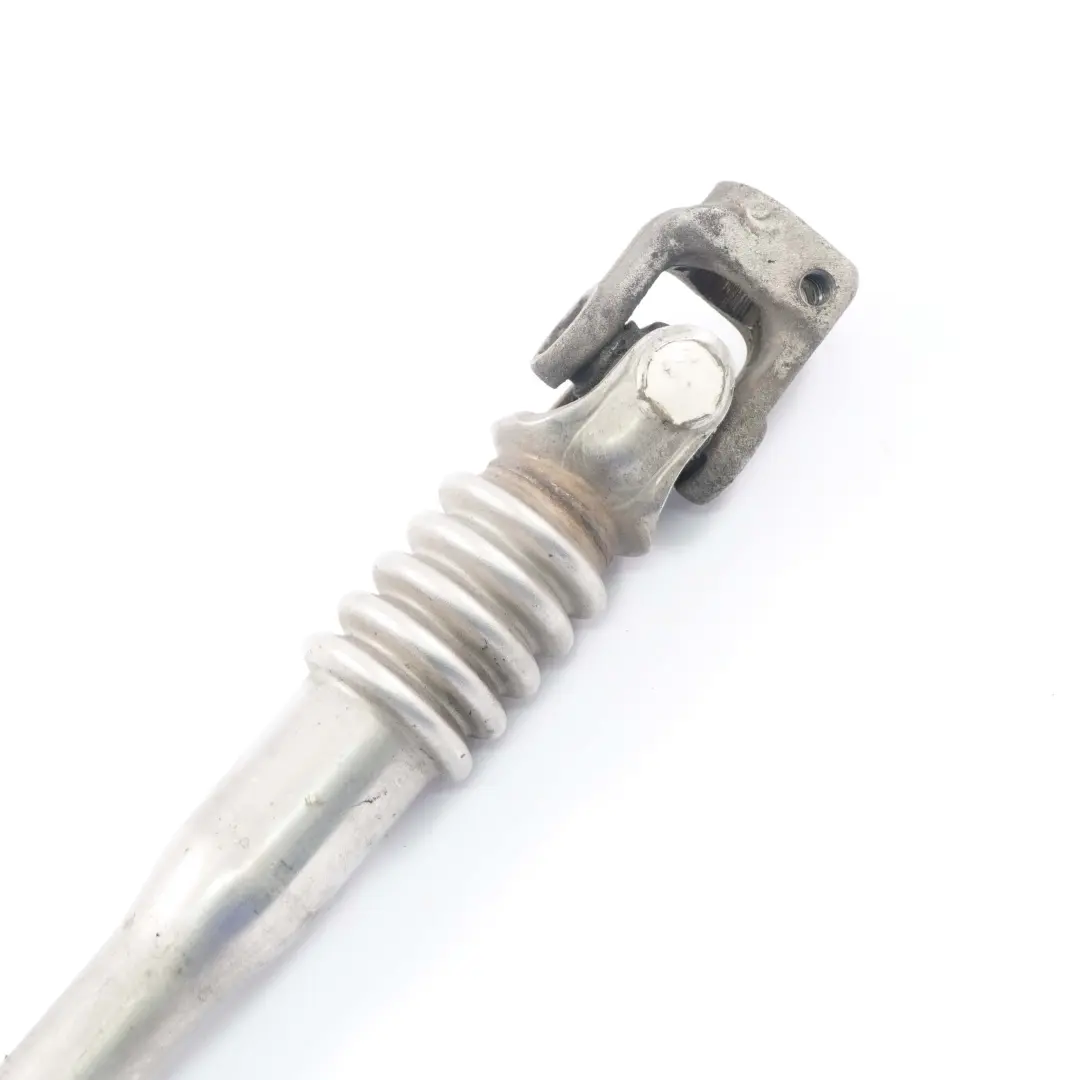

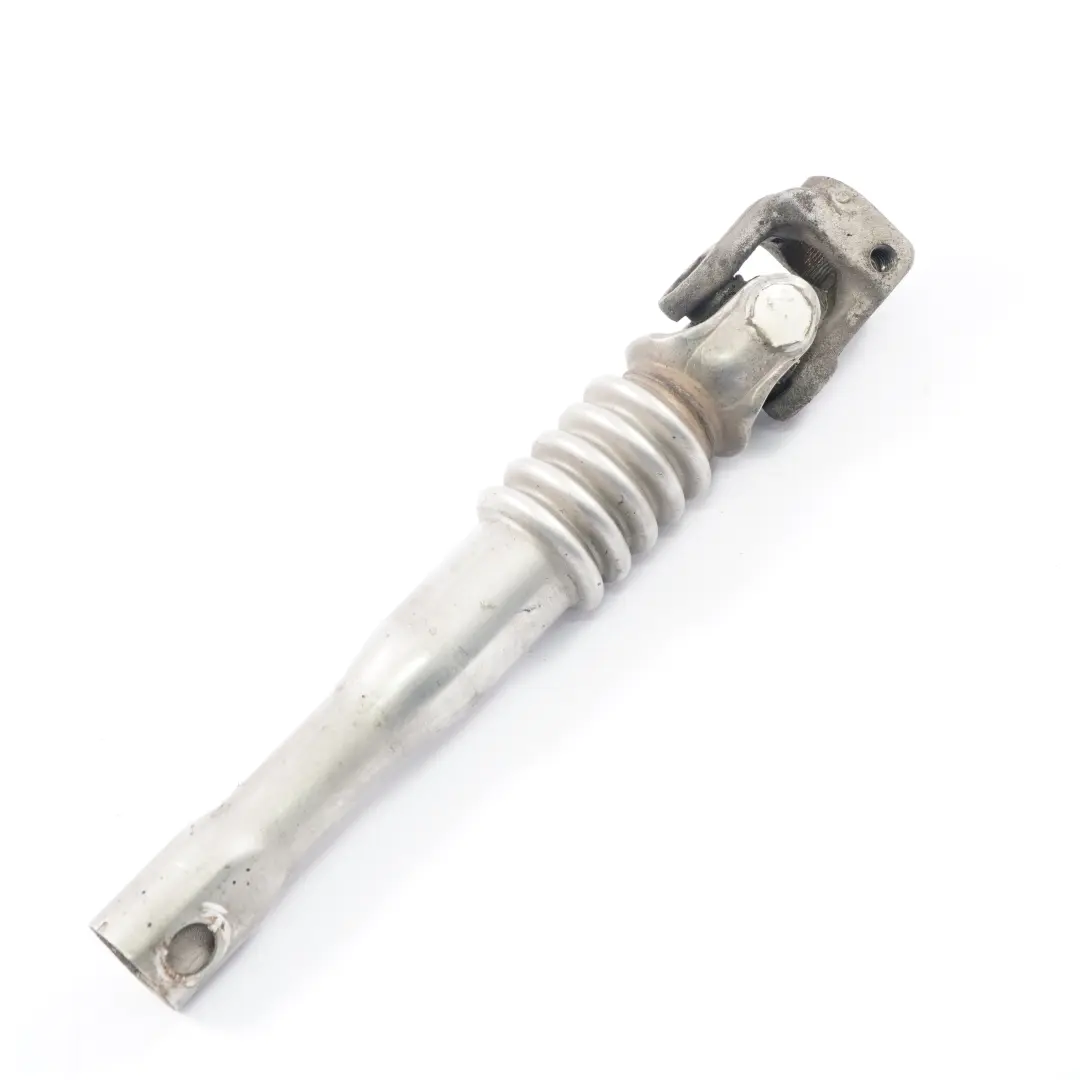

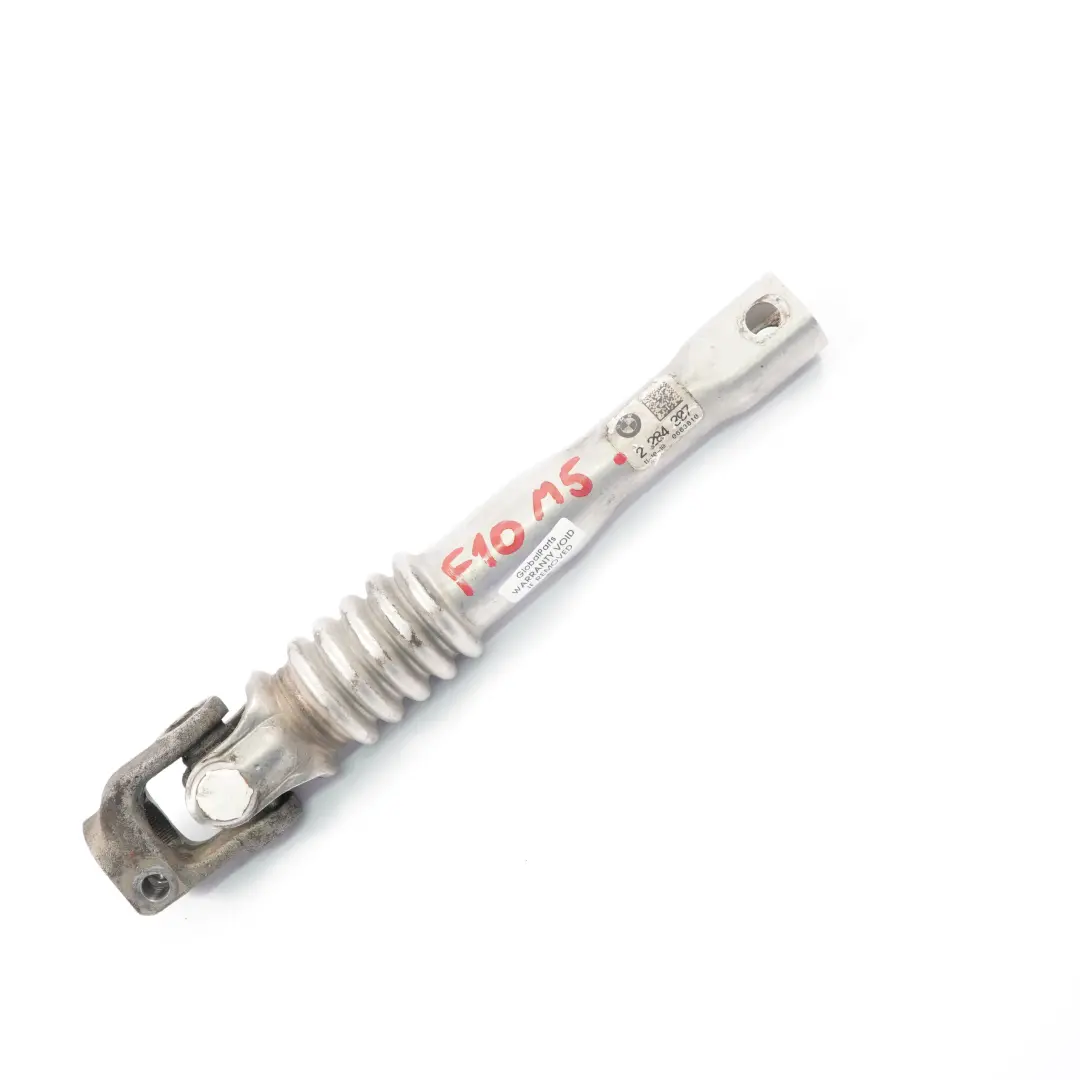

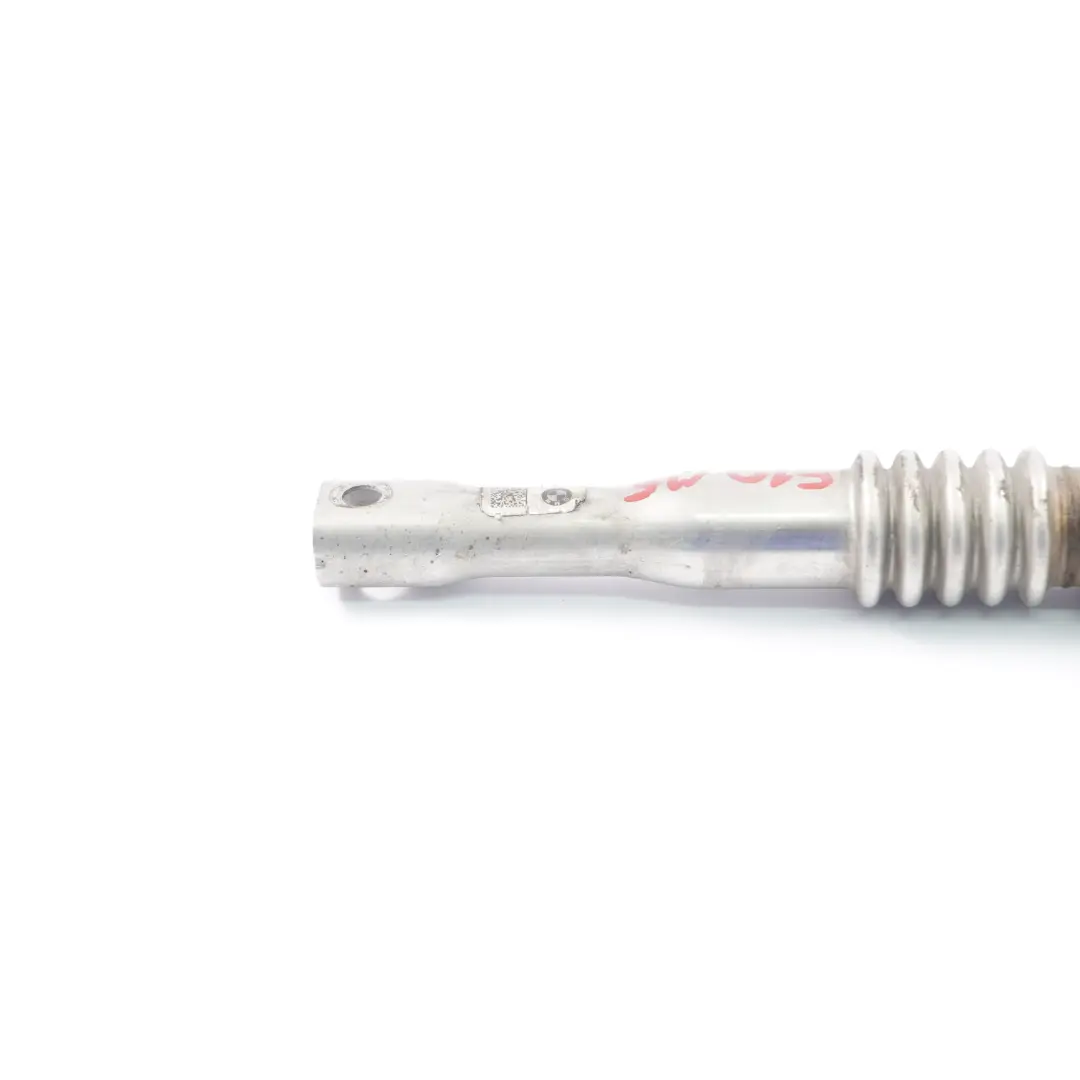

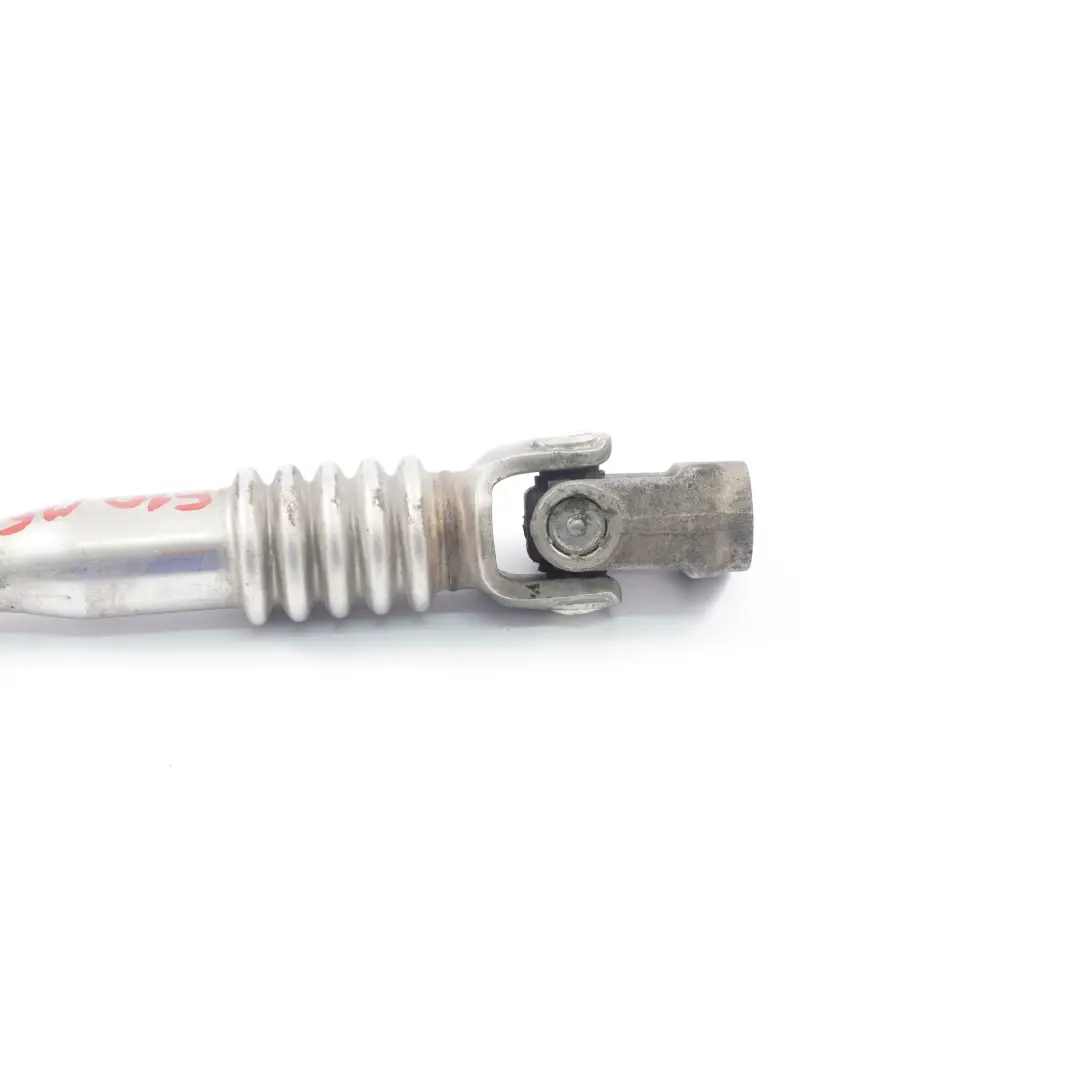

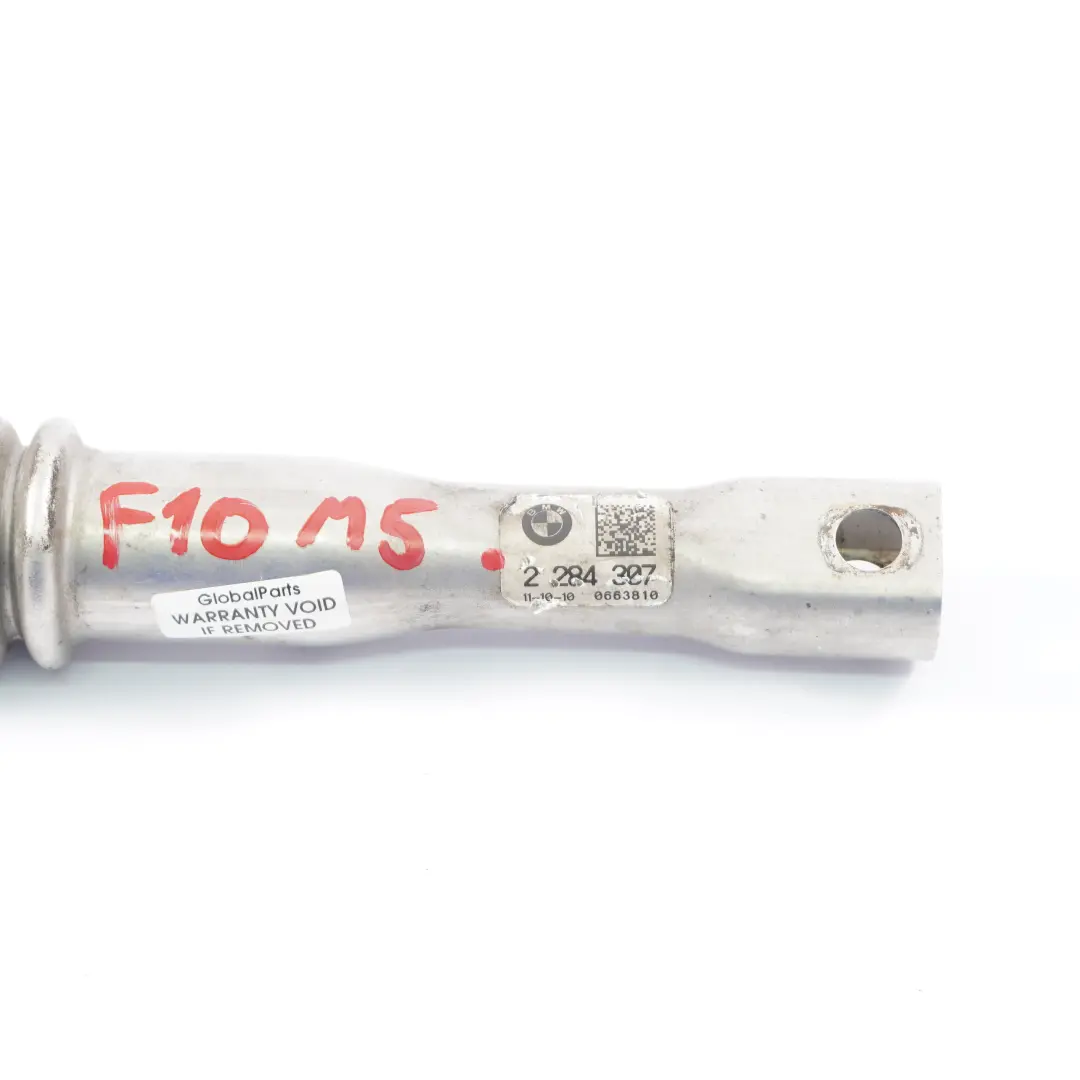

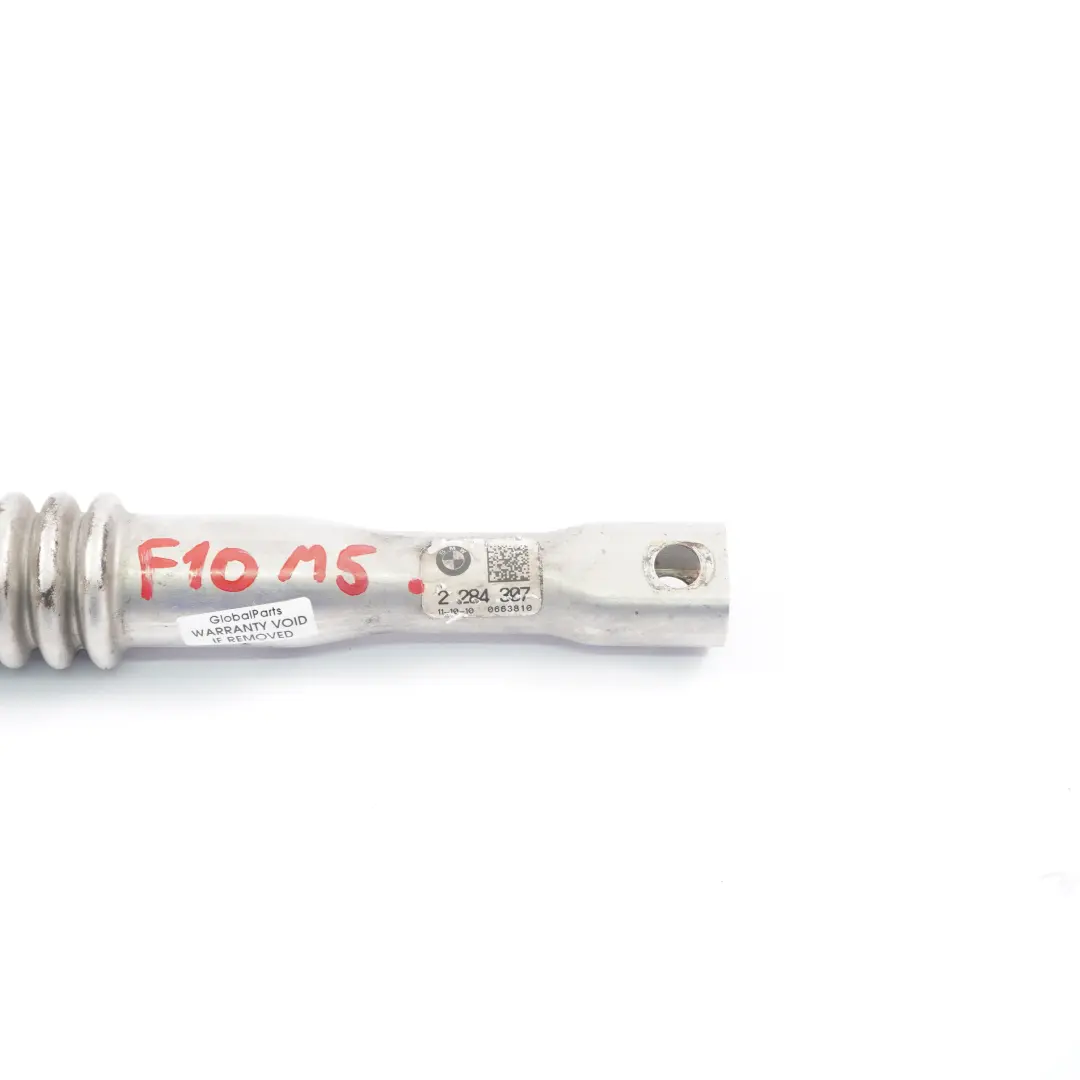

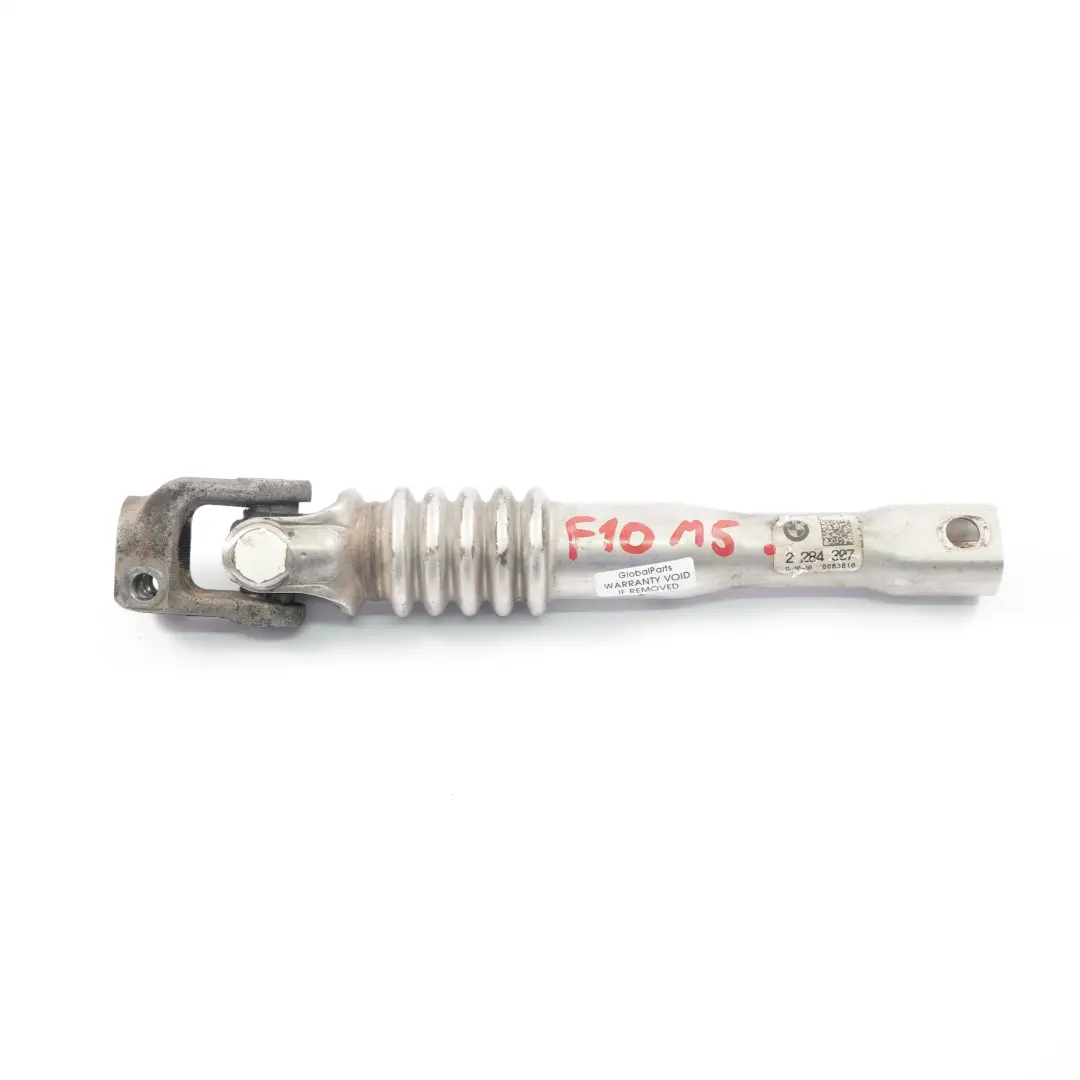

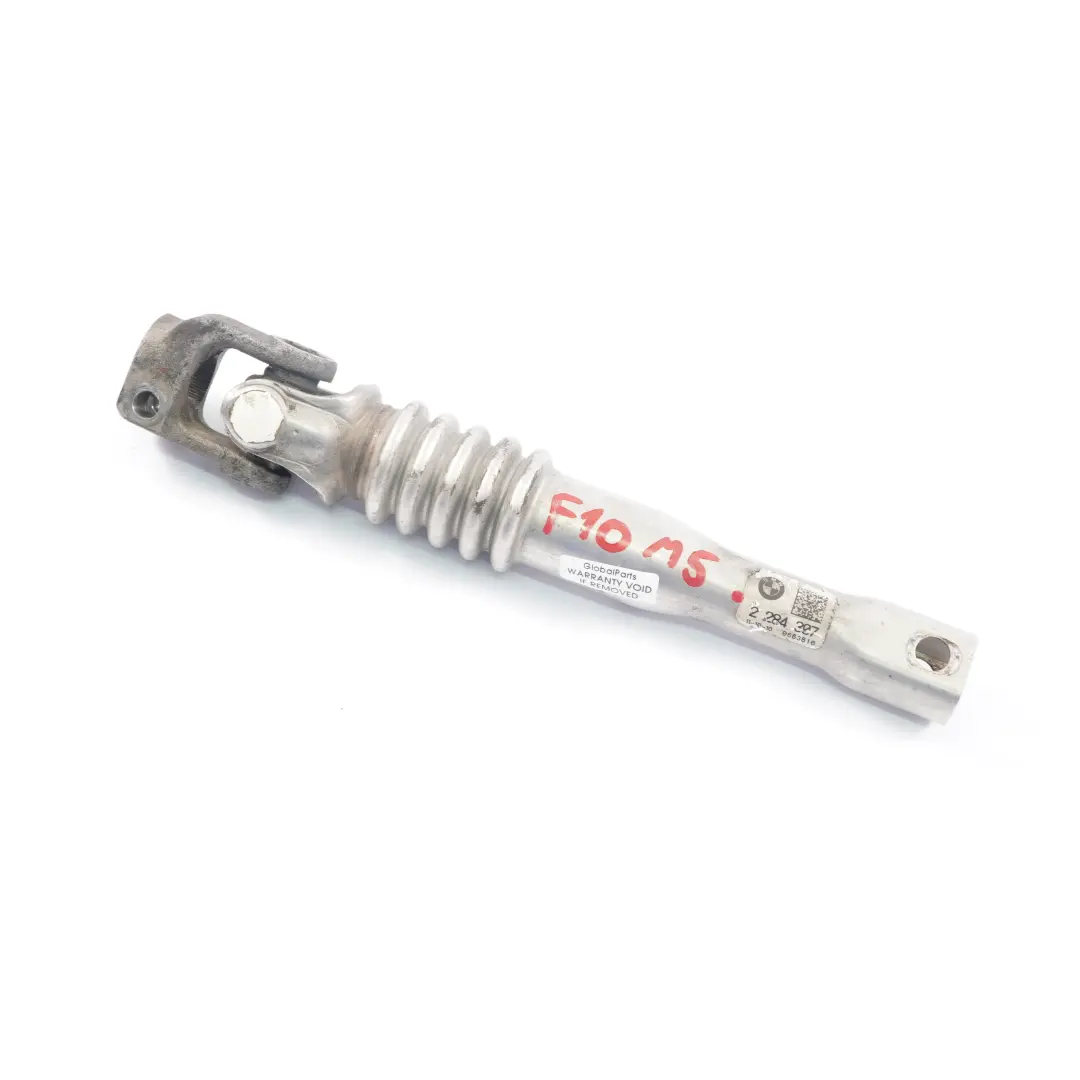

BMW F10 M5 Steering Shaft Column Universal Link Joint Coupling 2284307

BMW F10 M5 Steering Column – Universal Joint, Intermediate Shaft, and Cardan Joint is a steering system component responsible for precisely transferring motion from the steering wheel to the steering rack. This component from the Steering Columns group is designed specifically for the BMW 5 Series F10 M5 version, ensuring correct geometry, rigidity, and compatibility with the factory system.

Specifications and technical data

• SKU: rhd-2284307
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 2284307
• Substitutable numbers: 32302284307, 2284307, BG
• Category: Steering Columns

Purpose and Function in the Steering System

The presented steering column element is responsible for the stable connection between the steering wheel and the steering rack, compensating for body movements and vibrations originating from the suspension. The incorporated universal joint and intermediate shaft enable smooth torque transfer while maintaining appropriate torsional rigidity, which translates into predictable vehicle responses to steering inputs.

In the BMW F10 M5 model, the steering system is tuned for dynamic driving, which is why a correctly selected steering column is crucial for maintaining factory handling parameters, steering precision, and power steering comfort.

Construction and Technical Properties

The element belongs to the Steering Columns group and forms the section connecting the upper part of the column to the steering rack. The construction utilizes a cardan joint and a shaft section with a suitable profile, ensuring:

• appropriate rigidity during turning,
• compensation for minor displacements between the body and the powertrain,
• reduction of play in the steering system when properly installed.

Thanks to its adaptation for the BMW F10 M5, the correct connection length and geometry are maintained, which is key for proper joint operating angles and avoiding unwanted steering wheel vibrations.

Condition, Fitment, and Service Application

The product is a used genuine BMW part, which in practice means maintaining the factory construction, mounting points, and compatibility with the stock steering system. When replacing a worn or damaged steering column shaft in a BMW F10 M5, such a component allows for the restoration of correct system operation without the need for modifications to other sub-assemblies.

This type of solution is particularly useful in situations where symptoms such as noticeable steering play, knocking noises when turning, or uneven resistance during maneuvering occur. Replacing the steering column section with a cardan joint is then one of the basic service steps.

Benefits of Using an Original BMW Steering Column

Using an original component from the Steering Columns group in the BMW F10 M5 allows for maintaining:

• factory fitment to the body and steering rack,
• consistency with other system components (including mounts, covers, joints),
• appropriate power steering characteristics and driving precision.

For workshops and users, this means easier installation, no need for adaptation, and a reduced risk of additional play or incorrect column alignment relative to the steering rack.

Technical Support and Educational Materials

To better understand the role of the steering column, universal joints, and intermediate shafts in the entire system, it is worth referring to technical materials. A practical discussion of construction, wear symptoms, and diagnostic methods can be found in the article Steering System and Power Steering – How it Works and What Fails?, which also describes examples of used steering column applications.

If you are planning a comprehensive repair or upgrade of the steering system area in your BMW and need other parts from the same group, such as intermediate shafts, column joints, or complete column modules, check the available parts in the BMW Steering Columns category.
