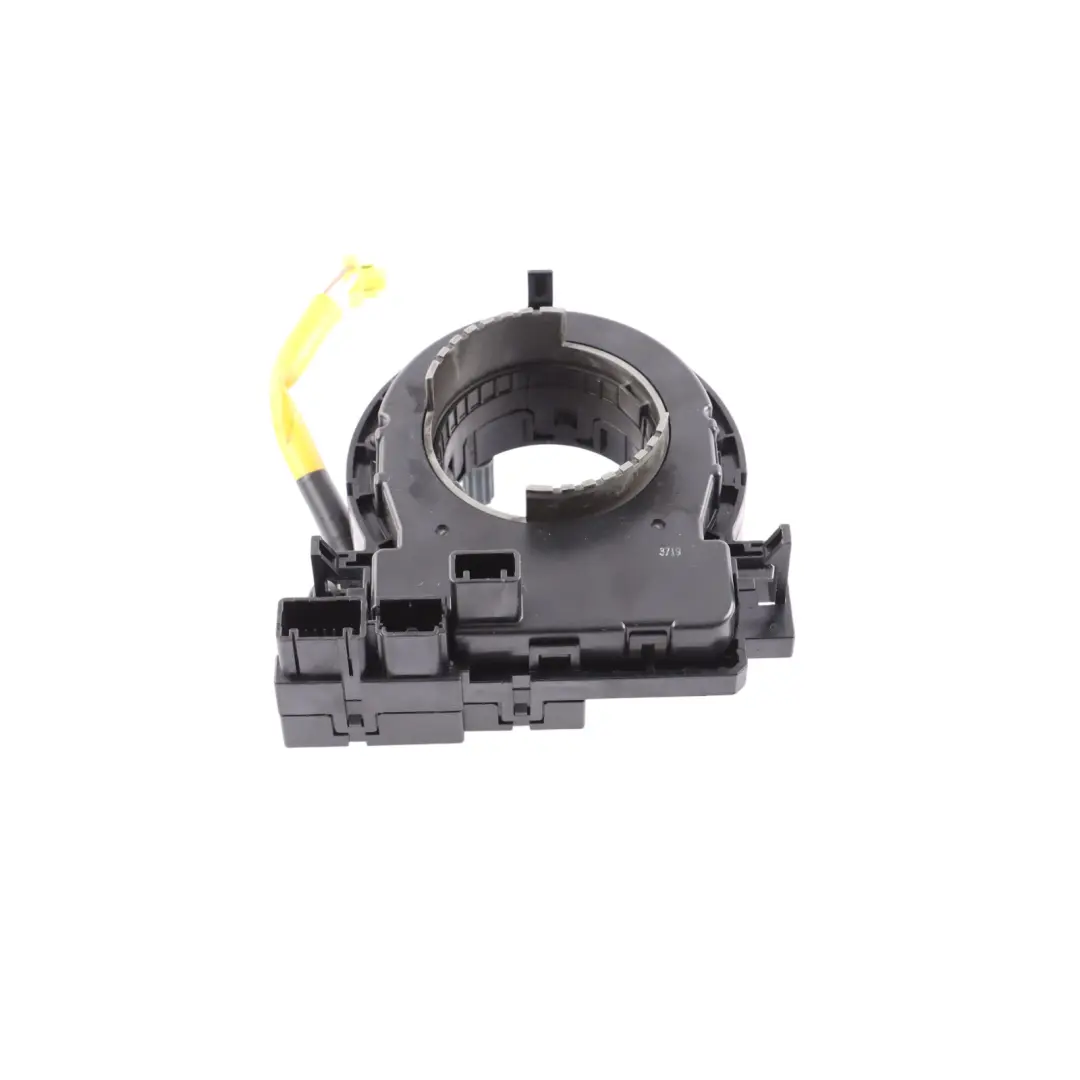

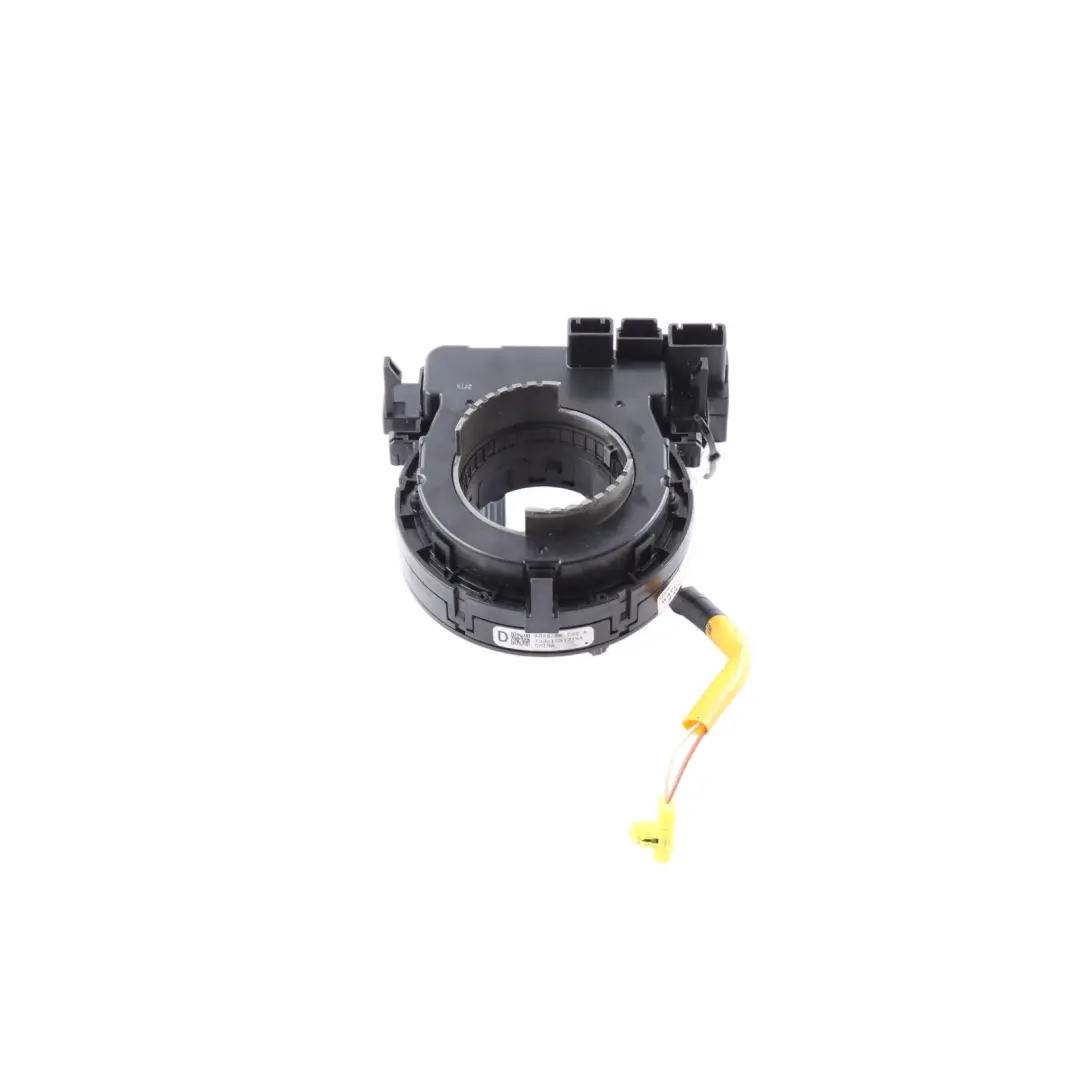

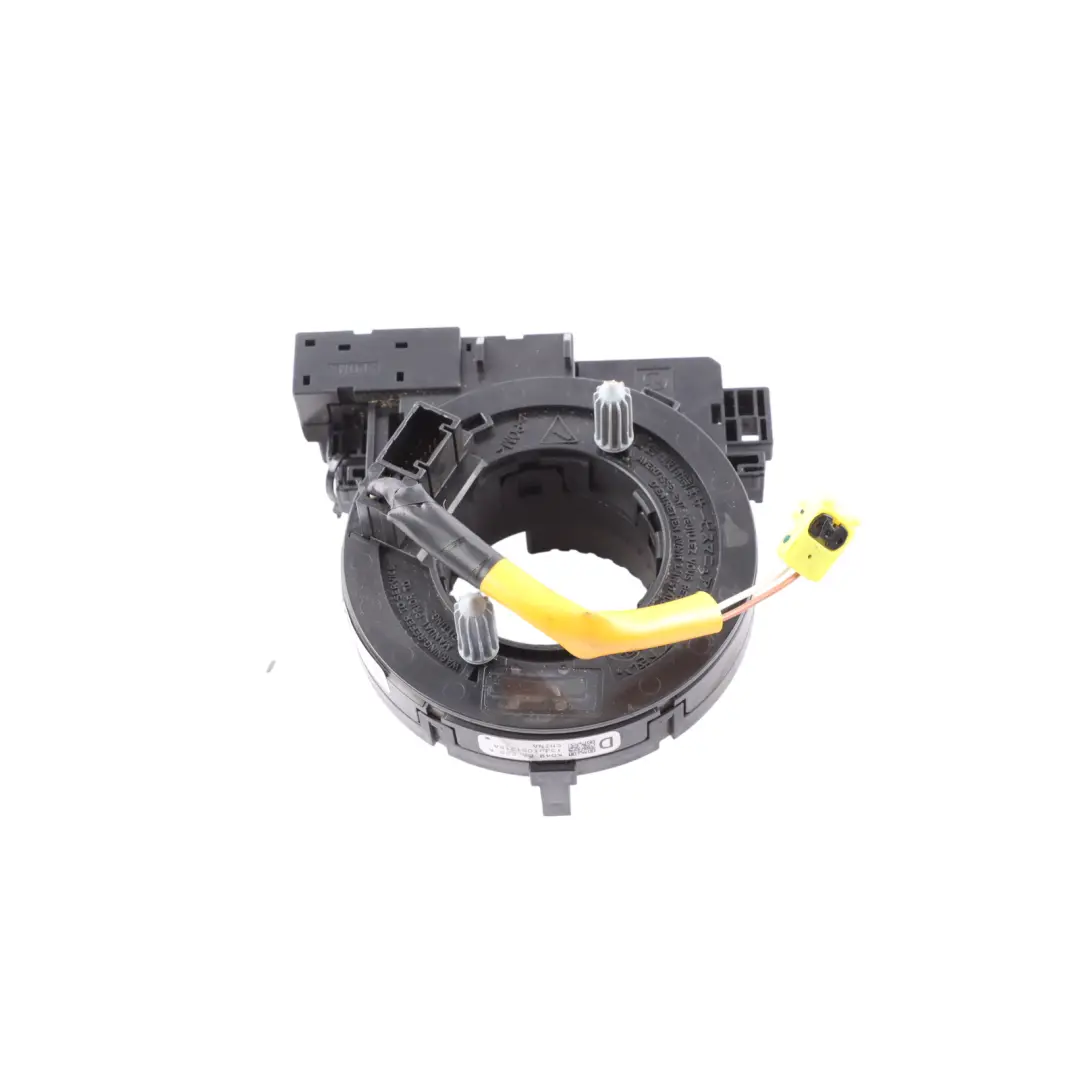

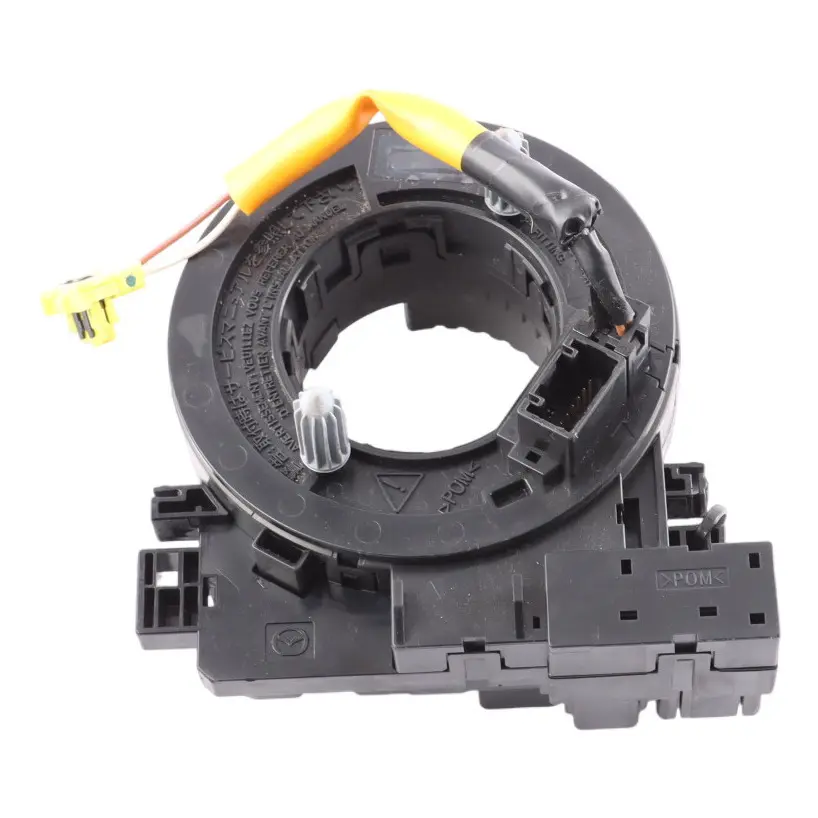

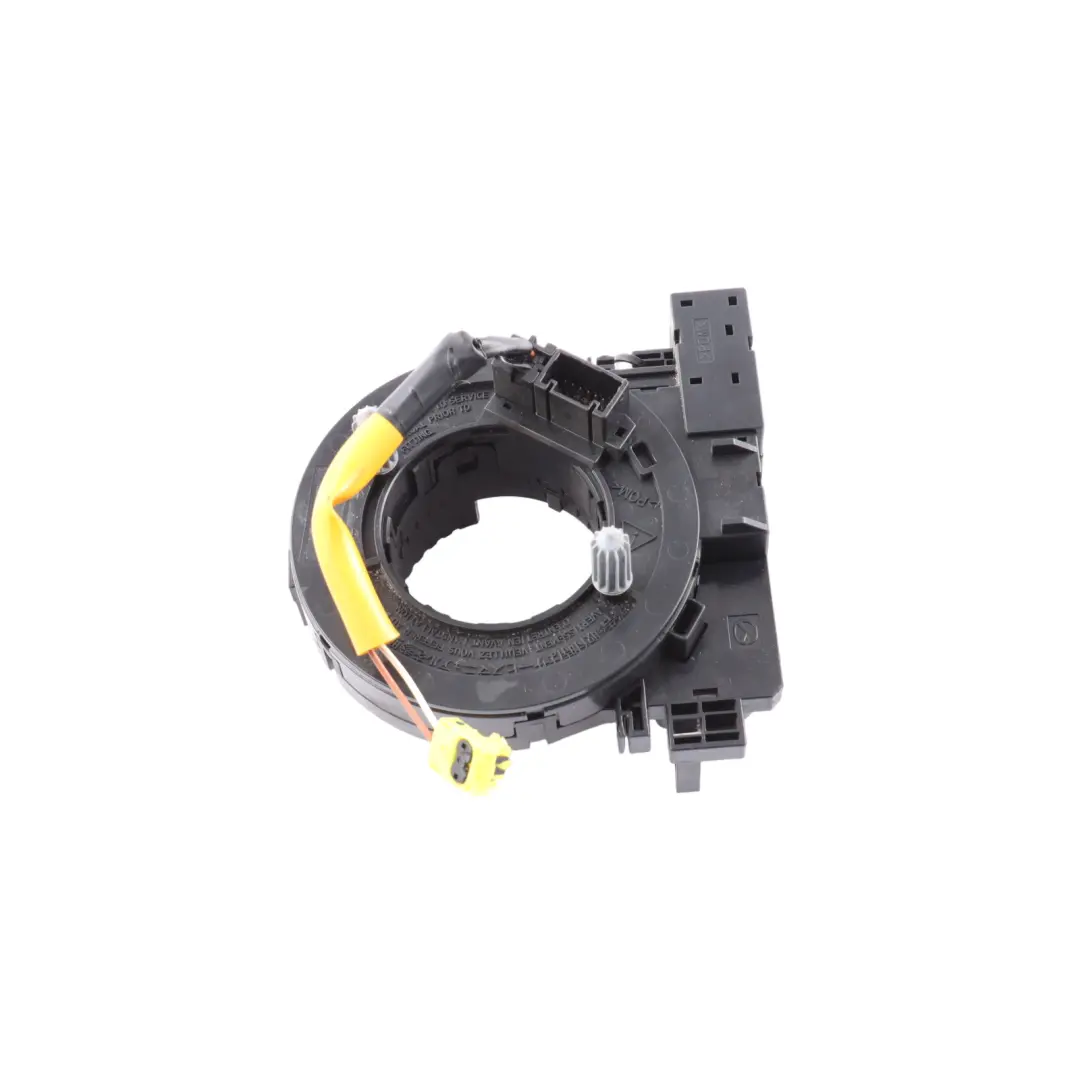

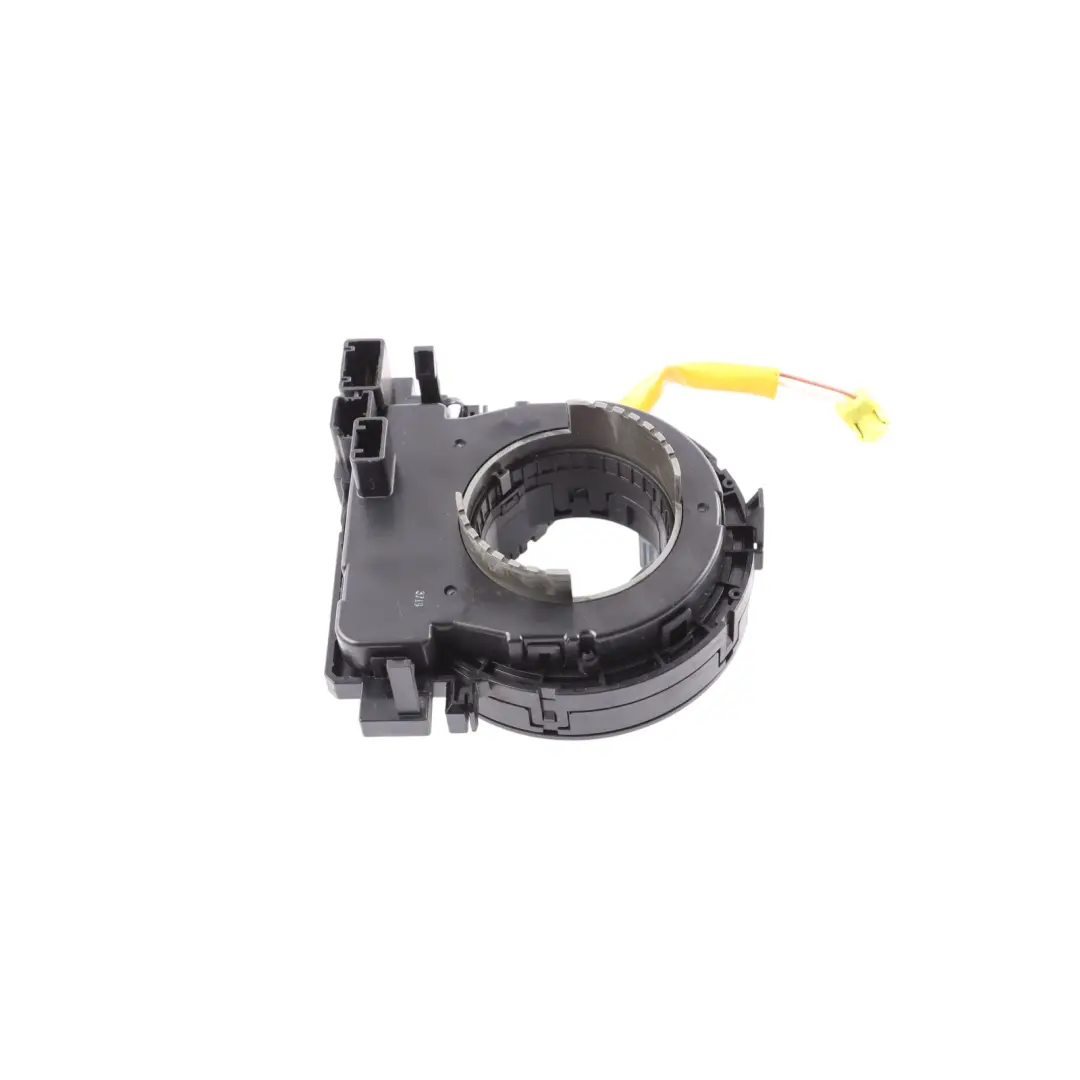

Mazda 6 Mk3 GJ Steering Wheel Air Module Squib Clock Slip Ring KD4966CS0A

Mazda 6 Mk3 GJ Steering Wheel Air Module Squib Clock Slip Ring is a precision steering system component responsible for a secure electrical connection between the airbag, steering wheel buttons, and the vehicle's wiring. This component from the Steering columns group ensures stable signal transmission during full steering wheel rotation, which is crucial for the proper operation of the airbag and control functions. Using an original pre-owned part is a sensible choice for drivers looking for a technically matched solution at an attractive price.

Specifications and technical data

• SKU: KD4966CS0A
• Mark: Mazda
• Condition: Used

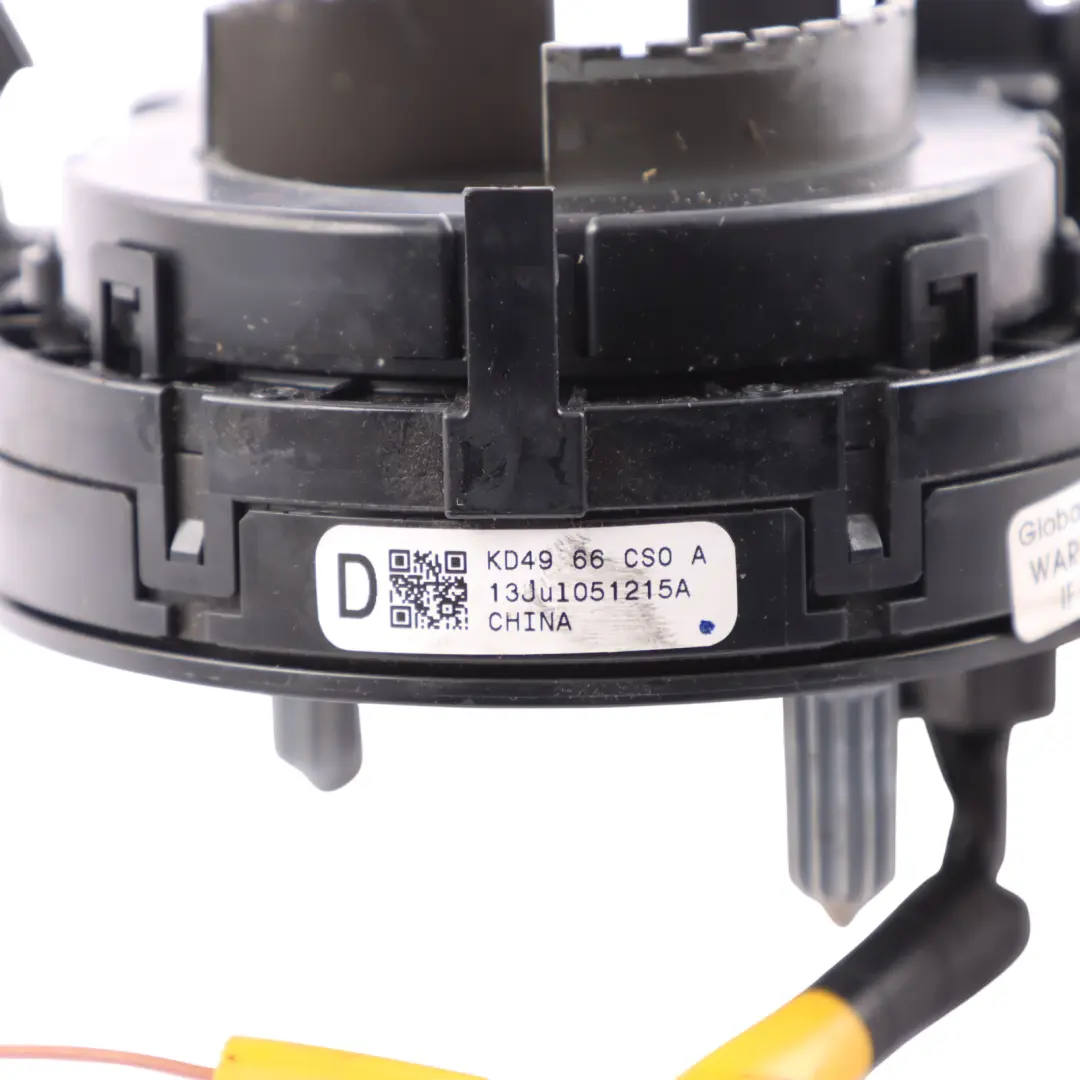

• OEM Part Number: KD4966CS0A
• Substitutable numbers: KD4966CS0A, KD49 66 CS0 A
• Category: Steering Columns

Purpose and function in the steering system

The ribbon cable module and slip ring in the Mazda 6 Mk3 GJ are responsible for maintaining the continuity of electrical circuits in the rotating steering wheel. Thanks to the special design of the coiled ribbon and sliding contacts, it is possible to:

• transmit the signal to the driver's airbag,
• operate steering wheel buttons (e.g., controlling vehicle functions),
• maintain stable communication with the electrical system in the steering column.

A properly functioning module eliminates common symptoms of failure, such as the airbag warning light turning on or intermittent loss of steering wheel button functions.

Construction and advantages of the original module

The original ribbon cable and slip ring module is designed specifically for the geometry of the third-generation Mazda 6 steering column, which translates into precise fitment to the factory system. The design solutions used ensure:

• appropriate length and routing of the ribbon inside the housing,
• stable sliding contacts minimizing signal interference,

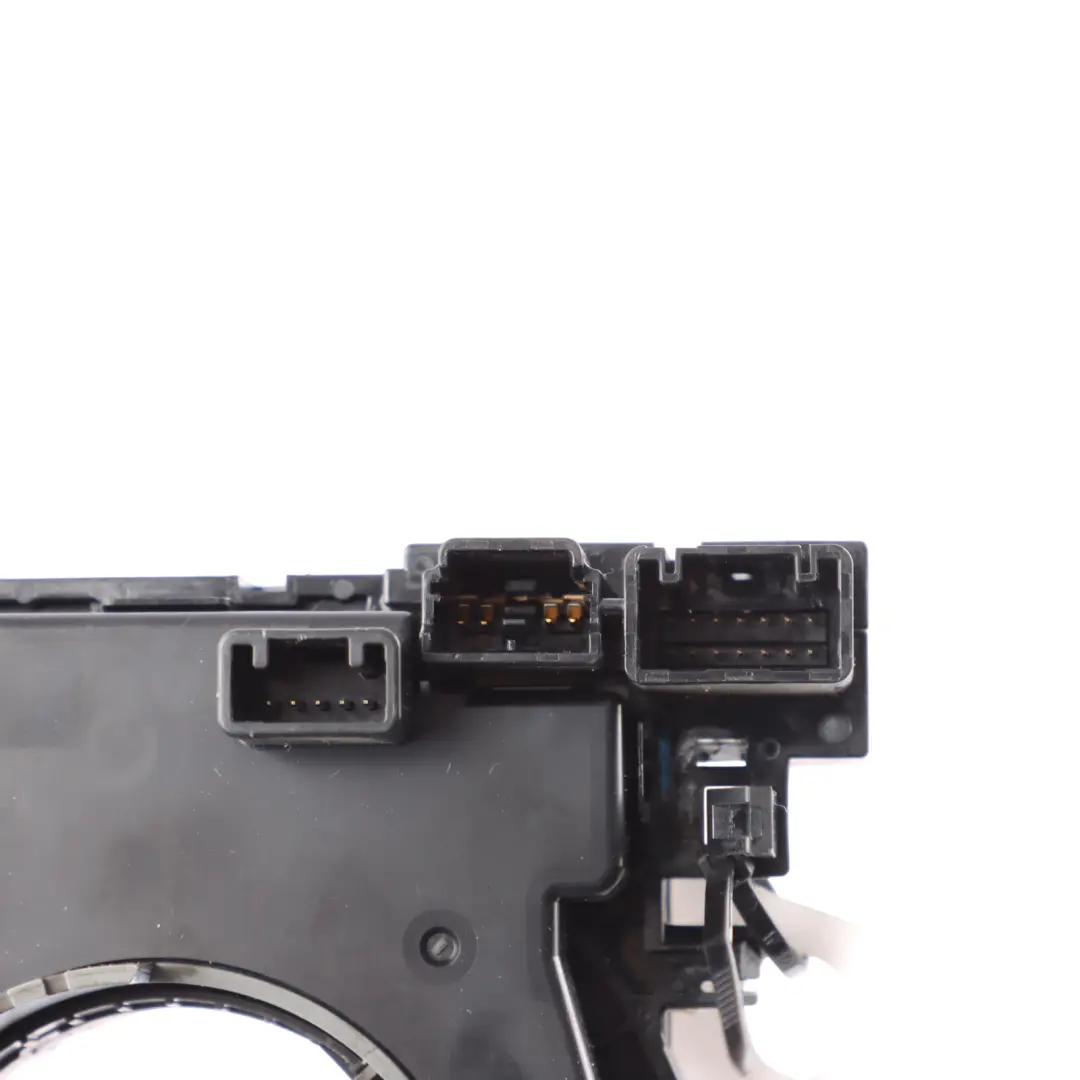

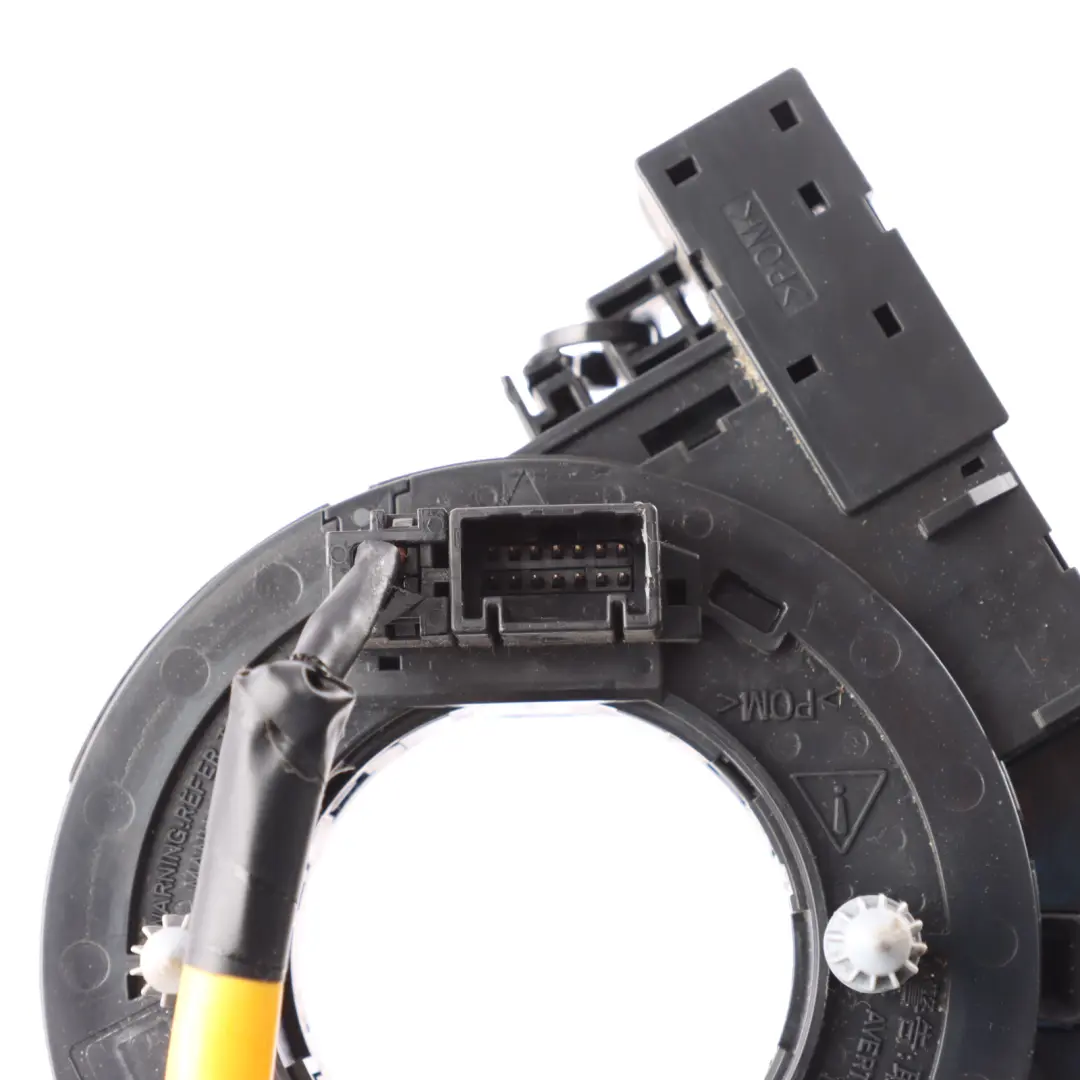

• compatibility with factory electrical connectors.

As a result, installation is straightforward, without the need for wiring modifications or the use of adapters, and the entire assembly maintains the factory characteristics of the steering system.

Benefits of using an OEM pre-owned part

Choosing a pre-owned ribbon cable and slip ring module for the Mazda 6 Mk3 GJ allows you to combine cost savings with the retention of original part parameters. The most important benefits include:

• factory compatibility with the steering column – no issues with installation and fitment,
• retention of the original operating characteristics of the airbag and steering wheel controls,
• the possibility of an economical repair of the steering system while maintaining OEM quality.

This solution is particularly beneficial in cases of damage resulting from ribbon twisting, collisions, or improper steering wheel removal, when replacing the entire module is necessary.

Practical installation and diagnostic tips

When replacing the module within the steering column, it is worth paying attention to the correct neutral position of the ribbon and following safety procedures related to the airbag system. It is recommended to:

• disconnect the vehicle's power supply before starting work,
• mark the position of the steering wheel relative to the column,
• inspect the wiring and connectors in the vicinity of the module for mechanical damage.

For users who want to better understand how the entire system works, an article describing the construction and typical faults will be helpful – you can find it here: Steering system and power steering – how it works and what breaks?.

Expanding repairs within the Mazda steering column

If you are planning a comprehensive repair or upgrade of the steering column area in your Mazda and need other elements from the same group, such as housings, shafts, or additional modules, check the available parts in the Mazda steering columns category.
