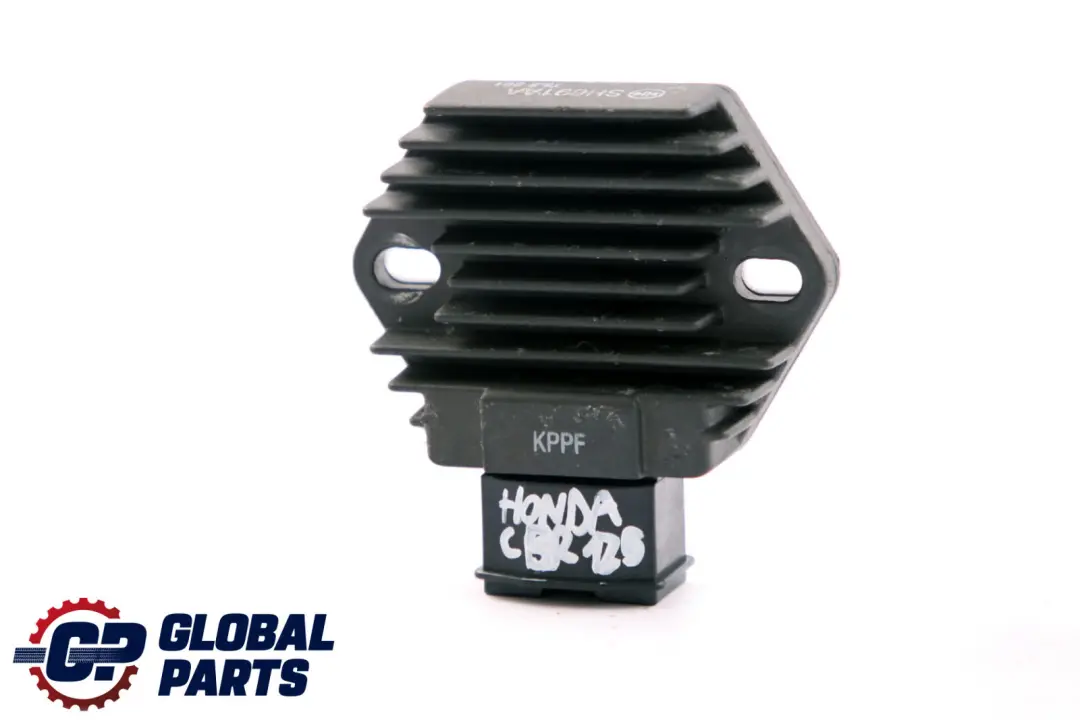

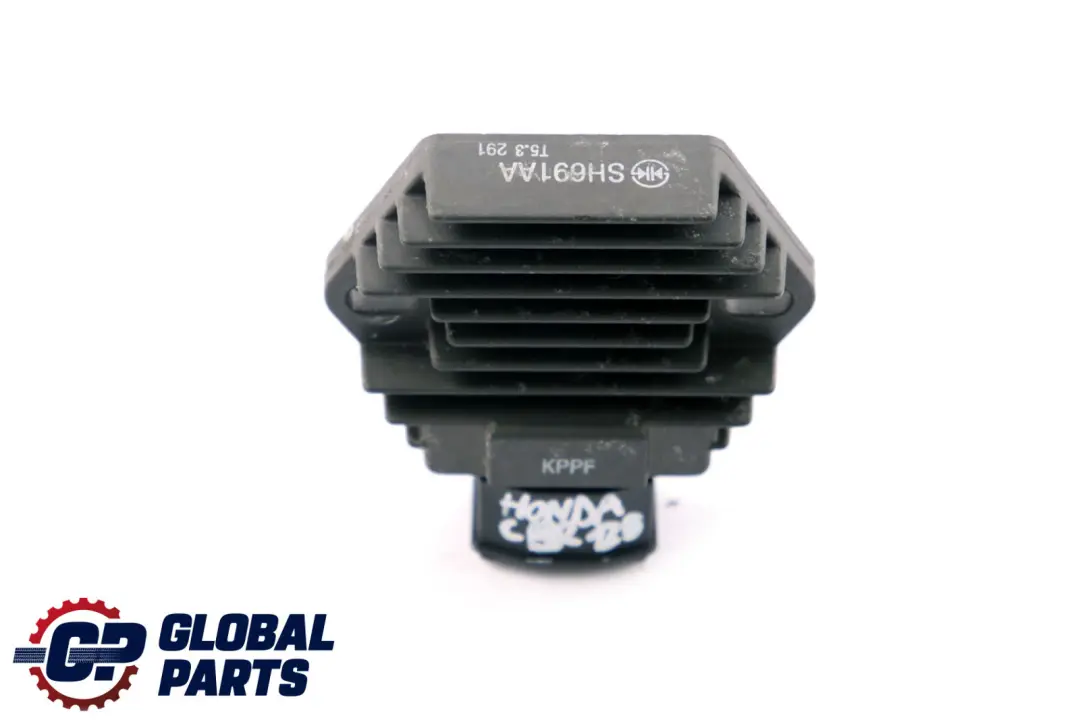

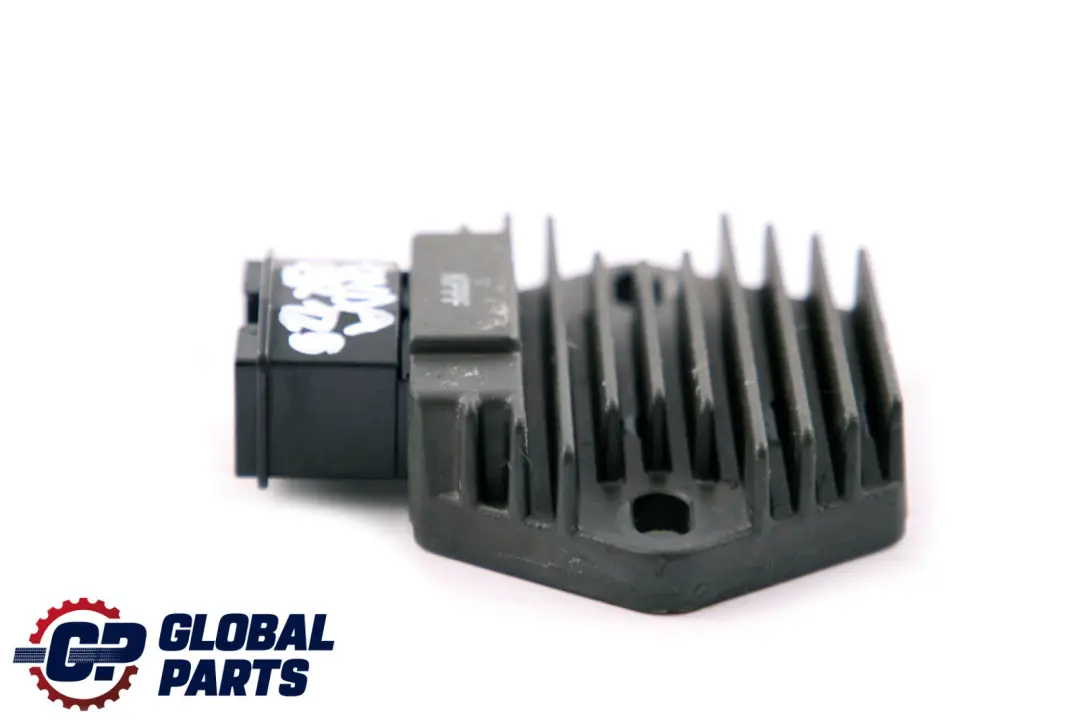

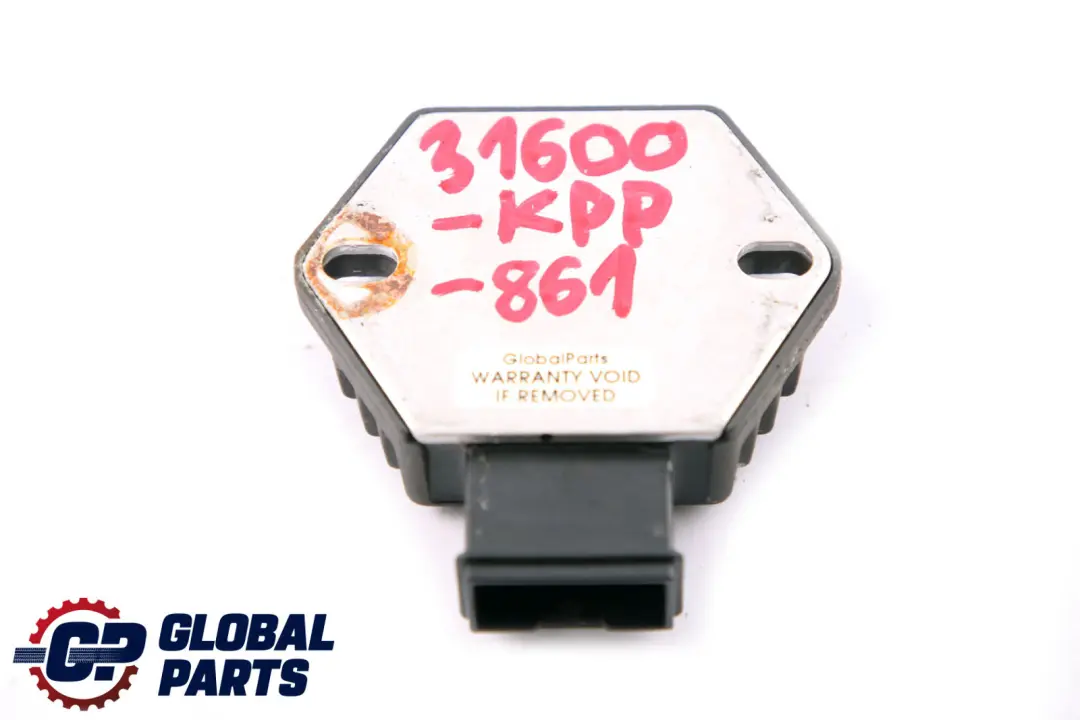

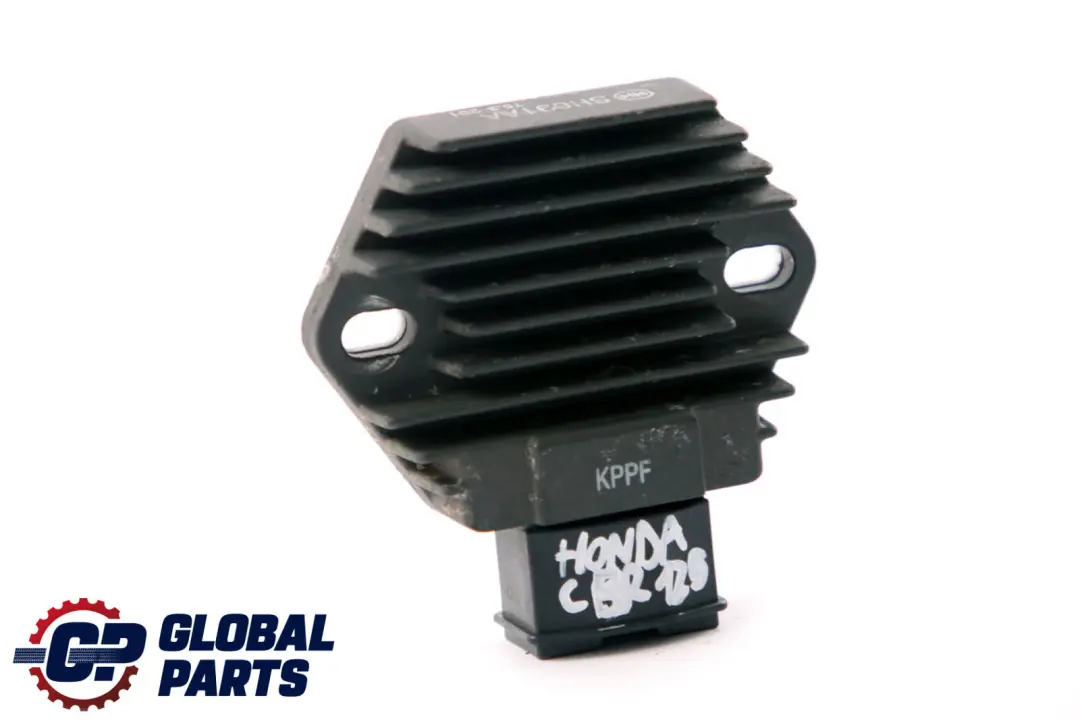

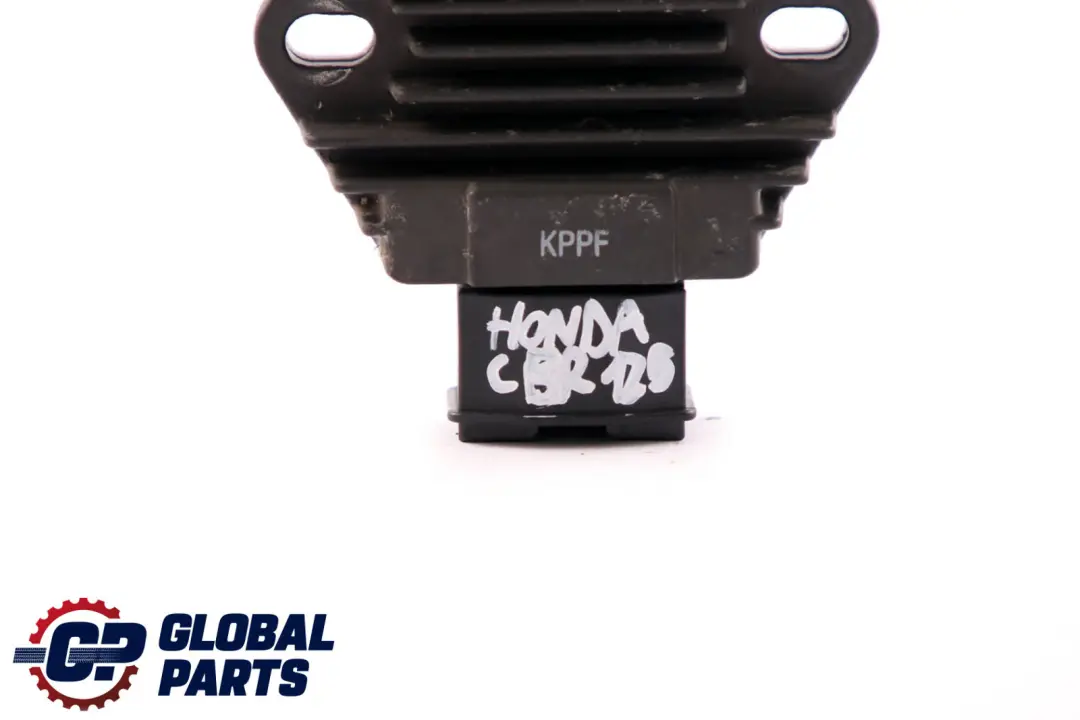

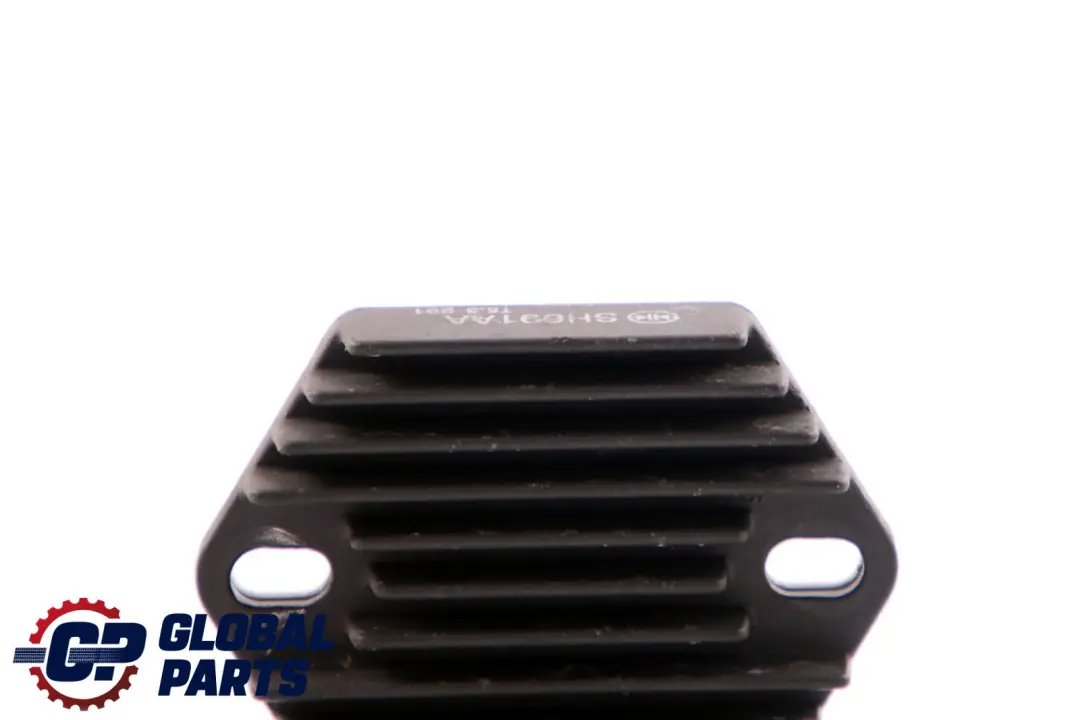

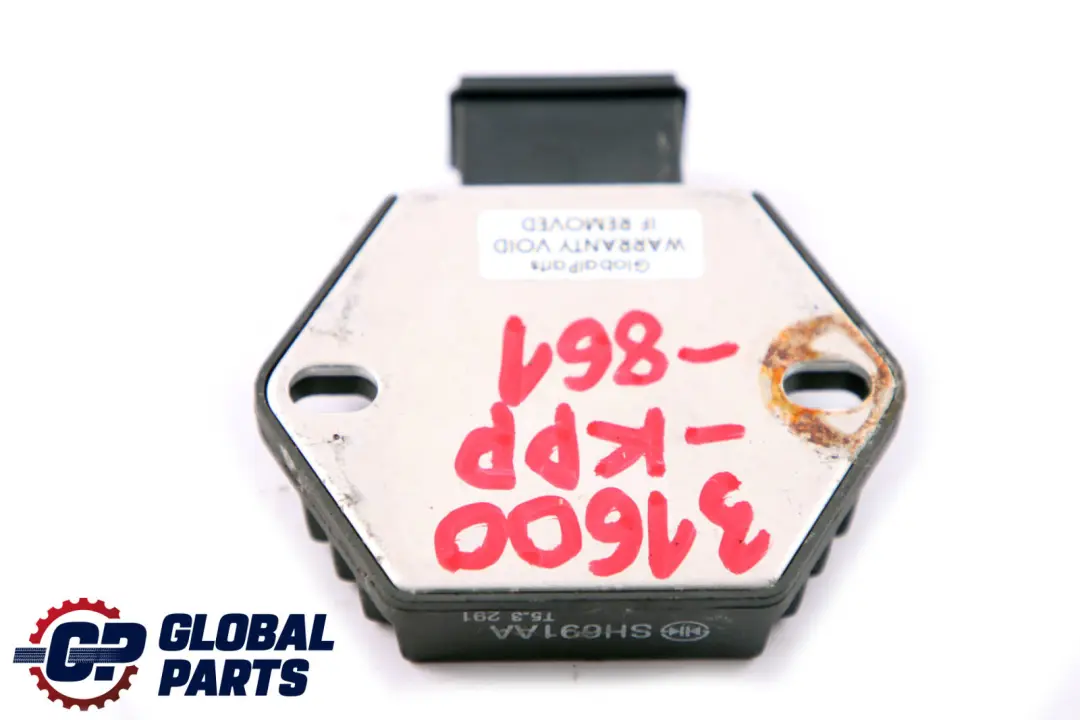

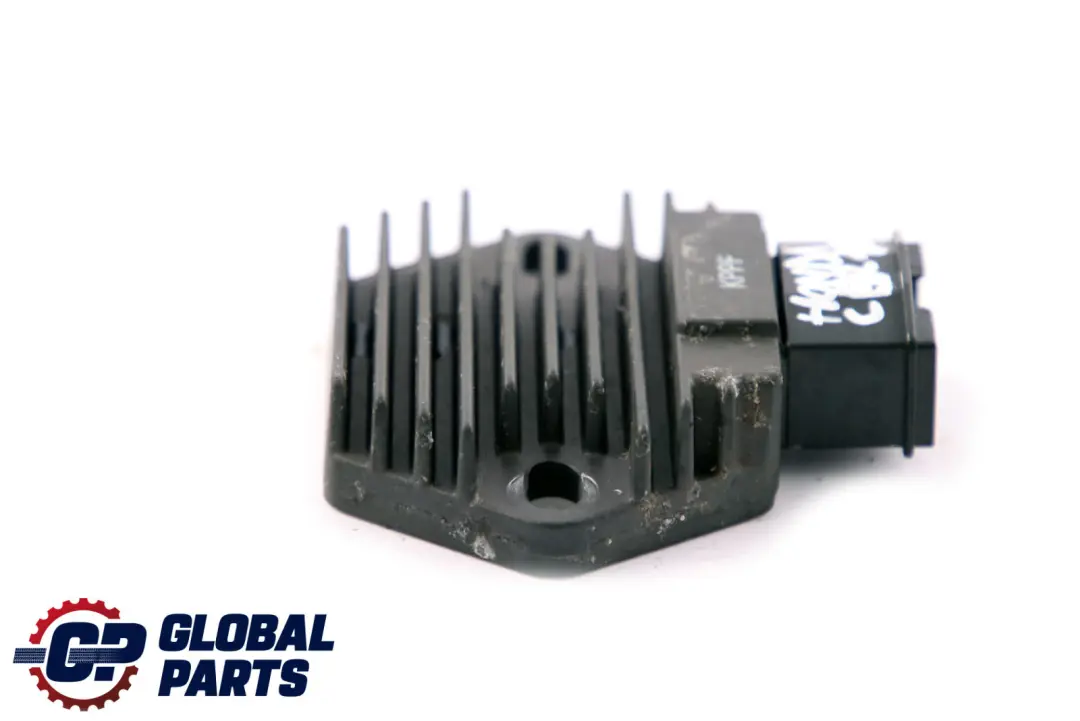

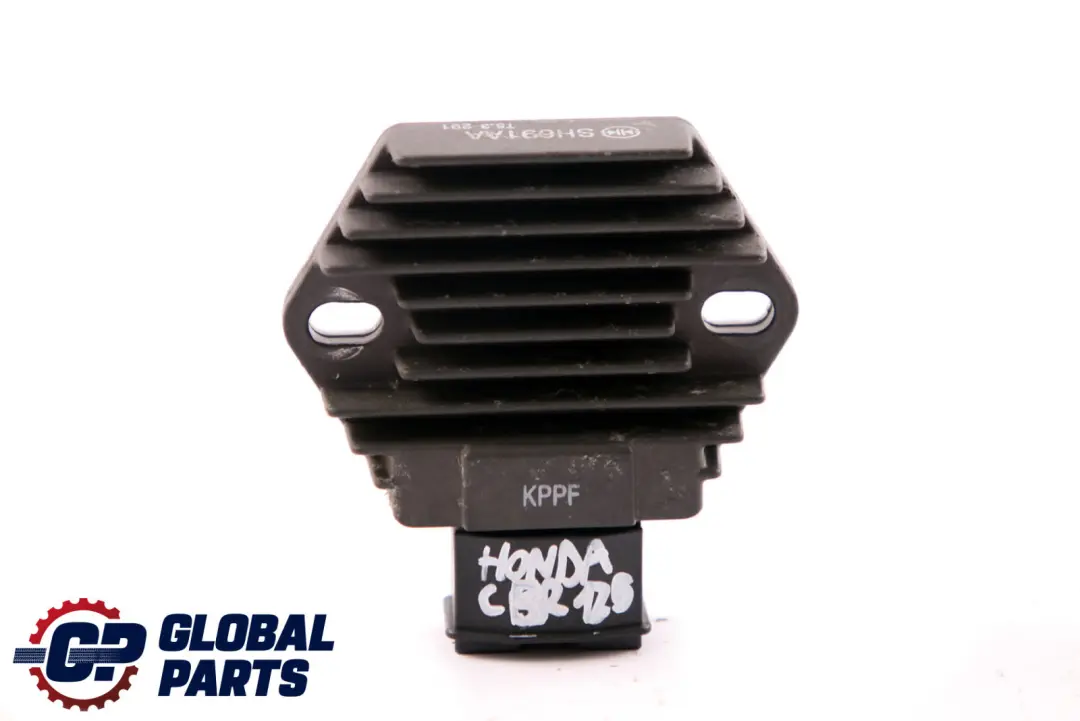

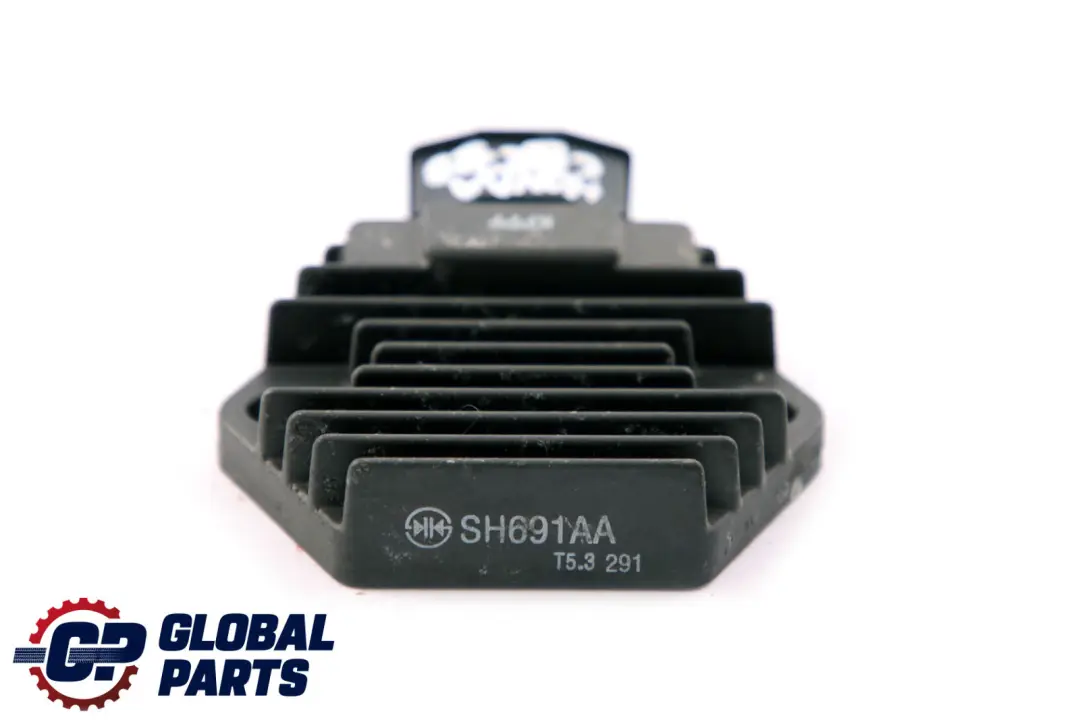

Honda CBR 125 Rectifier Regulator Module ECU 31600-KPP-861

Honda CBR 125 Rectifier Regulator Module ECU is a specialized module from the Voltage regulators and rectifiers category, designed to stabilize the electrical system parameters of the motorcycle. This component is responsible for proper battery charging and protecting sensitive electronics against voltage spikes, which directly affects the reliability of the ignition system and operational comfort.

Specifications and technical data

• SKU: 31600-KPP-861
• Condition: Used
• OEM Part Number: 31600-KPP-861
• Substitutable numbers: Honda, CBR 125, 31600-KPP-861, BG
• Location on the vehicle: Rear
• Category: Regulators

Purpose and function in the electrical system

The presented rectifier regulator is designed for Honda CBR 125 series motorcycles and acts as a key element of the charging system. Its task is to convert the current generated by the alternator and maintain stable voltage in the system, which reduces the risk of battery overcharging and overloading of electrical consumers.

The module works with the factory wiring harness and the stock ignition system, ensuring consistency with the original electrical architecture of the motorcycle. This makes it a suitable choice for charging system maintenance when it is required to maintain parameters close to factory specifications.

Construction, placement, and integration with the motorcycle

The regulator is designed for mounting in the rear part of the motorcycle, in accordance with the factory placement intended for this type of module. This location promotes better cooling and protects the component from direct contact with dirt and water from the front wheel.

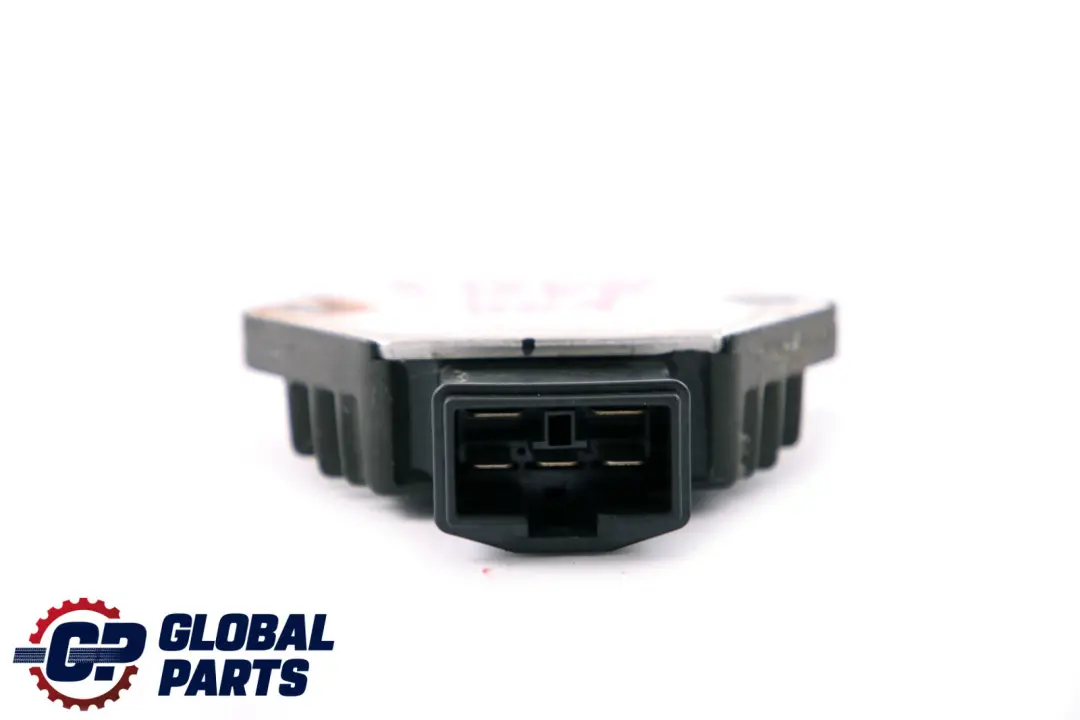

The module housing is adapted for operation in motorcycle conditions, taking into account vibrations, temperature changes, and humidity. The electrical connectors are configured for the stock wiring harness, which facilitates installation and reduces the need for interference with the system.

Performance characteristics and advantages of use

As a component from the Voltage regulators and rectifiers category, the module provides:

• stabilization of voltage in the motorcycle's electrical system,
• protection of the battery against overcharging,
• support for the proper operation of lights, ignition, and other electrical consumers,
• consistency with the factory electrical configuration of the Honda CBR 125.

A used component of this type is often chosen for the maintenance of motorcycles used on a daily basis, when the priority is to maintain correct charging system operating parameters at reasonable repair costs. A properly selected regulator helps reduce the risk of starting problems, flickering lights, or unstable electronic operation.

Condition, verification, and service application

The offered module is in used condition, which in practice means it comes from disassembly and is intended for further use after proper installation. This type of part is particularly useful for:

• charging system repairs after alternator or battery failure,
• diagnosing unstable voltage in the system,
• restoring the motorcycle to a configuration close to factory specifications after previous modifications.

The selection of the correct module should always be based on the motorcycle's technical data and the manufacturer's markings. This helps avoid compatibility issues and ensures proper cooperation with other system components.
