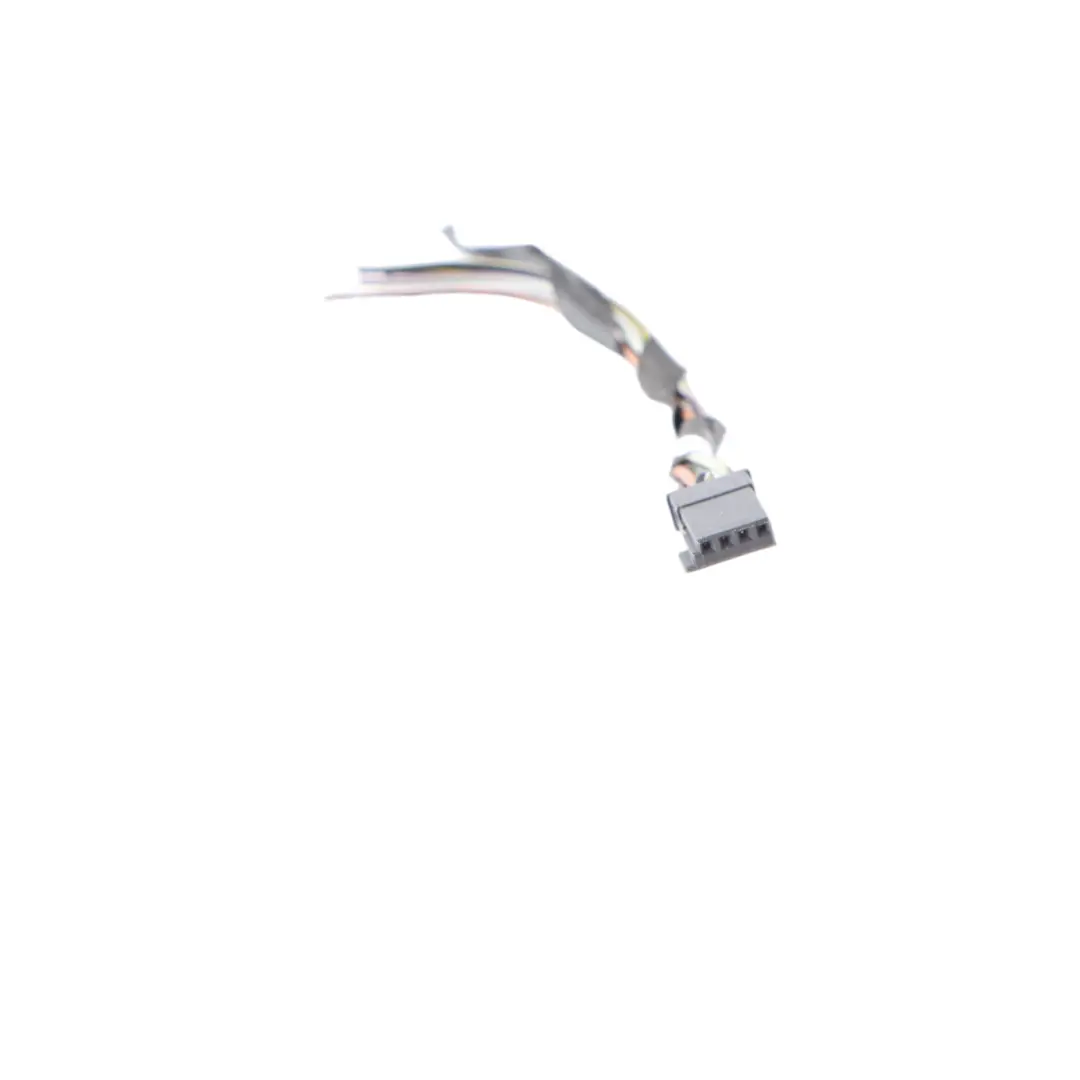

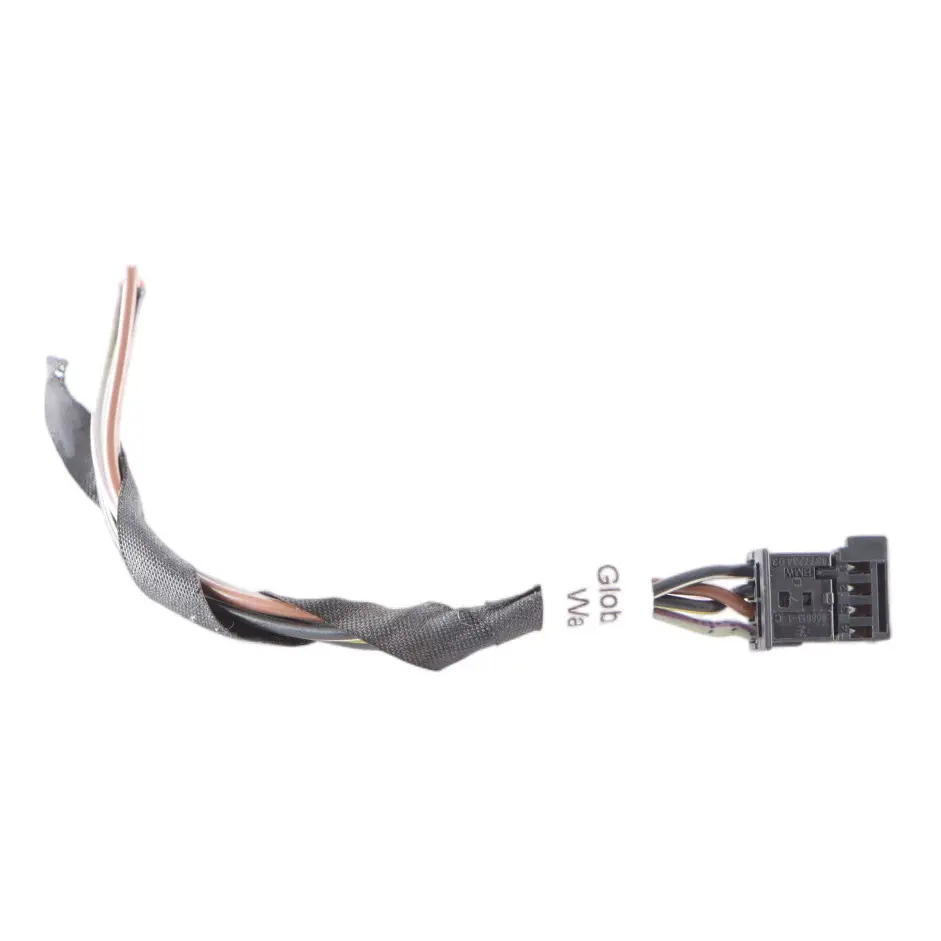

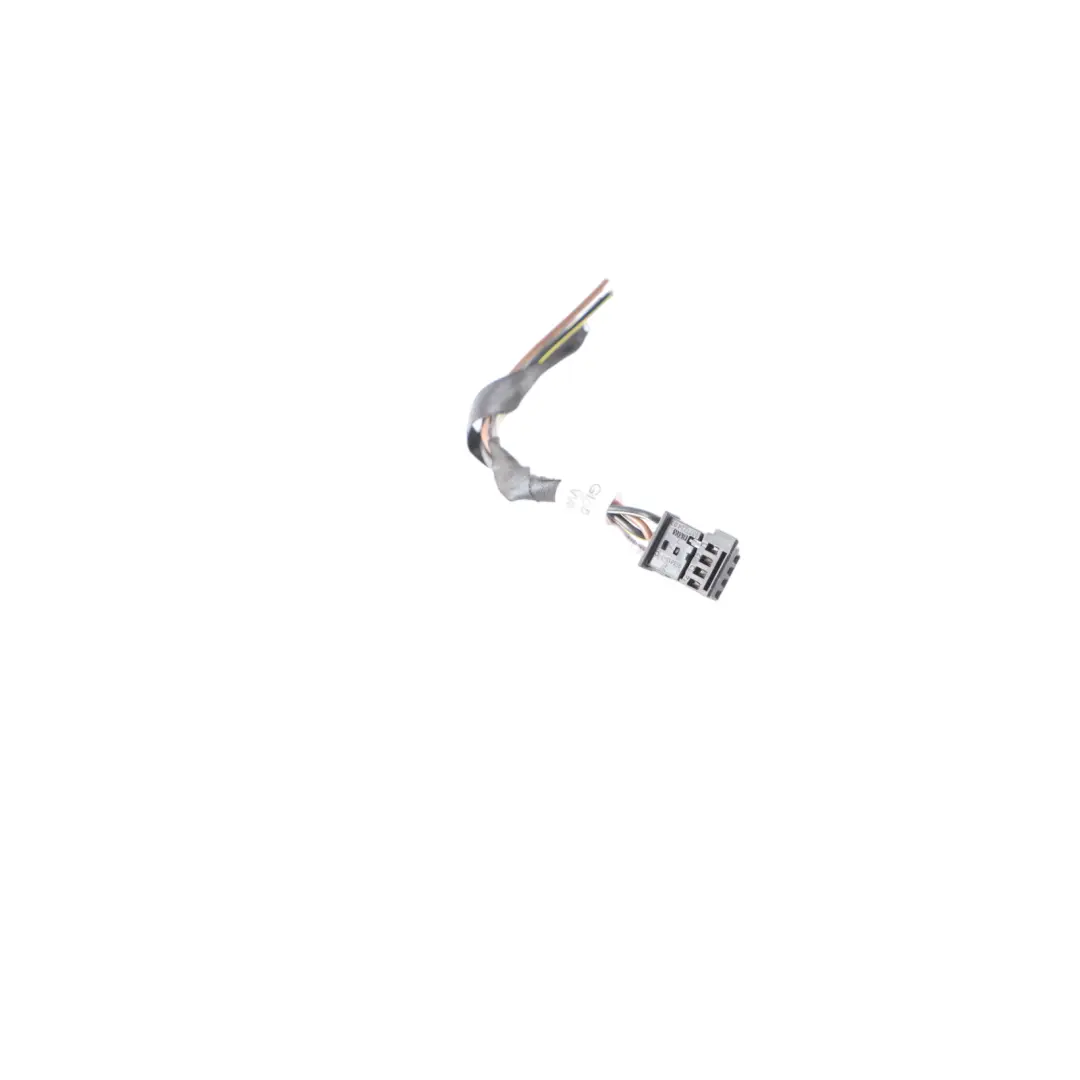

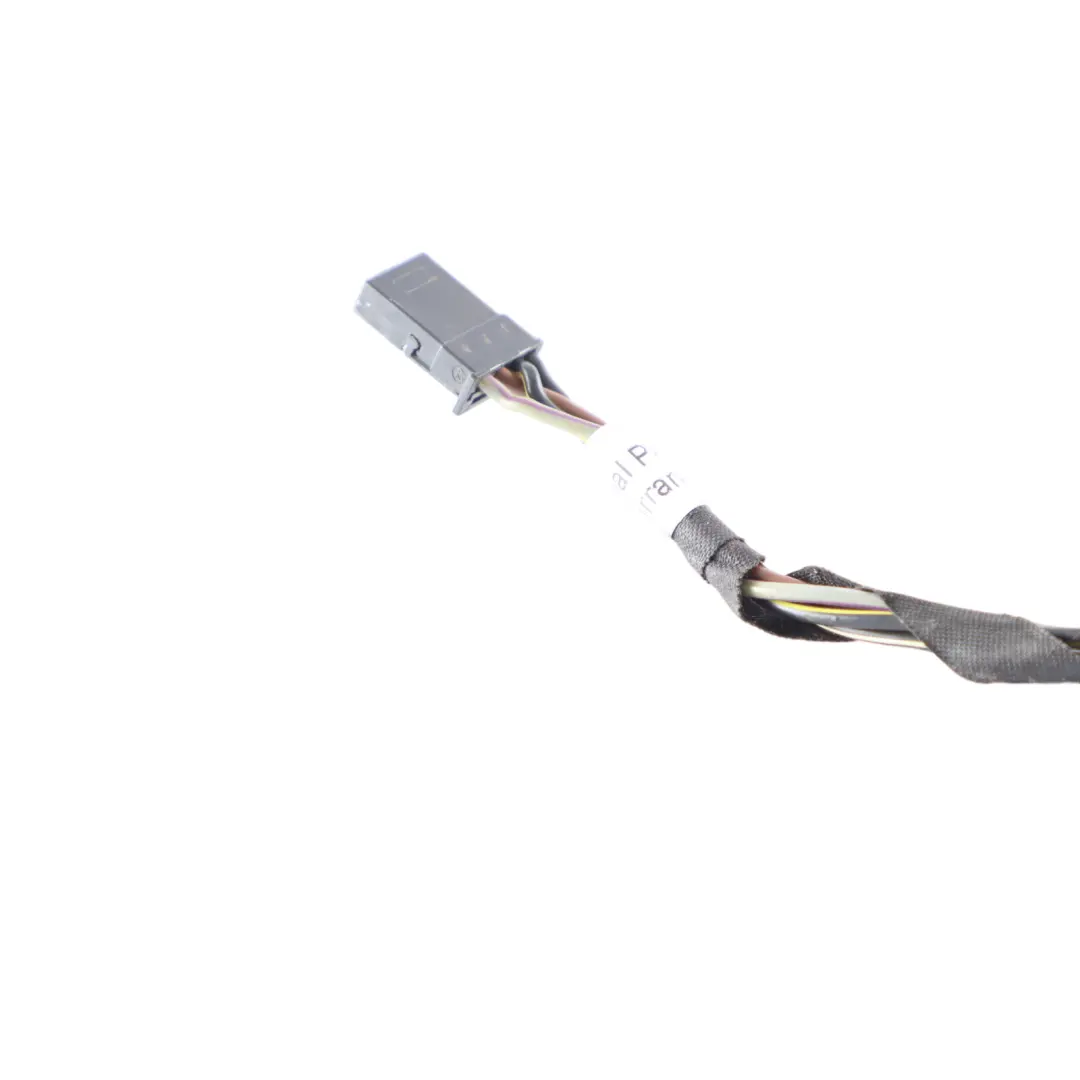

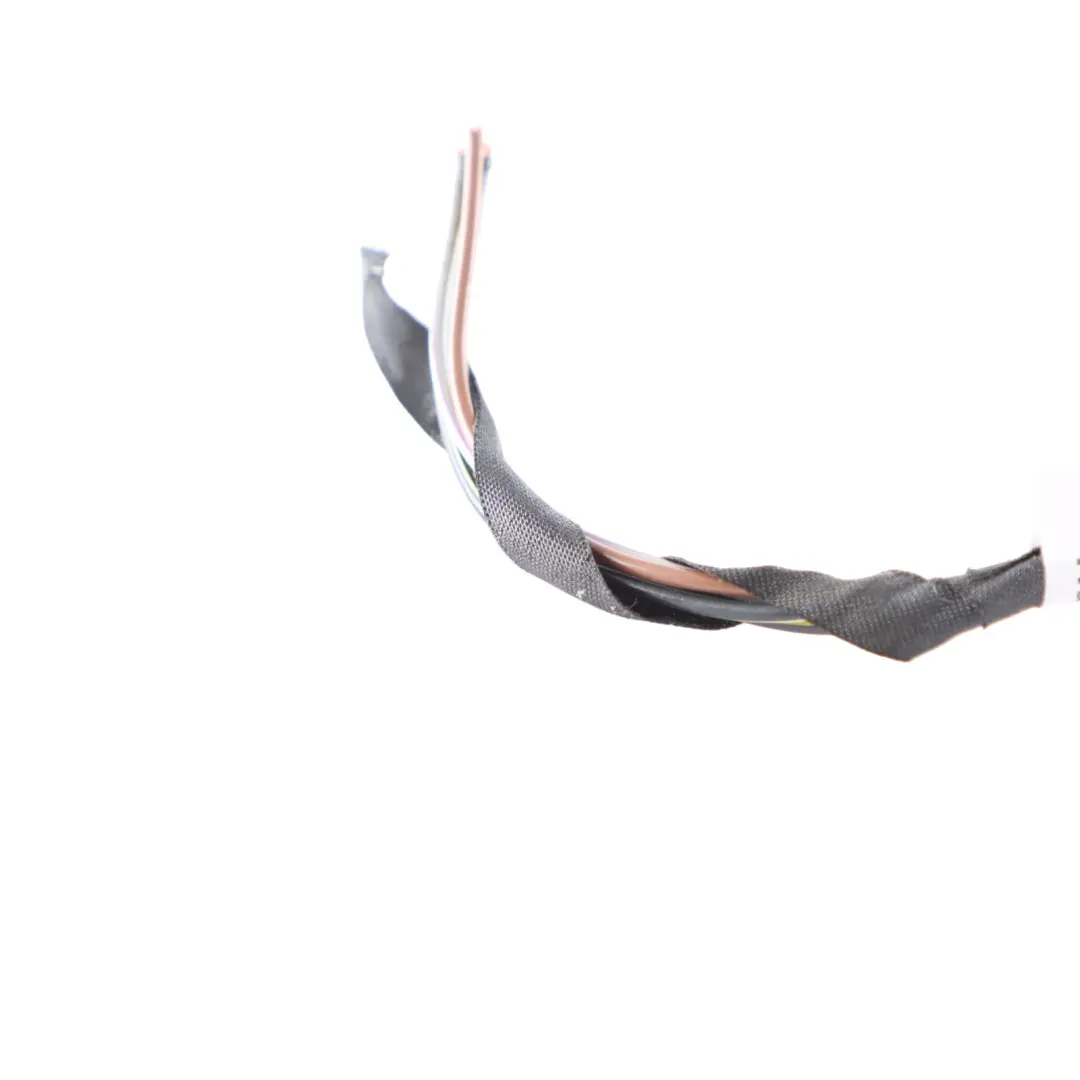

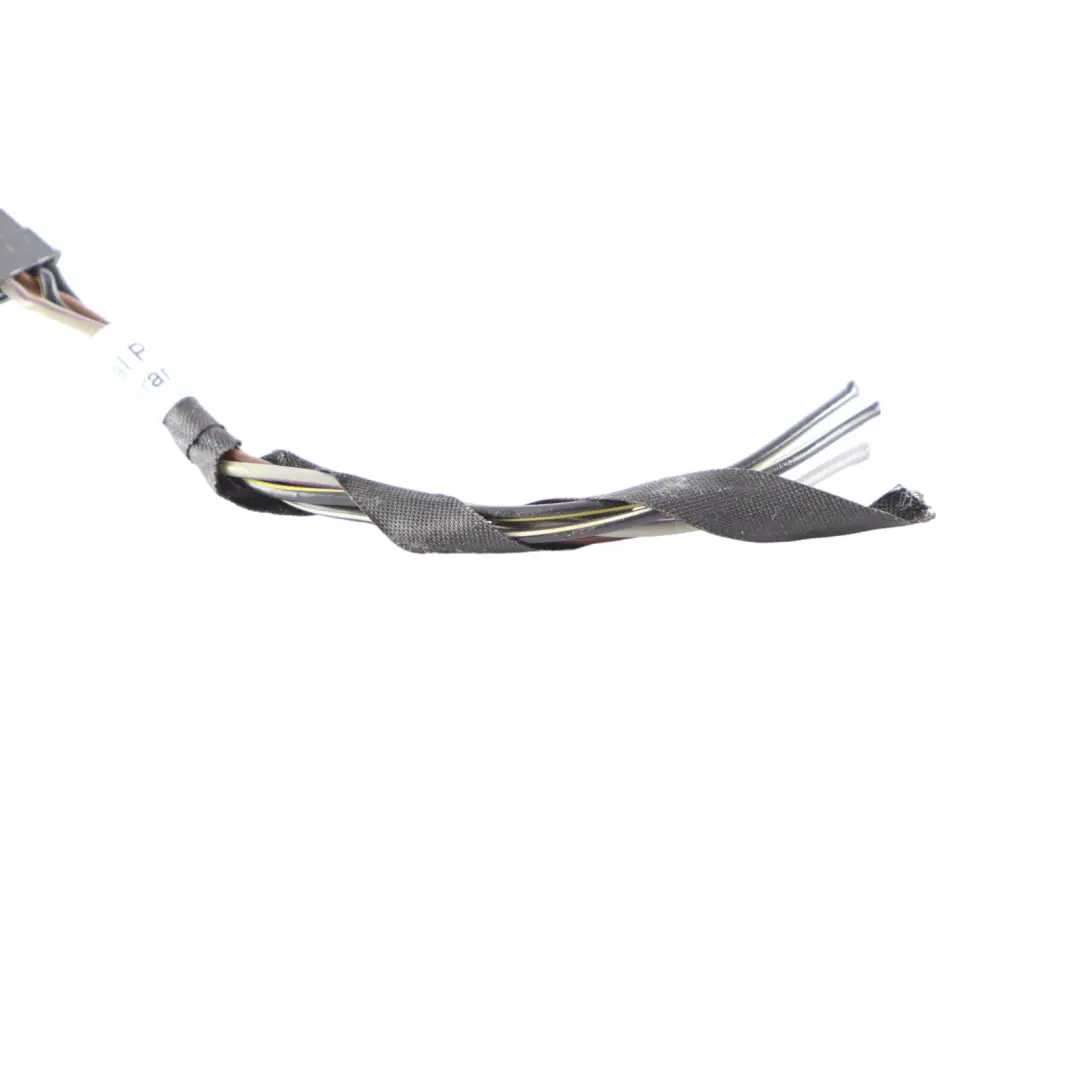

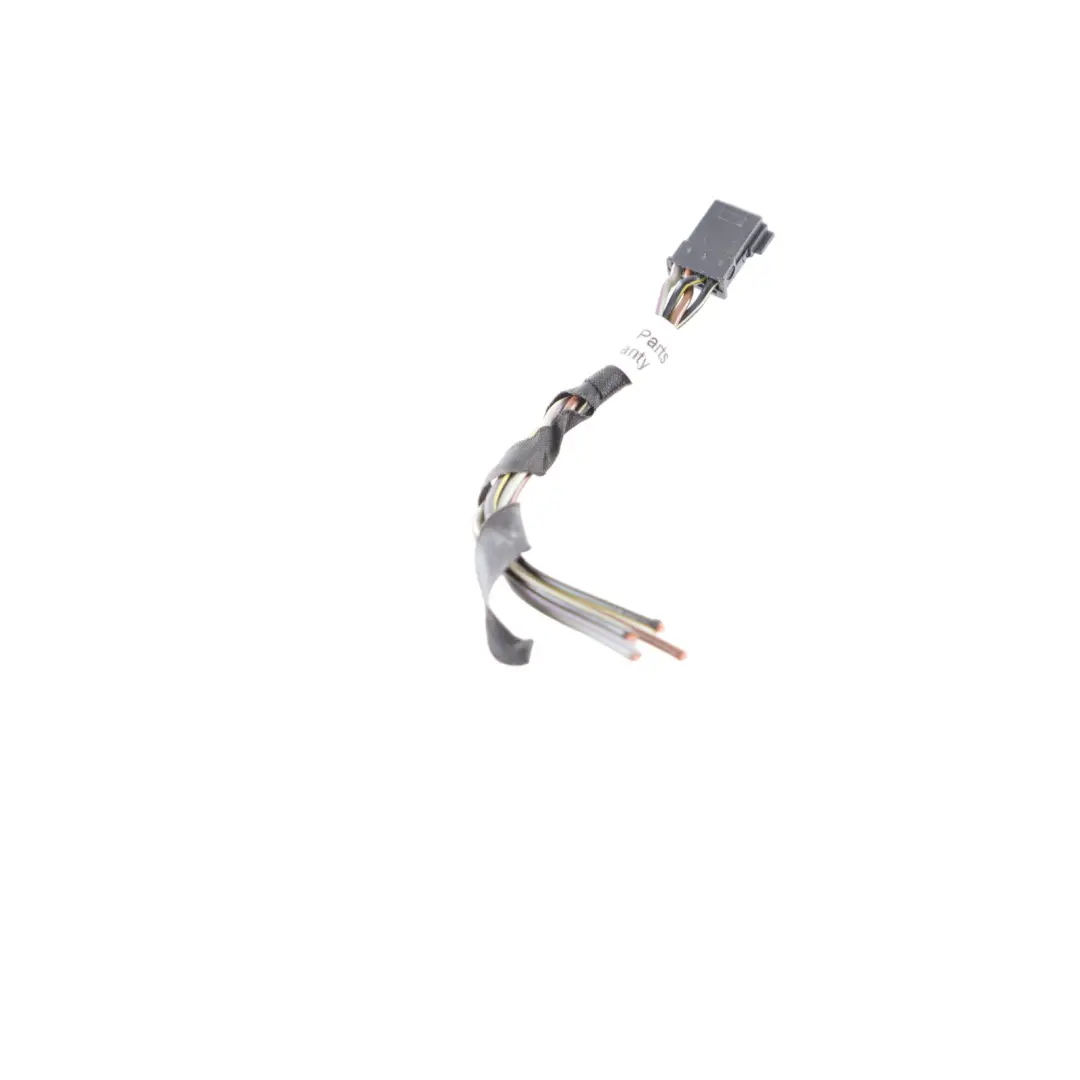

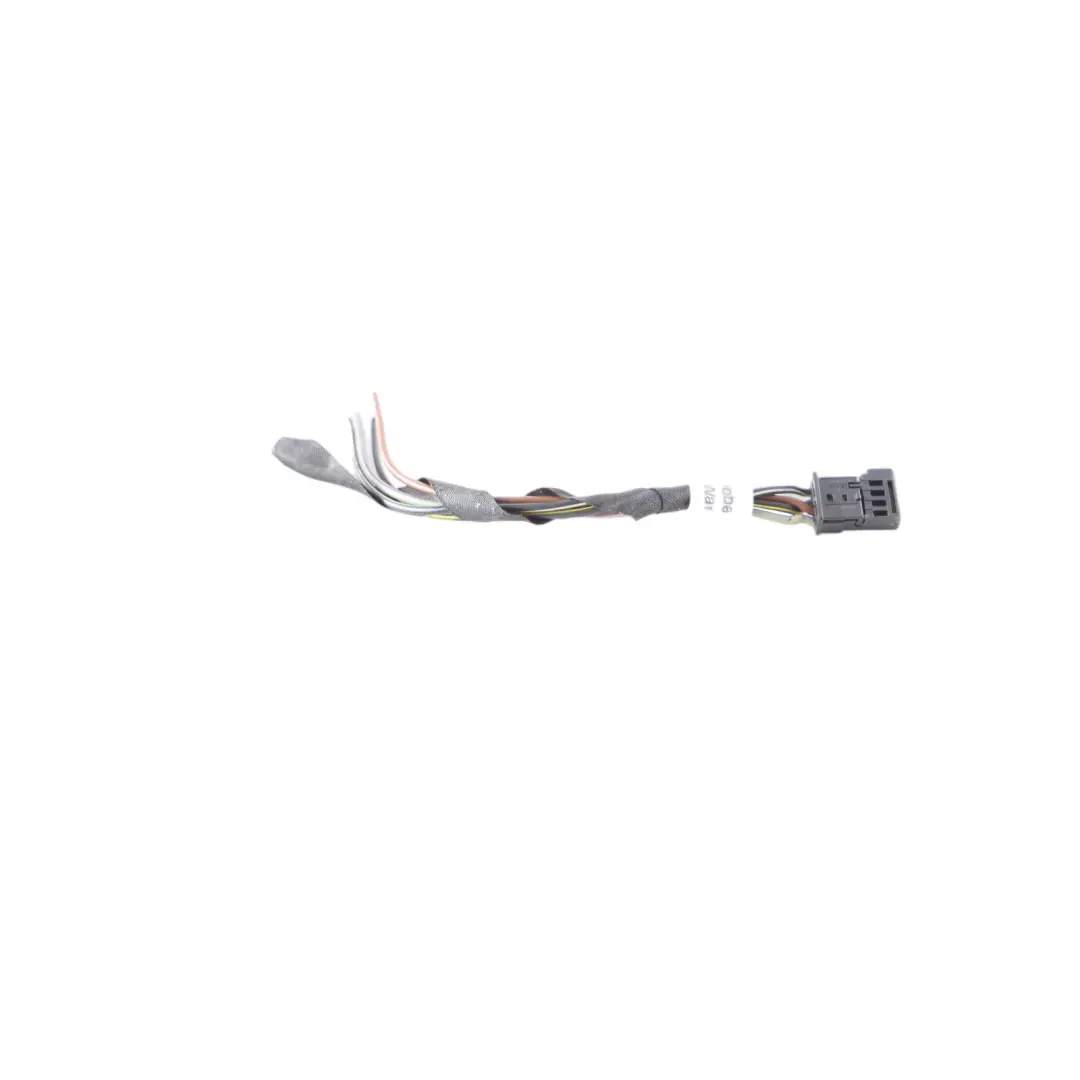

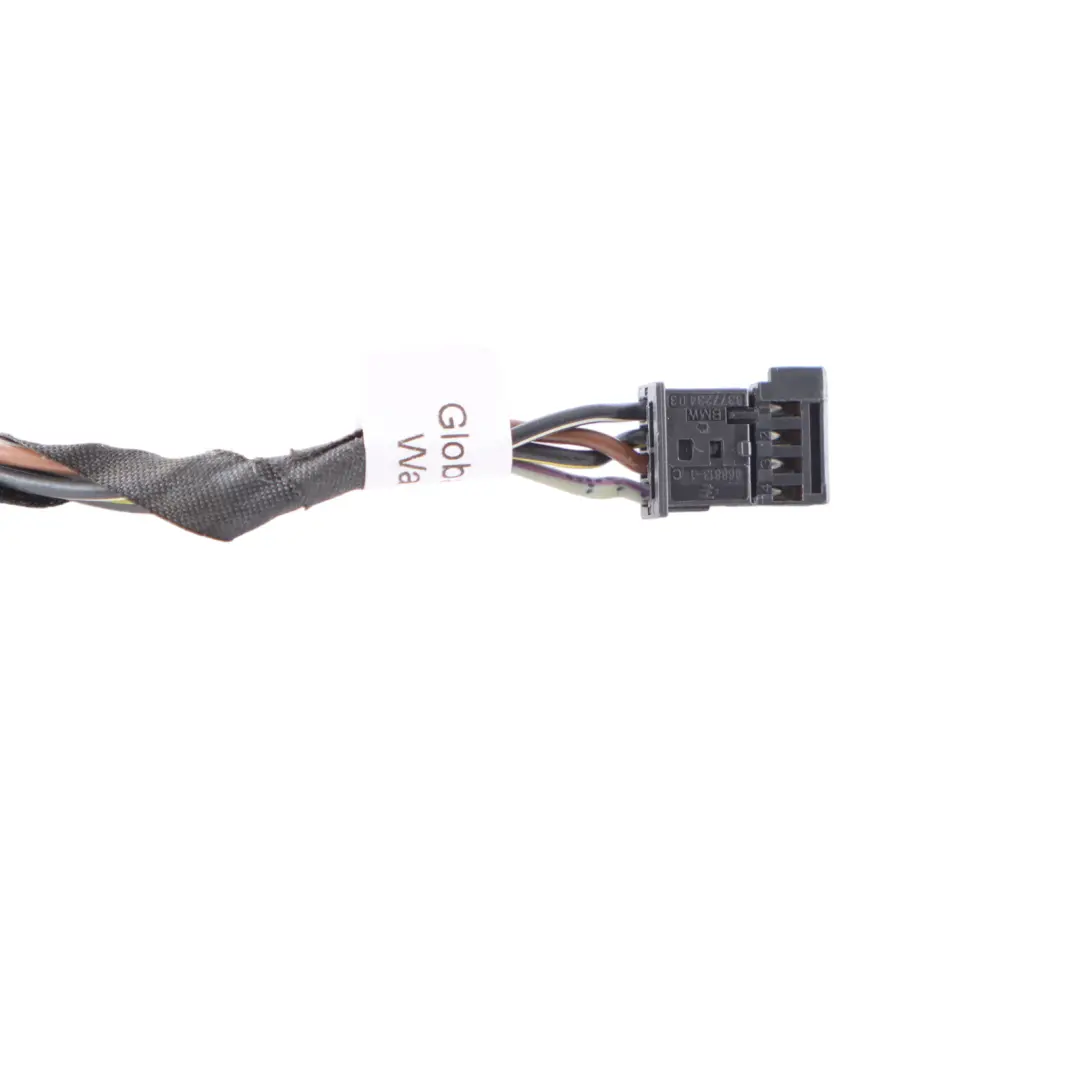

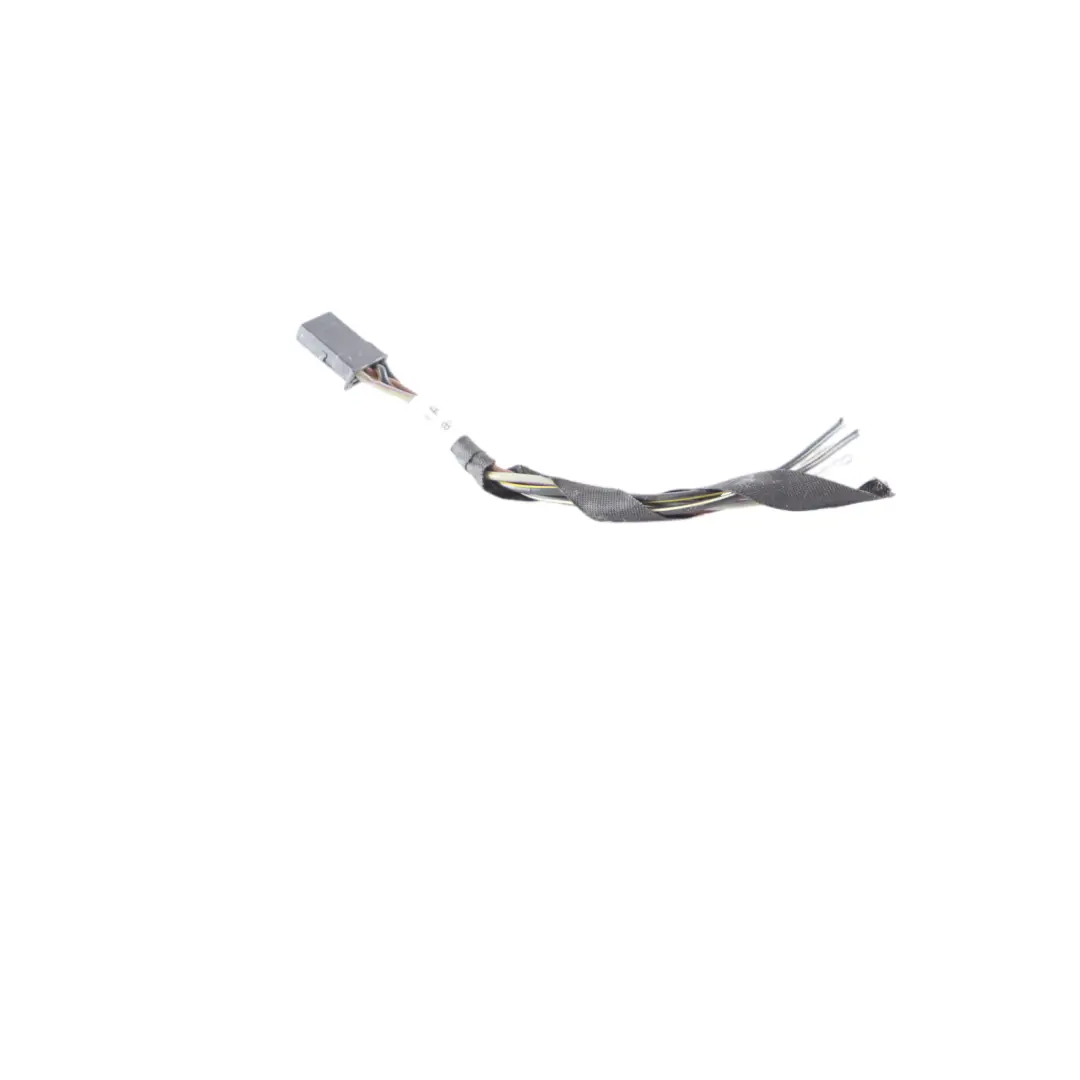

BMW X6 F16 F86 M Rear Light Lamp Side Panel Harness Loom Wiring Cable 7314859

The BMW X6 F16/F86 M Rear Light Wiring Harness is an original electrical component designed to service the rear lighting system in BMW X6 F16 and F86 M models. Thanks to its factory design, it ensures proper power supply and communication for the rear light with the vehicle's wiring system, which translates to safe and stable operation of brake lights, position lights, and turn signals. This is a practical service solution for repairs after a collision, light replacement, or damage to the factory wiring.

Specifications and technical data

• SKU: 7314859-2
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 7314859
• Substitutable numbers: 7314859, 63217314859
• Location on the vehicle: Rear
• Category: Rear Light Assemblies

Purpose and Function in the Vehicle

The presented wiring harness is a component from the Rear Lights and Brake Lights group, responsible for connecting the side rear light to the main body electrical system. Its placement in the rear of the vehicle allows for direct connection to the light and factory connectors, without the need for modifications or cutting wires.

The wiring harness has been specifically designed for the BMW X6 F16/F86 M, meaning it has a tailored wire length, appropriate connector layout, and compatibility with factory mounting points and cable routing within the body. This solution minimizes the risk of installation errors and facilitates the maintenance of the original wiring geometry.

Construction and Electrical Compatibility

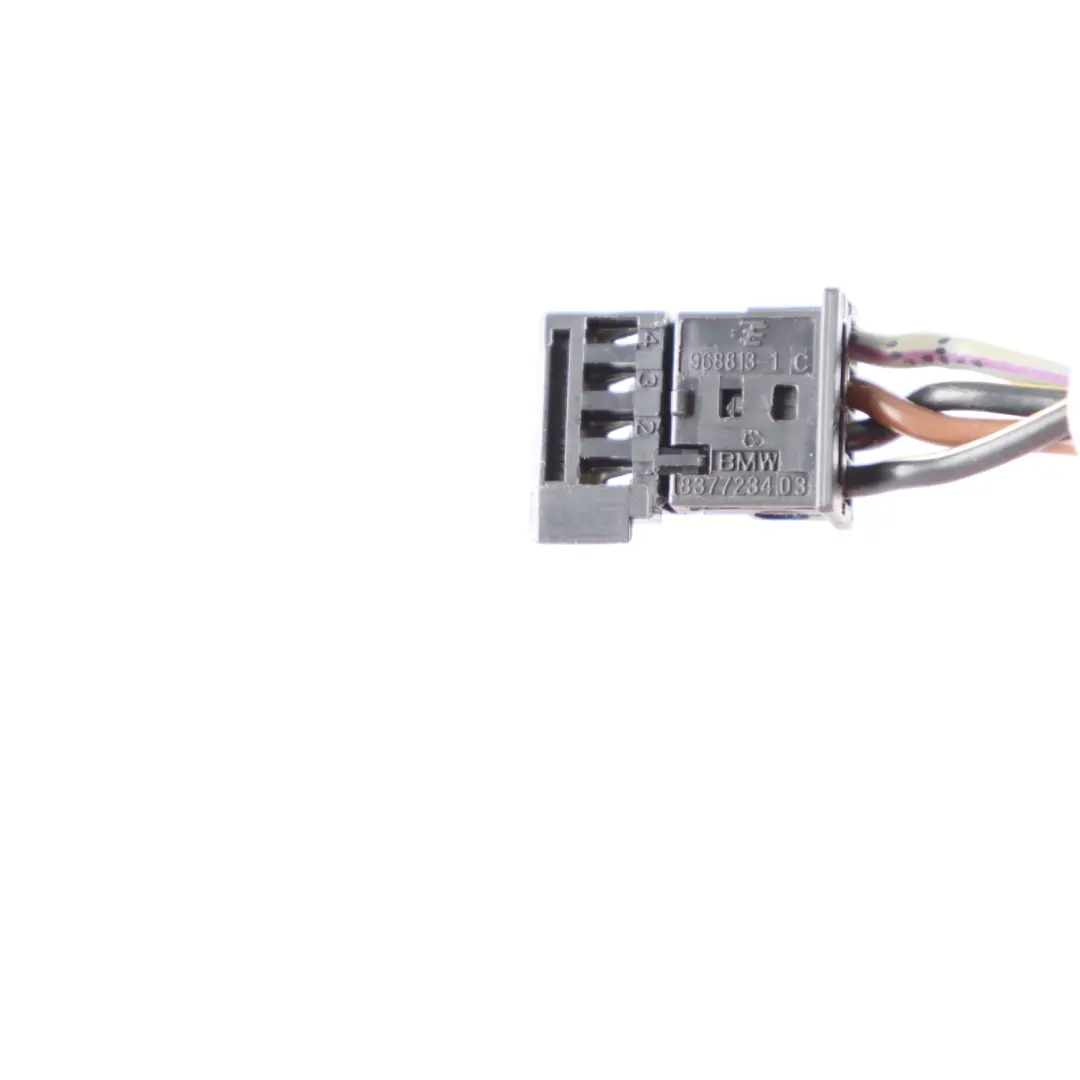

The rear light wiring harness consists of wires with selected diameters and insulation, adapted for operation in the rear of the vehicle where variable temperature and humidity conditions occur. The connectors used are factory-matched to the BMW light and wiring system, enabling plug-and-play installation without soldering or custom end-fitting.

By maintaining the original pin configuration, the wiring harness supports the correct operation of all rear light functions, including brake lights, position lights, and turn signals, in accordance with the parameters specified by the vehicle manufacturer. This is particularly important when interacting with lighting control modules, which are sensitive to incorrect loads or faulty connections.

Service Application and Installation

This component is ideal for:

• post-accident repairs of the rear body section,
• replacing a damaged or melted light wiring harness,
• diagnosing lighting faults related to circuit breaks,
• restoring the factory wiring after previous, unprofessional modifications.

The original design of the wiring harness facilitates installation at the manufacturer-specified mounting points, helping to prevent insulation abrasion and unwanted wire strain. This is a practical solution for workshops specializing in the BMW brand and for owners who prioritize maintaining the factory standard of the electrical system.

Benefits of Using an Original BMW Wiring Harness

Using a dedicated rear light wiring harness for the BMW X6 F16/F86 M helps reduce the risk of lighting malfunctions, bulb failure warnings, and system diagnostic issues. Appropriately selected wire gauges and connectors that comply with the manufacturer's specifications promote stable system operation in the long term.

Compared to universal aftermarket parts or "shortcut" repairs, using an original wiring harness is a more predictable solution in terms of electrical parameters and compatibility with the vehicle's electronics. This is especially important in modern BMW models where the lighting system is integrated with onboard safety and diagnostic systems.

Expanding BMW Rear Lighting Modernization

If you are planning a comprehensive repair or modernization of the rear lighting area in your BMW and need other components from the same group, such as taillight assemblies, control modules, or additional wiring, check the available parts in the BMW Rear Lights and Brake Lights category.
