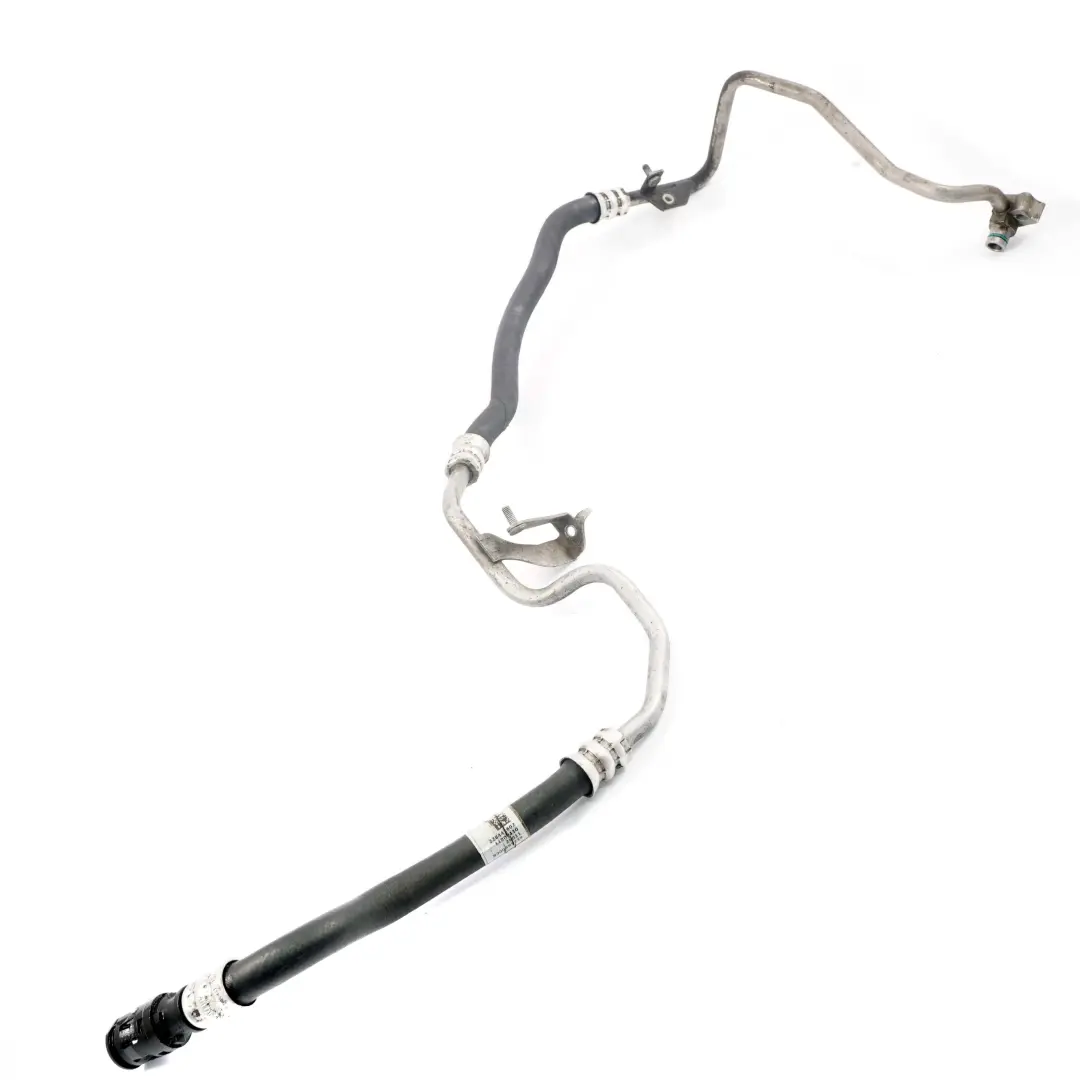

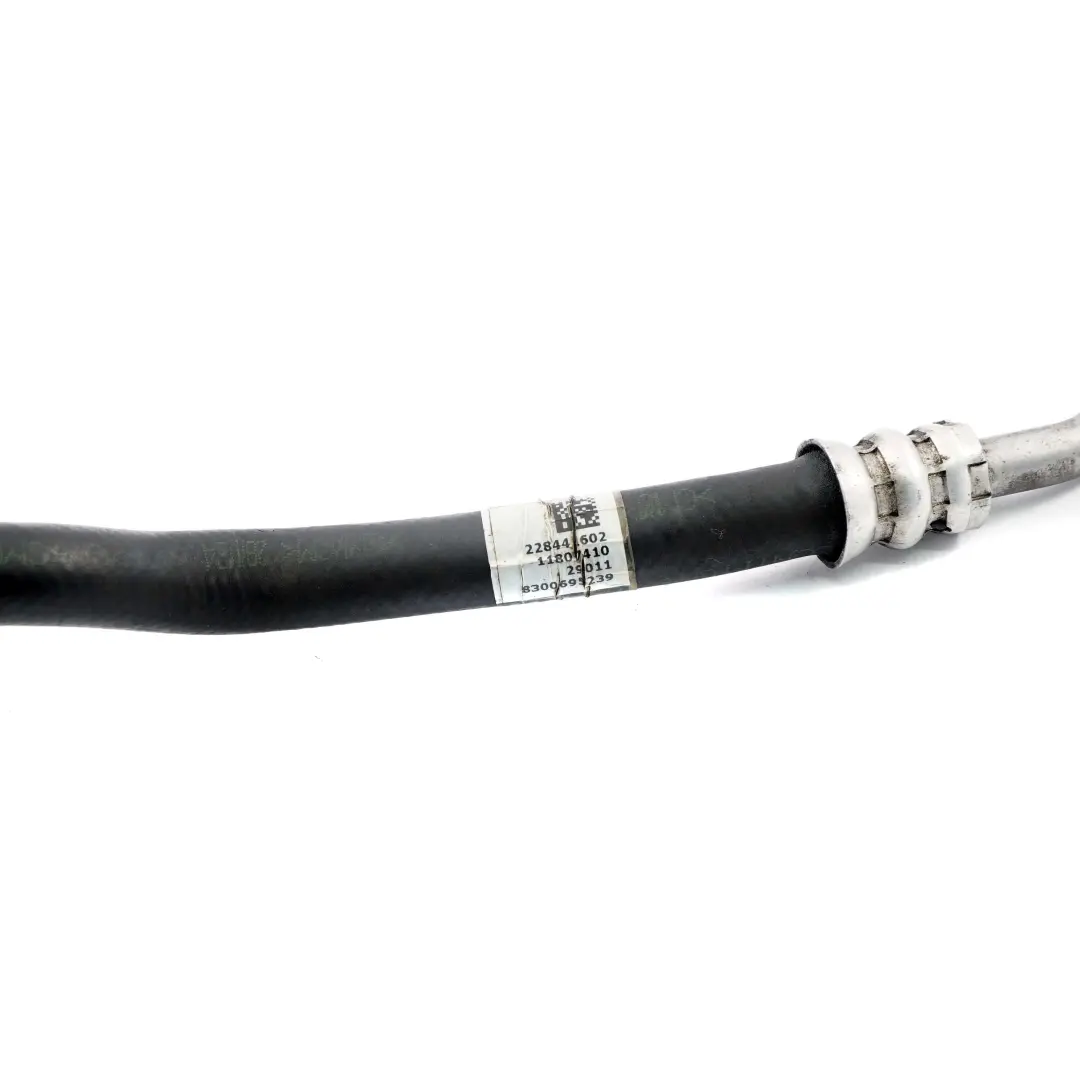

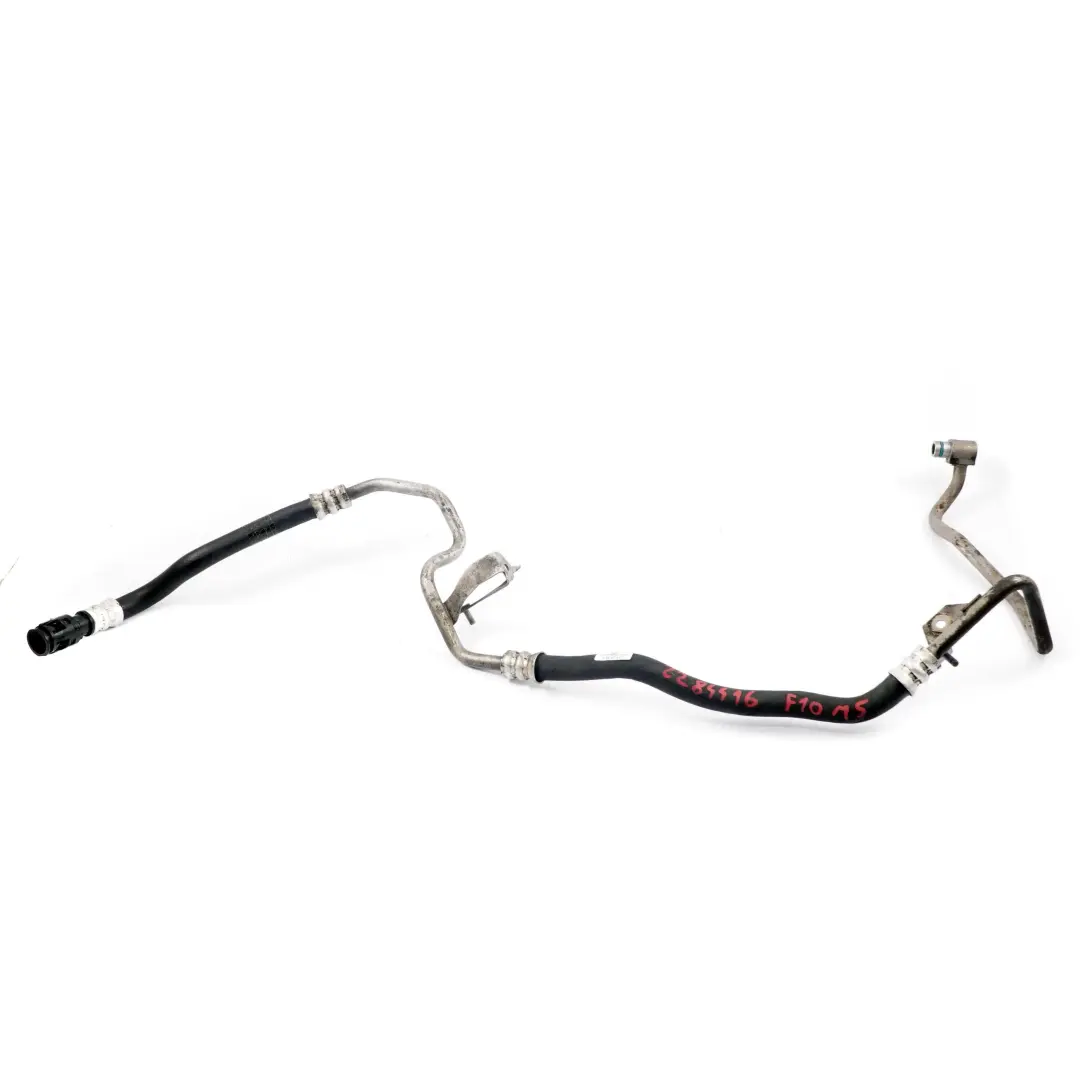

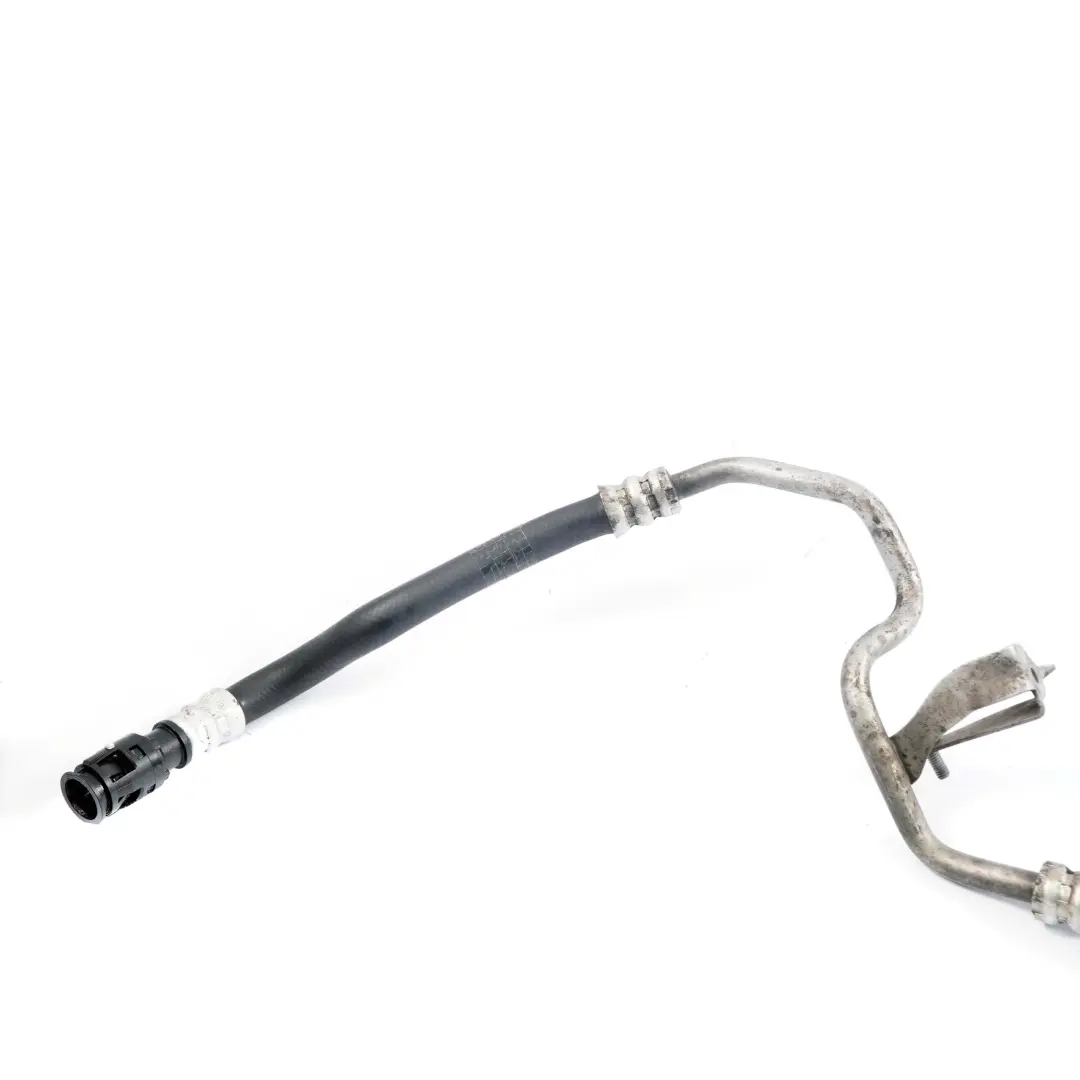

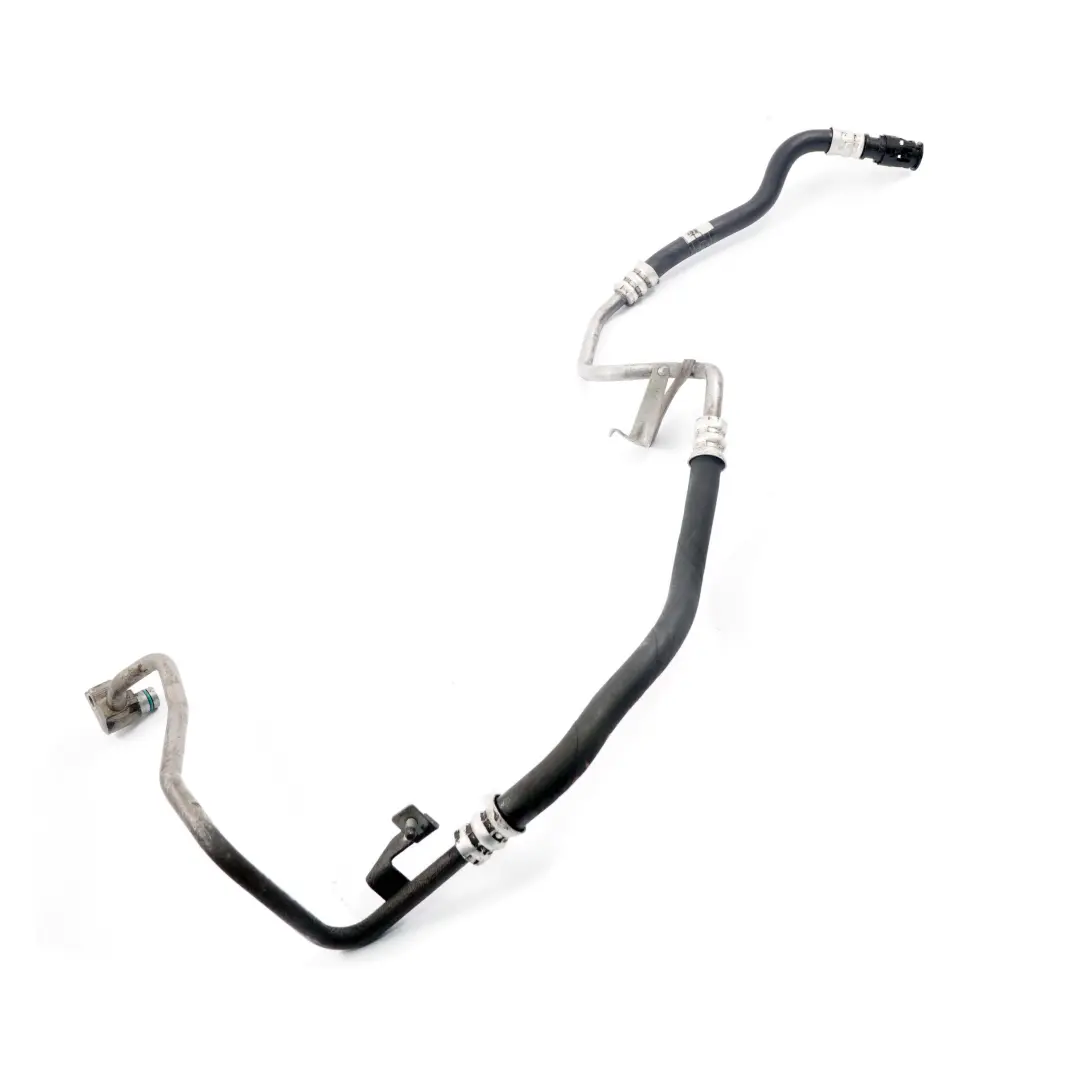

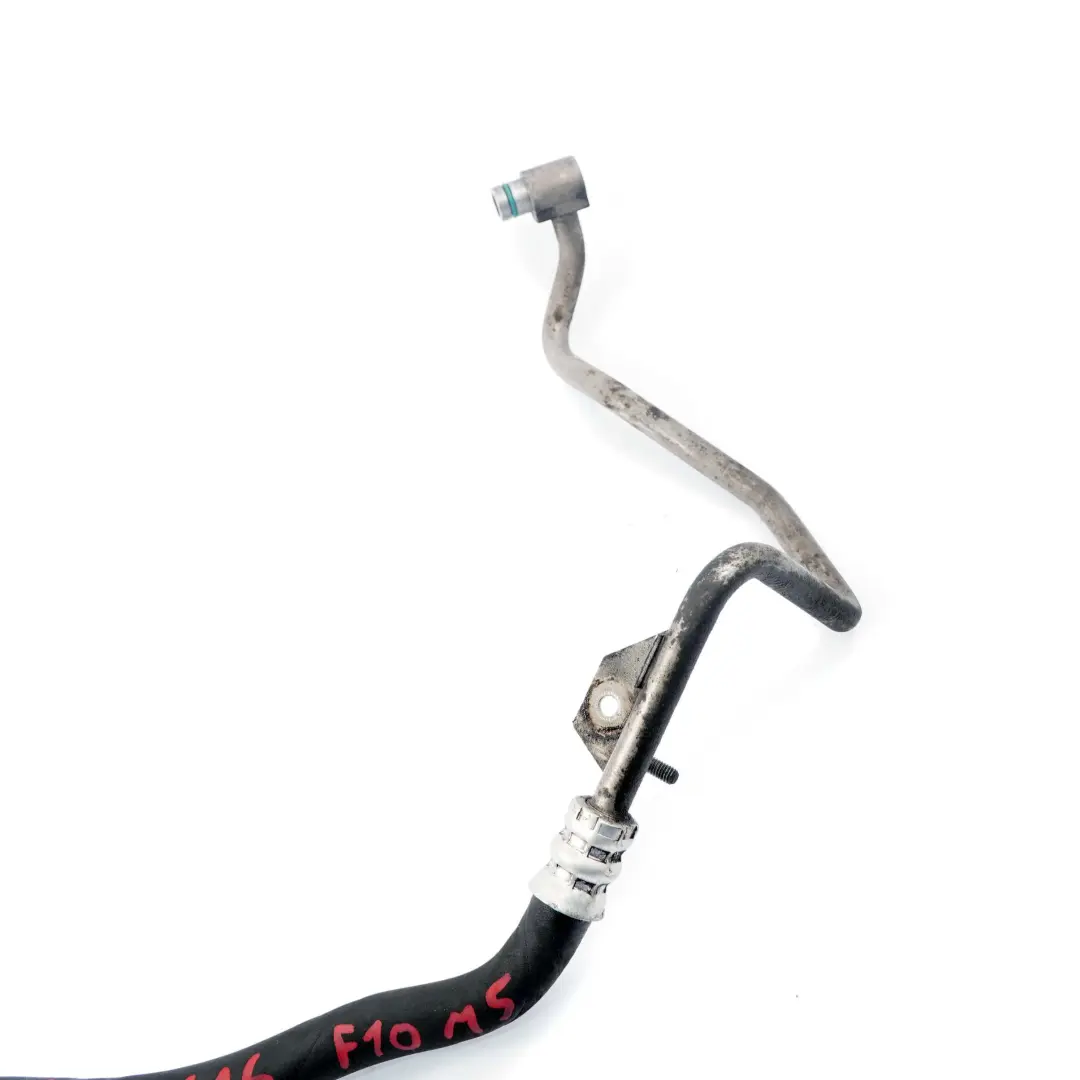

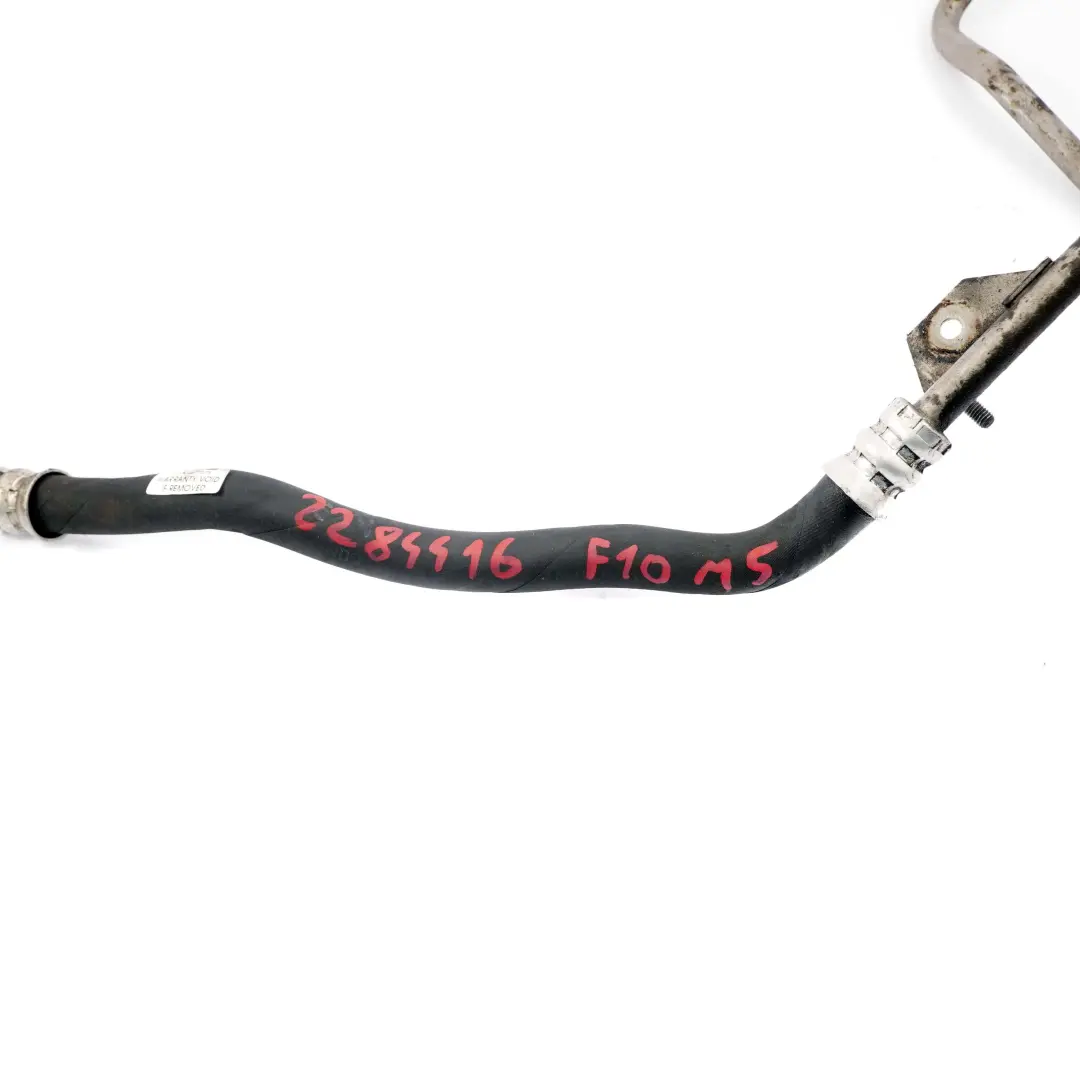

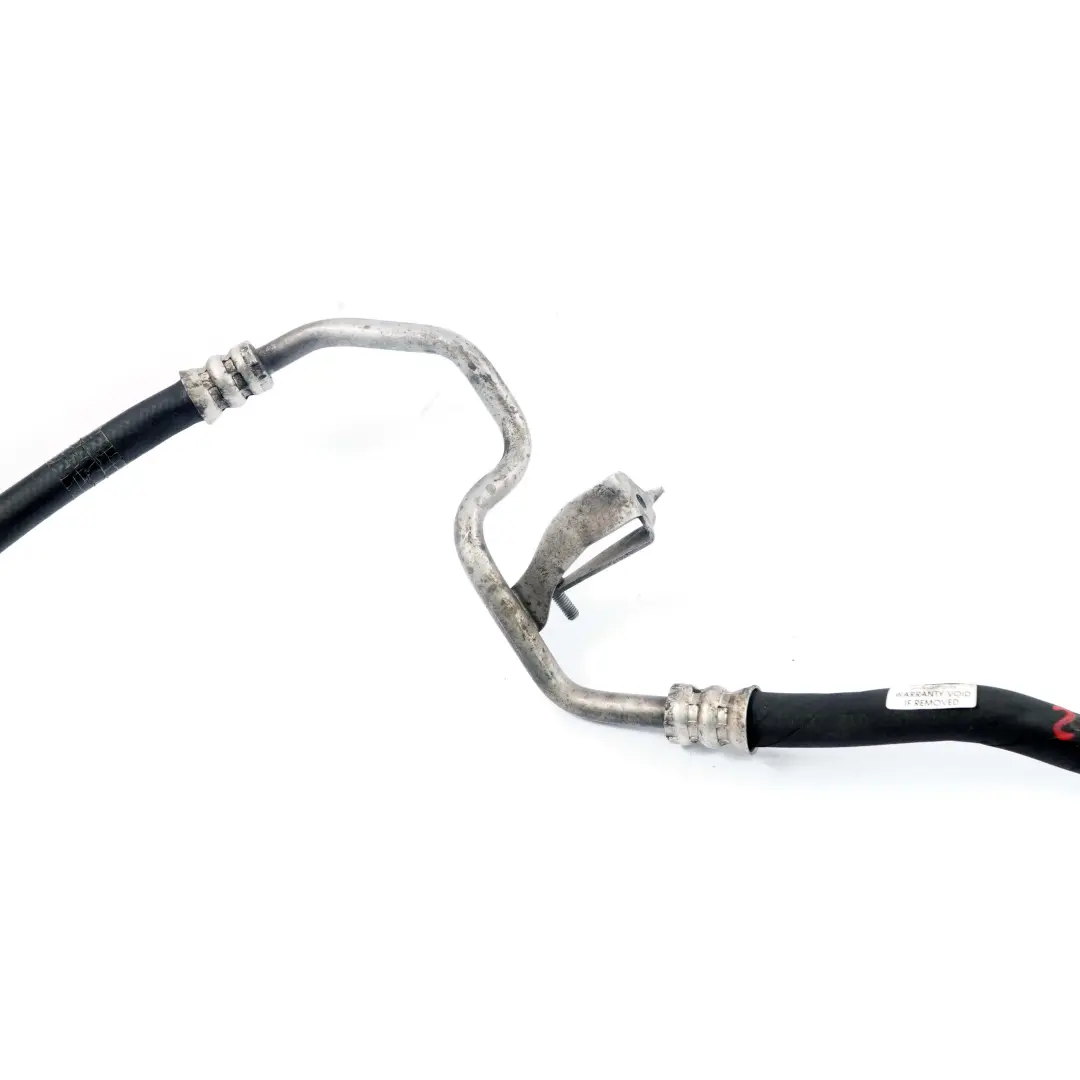

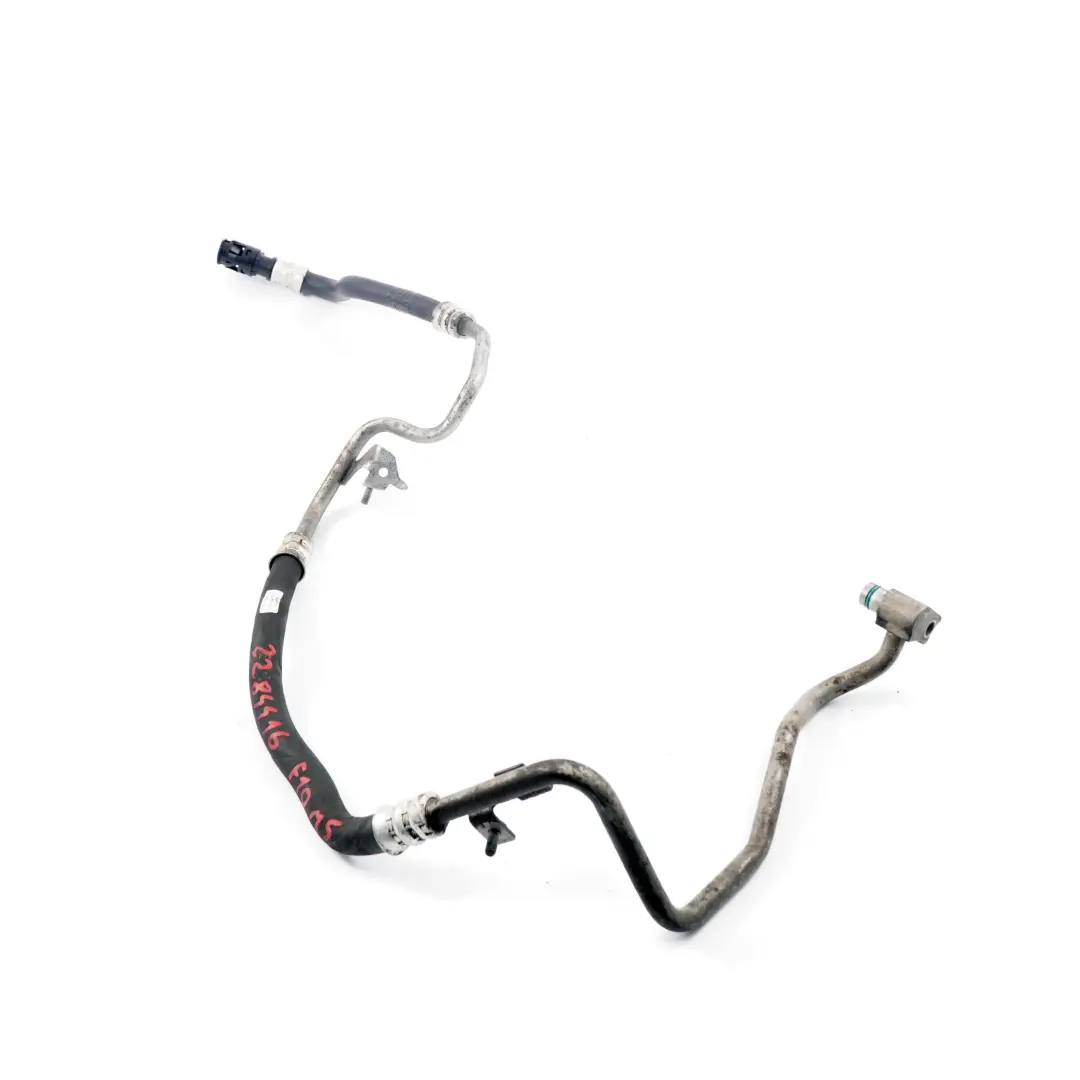

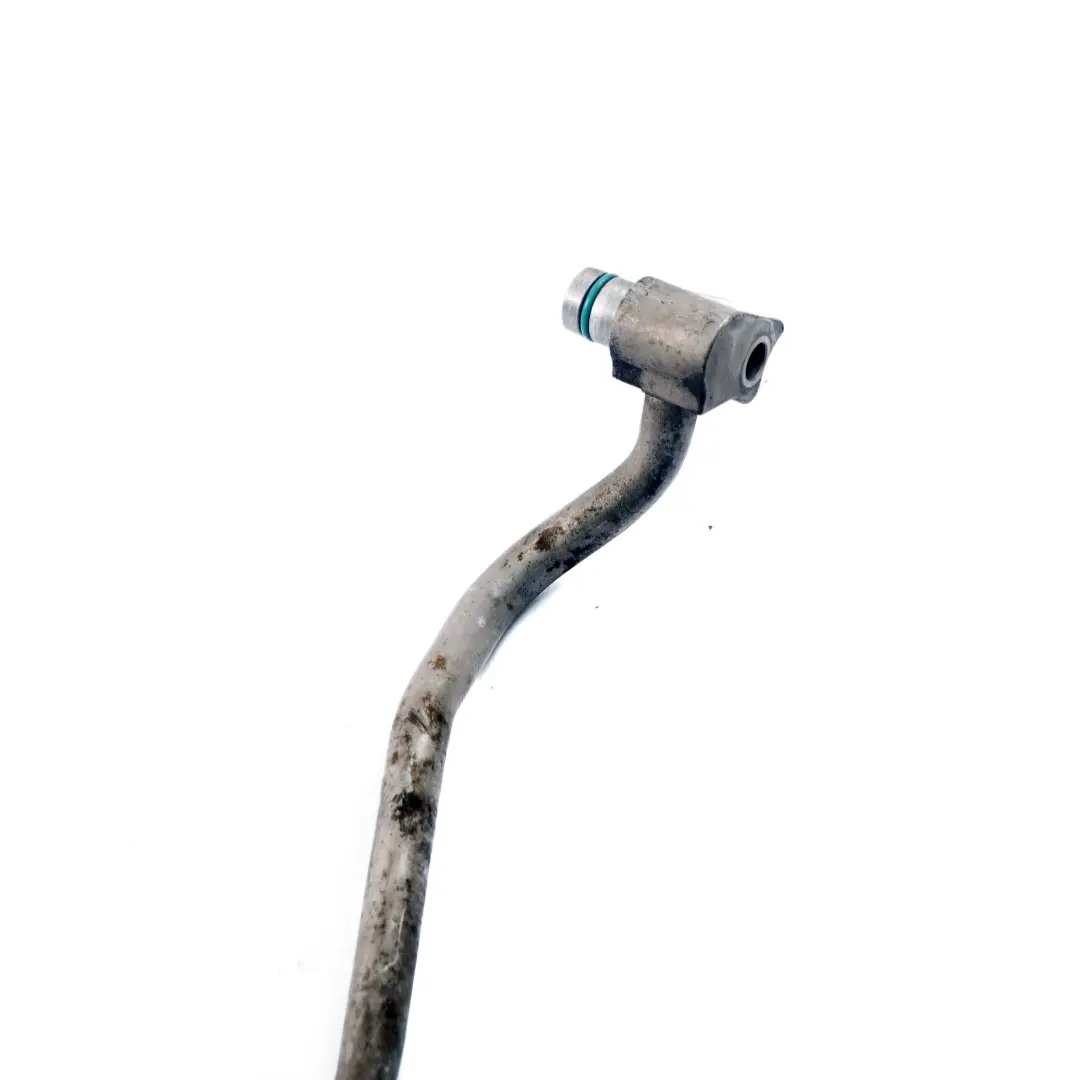

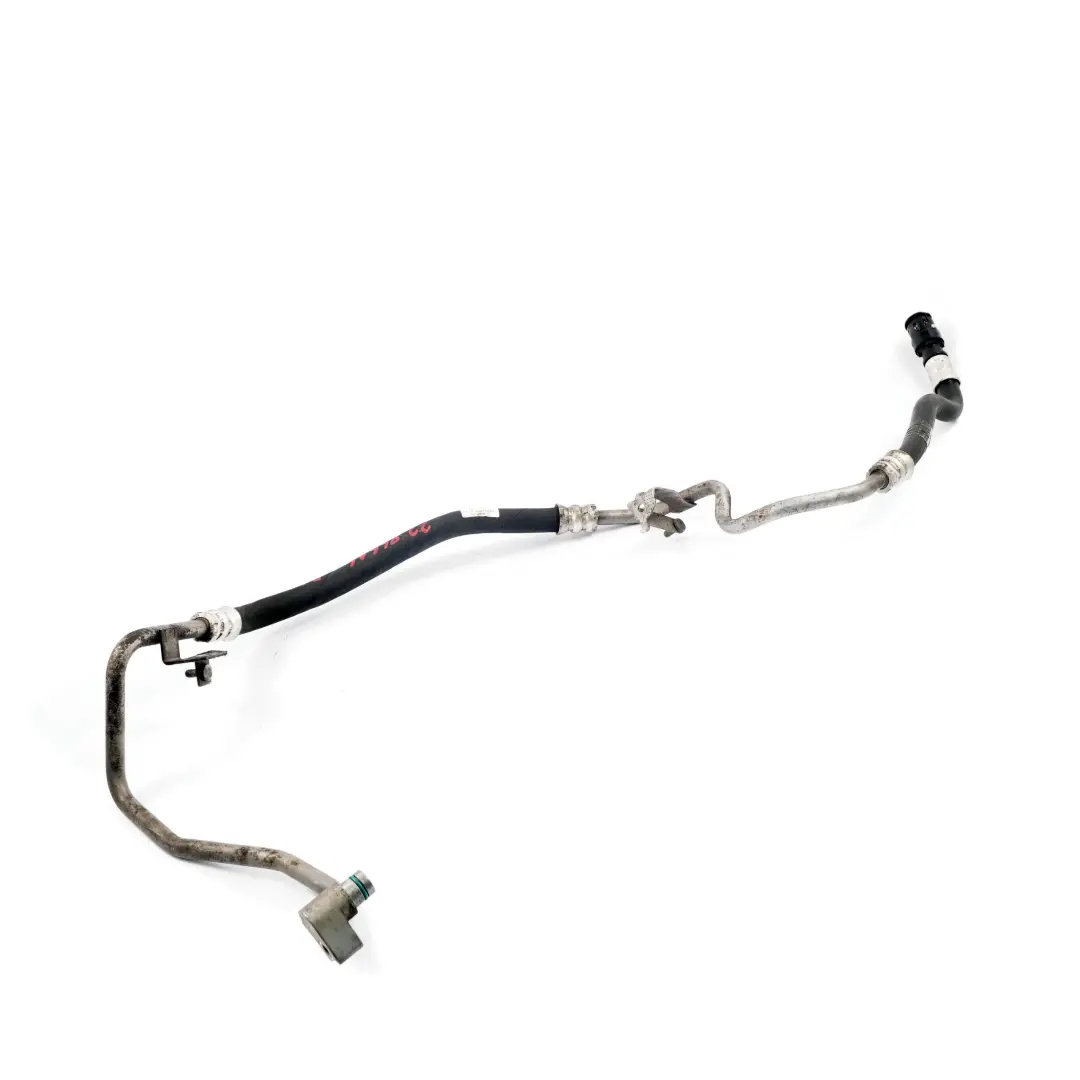

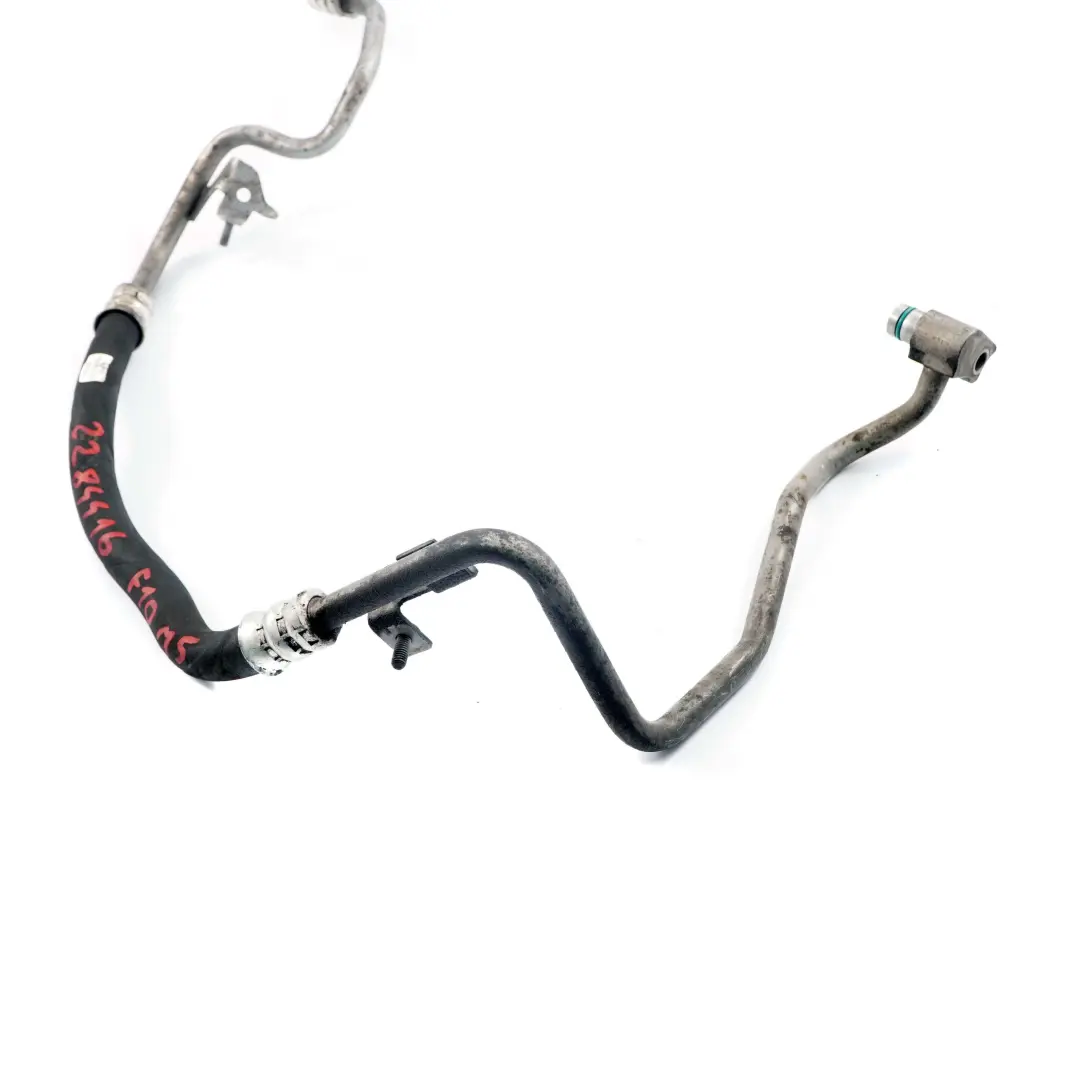

BMW F10 M5 F12 M6 S63N Power Steering Rack Return Oil Hose Pipe Line 2284416

BMW F10 M5 F12 M6 S63N Power Steering Rack Return Oil Hose Pipe Line is an original hydraulic component designed for the S63N system, ensuring stable fluid return with an integrated oil line. Thanks to its factory geometry and precise fitment for the specific BMW platform, it guarantees proper routing of the working medium and maintains system pressure parameters. This solution is dedicated to users who expect compatibility with the factory power steering system and wish to maintain the vehicle's proper driving characteristics.

Specifications and technical data

• SKU: rhd-2284416
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 2284416
• Substitutable numbers: 32412284416, 2284416
• Category: Power Steering Pumps

Purpose and function in the power steering system

The described return oil hose is a component of the hydraulic system responsible for transporting power steering fluid from the steering rack back to the reservoir or pump. In BMW F10 M5 and F12 M6 models with the S63N unit, it is crucial for:

• maintaining stable oil flow in the return circuit,
• ensuring proper cooling and degassing of the fluid,
• reducing pressure drops in the power steering system,
• maintaining steering rack precision under high loads.

Thanks to its factory profile, the hose is designed to be routed in the engine bay in a way that avoids interference with other components and maintains safe distances from heat-generating parts.

Construction and fitment for BMW F10 M5 / F12 M6

The return oil hose has been designed specifically for the steering system architecture in BMW sports models with the S63N engine. Properly selected internal and external diameters, bend shapes, and connection point layouts allow for:

• trouble-free installation at original mounting points,
• proper sealing of connections with the steering rack and other system elements,
• maintaining the factory hose routing path in the engine bay.

Such fitment reduces the risk of stress, twisting, or rubbing against other components, which in the long term translates into stable power steering system operation and a lower risk of leaks.

Benefits of using an original return hose

Using an original return oil hose in the power steering system of the BMW F10 M5 and F12 M6 allows for maintaining the operating parameters specified by the manufacturer. In practice, this means:

• maintaining the factory character of the steering system during dynamic driving,
• proper cooperation with the power steering pump and rack,
• reduced risk of cavitation and fluid aeration,
• easier diagnostics of potential hydraulic system faults.

For users expecting consistency with the factory vehicle configuration, this is a solution that allows for safe operation of the power steering system without the need for modifications.

Condition, installation, and service application

The item comes from the Power steering pumps group, which means it is integrally linked to the steering system hydraulics and intended for service applications in BMW vehicles. As a used part, it represents an attractive cost alternative to new components while maintaining the original design and fitment. It can be used both for routine repairs and for comprehensive power steering system maintenance, including fluid, seal, and other hose replacements.

During installation, it is recommended to:

• check the condition of other hoses and connectors in the system,
• use appropriate clamps and fasteners consistent with factory solutions,
• bleed the system after filling with fresh fluid.

If you are planning a comprehensive repair or upgrade of the steering system area in your BMW and need other elements from the same group, such as pressure hoses, return hoses, or hydraulic components, check the available parts in the BMW Power steering pumps category.

Technical support and part selection

When selecting hydraulic elements for the steering system, it is worth paying attention to compatibility with the specific engine and body version, as well as the routing of hoses in the engine bay. Procedures used for servicing other fluid systems in the vehicle, such as the fuel system, may be helpful – the principles regarding diagnostics, selection by manufacturer part numbers, and operation are in many aspects similar. To better understand the relationships between supply and return elements in modern cars, it is worth checking the guide Fuel system – injectors, pumps, and fuel tank: maintenance and regeneration, which discusses a practical approach to working with systems based on the flow of operating fluids.
