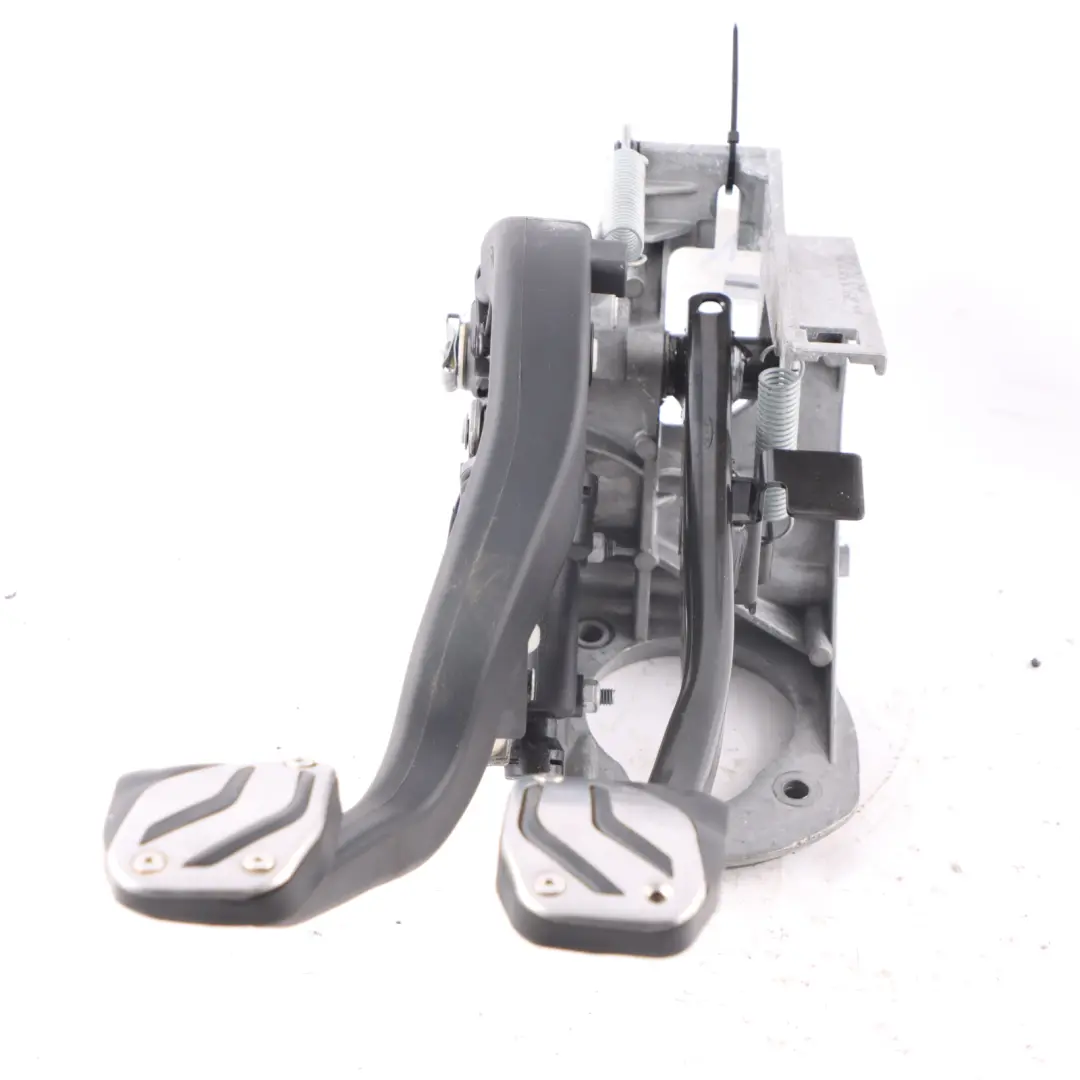

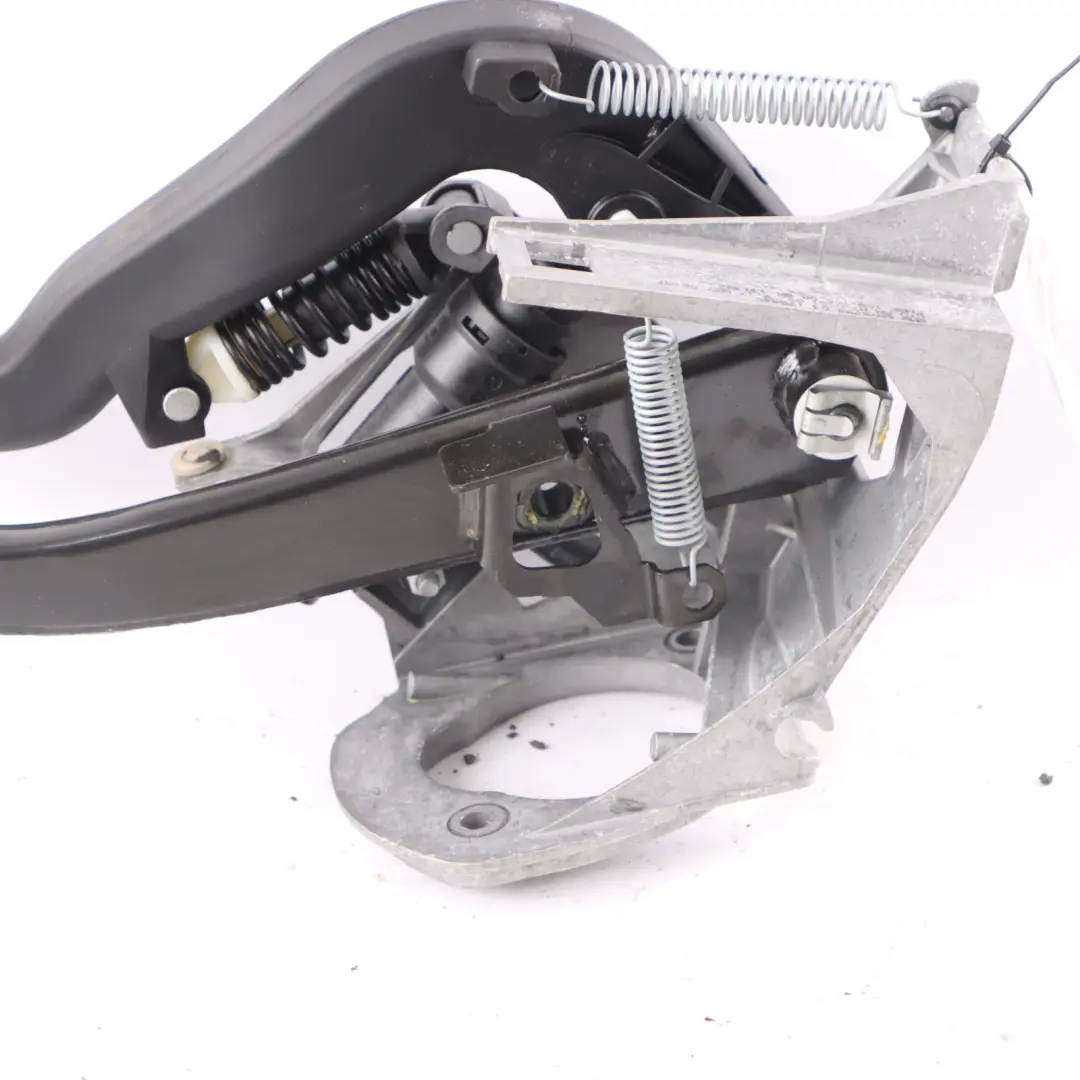

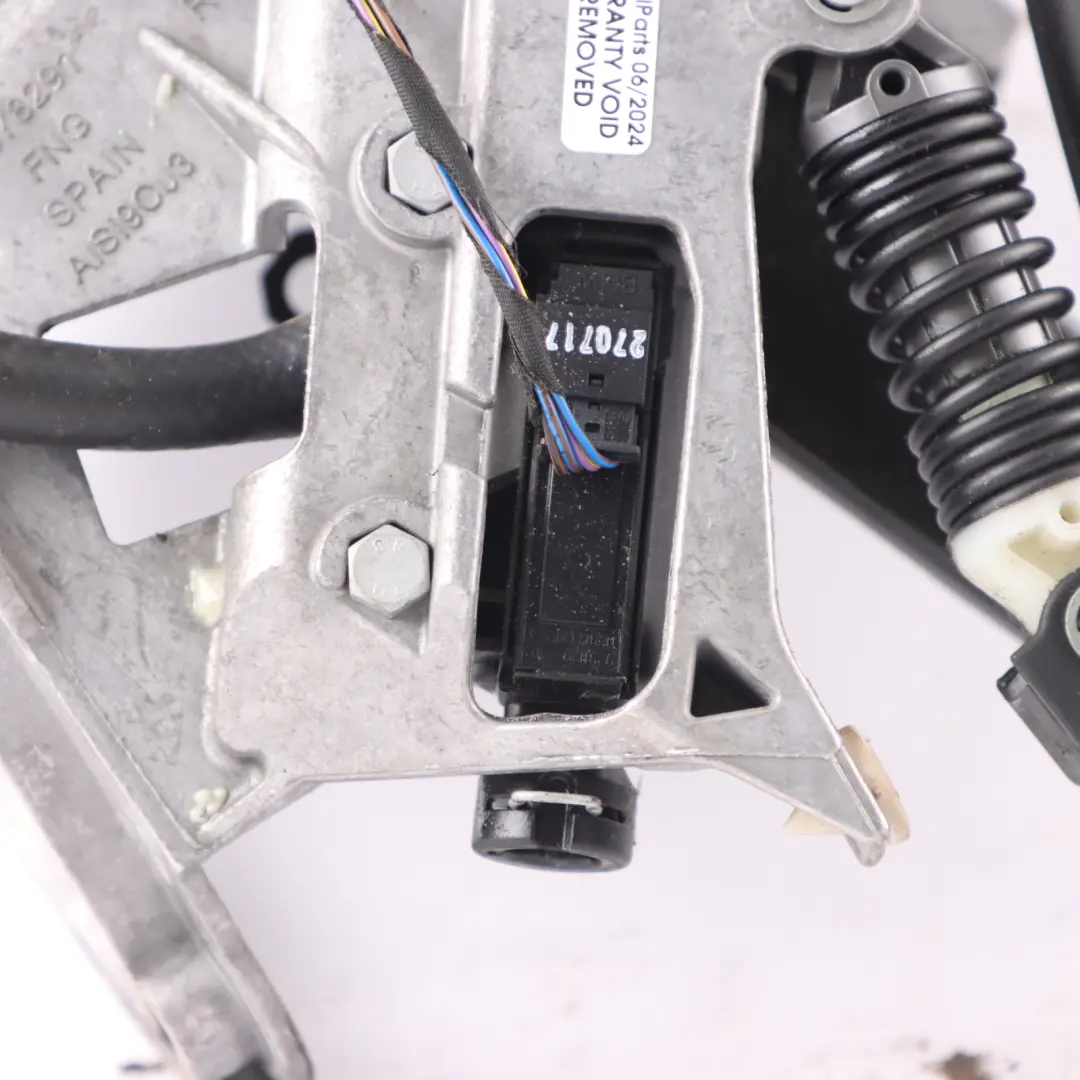

BMW 1 2 3 4 Series F20 F21 F22 F30 F31 F32 Complete Pedal Assembly Clutch Brake

BMW 1 2 3 4 Series F20 F21 F22 F30 F31 F32 Complete Pedal Assembly Clutch Brake is an original control system component designed for models with a manual transmission. This solution ensures consistent operation of the brake and clutch pedals, maintaining factory performance characteristics and precise feel while driving. Thanks to its complete design, it facilitates the service replacement of the entire module in a single process.

Specifications and technical data

• SKU: rhd-6860644-1
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 6860644
• Substitutable numbers: 35006860644, 6860644, 35006876794, 6876794, AS
• Category: Pedal Assemblies, Pads & Parts

Purpose and function in the vehicle

The presented pedal assembly is dedicated to selected BMW 1, 2, 3, and 4 Series F-generation models in versions with a manual transmission. It includes both the brake pedal and the clutch pedal, creating a cohesive module responsible for controlling the braking system and disengaging the drive. This solution allows for maintaining uniform geometry and ergonomics of both pedals, which translates into predictable vehicle behavior in city traffic and during dynamic driving.

Construction of the complete pedal assembly

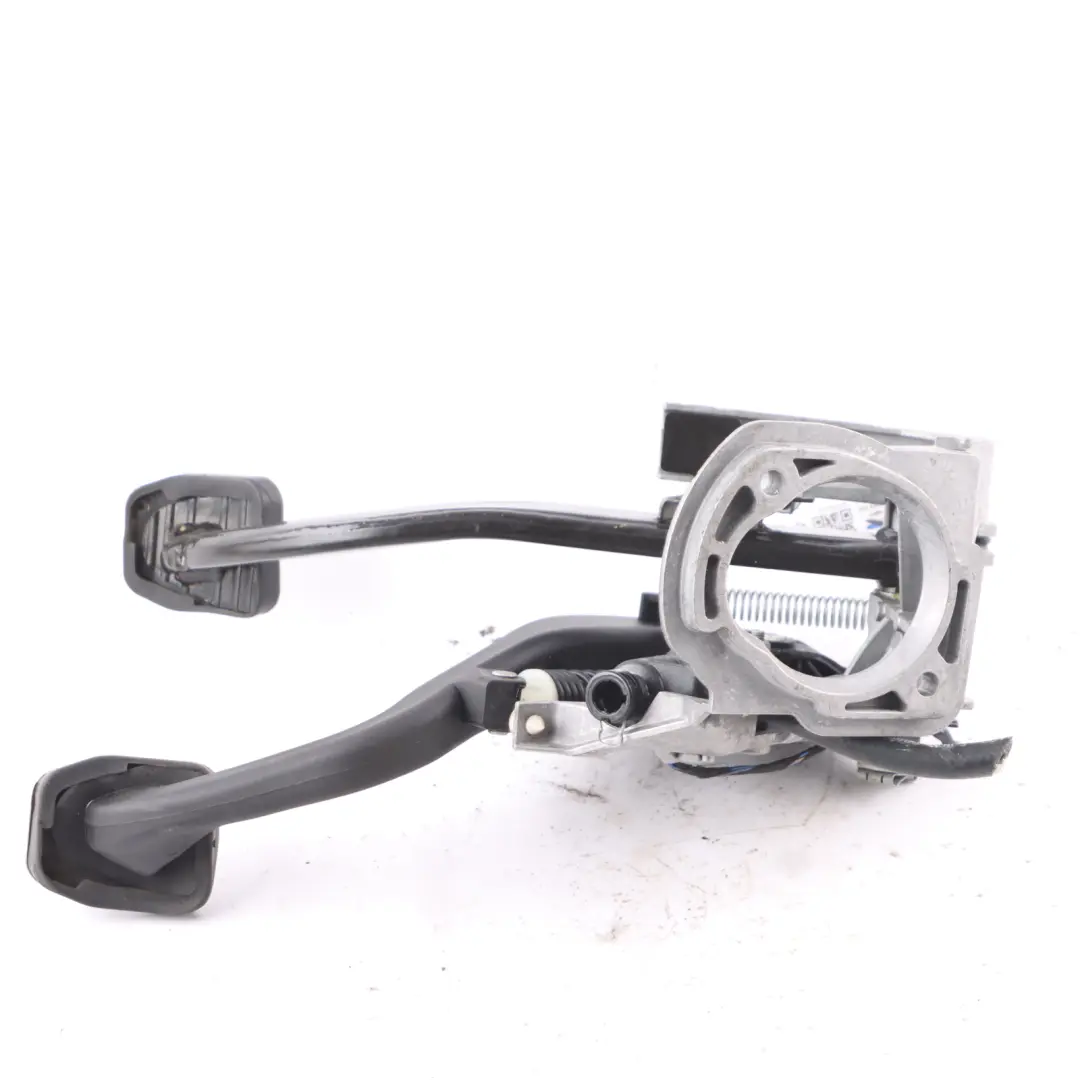

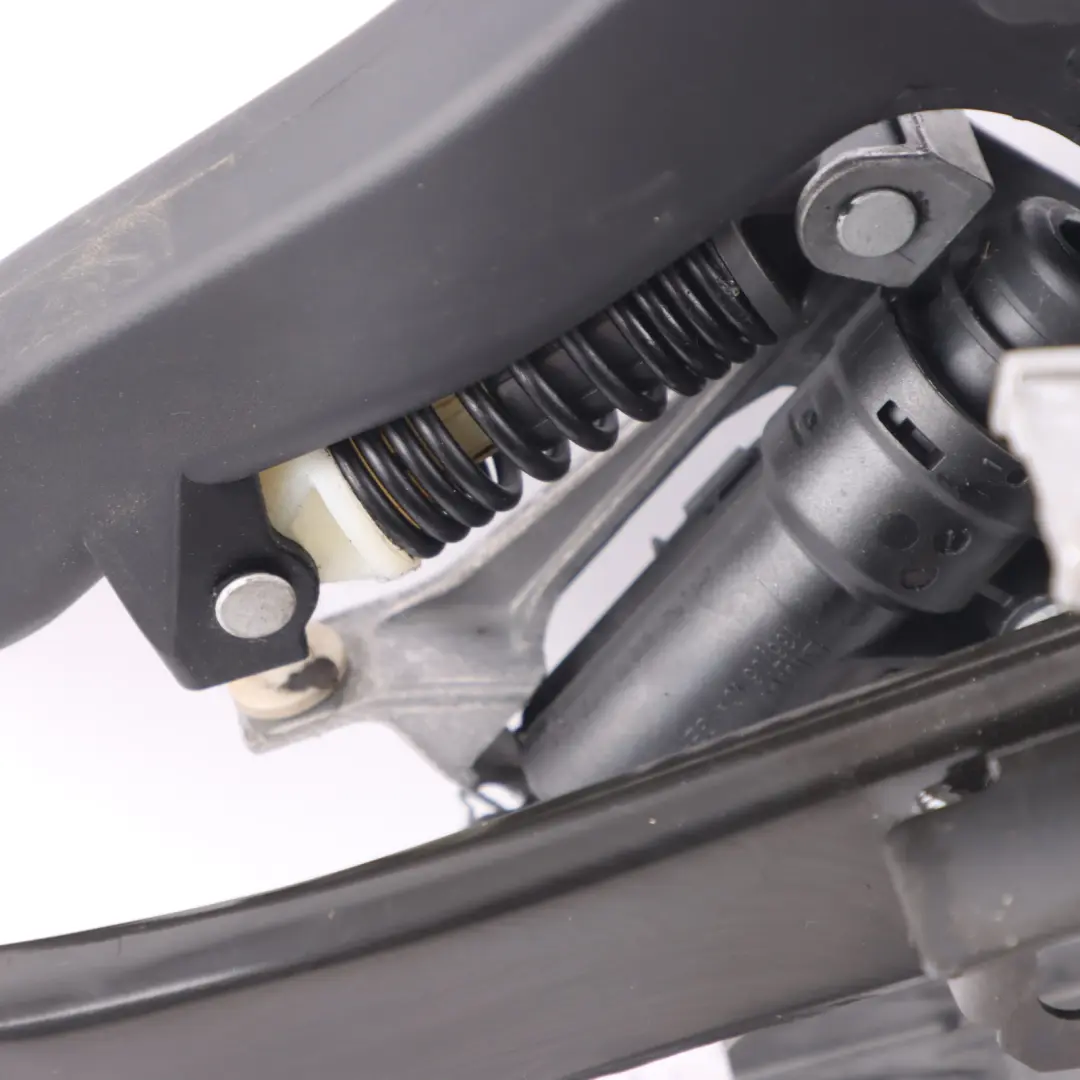

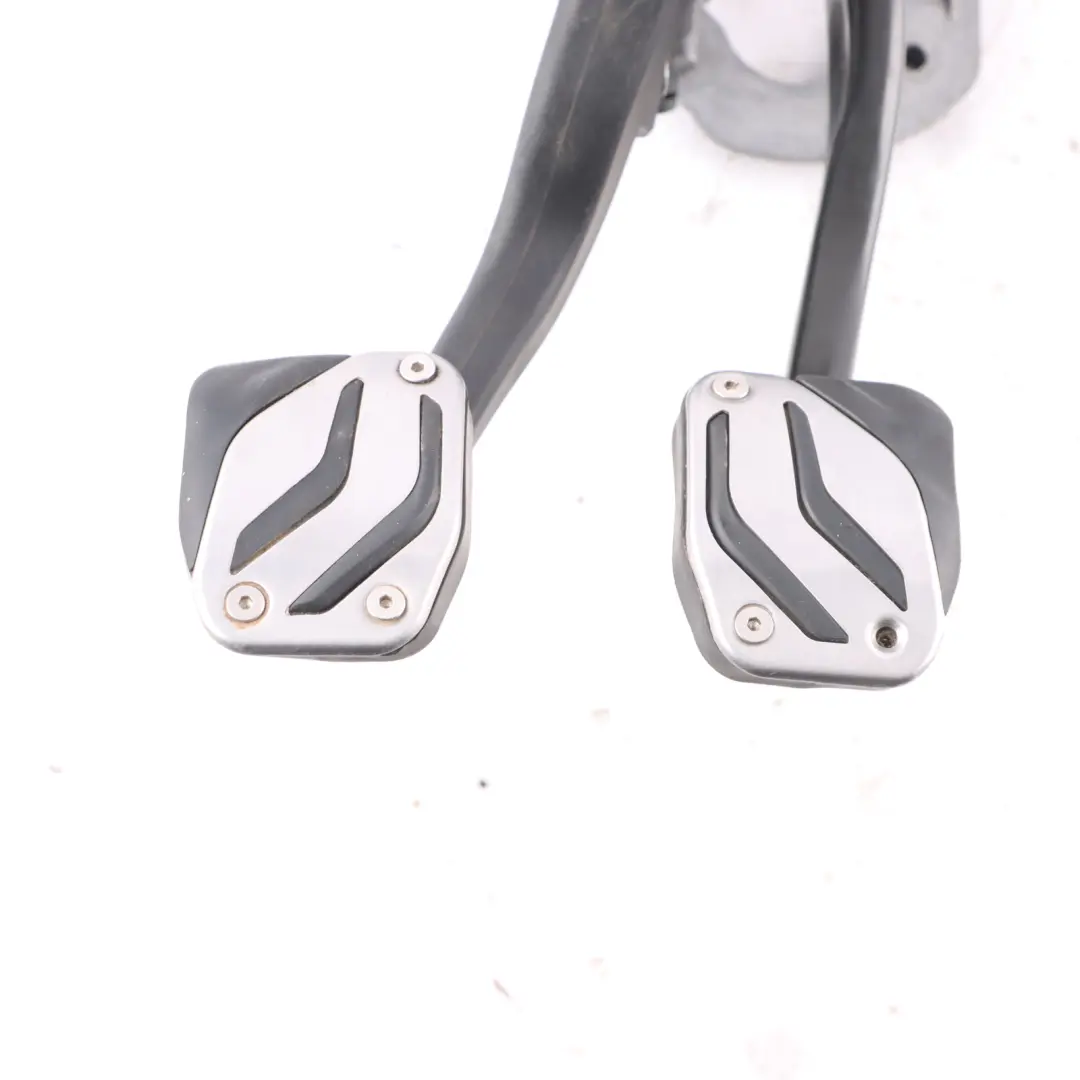

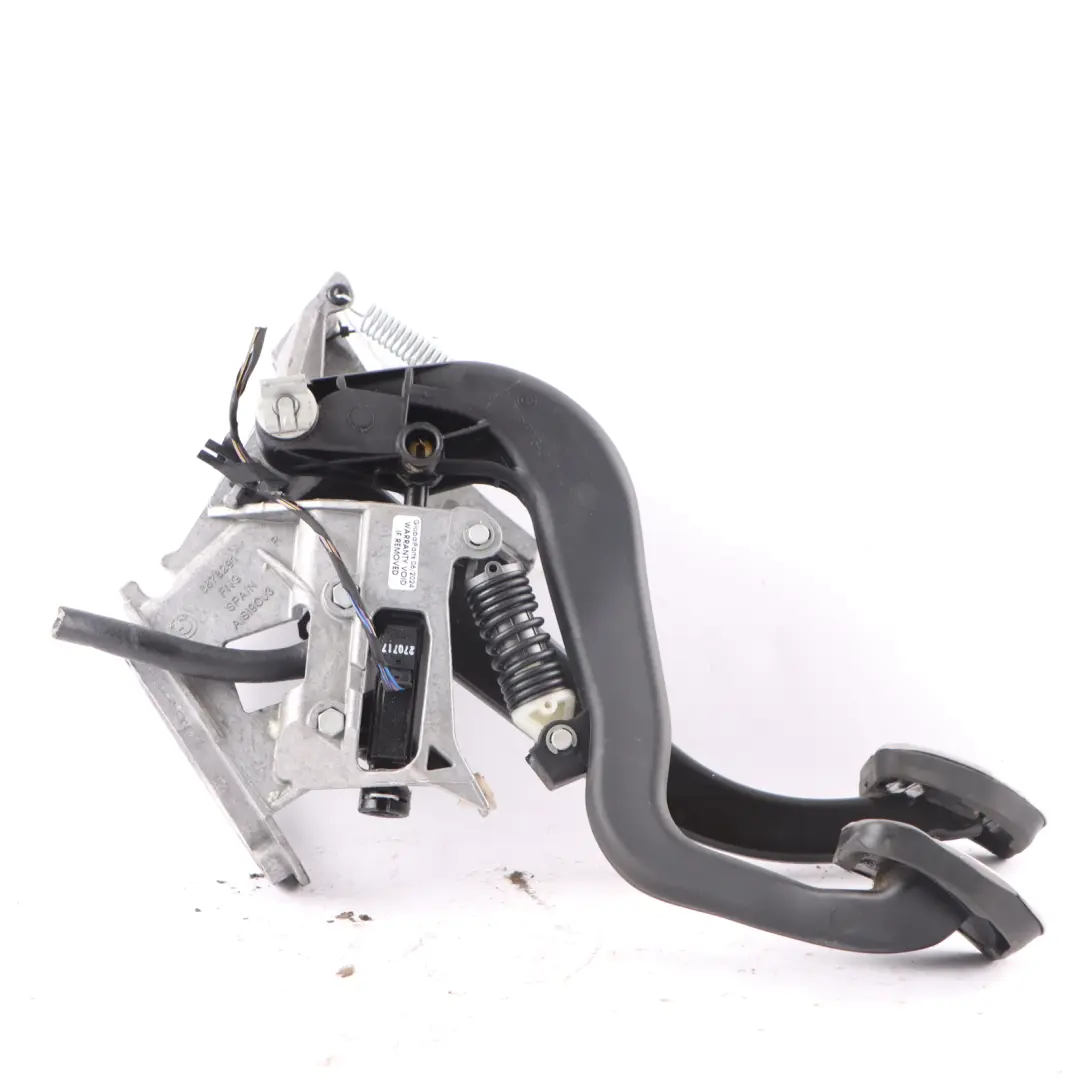

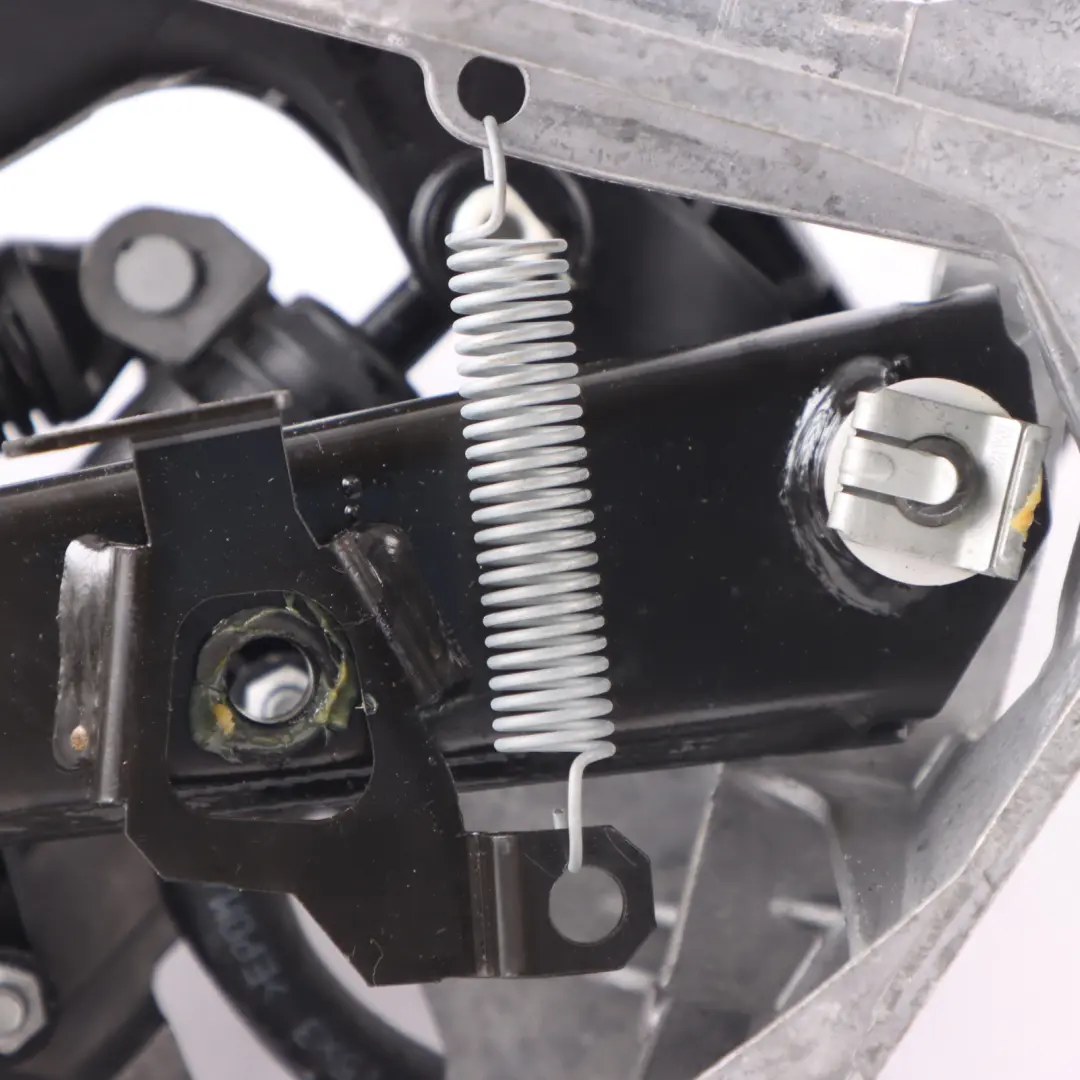

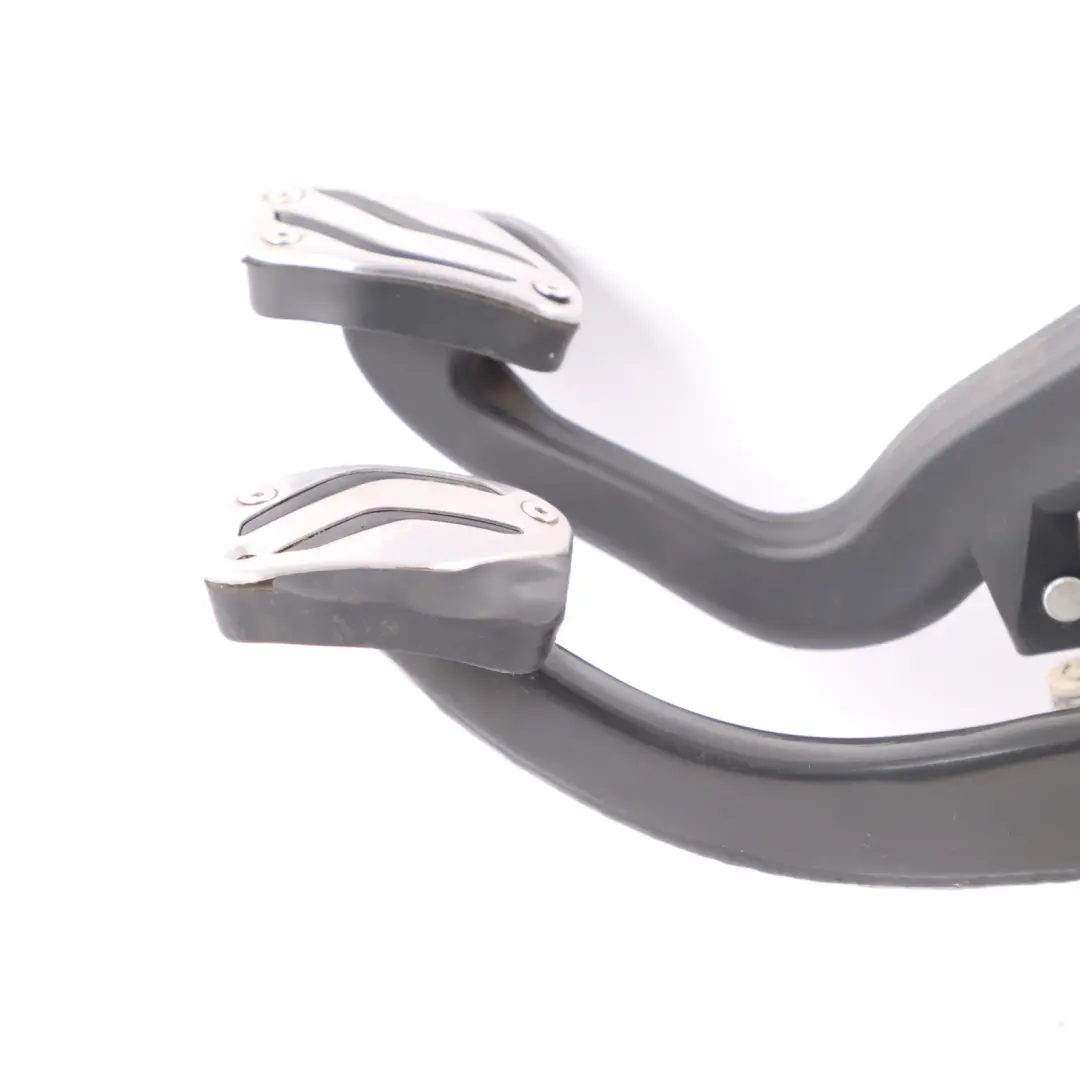

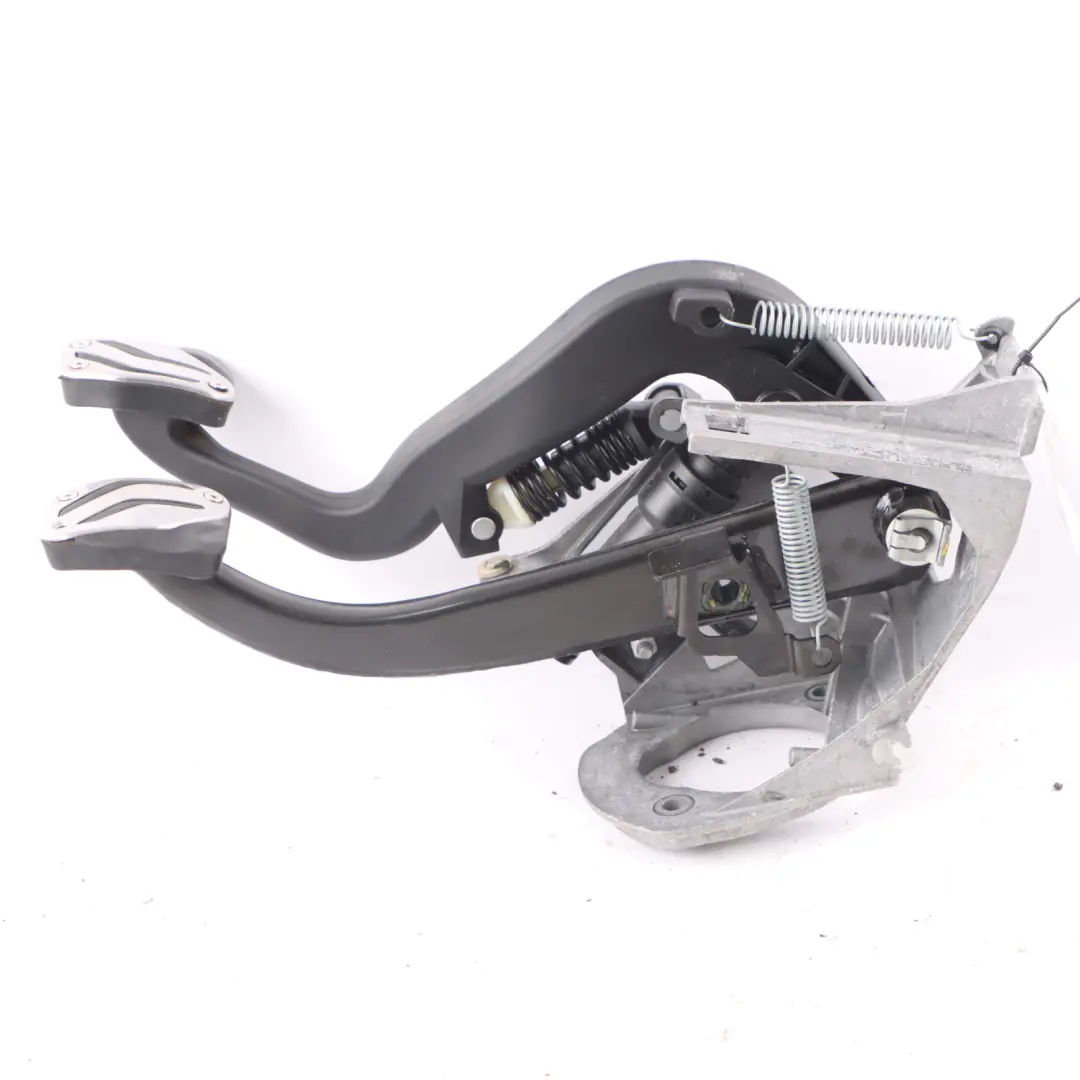

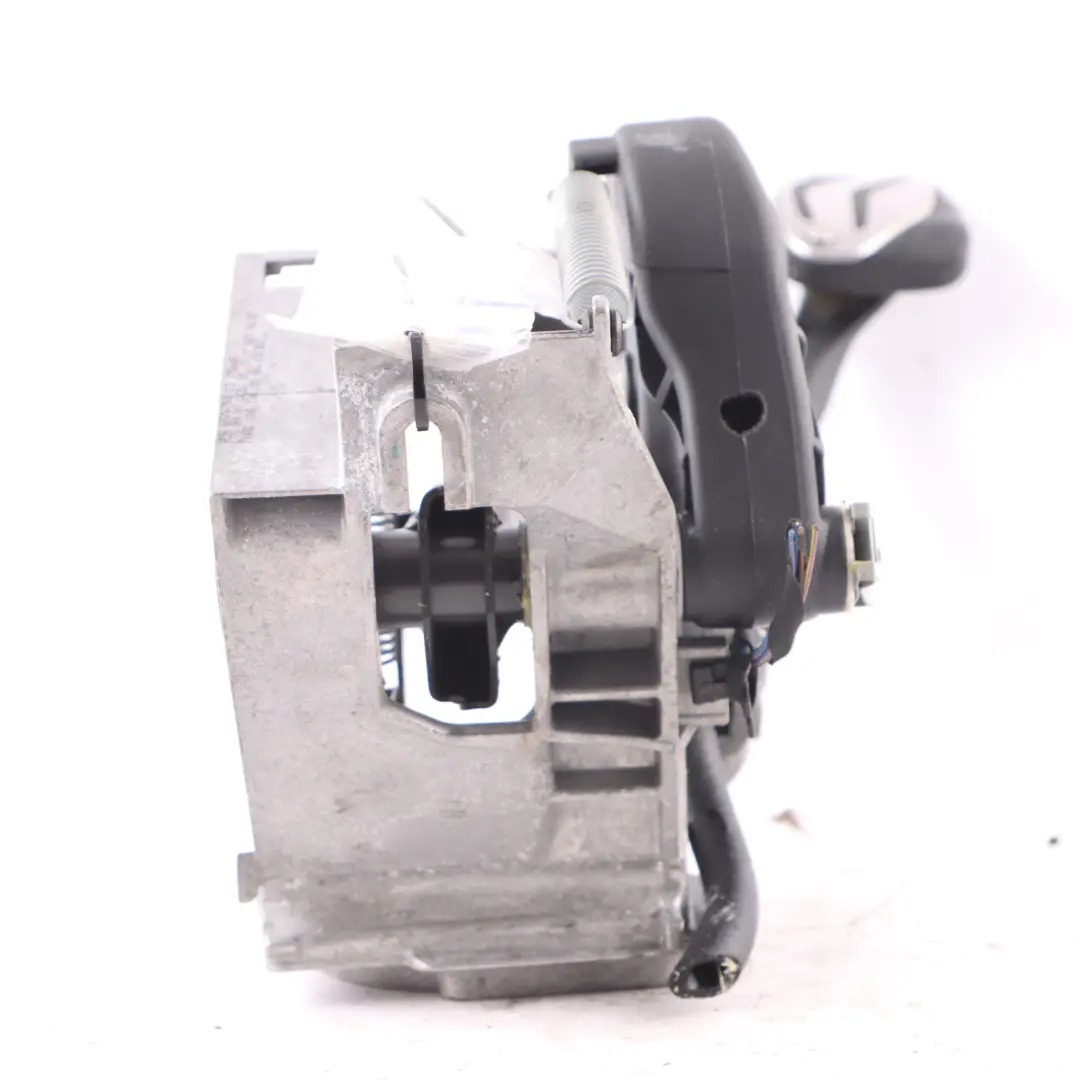

The BMW 1 2 3 4 Series F20 F21 F22 F30 F31 F32 Complete Pedal Assembly Clutch Brake has been designed as a module mounted to the bulkhead, with appropriately selected mounting points and force distribution. The construction includes:

• a common support body for the brake and clutch pedal,
• pedal arms with optimized length and kinematics,
• points of cooperation with the brake booster and clutch mechanism,
• factory locations for sensor and switch components (e.g., brake light signal).

This configuration ensures stable force distribution, limits structural deflection, and allows for maintaining repeatable pedal travel throughout the entire service life.

Benefits of using an original BMW assembly

Using a complete, original pedal assembly instead of a worn or damaged component allows for the restoration of factory control system performance parameters. Key advantages include:

• maintaining the correct pedal position relative to the seat and steering column,
• consistent brake and clutch pressure force characteristics,
• reduction of play and unwanted deformations during intensive use,
• easier diagnostics and service thanks to the modular design.

For workshops and users, this means faster installation, a lower risk of fitment issues, and stable operation of the braking and drivetrain systems after replacement.

Condition and service application

The component comes from the BMW range and is intended for service applications as a replacement for the factory-installed pedal assembly. It enables a comprehensive replacement of the entire module in situations where mechanical damage, excessive wear of joints, or deformation of the support structure has occurred. Replacing the complete assembly instead of individual components reduces mechanic labor time and minimizes the risk of leaving worn parts in the system.

Integration with other driver zone elements

The pedal assembly works with the brake booster, brake master cylinder, clutch system, and electronics responsible for signaling and safety. A correctly selected module is essential for the proper operation of driver assistance systems, such as stability control or emergency braking assistants. Thanks to maintaining the original geometry and mounting points, the installation of this assembly allows for keeping factory performance parameters of the entire vehicle control zone.
