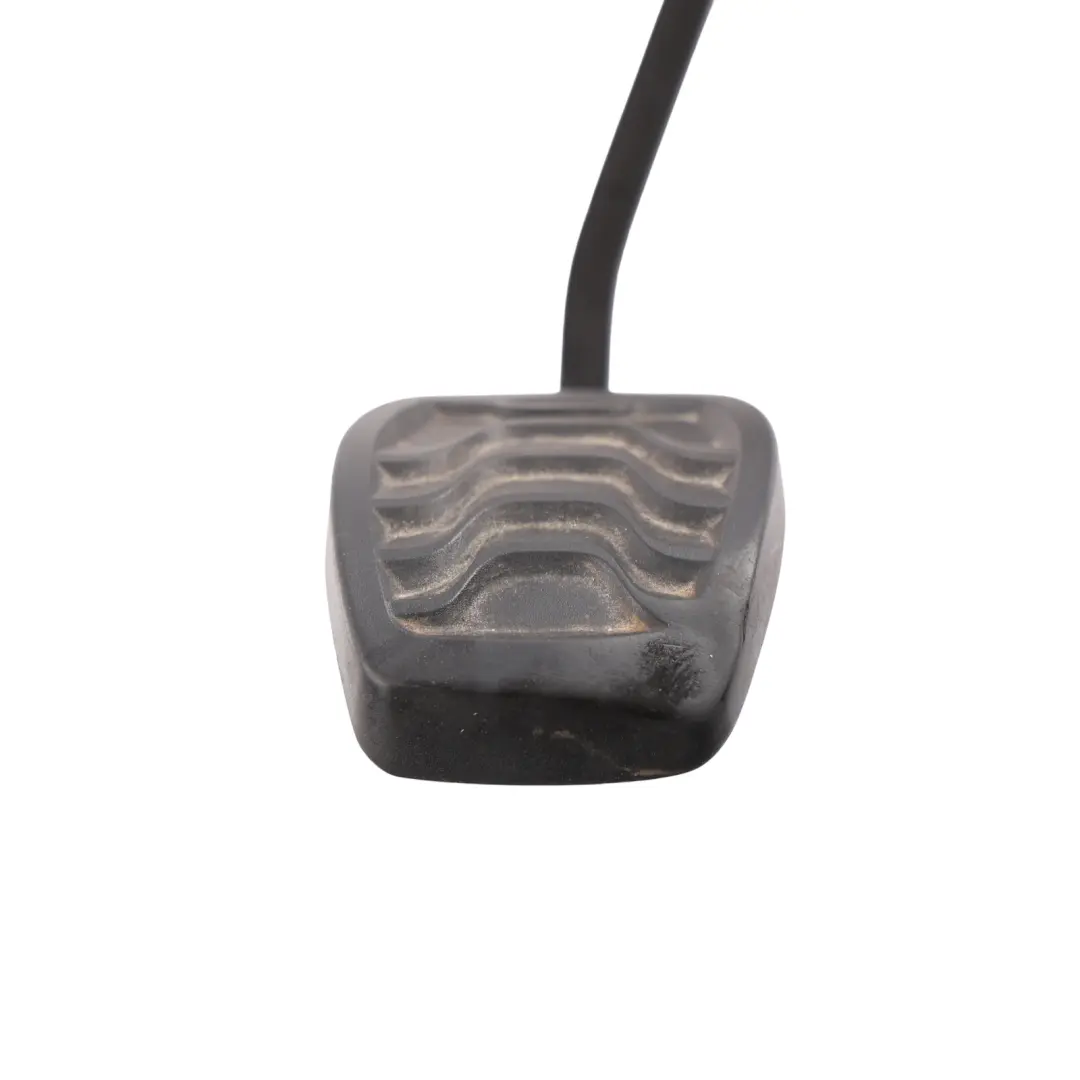

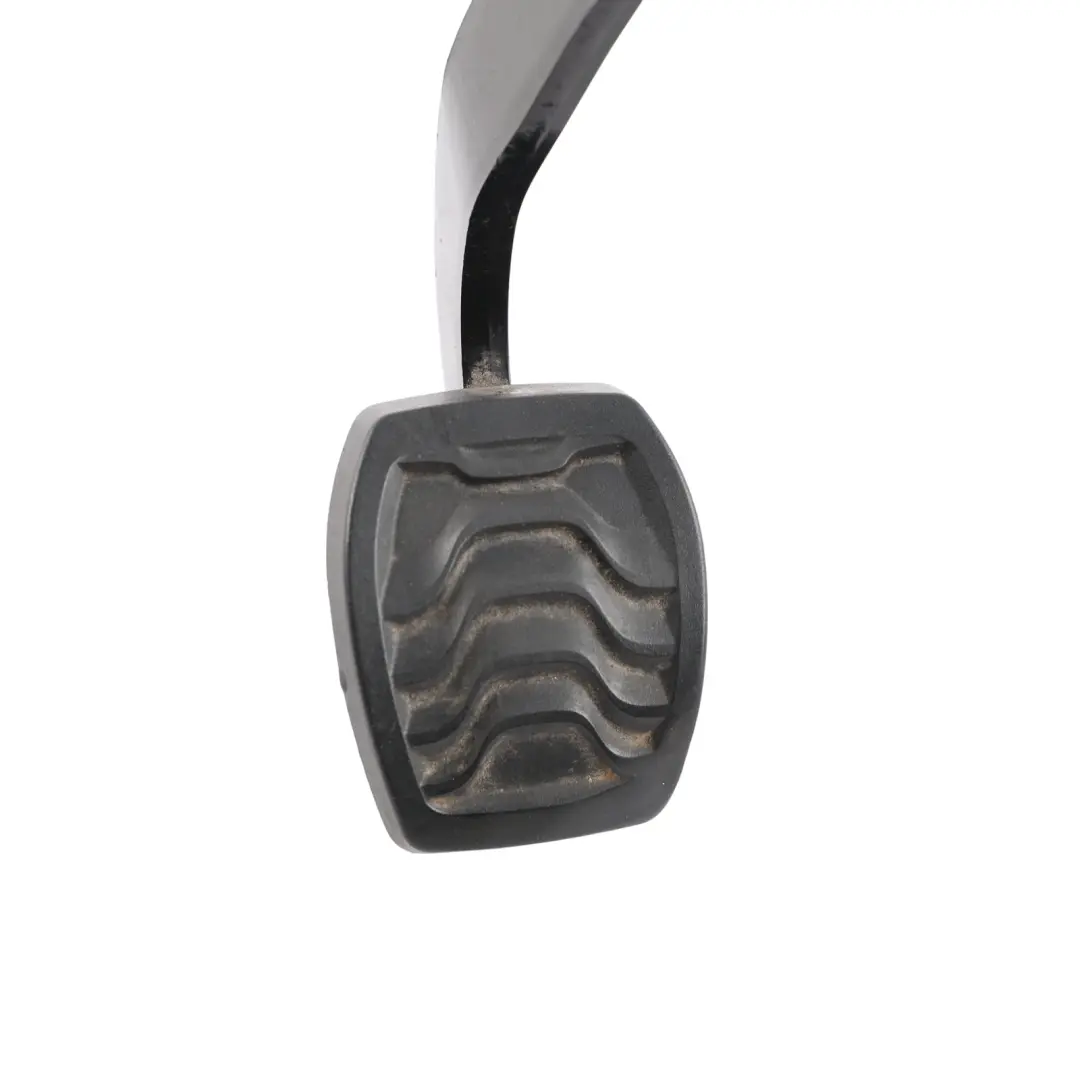

Ford Transit Custom Mk8 Brake Pedal Assembly Manual JK21-2450-AC

Ford Transit Custom Mk8 Brake Pedal Assembly Manual is an original brake control system component, designed for precise integration with the vehicle's factory equipment. This used sub-assembly from the Pedals, pedal pads, and footrests category allows for a technically correct replacement of a worn or damaged pedal while maintaining the proper brake operating characteristics.

Specifications and technical data

• SKU: RHD-JK21-2450-AC-1
• Mark: Ford
• Condition: Used
• OEM Part Number: JK21-2450-AC
• Substitutable numbers: JK21-2450-AC, JK212450AC
• Gearbox type: Manual
• Category: Pedal Assemblies, Pads & Parts

Purpose and function in the braking system

The presented brake pedal assembly has been designed specifically for the Mk8 generation Transit Custom model equipped with a manual transmission. It is responsible for transferring the driver's pressure force to the hydraulic brake system, ensuring consistent travel, predictable response, and a stable feel of the engagement point.

The pedal's mounting structure is adapted to the factory mounting points in the body, which allows for maintaining the correct geometry relative to the driver's seat, steering column, and other pedals. As a result, after replacement, the driver retains ergonomic foot positioning and consistent braking feedback.

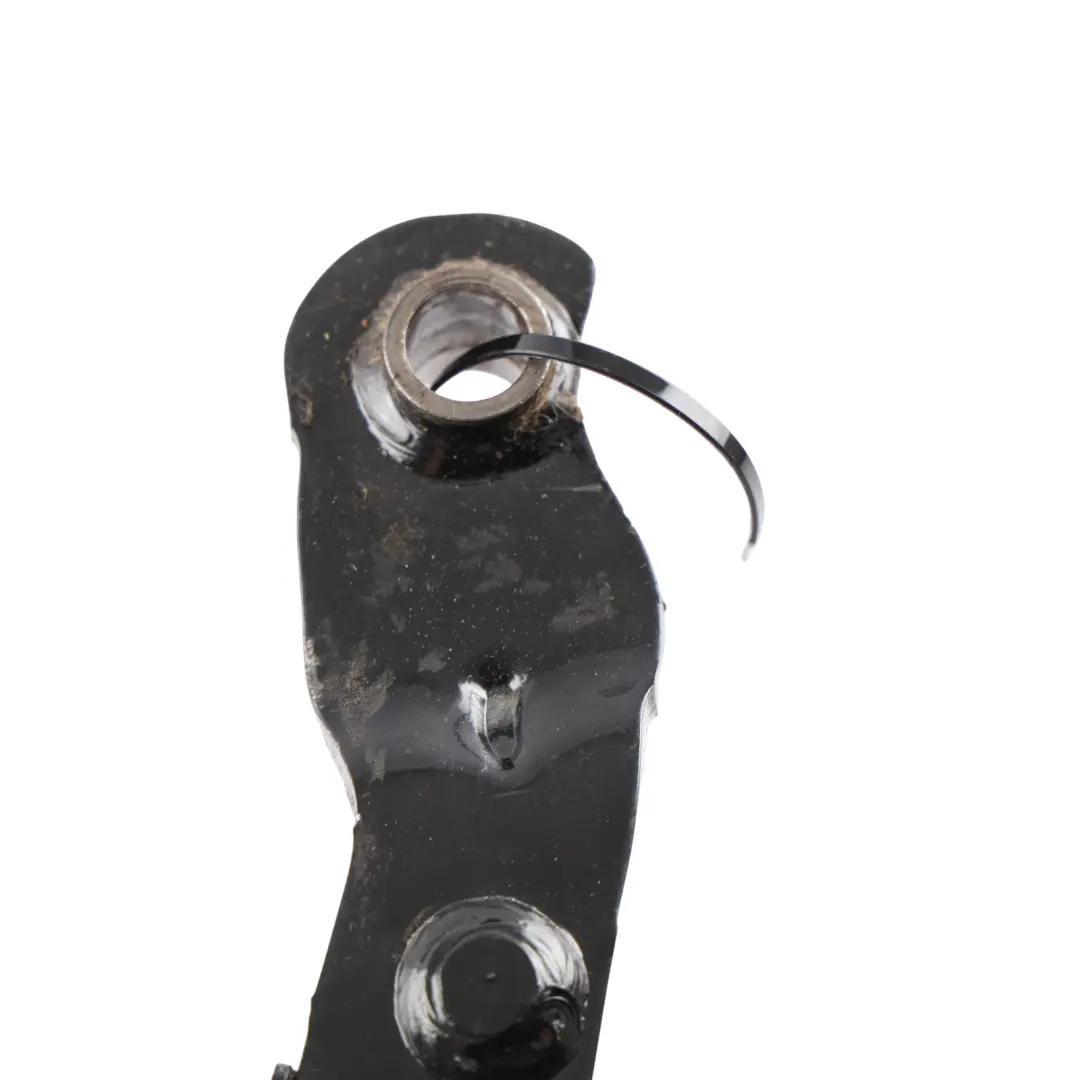

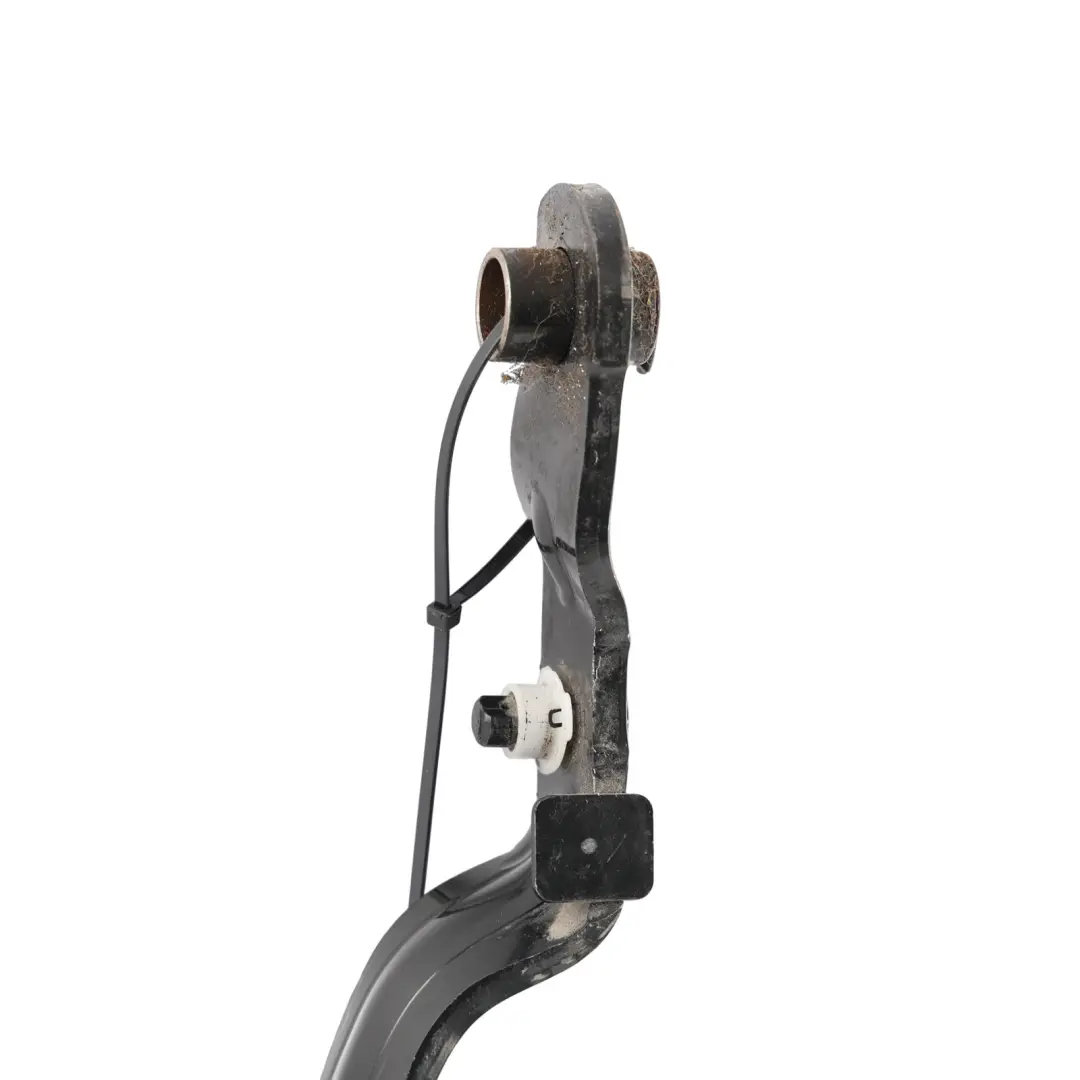

Brake pedal assembly construction

The assembly includes the complete brake pedal mechanism, prepared for integration with the vehicle's original equipment. The component features the factory operating lever, a mounting point to the body, and the interface for the brake servo or master cylinder, in accordance with the solution used in the Transit Custom Mk8.

The entire unit was developed by the vehicle manufacturer, which translates into correct structural rigidity, appropriate arm length, and the proper force transmission characteristics. Consequently, the braking system maintains parameters close to factory specifications, and the response to pedal pressure remains predictable.

Benefits of using the original pedal assembly

Using the original brake pedal assembly in the Transit Custom Mk8 provides a number of practical operational benefits:

• preservation of factory geometry and pedal travel,
• consistent brake feel after component replacement,
• compatibility with factory mounting points and equipment,
• reduction of the risk of play and malfunction compared to aftermarket replacements with uncertain parameters.

This used sub-assembly allows for an economical repair of the brake control system while maintaining the original manufacturer's design, which is particularly important in intensively used commercial vehicles.

Application in vehicles with manual transmission

The presented brake pedal assembly is intended for vehicles equipped with a manual transmission, meaning it is matched to the three-pedal layout (clutch, brake, accelerator). The positioning and operating angle of the pedal have been selected to allow for comfortable operation in city traffic, while driving under load, and in conditions requiring frequent braking.

Replacing the brake pedal assembly is recommended in situations where there is excessive play, uneven travel, mechanical damage, or incorrect pedal positioning relative to other control elements. Installing the original sub-assembly allows for restoring proper system operation without the need for structural modifications.
