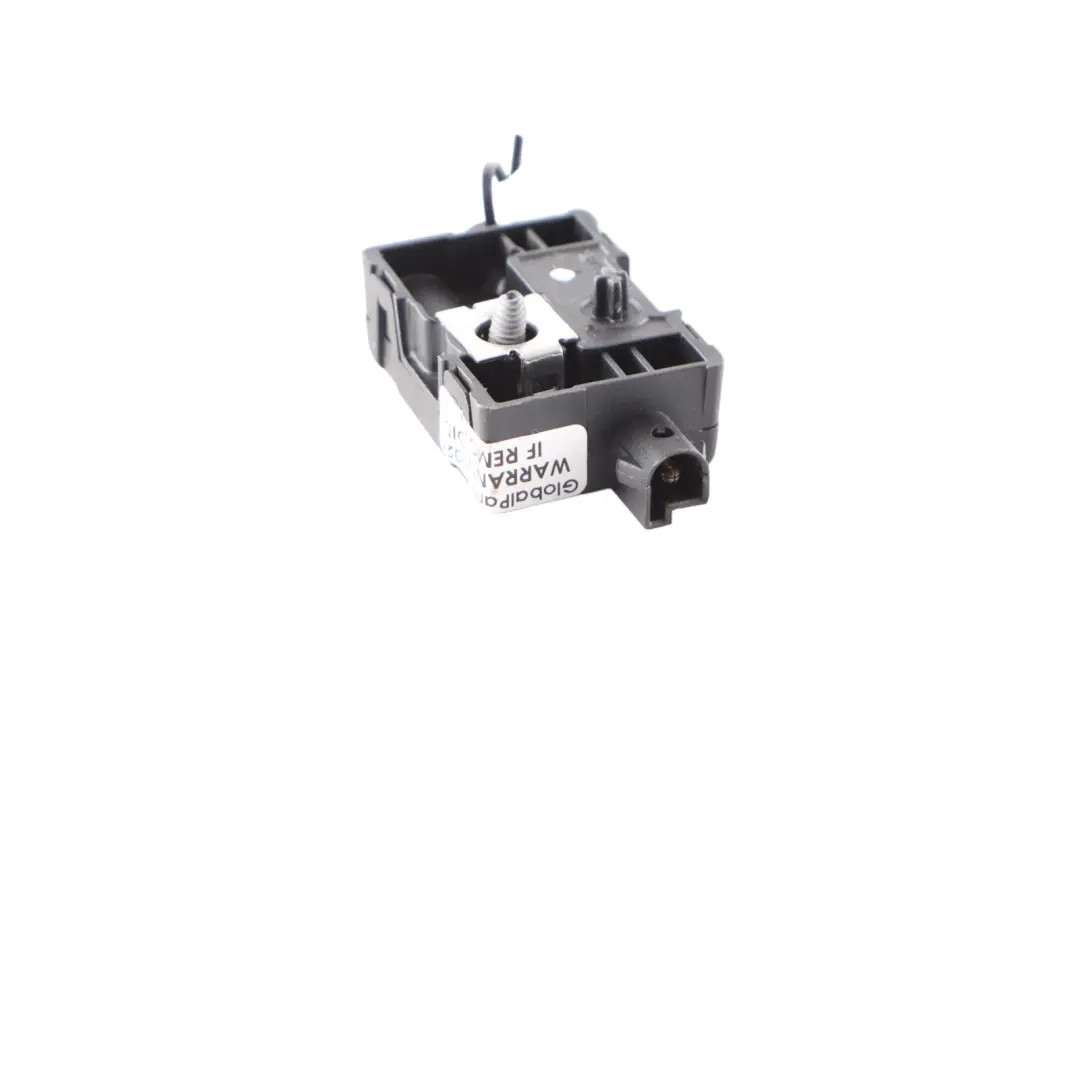

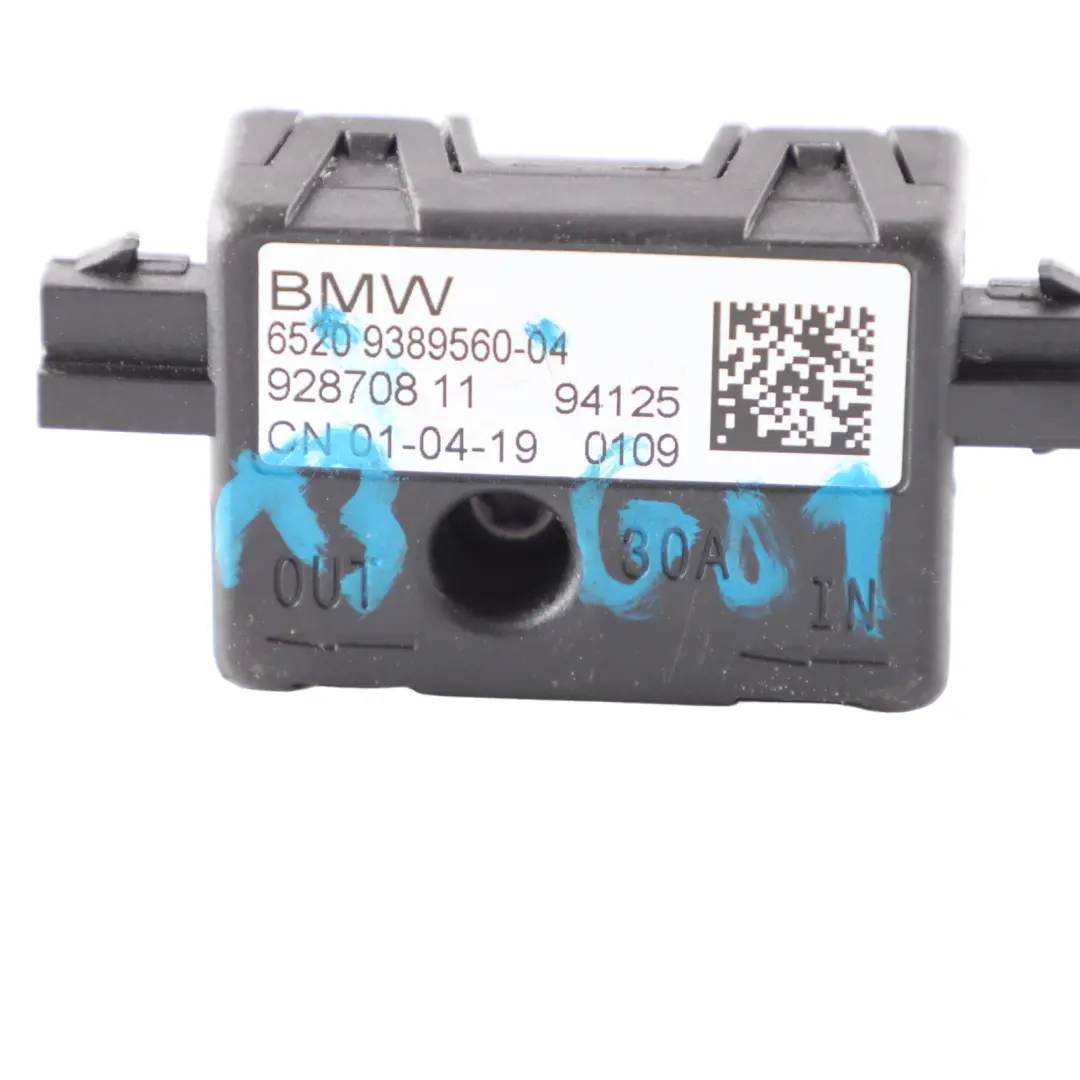

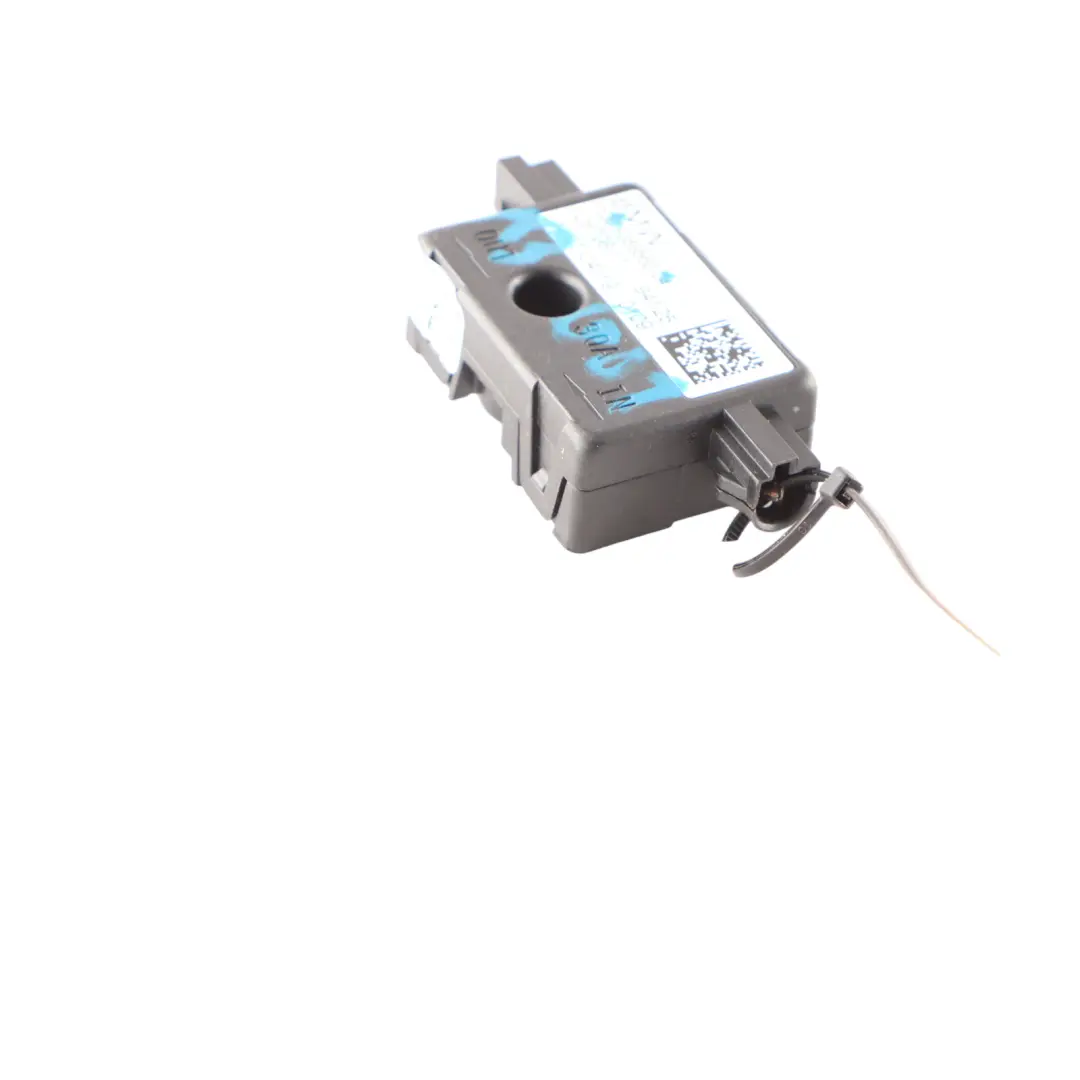

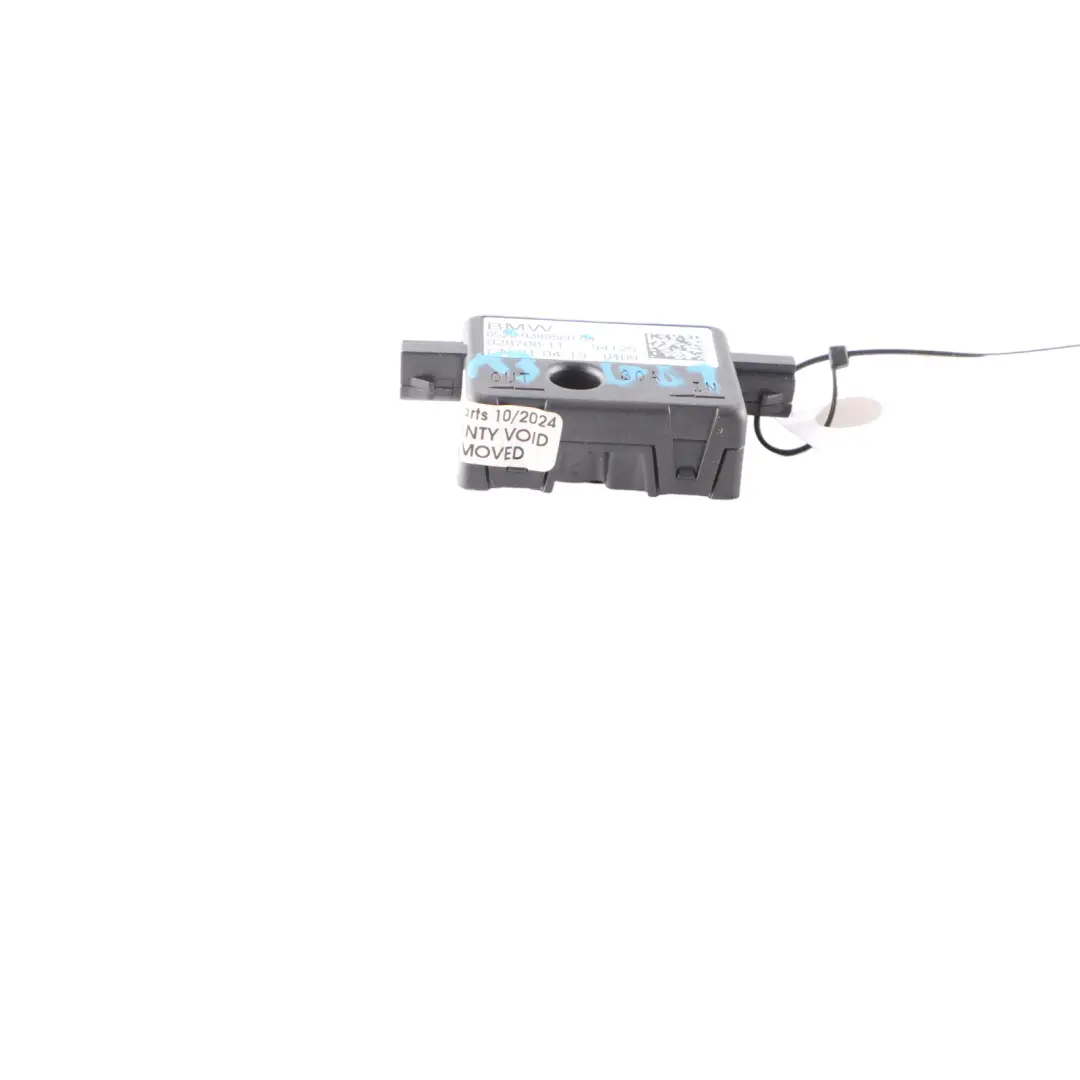

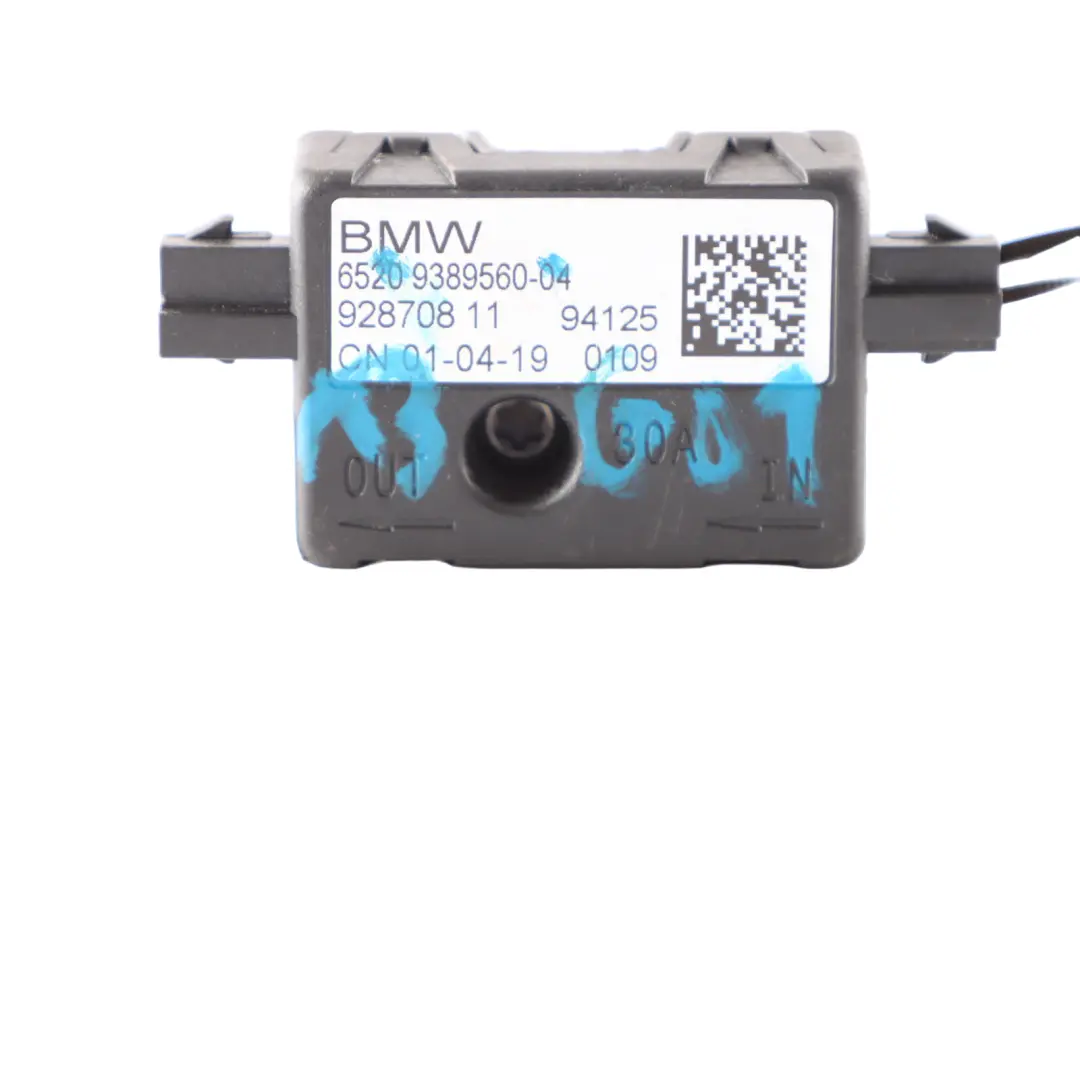

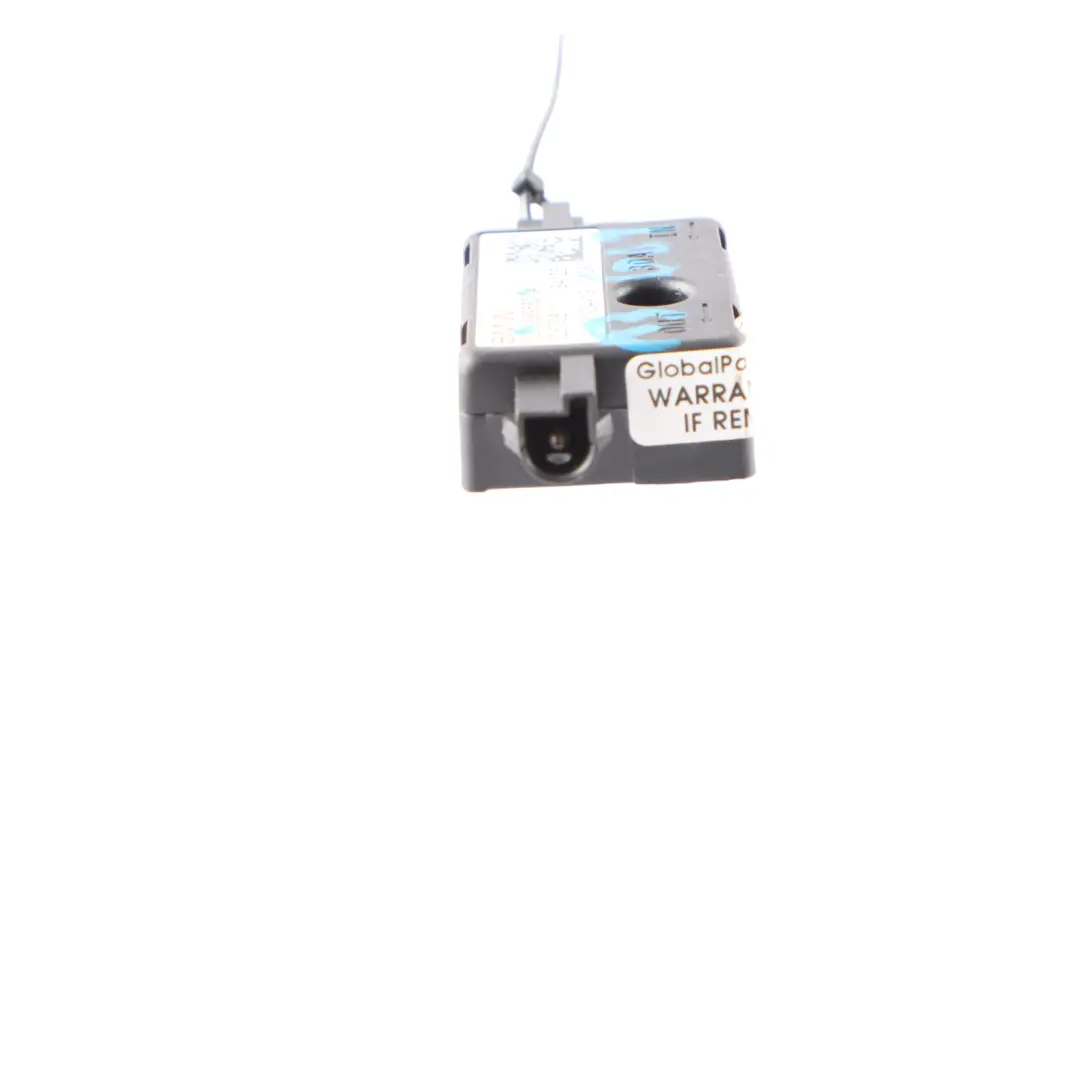

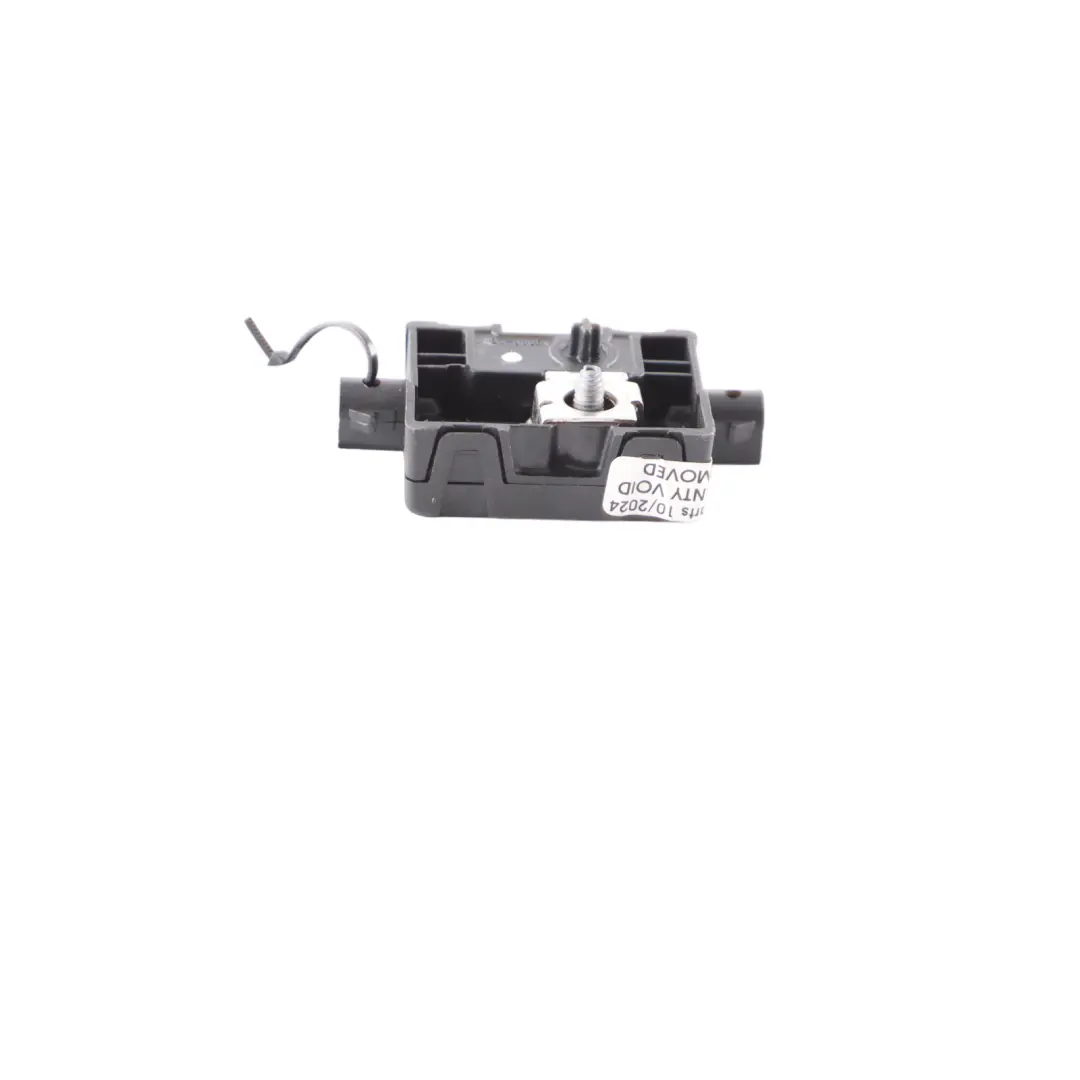

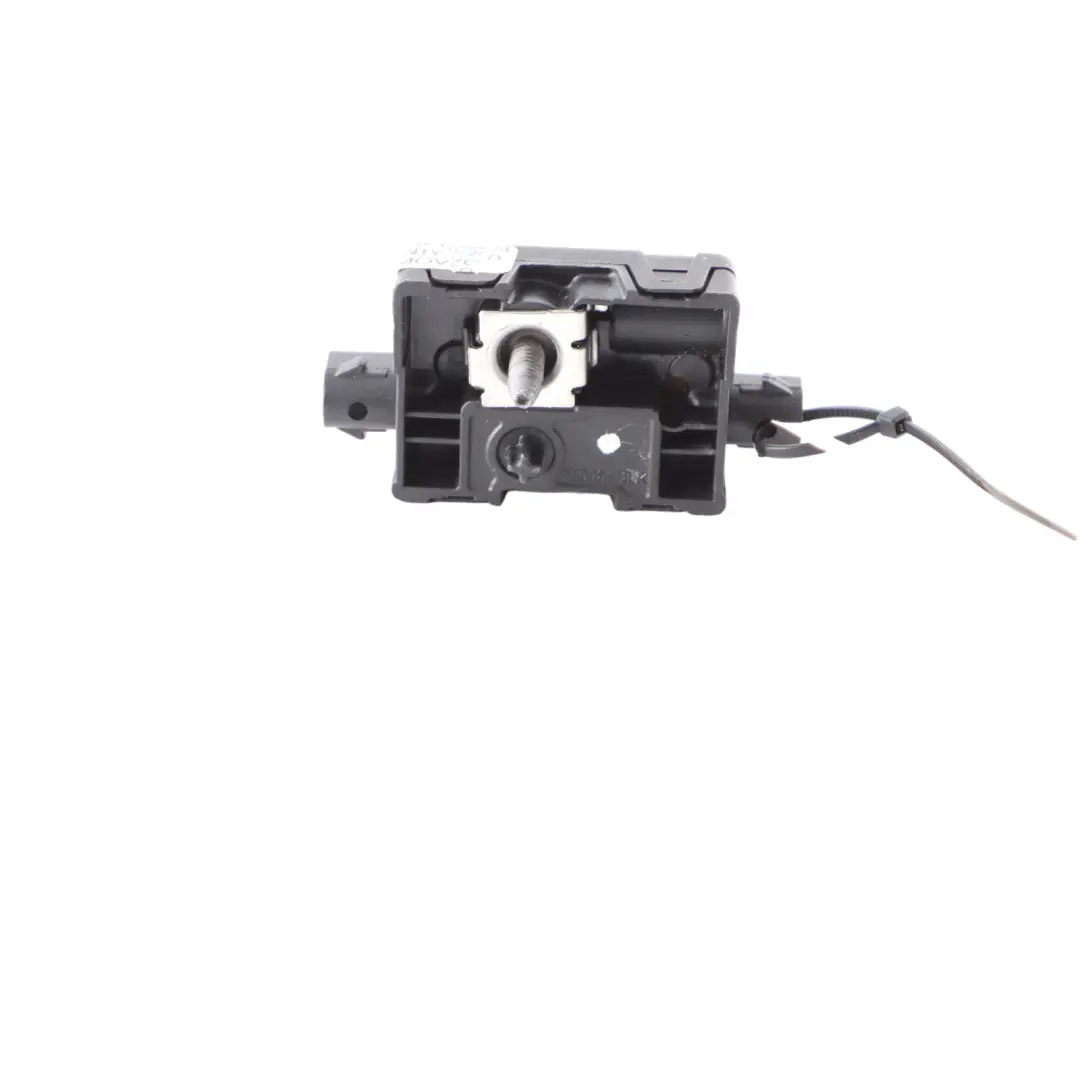

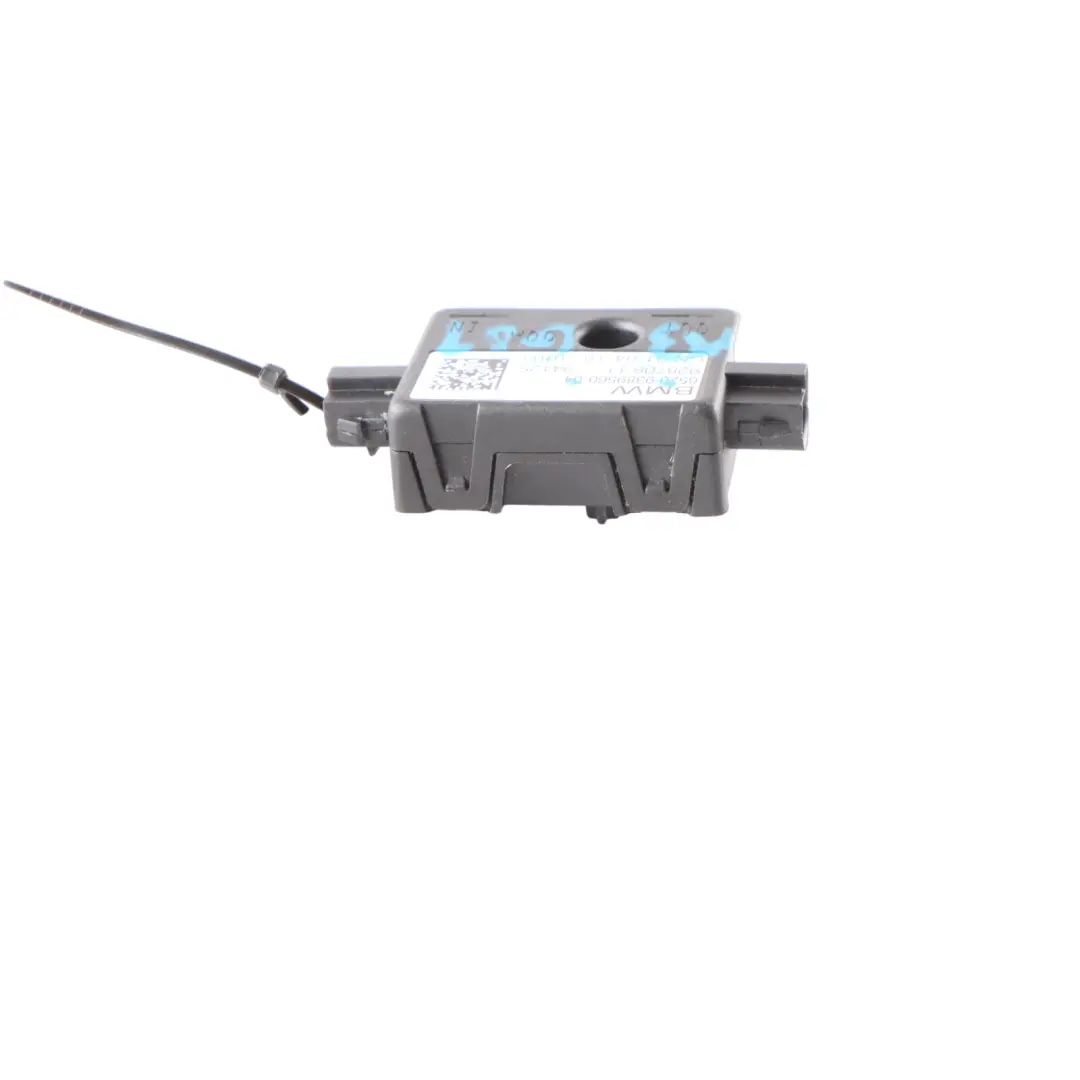

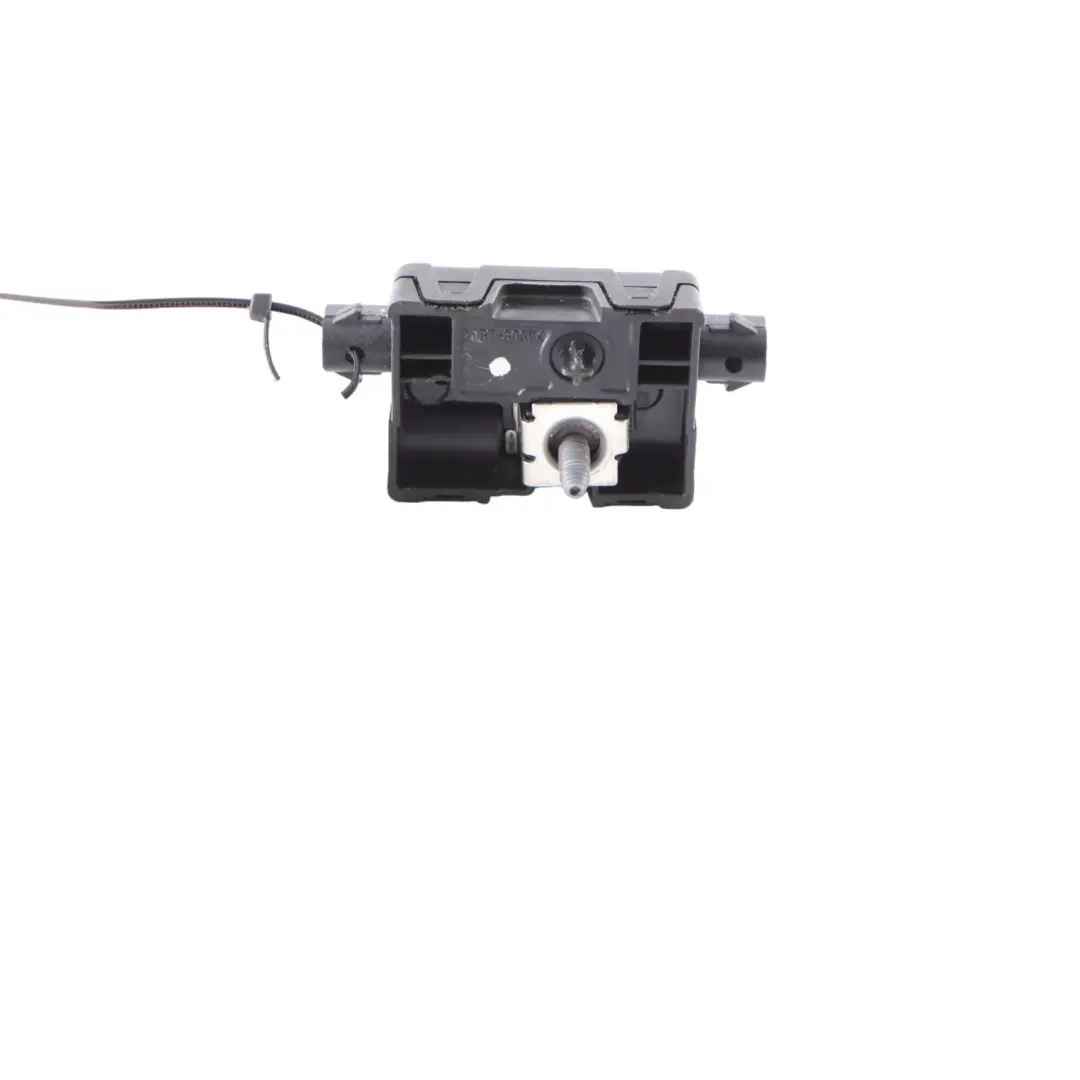

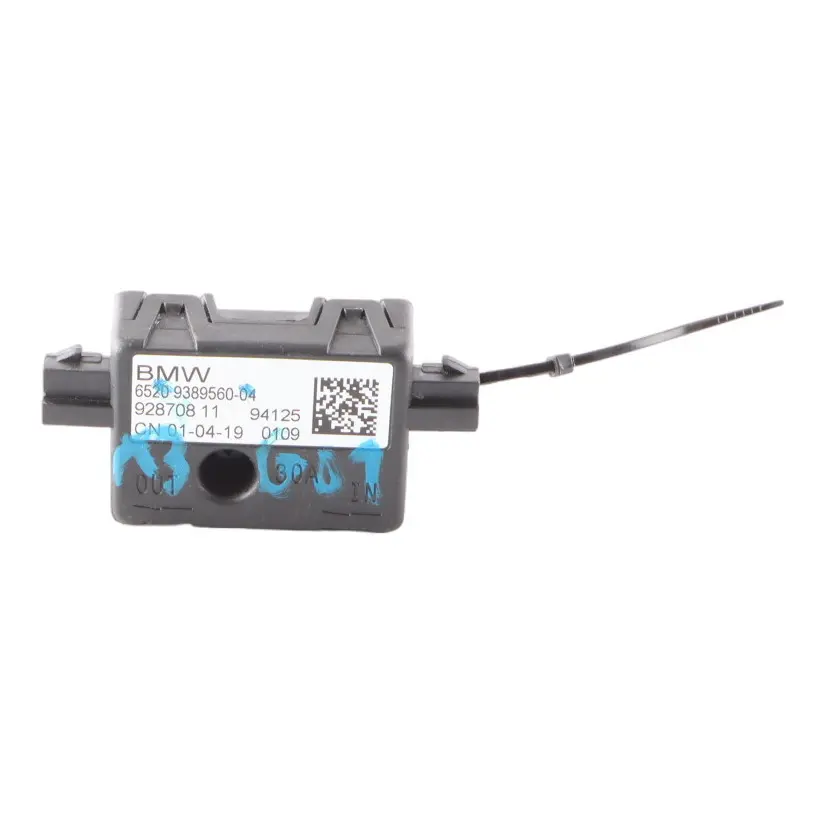

Aerial Trap Circuit BMW G30 X3 G01 Antenna Amplifier Module Control Unit 9389560

Aerial Trap Circuit BMW G30 X3 G01 Antenna Amplifier Module Control Unit is a specialized antenna system component designed for selected BMW models, engineered to ensure stable signal transmission and proper operation of factory multimedia systems. Its original BMW origin ensures a perfect fit with the electrical harness and full compatibility with the vehicle's architecture. This used component allows for a technically correct repair or replacement of a damaged module without the need for any modifications to the vehicle's installation.

Specifications and technical data

• SKU: 9389560
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9389560
• Substitutable numbers: 9389560, 65209389560
• Category: Other Starters, Alternators, ECUs & Wiring

Purpose and function in the vehicle installation

The Aerial Trap Circuit BMW G30 X3 G01 Antenna Amplifier Module Control Unit acts as an intermediary element in the signal path between the antenna and the vehicle's receiver systems. Its task is to ensure proper electrical matching, reduce interference, and maintain stable operating parameters for radio and communication systems. Thanks to its design compliant with BMW standards, the component works with the factory installation without the need for additional adapters or wiring modifications.

Benefits of using an original BMW component

Using an original antenna trap circuit in the antenna installation provides a number of practical benefits:

• maintaining factory quality of radio signal and data reception,
• proper cooperation with the vehicle's onboard systems,
• consistency with BMW service documentation,
• reduction of communication error risks within the vehicle network.

As a result, replacing a damaged element with an original, used component helps maintain the stability of electronic systems and avoids problems typical of low-quality aftermarket replacements.

Condition, fitment, and installation aspects

The offered component comes from the BMW group and is a part removed from a vehicle, which ensures compatibility with factory connectors and assembly standards. The design intended for operation in the antenna circuit facilitates quick identification of the mounting location and correct connection to the existing harness for service technicians and auto electricians. In practice, this translates into shorter repair times and reduced risk of incorrect connection.

Application in diagnostics and upgrades

The Aerial Trap Circuit BMW G30 X3 G01 Antenna Amplifier Module Control Unit can be used both for standard replacement of a damaged part and in diagnostic processes where it is necessary to rule out faults in the antenna path. In vehicles equipped with advanced multimedia and communication systems, the proper condition of this component is crucial for signal reception quality and the stability of control modules. An original, used component is a sensible choice for repairs where compliance with factory specifications and cost control are important.

If you are planning a comprehensive repair or upgrade of the electrical installation area in your BMW and need other elements from the same group, such as modules, connectors, or wiring harnesses, check out the available parts in the Other BMW category.

Additional information and technical support
