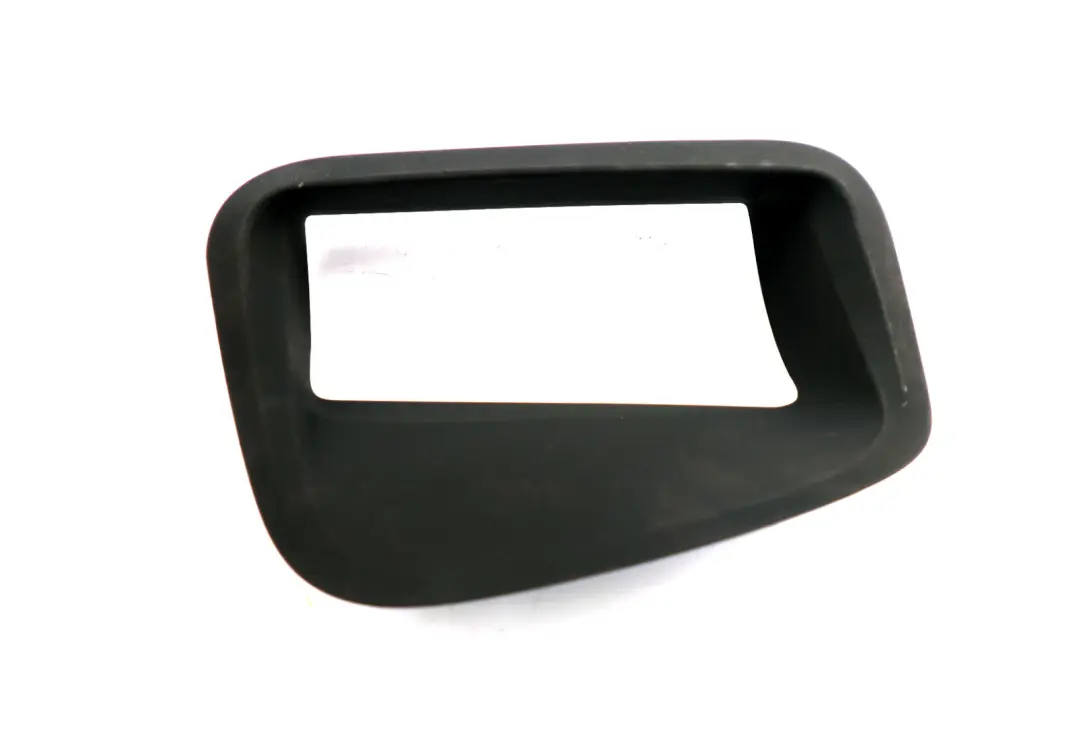

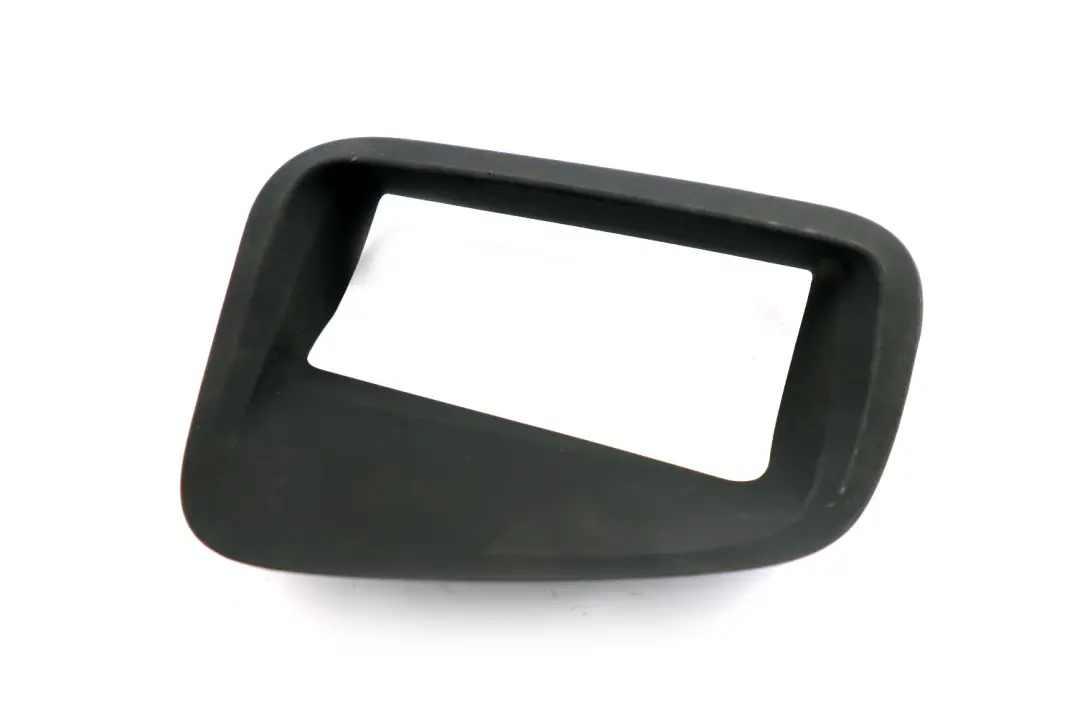

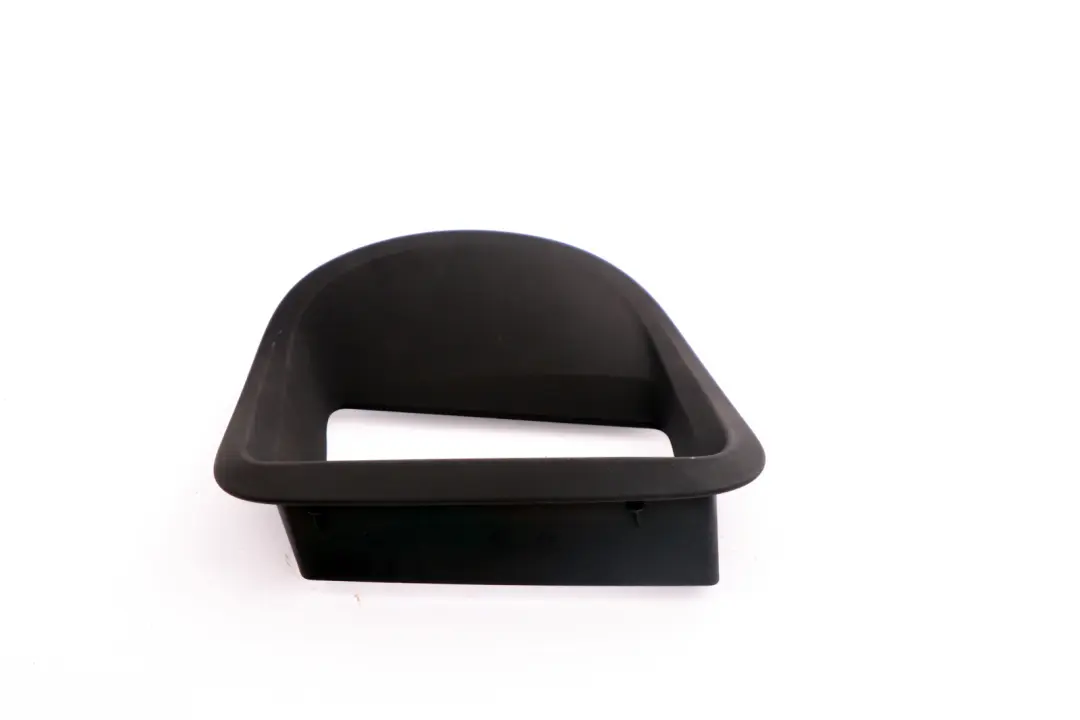

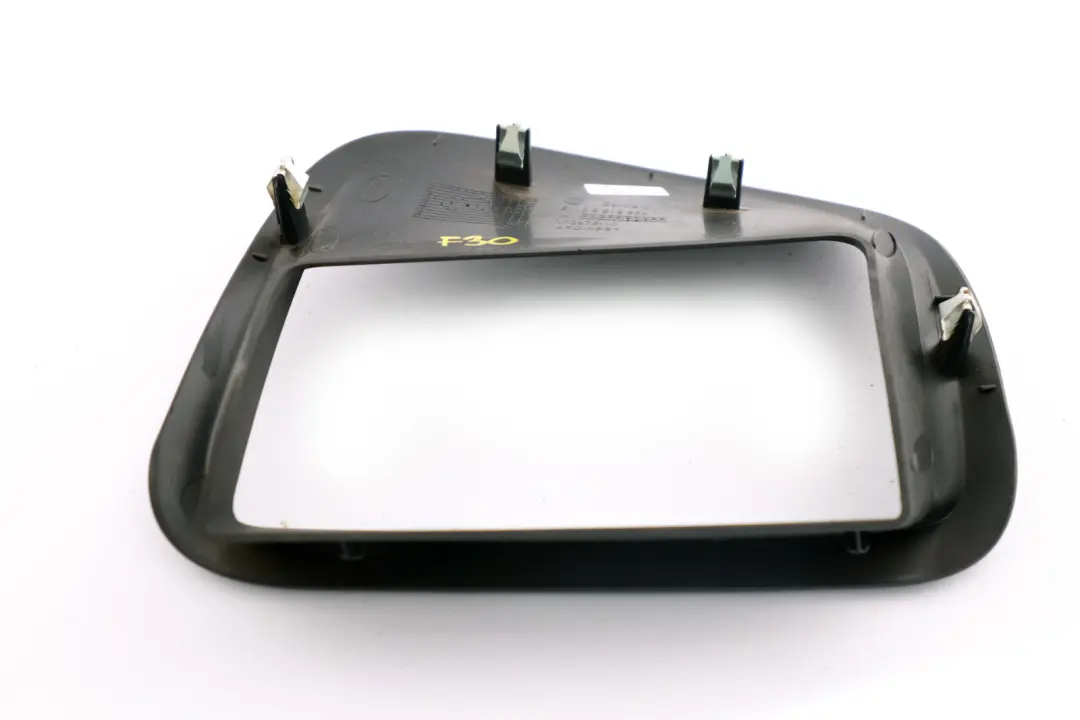

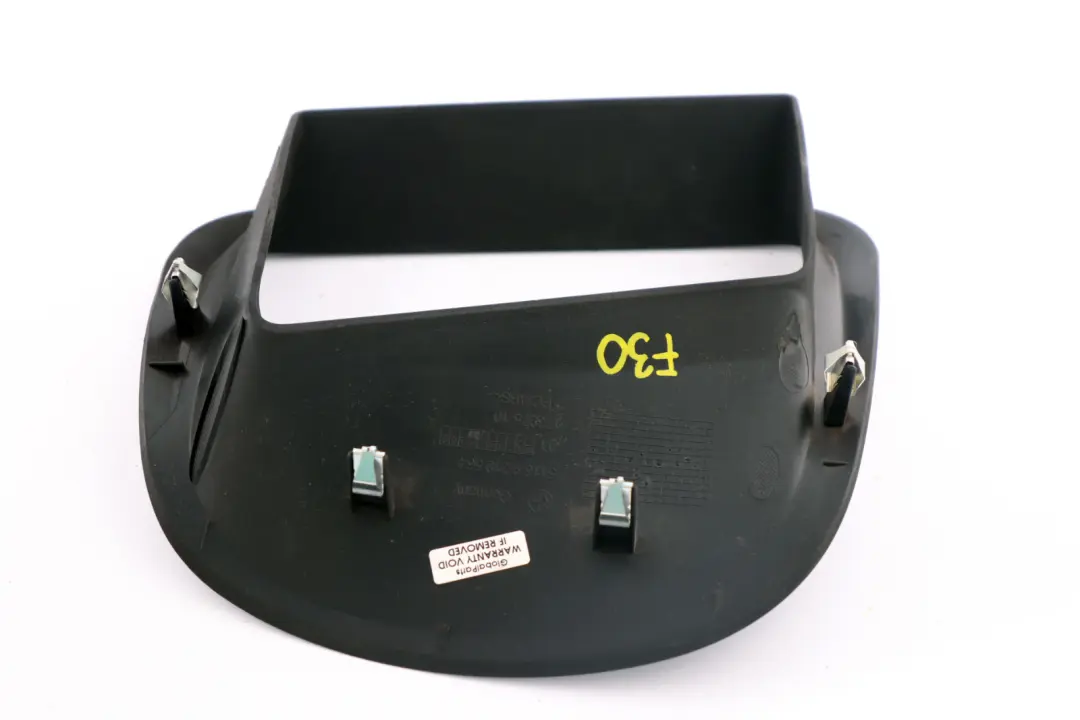

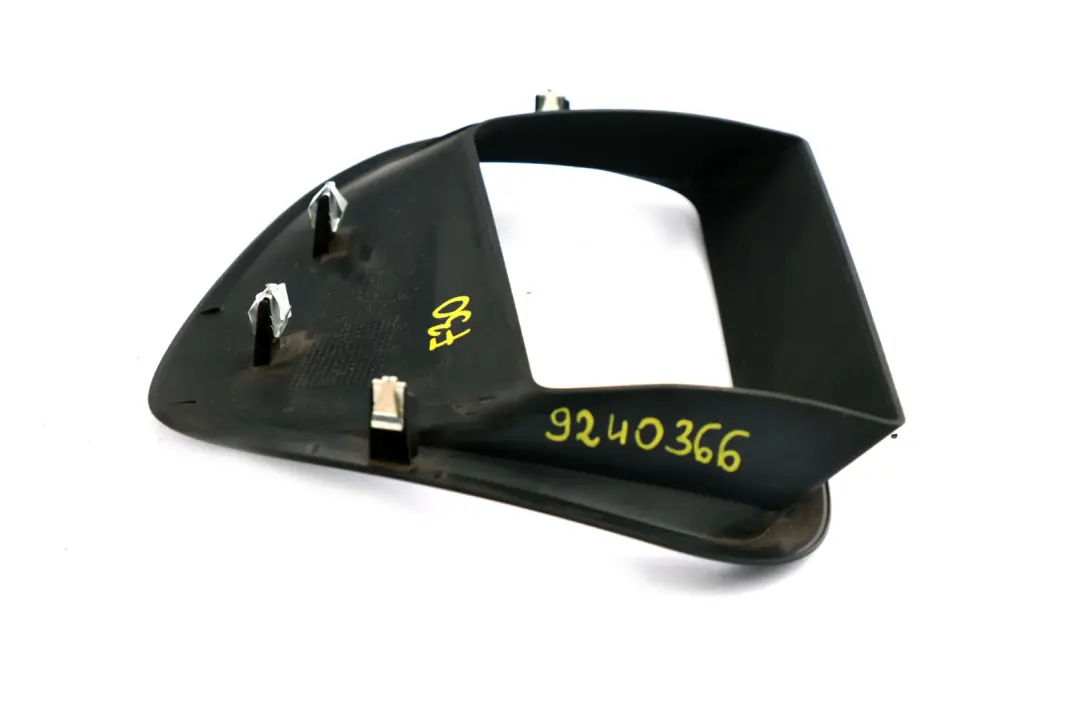

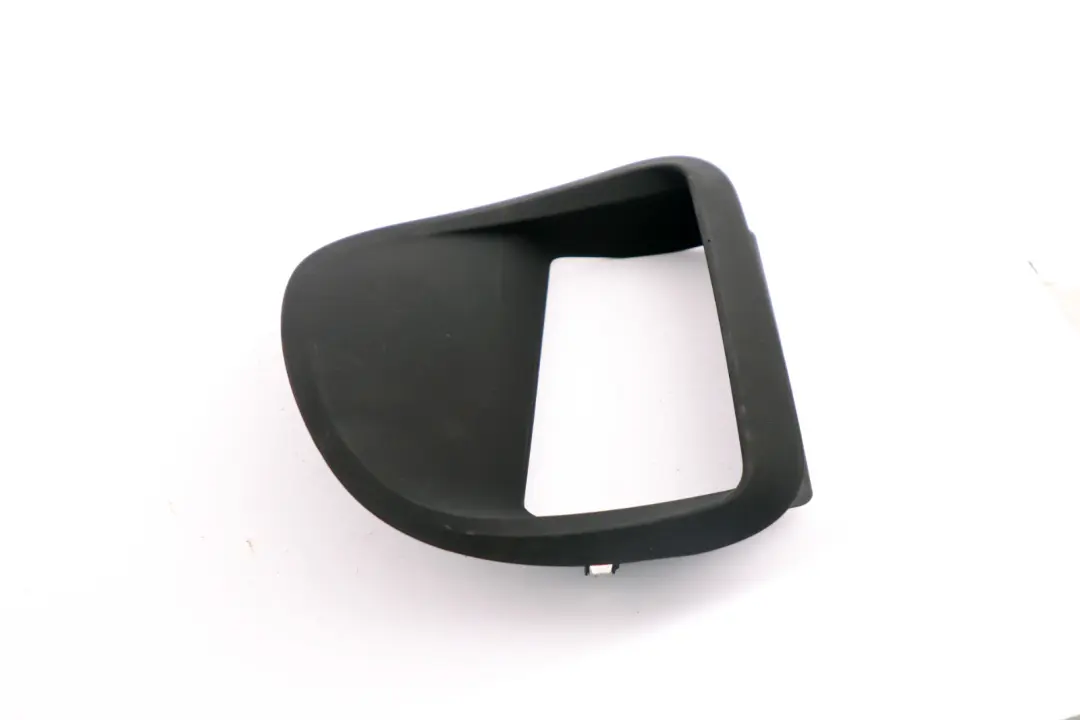

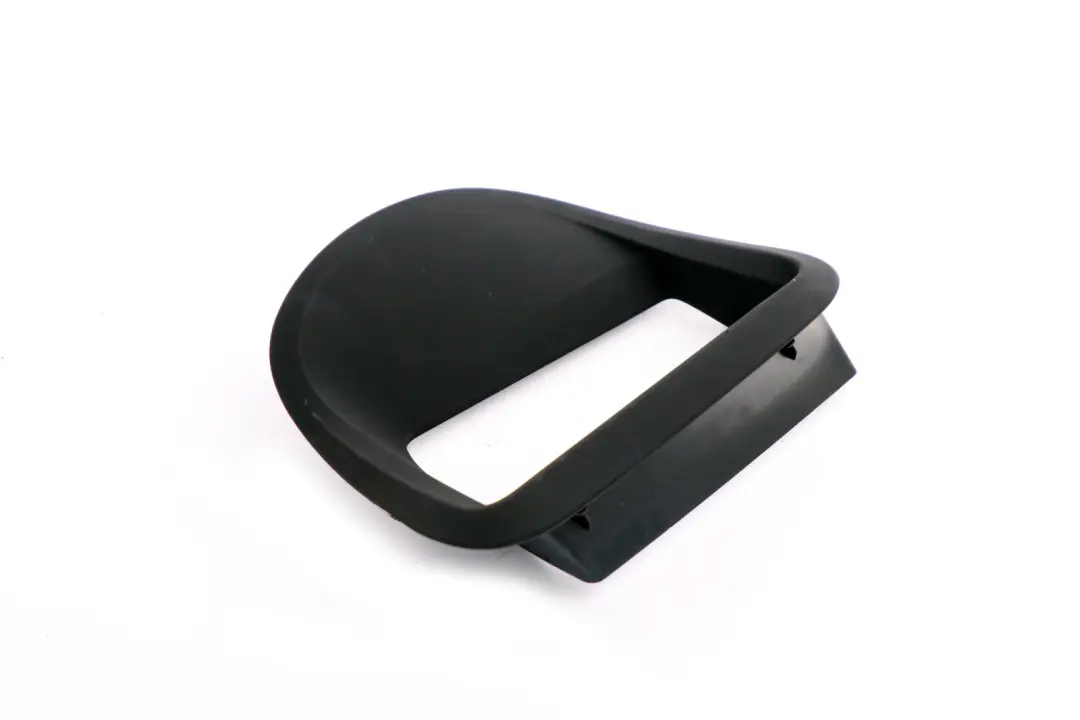

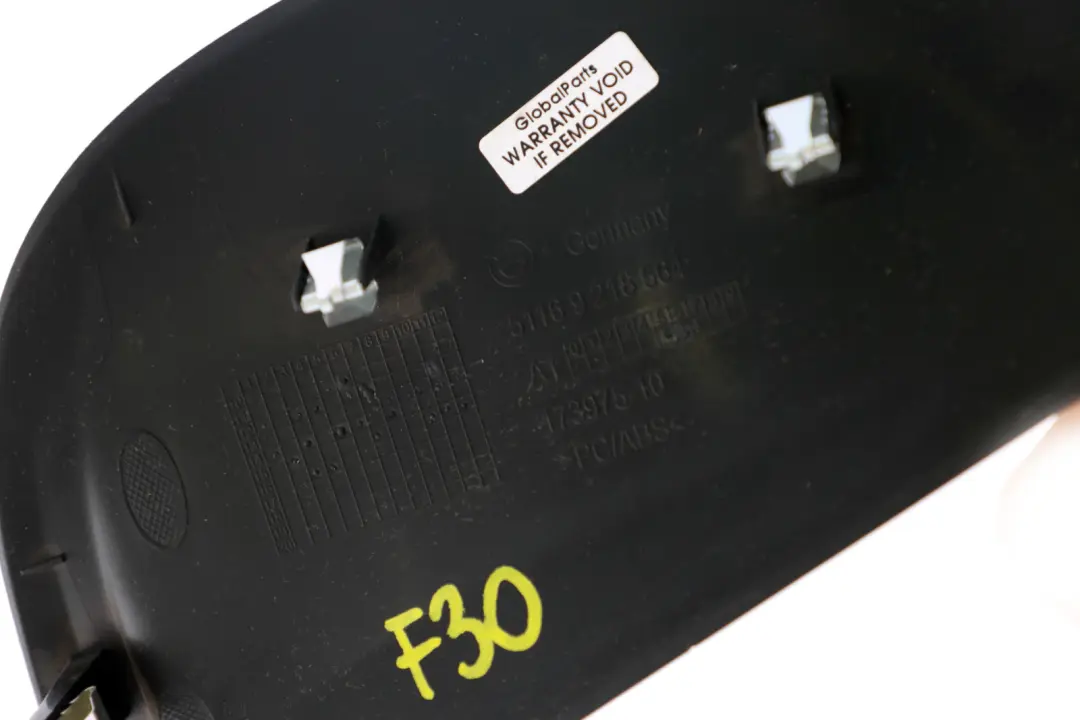

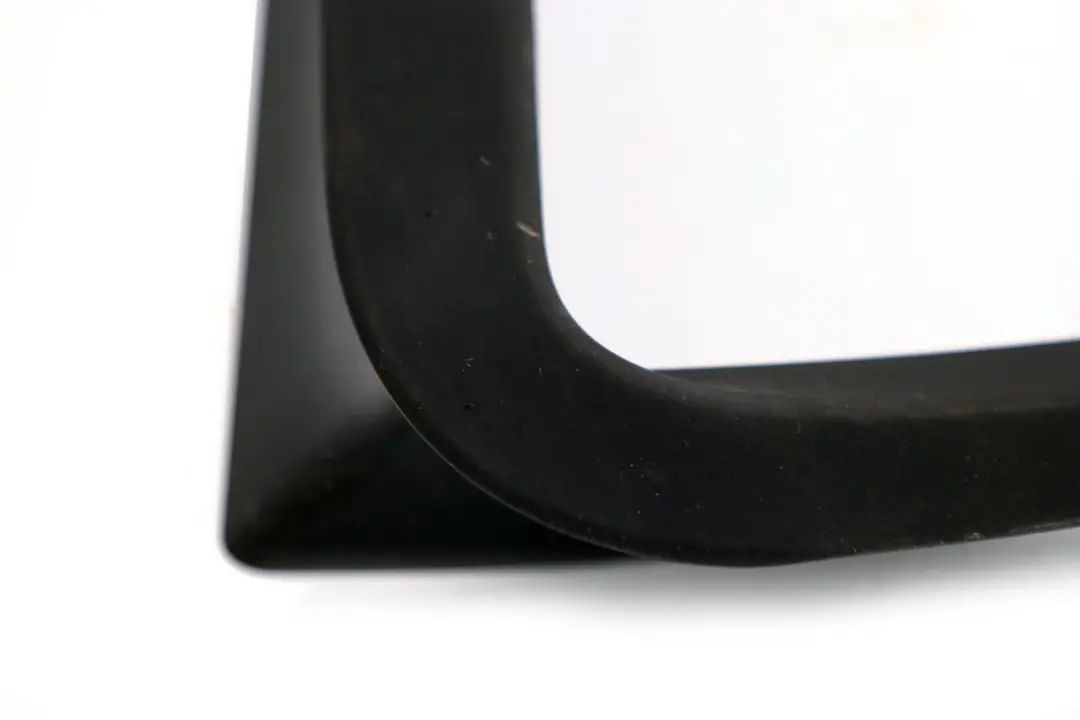

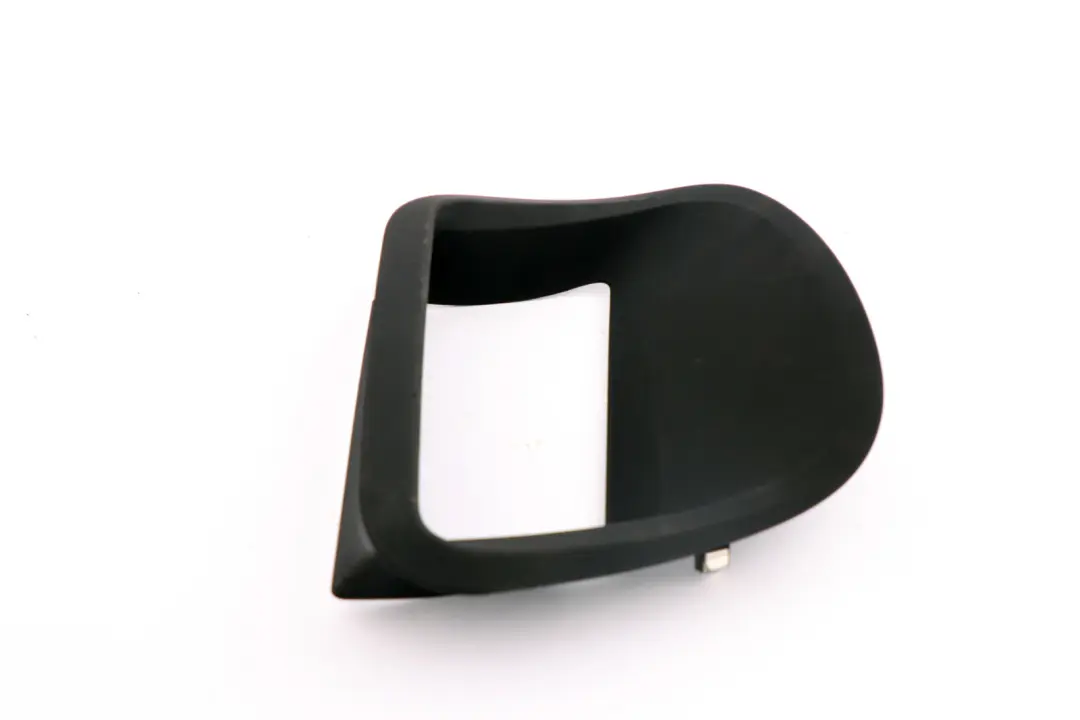

BMW 3 4 Series F30 F31 F32 F33 Trim Piece For Head Up Display Black 9218564

BMW 3 4 Series F30 F31 F32 F33 Trim Piece For Head Up Display is an original dashboard trim component designed for BMW 3 and 4 Series F3x generation vehicles equipped with a Head-Up Display. This black masking trim ensures a consistent, factory-standard cockpit finish and provides the correct frame for the HUD projector. Thanks to its precise fit, it serves as a practical solution when replacing a damaged or missing part.

Specifications and technical data

• SKU: rhd-9240366
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9218564
• Substitutable numbers: 51459240366, 9240366, 9218564
• Color: Black
• Category: Other Interior Parts & Accessories

Purpose and compatibility

The Head-Up Display trim has been designed specifically for BMW 3 and 4 Series models from the F30, F31, F32, and F33 families, in versions factory-adapted for HUD installation. The component is an integral part of the upper dashboard area, located in the projector cavity, ensuring stable seating and an aesthetic finish for this module.

Due to its design, which complies with factory specifications, the trim allows for the preservation of the original cockpit surface geometry, which is essential both for the proper operation of the display and for maintaining a consistent interior appearance.

Construction and material properties

The component is made of plastic adapted to the conditions inside the vehicle, including temperature fluctuations and exposure to sunlight. The black finish allows for harmonious integration with the standard dashboard panels in BMW F3x models, minimizing light reflections in the HUD projection zone.

The profile of the trim has been shaped to adhere precisely to the dashboard surface and the display housing, which reduces the risk of unwanted gaps, vibrations, or rattles while driving. The factory geometry facilitates installation and ensures repeatable fitment with other cockpit elements.

Function in the Head-Up Display system

The trim acts as a cover and frame for the HUD projector, stabilizing its position relative to the dashboard surface and the windshield. A correctly selected trim component:

• ensures proper framing of the projector cavity,
• limits the ingress of contaminants into the installation space,
• helps maintain a constant position of the HUD module relative to the driver's field of vision,
• supports the preservation of factory aesthetics and cockpit ergonomics.

As a result, the displayed information remains legible, and the entire upper dashboard area maintains a consistent, orderly appearance.

Condition and service application

The offered component is used, making it a practical choice for accident repairs, replacing a damaged dashboard, or retrofitting a car with a Head-Up Display using original components. Using a part from the same model line facilitates compliance with dimensions and mounting points compared to factory specifications.

Choosing an original trim reduces the risk of fitment issues typical of aftermarket parts with universal geometry and helps maintain the vehicle's value by ensuring consistency with the factory interior specification.

Integration with other interior elements and additional resources

When working on the installation or replacement of a Head-Up Display, it is worth paying attention to the condition of adjacent dashboard panels, air vents, and other covers in the upper part of the cockpit to achieve a visually and functionally uniform set of elements upon completion. If you are planning a comprehensive repair or upgrade of the cockpit area in your BMW and need other parts from the same group, such as covers, panels, or additional trims, check the available parts in the Other BMW category.
