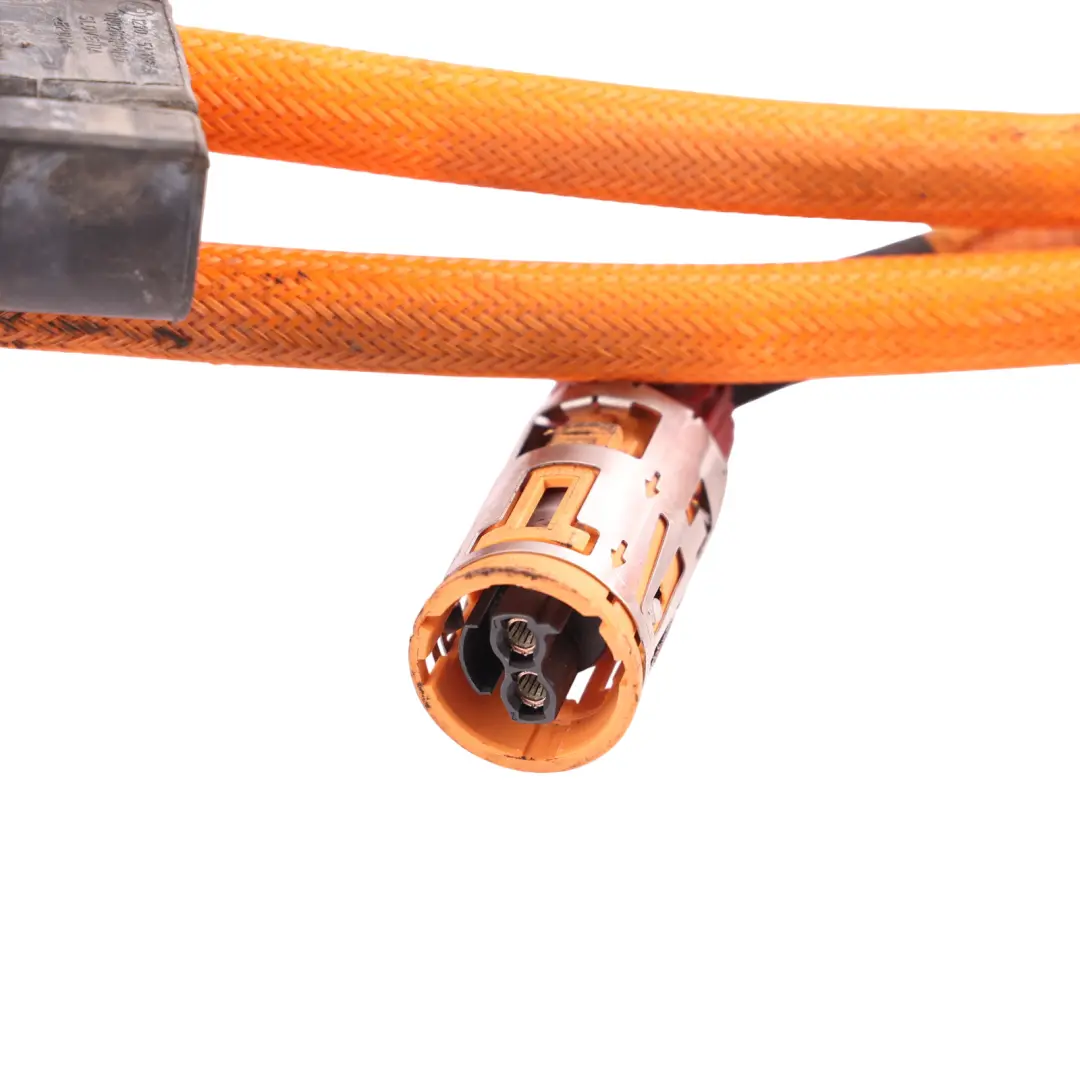

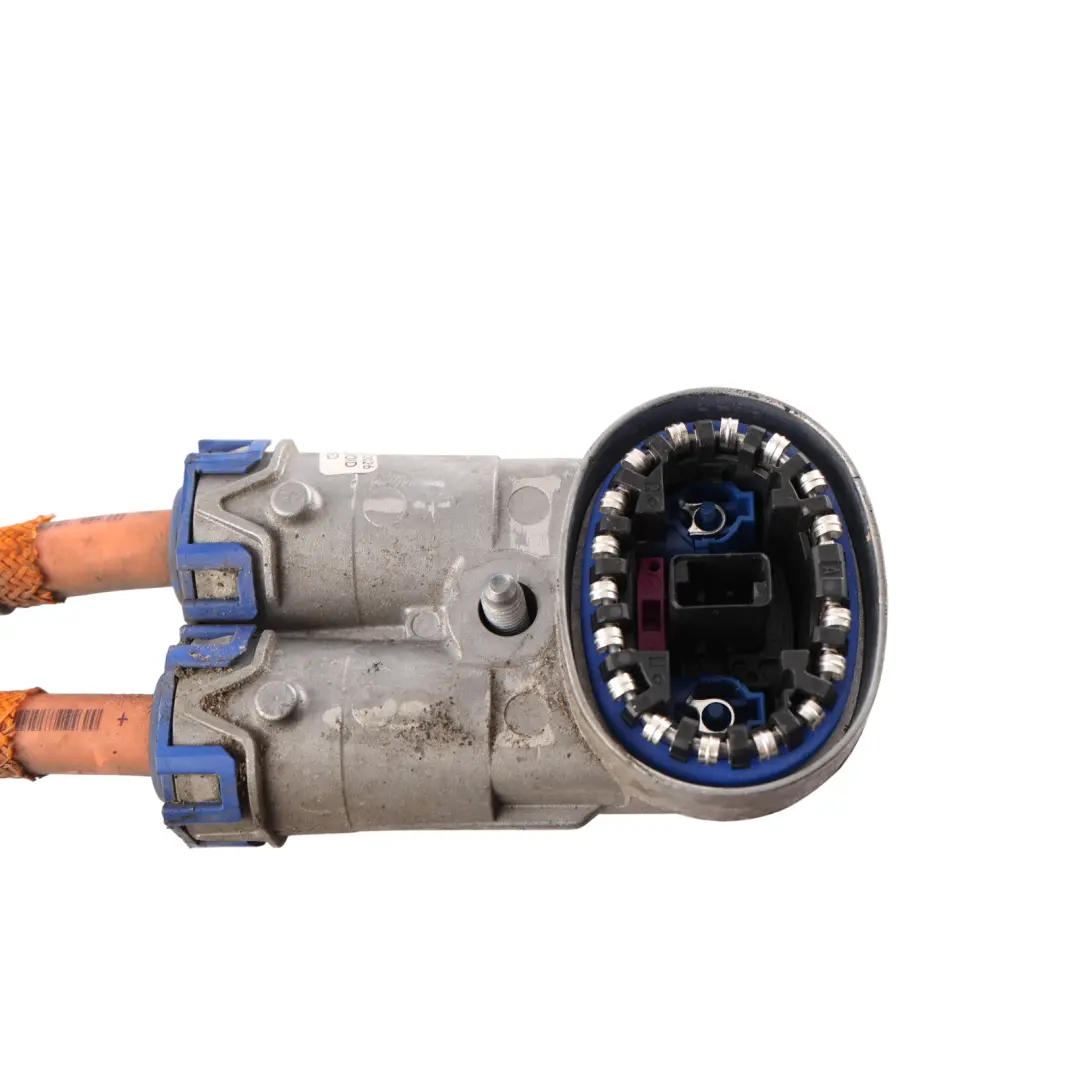

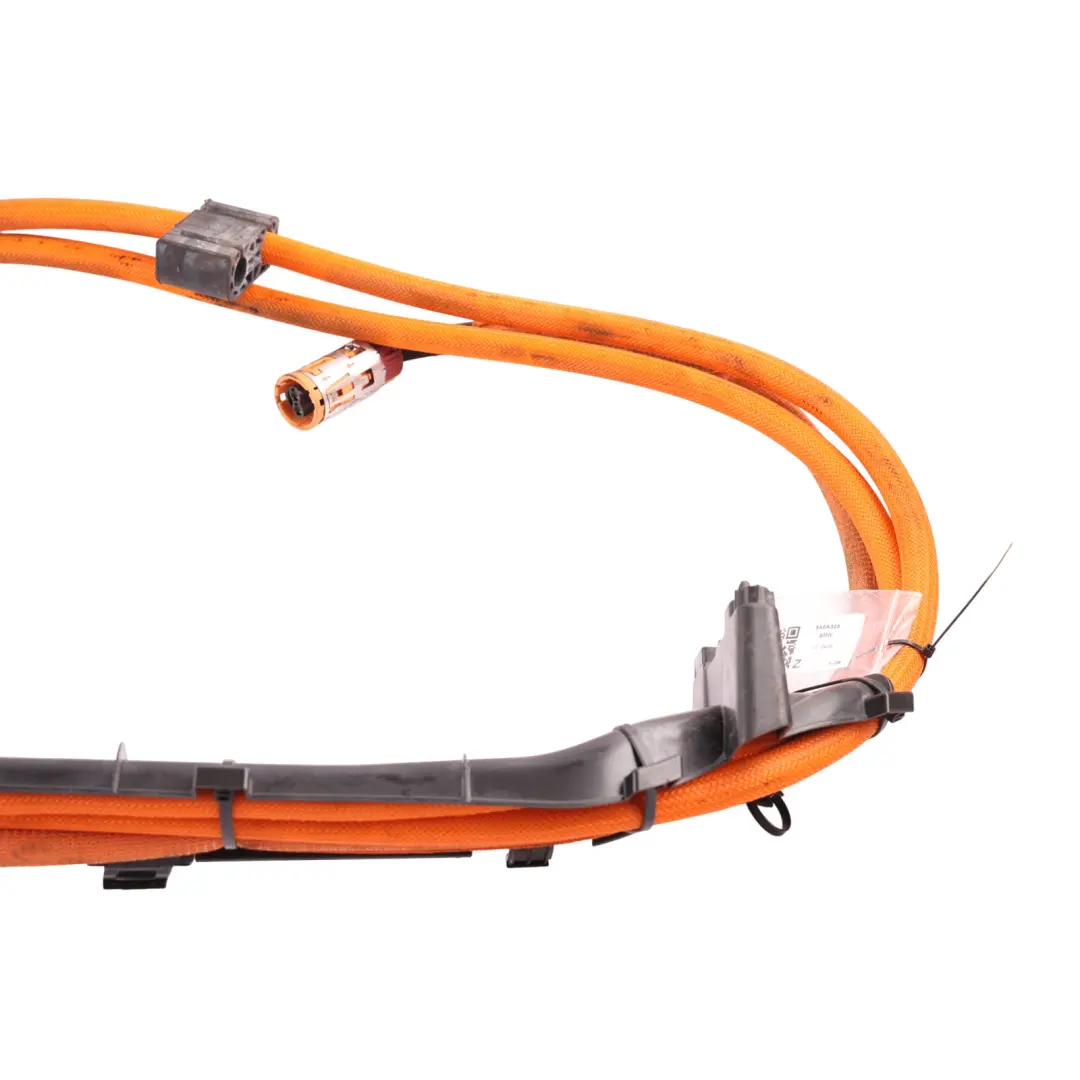

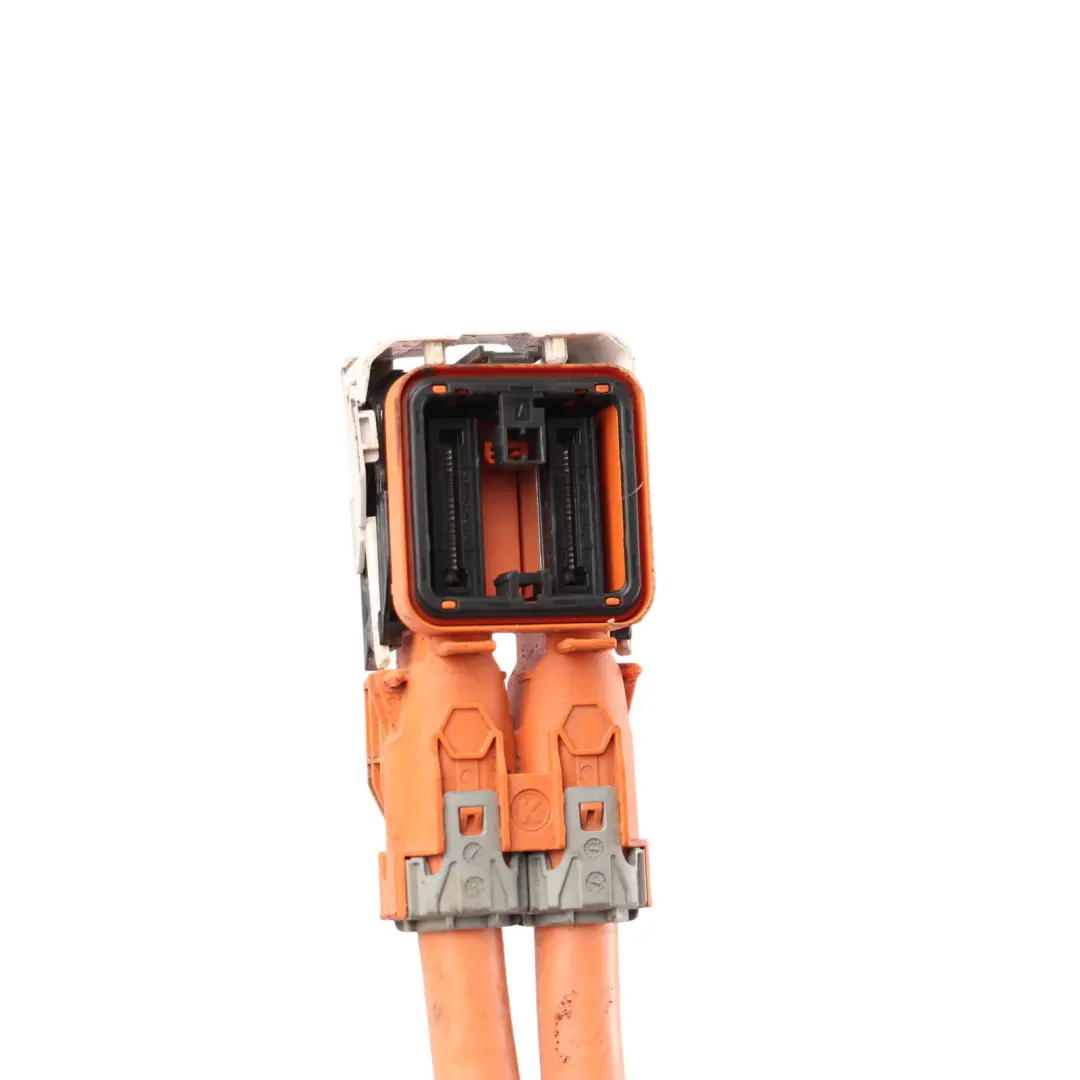

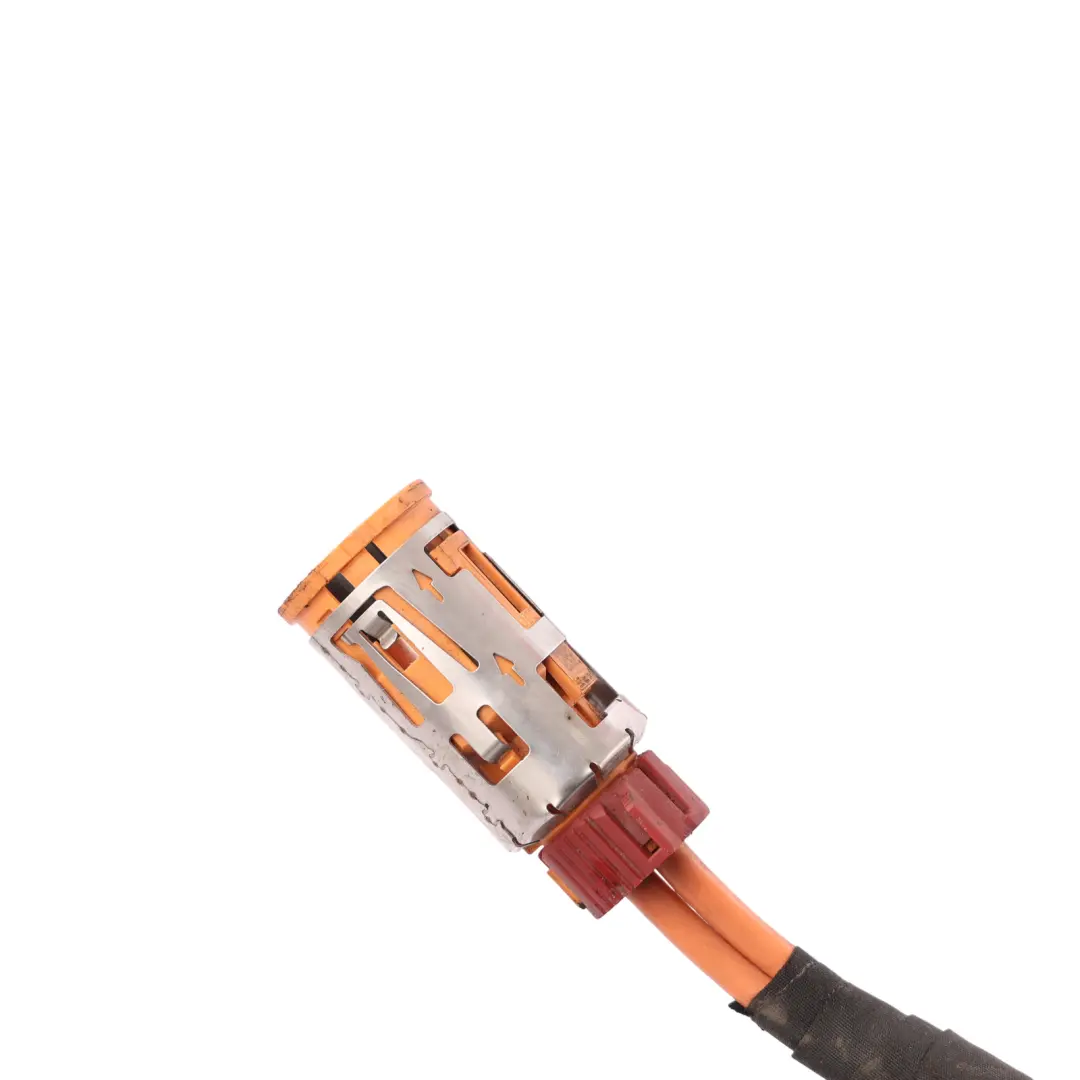

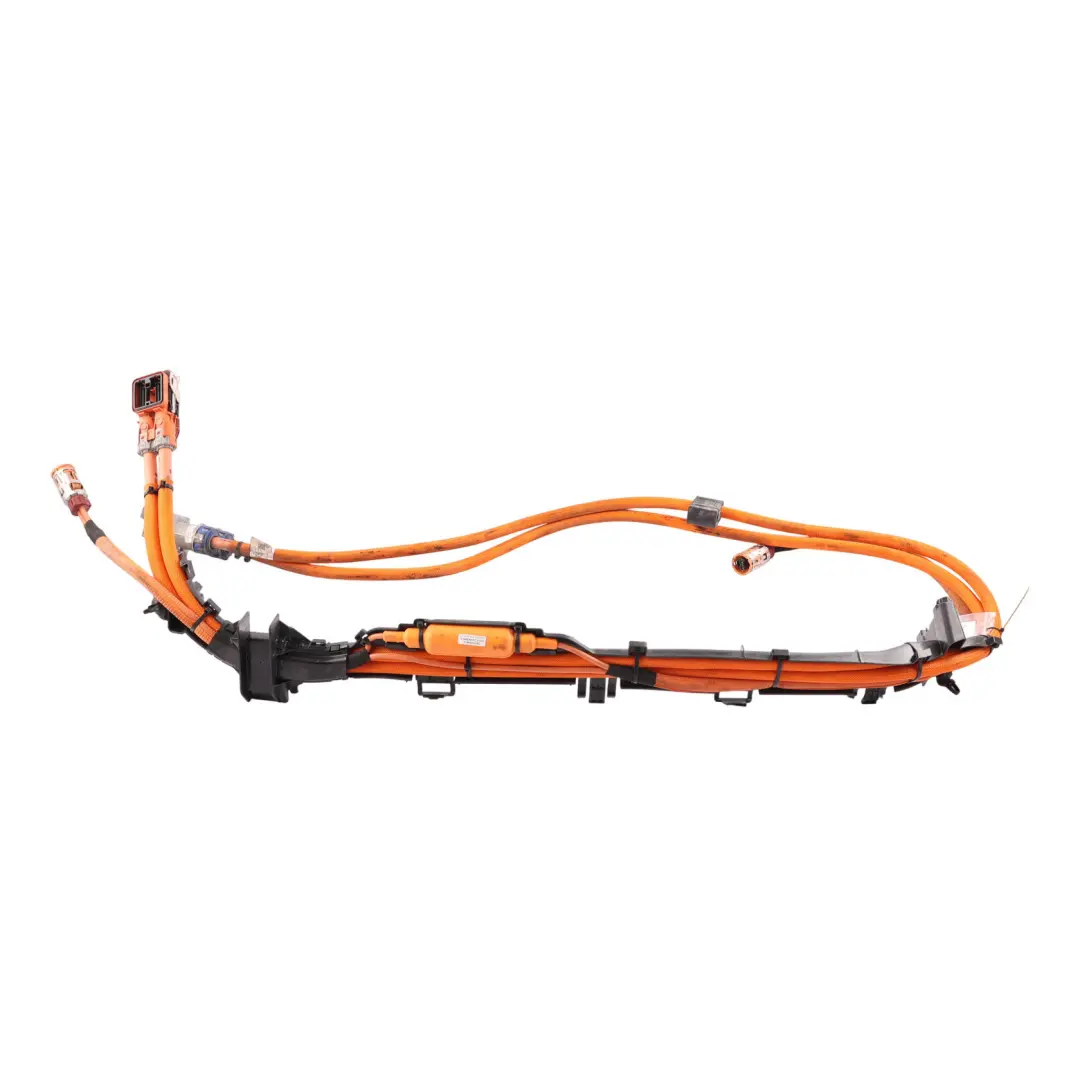

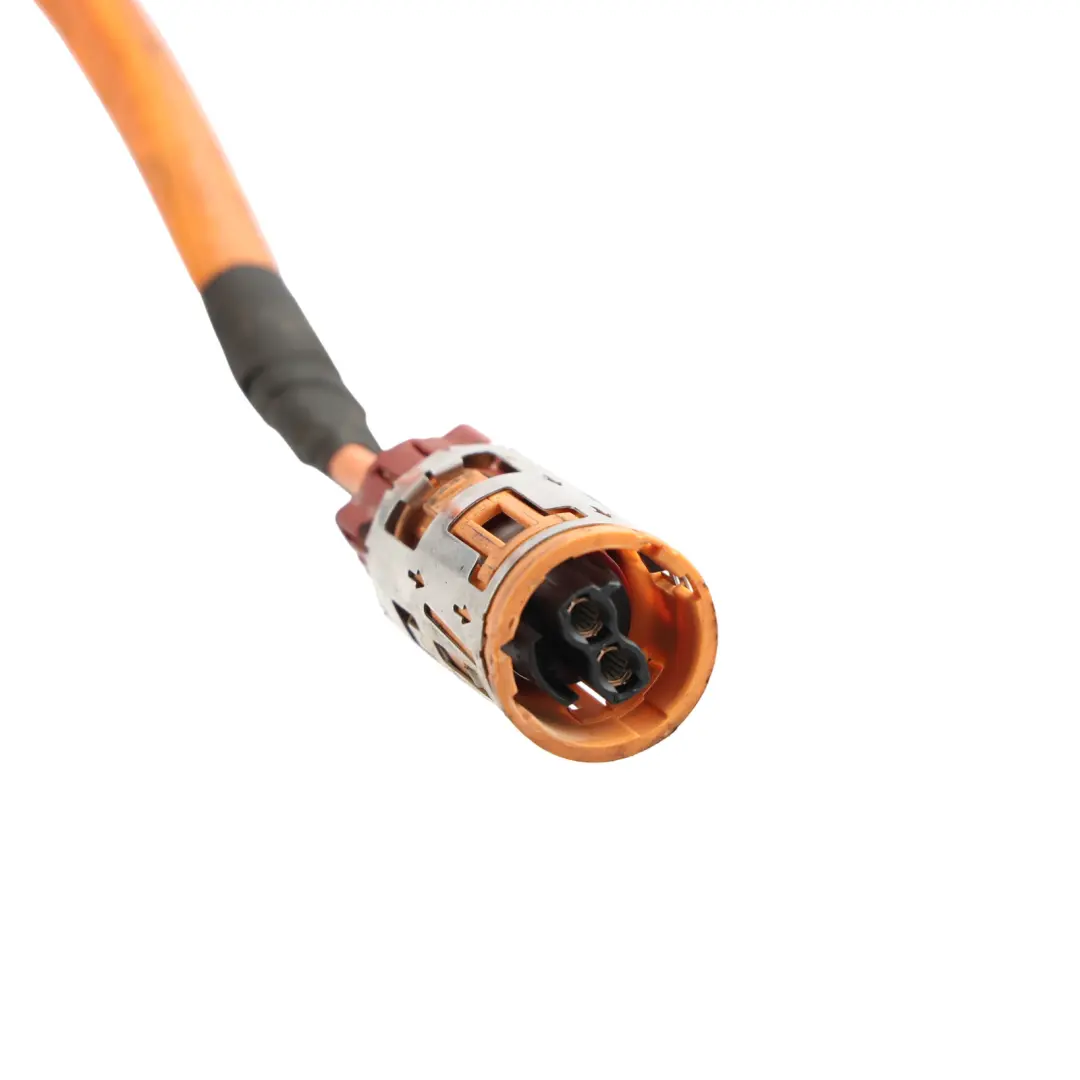

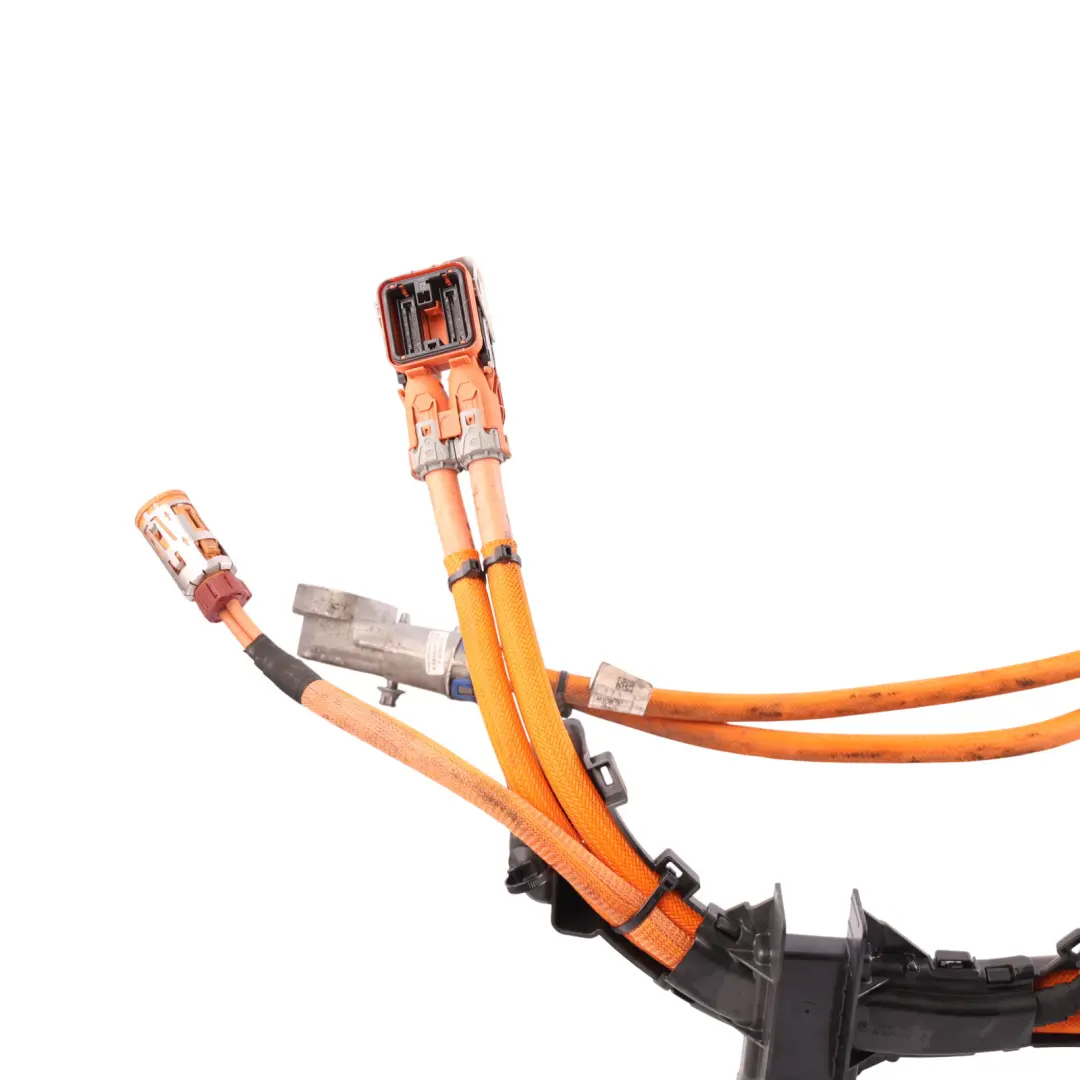

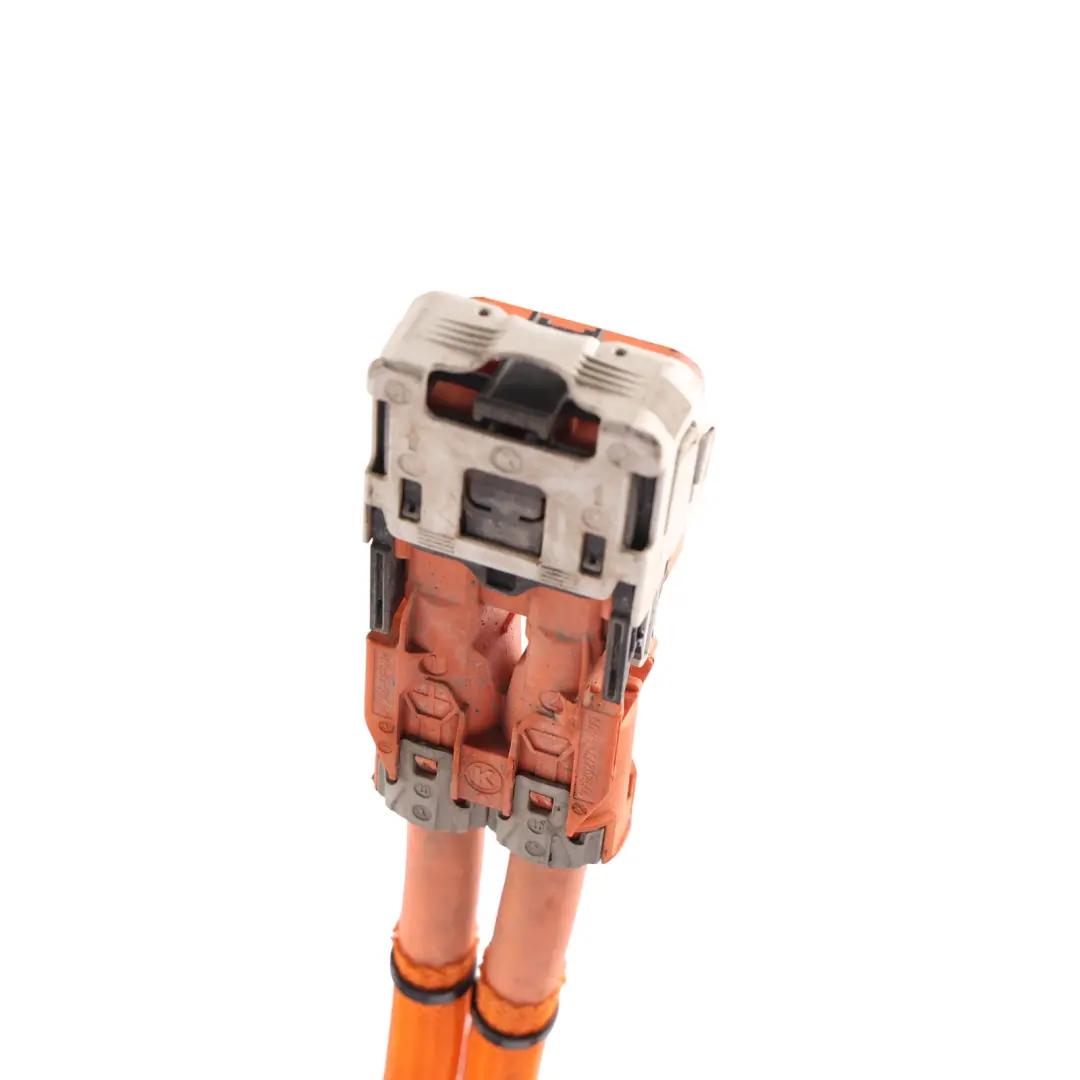

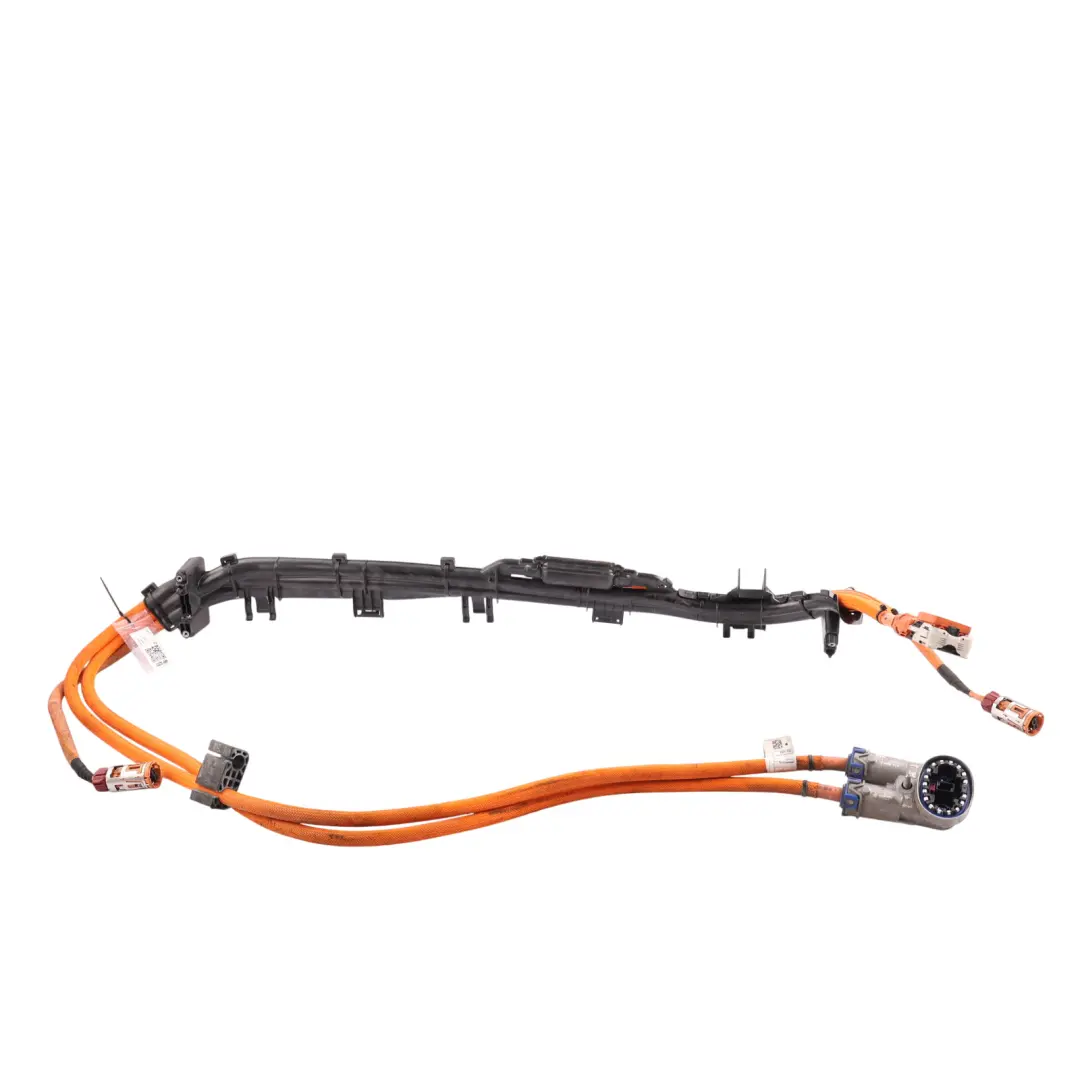

BMW X1 U11 Hybrid HV High Voltage Wiring Harness Loom Drive Electronics 5A6A325

BMW X1 U11 Hybrid HV High Voltage Wiring Harness Loom Drive Electronics is a specialized component of the hybrid system, designed for the precise connection of high-voltage components in this model. The offered part comes from the original BMW line, which ensures a proper fit to the installation architecture and compliance with factory safety standards. As a result, it provides a functional service solution for vehicles with hybrid drive.

Specifications and technical data

• SKU: 5A6A325
• Mark: BMW (Genuine OE)
• Condition: Used

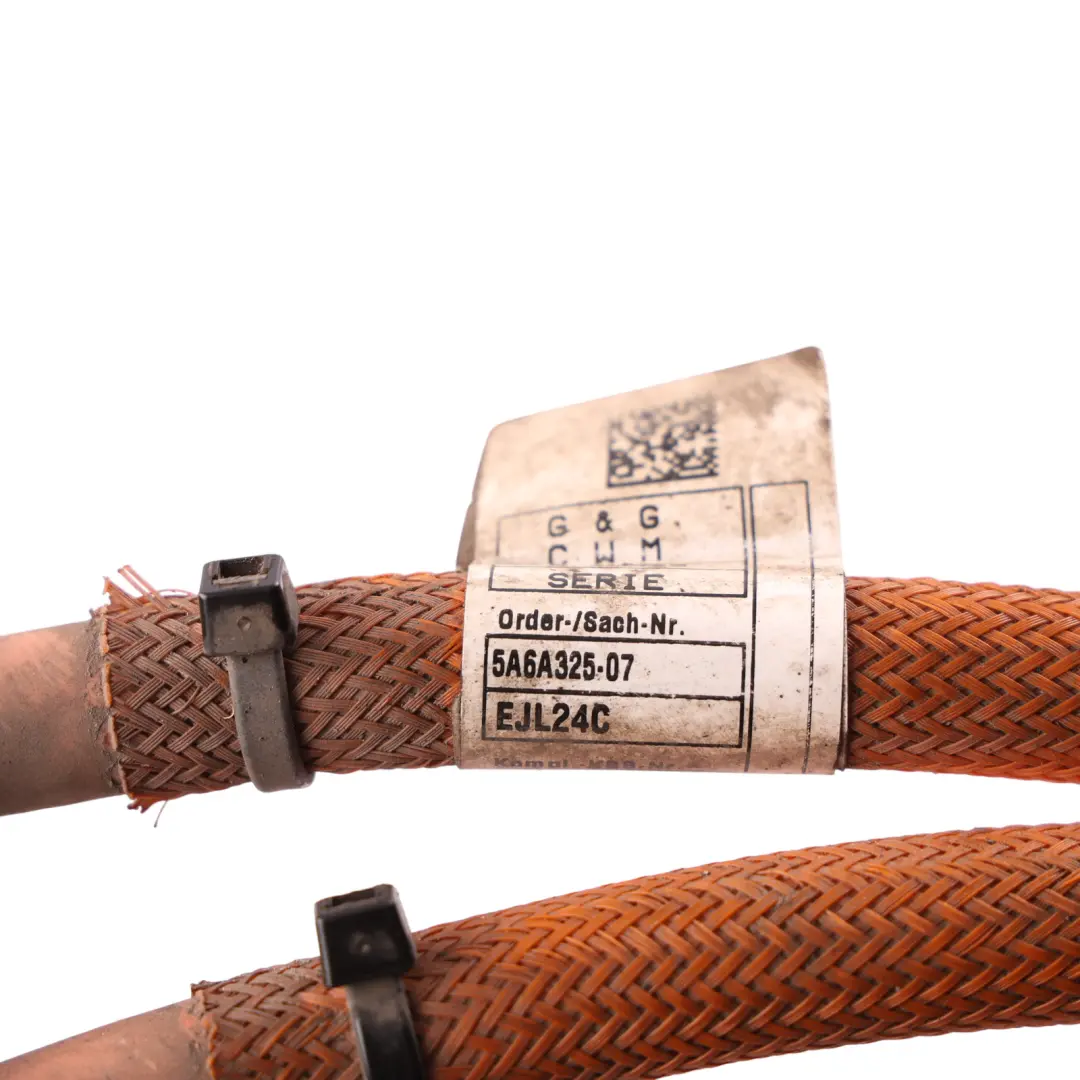

• OEM Part Number: 5A6A325
• Substitutable numbers: 5A6A325, 61295A6A325
• Category: Other Electric, Hybrid & PHEV Specific Parts

Purpose and function in the powertrain

The presented BMW X1 U11 Hybrid HV High Voltage Wiring Harness Loom Drive Electronics is responsible for energy transmission between key powertrain components, such as control electronics modules and traction sub-assemblies. Stable cable routing and properly designed connectors help reduce voltage drops and ensure consistent performance parameters of the hybrid drive.

This element is essential wherever controlled energy distribution in the high-voltage area is required, as well as maintaining the integrity of the installation during service or replacement of drive electronics components.

Construction and fitment for the BMW X1 U11 Hybrid

The harness has been configured for the body geometry of the BMW X1 U11 generation and the layout of factory mounting points. Properly shaped cable sections, routing consistent with the manufacturer's design, and dedicated high-voltage connectors facilitate installation and minimize the risk of mechanical stress in the system.

Thanks to the use of the original design, compatibility with factory brackets, covers, and drive electronics modules is maintained, which translates into predictable system behavior and easier diagnostics in the future.

Benefits of using an original high-voltage wiring harness

• Consistency with the factory electrical architecture of the BMW X1 U11 Hybrid.
• Proper adjustment of cable length and routing to serial mounting points.
• Compatibility with original high-voltage drive electronics connectors.
• Facilitated service work due to the preservation of the serial cable layout.

Using an original harness helps maintain stable operating parameters of the hybrid system and reduces the risk of problems resulting from improper cable routing or incompatible connectors.

Condition and service application

The offered harness comes from disassembly and is intended as a service element for BMW X1 U11 Hybrid vehicles where it is necessary to replace the high-voltage installation in the drive electronics area. It is a practical solution for post-accident repairs, replacing damaged cable sections, or restoring full functionality of the hybrid system after a failure.

Choosing an original component allows for maintaining consistency with BMW service documentation and facilitates subsequent diagnostic activities in authorized and independent service centers specializing in hybrid drives.

If you are planning a comprehensive repair or upgrade of the high-voltage electrical installation area in your BMW and need other elements from the same group, such as additional harnesses, connectors, or auxiliary modules, check the available parts in the Other BMW category.
