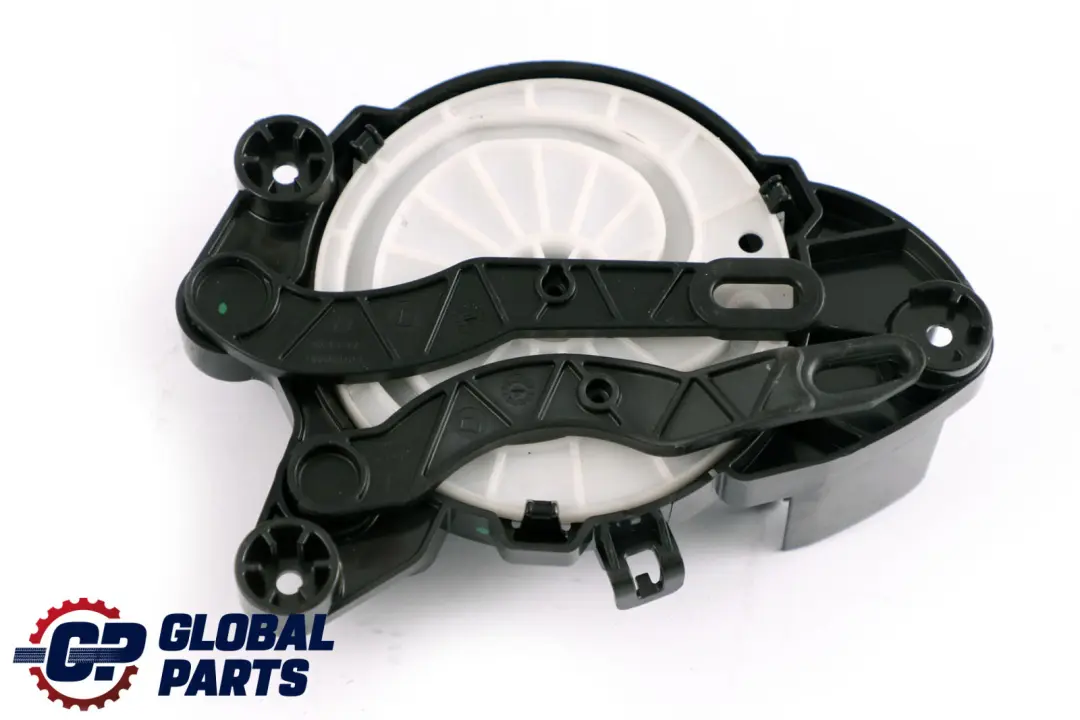

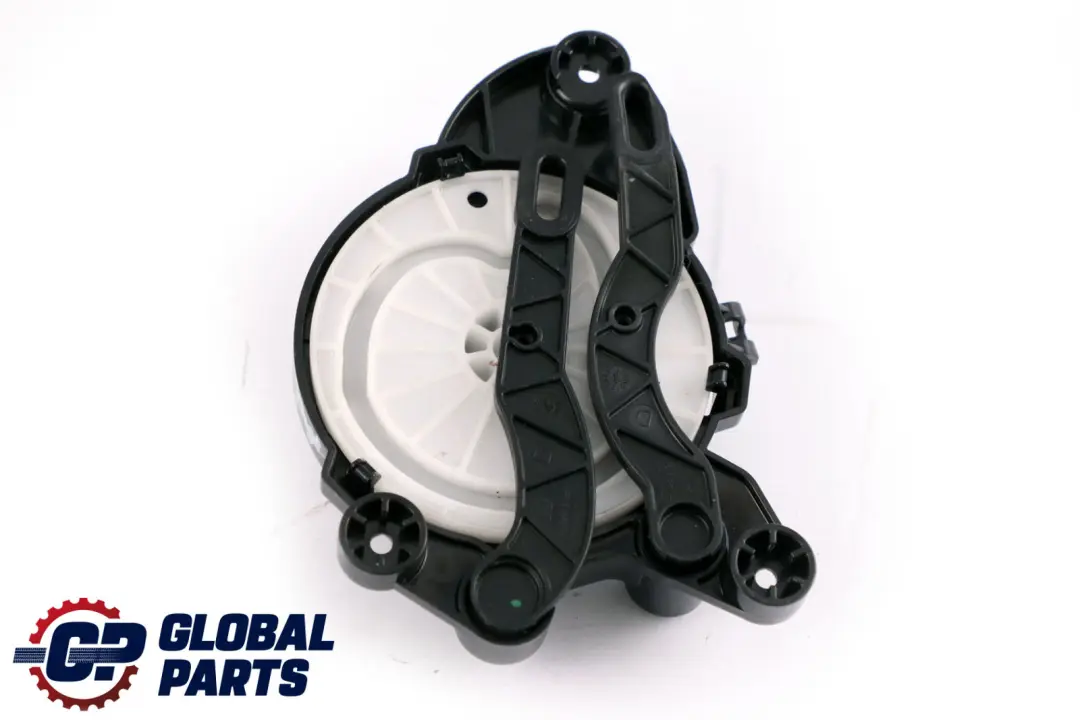

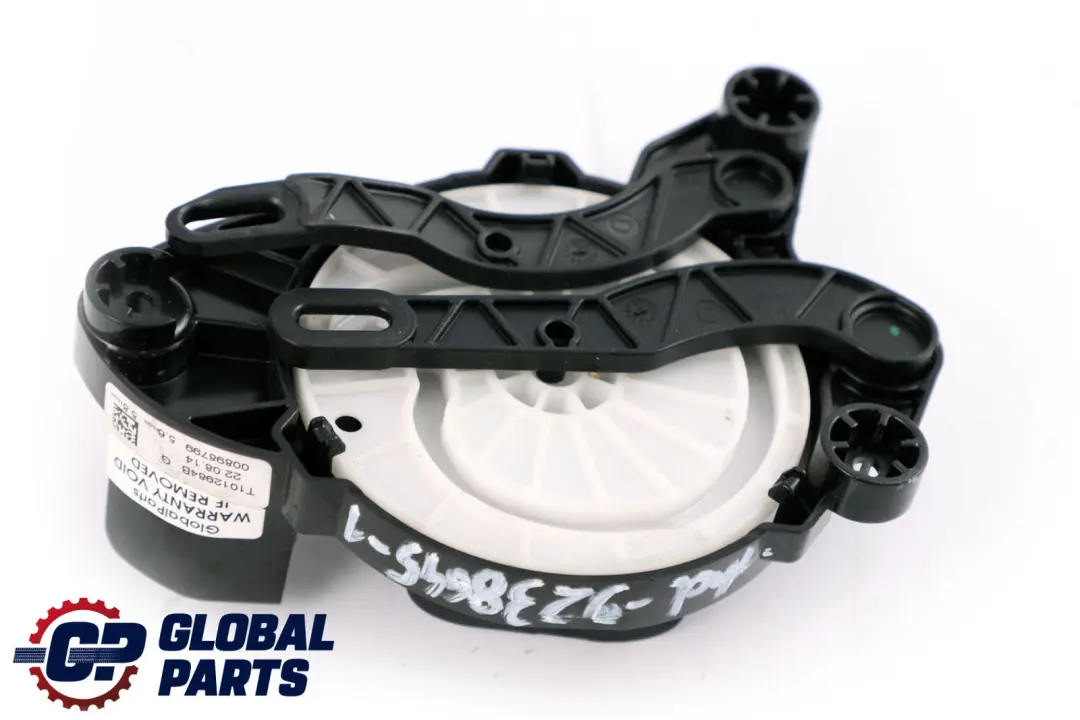

BMW 1, 2, and 3 Series Heater and Air Conditioning Flap Actuator for diesel engines is a precise HVAC component responsible for controlling airflow within the cabin. Featuring a factory design for F20, F21, F22, F30, and F31 models with a Diesel engine, this part ensures proper integration with the vehicle's electronics and comfortable temperature regulation. It's a practical solution for heating and air conditioning system repairs in modern BMWs.

Specifications and technical data

• SKU: rhd-9238645-1
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9238645
• Substitutable numbers: 64119238645, 9238645, BG
• Fuel type: Diesel
• Category: Other Air Conditioning & Heating

Application in BMW F20, F21, F22, F30, F31 Models

The presented BMW Heater and Air Conditioning Actuator is designed to work with the F-series platform in popular compact and mid-size models. It is responsible for positioning the flaps within the heater housing, which translates to:

• correct mixing of warm and cold air,
• precise directing of airflow to the windshield, feet, or center vents,
• stable operation of automatic climate control and heating.

Thanks to its construction conforming to factory BMW standards, the component works with the original climate control unit, minimizing the risk of diagnostic errors and improper flap operation.

Technical Characteristics and Role in the HVAC System

The actuator operates within the heating and air conditioning system of vehicles with Diesel engines, where stable temperature management is particularly important for driving comfort and defogging. This component:

• transmits control signals from the climate control panel to the movement of mixing flaps,
• ensures repeatable flap position settings across the entire operating range,
• supports even air distribution in the cabin across different operating modes.

A functional actuator limits common HVAC system fault symptoms, such as no response to temperature changes, uneven cabin heating on either side, or incorrect vent distribution.

Condition, Origin, and Benefits of Using a Used Part

The offered component is a used part from the BMW group, allowing for an economical repair while maintaining compliance with factory specifications. Compared to low-quality aftermarket alternatives, using an original actuator from the same model line:

• facilitates installation due to fitted mounting points,
• reduces the risk of flap calibration issues,
• ensures consistent operation with the existing control system.

For workshops and individual users, this means a faster repair completion and predictable climate control system behavior after replacement.

Practical Installation and Diagnostic Tips

When replacing the heater and air conditioning actuator in BMW F20, F21, F22, F30, F31, it's worth paying attention to several technical aspects:

• before disassembly, it is recommended to read error codes from the climate control module,
• after installation, flap adaptation is often required using a diagnostic tester,
• it is good practice to check the condition of the heater housing and the free movement of the flaps.

This approach minimizes the risk of re-disassembly and allows for quick verification of whether the actuator alone was the cause of the problems, or if other HVAC components were also involved.

If you are planning a comprehensive repair or upgrade of the climate control and heating system in your BMW and need other parts from the same group, such as additional flap actuators, heater housings, or control elements, check the available parts in the Other BMW category.
