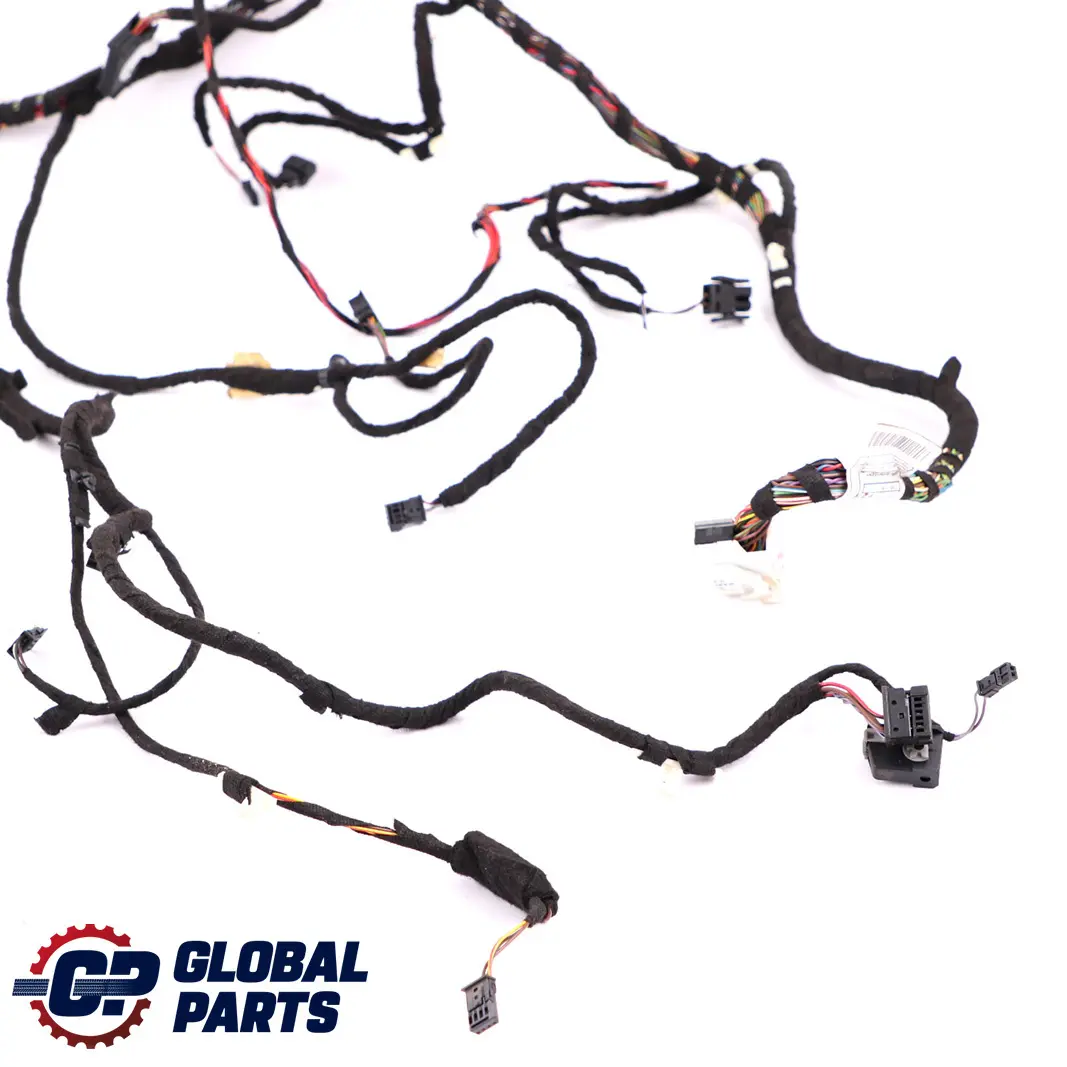

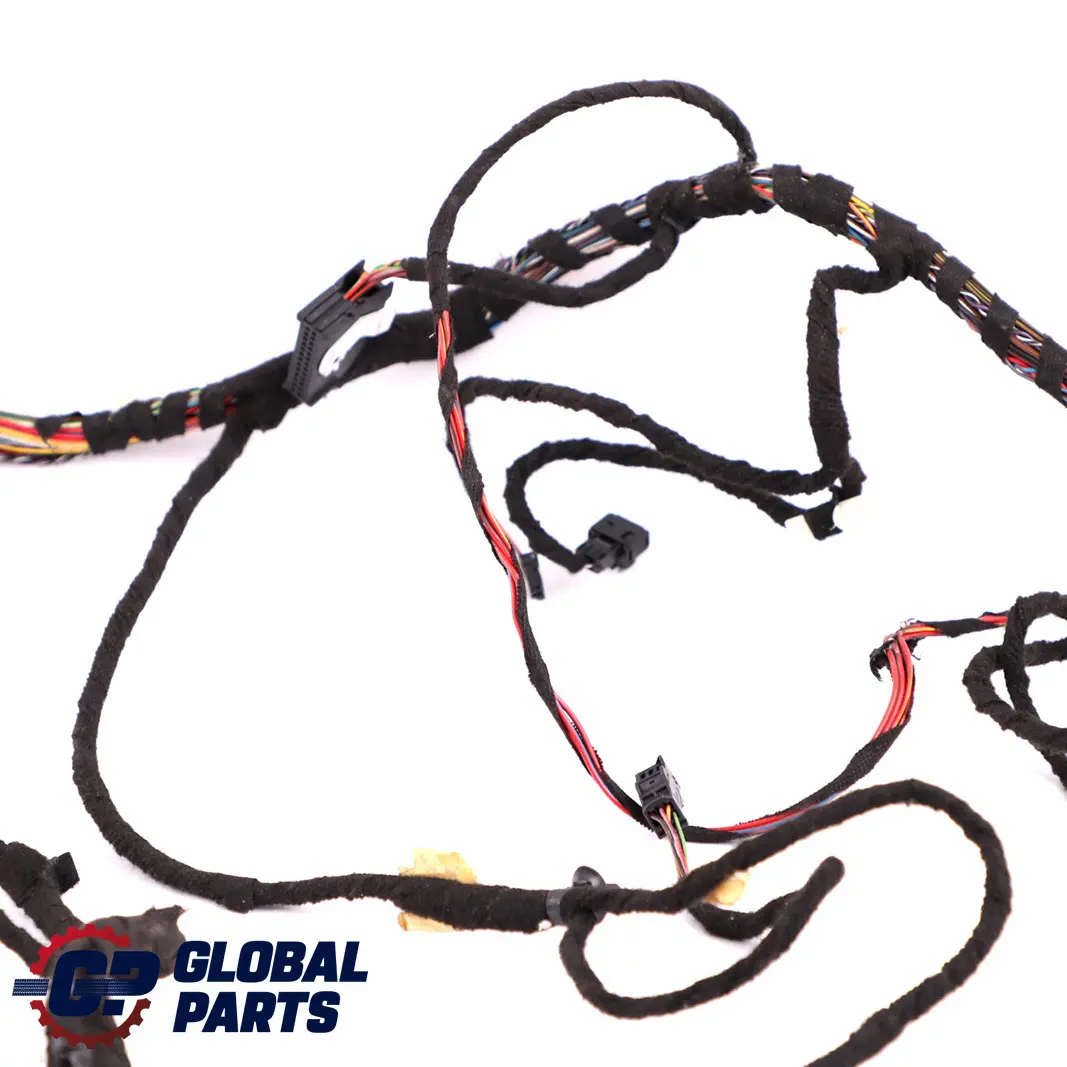

BMW F20 F30 Cable Wiring Loom Heater Matrix Air Conditioner 9267619

BMW F20 F30 Heater Wiring Harness 9267619 is an original electrical system component designed for the heating system in BMW F-series models. The harness operates in the front left part of the vehicle, ensuring stable power supply and communication between components responsible for cabin thermal comfort. By maintaining the factory wiring geometry and connectors, it provides a functional service solution for repairs or upgrades to the heating system.

Specifications and technical data

• SKU: 9267619
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9267619
• Substitutable numbers: 9267619, 9266027, KZ
• Location on the vehicle: Front, Left
• Category: Other Air Conditioning & Heating

Purpose and Function of the Heater Wiring Harness

The presented BMW heater wiring harness is responsible for delivering power and control signals to the heating system components located in the front left area of the body. A correctly selected harness is crucial for:

• stable operation of heating actuators,
• proper communication with control modules,
• maintaining appropriate electrical parameters in the circuit.

Its placement in the front driver's side area requires proper wire routing to avoid chafing, overheating, and system interference.

Construction and Fit for BMW F20 / F30

The harness has been designed for specific F-series body types, which translates to factory fit for mounting points and correct wire lengths. Appropriately spaced connectors allow for seamless connection to heating system components without the need for installation modifications.

This solution allows for maintaining the original wire routing in the front compartment, minimizing the risk of mechanical damage and the influence of heat from adjacent components. As a result, the harness provides a practical basis for restoring proper heating operation after a collision, installation interference, or component replacement.

Characteristics of a Used Part

As part of the used BMW components group, the heater wiring harness is sourced from disassembly and is intended for further use after proper installation. Such elements are often chosen for repairs where maintaining the original electrical specification and compatibility with factory control modules is crucial.

Using an original harness from disassembly helps reduce the risk of problems typical for unsuitable aftermarket parts, such as incorrect wire gauge, different connector types, or incompatibility with the vehicle's electrical system.

Service Application and Benefits of Installation

Installing this harness in the front left part of the vehicle is particularly recommended in situations where:

• the electrical system has been damaged due to a collision or overheating,
• circuit breaks or unstable power supply to heating components have been detected,
• a section of the wiring needs replacement without affecting the entire body harness.

Choosing an original part dedicated to the BMW F20/F30 facilitates service work, reduces diagnostic time, and minimizes the risk of recurring faults due to improper installation fit.

Integration with Other Components and Technical Knowledge

The heating system is closely linked to the vehicle's electronics, climate control, and comfort systems. A proper understanding of the role of the electrical system in modern premium cars helps in making better service decisions. When comparing solutions used in different brands and equipment versions, it is worth familiarizing yourself with material discussing the construction of powertrains, brakes, and chassis in sports models – detailed information can be found in the article Audi RS vs Other Models – What Lies Under the Hood and Chassis?.

If you are planning a comprehensive repair or upgrade of the electrical system area in your BMW and need other parts from the same group, such as door harnesses, engine compartment wiring sections, or power wires for comfort modules, check the available parts in the Other BMW category.
