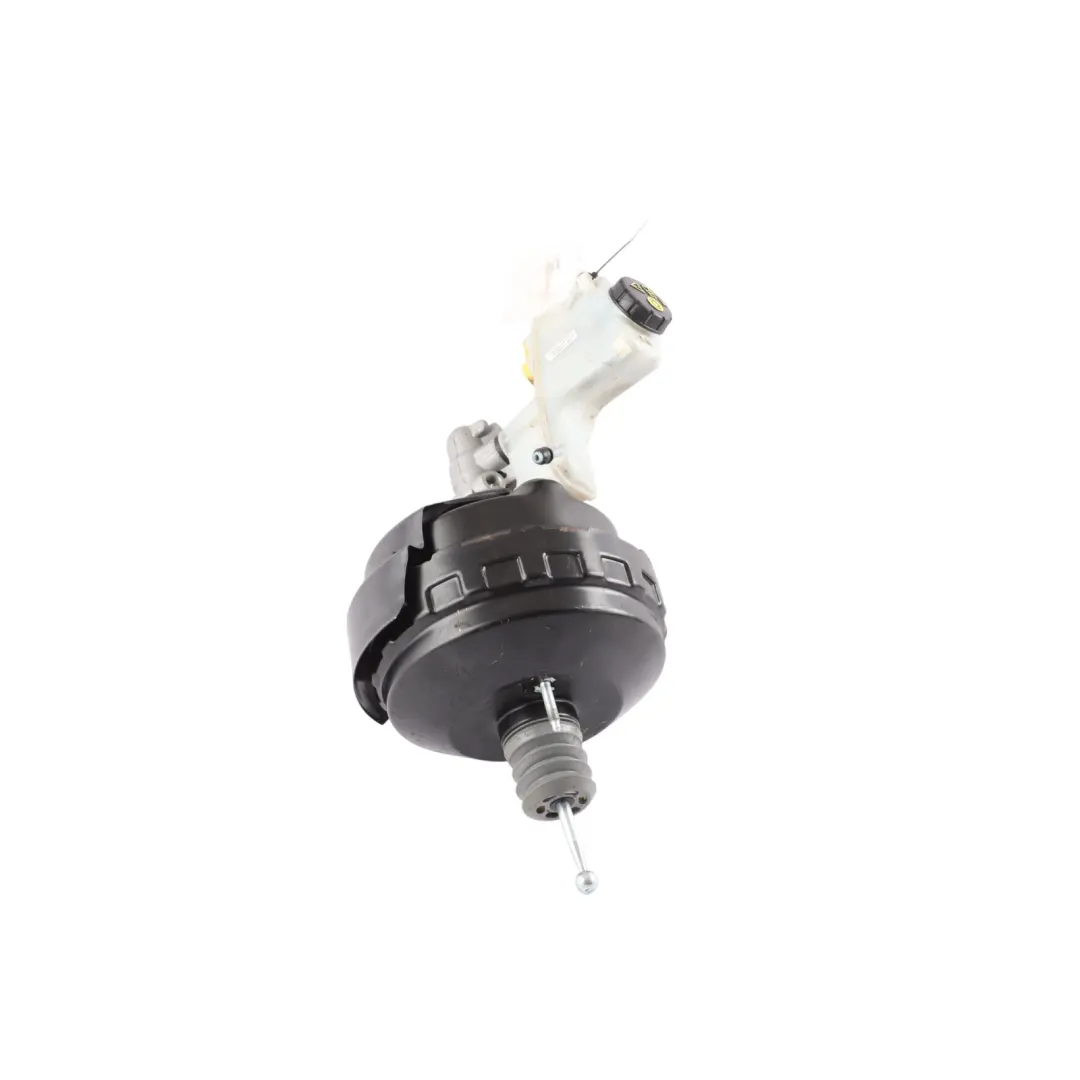

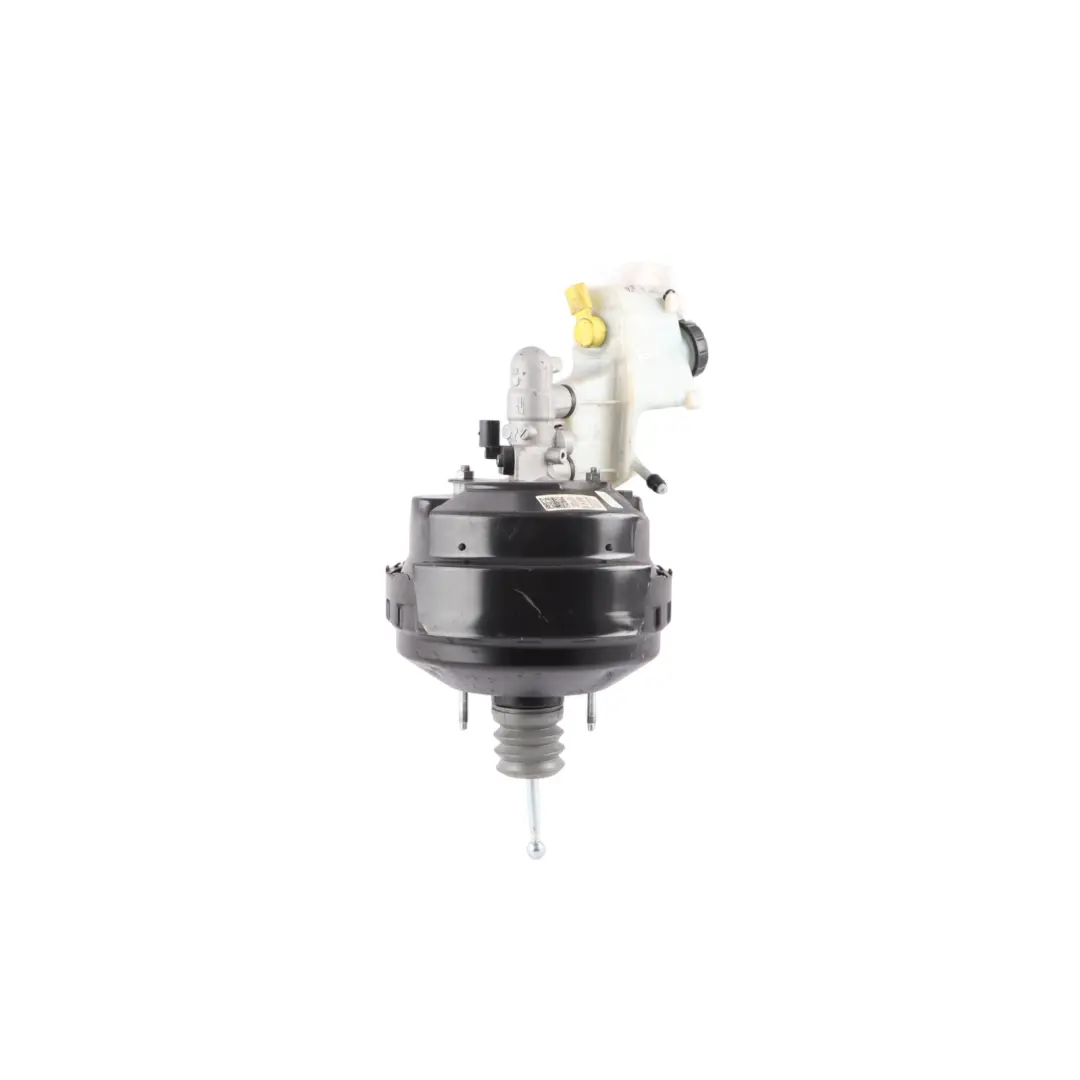

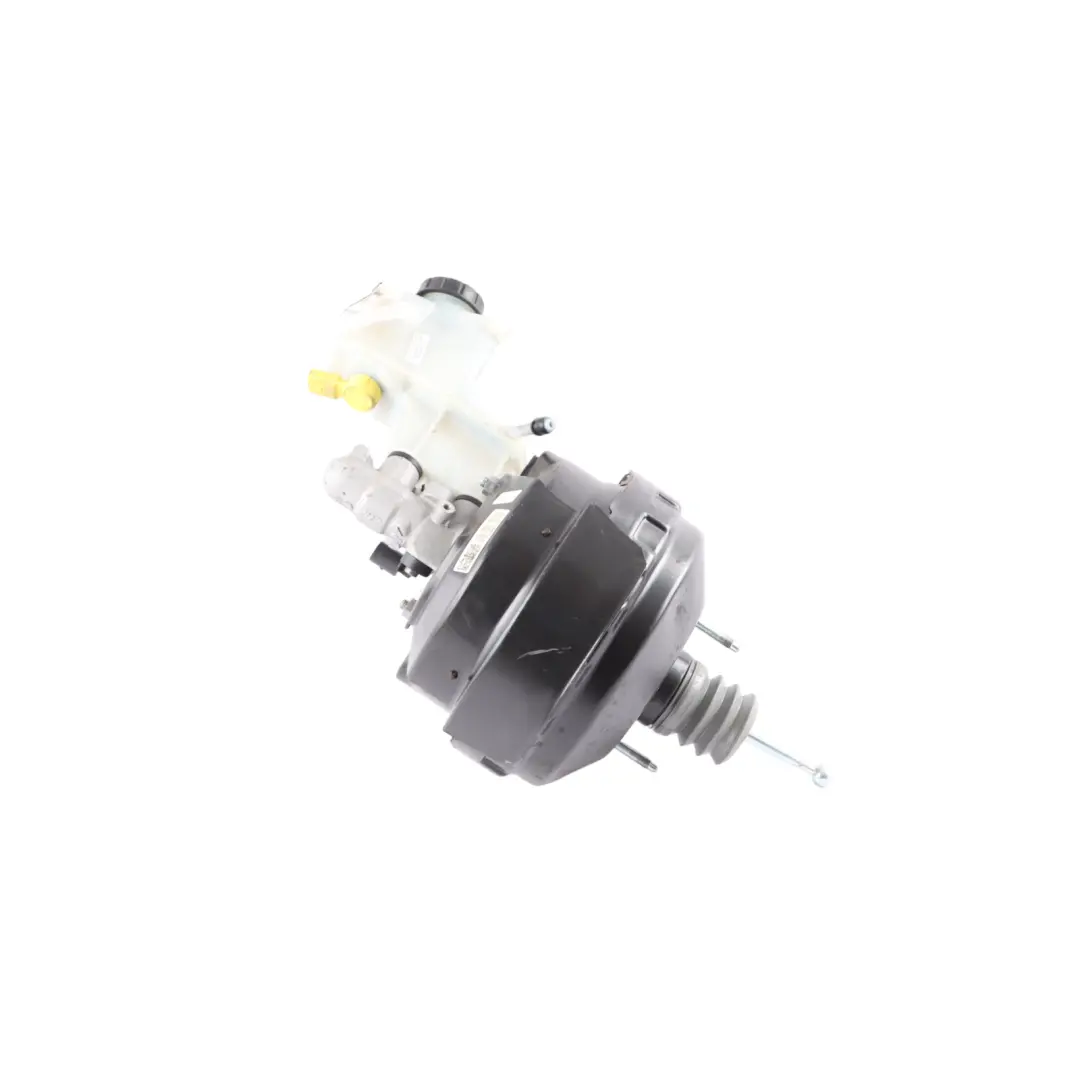

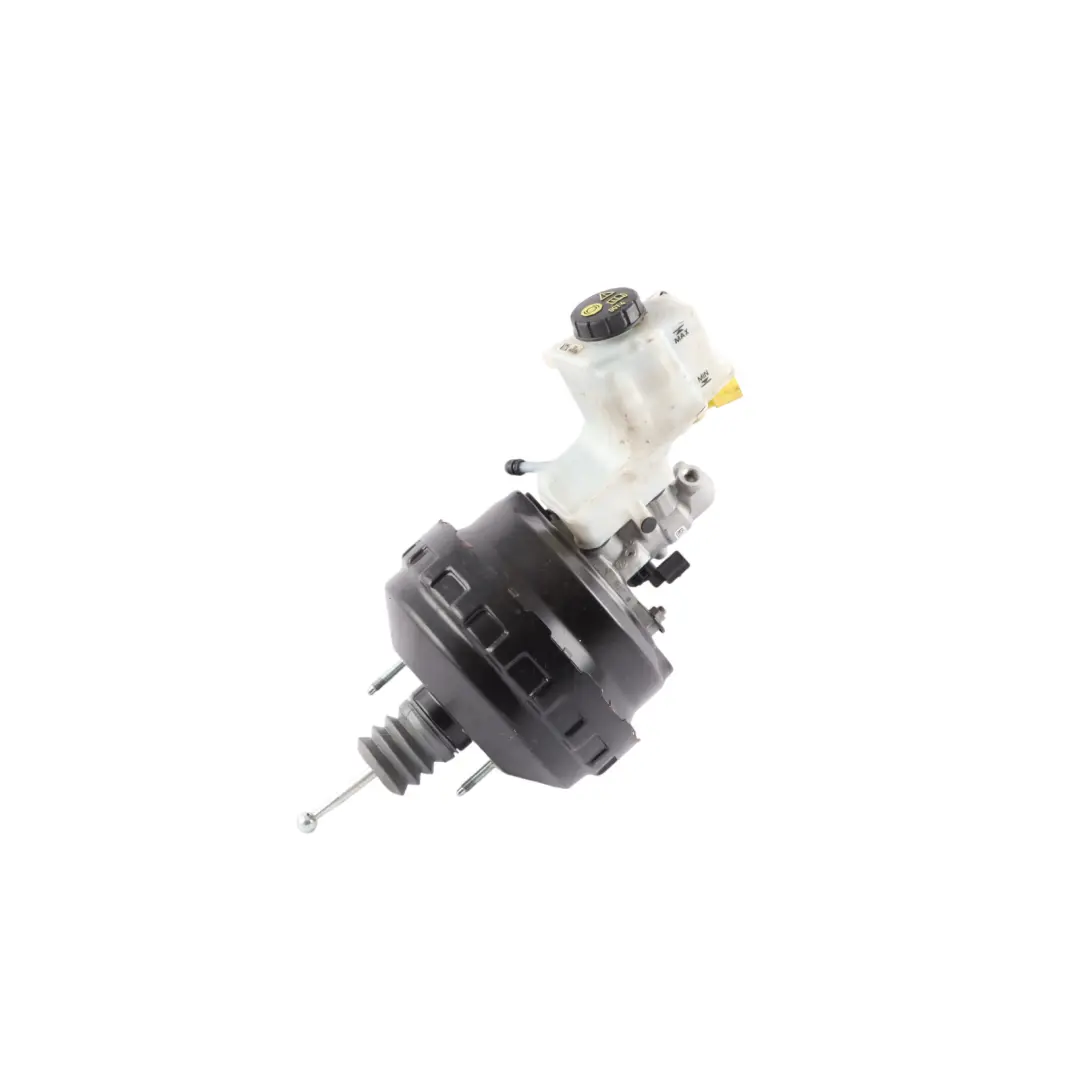

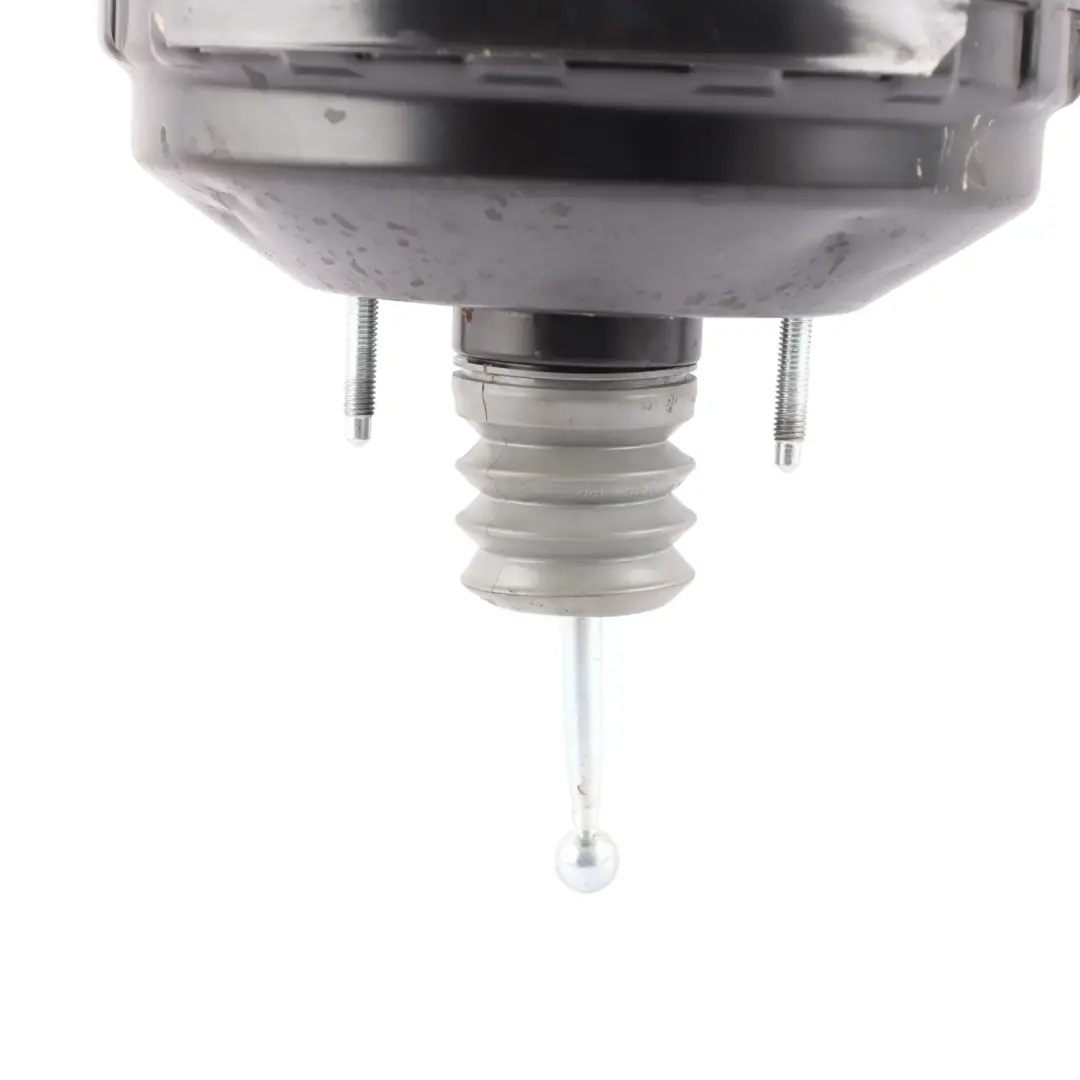

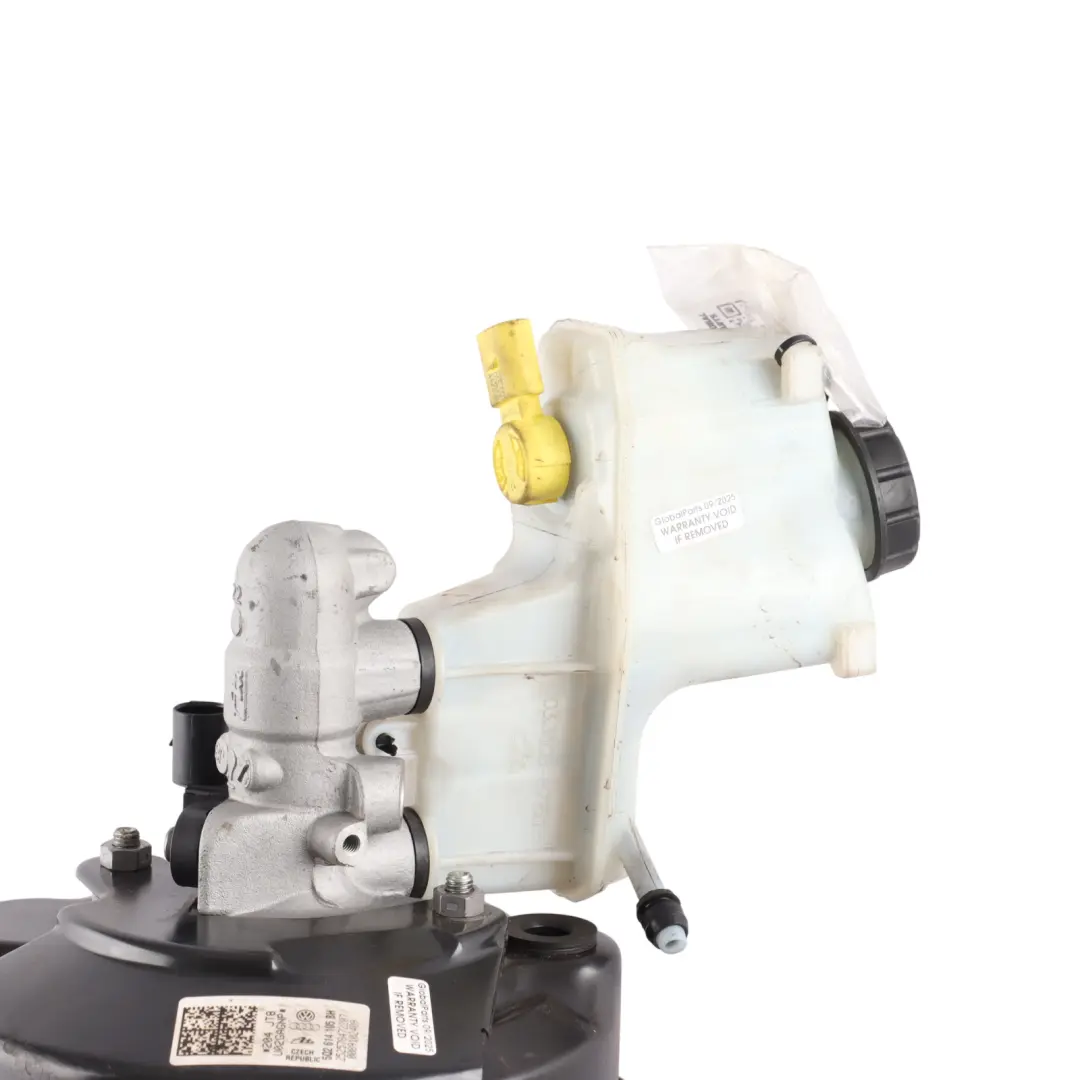

Seat Leon 5F Brake Servo Booster Master Cylinder Unit 5Q2614105BH

Seat Leon 5F Brake Servo Booster Master Cylinder Unit is a complete brake master cylinder with a servo booster designed for the braking system of the Seat Leon 5F generation models. The original OEM design ensures stable operating pressure, predictable brake pedal characteristics, and consistency with the vehicle's factory architecture. This solution is dedicated to drivers and workshops that expect a proven component with professional performance parameters.

Specifications and technical data

• SKU: RHD-5Q2614105BH
• Mark: Seat
• Condition: Used

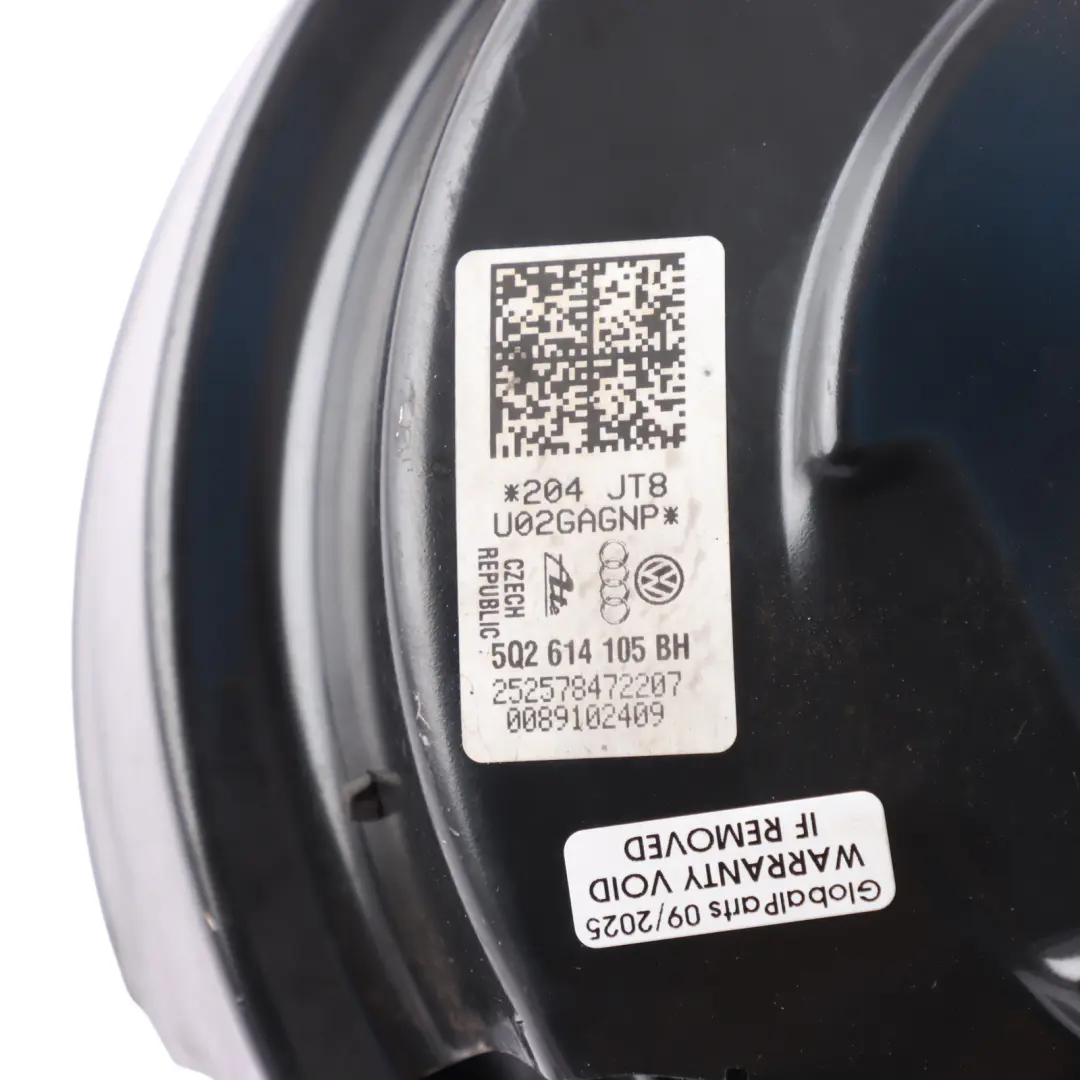

• OEM Part Number: 5Q2614105BH
• Substitutable numbers: 5Q2614105BH, 5Q2 614 105 BH
• Category: Master Cylinders

Purpose and function in the braking system

The presented brake master cylinder with servo is a key component responsible for generating and boosting pressure in the Seat Leon 5F braking system. The assembly combines a hydraulic master cylinder with vacuum assistance, which allows for:

• precise modulation of braking force at various driving speeds,
• reduction of the force required to depress the brake pedal,
• maintaining stable pressure in the brake circuits during intensive use,
• preserving the factory operating characteristics of the braking system.

As a result, the driver receives a predictable vehicle response to pedal input, which translates into safe and comfortable braking both in city traffic and on the highway.

Construction of the brake master cylinder assembly

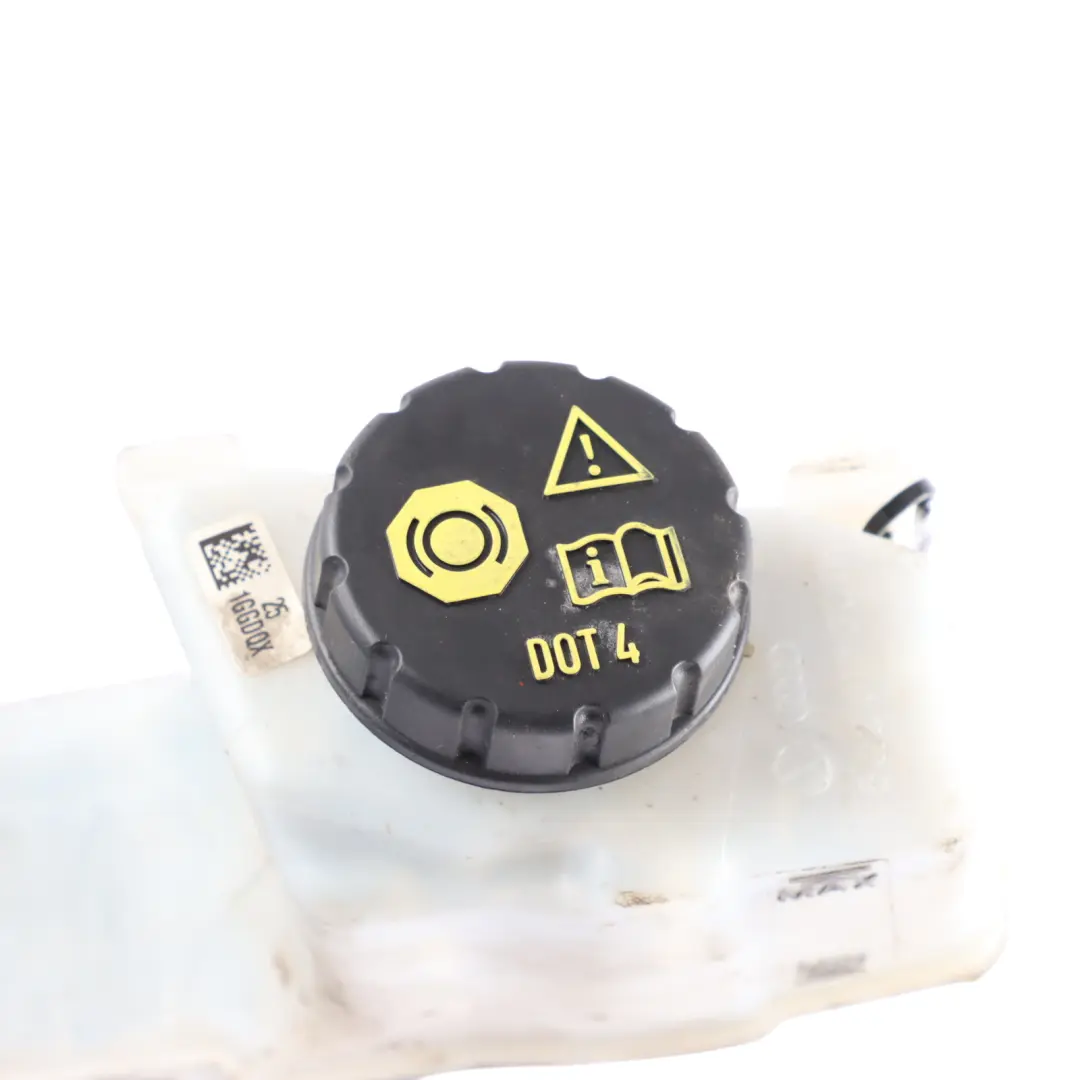

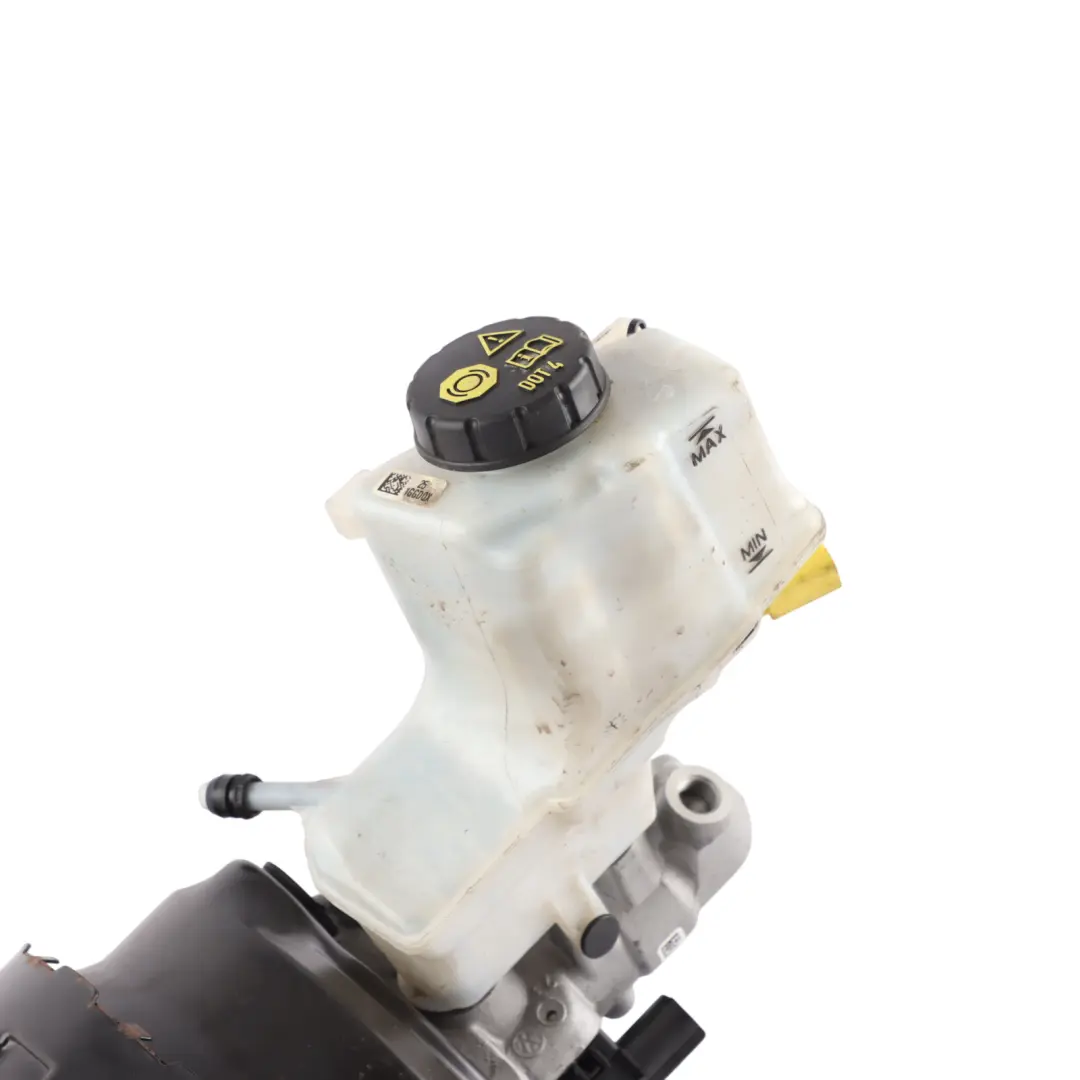

The brake master cylinder with servo in this model has been designed as an integrated assembly that works with factory brake lines and the fluid reservoir. The design includes:

• a hydraulic master cylinder responsible for distributing pressure to the brake circuits,
• a brake servo using vacuum to assist pedal operation,

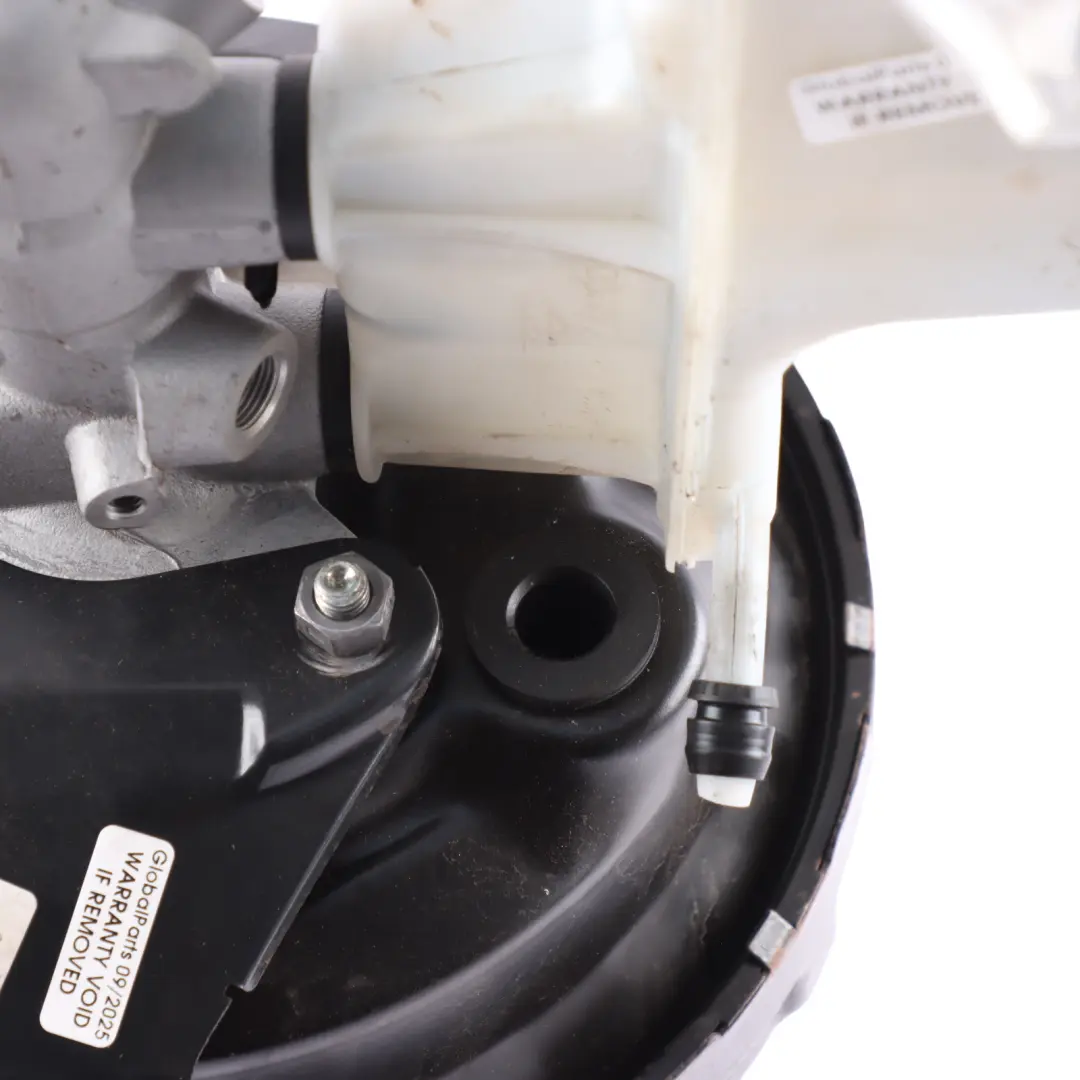

• mounting points matched to the factory bulkhead of the Leon 5F,

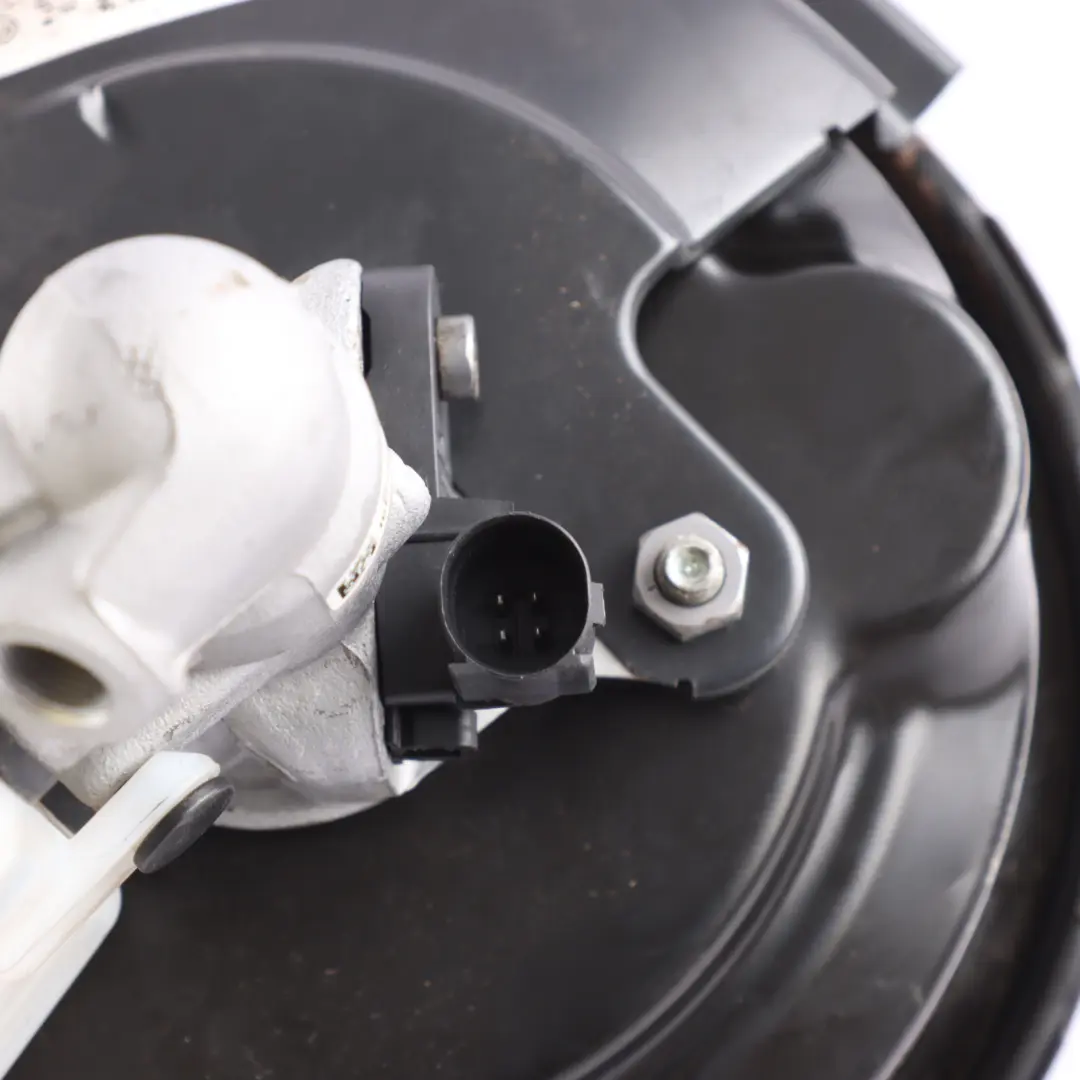

• connection ports prepared for compatibility with the stock installation.

This solution facilitates installation and allows for maintaining factory braking system performance parameters without the need for vehicle modifications.

Benefits of using an original brake master cylinder

Using an original brake master cylinder assembly in the Brake master cylinders category provides a number of practical benefits for the user and the service center:

• compliance with the vehicle manufacturer's factory requirements,
• proper fitment for the ABS/ESP system used in the Leon 5F,
• consistency with the operating parameters of other braking system components,
• reduced risk of issues with bleeding and adjustment.

For workshops, this means a faster and more predictable installation procedure, and for the driver – stable braking system operation after replacing the component.

Condition, selection, and practical application

The item is offered in used condition, which allows for an economical repair of the braking system while maintaining the original specification. Before installation, standard service procedures are recommended: leak testing, verification of servo operation, and thorough bleeding of the entire system. In practice, the product will work well both for a typical replacement of a worn-out master cylinder and for larger brake system repairs where restoring full system efficiency is necessary.

If you are planning a comprehensive repair or upgrade of the braking system in your Seat and need other components from the same group, such as additional pumps, lines, or elements working with the servo, check the available parts in the Seat Brake master cylinders category.

Selection by part numbers and technical support

Due to the complexity of braking systems in modern vehicles, the selection of the correct brake master cylinder for a specific equipment version and engine should be based on the OEM number or vehicle data. In case of doubt, it is worth using professional service support or parts catalogs to ensure full compatibility with your specific Seat Leon 5F.
