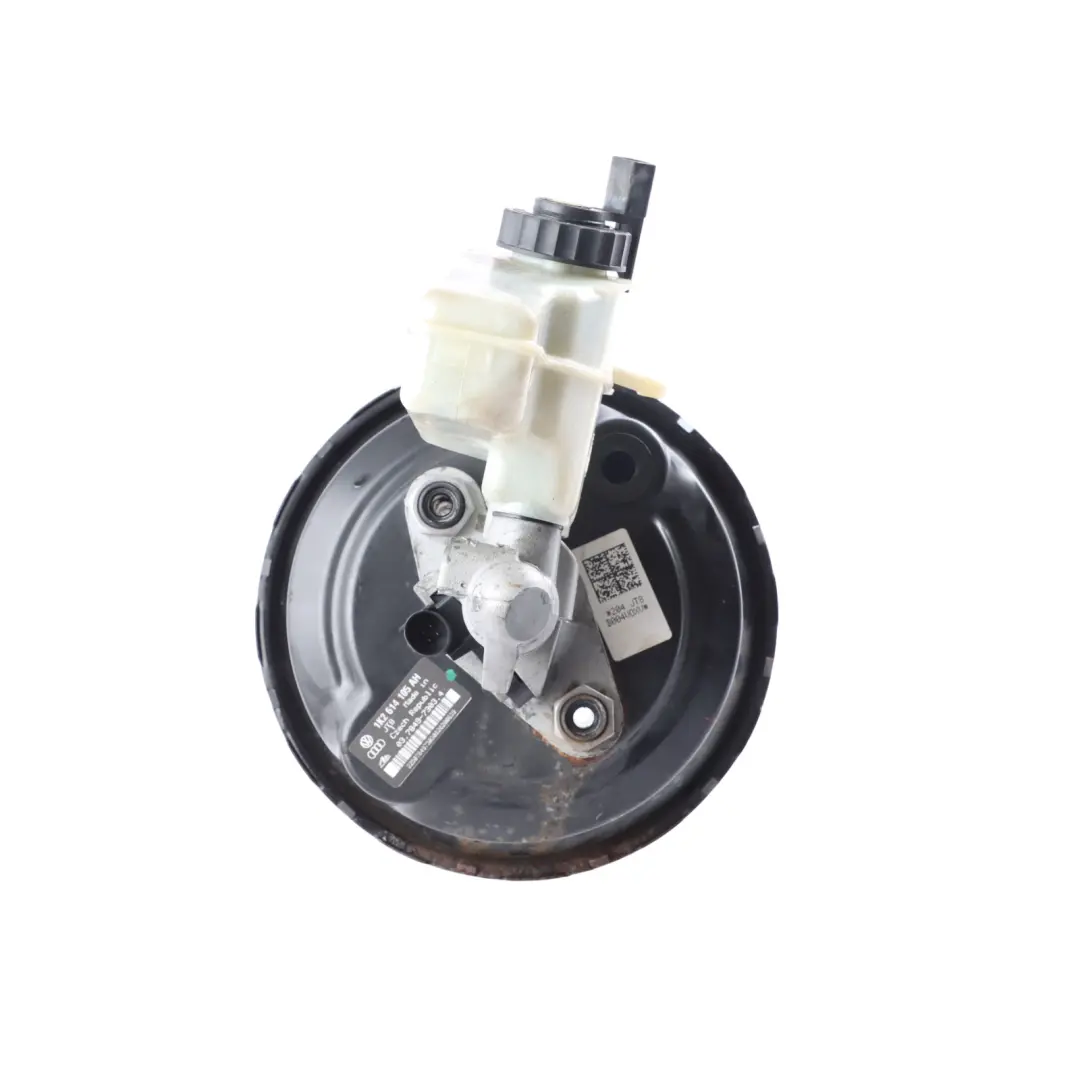

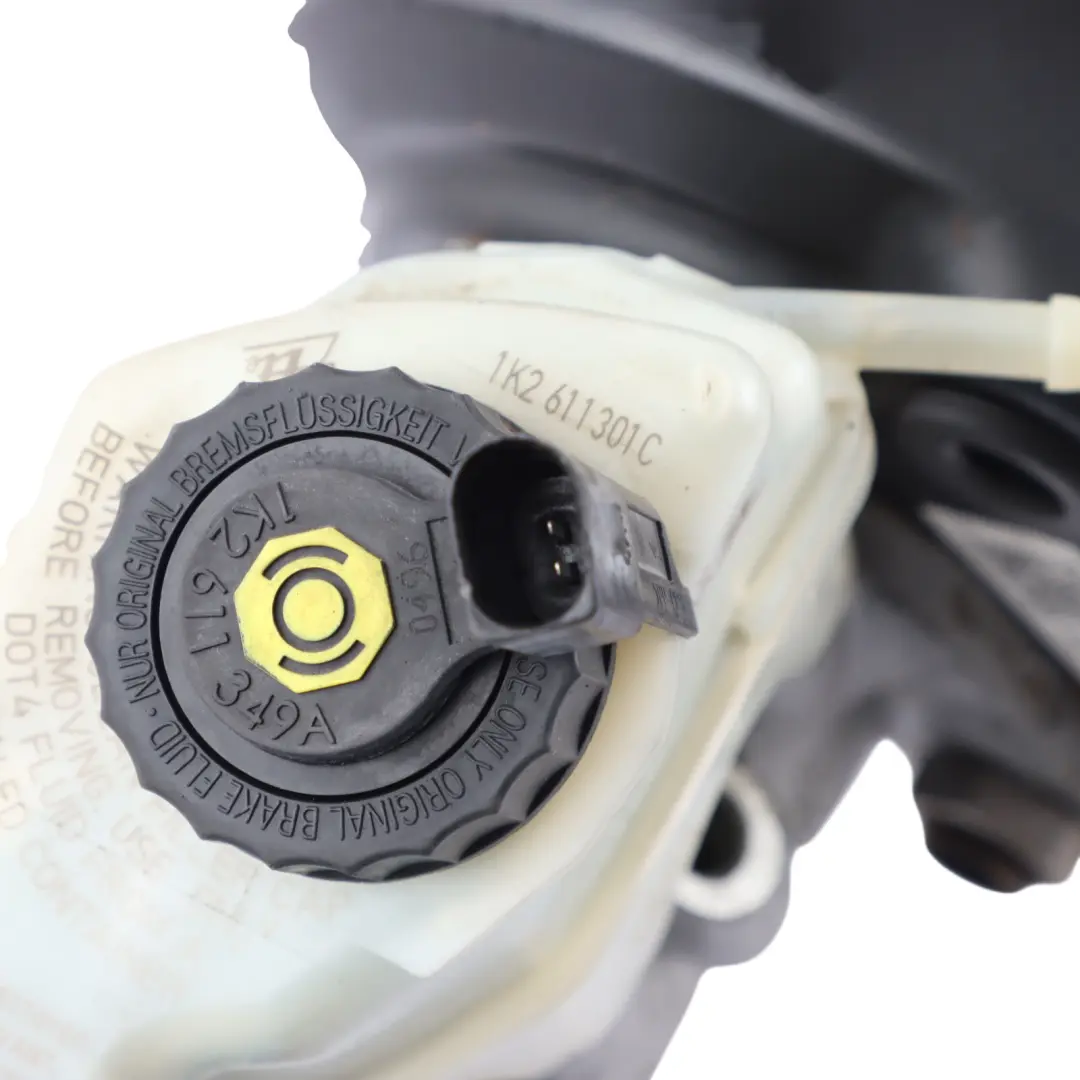

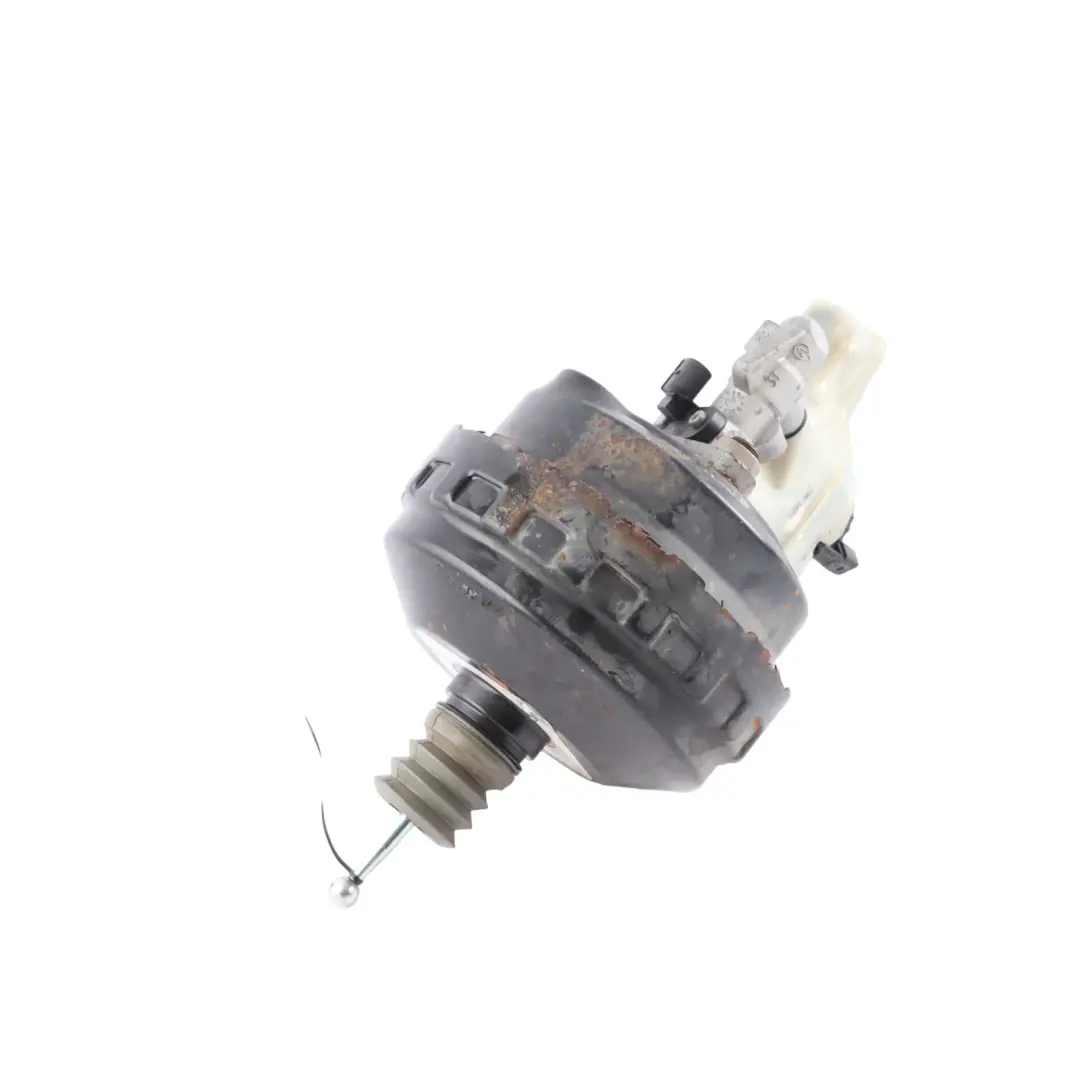

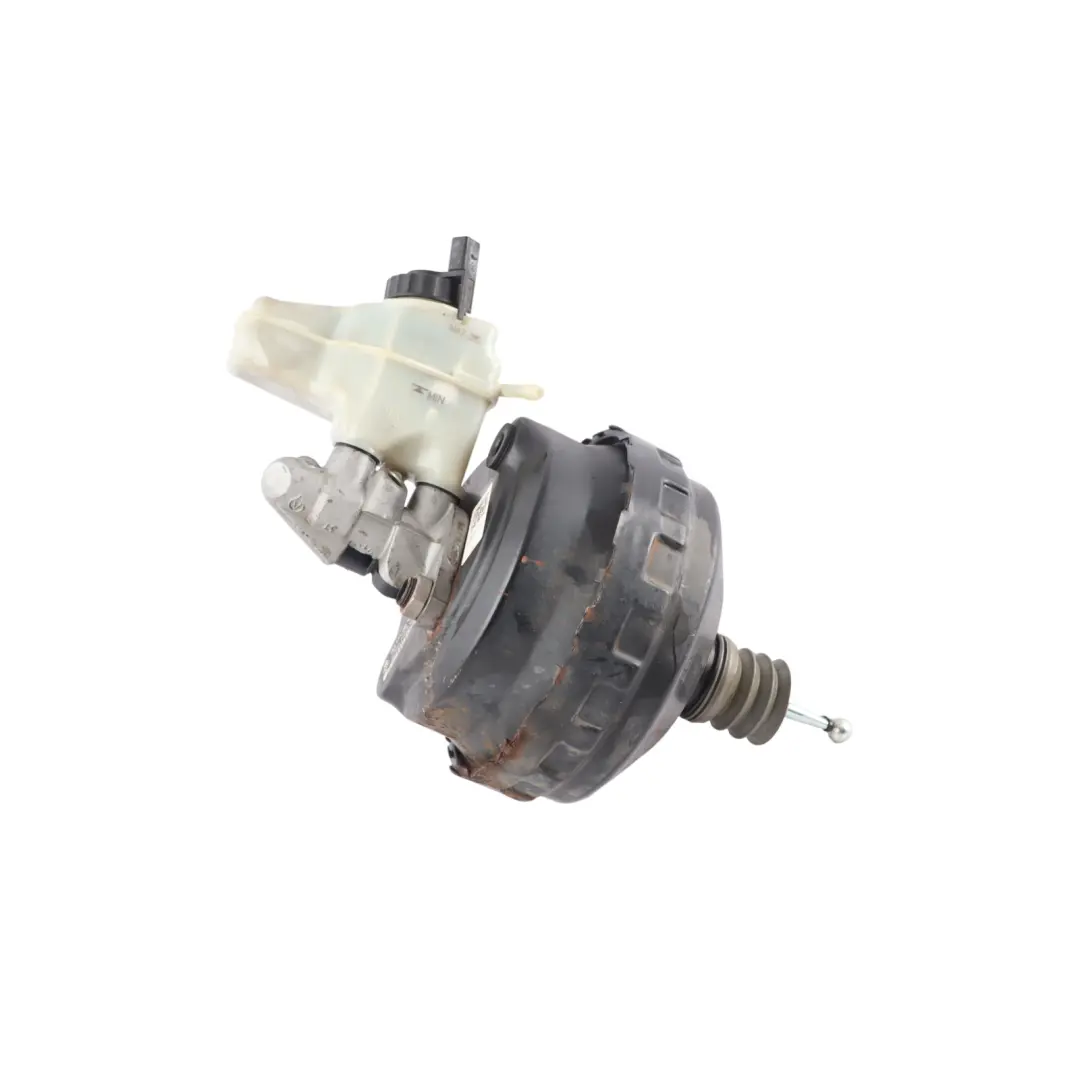

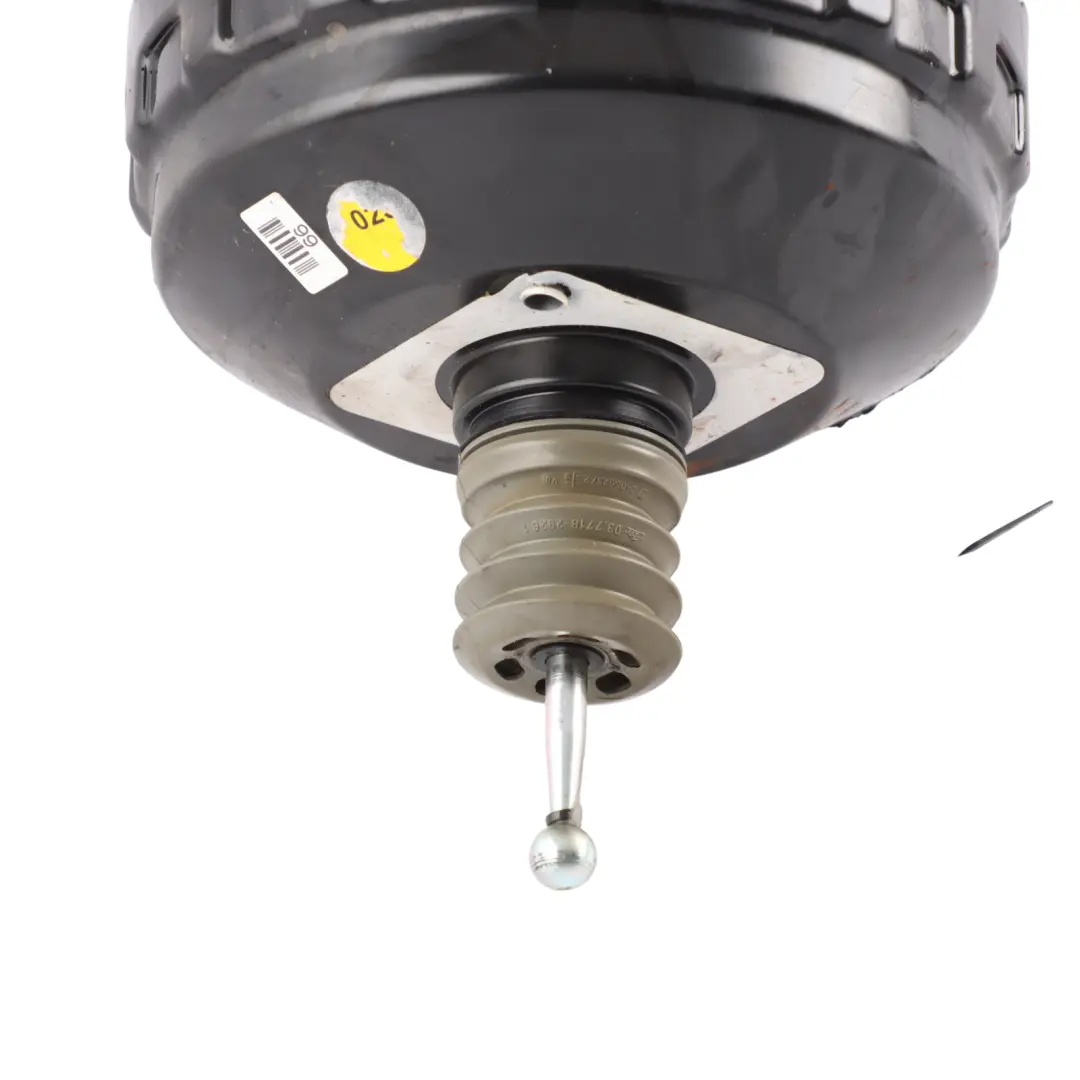

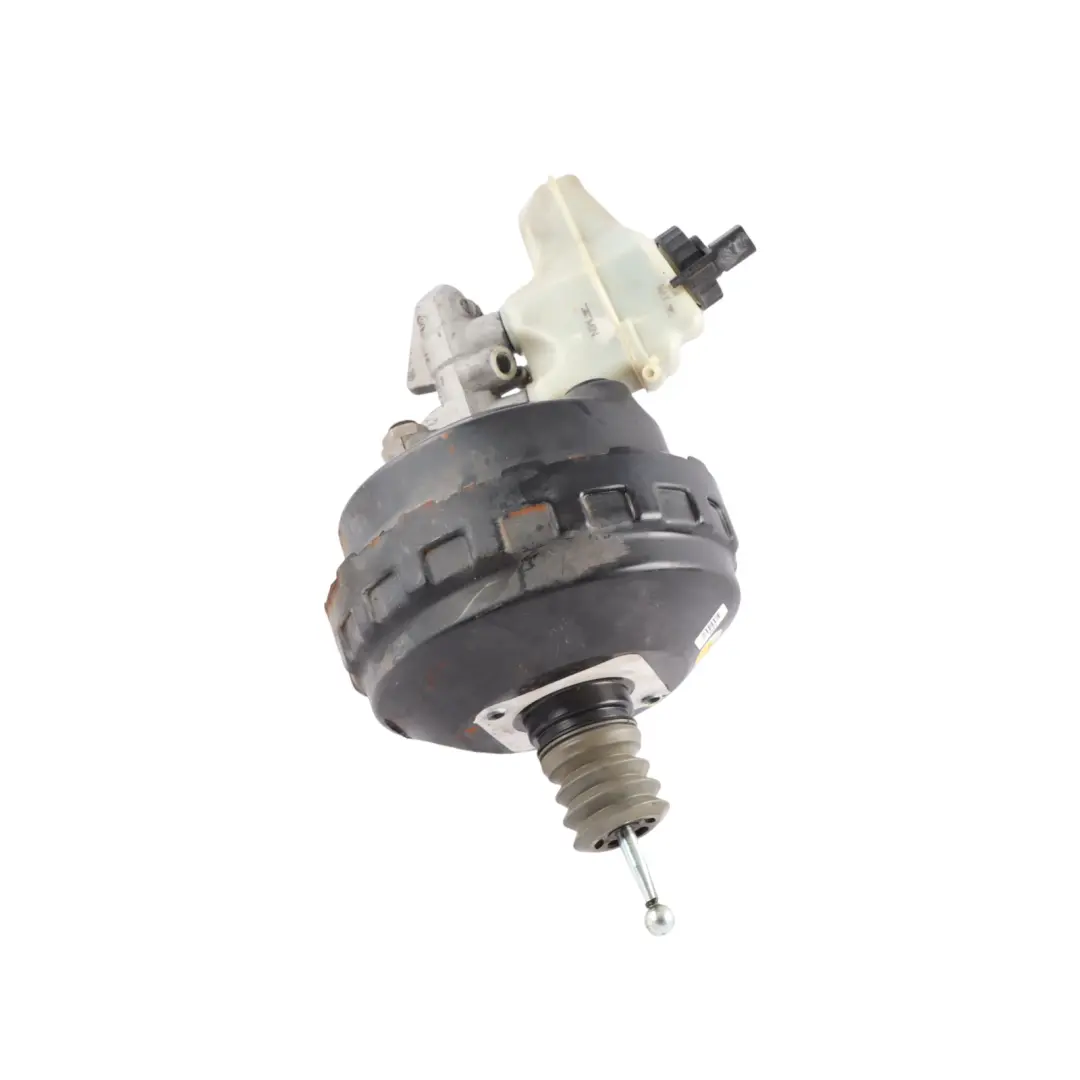

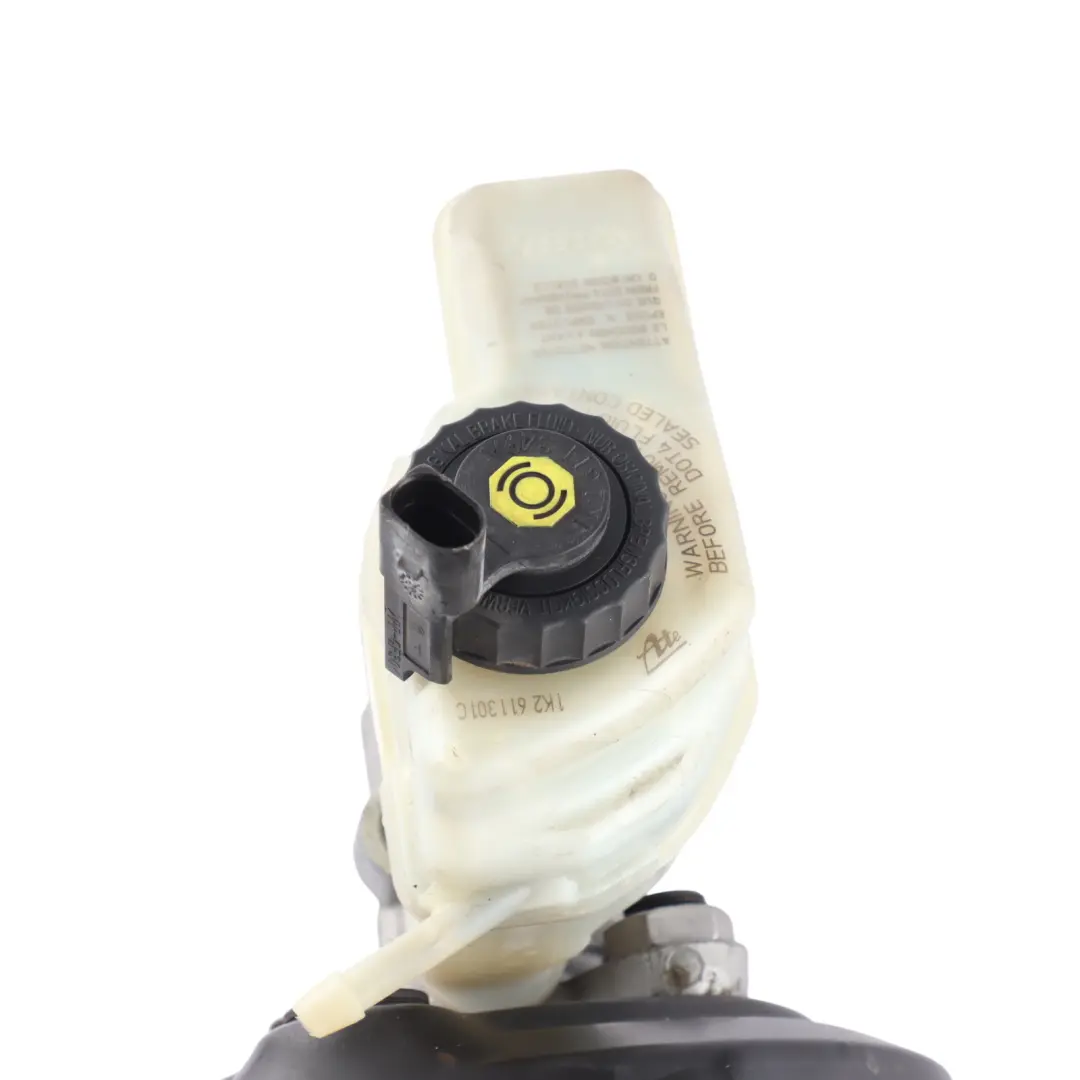

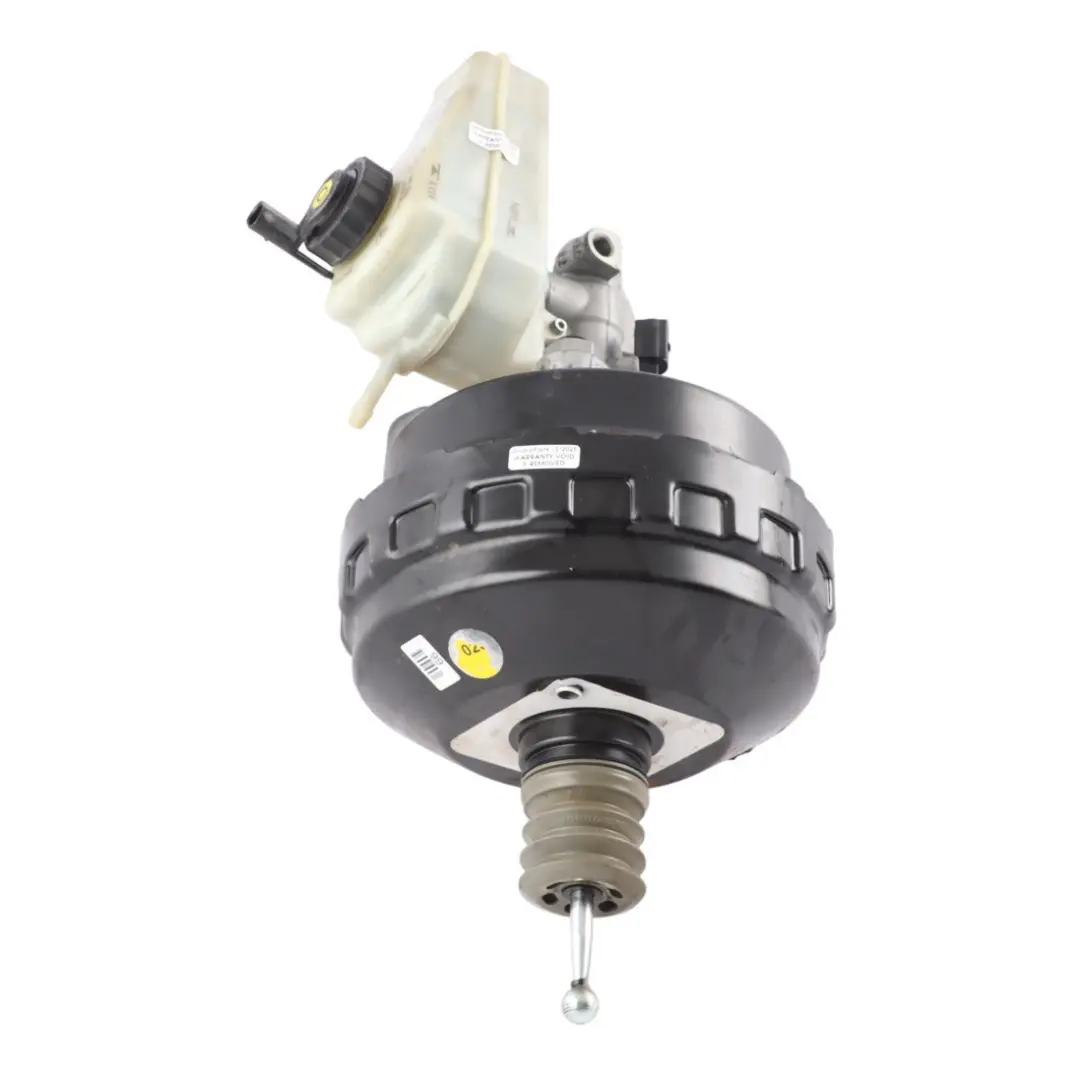

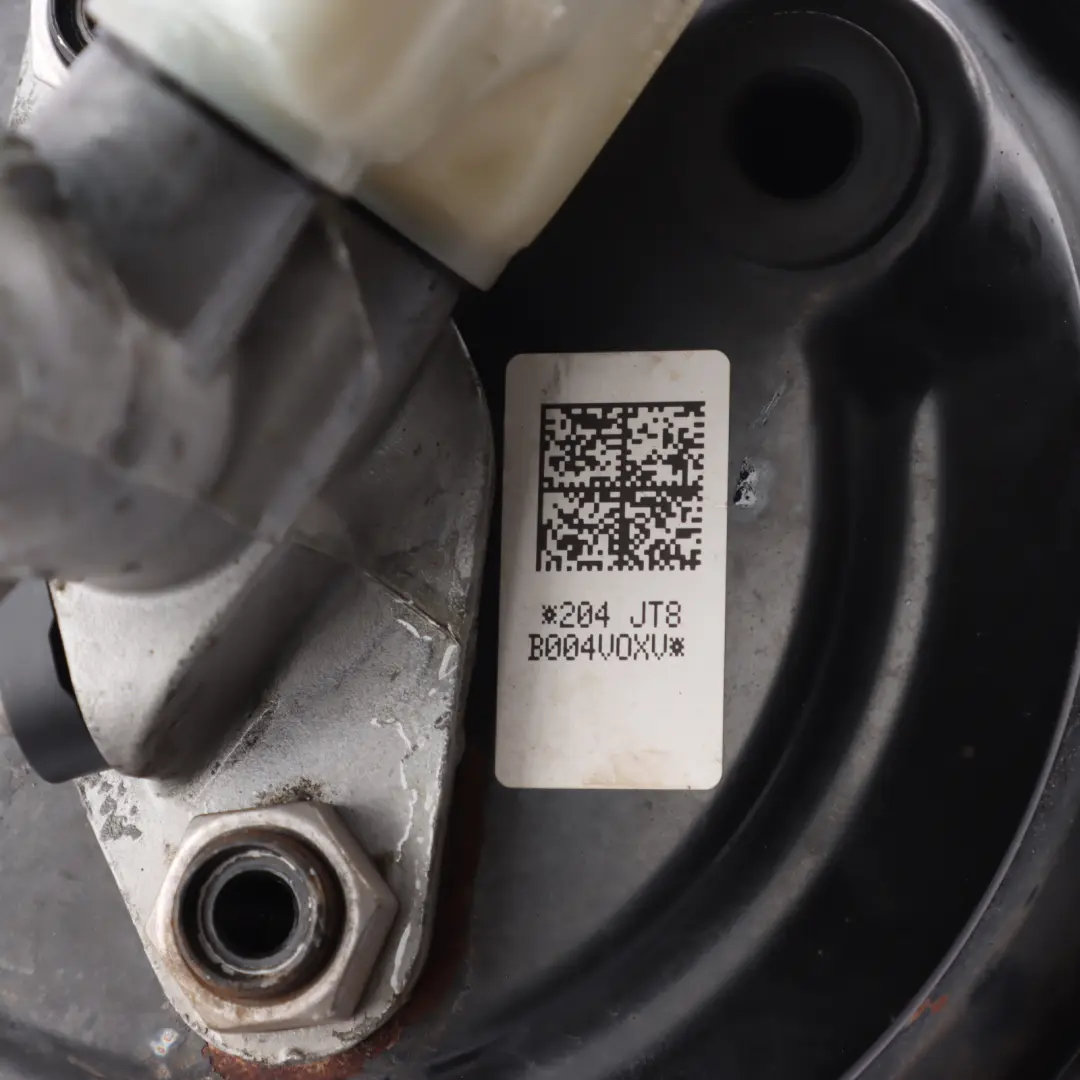

VW Volkswagen Golf 1K MK5 Brake Servo Booster Master Cylinder Unit 1K2614105AH

VW Volkswagen Golf 1K MK5 Brake Servo Booster Master Cylinder Unit is a complete servo and master cylinder unit designed for the braking system in Volkswagen cars with automatic transmissions. This OEM solution ensures stable operating pressure, predictable pedal response, and safe braking force modulation, which is crucial for daily vehicle operation.

Specifications and technical data

• SKU: RHD-1K2614105AH
• Mark: Volkswagen
• Condition: Used
• OEM Part Number: 1K2614105AH
• Substitutable numbers: 1K2614105AH, 1K2 614 105 AH, 1K2 611 349 A, 1K2611349A, 1K2 611 301 C, 1K2611301C, 3C2 614 106 L, 3C2614106L
• Gearbox type: Automatic
• Category: Master Cylinders

Purpose and function in the braking system

The described brake servo and master cylinder unit is designed as a vacuum system component that amplifies the driver's pressure on the brake pedal. This allows the braking system to operate with adequate power reserve, ensuring that the pedal response is repeatable and easy to modulate. Using an OEM solution allows for maintaining the factory performance parameters of the system, which translates into predictable vehicle behavior during emergency braking and in daily city traffic.

The version designed for vehicles with an automatic transmission is adapted to the operating characteristics of such a gearbox, where load changes in the drivetrain occur more frequently during acceleration and deceleration. The properly selected force ratio and hydraulic capacity of the master cylinder help maintain stable pressure in the brake circuits under various driving conditions.

Construction of the brake servo + master cylinder set

The set consists of a brake servo and an integrated master cylinder, forming a cohesive module mounted directly to the engine bay bulkhead. This design reduces the number of connections and potential leak points, while also facilitating service and replacement of the entire assembly. The use of original Volkswagen technology ensures a proper fit for the brake pedal, brake lines, and the vacuum system in the specific model.

The internal construction of the servo is responsible for amplifying the force applied to the master cylinder piston, while the master cylinder distributes pressure to the front and rear brake circuits. This allows the system to maintain proper force balance, which is essential for vehicle stability during heavy braking.

Benefits of using the original module

Using the original brake servo + master cylinder module in a Volkswagen Golf V allows for maintaining the factory brake pedal feel without the need for adaptations or modifications to the installation. This is particularly important in vehicles equipped with assistance systems such as ABS or ESP, which are calibrated for the specific performance of the hydraulic system. Proper component matching minimizes the risk of uneven braking, increased stopping distance, or improper operation of safety systems.

The unit from the Brake master cylinders category in a used version represents a reasonable compromise between repair costs and maintaining high-quality parts. An original component from dismantling, when properly installed and bled, allows for effectively restoring the efficiency of the braking system without the need to invest in expensive aftermarket replacements with uncertain parameters.

Selection, installation, and compatibility

When selecting this unit, it is crucial to match it to the specific body version and drivetrain, particularly regarding the automatic transmission used. In practice, this means verifying compatibility with the existing brake installation, line spacing, and the geometry of the bulkhead mounting. A properly selected module enables plug-and-play installation without structural modifications or interference with factory body components.

During installation, it is recommended to:

• check the vacuum system for leaks after connecting the servo,
• thoroughly bleed all brake circuits,
• verify brake pedal travel and firmness after initial stationary tests,
• perform a road test in safe conditions to evaluate braking uniformity.

Expanding brake system upgrades

If you are planning a comprehensive repair or upgrade of the braking area in your Volkswagen and need other elements from the same group, such as discs, pads, or brake lines, check the available parts in the Volkswagen Brake master cylinders category.

For larger service tasks, it is also worth analyzing how the choice of used elements affects the repair budget and safety. Practical tips on choosing refurbished and used brake system components can be found in the article: Brake calipers under the microscope: How to effectively reduce brake system repair costs by choosing proven recycled parts.

Summary

The complete brake servo with master cylinder for a Volkswagen Golf V with an automatic transmission is a technically matched braking system component that allows for restoring proper braking characteristics and maintaining compliance with factory vehicle settings. Choosing an original, used module from the Brake master cylinders category is an effective way to perform a professional repair at controlled costs, while maintaining a high level of safety and driving comfort.
