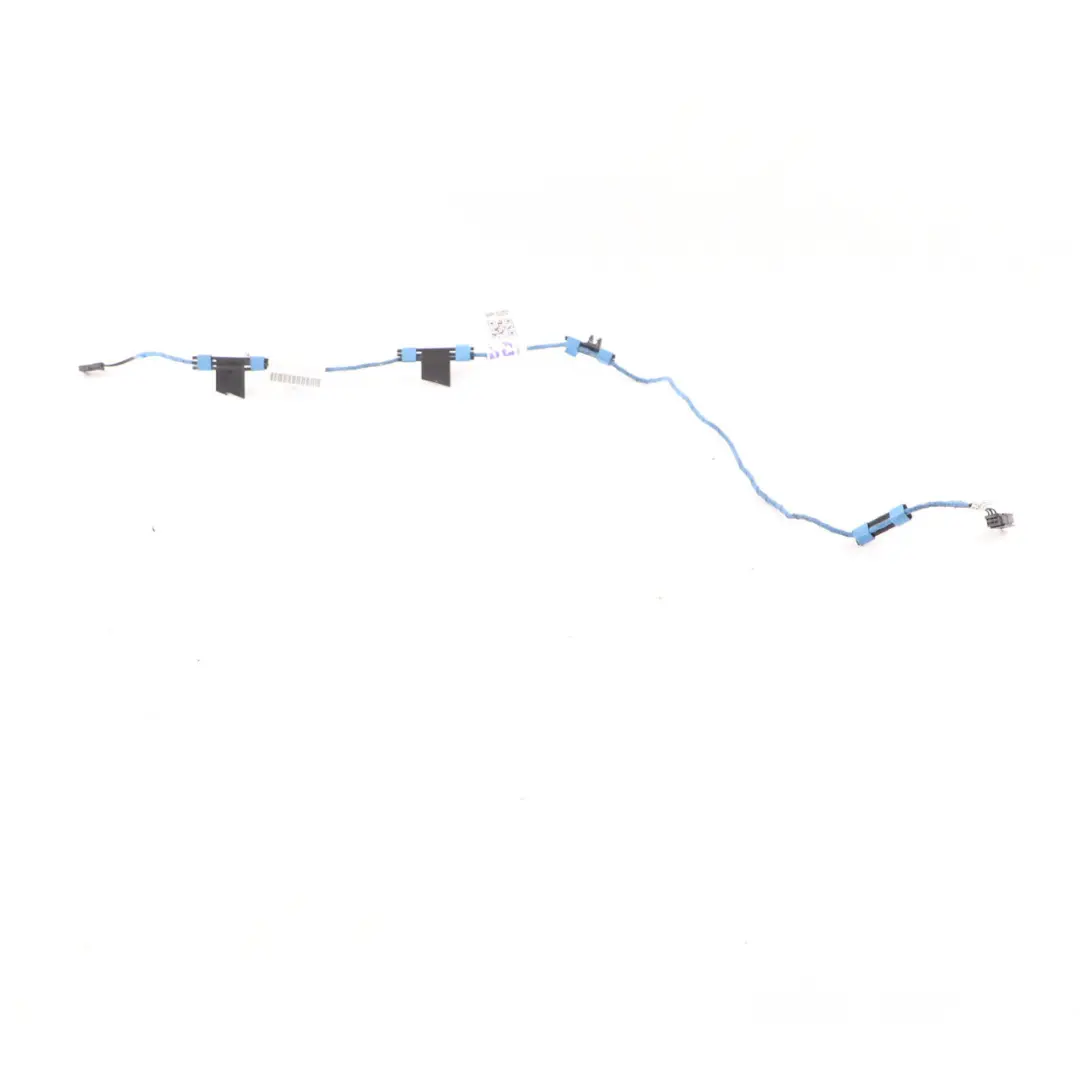

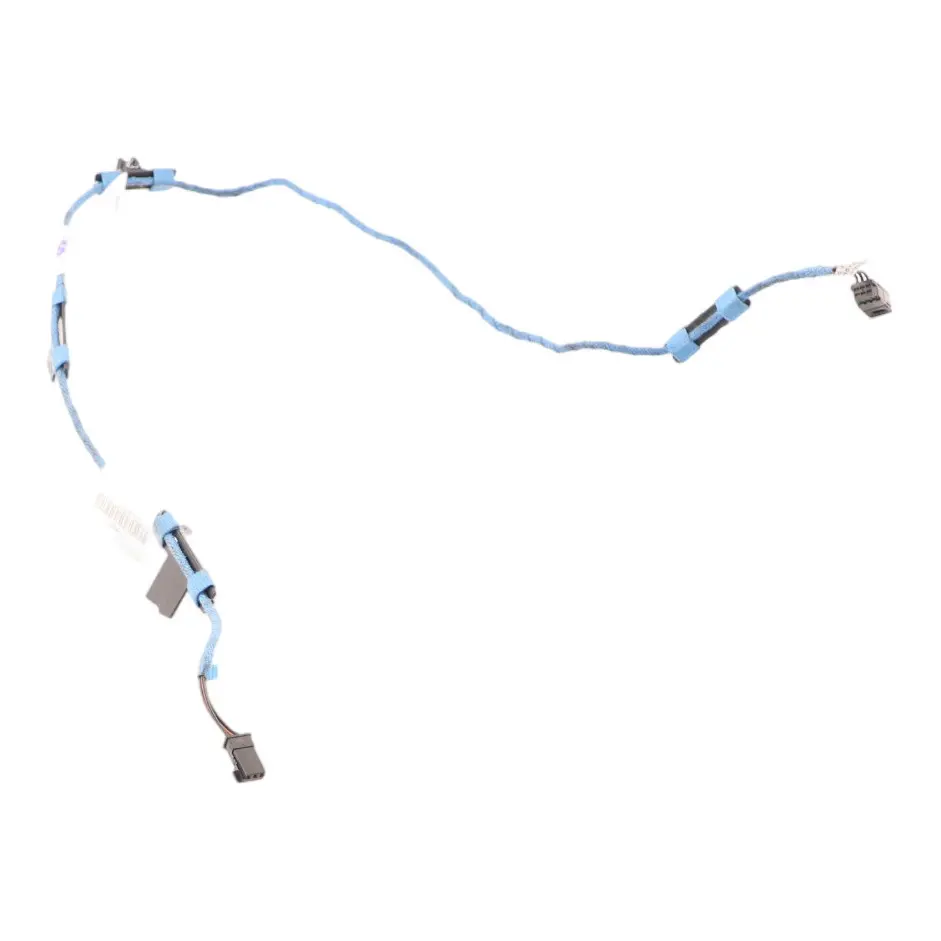

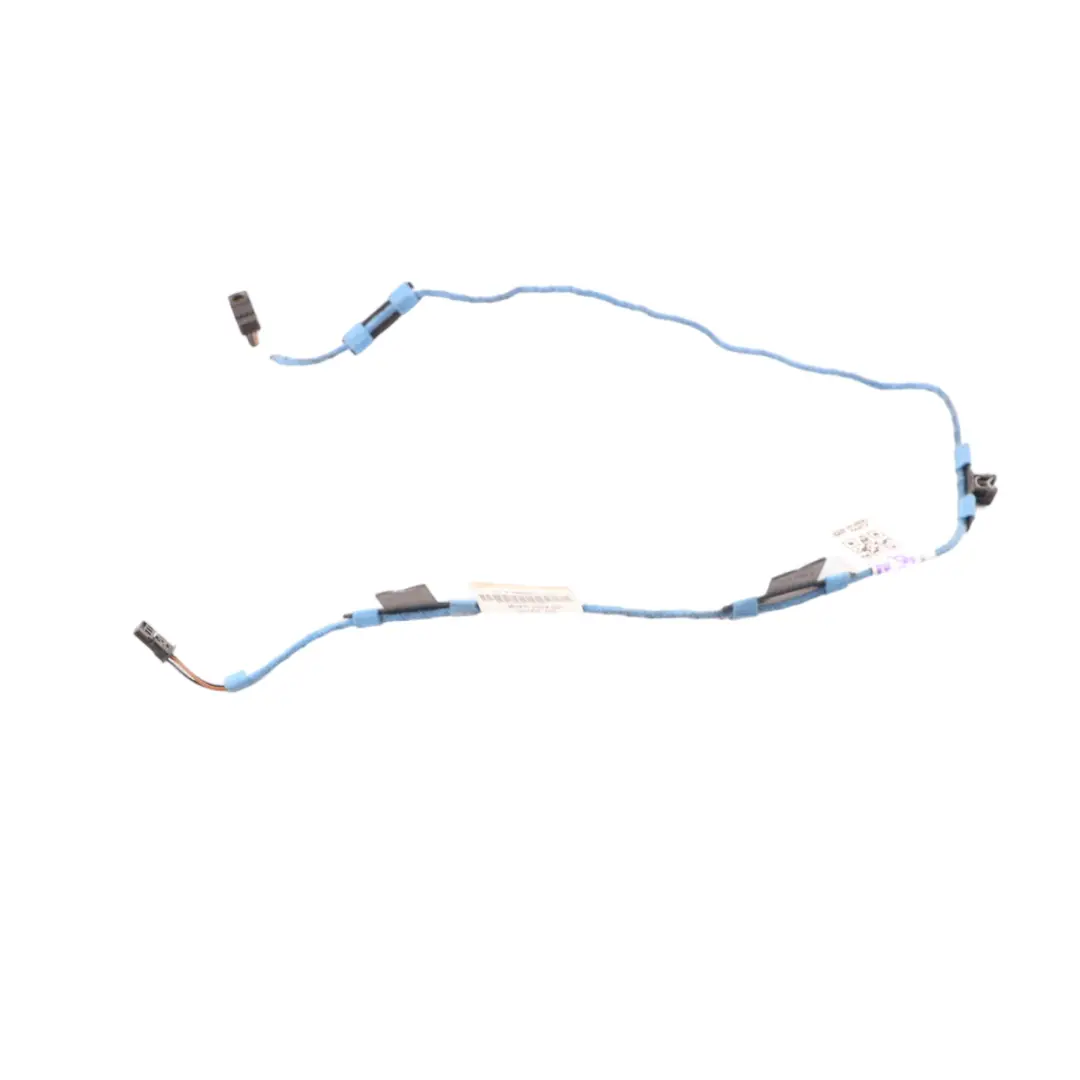

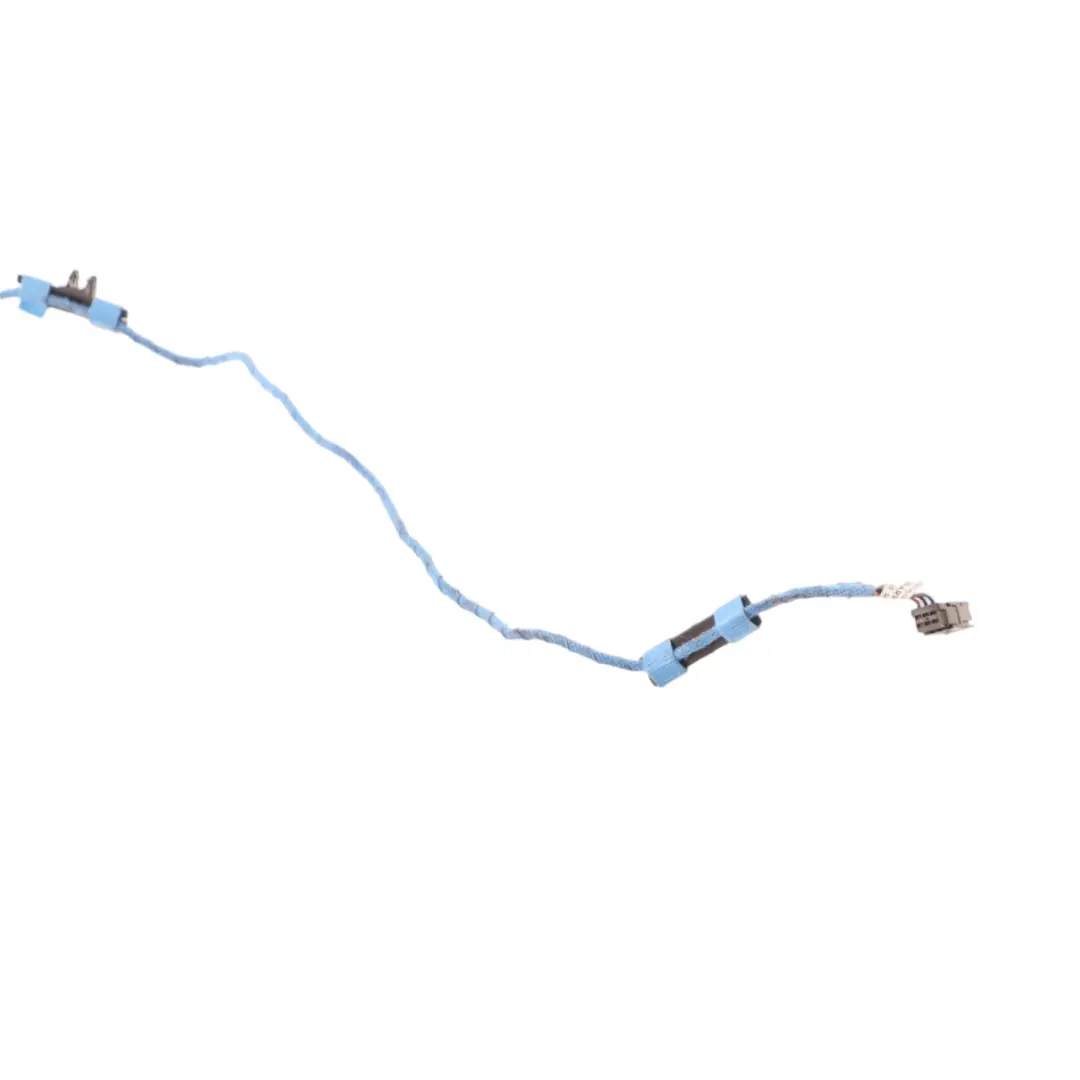

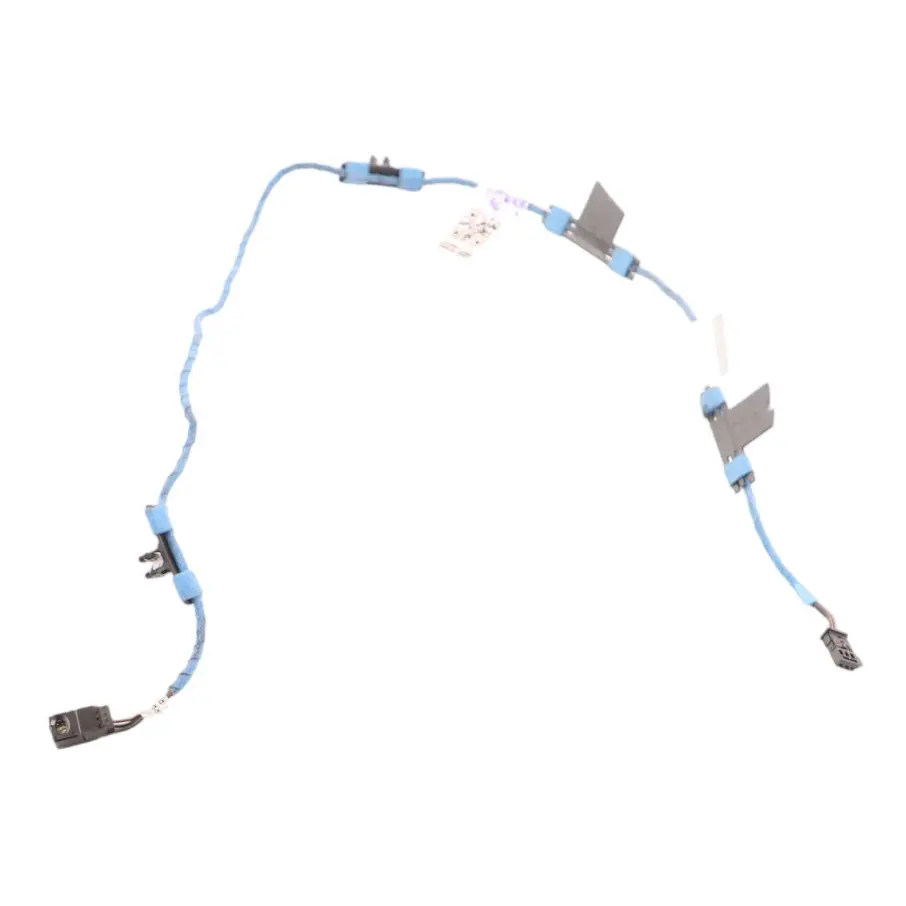

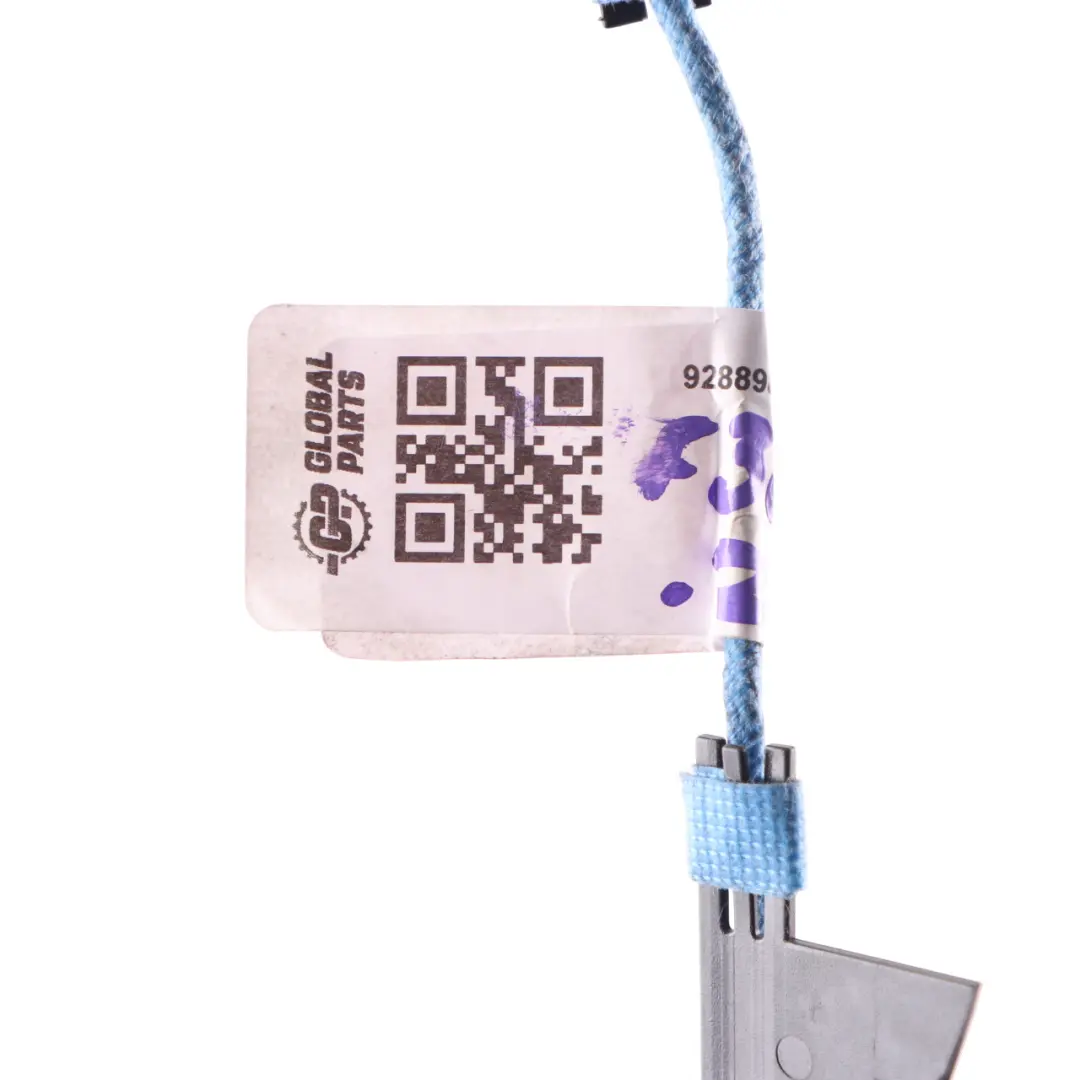

BMW F36 B Pillar Led Module Interior Light Cable Wiring 9288984

The BMW F36 B Pillar Led Module Interior Light Cable Wiring is an original, used B-pillar LED lighting wiring harness designed for BMW 4 Series Gran Coupé F36 models. This component ensures stable power supply to the LED module within the center pillar, contributing to consistent, comfortable cabin lighting and improved interior ergonomics. It's a practical solution for users looking to restore full functionality of the factory lighting without compromising quality.

Specifications and technical data

• SKU: 9288984
• Mark: BMW (Genuine OE)
• Condition: Used

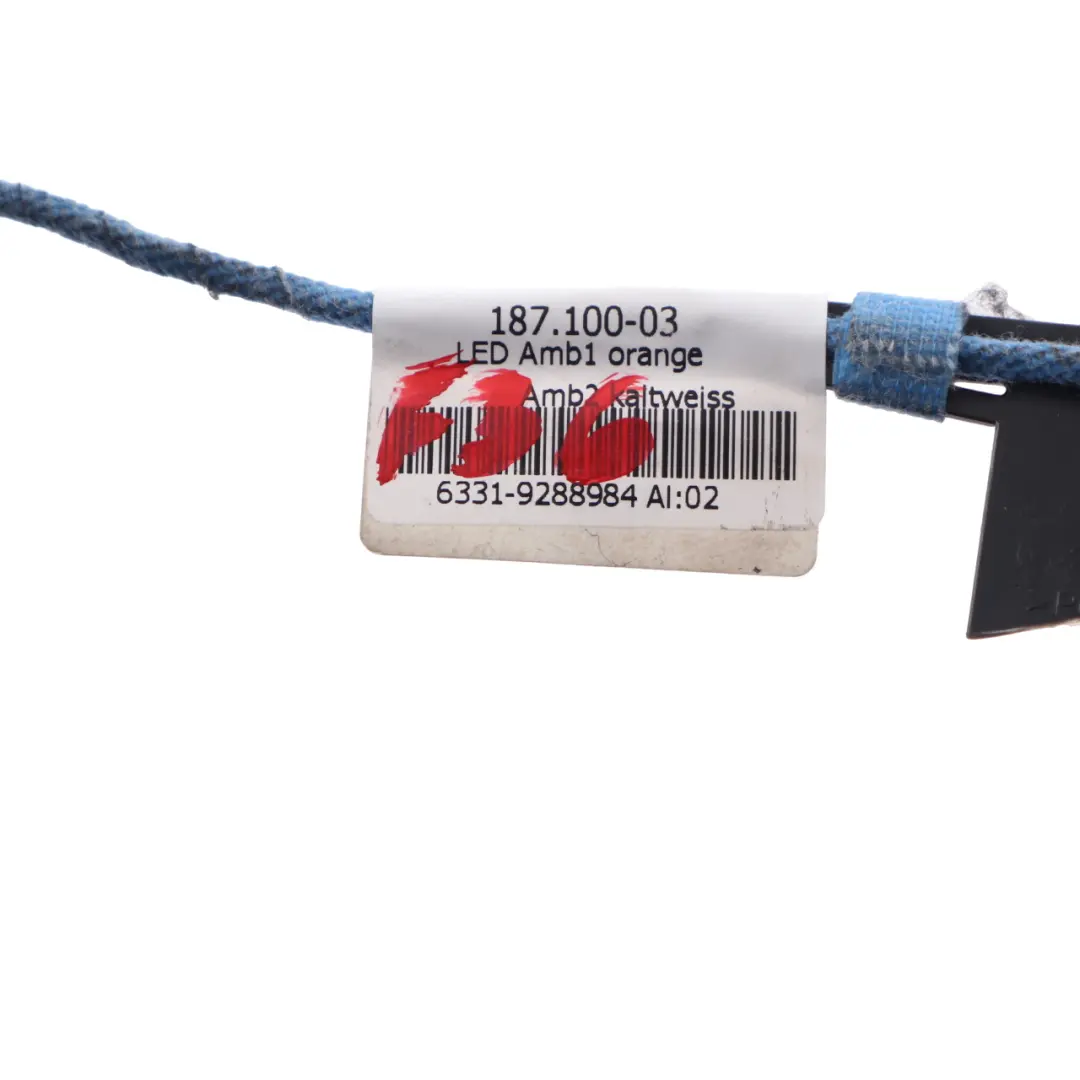

• OEM Part Number: 9288984
• Substitutable numbers: 9288984, 63319288984
• Category: Interior Light Assemblies

Purpose and Function in BMW Installation

The B-pillar interior lighting harness in the BMW F36 is responsible for connecting the LED module to the vehicle's electrical system. This allows the lighting in the central cabin area to operate according to the comfort system logic – it turns on when doors are opened, smoothly fades out when they are closed, and works in conjunction with other light sources in the car.

This element is particularly important in vehicles equipped with extensive Cabin Lighting, where color consistency and light intensity are significant for both functional and aesthetic reasons. Using an original harness for the LED module ensures the system's factory operating parameters are maintained.

Construction and Compatibility with LED Module

This harness was designed by BMW as part of the B-pillar lighting system, featuring appropriate connectors for the LED module and a length tailored to the F36 body geometry. Proper shielding and wire gauge help minimize interference and voltage drops, promoting uniform LED operation.

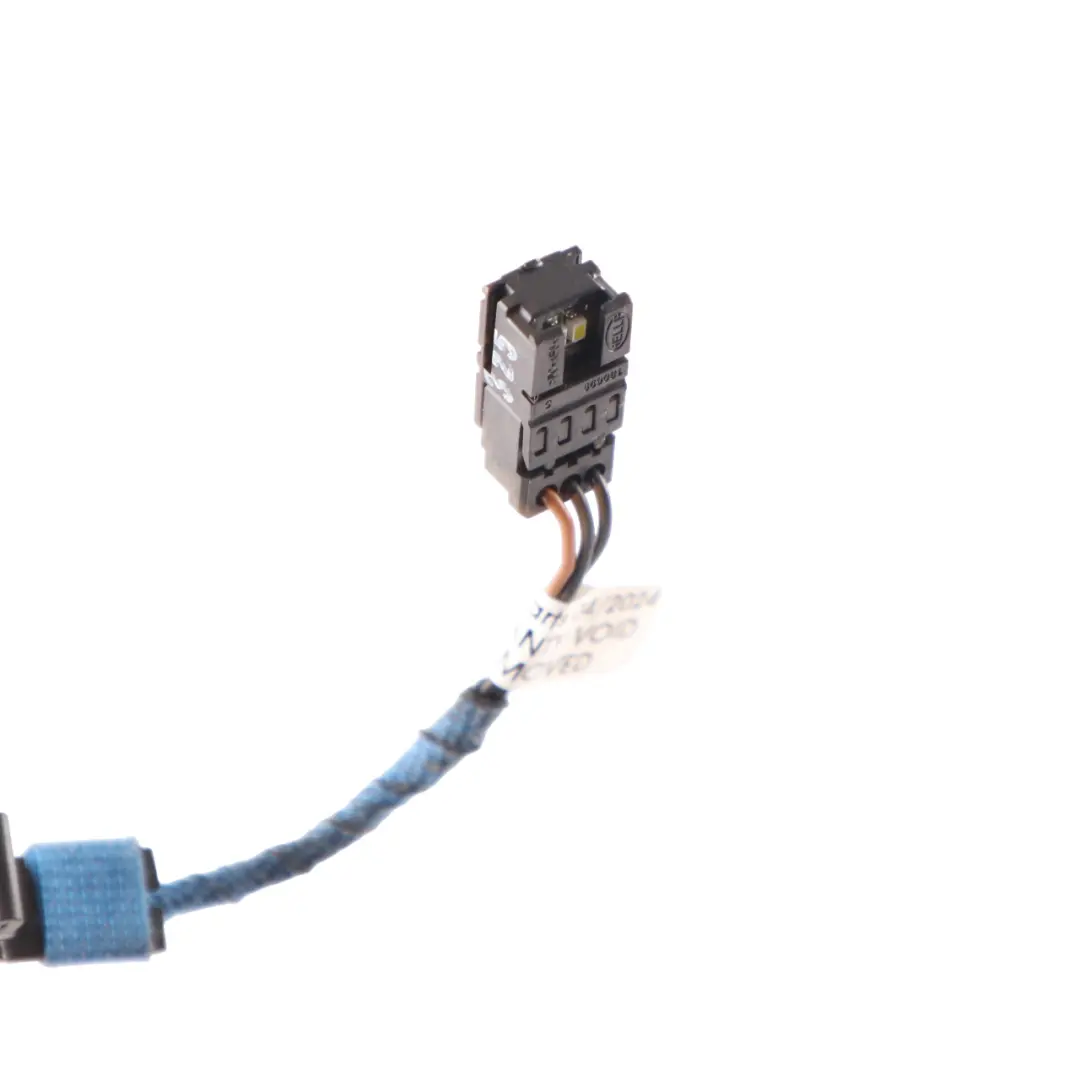

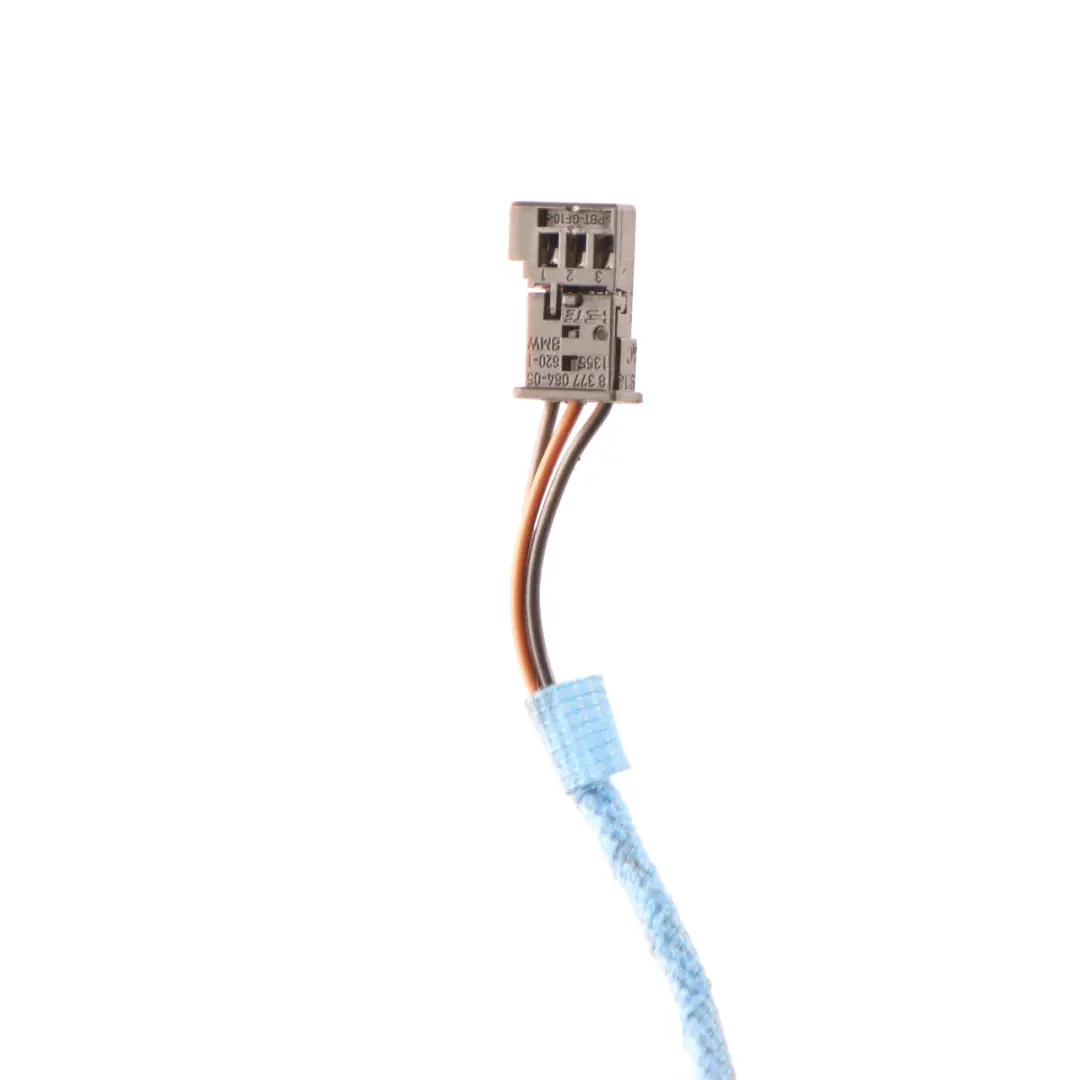

The original connectors ensure:

• a secure, stable connection to the LED module and the vehicle's wiring,
• minimal risk of loose contacts and circuit interruptions,
• easier installation without the need to modify the factory harness.

Therefore, this cable is a suitable choice for replacing a damaged harness or restoring full functionality to the factory lighting in a BMW F36.

Benefits of Using an Original BMW Harness

Using an original BMW component for interior lighting offers a range of practical benefits:

• Factory Fitment – the harness is designed for the specific electrical architecture of the BMW F36, simplifying installation and reducing the risk of errors.
• Consistency with other lighting elements – maintaining uniform operating characteristics for all light sources in the cabin.
• Installation safety – no need for soldering, custom adapters, or interference with the vehicle's main wiring harness.
• Professional repair capability – the cable allows for the restoration of the B-pillar LED module's operation according to the manufacturer's specifications.

This solution is particularly recommended for repairs following side collisions, bodywork interventions in the B-pillar area, or issues with the LED module's power supply.

Condition, Verification, and Practical Application

This component is a used OEM BMW part obtained from disassembly, offering a reasonable cost while maintaining original specifications. The cable is suitable for users who wish to avoid universal aftermarket parts and prioritize the preservation of the factory interior lighting logic.

Before installation, a standard check of the vehicle's electrical system (fuses, comfort module, connector condition) is recommended to ensure the new component is integrated into a functional system. For complex BMW lighting configurations, installation diagrams or the assistance of an automotive electrician may be helpful.

If you are planning a comprehensive repair or upgrade of the interior lighting area in your BMW and require other parts from the same group, such as dome lights, door LED modules, or additional passenger area lighting, please check the available parts in the BMW Cabin Lighting category.
