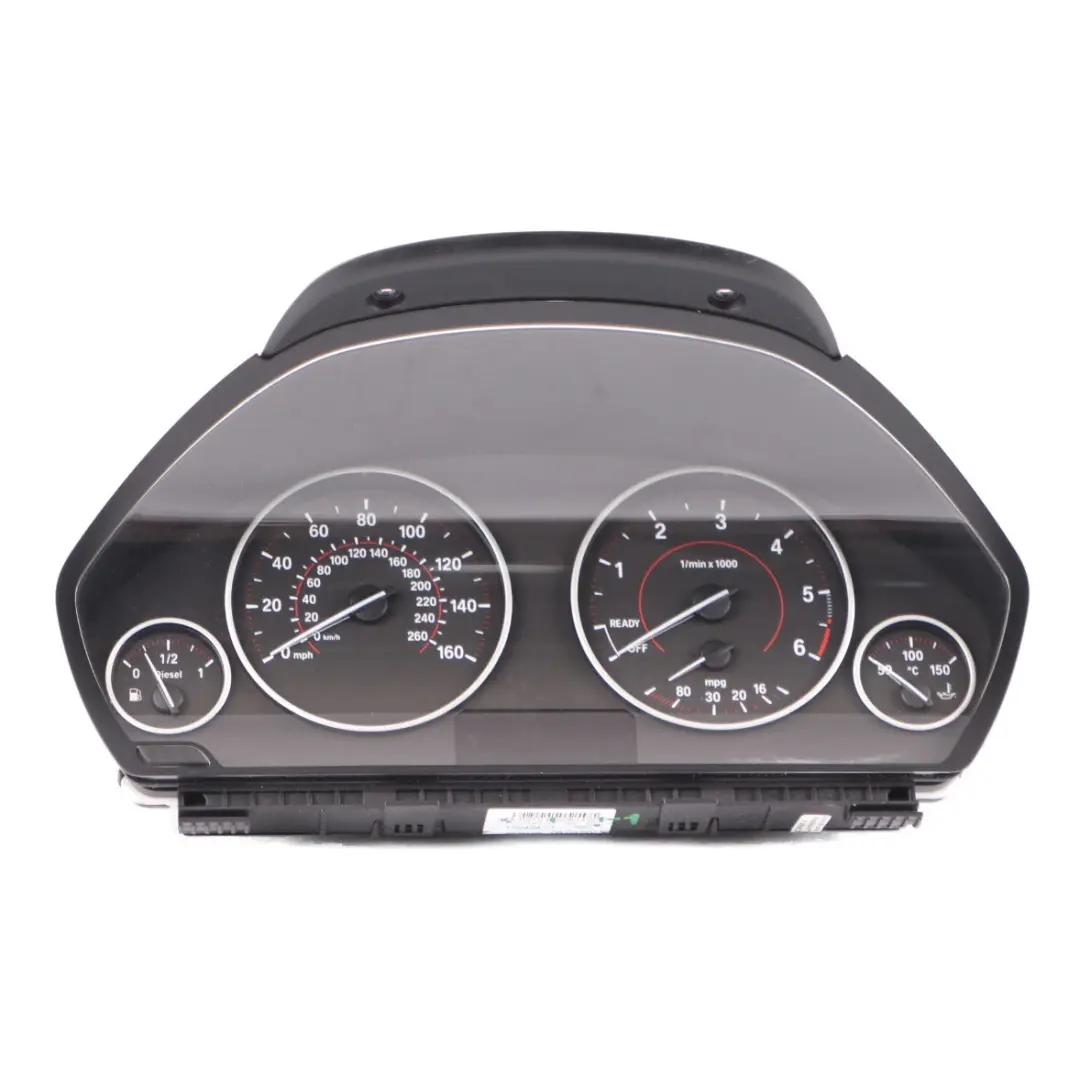

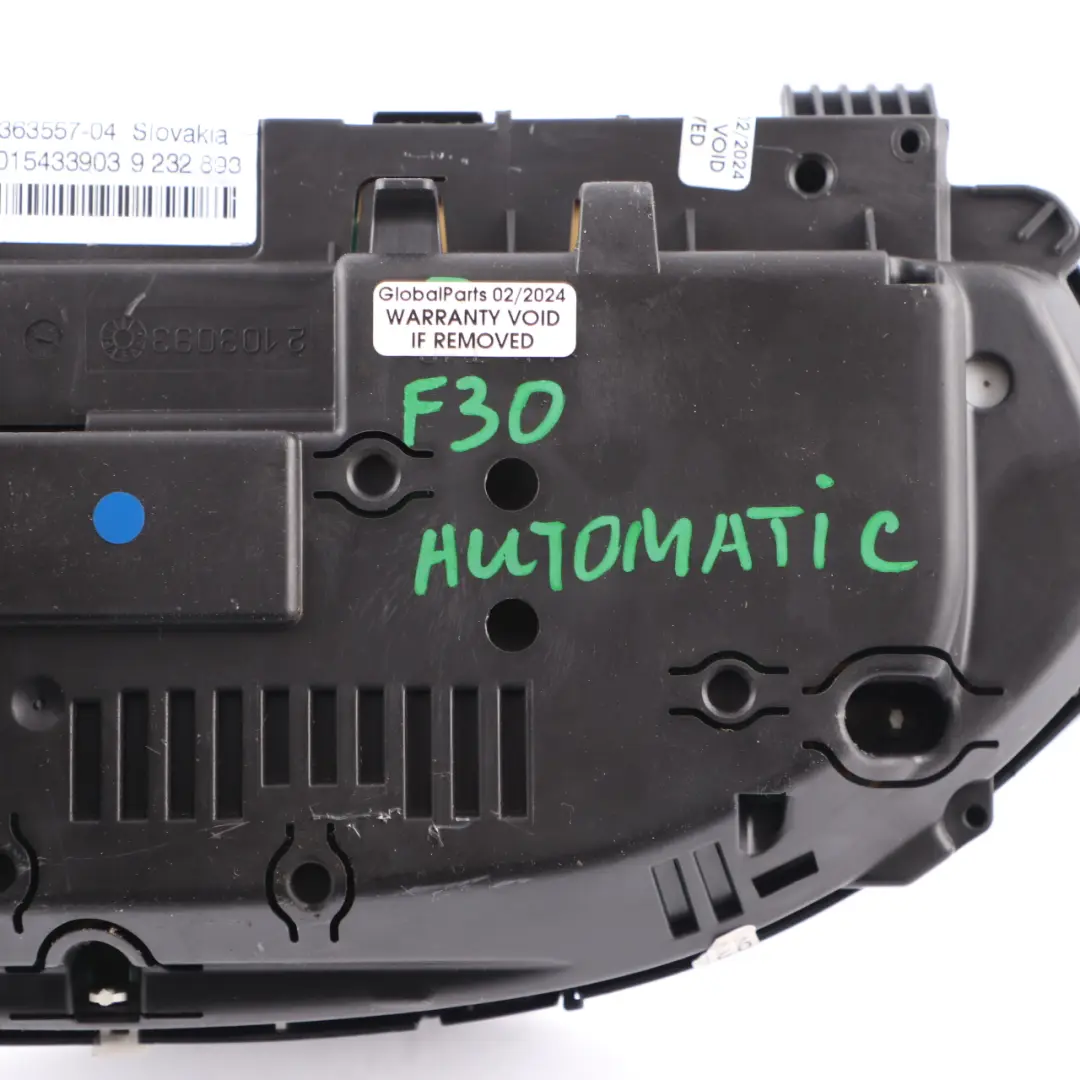

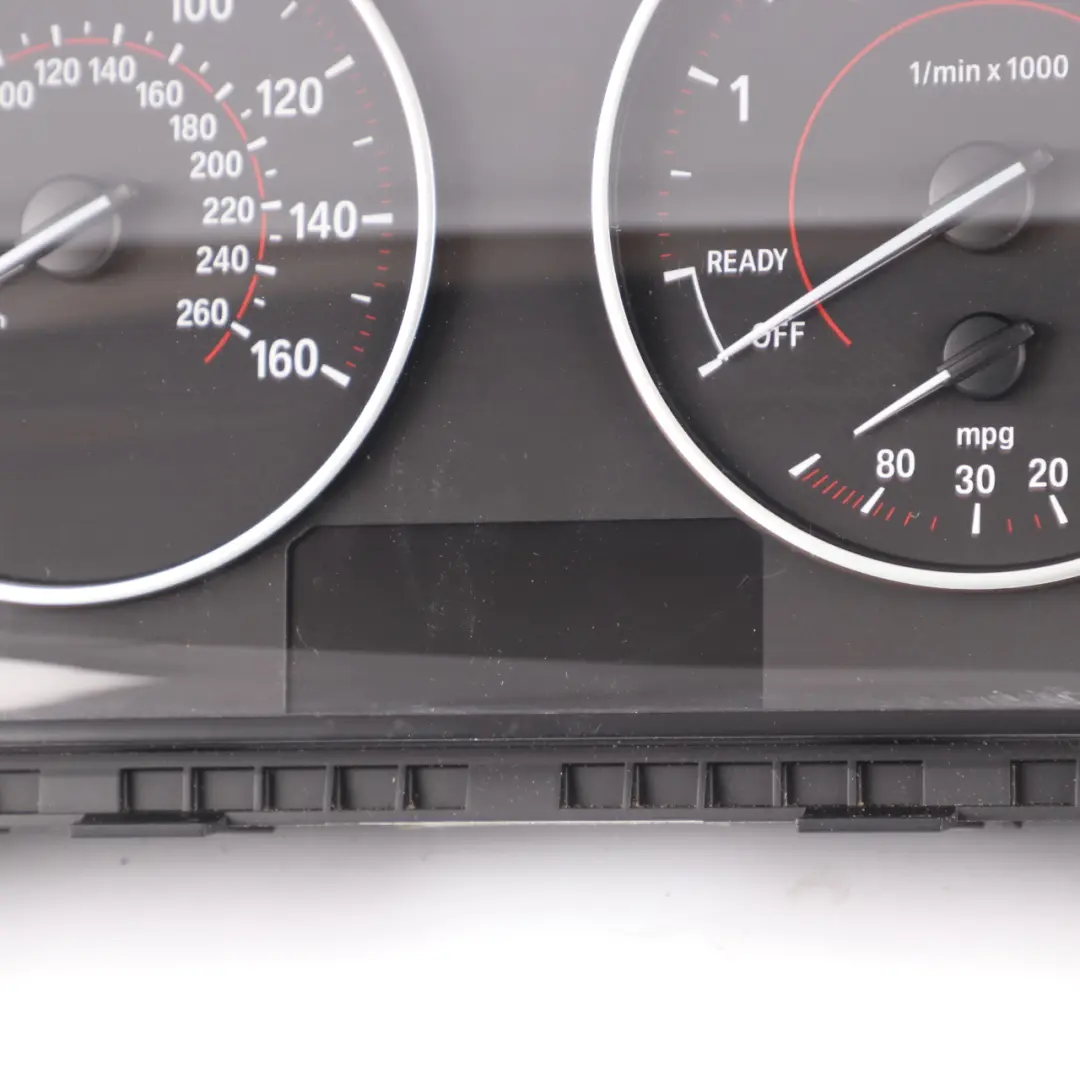

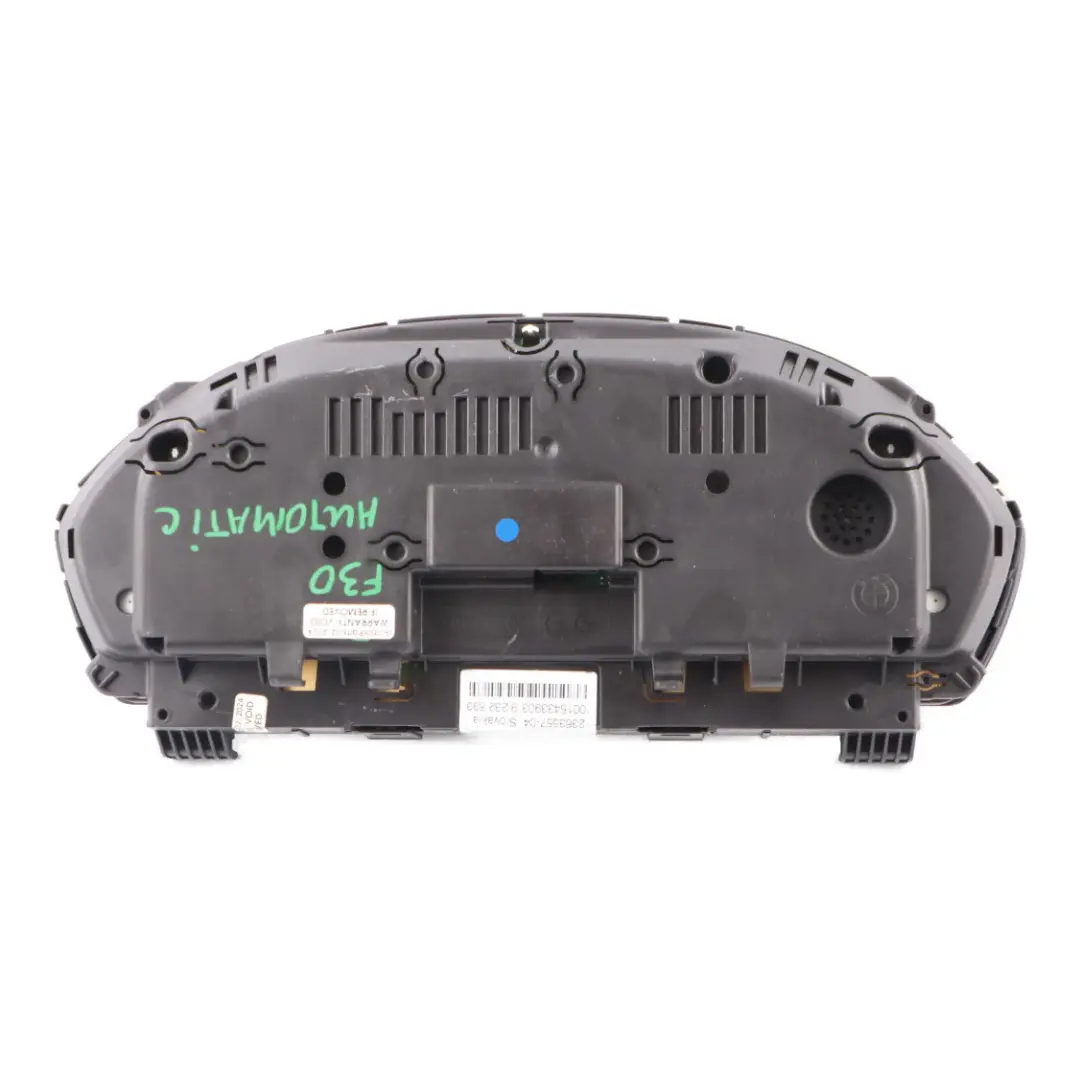

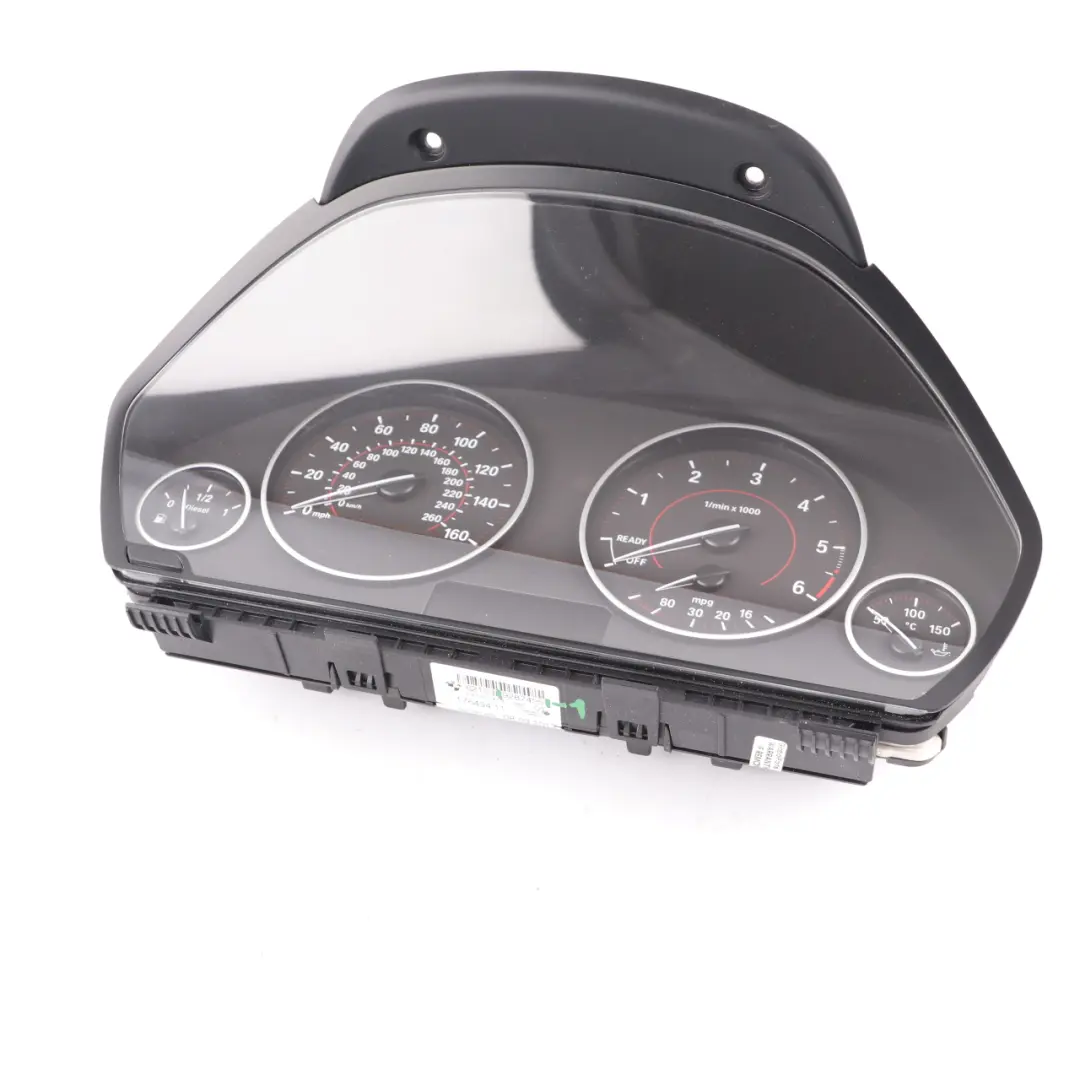

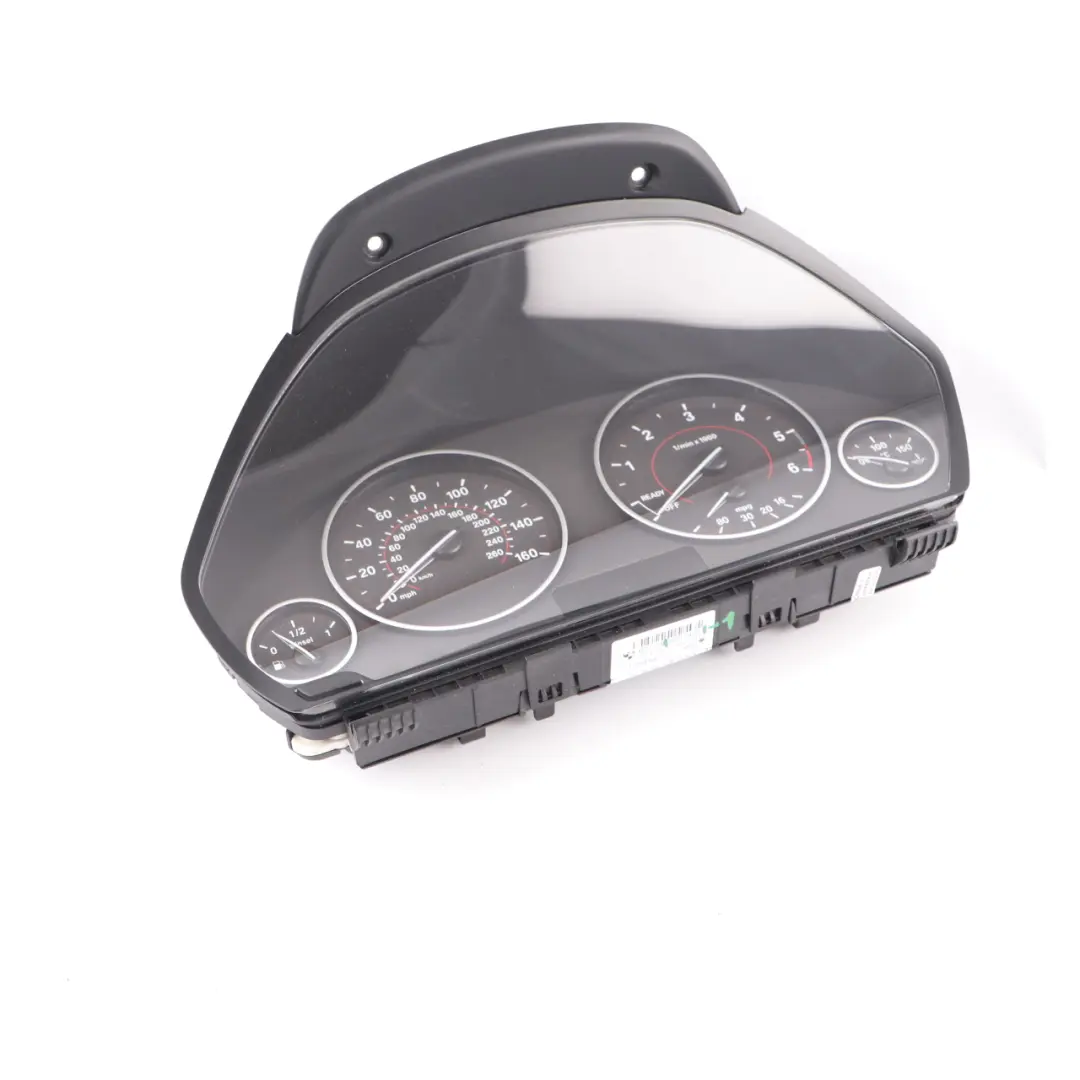

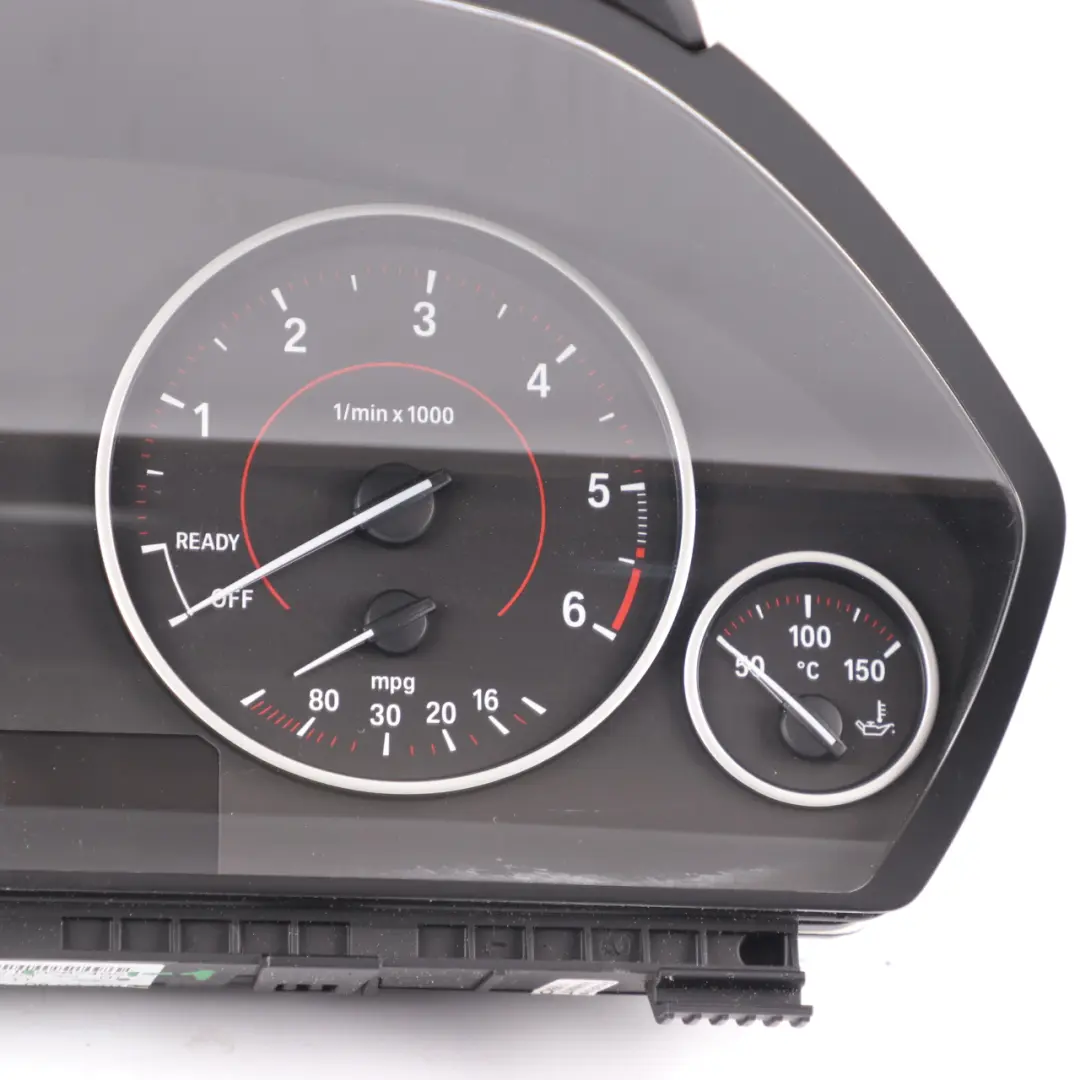

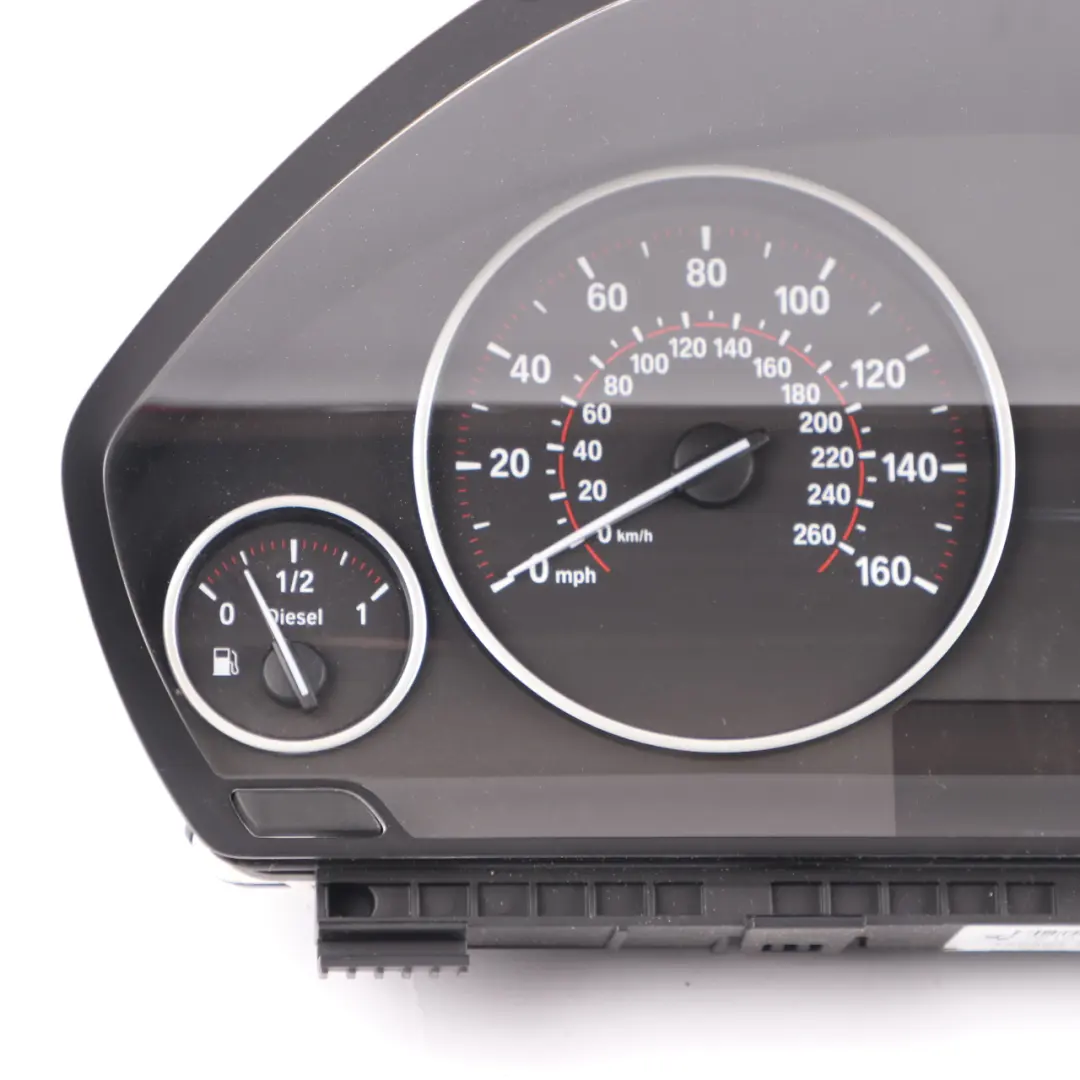

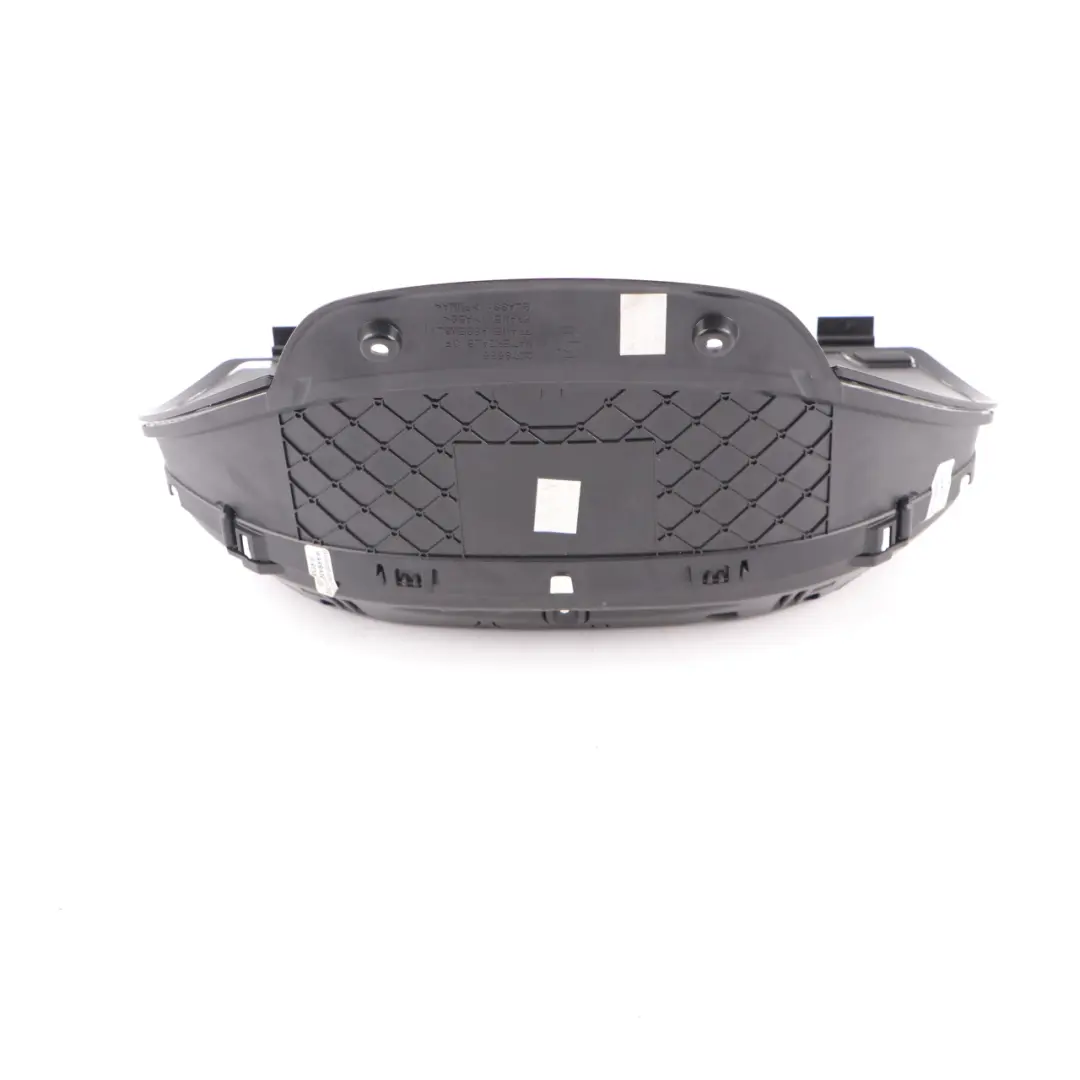

Instrument Cluster BMW F30 F31 Diesel Speedo Clocks Meter Automatic 9287495

BMW F30/F31 Diesel Automatic Instrument Cluster is an original instrument panel designed for factory installation in the cockpit of these models. This instrument cluster provides a clear reading of speed, RPM, and engine operating parameters, maintaining consistency with the factory BMW electronics. Thanks to its OEM construction, it is a functional solution for replacing a damaged set or for retrofitting a vehicle.

Specifications and technical data

• SKU: rhd-9287495-1
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9287495
• Substitutable numbers: 9287495, 62109287495, 9350152, 62109350152, 9325610, 62109325610, 9277596, 62109277596, 9334782, 62109334782, 9283329, 62109283329
• Fuel type: Diesel
• Gearbox type: Automatic
• Category: Instrument Clusters

Purpose and Compatibility

The presented BMW instrument set is designed for installation in Series 3 F30 and F31 models equipped with a diesel engine. The construction is adapted for cooperation with an automatic transmission, which is important for the correct display of transmission modes and system messages. The use of an original instrument panel facilitates integration with the vehicle's factory electrical system and CAN network.

Functionality and Vehicle Integration

The instrument cluster is responsible for presenting key information to the driver, such as driving speed, engine operation, and the status of onboard systems. The panel works with the electronics responsible for the diesel engine and automatic transmission, allowing for:

• correct display of diesel engine operating parameters,
• display of automatic transmission states and modes,
• handling of warning and service messages in accordance with BMW standards.

By maintaining the factory electronics architecture, the instrument cluster can be used as a replacement part in case of failure or damage to the existing panel.

Technical Characteristics and Installation

As an element from the Instrument Clusters category, the panel is adapted for installation in its original place in the dashboard, using factory mounting points. The layout of indicators and warning lights is consistent with solutions used in BMW F30/F31 diesel models, which facilitates maintaining cockpit ergonomics and readability. During installation, BMW programming and adaptation procedures should be considered to ensure the cluster works correctly with the vehicle's control modules.

Condition and Service Application

The offered instrument panel is a used part, making it a practical solution for routine repairs or budget-friendly vehicle restoration after damage. It can be used both as a replacement for a damaged set and as a part used in service projects where maintaining compliance with the factory specification of BMW F30/F31 Diesel Automatic is important.
