Speedo Clocks BMW F20 F21 F22 F23 Diesel Instrument Cluster Automatic 9287468

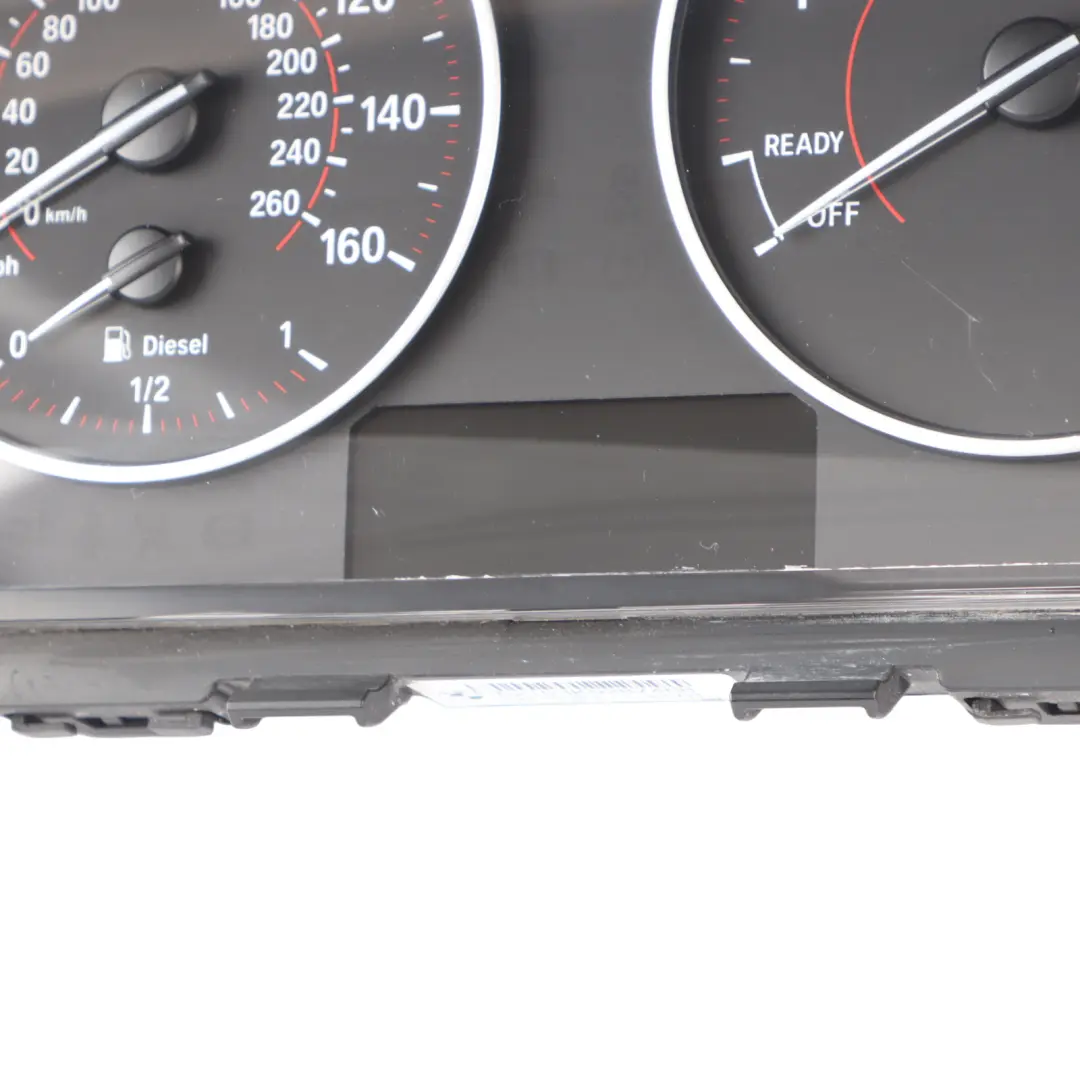

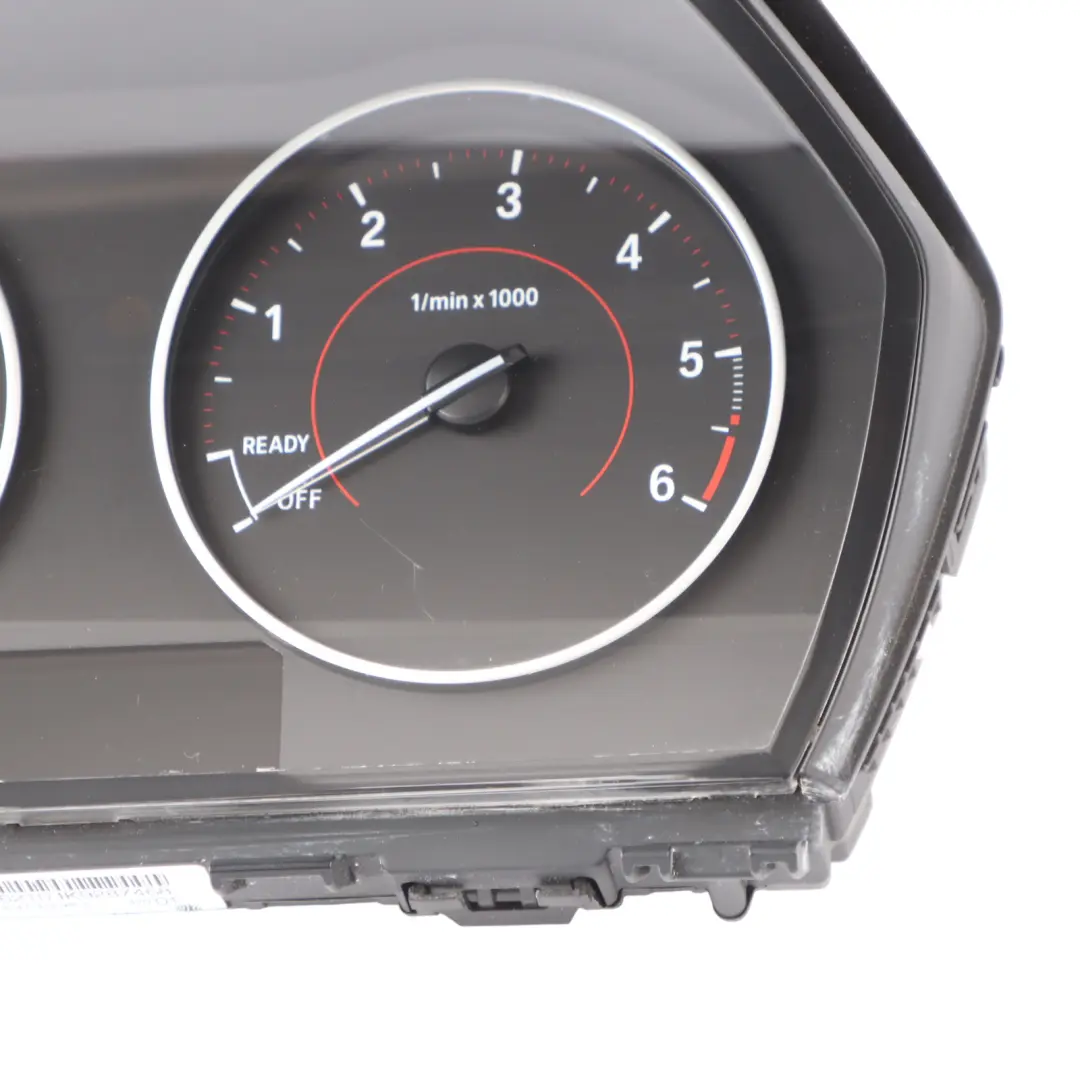

Visual condition of the part

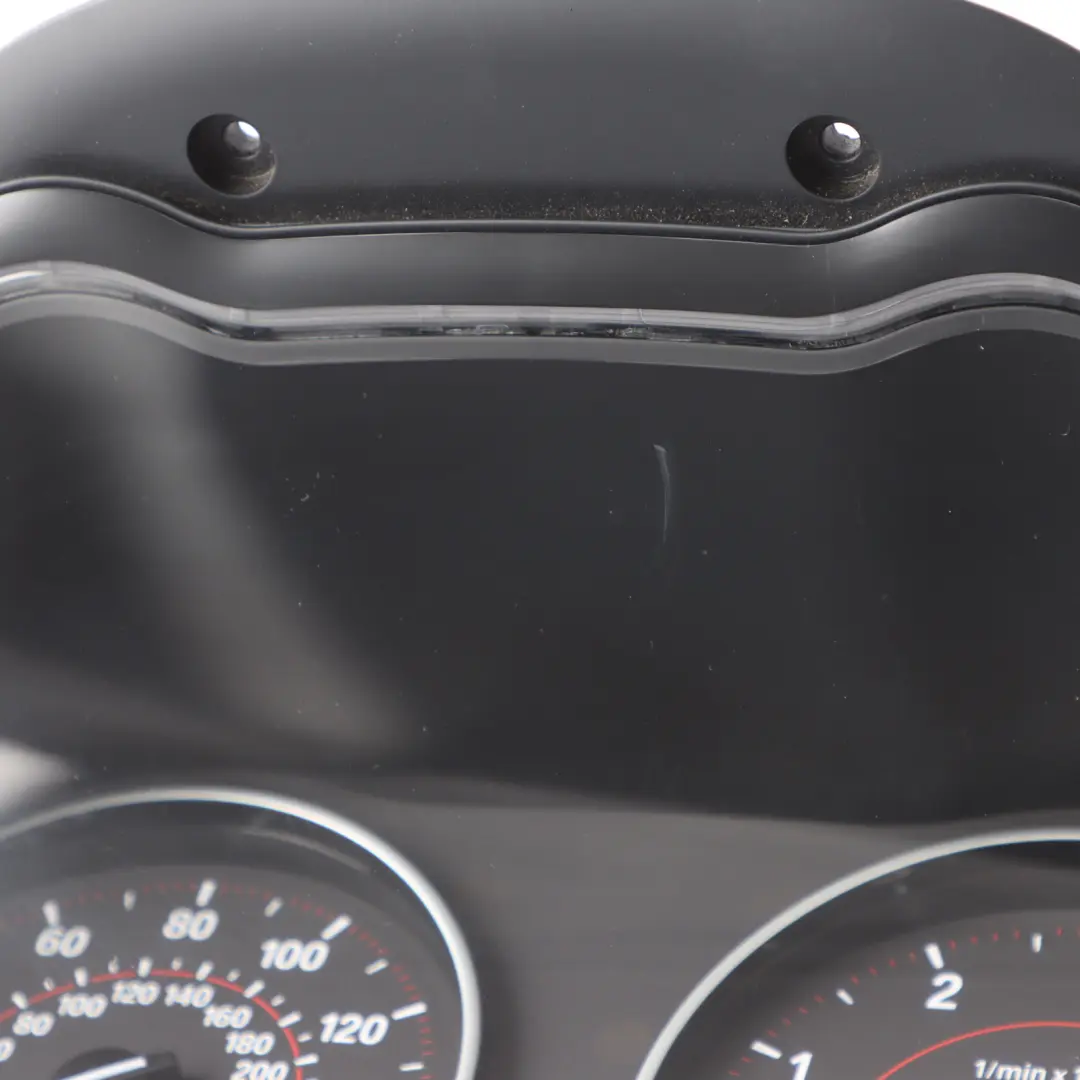

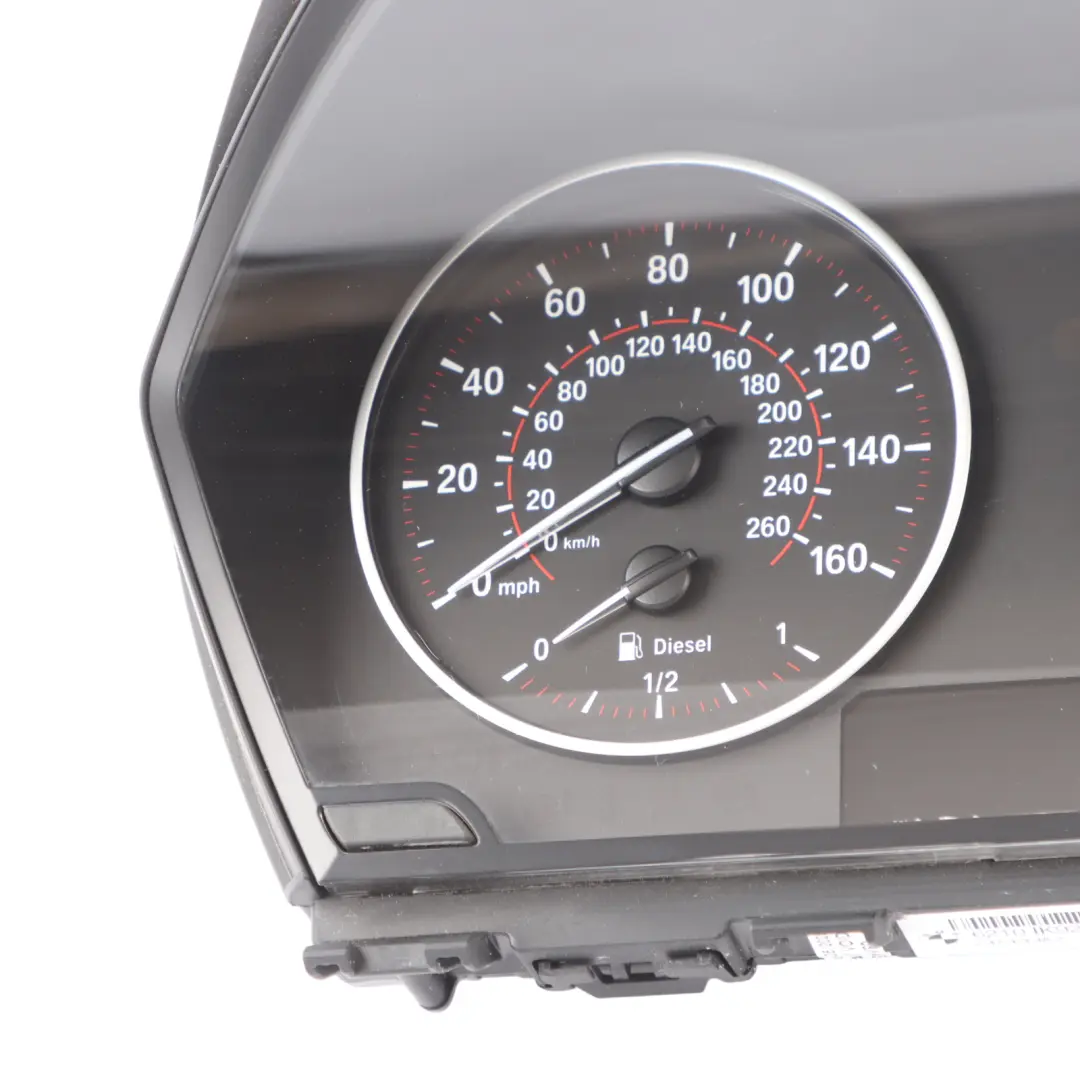

The product shows signs of use visible in the photos.

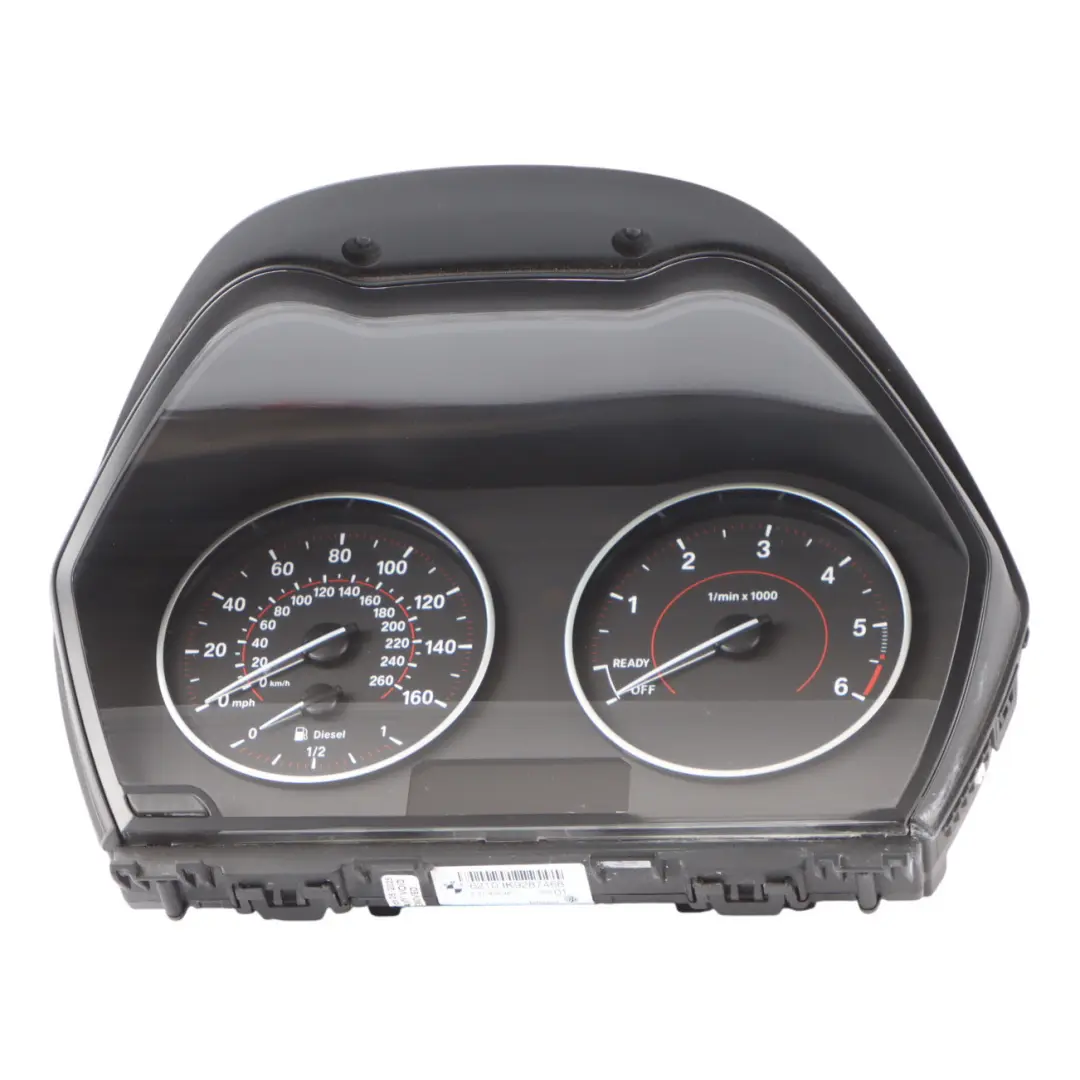

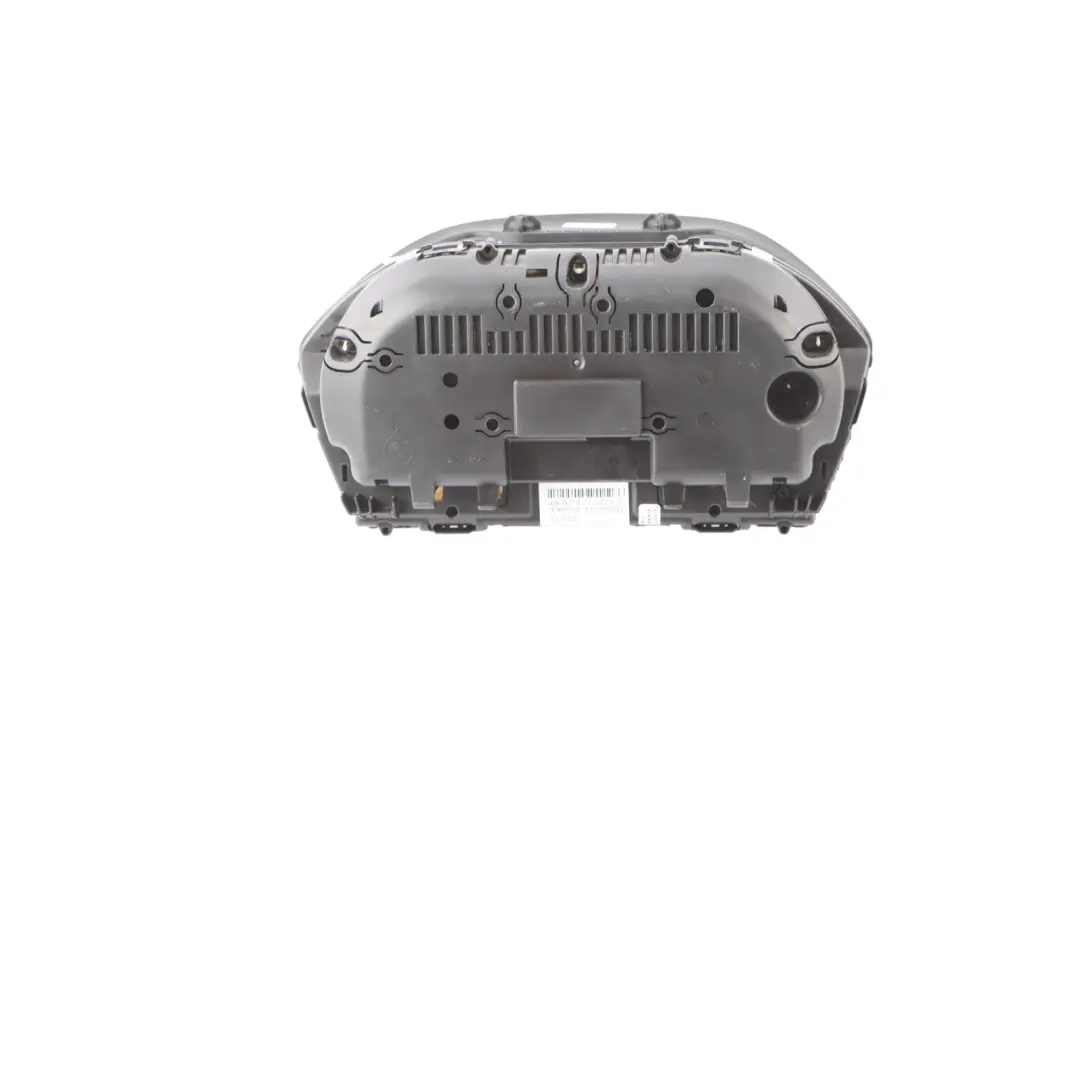

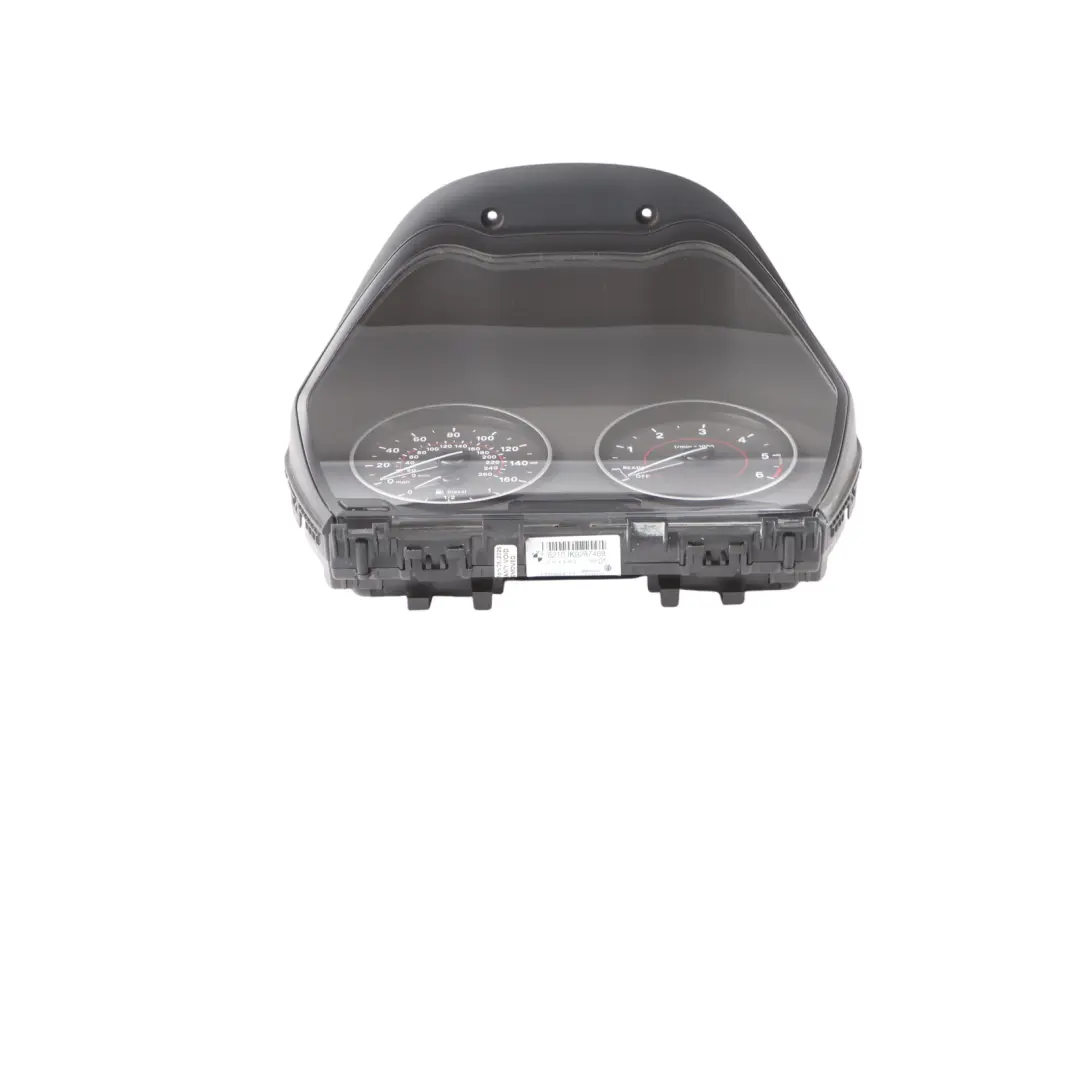

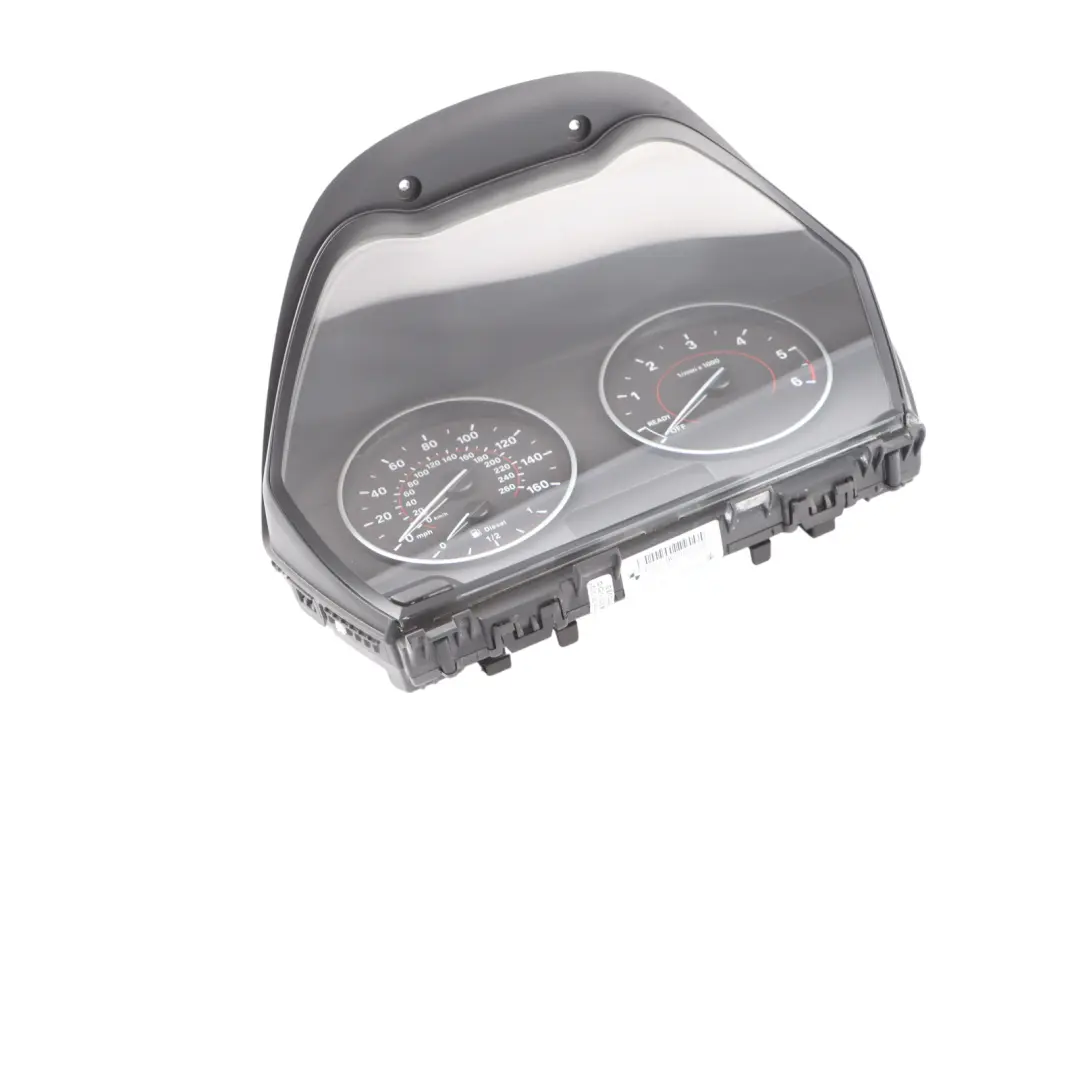

Speedo Clocks BMW F20 F21 F22 F23 Diesel Instrument Cluster Automatic is an original instrument cluster designed for BMW 1 and 2 Series models with a diesel engine and automatic transmission. This item from the Instrument Clusters category ensures clear monitoring of vehicle operating parameters and consistent fitment with the factory installation. It is a practical solution for replacing a damaged unit or matching a used component to a specific vehicle configuration.

Specifications and technical data

• SKU: rhd-9287468-1
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9287468
• Substitutable numbers: 62106805198, 6805198, 9350125, 9283290, 9382160, 9277555, 9275108, 9334745, 9325635, 9287468, 9371850, 9365975, 9270439, 9371021, 62109350125, 62109283290, 62109382160, 62109277555, 62109275108, 62109334745, 62109325635, 62109287468, 62109371850, 62109365975, 62109270439, 6210937
• Fuel type: Diesel
• Gearbox type: Automatic
• Category: Instrument Clusters

Purpose and compatibility

The presented instrument cluster is designed for the interior of BMW F20, F21, F22, and F23 series with a diesel engine and automatic transmission. The panel design is adapted to the electrical architecture of these models, which facilitates integration with the vehicle's factory system, including the engine control unit and comfort modules.

By using an original BMW solution, the stylistic consistency of the cockpit is maintained, and the indications of speed, RPM, and other parameters are presented in a way familiar to the driver from the factory configuration. This is particularly important when replacing a damaged unit, where maintaining ergonomics and operational logic is a priority.

Vehicle function and key features

The instrument cluster serves as the central information point for the driver. The panel works with the vehicle's electrical system, transmitting data such as speed, engine RPM, diesel unit operating status, and automatic transmission modes. This gives the driver a constant overview of key operating parameters.

The most important advantages of this solution include:

• factory fitment for BMW F-series dashboards with diesel engines,
• compatibility with automatic transmissions, including the display of transmission operating modes,
• clear layout of gauges and warning lights, facilitating quick information reading,
• integration with vehicle diagnostic systems.

Choosing an original instrument cluster reduces the risk of communication issues on the data bus and ensures predictable operation of all information functions.

Condition, installation, and technical aspects

The offered panel is a used item, which in practice means it comes from dismantling and may show signs of normal wear while maintaining the functionality required for further use. This type of component is often chosen as an economical alternative to a new part, while maintaining the manufacturer's original specifications.

Installing the instrument cluster in a BMW F-series requires standard service procedures: removing cockpit covers, disconnecting the old panel, and connecting the new one to the wiring harness. In many cases, it is also necessary to perform adaptation or coding procedures in the vehicle to match the cluster to the engine, transmission, and equipment configuration. For this reason, it is recommended that the work be performed by a workshop with appropriate diagnostic software.

Application in vehicles with diesel engines and automatic transmissions

In BMW vehicles with a diesel unit, precise presentation of engine operating parameters, such as the RPM range or warning signals, is particularly important. The instrument cluster dedicated to the Diesel version is calibrated to the characteristics of this type of unit, which translates into accurate representation of loads and rotational speed.

The version intended for an automatic transmission works with the transmission control module, displaying the currently selected driving mode and any messages related to transmission operation. Thanks to this, the driver receives a consistent set of information, which is essential both in daily operation and during the diagnosis of potential faults.

Offer expansion and technical knowledge

If you are planning a comprehensive repair or upgrade of the cockpit area in your BMW and need other items from the same group, such as additional instrument panels, display modules, or alternative gauge configurations, check the available parts in the BMW Instrument Clusters category.

For those interested in deepening their knowledge about the operation of diesel units and the impact of accessories on engine performance, the article describing the refreshing of the popular V6 CDI unit may be helpful – Second life of the Mercedes OM642 engine – how injectors and a turbocharger restore the power of the 3.0 V6 CDI. It allows for a better understanding of the relationships between electronics, accessories, and the information presented on the instrument cluster.
