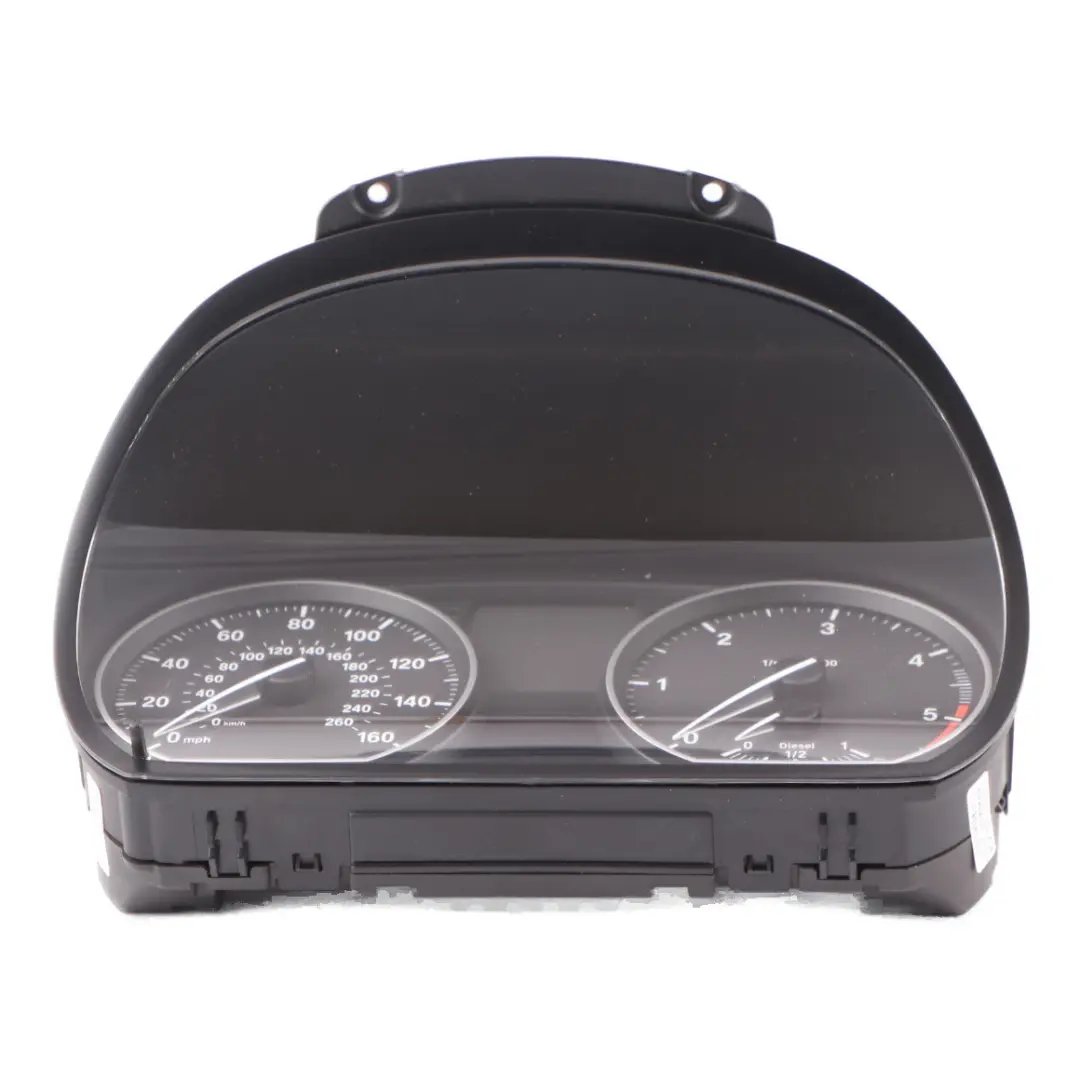

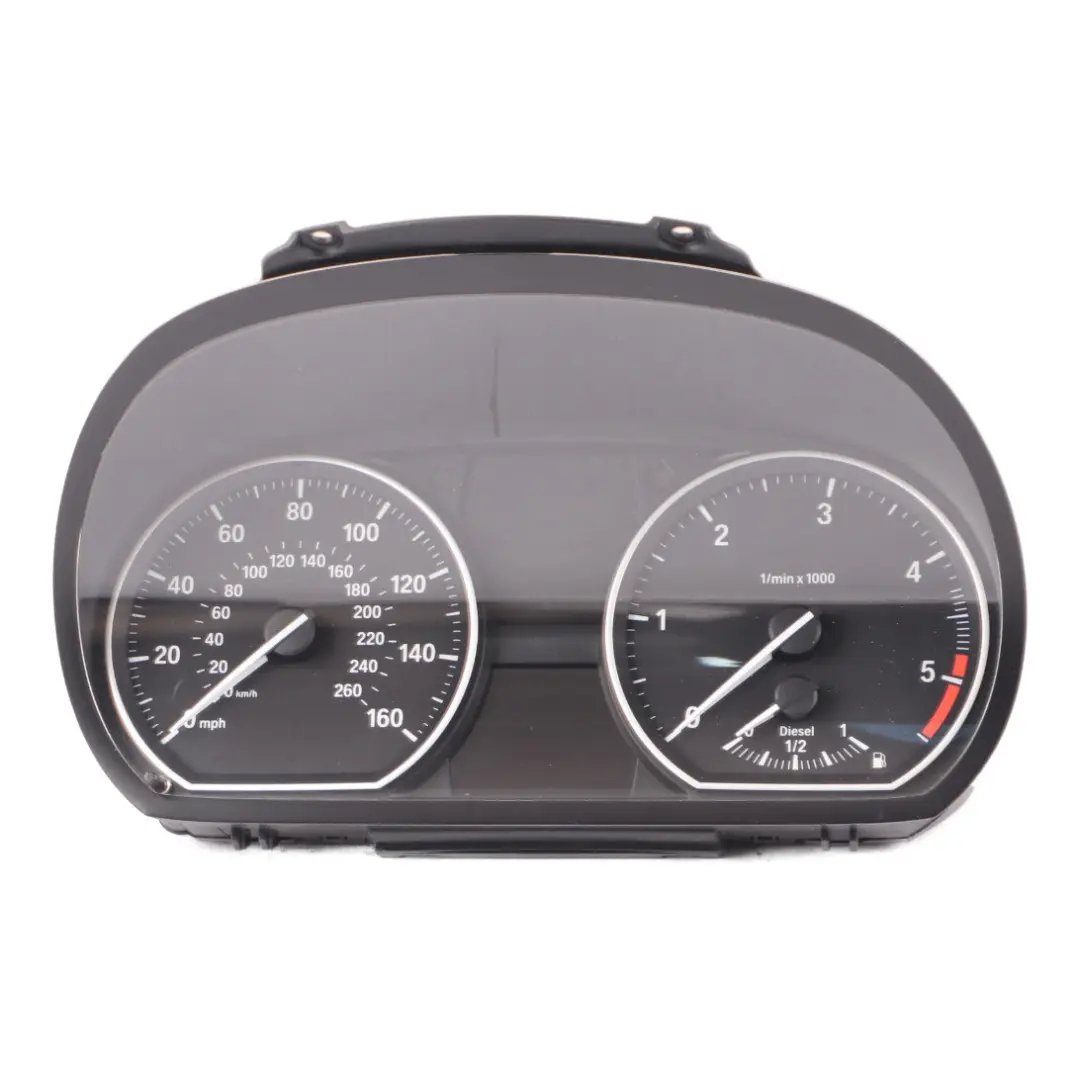

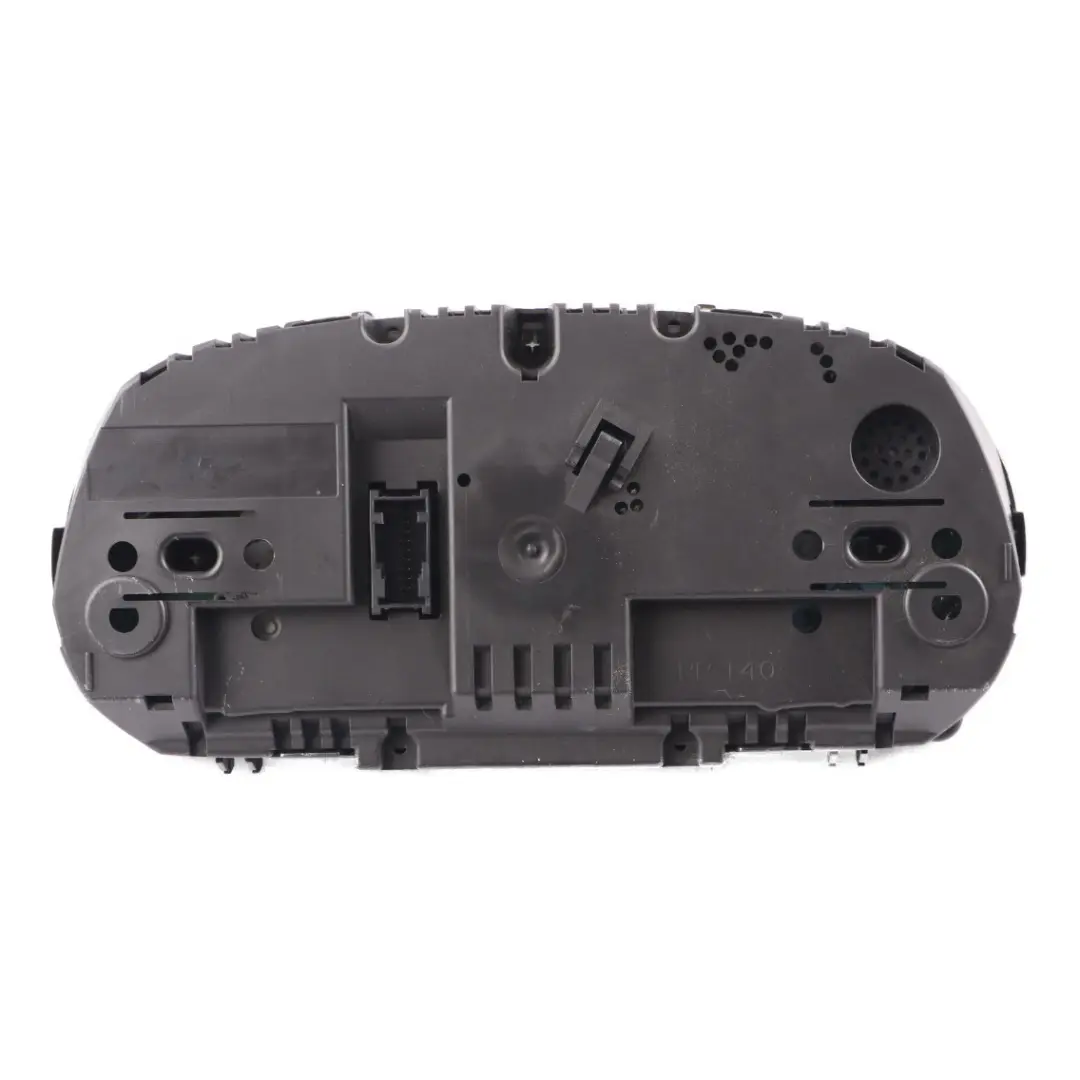

Instrument Cluster BMW E81 E87 LCI 120d N47 Diesel Speedo Clocks Manual 9242335

Visual condition of the part

The product shows signs of use visible in the photos.

Instrument Cluster BMW E81 E87 LCI 120d N47 Diesel Speedo Clocks Manual is an original instrument panel designed for versions with the N47 diesel engine and manual transmission. This factory-original instrument cluster ensures clear reading of engine performance parameters and vehicle speed, maintaining full compatibility with BMW's onboard electronics. It is a solution for users looking for a compatible, OEM speedometer for post-facelift 1 Series models.

Specifications and technical data

• SKU: rhd-9242335
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9242335
• Substitutable numbers: 9242335, 62109242335, 9283804, 62109283804, 9187333, 62109187333, 9220952, 62109220952, 9141478, 62109141478, 9187049, 62109187049, 9166824, 62109166824
• Fuel type: Diesel
• Gearbox type: Manual
• Category: Instrument Clusters

Purpose and compatibility

The presented instrument cluster is designed for the BMW 1 Series E81/E87 generation post-facelift (LCI) in the 120d version with the N47 diesel engine. The design of the speedometer is adapted to work with a diesel powertrain, which means correct tachometer scaling, appropriate engine system warning lights, and alignment with the characteristics of the N47 unit.

The panel is intended for vehicles equipped with a manual transmission, ensuring that the information display logic and the set of warning lights correspond to the configuration of cars with a manual gearbox. Using an original instrument cluster minimizes the risk of communication issues via the CAN bus and ensures proper cooperation with comfort modules and engine control units.

Instrument cluster functionality

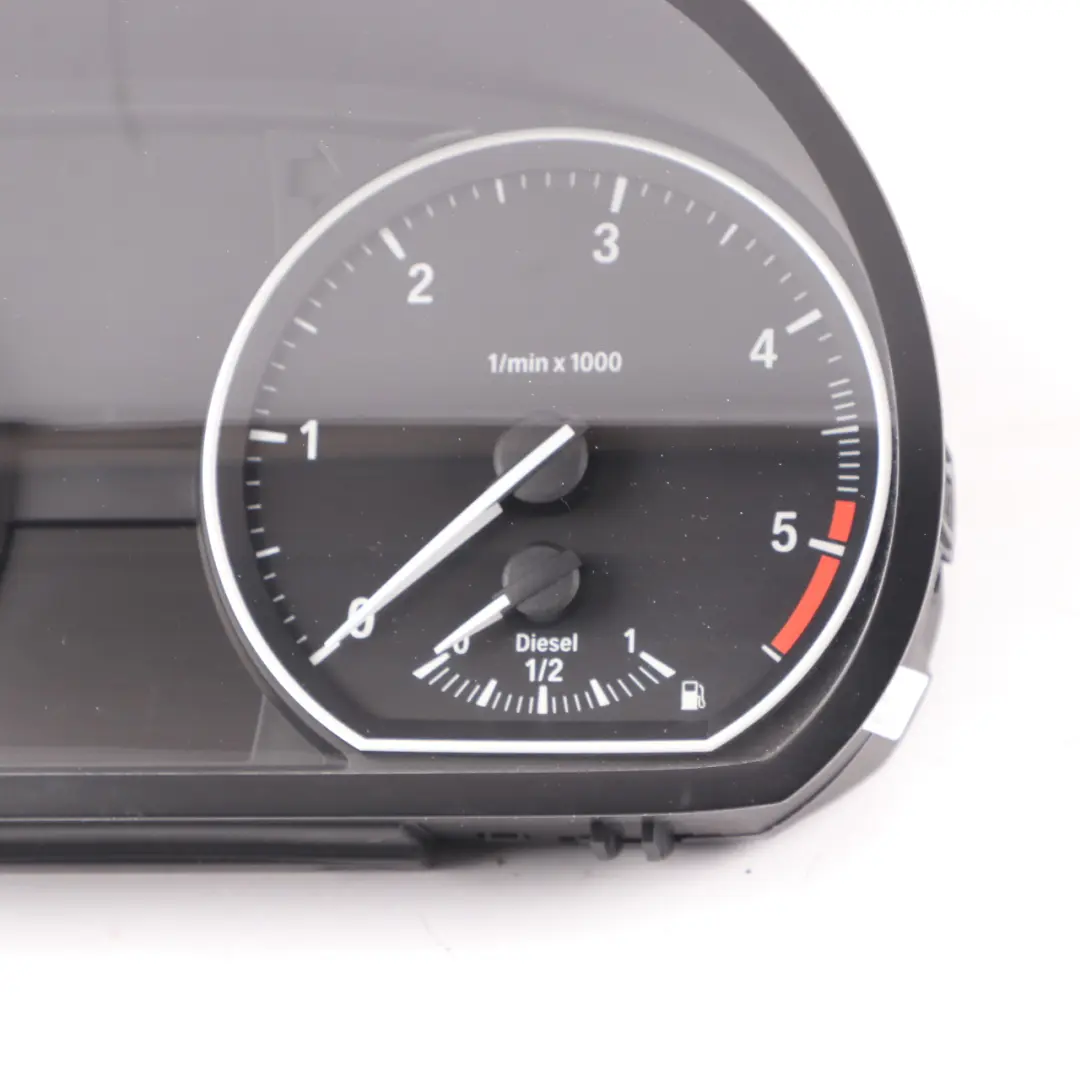

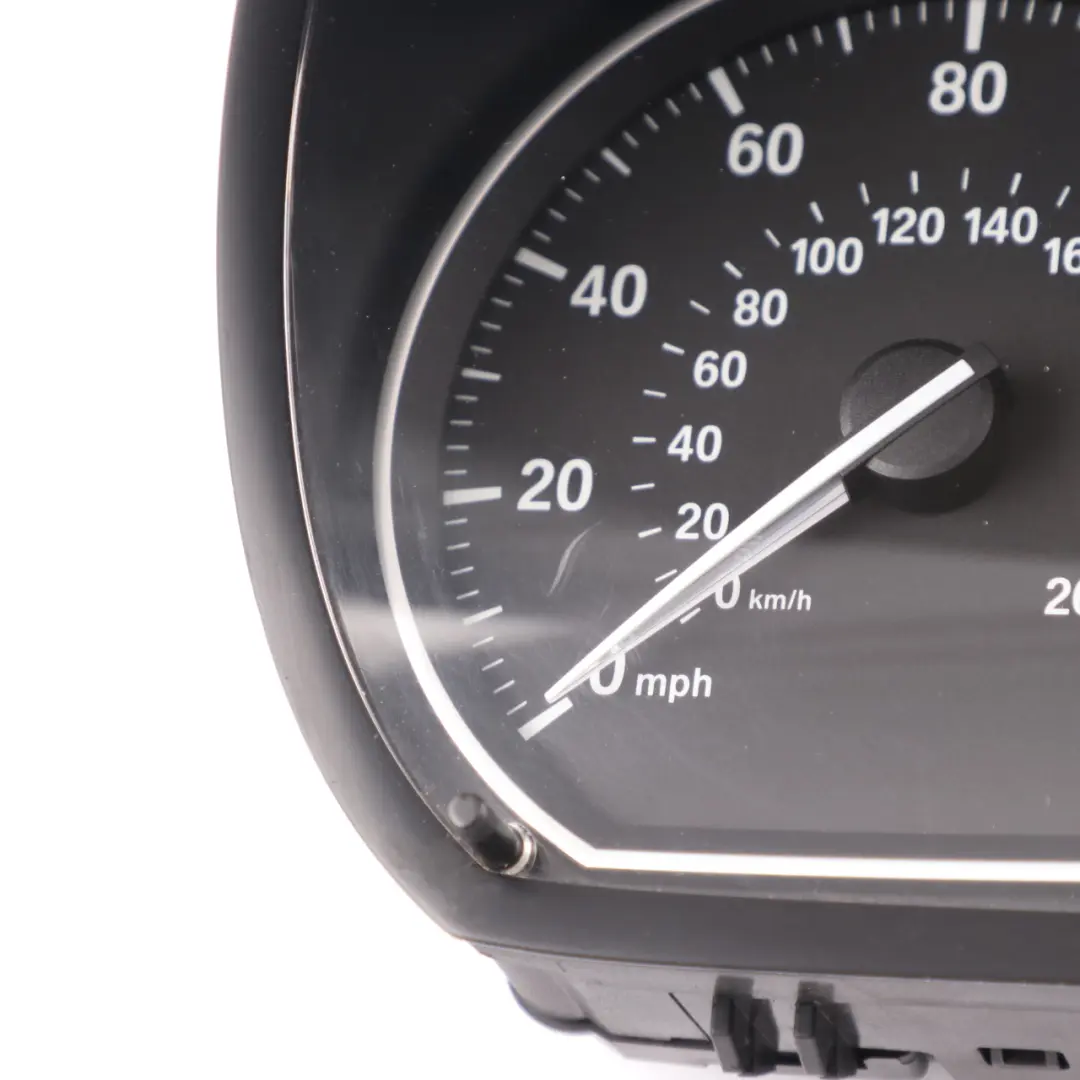

As an item in the Instrument Clusters category, the speedometer is responsible for presenting key vehicle operating data. This includes, among others, speed, engine RPM, fuel level, and a set of warning and information lights essential for the safe operation of a diesel-powered car.

The original BMW design ensures:

• consistent graphic appearance and backlighting matched to the interior of E81/E87 LCI models,
• correct handling of system messages associated with the N47 unit,
• integration with factory BMW diagnostic and service systems.

Condition and benefits of using a pre-owned part

The product is in the category of used BMW instrument clusters, which allows for an economical replacement of a damaged or faulty speedometer while maintaining the manufacturer's original specifications. Choosing an OEM component from the secondary market is a solution that often provides better compatibility than non-original replacements, especially in the area of vehicle electronics.

Using a factory instrument panel limits the need for installation modifications, and the assembly process usually boils down to standard workshop procedures involving the removal of covers and connecting the plugs. This is a practical solution both for workshops specializing in the BMW brand and for users planning a replacement at a specialized service center.

Why choose an original BMW instrument cluster

The original instrument cluster dedicated to the BMW 120d with the N47 diesel engine and manual transmission ensures high compatibility with the vehicle's factory electronics. Software and hardware consistency translates into stable operation of onboard systems, correct message display, and predictable behavior of all gauges.

For users who want to keep their car in a configuration consistent with factory documentation, using an original speedometer is the preferred solution in terms of technical and service aspects. This is particularly important in the case of modern diesel units, where correct communication between controllers has a direct impact on diagnostics and service maintenance.

If you are planning a comprehensive repair or upgrade of the cockpit area in your BMW and need other components from the same group, such as instrument panels, display modules, or additional auxiliary gauges, check out the available parts in the BMW Instrument Clusters category.
